GENERAL WARNINGS
READ and UNDERSTAND this manual completely before using the Lawn
Sweeper.
The operator must read and understand all safety and warning information,
operating instructions, maintenance and storage instructions before operating this
equipment. Failure to properly operate and maintain the lawn sweeper could
result in serious injury to the operator or bystanders.
Operation Warnings
·Do not at any time carry passengers, sit or stand on the lawn sweeper.
·Do not allow children to play on, stand upon or climb on the lawn sweeper.
·Always inspect the sweeper before using it to ensure it is in good working
condition.
·Replace or repair damaged or worn parts immediately.
·Always check and tighten the hardware and assembled parts before operation.
·Never attach the hopper rope to any part of your body or clothing.
·Never hold onto the rope while towing the sweeper.
·Only attach the rope to the tow vehicle to keep it away from the wheels and
moving parts.
·Avoid large holes and ditches when operating the equipment.
·Be careful when operating the sweeper on steep grades (hills).
·Always operate up and down the slope, never across the face of the slope.
·Always operate at reduced speed in rough terrain, along creeks, ditches and on
hillsides.
·Do not operate close to creeks, ditches and public highways.
·To avoid personal injury and/or equipment damage, DO NOT EXCEED 5MPH.
·Always use caution when loading and unloading the hopper.
·Only tow with recommended vehicles (Lawn/Garden Tractors and ATVs).
·Always refer to the vehicle owner’s manual for proper towing.
·The sweeper is not designed to be used with zero-turn mowers.
·Always secure and lock the sweeper to the vehicle hitch before operating.

4
Crush and Cut Hazards
·Always keep hands and feet clear from moving parts while operating the
equipment.
·Always clear and keep the work area clean when operating.
·Always wear safety gear, eye protection, gloves and work boots when operating
the sweeper.
WARNING
The warnings, cautions, and instructions outlined in this instruction manual cannot
cover all possible conditions or situations that may occur. It must be understood
by the operator that common sense and caution are factors that cannot be built
into this product and must be supplied by the operator.
PROP 65 WARNING
This product can expose you to chemicals including lead and lead compounds
which are known to the state of California to cause cancer and birth defects, or
other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Assembly Is Required
This product requires assembly before use. See the “Assembly” section for
instructions. Because of the weight and/or size of the lawn sweeper, it is
recommended that another adult be present to assist with the assembly.
INSPECT ALL COMPONENTS closely upon receipt to make sure no
components are missing or damaged.

5
Hazard Signal Word Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in property damage.
ABOUT YOUR TOW-BEHIND LAWN SWEEPER
This heavy-duty tow-behind lawn sweeper makes yard work a breeze.
The steel and nylon construction is durable and lightweight, making it wear- and
rust-resistant, easy to tow, and easy to clean. The extra large sweeping span
makes the job easy and saves time when cleaning different types of debris from
grass clippings, twigs, and leaves, to paper and much more. The tow-behind
sweeper features a one-handed lever to adjust the brush height. It can be stored
in a shed or garage with minimal space. The large hopper makes loading and
unloading fast and convenient.
Technical specifications on the lawn sweeper are provided in the “Specifications”
section of this manual.

6

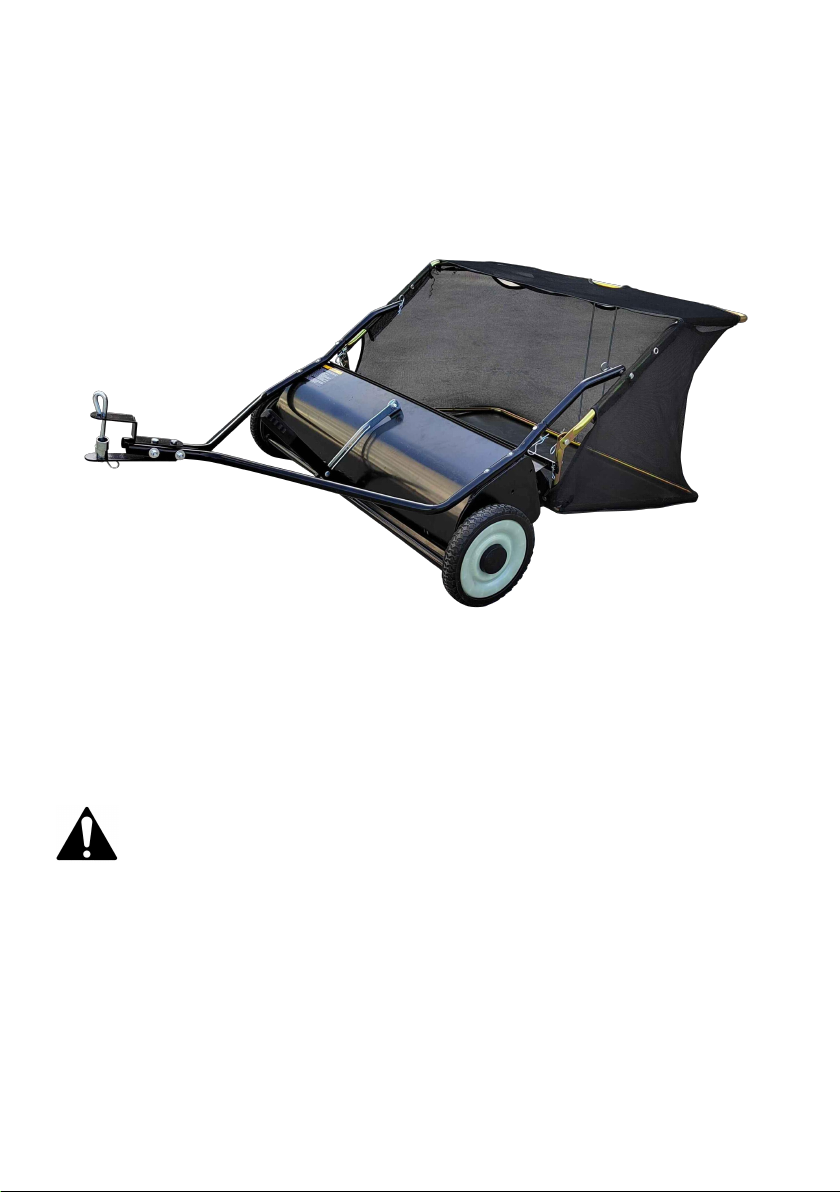

Controls and Features Identification
Read this owner’s manual before operating the equipment. Familiarize yourself
with the location and function of the controls and features. Save this manual for
future reference.
1) Hand Lever – Adjust the Brush Height.
2) Nylon Hopper – Holds all types of Debris.
3) Tires / Wheel – Semi pneumatic all-terrain tires.
4) Hitch – Pin-type design used only with approved vehicles.
CAUTION
Read and follow all instructions for assembly and operation. Failure to properly
assemble this equipment could result in serious injury to the user or bystanders,
or cause equipment damage.
LAWN SWEEPER COMPONENT PARTS AND ASSEMBLY
Before assembling the sweeper according to steps 1 to 8, take all parts out of the
shipping crate and inspect components to ensure there are no missing pieces.

7
Accessory Details & Part Details

8

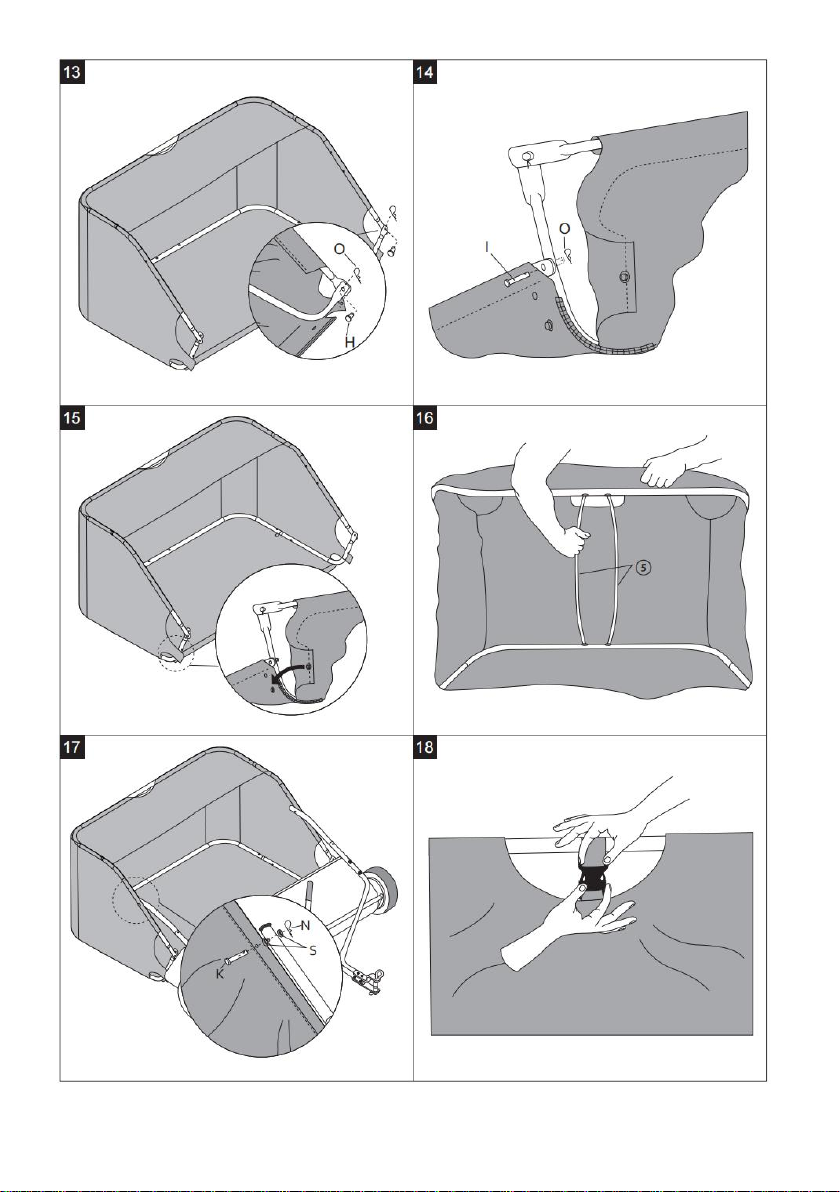

Assembly Instructions
Hitch Tube Assemble Hitch Bracket Assemble-1
Hitch Bracket Assemble-2 Tighten Now
Bag Arm Tube Assemble Handle Assemble

9
Bag Frame Strap Assemble Hopper Tube Assemble-1
Hopper Tube Assemble-2 Hopper Tube Assemble-3
Hopper Tube Assemble-4 Hopper Tube Assemble-5

10
Hopper Tube Assemble-6 Hopper Tube Assemble-7
Secure the Clasp Hopper Support Rod Assemble
Body & Hopper Assemble Fixed the Rear Hopper Tubes

11
Direction for use
Attaching the Sweeper to Tow Vehicle
321
Lubricate the brush axle
Clean and Grease Drive gears Replace the Brushes
Wheel Gear and Pawl
Maintenance

12

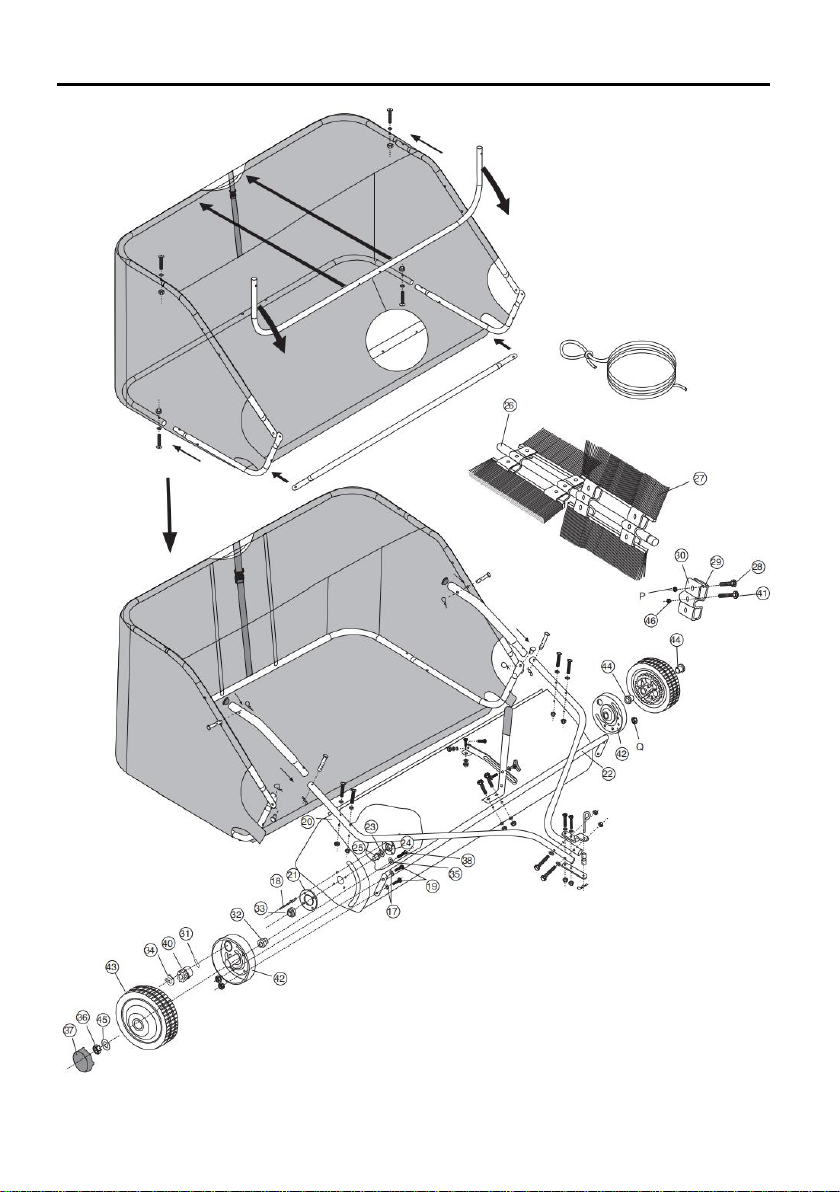

Parts Drawing

13
Parts List

14
Safety
Read and understand the vehicle manual and these instructions before using this
sweeper.
Always instruct other users before they operate the sweeper.
Symbols
Do not tighten yet
Tighten now
Oil
Grease
Operation
Risk of Injury
Never attach the rope to your body. The rope may wrap around the brushes or
other rotating parts and injure you. Only attach the rope to the tow vehicle. Do not
touch the rope while the vehicle is in motion.
- Never allow children to handle the sweeper.
- Never allow anyone to ride on the sweeper.
- Always wear footwear when working with the sweeper.
- Never operate the sweeper if foreign matter is stuck in the blades. Turn off the
vehicle engine, remove the foreign matter and check for damage. If the sweeper
is damaged,repair it before continuing to operate.

15
Risk of Overturning
Check the loading capacity of the towing vehicle and only sweep appropriate
amounts of grass and leaves into the grass bag.
On starting off, make sure that the sweeper retains its balance and does not
overturn.
Do not work on slopes greater than 10°.
Do not exceed 6 mph (10 km/h).
Drive slowly and carefully, especially when turning and on uneven ground
Note: The driving and braking characteristics depend on the towed load.
Risk of Fire
Always keep the sweeper away from fire. Excessive heat can damage the
brushes and grass bag and could cause the bag to burn.
Always empty the grass bag before storing the sweeper; spontaneous
combustion may occur.
Attaching the Sweeper to Tow Vehicle (See Figure )
Park the tow vehicle and sweeper on flat level ground.
Set the sweeper height adjustment handle to middle of its adjustment range.
Attach the sweeper so that the grass bag is as parallel to the ground as possible
and that the underside clears the ground between 5 in. and 7 in.(12.7 cm and 17.8
cm).
Do not exceed 6 mph (10 km/h).
Setting the Brush Height
Loosen the adjustment bolt.
Push down on the height adjustment lever to raise the brushes.
Set brushes to penetrate the grass to a depth of 1/2 in. (13 mm).
Tighten the adjustment bolt.Emptying the Grass Bag
Stop the towing vehicle and turn off the engine.
Tip the grass bag from the towing vehicle by pulling the rope.
19

16
Maintenance
Lubricate the wheel bearings once during the season. Remove hub cap and apply
a few drops of light oil.
Lubricate the brush axle at the beginning and end of the season (See Figure ).
Clean and grease drive gears every two years (See Figure ).Remove hubcap
(1), lock nut (2), flat washer (3) and wheel.
Service
Replace the Brushes
Remove grass bag.Only loosen bolt and nut on the single brush retainers(1). Do
not loosen double brush retainer(2).
Note which side of brush the bristles overlap (3). Slide brush out.
Install new brush with bristles overlap(3) as before.
Wheel Gear and Pawl (See Figure 23)
Do not remove both wheels at the same time; parts are not interchangeable.
Remove retaining ring and washer from ratchet gear (1) shaft.
Remove drive pin (2) and ratchet gear. Clean shaft and gear.
Install ratchet gear and drive pin. Pin must move freely in shaft.
Lightly grease shaft and fill ratchet gear with grease.
Lightly grease brush axle and gear teeth on wheel. Install the wheel.
Note: Brushes should only move during forward rotation. lf brushes rotate in both
directions, drive pin is jamming the ratchet gear. Disassemble and make sure
drive pin moves freely.
0
2
21
( See Figure 22)

17
Specifications
Frame Construction.....................................................................................Steel
Hopper Construction.........................................................................Nylon Mesh
Hitch Type............................................................................................ Pin Style
Wheel Type.............................................................................. Semi-Pneumatic
44’’ Lawn Sweeper Wheel Size...................................................................10.5”

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122
Australia
Imported to USA: Sanven Technology Ltd.
Address: Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
EU Importer: SHUNSHUN GmbH
Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany
Made In China

Technical Support and E-Warranty Certificate
www.vevor.com/support
