VEVOR TF15 Parts list manual

Technical Support and E-Warranty Certificate www.vevor.com/support
HYDRAULIC LIFT TABLE
ASSEMBLY & OPERATION
INSTRUCTIONS
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

MODEL:TF15/TF23 TF50 TFD15 TFD35 TFD80
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
HYDRAULIC LIFT TABLE

Note: Owner and Operator MUST read and understand this operating
instructions before use this table truck
SPECIFICATIONS
Model
TF15/TF23
TF50
TFD15
TFD35
TFD80
Capacity
150Kg/230Kg
500Kg
150Kg
350Kg
800Kg
Maximum
Height
720mm
900mm
1270mm
1530mm
1500mm
Minimum
Height
220mm
285mm
275mm
350mm
500mm
Table
Dimension
700x450mm
815x505mm
700x450mm
905x510mm
1200x600mm
Construction
Overall Steel Construction
Wheels
Hard Rubber with Ball Berings.
Remark: Specifications will be changed without prior notice.
SAVE THIS MANUAL
1.Read and understand the instruction manual. Failure to comply with the
instructions and warnings in this manual may result in personal injury or
property damage.
2.Do not load hydraulic table cart beyond its rated capacity.
3.Do not allow people to sit or ride on the hydraulic table cart.
4.Secure load before raising or lowering hydraulic table cart.
5.Do not transport loads with hydraulic table cart in a raised position.
6.Use only on smooth surfaces.
7.Keep hands and feet clear when raising or lowering lift.
8.Open release valve knob slowly to allow load to descend in a controlled

manner.
9.Be sure to wear ANSI approved safety gloves when using tools or
equipment.
10.Release load before service or maintenance.
11.Avoid off-center loads. Do not operate if workpiece tilts or binds during
compression.
12.STOP and release compression if you suspect imminent structural
failure. If safe, inspect thoroughly and reposition before proceeding.
13.Keep bystanders out of work area
14.This product is not a toy. Keep it out of reach of children.
The Warnings,Cautions,and Instructions discussed in this instruction
manual cannot cover all possible conditions and situations that may
occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product,but must
be supplied by the operator.
ASSEMBLY

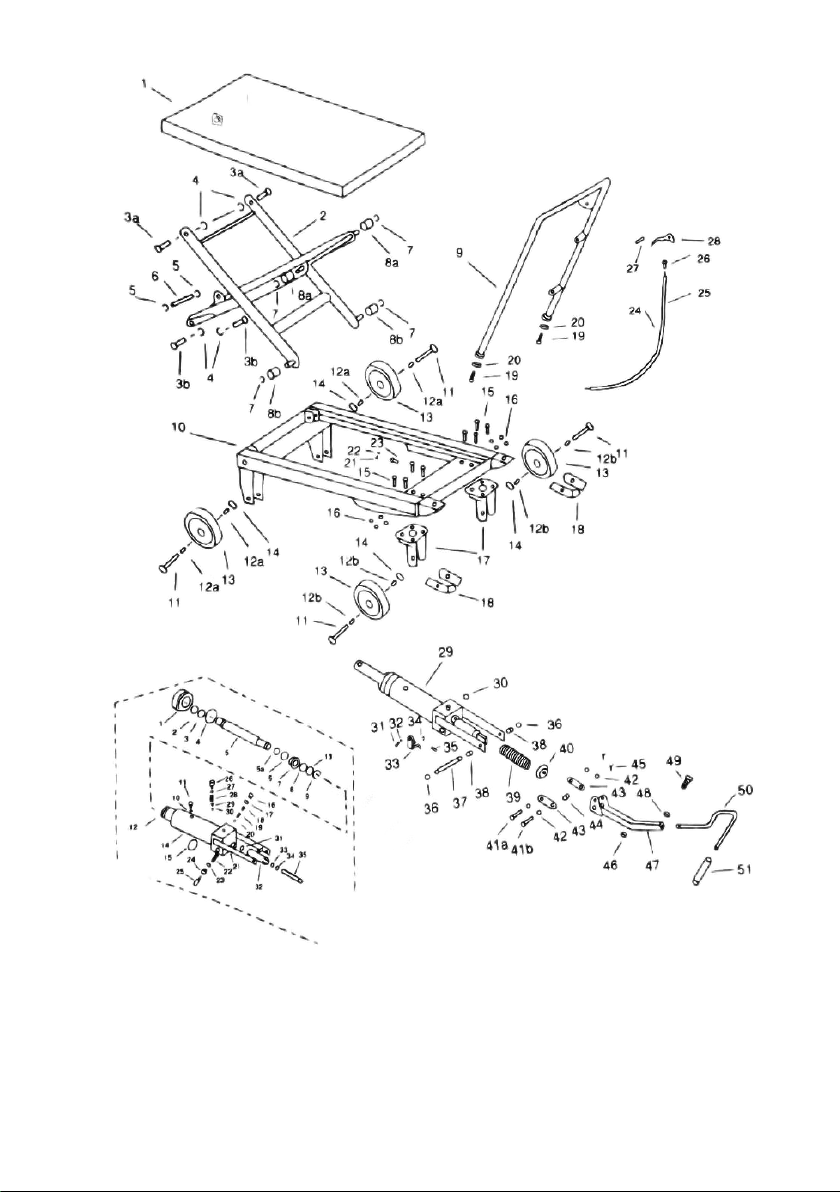

Refer to the Parts Diagram and Parts List on this booklet.
1.Attach the handle(9) to the frame(10) with two flat washers(20) and two
bolts(19).
2.Attach the foot lever(50) to the lift lever(47) with bolt(49) and lock
washer(48).
3.For TF50, The table and the rest part is packed separately. Attach the
table (1) to the link assembly(2) with two link shafts(3a) and two c-clip(4).

OPERATION
1.Close the valve knob by unclenching the control handle until it stops.
2.Table is raised by activating the foot pedal.
3.To lower the table, slowly draw the control handle.
4.Before loading, and while stationary, lock the caster brake.
MAINTENANCE
1. Lubricate each friction point monthly with a good quality grease.
2. Check the free movement and wear of wheels. Replace if needed.
3. Check caster brake function. It should lock firmly and release
completely.
4. Check for oil leakage from hydraulic cylinder. The hydraulic cylinder is
not user serviceable.
PLEASE READ THE FOLLOWING CAREFULLY
The manufacture and/or distributor has provided the parts diagram in this
manual as reference tool only. Neither the manufacture nor distributor
makes any representation or warranty of any kind to the buyer that he or
she is qualified to make any repairs to the product or that he or she is
qualified to replace any parts of the product. In fact, the manufacture
and/or distributor expressly states that all repairs and parts replacement
should be.undertaken by certified and licensed technicians and not by the
buyer. The buyer assumes all risk and liability arising out of his or her
repairs to the original product or replacement parts thereto. Or arising out
his or her installation of replacement parts thereto.

TROUBLE SHOOTING
(NOTE: DO NOT ATTEMPT TO REPAIR THE TABLE TRUCK
UNLESS YOU ARE TRAINED AND AUTHORIZED TO DO SO.)
Trouble
Clause
Fixing Methods
The table can not be
lifted up ,while activate
the foot pedal.
-The set screw is not in correct
position ,the pump valve is opened.
-The hydraulic oil has impurities.
-The hydraulic oil is not enough.
-Air come into the hydraulic oil.
-Adjust the set screw(26) up or
the set screw(23）forward.
-Change the oil.
-Fill the oil. Remove the long
bolt(11). Add enough oil. Then
tighten the screws.
-Banish the air(pump air
breather(11)).
The table can not be
lowered quickly ,while
release the valve quickly.
-The set screw is not in correct
position ,the pump valve is not
opened at all.
-The hydraulic oil has impurities.
-Air come into the hydraulic oil.
-Adjust the set screw(26)down or
the set screw(23) backward.
-Change the oil.
-Banish the air(pump air
breather(11)).
Leaks
-Sealing parts worn or damaged.
-Some parts cracked or worn into
small.
-Replace with the new one.
-Replace with the new one.
The table descends
without the release valve
works.
-The set screw is not in correct
position ,the pump valve is not
closed at all.
-The impurities in the oil cause the
valve to be unable to closed tight.
-Air come into the hydraulic oil.
-Some parts of hydraulic system is
cracked or bored.
-Sealing parts worn or damaged.
-Adjust the set screw(26) up or
the set screw(23) forward.
-Change the oil.
-Banish the air(pump air
breather(11)).
-Inspect and replace the waste
parts with the new one.
-Replace with the new one.

Trouble
Clause
Fixing Methods
The table can not be
lowered.
-The piston rod(pump (5)) or link
assembly(2) is deformed resulting
from partial loading slanting to one
side or overloading.
-The table was kept n the high
position for long time with piston rod
bared to arise in rusting and
jamming of the rod.
-The hydraulic system as jammed.
-Replace the piston rod(pump (5))
or link assembly(2).
-Keeping the table in the lowest
position if not using.
-Inspect the hydraulic system and
lobby or replace the relative part.
The table truck can not
lift rate weight.
-Relief spring(pump(28)) is invalid
for a good while.
-Twist relief spring(pump(26))
clockwise a little.

HYDRAULIC LIFT TABLE PARTS
NO.
Descrlption
Q'ty
NO.
Descrlptlon
Q'ty
1
Table
1
43
Slide Lever
2
2
Link Assembly
1
44
Bushing
1
3a
Link Shaft
2
45
Split Pin
2
3b
Link Shaft
2
46
Rubber Bumper
1
4
C-Clip
4
47
Lift Lever
1
5
C-Clip
2
48
Spring Lock Washer
1
6
Cylinder Shaft
1
49
Bolt
1
7
C-Clip
4
50
Foot Lever
1
8a
Boller Guide
2
51
Foot Lever Pad
1
8b
Roller Guide
2
9
Handle
1
(1)
Top Nut
1
10
Frame
1
(2)
Dust-Ring
1
11
Long Bolt
4
(3)
O-Ring
1
12a
Wheel Bushing
4
(4)
Oil Seal
1
12b
Wheel Bushing
4
(5)
Piston Rod
1
13
Wheel
4
(5a)
O-Ring
1
14
Nut
4
(6)
O-Ring
1
15
Bolt
8
(7)
Piston Bushing
1
16
Nut
8
(8)
Y-Ring
1
17
Wheel Holder
2
(9)
C-Clip
1
18
Stop Support
2
(10)
O-Ring
1
19
Bolt
2
(11)
Air Breather
1
20
Flat Washer
2
(12)
Inner Oil Cylinder
1
21
Lock Thread Bolt
1
(13)
Oil Seal
1
22
Lock Thread Nut
1
(14)
Outer Oil Cylinder
1
23
Set Screw
1
(15)
Oil Seal
1
24
Thread
1
(16)
Hermetic Nut
1
25
Thread Cover
1
(17)
O-Ring
1
26
Set Screw
1
(18)
Tower Spring
1
27
Spring Pin
1
(19)
Valve
1

NO.
Descrlption
Q'ty
NO.
Descrlptlon
Q'ty
28
Control Handle
1
(20)
Steel Ball
1
29
Cylinder Assembly
1
(21)
Cylinder Assembly
1.
30
Screw Cover
1
(22)
Spring
1
31
Bolt
1
(23)
O-Ring
1
32
Nut
.1
(24)
Hermetic Copper Nut
1
33
Shove Pin Seat
1
(25)
Shove Pin
1
34
C-Clip
1
(26)
Relief Plug
1
35
Lock Pin
1
(27)
O-Ring
2
36
C-Clip
2
(28)
Relief Spring
1
37
Cylinder Lock Pin
1
(29)
Spring Cover
1
38
Bushing
2
(30)
Steel Ball
1
39
Spring
1
(31)
Copper Seal
1
40
Spring Cover
1
(32)
Pump Cylinder
1
41a
Lock Pin
1
(33)
Y-Ring
1
41b
Lock Pin
1
(34)
Dust-Ring
1
42
.Washer
4
(35)
Pump Piston
1

MADE IN CHINA
