INTRODUCTION
Thank you for choosing our vacuum pump and chamber kit. Our vacuum
pump and chamber kit is an essential tool kit used in various applications,
including degassing casting materials such as silicone, resin, gypsum, and
impregnation of wood and other porous materials. This product is designed
to create a low-pressure environment by the suction of contained gases by
the vacuum pump inside a sealed vacuum chamber.
The vacuum chamber in this kit is a specially designed sealed tank that
can create a low-pressure environment to facilitate the degassing and
impregnation processes. With this kit, you can achieve high-quality casting
or impregnation results, ensuring that your materials are free of bubbles
and other impurities.
This vacuum pump and chamber kit is designed to operate under specific
conditions. It can be operated in ambient temperatures ranging between
+5°C and +40°C and air humidity up to 80% at 20°C. These operating
conditions ensure that the equipment performs optimally and guarantees
the desired results.
In the following sections of this manual, you will find detailed instructions
on how to set up, operate, and maintain your vacuum pump and chamber
kit, ensuring that you can achieve the best possible results for your
applications.

- 3 -
SAFETY PRECAUTIONS
The warnings, precautions, and instructions provided in this manual cannot
cover all possible situations that may occur. It is the operator's
responsibility to exercise common sense and caution while using the
equipment.
Safety guidelines for handling your vacuum pump
Electrical shock hazard: Do not touch the vacuum pump with wet
hands or while standing on a wet surface. Always use the vacuum
pump in a dry environment and plug it into a properly grounded outlet.
Fire hazard: Do not use the vacuum pump near flammable or
combustible materials. Keep the pump away from sources of heat or
sparks, such as flames, cigarettes, or electrical appliances.
Explosion hazard: Do not use the vacuum pump with gases that are
flammable, explosive, or poisonous. Always check the safety data
sheet (SDS) of the gas before using it with the vacuum pump.
Additionally, do not exceed the specified pressure range for the pump.
Corrosion hazard: Do not use the vacuum pump with gases that can
corrode metals or cause chemical reactions. Check the compatibility of
the gas with the materials of the pump and its accessories. Always use
protective gloves and eyewear when handling corrosive materials.
Never operate the pump without oil, as this can damage the pump and
create potential hazards.
The temperature of the gas being pumped should not exceed 80°C,
and the environmental temperature should be between 5°C and 60°C
to prevent damage to the pump and ensure safe operation.
When unplugging the pump, always pull the plug. Do not unplug the
unit by pulling on the wire, as this can damage the cord and create
potential hazards.
Do not use a damaged plug or outlet, as this can cause electrical
shock or fire.

- 4 -
Safety guidelines for using the vacuum pump and chamber kit
Pressure and Explosion Risk:
1. Do not pump the vacuum chamber or increase pressure inside the
tank higher than atmospheric pressure, as this can lead to an
explosion.
Weight and Lid Placement:
2. Do not put any additional weight on the lid of the chamber.
3. The lid must be properly placed on the tank.
4. The gasket must not extend beyond the outline of the lid, as this can
lead to a sudden unsealing of the chamber.
Damage and Maintenance:
5. Exclude any lid, gasket, or tank from use if it has any cracking, scratch,
deformation, or other mechanical damage.
6. Perform servicing and maintenance of the vacuum kit periodically.
7. Check the technical condition of the vacuum set before each use.
Environmental and Chemical Safety:
8. Keep hard or heavy objects away from the vacuum chamber.
9. Do not place live organisms in vacuum tanks.
10. Do not subject any parts of the human body to under-pressure.
11. Avoid excessive pollution of the working environment by dust, powders,
small solids, or water, as heavy contamination can damage the pump.
12. Ensure that the chemicals used do not damage the vacuum set.
Operating Safety:
13. Do not directly power off the pump before closing the valve connecting
to the chamber. This may damage the pump or cause oil backflow
spray.
14. Do not assemble or disassemble individual parts of the vacuum set
while the vacuum pump is operating or if the vacuum setting is under
vacuum.

- 5 -
15. Never put fingers or other objects inside the pump impeller cover.
Keep your hair, clothing, gloves, and other objects that could get into
the impeller away from moving parts.
16. Do not expose the device to rain or excessive moisture.
17. Do not leave the vacuum set unattended during operation.
18. Keep children, people with disabilities, and animals away from the
operating area of the device.
19. Be foreseeable, watch what you are doing, and be reasonable when
using the device.

- 6 -

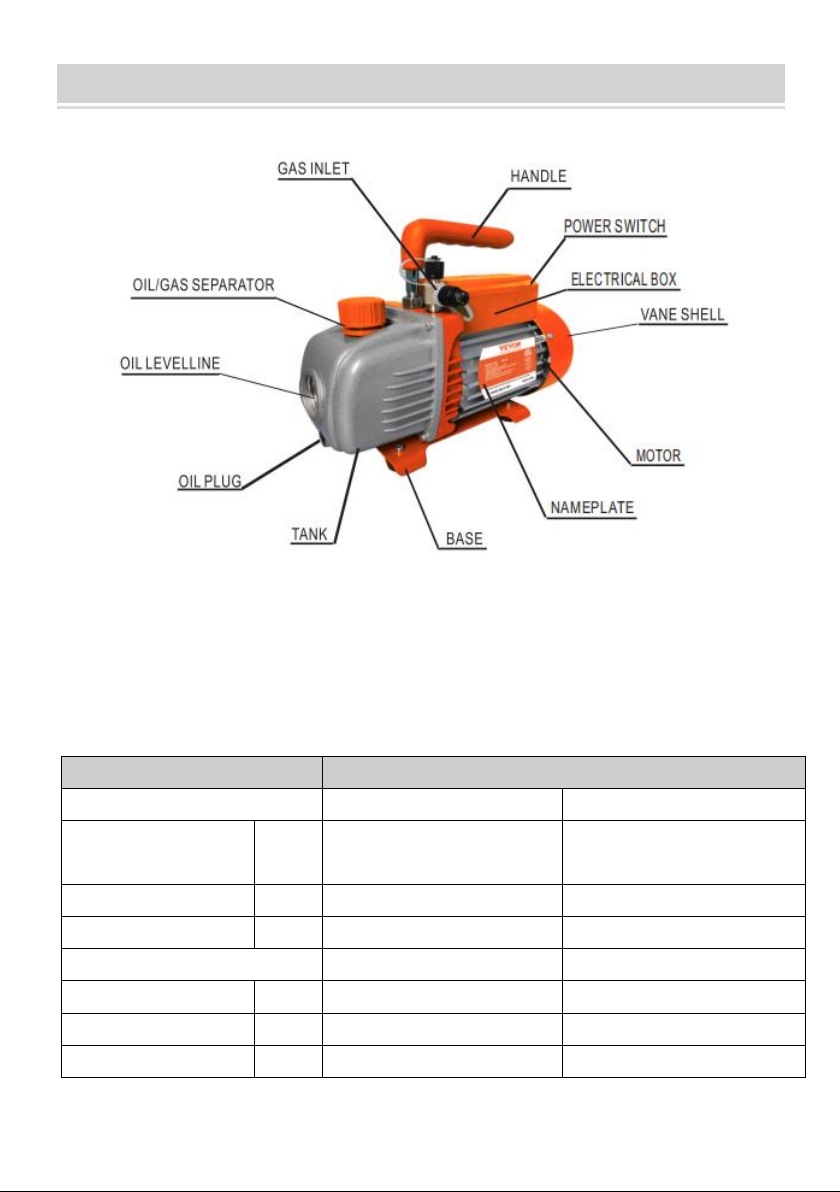

GETTING STARTED
Vacuum pump and Chamber Kit package contents
Model
KQ-1K
Voltage
120V/60Hz
220-240V/50Hz
Free Air
Displacement
CFM
3.5
3.5
Ultimate Vacuum
Pa
8
8
Motor
HP
1/5
1/5
Intake Fitting
1/4"SAE male;
1/4"SAE male;
Oil Capacity
ml
250
250
Dimensions
mm
290*120*220
290*120*220
Net Weight
Kg
5.5
5.4

- 7 -
Vacuum Gauge
Charging Hose
Oil
Manual
Denoiser
Installation tools
Silicone Pad
Vacuum Pump
Vacuum Chamber
Toughened Glass
Bucket Lid

- 8 -
Package Content List
Set Name
3.5 CFM Vacuum Pump & 3
Gallon Vacuum Chamber Set
3.5CFM Vacuum Pump & 5 Gallon
Vacuum Chamber Set
Packing
List
Vacuum Pumpx1
3 Gallon Vacuum Chamberx1
Charging Hosex1
Toughened Glass Bucket Lidx1
Vacuum Gaugex1
Denoiserx2
Silicone Padx1
Vacuum Pump Oilx1
Manualx1
Vacuum Pumpx1
5 Gallon Vacuum Chamberx1
Charging Hosex1
Toughened Glass Bucket Lidx1
Vacuum Gaugex1
Denoiserx2
Silicone Padx1
Vacuum Pump Oilx1
Manualx1

- 9 -
OPERATION GUIDE FOR USING VACUUM PUMP AND CHAMBER KIT

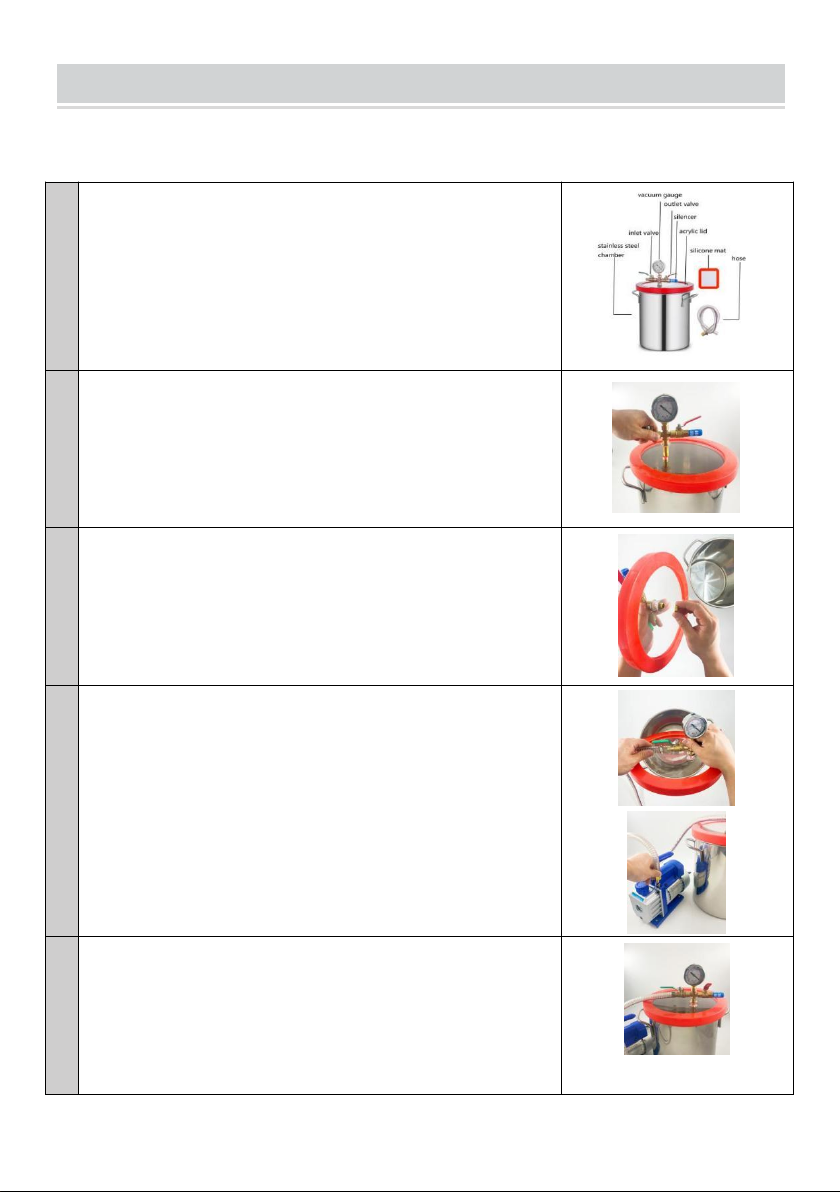

Installation of vacuum pump and chamber kit
1
Check the parts: Before starting the installation
process, make sure you have all the necessary
parts to install the chamber lid and connect it to the
vacuum pump.
2
Insert the valve: Take the tempered glass lid and
locate the hole where the valve needs to be
inserted. Insert the valve into the hole, making sure
it fits snugly and is secure.
3
Install the washer and nut: Place the washer onto
the valve, and then screw the nut onto the valve
threads. Tighten the nut by hand until it is snug.
4
Connect the hose: Take one end of the hose and
connect it to the valve on the glass lid. Make sure
the connection is tight and secure. Then, take the
other end of the hose and connect it to the inlet port
of the vacuum pump. Again, make sure the
connection is tight and secure.
5
Turn off the outlet valve as indicated, turn on the
inlet valve, and the chamber is ready for use.

- 10 -
Pulling vacuum and vacuum treatment
1. Prepare the Item for treatment: Before beginning the procedure,
prepare the item by stabilizing it or removing any excess moisture,
dust, or debris.
2. Place the Item in the Chamber: Put the item to be treated in the
vacuum chamber, ensuring that it is positioned in the center and
doesn't touch the sides or lid. It is recommended to place a silicone
mat at the bottom when degassing to prevent pouring liquid from
spilling.
3. Seal the Chamber: Make sure that the lid is properly aligned with the
vacuum chamber and that the gasket is clean and free from debris.
4. Start the Vacuum Pump: Turn on the vacuum pump and set the
desired vacuum pressure based on your requirements.
5. Monitor the Vacuum Pressure: Keep an eye on the vacuum pressure
throughout the process. If it drops, check for leaks in the chamber or
hoses.
6. Stop the Vacuum Pump: When the stabilization process is complete,
turn off the vacuum pump. Wait for the vacuum pressure to return to
atmospheric pressure before opening the chamber.
7. If multiple cycles of vacuuming are needed, slowly open the inlet valve
to let the chamber return to atmospheric pressure, then close the valve
and repeat the process.
8. Remove the Item: After the vacuum pressure returns to atmospheric
pressure, carefully remove the item from the vacuum chamber.
9. Disconnect the Vacuum Pump: Disconnect the vacuum pump from the
chamber and hoses and properly store the equipment as per the
instructions provided in the user manual.
10. Clean the Chamber: After use, thoroughly clean the vacuum chamber
and hoses to ensure that they are free from debris and moisture.
Attention:
1. When placing the tempered glass lid, ensure that it is positioned
correctly without any deflection. If the lid is slightly inclined, the
vacuum chamber may not hold a vacuum, and the lid may be

- 11 -
sucked into the chamber with pressure.
2. If the pointer of the vacuum gauge is not in the null position or
cannot pull the vacuum to the maximum, open the black cover on
the gauge top and calibrate the pointer to normal.
3. After vacuuming, slowly turn on the outlet valve to prevent
damage to the vacuum gauge.
MAINTENANCE OF VACUUM PUMPE
Proper maintenance of the vacuum pump is essential to ensure its optimal
performance. Here are some maintenance guidelines:
Keep the pump clean and free from foreign matter.
Keep the oil filled to the oil level, and never let the pump run without
oil.
Keep the oil clean. If the oil becomes dirty, muddy, or water or other
volatile substances get in, it will affect the performance of the pump,
and the oil should be replaced. To replace the oil, start the pump and
run it for about 30 minutes to make the oil thin. Then stop the pump
and drain the oil from the oil drain plug. Open the gas inlet and run the
pump for 1-2 minutes while adding a small quantity of clean oil to the
gas inlet. This is to replace the residual oil from the inside of the pump.
After ensuring that the pump is clean, put the drain plug back in and fill
the clean pump oil from the gas inlet to the oil level.
To store the pump when not in use for long periods of time, cover the
oil cap and exhaust cap (if applicable) and store it in a dry place.
Repair of the pump should only be done by a qualified service
technician.

- 12 -
TROUBLESHOOTING GUIDE
Problem
Possible Cause
Correction
Low Degree Of Vacuum
1.Insufficient oil
1.Add oil up to the oil level line
2.Dirty oil
2.Replace the oil
3.Oil intake is blocked
3.Clean the oil intake or filter
4.Hose or gas inlet is clogged
4.Check the connecting pipes
5.Pump is unsuitable for the
application
5.Get a suitable pump for the application
Oil Leaks
1.Oil seal is damaged
1.Replace the oil seal
2.Housing gasket is loose or worn out
2.Replace the housing gasket
Oil Spray
1.Too much oil
1.Adjust the oil level to the recommended level
2.Gas inlet pressure is too high or too
much gas has been pumped
2.Use a bigger pump or reduce gas inlet
pressure
Starting Difficulty
1.Oil temperature is too low
1.Attempt to start the pump multiple times to
warm the oil
2.Electrical malfunction
2.Check and repair any electrical issues
3.Foreign matter is in the pump
3.Check and remove any foreign matter from the
pump system
Failure To Pull a Good
Vacuum
Leakage in vacuum gauge or
connections
Confirm leakage by monitoring the vacuum
gauge while applying vacuum pump oil at all
connections or suspected leak points. The
vacuum will improve briefly while the oil is
sealing the leak.

- 13 -
EXPLODED DIAGRAM OF THE PUMP
Made In China

Technical Support and E-Warranty Certificate
www.vevor.com/support
