Ref Center Tank Pump
USER MANUAL
MODEL:RTP15WS115V/RTP24WS115V
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:RTP15WS115V/RTP24WS115V
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
REF CENTER TANK
PUMP

- 2 -
PACKAGE CONTENTS
Item
Quantity
Ref Center Tank Pump
1
20 ft flexible Pipe
1
Instruction Manual
1
SPECIFICATIONS
Model
RTP15WS115V
RTP24WS115V
Voltage/Frequency
AC115V/60Hz
Current
1A
2.5A
Power
1/50HP
1/30HP
Flow
≥65GPH
≥100GPH
Lift
15ft
24ft
Inlet Diameter
1.0in
Outlet Diameter
0.4in
Water tank volume
1/2 gallon
INTRODUCTION
Your Ref Center Tank Pump is designed as an automatic condensate
removal pump for water dripping off an air conditioner evaporative coil. The
pump is controlled by a float/switch mechanism which turns the pump on
when approximately 2-1/4” of water collects in the tank and automatically
switches off when the tank drains to approximately 1-1/4”. The Ref center
pump you have purchased is of the highest quality workmanship and
material. It has been engineered to give you long and reliable service.
Refcenter pumps are carefully packaged, inspected, and tested to ensure
safe operation and delivery. When you receive your pump, examine it
carefully to determine that there are no broken or damaged parts that may
have occurred during shipment. If damage has occurred, make a notation
and notify the firm that you purchased the pump from. They will assist you

- 3 -
in replacement or repair if required.
READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO
INSTALL, OPERATE OR SERVICE THE REFCENTER PUMP. KNOW
THE PUMP APPLICATION, LIMITATIONS, AND POTENTIAL HAZARDS.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY
INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. INSTALLATION
AND CONNECTIONS ARE TO BE MADE BY A QUALIFIED PERSON.
SAFETY GUIDELINES
WARNING
DO NOT USE TO PUMP FLAMMABLE OR EXPLOSIVE FLUIDS SUCH
AS GASOLINE, FUEL OIL, KEROSENE, ETC. DO NOT USE IT IN
EXPLOSIVE ATMOSPHERES. THE PUMP SHOULD BE USED WITH
LIOUIDS COMPATIBLE WITH PUMP COMPONENT MATERIALS.
DO NOT HANDLE THE PUMP WITH WET HANDS OR WHEN STANDING
ON A WET OR DAMP SURFACE OR IN WATER. THIS PUMP IS
SUPPLIED WITH A GROUNDING CONDUCTOR AND/OR
GROUNDING-TYPE ATTACHMENT PLUG. TO REDUCE THE RISK OF
ELECTRICAL SHOCK, BE CERTAIN THAT IT IS CONNECTED TO A
PROPERLY GROUNDED GROUNDING-TYPE RECEPTACLE.
IN ANY INSTALLATIONS WHERE PROPERTY DAMAGE AND/OR
PERSONAL INJURY MIGHT RESULT FROM AN INOPERATIVE OF
LEAKING PUMP DUE TO POWER OUTAGES, DISCHARGE LINE
BLOCKAGE, OR ANY OTHER REASON, A BACKUP SYSTEM(S)
AND/OR ALARM SHOULD BE USED.
SUPPORT PUMP AND PIPING WHEN ASSEMBLING AND WHEN
INSTALLED. FAILURE TO DO SO MAY CAUSE PIPING TO BREAK,
PUMP TO FAIL, MOTOR BEARING FAILURES, ETC.

- 4 -
INSTALLATION
1.Before installing the pump, allow the air conditioner to cycle several
times, collecting condensate in a separate container to help flush any
residual oils that may remain in the system.

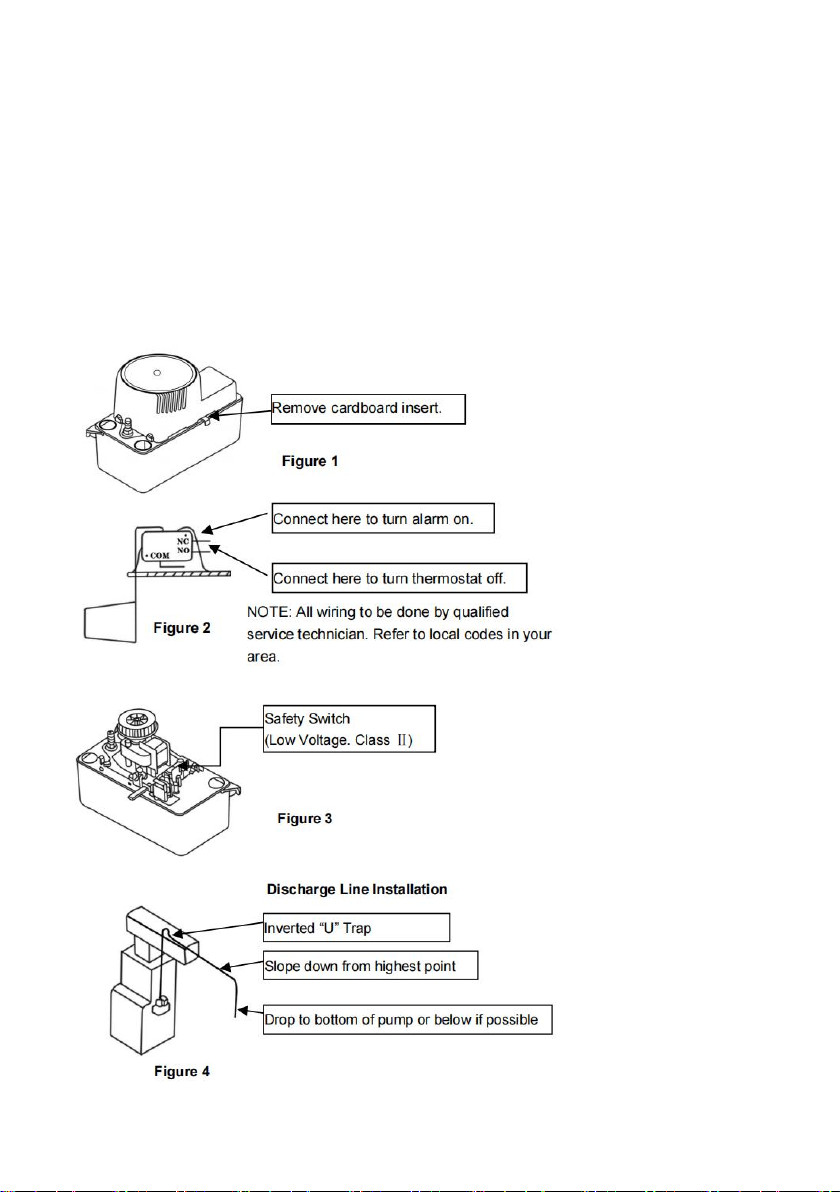

2.Carefully unpack the pump. Remove the cardboard packing from the
motor cover air slots. Carefully slide the packing away from the pump. This
packing is used to prevent switch movement during shipment (Figure 1).
3.Mounting the pump: the tank has two slots provided to mount the unit.
The slots are located on the ends of the tank (Figure 5). The unit should be
mounted either on the side of the air conditioner unit or a nearby wall. The
pump must be level, and the inlet must be below the coil drain. Conduit
fittings are not compatible with the plastic pump housing.
4.The pump should not be installed in a manner that will subject it
tosplashing or spraying.
5. This pump is not intended for use inside air plenums.
ELECTRICAL CONNECTIONS
WARNING
1.Shut off the electrical power at fuse box before making any connections.
All wiring must comply with local codes.
2.Line voltage: Connect the power cord to the line voltage specified on the
motor and nameplate. The power cord must be connected to a constant
source of power (not a fan or other device that runs intermittently). If the
power cord does not have a plug, wiring is as follows: green (or
green/yellow)-ground. Black (or brown)-line. White (or blue)-neutral.
3.Safety switch: The safety overflow switch should be connected to a class

- 5 -
II low-voltage circuit. To control a thermostatic circuit, the COM and NO
connections from the safety switch are to be wired in series with the
low-voltage thermostat circuit to shut down the heating/AC circuit. The
COM and NC switch contacts may be used to actuate a low-voltage alarm
circuit (connected in series) if the heating/cooling system cannot be
disrupted. The safety switch comes from the factory with leads connected
to the COM and NO switch terminals. Typical hook-up of “NC” circuits
would be (Figures 2 & 3),

- 6 -
PIPING
1.Run flexible tubing or pipe from the evaporator drain into one of the three
pump inlets. Be sure inlet piping is sloped downward to allow gravity flow
(Figure 4). Extend the inlet piping into the tank from 1 to 3 inches to ensure
that it will not interfere with proper float operation. Be sure that the inlet
piping is cut at an angle where it enters the tank.
2.The outlet piping should be flexible tubing secured with a hose Clamp
(not provided) or pipe (3/8 inch ID. maximum to prevent excessive flow
back to the unit). From the condensate unit, extend the discharge piping
straight up as high as necessary. Do not extend this line above the
head/GPH of the particular model being installed. From this high point,
slope the discharge line down slightly to a point above the drain area, then
turn down and extend to a point below or approximately level with the

- 7 -
bottom of the condensate unit. This will give a siphoning effect which will
improve the efficiency of the condensate unit and will, in most cases,
eliminate the need for a check valve (Figure 5). If it is not possible to slope
the discharge line down, make an inverted “U” trap directly above the pump
at the highest point.
SERVICE INSTRUCTIONS
WARNING
1.Make certain that the unit is disconnected from the power source
before attempting to service or remove any component!
2.Be sure the floats move freely. Clean as necessary (Figure 6).
3.Clean the tank with warm water and mild soap.
4. Check the inlet and outlet piping. Clean as necessary. Be sure there are
no kinks in the line that would inhibit flow.

- 8 -
TESTING
1. Turn on the power.
2. Remove the motor/tank cover assembly and hold level.
3. Test the motor switch by raising the motor switch float with a finger
(Figure 6). The motor should turn on just before the float contacts cover.
4. Test the safety switch by raising the safety switch float with a finger. The
safety switch should activate before the float contacts cover.
5. Replace the motor/tank cover assembly on the tank.
This pump is suitable for gas furnace condensate applications. Caution
must be taken to ensure the acidity of condensate does not increase below
the average pH of 3.4 (to prevent localized pocket of acid that acts like a
battery causing pitting) by routinely cleaning or flushing the tank with fresh
water.
LIMITED WARRANTY
Your product is guaranteed to be in perfect condition when it leaves our
factory. It is warranted against defective materials and workmanship for a
period of 12 months from the date of purchase by the user.
Any product that should fail for either of the above two reasons and is still
within the warranty period will be repaired or replaced at the option of the
Ref center. All defective products returned under warranty will be fully
inspected to determine the cause of failure before the warranty is
approved.
DISCLAIMER: THE FOREGOING WARRANTY IS AN EXCLUSIVE
WARRANTY IN LIEU OF ANY OTHER EXPRESS WARRANTIES. ANY
IMPLIED WARRANTIES (INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE) TO THE EXTENT EITHER APPLIES TO A
PUMP SHALL BE LIMITED IN DURATION TO THE PERIODS OF THE
EXPRESS WARRANTIES GIVEN ABOVE.

- 9 -
Warranty will be VOID if any of the following conditions are found:
1.Sealed motor housing opened.
2.Product connected to a voltage other than indicated on the nameplate.
3.Cord cut off to a length of fewer than three feet.
4.Pump allowed to operate dry (fluid supply cut off).
5.Pump used to circulate anything other than water.
6.Product abuse by Customers.
Any oral statements about the product made by the seller, the
manufacturer, the representatives, or any other parties, do not constitute
warranties, shall not be relied upon by the user, and are not part of the
Contract for sale. The seller’s and manufacturer’s only obligation, and the
buyer’s only remedy, shall be the replacement and/or repair by the
manufacturer of the product as described above. NEITHER SELLER NOR
THE MANUFACTURER SHALL BE LIABLE FOR ANY INJURY, LOSS, OR
DAMAGE, DIRECT, INCIDENTAL, OR CONSEQUENTIAL (INCLUDING,
BUT NOT LIMITED TO, INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR LOST PROFITS, LOST SALES, INJURY TO PERSON OR
PROPERTY, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL
LOSS), ARISING OUT OF THE USE OR THE INABILITY TO USE THE
PRODUCT AND THE USER AGREES THAT NO OTHER REMEDY
SHALL BE AVAILABLE TO IT. Before using, the user shall determine the
suitability of the product for the intended use, and the user assumes all risk
and liability whatsoever in connection therewith.
Some states and Countries do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights
which vary from state to state and country to country.
*There are any minor changes to the numbers included in the user manual
without prior notice.
