Vibbel Khona Radio 1 User manual

0009371
Khona Radio 1
Monopolar Radiofrequency / Radiofrecuencia monopolar /
Radiofréquence monopolaire / Radiofrequenza monopolare / Radiofrequenz monopolar
2
5
9
13
17
EN
FR
ES
IT
DE

2
EN
DDUUEETT EUROPE would like to thank you
for choosing Vibbel products. We hope that this
instruction manual will help you get the most out of
this product.
If you have any doubts regarding its use and/or
operation, please contact your distributor.
BEFORE USE
●Please read the entire instruction manual carefully
before using the product. Take note of any warnings
included in this manual.
●Always keep this instruction manual handy and if
you give the device to another person, hand over
the manual as it is an essential part of the product.
●Some components of the product may differ from
the image that appears in catalogues, websites,
brochures, etc.
●In order to enhance the product, the manufacturer
reserves the right to modify its features and/or
components without prior notice.
CORRECT USE OFTHE DEVICE
●This product has been designed to be used by
beauty professionals at beauty salons and should
not be used for other purposes.
●Please note that any misuse of the device entails
the loss of the guarantee.
●Do not make any modification to the device without
the authorisation of DDUUEETT EUROPE SL.
●DDUUEETT EUROPE SL shall not be held liable for
any material or personal damage due to the misuse
of the product.
CONTRAINDICATIONS
●This product should not be used on:
-People who suffer from deep vein thrombosis.
-People with pacemakers or acute heart failure.
-People with high blood pressure.
-Pregnant women.
-People with wounds or injuries in the area to be
treated.
-People with pain, irritation, pins and needles,
cramp or numbness in the area to be treated.
-People with metal implants.
●Not recommended for cancer patients or people
with an overactive thyroid.
●The following should check with their doctor:
-People with skin disorders.
-People undergoing medical treatment or a
diagnostic process.
PRECAUTIONS
●Before using it for the first time and after each
use, check the device and the mains cable for any
damage.
●Unplug the device from the mains before starting to
clean it or undertaking any type of maintenance.
●Do not use the product outdoors or in places
where it may be affected by humidity or inclement
weather.
●If the power supply cable is defective, unplug the
appliance immediately and inform your dealer or
specialised technician.
●Position the power supply cable properly so that
people cannot trip over it and make sure you plug it
into an earthed socket.
●At the end of the working day, disconnect the
device and unplug the power supply cable from the
mains.
●If you detect any anomaly in the operation of
the product, please contact your distributor or
specialised technician.
SAFETY INDICATIONS
●The device and accessories should be kept out of
the reach of children.
●Only plug the device into a properly installed
socket. The local mains voltage must correspond to
the technical specifications of the device.
●The power socket must be accessible in case you
have to quickly unplug the device at any given time.
●Always pull out the actual plug and not the mains
cable.
●Never tamper with any electrical component or
open up/repair any component of the device.
●Only your distributor or specialised technician
should repair the device.
●Do not switch on the device if there is visible
damage to it or to the mains cable.
●Never touch the device or the mains cable with wet
hands.
CONTENTS
●Main body x 1 unit
●Power cable x 1 unit
●Body handpiece x 1 unit
●Face handpiece x 1 unit
●Body heads x 3 units
●Face heads x 2 units
●Eye area heads x 2 units
●Negative electrode plate x 1 unit
●Threaded tip bar x 2 units
●Methacrylate plate for accessory holder x 1 unit

3
EN
●Fuse x 2 units
●Instruction manual x 1 unit
TECHNICAL SPECIFICATIONS
Product Monopolar
Radiofrequency
Reference 0009371
Voltage AC 200-240 V~
Input frequency 50 Hz
Power 150 W
Output Frequency 500 kHz
Achievable working depth 2 cm
Dimensions 44 x 31 x 35 cm
COMPONENTS
1
2
3
4
6
95 7 8
1Main body
2Threaded tip bar
3Methacrylate plate for accessory holder
4Body handpiece
5Face (and eye area) handpiece
6Body heads
7Face heads
8Eye area heads
9Negative electrode plate
CONTROL PANEL
2
1
1On / Off button
2Display screen and parameter control
3 4 5 6
1
2
1Selection of function to use: face
2Selection of function to use: body
3Time display and adjustment
4Mode display and adjustment
5Display and setting of work intensity
6Start or Pause the operation of the machine
REAR PANEL
1 2 3 4 5
1Face handpiece connector
2Body handpiece connector
3Negative electrode plate connector
4Electrical power supply connector
5Fuse

4
EN

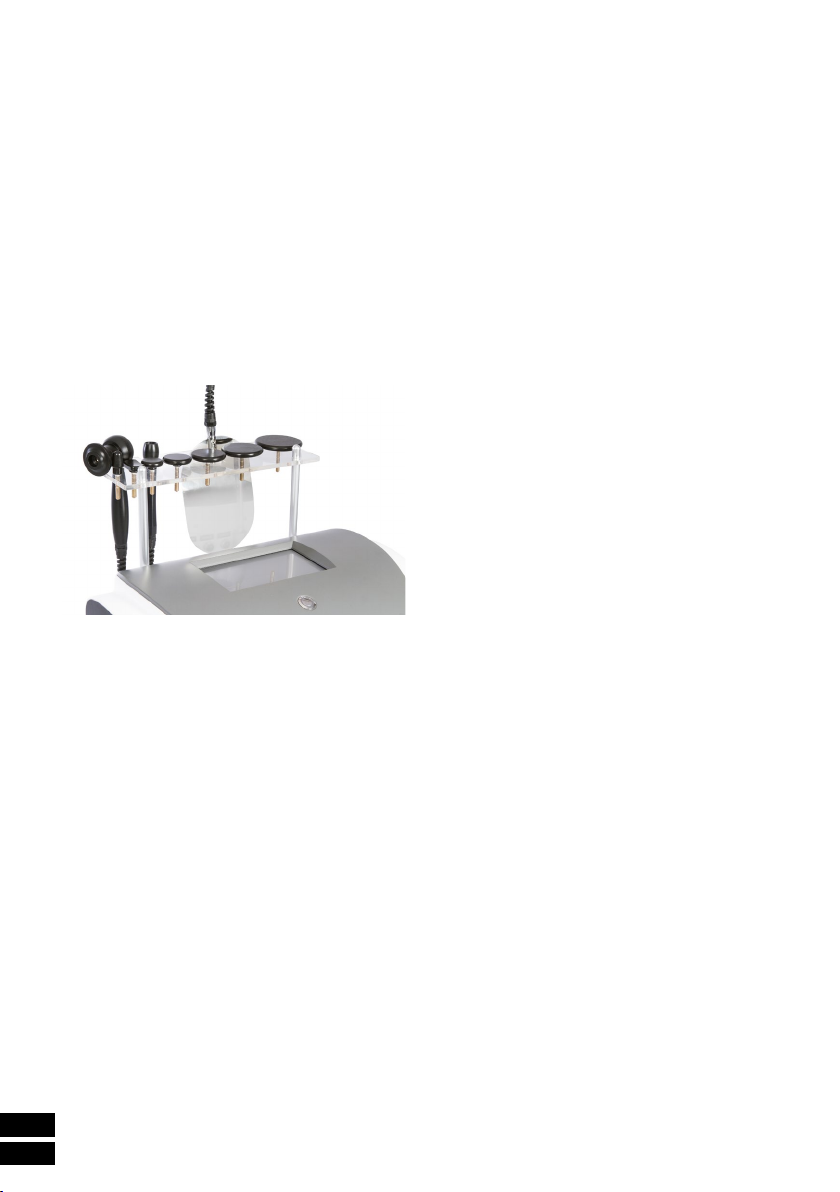

CONNECTION AND ASSEMBLY
INSTRUCTIONS
●Screw the 2 threaded tip bars into the rear panel
of the main body and fit the methacrylate plate for
accessory support.
●Connect the power cable to the rear panel of the
main body.
●Connect the face handpiece connector to the rear
panel of the main body.
●Connect the body handpiece connector to the rear
panel of the main body.
●Connect the negative electrode plate connector to
the rear panel of the main body.
●Place the handpieces, negative electrode plate
and heads on the methacrylate plate for accessory
support.
POWER AND CONFIGURATION
●Press the on/off button to start the device. When
it is on, a beep will sound and the welcome screen
will be displayed.
-Press the screen to move to the next display
screen and the parameter control.
●The preset values when switching on the device are
as follows:
-Selection of function to use: face
-Length of treatment: 30 minutes
-Operating mode: A
-Intensity level: 1
●Set the previous parameters
-Selection of function to use: face / body
-Length of treatment: maximum 60 minutes
-Operating mode: A, B
-Intensity level: 1 - 10
-Definition of preset modes:
• Mode A: Continuous wave
• Mode B: Pulsed wave
●Performing the treatment:
-Apply cream for radiofrequency use across the
area to be treated.
-Insert the appropriate head into the
corresponding handpiece according to the area
to be treated.
-Select the function to use: body or face.
-Set the length of treatment.
-Select the work mode: A or B.
-Set the intensity level to minimum.
-Place the negative electrode plate in such a way
that there is good contact with the person who
is going to receive the treatment. If this person is
lying face up on a bed, you can place it on their
back.
-Start moving around the handpiece and set the
intensity level according to the treatment to be
performed.
Remember:
Massage with continuous circular movements. Do
not stop the massage and avoid leaving the head in
contact with the skin at the same point: the user could
suffer burns.
Ask the user of the radiofrequency treatment how they
are perceiving the sensation of heat applied. Set the
intensity level according to their perception.
Apply enough cream for radiofrequency use as many
times as necessary during treatment.
CLEANING AND MAINTENANCE
●Before cleaning the device, unplug it from the
mains.
●Clean the device with a soft, dry cloth. Do not use
liquids to clean it.
●After each use, the various components and
accessories must be sterilised and left to dry.
●For maintenance or repairs of any part of the
product, please contact your distributor or
specialised technician.
RECYCLING
If you need to dispose of the product or any of its
parts or accessories, please check and respect the
laws and regulations applicable to waste management
and environmental protection.
