Vibe BlackDeath BDQB89 User manual

OWNERS MANUAL
Model: BDGBSe
Congratulations on purchasing your BlackDeath QB69 speakers. Please read
this manual
in order to fully understand how to get the best results from your
speakers.
Please ensure
that all advice on how to look after your speakers is followed.
Thank
you for buying VISE. We hope you enjoy listening to your product as
much as we enjoyed creating it.
Introduction
This manual is for your safety and must be adhered to at all times. Please read this manual and ensure that you fully understand the
installation and set up procedures explained
in this manual before any work on the vehicle is attempted.
If
you have any doubts about the installation of the VIBE QB69 speakers please contact your nearest authorised VIBE dealer.
Contents
2 x BDQB69 speakers
2 x 2 way passive crossover units with speaker cable
2 x ABS grills
12 xmounting screws
1 x mounting template
WARNING
DO NOT EXPOSE THIS PRODUCT TO DAMP OR MOISTURE -doing so may result in fire, shock or damage to the product.
BEFORE WIRING DISCONNECT THE CABLE FROM THE POSITIVE BATTERY TERMINAL -failure to do so may result in electric shock or
injury.
ENSURE GOOD AND CORRECT CONNECTIONS -failure to make the correct connections may result in fire or damage to the product.
DO NOT USE FUNCTIONS OF THIS EQUIPMENT THAT MAY TAKE YOUR CONCENTRATION AWAY FROM DRIVING YOUR VEHICLE - do
not set up your amplifier whilst driving, doing so may result in an accident. For prolonged setting up, make sure that your vehicle is
stationary and
in asafe location.
KEEP THE VOLUME AT A LEVEL SO YOU CAN STILL HEAR OUTSIDE NOISE -failure to do this may result in an accident. VIBE
equipment is capable of producing sound levels that can permanently damage your hearing. VIBE recommends caution when listening
at high volume. For safe and enjoyable listening the sound should be comfortable and clear without distortion.
CAUTION
Never connect any speaker lead to the car chassis. This can cause severe damage to your speaker Icar radio lamplifier.
Before drilling or cutting any holes, investigate the layout of your vehicle thoroughly.
Use caution when working
near the fuel Ihydraulic lines and electrical wiring.
"-
Observe the correct pollllrity when wiring. Improper phasing may cause aloss of bass response.
Ensure
that no moving parts catch on the speaker or grill [e.g. window, door handles or window glass inside the door].
Installation
The quality of the installation will affect the system performance and reliability.
Contact your nearest authorised
VI BE dealer if you are unsure on the installation of this product.
Please
mount this unit away from any potential hazards.
Minimising the length of wires will provide higher audio output
from the system.
The speaker should
be securely fastened to the mounting position using the screws provided.
Pre drill your mounting holes using adrill and position with the template provided.
Be sure to investigate your mounting area thoroughly for electrical wires, brake or fuel lines or fuel tank to prevent causing any
damage.
Firstly make sure
that the speakers will fit in your chosen location. This may involve the removal of the standard vehicle speakers.
Please use the mounting depth and hole
cut dimensions as detailed in this manual for guidance.

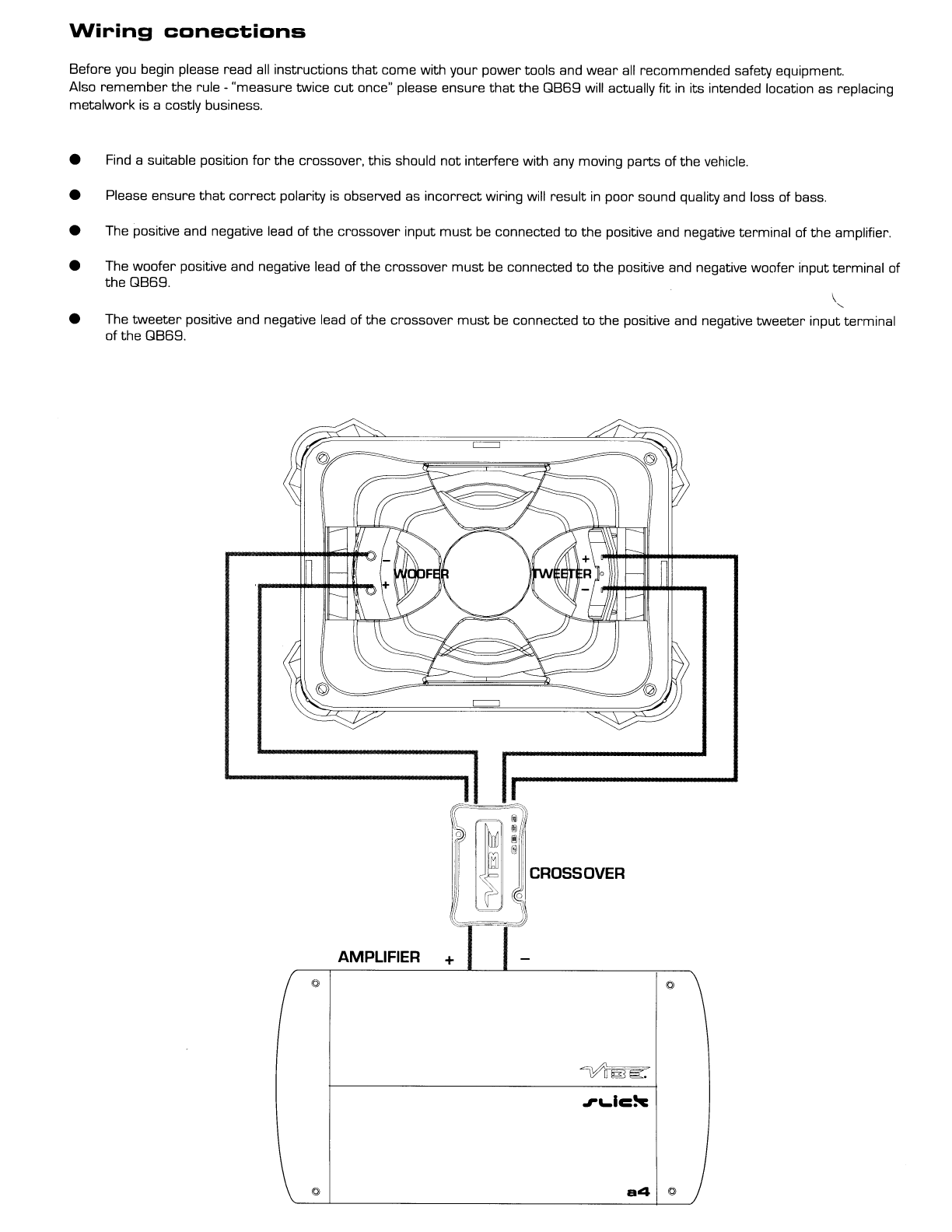

Wiring canectians
Before you begin please read all instructions that come with your power tools and wear all recommended safety equipment.
Also
remember the rule - "measure twice cut once" please ensure that the QB69 will actually fit in its intended location as replacing
metalwork is acostly business.
•Find asuitable position
for the crossover, this should not interfere with any moving parts of the vehicle.
•Please ensure
that correct polarity is observed as incorrect wiring will result in poor sound quality and loss of bass.
•The positive and negative lead of
the crossover input must be connected to the positive and negative terminal of the amplifier.
•The
woofer positive and negative lead of the crossover must be connected to the positive and negative woofer input terminal of
the QB69.
\
'-
•The tweeter positive and negative lead of the crossover must be connected to the positive and negative tweeter input terminal
of
the QB69.
r~~C~SO~R
AMPLIFIER +
84 <0

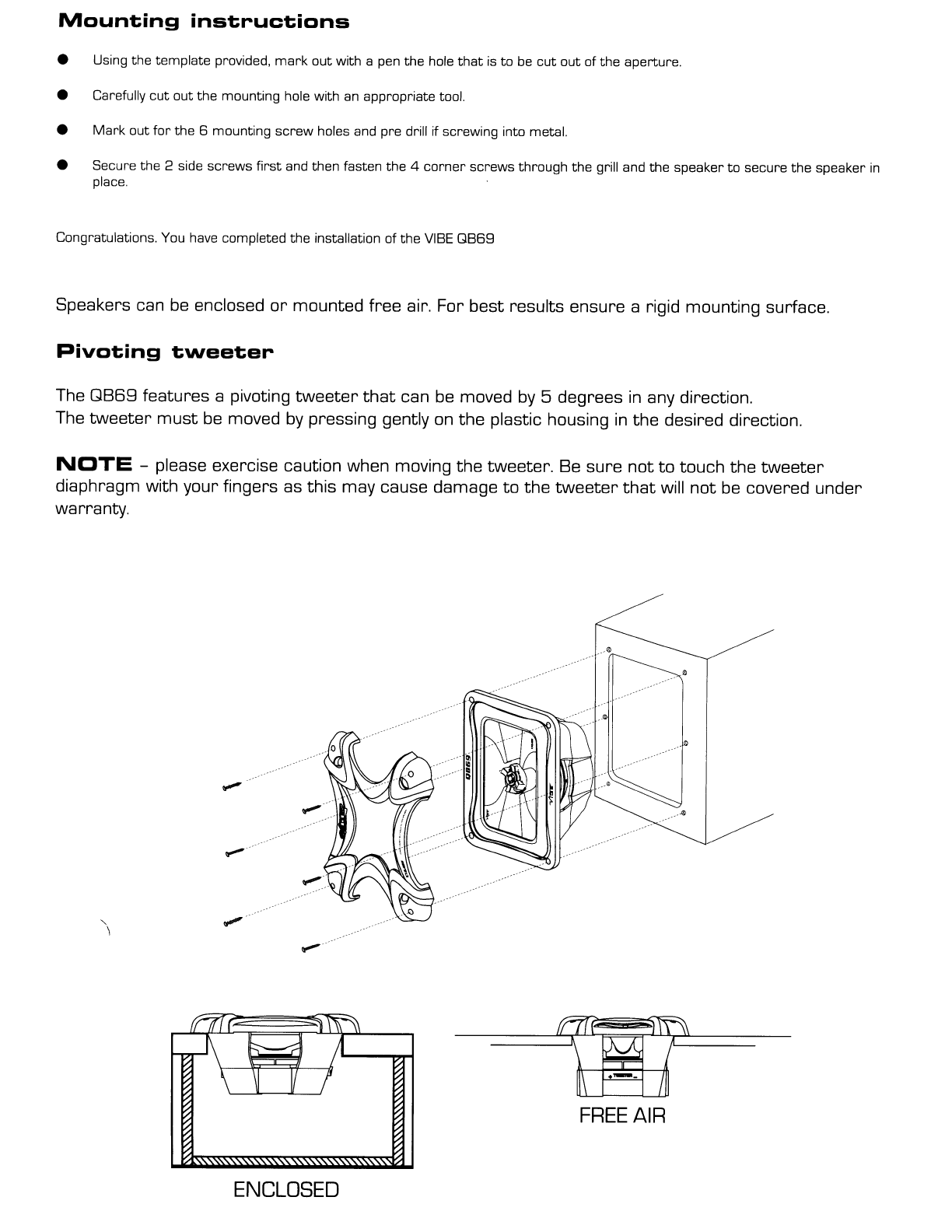

Mounting instructions
•Using the template provided. mark out with apen the hole that is to be cut out of the aperture.
•Carefully
cut out the mounting hole with an appropriate tool.
•
Mark out for the 6 mounting screw holes and pre drill if screwing into metal.
•Secure the 2side
screws first and then fasten the 4 corner screws through the grill and the speaker to secure the speaker in
place.
Congratulations. You have completed
the installation of the VIBE QB69
Speakers can be enclosed or mounted free air. For best results ensure arigid mounting surface.
Pivoting t\Neeter
The QB69 features apivoting tweeter that can be moved by 5degrees in any direction.
The
tweeter must be moved by pressing gently on the plastic housing in the desired direction.
NOTE -please exercise caution when moving the tweeter. Be sure not to touch the tweeter
diaphragm with your fingers as this may cause damage to the tweeter that will not be covered under
warranty.
"\
..-_ -.
.,...,
." .
.,...,.'
ENCLOSED
FREE AIR

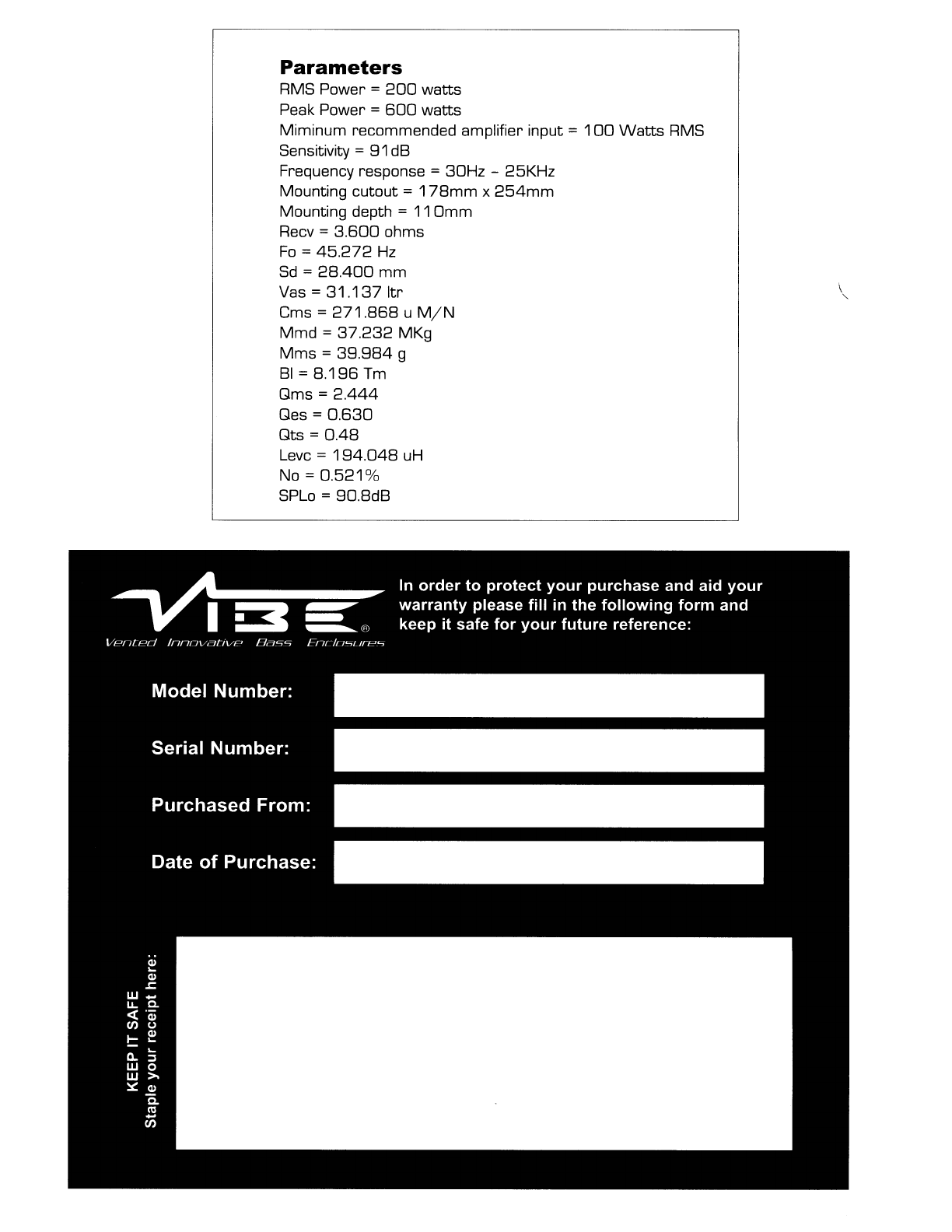

Parameters
RMS Power = 200 watts
Peak Power =
600 watts
Miminum recommended amplifier input = 100 Watts RMS
Sensitivity =91 dB
Frequency response =
30Hz - 25KHz
Mounting cutout = 178mm x 254mm
Mounting depth = 11 Omm
Recv =
3.600 ohms
Fo = 45.272 Hz
Sd = 28.400 mm
Vas =31.1 37 Itr
ems = 271.868 u MIN
Mmd = 37.232 MKg
Mms = 39.984 g
BI = 8.196 Tm
Qms =
2.444
Qes = 0.630
Qts = 0.48
Levc = 194.048 uH
No =
0.521%
SPLo = 90.8dB

Limited Warranty
All VISE products carry afull twelve months warranty, valid from
the date of the original receipt/ proof of purchase. In order to
validate this warranty, the warranty card should be returned to VISE
within seven days of the original purchase date. The original receipt
and packaging should also
be retained for this twelve month period.
If
at any stage during the warranty period you have aproblem with the
product then it should be returned to the point of purchase. with proof of purchase in its
original packaging, complete with no items missing.
If
the store is unable to fix the product it may have to be returned to VISE.
This process takes around 7working days.
Afull description of VISE's
warranty information can be found on our
website:
lNlNW. vibeaudio. co. uk/lNarranty
Awritten version can also be obtained from
VISE warranty Dept
PO SOX 11000
S757WG
Technical enquires
call 09067031420
call cost 50p per minute
call costs
correct at date of publication (01/01/07)
Hours of business 9.00am - 5.30pm
all calls are recorded for training purposes
MIDbASS Distribution
PO Box 11000
B757WG
Copyright
All content included in this manual such as text. graphics, logos, icons, images and data, are the property of VISE
Technologies
limlled (herein referred to as "VISE", "us" or "we") and its affiliate or their content and technology providers,
and are protected by United Kingdom and Intemational copyright laws. All rights reserved.20OS
All stylised representations
of product names, or the abbreviations of product names, as logos are all trademarks of
VIBE. Graphics and logos are trademarks or trade dress of VI BE Technologies Ltd or ils subsidiaries.
VIBE's trademarks
and trade dress may not be used in connection with any producl or service that is not VIBE's, in any
manner that is likely to cause confusion among cuslomers or in any manner that disparages or discredits VIBE. All other
trademarks not owned by VIBE
or its subsidiaries that appear in this manual are the property of their respective owners,
who mayor may not be affiliated with, connected to, or sponsored by VIBE or its subsidiaries.
TO THE FULLEST EXTENT PERMIDED AT LAW, VIBE IS PROVIDING THIS MANUAL AND ITS CONTENT ON AN
"AS IS" BASIS
AND MAKES NO (AND EXPRESSLY DISCLAIMS ALL) REPRESENTATIONS OR WARRANTIES OF
ANY KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THIS MANUAL OR THE INFORMATION, CONTENT,
MATERIALS OR PRODUCTS INCLUDED IN THIS MANUAL INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN ADDITION, VIBE
DOES NOT REPRESENT OR WARRANT THAT THE INFORMATION CONTAINED IN THIS
MANUAL IS COMPLETE OR CURRENT, AND THAT ALL SPECIFICATIONS AND INFORMATION CONTAINED WITHIN
THIS
MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE.
VIBE
RECOMMEND CAUTION WHEN LISTENING TO MUSIC REPRODUCED THROUGH VIBE EQUIPMENT. VIBE
EQUIPMENT IS CAPABLE OF PRODUCING SOUND AND SOUND PRESSURE LEVELS THAT CAN PERMANENTLY
DAMAGE HEARING OF YOU AND THAT OF OTHERS. FOR SAFE AND ENJOYABLE LISTENING, THE SOUND
SHOULD BE CLEAR WITHOUT DISTORTION AT A COMFORTABLE VOLUME.
BY USING ANY VIBE EQUIPMENT, YOU AGREE TO TAKE FULL RESPONSIBILITY FOR YOUR OWN SAFETY AND
THE SAFETY OF OTHERS WHEN LISTENING TO MUSIC AT HIGH VOLUMES THROUGH EQUIPMENT YOU HAVE
PURCHASED. USE OF ANY VIBE EQUIPMENT CONSTITUTES AGREEMENT TO THIS DISCLAIMER.
Except as specifically stated in this manual, to the fullest extent perrnitled at law, neither VIBE nor any of its affiliates,
directors, employees
or other representatives will be liable for damages arising out of or in connection with the use of this
manual
or the information, content, materials or products induded.
This is acomprehensive limitation of liability that applies to all damages of any kind, induding (Without limitation)
compensatory, direct, indirect or consequential damages, loss
of data. income or profit, Joss of or damage to property and
claims
of third parties. For the avoidance of doubt, VISE does not limit its liability for death or personal injury to the extent
only that
it arises as aresult of negligence of VIBE, its affiliates, directors, employees or other representatives.

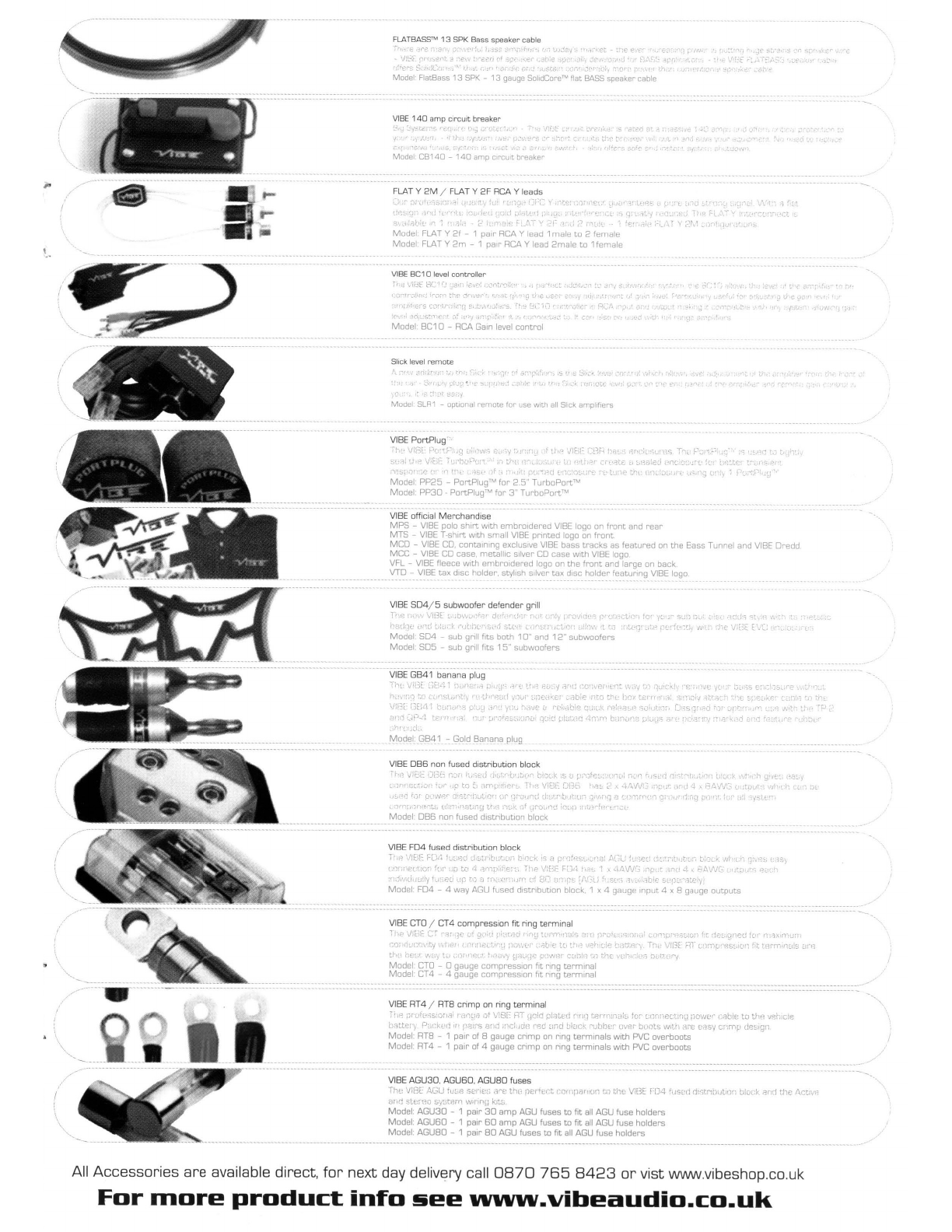

FLA TBASSTM 13 SPK Bass speaker cable
'I':,
Mode FlatBass 13 SPK - 13 gauge SohdCureNfat BASS speaker cab e
VlBE
140 amp CircUit breaker
,
Model CB14Q - 140 amp crcutbreaker
FLAT Y 2M / FLAT Y2F RCA Yleads
"
Model FLAT Y 2f - 1 pair RCA YIcad 1 male to 2female
Model FLAT Y 2m - 1 pair RCA Ylead 2male to 1female
I j~ "J .',
Model OB6 non fused dIstribution block
:,l' c f:' t /. t~ t,,,:, ~F \"1 .., .. ~
Model' CTa 0gauge compression fit rIng terminal
Model' CT 4 - 4 gauge compression fit ring terminal
VISE DBB non fused distribution block
VISE GB41 banana plug
VISE eTa /CT4 compression fit nng terminal
VISE 504/5 subwoofer defender g"l1
7, _ 1!1 ~I "',~ ,j
VlBE official Merchandise
MP5 -VIBE polo shirt with embrOidered VIBE logo on front and rear
MTS VI BE T·shlrt WIth small VIBE pnnted logo on front
MCO -VISE CO, containing exclusIVe VISE bass tracks as featured on e Sass Tunnel and VISE O"-edd
MCC -VIBE CD case, metallic Silver CO case with VISE logo
VFL -VISE fleece
WIth embroidered logo on the front and large on back
VTO -
VI BE tax diSC holder, stylish Silver tax diSC holder featurIng VISE logo
Model PP25 - PortPlug'V for 2 5 T.JrboPoll.
Model PP30 Pol1.Plug·· .... for 3' TurboPor1.-v
Model 504 - sub grt Ifits both 10" and 12" subwoofers
Model 505 - sub grl! fits 15" subwoofers
VlBE Be1 0 level comroller
VISE PortPlug
"
Model SLR1 -optional remote for use With atl Slick amplifiers
Model BC10 -RCA Gain level control
Slick level remote
VlBE
F04 fused dlstrlbUtlon block
Model F04 - 4 way AGU fused distributIOn Dlock 1 x 4 gauge Input 4 x 8 gauge outputs
VISE RT 4/ RTS cnmp on ring termInal
~ pi ..;;, -," ,-1' ~;,~ ,jt v is! T I r1 ;~b't' to ~hl 'J~, c'S
'l:t~ ." '-=I ~s d' i U' J ~,"1.J t '':'" j" u "ts """.' .i£ ~ i5V C' rr~ Je~'gt
Model RT8 - 1 pair of 8gauge cnmp on nng terminals wrth PVC overbaats
Model RT4 - 1 pair of 4gauge cnmp on nng termInals V\ITth PVC overhoots
VISE AGU30, AGU50, AGUSO fuses
~h" V,::'c !s,L~ • _Q5i.' eare t l. ,)( t,
ar,c ~tl"~-r-; ~'r~rra N.I'(1~I'(':':'
Model AGU30 - 1 paIr 30 amp AGU fuses to ht all AGU fuse holders
Model AGU50 - 1 paIr
50 amp AGU fuses to f~ all AGU fuse holders
Model: AGU8a - 1 pair 80 AGU fuses to fit all AGU fuse holders
All Accessories are available direct, for next day delivery call 0870 765 8423 or vist www,vibeshop,co.uk
For Dlore product: in~o see www.vibeaudio.co.uk

-v1 i3 eEe
CRITICA~
-~[LDU\D~
The CriticalLink™ range of FLAT series cabling from VISE
The VISE CntlcalUnk range of cabling has been developed to achieve the entice! link between source, amplifier and speakers - VISE audio equipment is
high quality, using anything less
than the VISE Criticallink™ range of cables will severely compromise your equipment and will not allow it to perfonn to its
maXImum potential.
NOTE Your audio equipment will only ever be as good as the cables you use to connect it. The link between your audio equipment is critical for a bigger
cleaner sound.
VISE cabhng
and interconnects can enhance your system power and sound quality by more than 20% over other brand cable.
" .... ~ ",,~~
C' •
'.Pc .... ·.•..
FtATBASS"" 13 SPK Bass speaker cable
.-
VISE 140 amp CIrcUit breaker
RATLINES TM remote
18
R.ATBASSTM RCA SoItdCore
rM
Interconnect
.;...- .~-
Model: Bass Kit - Bass specific amplifier wIring kit
All cable IS terminated with cnmped tenTllnal nngs In place and accessol"'f fitung kit
BASS SYSTEM KIT
FlATUNE~ 4AVI/G PWA Power and Ground cable
~,r -~
./.
\/
d .'~ 'J
',~r; .,
"~ :. ~ -
":)11 .db:''''' ,>f,~ ;:- If I" l"
;,:IINrq ," r,";,'· '. ~'1-J(' ~.e .. '0. ,.:'0
.'.
, 'i"
~'.-L!. r.~ I .... ~
FlATBASSTM -SohdCore™ Bass Interconnect
-, .-~~ 18f r'_ll rr:lf" ;:-I ;'d!" l'''-
,J--' - ci", _~/, 'l~'
jC'_'~.'~I;'C,l' t-
Model FlatBass RCA 1m - 1 metre 8ASS Interconnect
Model FlatBass RCA 5m 5 metre BASS Interconnect
Model ACQve Kit - Bass specIfic active enclosure Wiring kit
FastPIug"'"
t."~·w' 1.~··.1 ... ,- .. \-"",'-- 'J'.'''' ." .. ~. "'''' ... ~, .. ~ ,,,,C:t"-'~"""'''I ~t:~.' ,,,"r. 1 ·)..':"~l
,V"'f"
AGU Fuse Holder
A.;:l :Of
Model FlatStereo RCA 1n , metre fu range nterconnect
Model FlatSterec RCA 51T' 5 metre fu range mterconnect.
~'J' ,
FLATBASS"'" RCA SoltdCore"'" Interconnect
FLATLlNES"'"
8AWG PWR Power and Ground cable
, ~ ~ "
'.\~ ... ~, ,'1",-,'1: I o..:'c>~ "0'r:r,~ i'J",:, .. J ,_. J"L :. cr r,",~~·-.'" ~,( .1. r,Ji:I~~ ',,riP :,,).1 ',,'.''':~ ,-f,U I '~' •• ""':-,1l'Y". ""r-,cCl''---' ;'pz~,-"':_ (1-,,.. :. jf 1-',,-:
"li\'''O':~ ·j~,,·i
ACTIVE SYSTEM KIT
FlA TSTERBJ""I HIgh Definrtlon full range Interconnect
~'!': V:t?f ~ ..... -~Rf ." Q.j~ r-,r ef'
FLATUNESlM Power and Ground Cable
J:bf >:. ~tL' ~.~ i,~' r 30" .a~ J!"'r Lit ,,":cp-' • rr,"j'\.'"" ~~ 0:'. SI~ ,j s~E' I- li-" I':t.l:J.: {'C' ~1n,;"_,,,~; ~ h, 'J h. ..: n3 • es
.. "',-,,',;; ':, J': ':y"" I ~ ... ~ n,BO, .1 "" r,,;:,~,.," stro Js '1'5 ;if",~ ""'{ir' I), aol" ',o~ i, ..,,;-n .. '£0 '~',r~~.'· .... ,~\::..,~ >-&> .\i{ "'1:
G!l ':'1 C .I"f' 'JI r ,s~' r, { r;~ , !"c «:'0",1'0 "Sr..~;':!c.
£'J<~ ,'J;' l:'1 I&>/ ~, t! .. daJ III I tTi "'f'tI~
Model RATLINES B PVVR -Bgauge red power cable Mooel FLATUNES BGNO Bgauge black power cable
Model FLATUNES 4
PVVR - 4gauge red power cable Model FLATUNES 4 PVVR 4galJQp. red power cable
Model FLATUNES 0
PVVR Ogauge ed puwer -::able Mode FLATUNES 0GND - Ogauge blac· power cable
.. -
Model Stereo Kit -full range stereo amphfler wlnng kit
An cable IS termlflated WIth cnmped term,nal nngs In place and aceessol"'f fittlng kit
FLATFI..E>(fM High Definltlon speaker cable
1 hi" .~": >/1,.', r" p"'.<,I-. ~ "n, J'0: :' _( ',r't.' ~,Ot~i,' j" 'S U\e IW"l' l.",:'(eVL",' ," d'~y '~C'\~'O Sf;,tf'rn . \ji~T::=- >:;-~'_i-:<-~, ')f-L. "''-.1;' ,~f·f:,·;r"-,, \
~~~~~:;~~'!rll~~I:;~' ,~';r:;:~'~";~k,;:;':'):~' ~~<;"j:.f ;~~:;i~j~'~~;1:~P~~:~~~:;:;r;l!o,!':~r:' t:'(~:;,'~.t~j'~·~;:':;I~:Pf.::~~,~~:~~,jet6,' I" )(', ,r r:"I· g tn, IT .. Ii;) -;~ .. ~n'l·, \
'. ,1""",,, .. : /
Model FlatFleK 16 SPK - 16 gauge High definition flat fleXible speaker cable
Model FlatFlex
12 SPK 12 gauge High deflnltlon flat flexible speaker cable
AGU Fuse Holder
FLATUNES no remote
18
FlATLINESTM 8AWG PVVR Power and Ground cable
;.. j,~ .. "'J ~: ~~, ~r,
STEREO SYSTEM KIT
VISE FlA TSTERHr"" RCA - OFC high definltlOfl full range ,nterconnect
• :.--~!- 'l, '.;'
C ','I ,~,~!/,!
RATSTEREO"" speaker cable
.. ,.t. ,<'
... 1.--

o
o
.. - .. -
~s
69
.....
o
o
o
Speakers can be enclosed,or mounted free air,
For best results ensure a rigid mounting surface.
Cut Out Template
o
