OWNERS MANUAL
Congratulations on purchasing your VIBE LITEAIR speakers, please read this manual in order to
fully understand how to get the best results from your speakers and ensure that all advice on how
to look after the speakers is followed.
Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed
creating it.
VIBE R&D Division
WARNING
DO NOT EXPOSE THIS PRODUCT TO DAMP OR MOISTURE - doing so may result in fire,
shock or damage to the product.
BEFORE WIRING DISCONNECT THE CABLE FROM THE POSITIVE BATTERY TERMINAL
- failure to do so may result in electric shock or injury.
ENSURE GOOD AND CORRECT CONNECTIONS - failure to make the correct connections
may result in fire or damage to the product.
KEEP THE VOLUME AT A LEVEL SO YOU CAN STILL HEAR OUTSIDE NOISE - failure
to do this may result in an accident. VIBE equipment is capable of producing sound levels
that can permanently damage your hearing. VIBE recommends caution when listening at high
volume. For safe and enjoyable listening the sound should be comfortable and clear without
distortion.
CAUTION
• Never connect any speaker lead to the car chassis. This can cause severe damage to your
speaker / car radio / amplifier.
• Before drilling or cutting any holes, investigate the layout of your vehicle thoroughly.
• Use caution when working near the fuel / hydraulic lines and electrical wiring.
• Observe the correct polarity when wiring, improper phasing may cause a loss of bass
response.
• Ensure that no moving parts catch on the speaker or grill (e.g. window or door handles, or
window glass inside the door)
INSTALLATION
• The quality of the installation will affect the system performance and reliability.
• Contact your nearest authorised VIBE dealer if you are unsure about the installation of this
product.
• Please mount this unit away from any potential hazards.
• Minimising the length of wires will provide higher audio output from the system.
• The speaker should be securely fastened to the mounting position using the screws pro-
vided.
• Pre drill your mounting holes using a drill and position with the template provided.
• Be sure to investigate your mounting area thoroughly for electrical wires, brake or fuel lines
or fuel tank to prevent causing any damage.
BLE F
ock or inju
ONNECTIONS
-
roduct.
EL SO YOU CAN STILL
ident.
V
ent is ca
your he
ommend
able listening the sound should be
peaker lead to the car chassis. This can cause s
/ amplifi
cutting any holes, investigate the layout of your vehicle
en working near the fuel / hydraulic lines and electrical wir
orrect polarity when wiring, improper phasing may cause a lo
t no moving parts catch on the speaker or grill (e.g. window or door
lass ins
ALLAT
quality of the installation will affect the system performance and reliability.
ntact yo
llation of
product.
Please mount this unit away from any potential hazards.
Minimising the length of wires will provide higher audio output from the system.
the system
dealer if yo
E
equipm
ng.
V
IB
E
r
g the sound
car chass
stigate th
/ hydrau
, improp
spea
LiteAir Component Speakers
2

SPEAKER INSTALLATION
Firstly, make sure that the speakers will fit in your chosen location. This may involve the removal of
the standard vehicle speakers. Please use the mounting depth and hole cut dimensions as detailed
in this manual for guidance.
• If necessary cut any material away to allow the speaker to sit correctly.
• Cut out the mounting hole and pre-drill any other fixing holes.
• If required, the protective grill can be removed from the gasket and omitted from the speaker
fitting.
• If the grill is to be fitted, screw through both gasket and speaker using the screw provided until the
speaker is securely fastened.

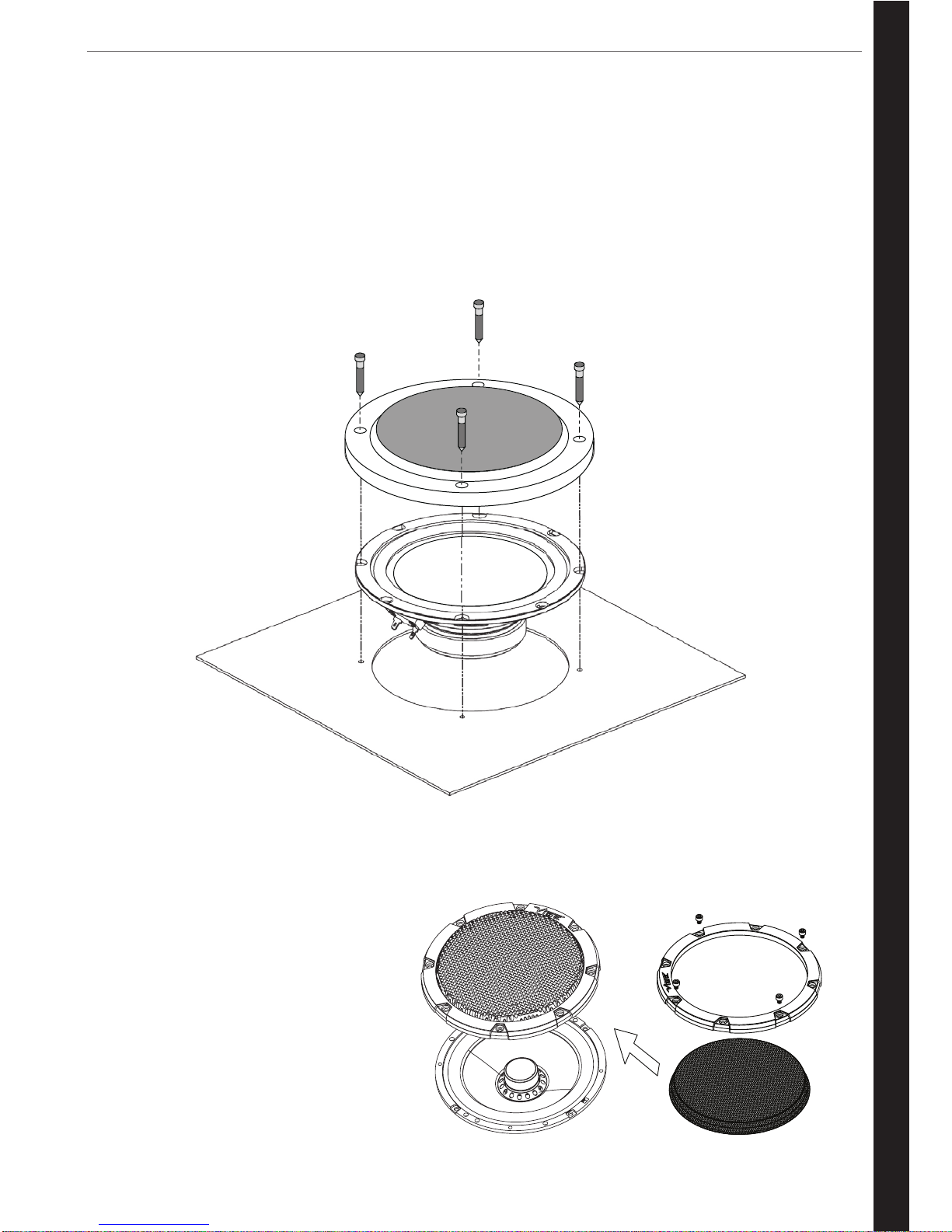

GRILL AND GASKET FITMENT AND REMOVAL
The VIBE LiteAir speakers feature a removable mesh grill, to remove and refit the grill please follow
the procedure below.
1. Remove the 4 retaining bolts that
secure the alloy gasket to the chassis
2. Lift off the alloy gasket from the
chassis and remove the steel mesh
grill
3. Refit the alloy gasket and secure to
the chassis with the four retaining bolts
To refit the grill simply follow this
procedure inserting the grill at step 2.
LiteAir Component Speakers
3

TWEETER INSTALLATION
Thetweetercaneitherbefittedflushmountorsurfacemount.Tryandtakeintoaccountthefollowing
when locating a suitable position. For optimum staging try and locate a position that is higher than
the woofer but within twelve inches (maximum) of it.
It is vital that the tweeter is adjusted so that it is focused towards the listener.
SURFACE MOUNT TWEETER INSTALLATION
•After finding a suitable position for the tweeters place the base of the tweeter casing in the correct
position.
• Using this base mark the two mounting holes and the hole for the wire to pass through.
• Cut out these holes using a 2mm drill for the fixing screws and at least an 8mm hole for the cable,
ensuring that the hole cut for the cable is big enough and will not cause the cable to become
chaffed in any way.
• Pass the tweeter cable through the bottom of the case and through the previously drilled hole.
• Secure the bass of the tweeter housing with the screws provided.
• Finally, angle the tweeter so that it is focused towards the listener.
FLUSH MOUNT TWEETER INSTALLATION
For ease of installation there are two ways of fixing the tweeters in place.
The first requires the use of the metal ring provided. (See Figure A)
•After finding a suitable position for the tweeters place the cut out template for the tweeter in position
and mark around it.
• Before cutting the holes double check that no brake, fuel lines or wiring harnesses are likely to get
damaged.
• Ensure that the tweeter when fitted will not catch on any moving parts such as door / window
handles.
• If mounting in a door check that the window can still be fully lowered before installing.
• Cut out the hole carefully.
• Place the entire tweeter into the cut out hole.
• From the back push the metal ring over the rear of the casing until it is tight into the hole.
4
LiteAir Component Speakers

The second requires the use of the metal strip provided. (See Figure B)
•After finding a suitable position for the tweeters place the cut out template for the tweeter in position
and mark around it.
• Before cutting the holes double check that no brake, fuel lines or wiring harnesses are likely to get
damaged.
• Ensure that the tweeter when fitted will not catch on any moving parts such as door / window
handles.
• If mounting in a door check that the window can still be fully lowered before installing.
• Cut out the hole carefully.
• Position the metal strip fixing strip centrally, behind the cut out hole.
• Using the fixing screws attach the base of the tweeter case to the metal strip.
• Pass the tweeter cable through the hole in the centre in the bottom of the case and the metal fixing
strip.
• Pull the cable tight until the tweeter sits in the base.
• Screw the top of the tweeter casing to the base.
• Caution do not over tighten.
CROSSOVER
The crossover units come with wires with crimped ends on already attached to them to ease the
installation process. The wiring diagram (below) should be used as a guide to wire the crossovers
into your system. Once the crossover has been wired correctly use the two sticky pads to fix it to a
secure, dry location.
WIRING DIAGRAM
Positive: Black / White stripe
Negative:Black
5
LiteAir Component Speakers
● Screw the top of the tweeter casing to the base.
● Caution do not over tighten.





LIMITED WARRANTY
All VIBE products carry a full 12 months warranty, valid from the date of the original receipt and
proof of purchase. In order to validate this warranty, the warranty card should be returned to VIBE
within seven days of the original purchase date. The original receipt and packaging are should
also be retained for this twelve month period. If at any stage during the warranty period you have a
problem with the product then it should be returned to the point of purchase, in its original packaging,
complete with no items missing. If the store is unable to fix the product it may have to be returned to
VIBE this process takes around 7 working days and no costs will be occurred.
A full description of VIBE’s warranty information can be found on our website:
WWW.VIBEAUDIO.CO.UK/WARRANTY
WHAT IS NOT COVERED
●Damage to product due to improper installation
●Subsequent damage to other components
●Damage caused by exposure to moisture, excessive heat, chemical cleaners and/or UV radiation
●Damage through negligence, misuse, accident or abuse, repeated returns for the same fault may
be considered abuse
●Any cost or expense related to the cost of removal or re-installation of the product
●Damage caused by amplifier clipping or distortion
●Items repaired or modified by any unauthorised repair facility
●Return shipping on non defective items
●Products returned without a returns authorisation number
●Damage to product due to the use of sealant
INTERNATIONAL WARRANTY
Contact your International VIBE audio dealer or distributor concerning specific procedures for your
country’s warranty policies.
WARNING
VIBE equipment is capable of sound pressure levels that can cause permanent damage to your
hearing and those around you. Please use common sense when listening to your car audio system
and practice safe sound.
COPYRIGHT
All content included in this manual such as text, graphics, logos, icons, images and data, are the property of VIBE Technologies Limited (herein referred to
as “VIBE”, “us” or “we”) and its affiliate or their content and technology providers, and are protected by United Kingdom and International copyright laws. All
rights reserved. VIBE Turbo Port, Vibe TurboVent, Pressure Board, Super Driver, VIBE Pulse, VIBE Power, VIBE Digital, VIBE MAG Plugs, Ferrite Loaded,
VIBE Solid Core, VIBE OCC, VIBE FLAT, BlackAir, BlackBox, Space, MonoBox, SA-K, SR, QB69, ICC, Bass Enhance, Bass Enhance+, QBass, SpeedBass,
PowerBass and all stylised representations of product names, or the abbreviations of product names, as logos are all trademarks of VIBE. Graphics and logos
are trademarks or trade dress of VIBE Technologies Ltd or its subsidiaries. VIBE’s trademarks and trade dress may not be used in connection with any product
or service that is not VIBE’s, in any manner that is likely to cause confusion among customers or in any manner that disparages or discredits VIBE. All other
trademarks not owned by VIBE or its subsidiaries that appear in this manual are the property of their respective owners, who may or may not be affiliated with,
connected to, or sponsored by VIBE or its subsidiaries.
TO THE FULLEST EXTENT PERMITTED AT LAW, VIBE IS PROVIDING THIS MANUAL AND ITS CONTENT ON AN “AS IS” BASIS AND MAKES NO (AND
EXPRESSLY DISCLAIMS ALL) REPRESENTATIONS OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THIS MANUAL
OR THE INFORMATION, CONTENT, MATERIALS OR PRODUCTS INCLUDED IN THIS MANUAL INCLUDING, WITHOUT LIMITATION, WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN ADDITION, VIBE DOES NOT REPRESENT OR WARRANT THAT THE
INFORMATION CONTAINED IN THIS MANUAL IS COMPLETE OR CURRENT, AND THAT ALL SPECIFICATIONS AND INFORMATION CONTAINED
WITHIN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. VIBE RECOMMEND CAUTION WHEN LISTENING TO MUSIC REPRODUCED
THROUGH VIBE EQUIPMENT. VIBE EQUIPMENT IS CAPABLE OF PRODUCING SOUND AND SOUND PRESSURE LEVELS THAT CAN PERMANENTLY
DAMAGE HEARING OF YOU AND THAT OF OTHERS. FOR SAFE AND ENJOYABLE LISTENING, THE SOUND SHOULD BE CLEAR WITHOUT
DISTORTION AT A COMFORTABLE VOLUME. BY USING ANY VIBE EQUIPMENT, YOU AGREE TO TAKE FULL RESPONSIBILITY FOR YOUR OWN
SAFETY AND THE SAFETY OF OTHERS WHEN LISTENING TO MUSIC AT HIGH VOLUMES THROUGH EQUIPMENT YOU HAVE PURCHASED. USE OF
ANY VIBE EQUIPMENT CONSTITUTES AGREEMENT TO THIS DISCLAIMER.
Except as specifically stated in this manual, to the fullest extent permitted at law, neither VIBE nor any of its affiliates, directors, employees or other
representatives will be liable for damages arising out of or in connection with the use of this manual or the information, content, materials or products included.
This is a comprehensive limitation of liability that applies to all damages of any kind, including (without limitation) compensatory, direct, indirect or consequential
damages, loss of data, income or profit, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for
death or personal injury to the extent only that it arises as a result of negligence of VIBE, its affiliates, directors, employees or other representatives.
6
LiteAir Component Speakers

SPECIFICATIONS
KEEP IT SAFE
Staple your receipt here:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASED FROM:
DATE OF PURCHASE:
In order to protect your purchase and aid your warranty please fill
in the following form and keep it safe for your future reference.
For more information and to register your warranty online, visit:
www.vibeaudio.co.uk/warranty
