Vibe Pro 75 User manual

User Manual
Please properly keep the manual for further reference
Vibe Smartboard Pro 75″

Welcome:
Thanks for purchasing this product.
Please read the instructions carefully before using this product.
The symbol of the crossed out wheeled bin indicates this product should not be placed
in municipal waste. Instead, dispose of waste equipment by taking it to a designated
collection point for electrical and electronic equipment recycling.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

About This Document ......................................................................
Safety Instruction ...........................................................................
1. Parts and Functions ......................................................................
1.1 Package Contents.....................................................................
1.2 Parts ....................................................................................
1.3 Ports ....................................................................................
1.4 Remote Controller ....................................................................
2. Installation Guide ........................................................................
2.1 Safety Precautions ....................................................................
2.2 Installation Precautions .............................................................
2.3 Installation ............................................................................
2.4 Installing the Internal PC ............................................................
3. Turning On/Off ...........................................................................
3.1 Power On ...............................................................................
3.2 Power Off ..............................................................................
4. FAQ & Troubleshooting ..................................................................
5. Maintenance Tips ........................................................................
6. Technical Parameters ....................................................................
7. More Information .........................................................................
04
05
09
09
10
11
12
13
13
14
15
16
17
17
17
18
20
21
23
Table of Contents

4
Vibe Smartboard Pro 75″/ User Manual / vibe.us
About This Document
This document describes multiple functions, instructions, and notes about the product. Symbols are
used in this document to indicate operations that need particular attention. The symbols are defined
as follows:
NOTE
TIPS
CAUTION
WARNING
Provides additional information to
supplement operation in the main text.
Provides tips for operation.
Indicates a potentially hazardous situation that, if not avoided,
could result in equipment damage, data loss, performance
deterioration, or unanticipated results.
Indicates a hazard with risk that, if not avoided, could result in
death or injury.

5
Vibe Smartboard Pro 75″/ User Manual / vibe.us
Safety Instructions
For your safety, please read the following instructions before you use the product. Serious injury or
property damage may be caused by improper operations. Do not try to repair the product on your own.
WARNING
Disconnect the product from the power supply immediately if major failures
occur.
Major failures include the following:
• Smoke, peculiar smell or abnormal sound is discharged from the product.
• No image or sound is displayed, or the image error occurs.
• Where the main’s plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
In the preceding scenarios, do not continue to use the product. Disconnect
power supply immediately and contact professional staff for
troubleshooting.
Do not drop any liquids, metal, or anything combustible into the product.
• If any liquids or metal are dropped onto or into the product, power off
the product and disconnect the power supply. Then contact professional
staff for solutions.
• Pay attention to children when they are close to the product.
Put the product on a stable surface.
An unstable surface includes and is not limited to an inclined plane, a shaky
stand, desk or platform, which might cause turnover and damage.
Do not open the cover or change the product on your own.
High voltage components are installed in the product. When you open the
cover, high voltage, electric shock, or other dangerous situations may occur.
If inspection, adjustment, or maintenance is required, contact the local
distributor for help.
Do not put items on the top of the product.
• Do not put items, such as a container for liquid (a vase, flowerpot,
cosmetics or liquid medicine) on the top of the product.
• If any water or liquid is spilled on the product, a short circuit may occur
and cause fire or electric shock.
• Do not walk on or hang any items on the product.

6
Vibe Smartboard Pro 75″/ User Manual / vibe.us
Use the specified power supply.
• To prevent the product from being damaged, do not use any cables other
than the one provided with the product.
• Use a three-wire socket and ensure that it is properly grounded.
• Pull out the power plug from the socket if the product is not used for a
long period.
Clean the dust and metal on the power plug regularly.
• Continued use of this product may cause fire or electric shock if the plug
is not cleaned for a long time.
• Pull out the power plug before cleaning it with a dried cloth.
Do not install the product in an improper place.
• Do not install the product in humid places, such as the bathroom, the
shower room, near windows, or outdoor environments that experience
rain, snow or other harsh weather. Avoid installation near hot spring
vapor. The preceding environments may cause faults in the product or
electric shock under extreme conditions.
• Do not put exposed fire source, such as an ignited candle, on the product.
Pull out the power plug during thunderstorms.
• To avoid electric shock, do not touch the product during a lightning storm.
• Install or place components that supply high enough voltage to cause
personal injury out of the reach of children.
Do not touch the power cable with wet hands.
WARNING

7
Vibe Smartboard Pro 75″/ User Manual / vibe.us
Do not install the product in high temperature environments.
• Do not install the product near a heat source, such as a radiator, a heat
reservoir, a stove or other heating products.
• Do not expose the product to direct sunlight, which may cause high
temperatures and subsequent faults in the product.
For transport:
• Pack the product for transport or maintenance by using the cartons and
cushioning material provided with the product.
• Vertically move the product during transport. The screen or other
components are easily broken if the product is moved by an improper way.
• Before you move the product, disconnect all external connections and
separate all toppling preventing products. Move the product carefully to
prevent it from being hit or squeezed, especially the screen, which may
cause injury if broken.
Do not cover or block up any vents on the product.
• Any overheated components may cause fire, damage the product, and
shorten the service life.
• Do not lay the product down in a way where the venting surface will be
covered.
• Do not install the product directly on carpet or cloth.
• Do not use a cloth (such as a tablecloth) to cover the product.
Use the battery correctly.
• Galvanic corrosion, electric leakage, and even fire may be caused by
improper battery usage.
• It is recommended to use the designated type of battery and install the
battery by the correct electrodes (positive and negative).
• Do not install and use a new battery with a used one.
• Take out the battery if the remote control is not used for a long period.
• Do not expose the battery to overheated environments, such as sunlight or
heat sources.
• Dispose of the used battery according to your local regulations.
CAUTION

8
Vibe Smartboard Pro 75″/ User Manual / vibe.us
Do not damage the power cable.
• Do not damage, change, twist, bend, or forcibly drag the power cable.
• Do not put weights (such as the product itself) on the power cable.
• Do not forcibly drag the cable when you pull out the power plug. If the
power cable is damaged, please contact the local distributor to repair or
replace it.
• The power cable in the accessory box is for this product only. Do not use it
on other products.
Additional advice:
• Use the product in an environment with comfortable lighting. It is harmful
to your eyes to watch in a too bright or too dark environment.
• Relax your eyes after watching for a period of time.
• Keep sufficient distance from the product to protect your eyes and prevent
eyestrain.
• Adjust the volume to an appropriate level, especially at night.
• Use amplifier equipment as the audio input source with caution. If
you must use amplifier equipment, the input power should not exceed
the maximum of speaker power. Otherwise, the speaker can become
overpowered and damaged.
Keep the product away from the radio.
The product complies with the international EMI standard to prevent radio
interference. However, interference may still exist and causes noise in the
radio. If noise occurs in the radio, try the following solutions.
• Adjust the direction of the radio antenna to avoid the interference from
the product.
• Keep the radio away from the product.
CAUTION

9
Vibe Smartboard Pro 75″/ User Manual / vibe.us
HDMI
HDMI
Display
USB Cable (A-B)
HDMI 2.0
UK Power Cord
EU Power Cord
UL Power Cord
Magnetic Pen Set
Wall Mount
Remote Control AAA Battery
1. Parts and Functions
1.1 Package Contents
Please verify that you received the following items with your package:
• Display
• Remote Control
• AAA Battery *2
• USB Cable (A-B) 5m
• HDMI 2.0 Cable 3m
• UL Power Cord
• EU Power Cord
• UL Power Cord
• Magnetic Pen Set
• Wall Mount

10
Vibe Smartboard Pro 75″/ User Manual / vibe.us
Front View
Rear View
1 2
4
5
6 7
3
1
2
Power Button
IR Receiver
4
3
5
6
7
Speaker
Power Supply Plug
Power Switch
Rear Ports
Internal PC Port
(OPS)
1.2 Parts

11
Vibe Smartboard Pro 75″/ User Manual / vibe.us
1.3 Ports
TOUCH USB (DEBUG)HDMI-IN
USB 3.0
(Type-C) Audio (in) USB 2.0HDMI 1.4 (out) USB 3.0Audio
(out) LAN
Ports ( Compute Module )
Ports ( TV )

12
Vibe Smartboard Pro 75″/ User Manual / vibe.us
Power On/Standby
Up
Down
Left
Right
Confirm Selected Item/ Menu
Back
Volume Down
Volume Up
1.4 Remote Controller
WARNING
To avoid probable faults, please read the following instructions and use the remote
controller properly.
• Do not drop or beat the remote controller.
• Do not spill water or other liquid on the remote controller.
• Do not put the remote controller on wet items.
• Do not expose the remote controller under sunlight or put it near overheated source.

13
Vibe Smartboard Pro 75″/ User Manual / vibe.us
2. Installation Guide
2.1 Safety Precautions
Installation Environment
Installation Direction
Keep Away From
Combustible Vapors
(Gas leaks, etc.)
Avoid Electric
Shock Avoid Strong
Magnetic Field
Avoid Any Corrosive
Liquids
Keep Temperature
Below 120 °F (≤50°C)
Do Not Use
Outdoors Do Not Install Tilted
Keep Relative
Humidity Under 70%
Hang the Product
Horizontally
No Vertical
Installation
Do Not Install
Tilted
Do Not Lay Flat

14
Vibe Smartboard Pro 75″/ User Manual / vibe.us
2.2 Installation Precautions
Weight Loading
• When using a mobile stand, ensure that the weight of the product is less than the loading capacity of
the mobile stand.
• When using the wall-mount bracket, ensure that the wall can support the weight of the product. We
recommend that the wall surface be reinforced and have a loading capacity 4 times of the weight of
the product. Consult a professional installer for wall-mount installation.
Vertical Installation
When installing, try to keep the product vertical. The vertical
tilt range allowed for wall-mount installation is ±3 degrees.
Excessive tilt angle may cause the screen glass to fall off or
the product to collapse.
Ventilation
Ensure adequate ventilation and/or air conditioning environment. We recommend keeping certain
distances from the side of the product to the wall or panels. Ventilation requirements are shown in
following figure.
• The company does not undertake relevant legal responsibility for any problems caused by
improper operation, if the third party mobile stand, or wall-mount bracket is beyond the
scope of the product.
• Do not install the product where it might be hit by a door.
NOTE
For any problem, please contact our support desk.
Our company is not responsible for any damage or
losses incurred by users if the users fails to follow the
instructions.
NOTE

15
Vibe Smartboard Pro 75″/ User Manual / vibe.us
2.3 Installation
Consult a professional installer to install the product.
NOTE

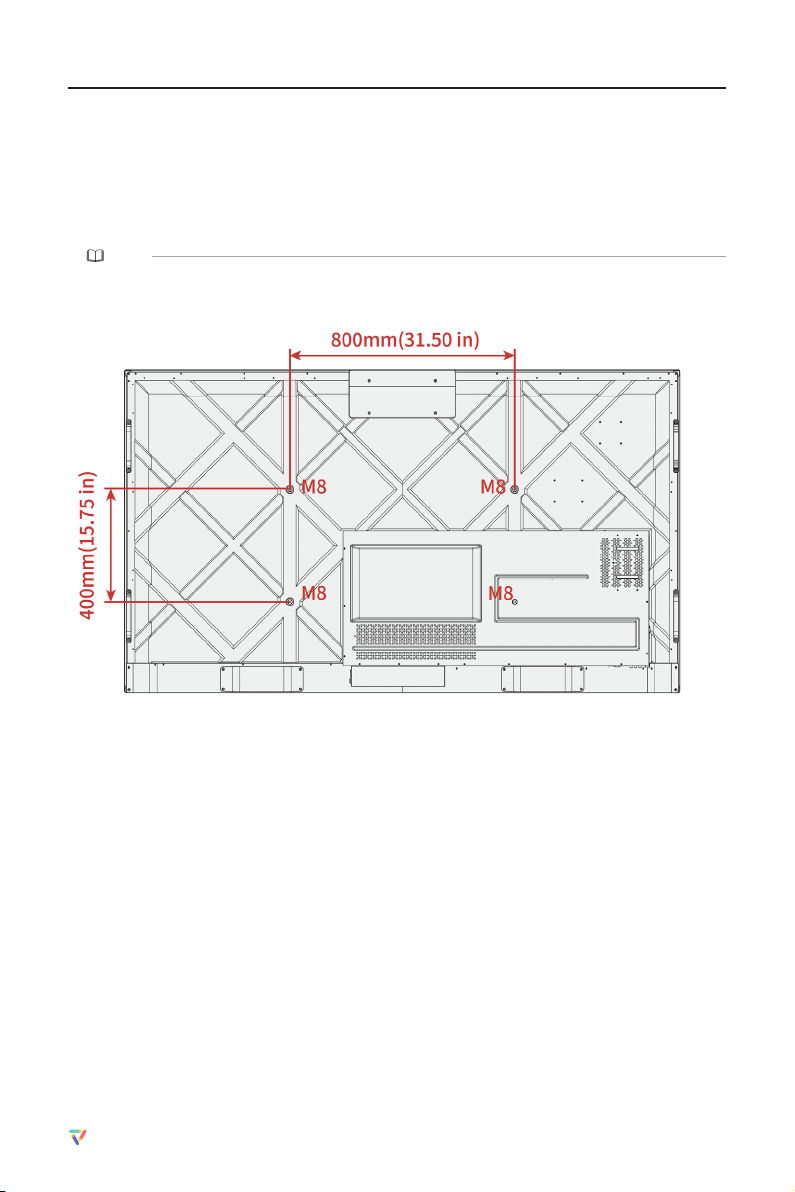

The dimensions of the four bracket mounting holes on the back panel are VESA MIS-F compliant
(75”: 800 x 400 mm). Use metric M8 screws with length of 10 mm to 15 mm (0.40 to 0.59 in) to secure
the touch screen with the mounting system. Dimensions of the mounting holes on the back panel
are shown on the following figure.

16
Vibe Smartboard Pro 75″/ User Manual / vibe.us
2.4 Installation Precautions
The internal PC does not support hot plugging. Therefore, you must insert or remove it when
the screen is powered is off. Otherwise, the screen or internal PC may be damaged.
CAUTION
You will need to purchase the internal PC separately. Perform the
following steps to install the internal PC.
1
3
2
4
Unscrew the M3 screws by hand to remove
the internal PC shielding cover.
Secure the internal PC to the display by
using the M3 screws.
Push the internal PC into the internal PC port
at the rear of the screen from right to left.
Ensure the installation is correct before
turning the power on again.

17
Vibe Smartboard Pro 75″/ User Manual / vibe.us
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
STEP 1:
Plug the power supply into the power outlet fully and plug the power connector into the side of the
product. Ensure the power supply is in the range of 100V to 240V with frequency at 50 Hz/60 Hz ± 5%.
The power current must be grounded.
STEP 1:
Press the power button on the front panel or the power button on the remote control again.
The power indicator will turn to red.
STEP 2:
If you are not going to use the product for an extended period of time, we recommend you to switch the
power switch to “Off”.
3. Turning On/Off
3.1 Power On
3.2 Power Off
The power outlet should be installed near the equipment and should be easily accessible.
NOTE
• If an internal PC is equipped, the internal PC and the screen are powered off simultaneously
when you power off the system.
• Do not forcibly disconnect the power supply of the screen when the internal PC is on.
NOTE
STEP 2:
Flip the power switch located on the side of the product to “On”.
STEP 3:
Press the power button on the front control panel or on the remote control.
Power Supply Plug
Power Switch

18
Vibe Smartboard Pro 75″/ User Manual / vibe.us
4. FAQ & Troubleshooting
Before you contact the technical support staff, please identify a fault according to the following table.
If the fault cannot be restored based on the solutions, contact the local distributor for help. For your
safety, please do not repair the product on your own.
Symptom Possible Cause Solution
The service program fails
to be connected.
The drive program is not
correctly installed.
Install the drive program
correctly.
The USB port (lead) is not
connected or is faulty.
Change the USB lead or check if
the USB port is faulty.
The infrared tube is blocked. Ensure that the surrounding
infrared tubes are not blocked.
No sound and image.
• Check whether the power plug is inserted into the power outlet
and whether the panel is powered on.
• Check whether the rocker switch on the product is switched on.
• Check whether the power button on the panel is pressed.
• Check whether the video and audio input cables are connected
correctly.
• Check whether the panel is switched to the right signal source.
• Check the settings on image brightness and contrast.
• Check the volume.
Image is normal, but no
sound.
• Check the volume.
• Check whether the MUTE button on the remote controller is
pressed.
• Check whether the audio cable between the PC and the product is
connected correctly.
No image or the image is
black and white.
• Modify the color settings.
• Check the color system.

19
Vibe Smartboard Pro 75″/ User Manual / vibe.us
The following symptoms are not faults:
• Very few constantly bright or dark pixels, such as tiny red, blue, green or dark points, may exist on
the LED. This symptom is not a fault and does not affect running functions of the panel.
• Slight sound may occur due to the backlight adjustment or ventilation. This is a normal symptom.
• The image and sound are normal. However, you can sense static electricity when you touch the LED
and metal back cover. This is a normal symptom.
Symptom Possible Cause Solution
Image or sound is
interrupted.
• Find out the electric appliance that causes the interference and
move it away from the product.
• Do not share the power socket of the panel with the electric
appliance that causes interference.
The remote controller fails.
• Change the batteries.
• Clean the signal emitter at the top of the remote controller. (Check
whether it is blocked.)
• Check contacts of the batteries.
Computer cannot be
started (applicable for
models with computers).
• Check whether the PC adapter is correctly connected and whether
the PC is powered on.
• Check whether the PC is connected correctly to the product.

20
Vibe Smartboard Pro 75″/ User Manual / vibe.us
5. Maintenance Tips
• Do not install or place the product near a heat source.
• Do not install or place the product under direct sunlight, or dusty /damp place.
• Do not install or place the product in places with mechanical vibration or are vulnerable to impact.
• Please keep the product away from grid, large metal objects, radar stations and other equipment.
• Do not use chemical agents to wipe the product body; solvent may cause deterioration or damage to
the shell paint. If there is dirt buildup, wipe it with dry, warm cloth after cutting off the power source.
Display touch screen can be wiped gently with a clean, soft cloth.
• Do not power on and off the product frequently, so as not to affect the service life of the product.
After normal shutdown, please wait three minutes before starting up. If not in use for a long time,
please turn off the power and unplug the device.
• To extend the service life of the LED, do not set the display brightness and contrast to the maximum
for a long time.
• Do not use hard objects to write on the touch screen, so as not to scratch the glass and affect the
display effect.
