Vicon KTX-4 User manual

Vicon Part No. 8009-8172-15-00 Rev 1010
XX172-15-00
KTX-4 FOUR-CHANNEL
DIGITAL VIDEO ENCODER
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2010 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
ViconNet, Kollector and their logos are registered trademarks of Vicon Industries Inc.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Windows is a trademark of Microsoft Corp.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: [phone] FAX: [phone] TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: [phone] WEB: www.vicon-cctv.com

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Important Notice •i
FCC Notice
Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a
Class A digital device.
WARNING
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
strict accordance with the manufacturer’s instruction, may cause interference to radio and television
reception. It has been type tested and found to comply with the limits for a Class A computing device in
accordance with the specification in subpart B of part 15 of the FCC rules, which are designed to provide
reasonable protection against such interference in a commercial installation. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause interference to radio
and television reception, which can be determined by turning equipment off and on, the user is encouraged to
try and correct the interference by one or more of the following measures:
•Reorient the receiving antenna.
•Relocate the equipment with respect to the receiver.
•Relocate the equipment away from the receiver.
•Plug the equipment into a different electrical outlet so that the equipment and receiver
are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
“Interference Handbook, Bulletin CIB-2”
This booklet is available from the U.S. Government Printing Office, Superintendent of Documents, Mailstop
SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1.
Warning: Power must be removed from this unit before removing circuit modules or ribbon cables.
Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static
discharge. Take all necessary precautions to prevent static discharge

ii •XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder
Important
Safeguards – Indoor
Use
GRAPHIC SYMBOL EXPLANATION
The lightening bolt symbol alerts the user to the presence of
dangerous voltage that may present the risk of electric shock.
The exclamation point symbol alerts the user to the presence
of important operating and maintenance instructions.
WARNING
To reduce a risk of fire or electric shock, do
not expose this product to rain or moisture.
1. Read Instructions - Read all safety and operating
instructions before the product is operated.
2. Retain Instructions - Retain all safety and operating
instructions for future reference.
3. Heed Warnings - Pay attention to all product warnings.
4. Follow Instructions - Follow all operating instructions.
5. Cleaning -(Do not use caustic, abrasive or aerosol
cleaners)
a) For units that CAN BE DISCONNECTED from the power
source, use a damp cloth for cleaning.
b) For units that CANNOT BE DISCONNECTED from the
power source, use a damp cloth for cleaning and do not
allow moisture or liquids to enter vents.
6. Attachments - Use only UL Listed Vicon recommended
attachments to prevent unit damage and personal injury.
7. Water and Moisture - Use only products designed for
outdoor environments where they will be exposed to water or
moisture.
8. Accessories - Do not place the unit on an unstable surface
to avoid falling. Use only UL Listed Vicon recommended mounting
accessories.
9. Ventilation - Do not block ventilating slots and openings as
they ensure reliable operation. Do not place the unit near a
heat source or into an enclosure unless recommended by
Vicon.
10. Grounding - Only products equipped with a 3-prong
grounded plug should be inserted into a grounded power outlet.
Contact an electrician to replace an obsolete outlet. Do not
force a plug into a non-grounded outlet.
11. Power Cord Protection - Power supply cords should not
be routed in trafficked areas or in tight spaces where they will
be pinched or used to bear weight. Allow some slack in the
cord where it enters the unit.
12. Lightning - Disconnect the product from its power source
and cable system when possible to prevent damage due to
lightning and power-line surges.
13. Power Lines - Do not locate outside cables over power or
utility lines where they can fall and make direct contact. Contact
with power lines can be fatal.
14. Overloading - Do not overload wall outlets and extension
cords to prevent risk of fire and electric shock.
15. Object and Liquid Entry - Never probe through, or spill
liquid into, enclosure openings to prevent risk of fire or electric
shock.
16. Servicing - Refer all servicing to qualified service
personnel.
17. Damage Requiring Service - Obtain service when:
a) The power-supply cord or plug is damaged.
b) Objects have fallen or liquid has been spilled into the
product.
c) The product is not designed for outdoor use and has been
exposed to water or moisture.
d) The product does not operate per the operating
instructions. Perform Vicon recommended adjustments,
modifications and troubleshooting only to avoid unit
damage and personal injury.
e) The product has been dropped.
f) The product shows a significant change in performance.
18. Replacement Parts - Use only Vicon specified
replacement parts or an approved equivalent to prevent unit
damage and injury.
19. Safety Check - Request safety checks to be performed
following repair or maintenance to verify proper operation.
20. ESD Precaution - Take all normal electrostatic discharge
precautions to avoid component damage during installation and
operation.
21. For 230 VAC Devices Only - When the disconnect device
is not incorporated in the equipment or when the plug on the
power supply is intended to serve as the disconnect device,
follow the guidelines below:
a) For permanently connected 230 VAC units, a readily
accessible disconnect device must be incorporated into
the site wiring.
b) For 230 VAC units with a plug, the outlet must be installed
near the unit and be easily accessible.

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Important Notice •iii
Important Notice
This manual is delivered subject to the following conditions and restrictions:
This manual contains proprietary information belonging to Vicon. Such information is supplied solely for the
purpose of assisting explicitly and properly authorized users of the ViconNet system.
No part of its contents may be used for any other purpose, disclosed to any person or firm or reproduced by
any means, electronic or mechanical, without the express prior written permission of Vicon.
The text and graphics are for the purpose of illustration and reference only. The specifications on which they
are based are subject to change without notice.
The software described in this manual is furnished under a license. The software may be used or copied only
in accordance with the terms of that agreement.
Information in this manual is subject to change without notice. Corporate and individual names and data used
in examples herein are fictitious unless otherwise noted.
Copyright ©2010 Vicon. All rights reserved.
ViconNet is a trademark of Vicon Industries Inc.
Other company and brand products and service names are trademarks or registered trademarks of their
respective holders.
To ensure that the KTX-4 is protected during a power surge or failure and that no important data is lost, it
should be connected to an uninterruptible power source (UPS) before use.
To connect the UPS:
•Locate the KTX-4’s power cord near the 24 VAC power supply. Connect the 24 VAC power supply to
the UPS power receptacle.
•Connect the UPS power cord to the wall outlet.
•Power on the UPS and ensure that it is working properly.
NOTE: Refer to your UPS device’s User Manual for detailed information.

iv •About this Manual XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder
About this Manual
This KTX-4 Installation and Operation Manual is comprised of the following chapters:
Chapter 1, Introduction,introduces the KTX-4 Four-Channel Digital Video Server.

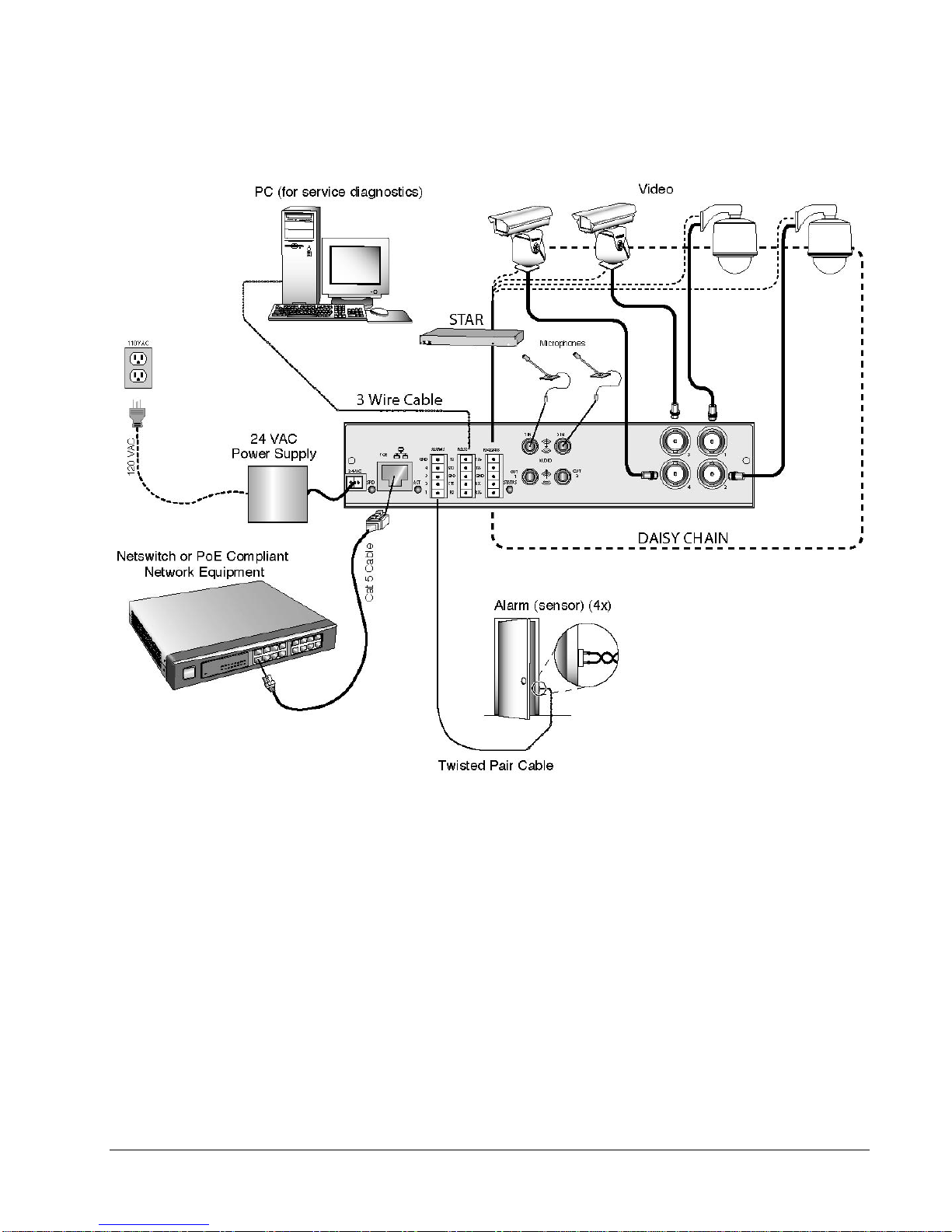

Chapter 2, Quick Installation, is for experienced installers, and provides an illustration of how the KTX-4
should be connected to its various peripherals.
Chapter 3, Installation, is a step-by-step instruction on how to install the KTX-4.
Chapter 4, Operation, describes how to power on, boot and power off the KTX-4.
Chapter 5, Troubleshooting, provides information on what to do in the unlikely event of a KTX-4
malfunction.
Chapter 6, Maintenance, provides information on maintaining the KTX-4.
Chapter 7, Shipping Instructions, describes the procedure to be followed when sending a KTX-4 back to
Vicon.
Chapter 8, Coaxial Cable Recommendations, provides technical information for the recommended coaxial
cable types.
Chapter 9, Twisted-Pair Cable Recommendations, provides technical information for the recommended
twisted-pair cable types.
Chapter 10, Network Cable Recommendations, provides technical information for the recommended LAN
cable types.
Chapter 11, Technical Information, provides the electrical, mechanical and environmental specifications for
the KTX-4.

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Table of Contents •v
Table of Contents
CHAPTER 1 - INTRODUCTION ...........................................................................................1
How to Use This Manual................................................................................................................................1
Accessory Kit..................................................................................................................................................1
Unpacking and Inspection.............................................................................................................................2
CHAPTER 2 – QUICK INSTALLATION...............................................................................3
CHAPTER 3 - INSTALLATION ............................................................................................4
About This Chapter........................................................................................................................................4
Unpacking the Server.....................................................................................................................................4
Required Items for Installation......................................................................................................................4
Unit Components............................................................................................................................................5
Mounting .........................................................................................................................................................6
Installing the KTX-4........................................................................................................................................6
CHAPTER 4 - OPERATION ...............................................................................................11
About This Chapter......................................................................................................................................11
Powering-On the Server...............................................................................................................................11
Powering-Off the Server ..............................................................................................................................11
Configuring the Server.................................................................................................................................13
CHAPTER 5 - TROUBLESHOOTING ................................................................................21
CHAPTER 6 - MAINTENANCE ..........................................................................................21
CHAPTER 7 – SHIPPING INSTRUCTIONS.......................................................................20
CHAPTER 8 – COAXIAL CABLE RECOMMENDATIONS ................................................21
CHAPTER 9 – TWISTED-PAIR CABLE RECOMMENDATIONS ......................................22
CHAPTER 10 – NETWORK CABLE RECOMMENDATIONS............................................23
CHAPTER 11 – TECHNICAL INFORMATION...................................................................24
VICON STANDARD EQUIPMENT WARRANTY......ERROR! BOOKMARK NOT DEFINED.

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Chapter 1 - Introduction •1
Chapter 1 - Introduction
The information in this manual covers the installation and operation of the KTX-4 Four-Channel Digital Video
Server. This system should only be installed by a qualified technician using common hand tools and approved
materials and wiring practices in accordance with the National Electrical Code ANSI/NFPA 70, state and local
wiring codes.
The KTX-4 is an intelligent and rugged Digital Video Server. It is a state-of-the-art embedded server in an
attractive aluminum case. It is sold in a prepackaged configuration ready for analog camera connection. It will
provide a video (frame per second) rate of up to 120 fps over 4 channels, up to 30 fps per channel (25 fps for
PAL). It is fully compatible with the ViconNet software (version 5.X) application. For software information, refer
to the ViconNet Software manual, XX113. The KTX-4 can be networked with all models of Kollectors and
ViconNet Workstations/ NVRs to create a complete system.
The KTX-4 complies with CE and meets requirements for an FCC Class A computing device.
Vicon strongly recommends the use of line conditioners, voltage regulators and uninterruptible power supply
(UPS) systems in the electrical power service.
NOTE: Read all instructions before beginning the installation.
How to Use This Manual
This manual was designed to provide the best overall instructions for the installation and operation of the
KTX-4 Four-Channel Digital Video Server. The graphics and terminology used in this manual have been
carefully selected to enable a clear and distinct understanding of the KTX-4 and its configuration. This manual
has been formatted to present distinct methods of installation for all levels of experience installers.
Accessory Kit
The provided accessory kit contains necessary items needed to install and wire the server during installation
as follows:
Table 1-1: Accessory Kit
Part Description
ViconNet CD Software needed for installation
Installation and Operation Manual Provides instructions on installation, configuration and operation.
Rubber Bumpers For desk-top installation
5-position connectors For wiring alarm, RS-232 and RS-422/RS-485
2-position terminal block For wiring power

2 •Chapter 1 - Introduction XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder
Unpacking and Inspection
All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to
provide suitable delivery.
Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then,
obtain the carrier agent’s signature and file a damage claim as soon as possible.
Open the cartons and inspect the equipment for damage. Save the cartons and packing material. If damage is
present, contact the carrier and file a damage claim immediately. If the equipment must be returned for repair,
follow the instructions in Chapter 7, Shipping Instructions.

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Chapter 2 – Quick Installation •3
Chapter 2 – Quick Installation
Figure 2-1: KTX-4 Quick Installation
1. Unpack the server, and accessories, from its box. Verify that hand tools and a suitable Netswitch/
Kollector/ViconNet NVR are available for connection.
2. Perform physical installation (to a desktop, wall, or rack) using the optional mounting kits, if required.
3. Make all connections to camera, LAN, PTZ, alarm, audio and power.
4. Power on the server. Run the provided ViconNet CD and choose software →KTX-4 to configure the

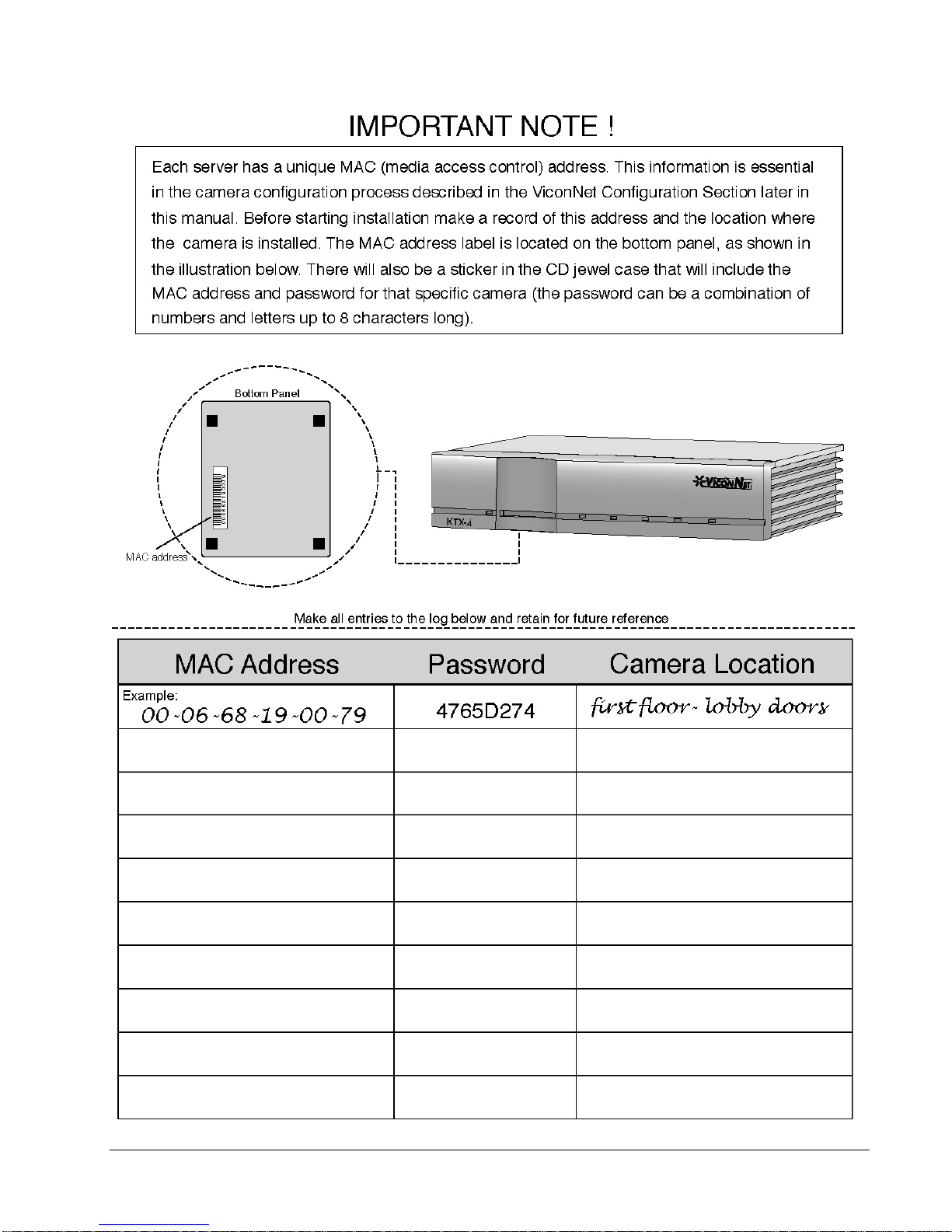

correct IP address, using the provided MAC address. (See your System Administrator for assistance
in IP addressing.)
5. Run the ViconNet application and verify that the server’s video is available.

4 •Chapter 3 - Installation XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder
Chapter 3 - Installation
For first-time installers, these steps provide the most thorough and accurate instructions.
About This Chapter
This chapter details the complete installation of the KTX-4 Four-Channel Digital Video Server. The following
sections provide information as follows:
Unpacking the Server defines how to remove the unit and accessories from the box.
Required Items for Installation defines items needed for installation.
Unit Components defines all connections on the front panel and their use.
Mounting defines all methods of securing the server for permanent use.
Installing the KTX-4 describes how to install all necessary peripheral devices directly to the server.
Unpacking the Server
Carefully open the carton. Remove the accessory kit and the server from the box and place them on a large,
flat working surface. Open the accessory kit and verify the contents against the list in Table 1-1.
Required Items for Installation
To properly install the server there must be simple hand tools available such as a screwdriver, wrenches,
pliers and wire cutters/strippers. To setup the server for operation there must be a PC computer running the
KT Setup software.

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Chapter 3 - Installation •5
Unit Components
This section describes the KTX-4 front and rear panels.
Panel Connectors and Indicators
The following picture shows the KTX-4 panel. Each panel component is described below.
Figure 3-1: Rear Panel Layout
The KTX-4’s rear panel contains the following components:
PTZ Port: A 5-position terminal block used to connect simplex RS-422/485 communications. (Note: The
green Status LED is for future use; it should never light up). Use star or daisy-chain configuration.
RS-232 Port: A 5-position terminal block used for diagnostics (for service use).
Network Port: A standard RJ-45 connector used to connect to a 100Base-T LAN/WAN. A green LED
indicates network connectivity and a yellow LED indicates data activity. Unit power can be supplied if
connected to PoE (Power over Ethernet) compliant network equipment.
Power Port: A 2-position terminal block used to connect power (24 VAC) (if not using PoE – see above).
Video (Camera) Input: 4 standard BNC-F connectors used for analog camera video input.
Alarm Port: A 5-position terminal block used to connect 4 NO/NC sensors.
Audio: 2 pairs of audio jacks, I/O, for connecting two microphones (audio output is for future use).
The front panel includes a blue LED (Status), that indicates power and that the unit is running properly, and 4
bicolor LEDs (numbered 1, 2, 3, 4), to indicate video state. Upon power up, the unit will go through a series of
diagnostic tests and the LEDs will blink. During normal operation, the video LEDs will illuminate solid green to
indicate connection, blinking green to indicate transmitting video and red for no video. The blue LED blinks
when the unit is functional.

6 •Chapter 3 - Installation XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder
Mounting
There are several types of mounting recommended for the server as shown below.
Desktop
The KTX-4 can rest on a clean and dry flat surface, like a desk or tabletop. Four (4) rubber bumpers are
provided for stable mounting. There must be an area of no less than 3 in. (76 mm) left around the exterior to
provide suitable airflow for cooling. Do not place items on the cover.
Rack
The KTX-4 can be mounted in a standard 19-inch (483 mm) wide vertical rack shelf using the KX-4-RK2
(double) rack mount kit. The shelf is not provided. The server can be rested on the shelf or fastened using the
provided mounting plate.
Wall Mounting
The KTX-4 can be wall mounted using the KX-4-WM wall mount kit.
Installing the KTX-4
After the server is mounted, follow the steps in this section to install the server unit hardware.
Step 1: Connecting the Cabling
Step 2: Connecting the Power Supply
IMPORTANT NOTES:
The connection of external hardware may require simple hand tools.
WARNING: Disable the AC power to prevent installer injury and damage to the unit.
Before beginning the hardware installation, ensure that the following environmental conditions have been met:
•The surface on which the KTX-4 is to be placed must be level, clean and dry.
•The room or area temperature is climate controlled for human occupancy.

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Chapter 3 - Installation •7
Step 1: Connecting the Cabling
This procedure describes the required cabling that must be installed in order to use the server.
To connect the cabling:
Perform the following connections (refer to Figure 3-1):
1. Insert one side of a standard LAN cable to the Network Port’s RJ-45 connector. Insert the other RJ-45
connector into the LAN side of the network (switch, wall jack, etc.). Verify that a PC or ViconNet
workstation is available for software configuration.
2. Locate the camera video input cable(s) near the server. Insert the BNC-M plug into the server’s BNC-F
Video (Camera) Input port(s); 4 BNCs are available.
To connect a camera dome/PTZ camera control to the KTX-4:
There are two types of installation configurations, daisy-chain or star, depending on the needs of the system.
A daisy-chain loops signals from one unit to the next. There can be a maximum of up to 5000 ft (1524 m) from
the server to the last dome/PTZ in the chain. A star configuration provides multiple communication paths. By
fanning out communications, system reliability increases; a failure on one leg of a star has no affect on the
other units. A star configuration requires the use of a Distribution Line Control, such as Vicon’s V1400X-IDL.
Refer to the Figures 3-2 for an illustration of sample configurations. Both types of configurations can be used
within a system.
Note: 4 cameras/camera domes may be daisy-chained using the RS-485 configuration.
If using a DL device for star configuration, connect the KTX-4 to the DL first, then to the dome or PTZ/receiver.
3. Using a twisted-pair cable as defined in the section Twisted-Pair Cable Recommendations, prepare a
2-conductor shielded twisted-pair type cable by stripping the ends back for use.
4. Connect the PTZ wires to the RS-485/422 Terminal Block (TX+ and TX-); refer to Figure 3-2. Ensure that
you connect the wires to the correct polarity.
5. Install the other end of this cable into the camera dome or receiver it will communicate with.

8 •Chapter 3 - Installation XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder

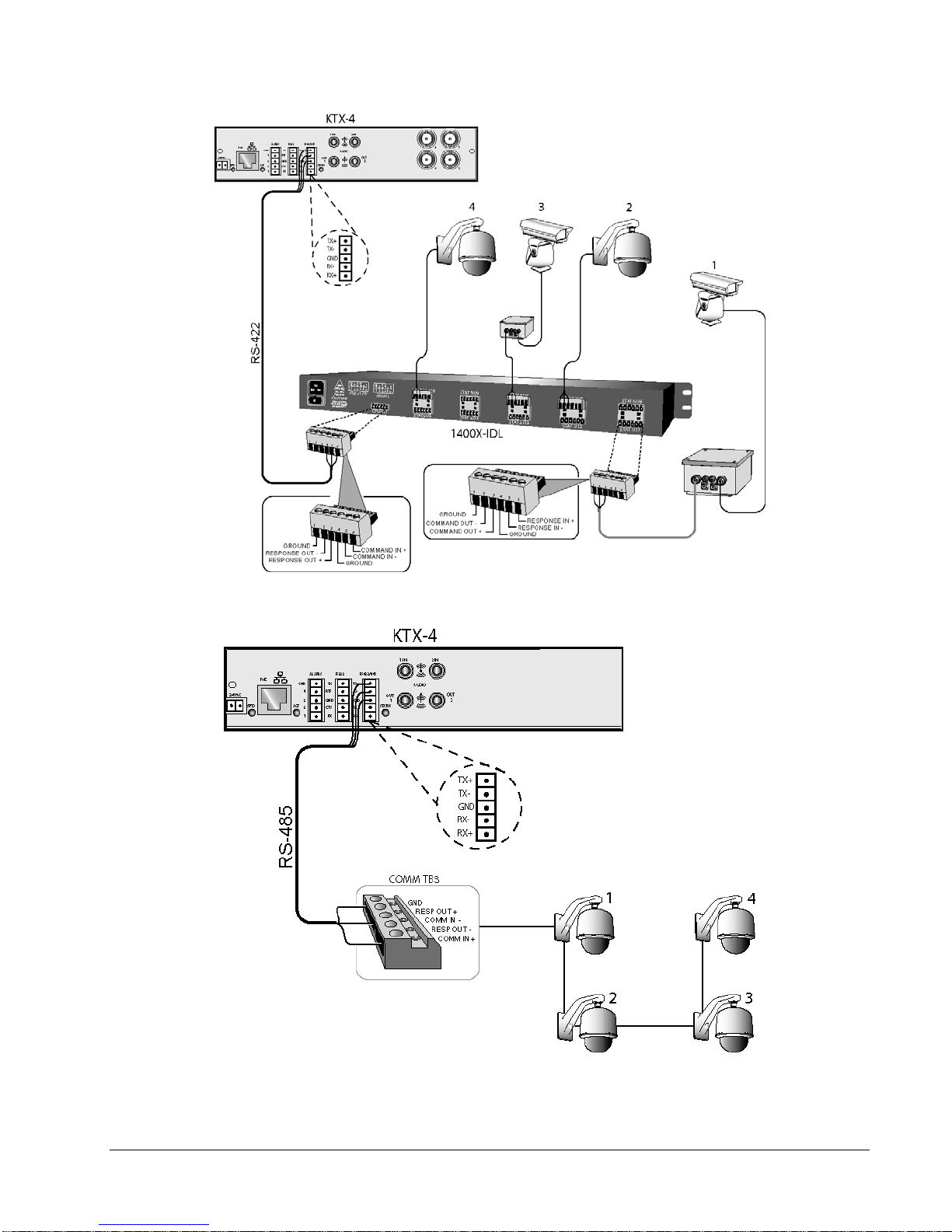

Star Configuration
Daisy Chain Configuration
Figure 3-2: PTZ Camera Control

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Chapter 3 - Installation •9
To connect an alarm (sensor) to the KTX-4:
6. Locate the alarm cable(s) near the server. These wires (pairs) will be connected to the ALARMS and
GND (Ground) terminal block connections (refer to Figure 3-3). There are four alarms available.
7. Connect one alarm wire to the ALARMS connection on the terminal block.
8. Connect the other alarm wire to the GND connection.
9. Connect the other end of this cable to the appropriate alarm output (N.O. or N.C. dry contact).
NOTE: Upon power-up, the state of the alarm inputs is sampled and stored as the default, non-alarmed state.
Therefore, ensure that all the alarm sensors are in a non-alarmed state prior to power-up.
NOTE: Users may select N.O and N.C. according to the sensor type being installed.

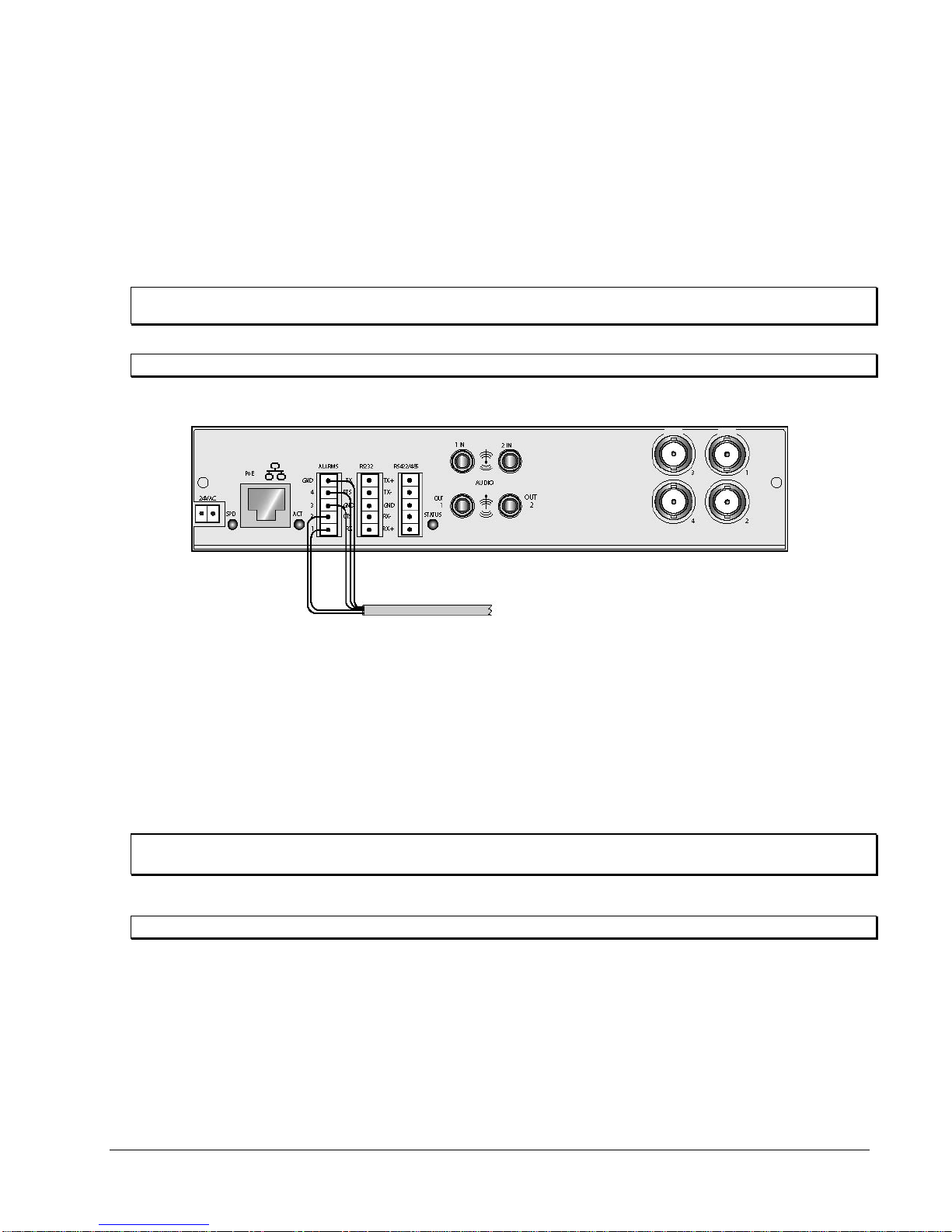

Figure 3-3: Alarm
To connect Audio to the KTX-4:
10. Locate the audio cable(s) near the server.
11. Connect the audio wire to the AUDIO jack (IN) on the rear panel.
12. Connect the other end of this cable to the appropriate microphone.
NOTE: The Audio Input should be a 0 dbm output, 32 KHz bandwidth, 600 ohm impedance and 2 V RMS
(1 V p-p) output dynamic type.
NOTE: Audio Output will be operational in future versions.

10 •Chapter 3 - Installation XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder
Step 2: Connecting the Power Supply
To ensure that the KTX-4 is protected during a power surge or failure and that no data is lost, it should be
connected to an uninterruptible power source (UPS) before use. The power supply must be supplied by the
customer.
To connect the UPS:
1. Place the KTX-4 near the 24 VAC power supply. Connect the 24 VAC power supply to the UPS power
receptacle.
2. Connect the UPS power cord to the wall outlet.
3. Power on the UPS and ensure that it is working properly.
NOTE: Refer to your UPS device’s User Manual for details on proper connection.
NOTE: Power can also be also be applied to the unit using Power over Ethernet (PoE) using PoE
compliant network equipment.

XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder Chapter 4 - Operation •11
Chapter 4 - Operation
About This Chapter
This chapter details power on, power off and configuration of the KTX-4 server. For full programming and
operation information, refer to the ViconNet Software manual, XX113-0X (where X is a revision number
between 0 and 9). The following sections provide information as follows:
Powering-On the Server guides the user through proper power on and boot procedures.
Powering-Off the Server guides the user through proper shut down procedures.
Configuring the Server guides the user through network, PTZ and alarm/audio setup.
Powering-On the Server
To power on the server:
1. Verify that the server is set up as detailed in Chapter 3, Installation.
2. Connect the 24 VAC power supply to the KTX-4 or connect PoE via network cable (RJ-45). The Status
Indicator will illuminate blue (blinking) to indicate the server is ON and running properly.
Powering-Off the Server
To power off the server:
With the server operational, disconnect the 24 VAC power supply or, if using PoE, disconnect the network
cable (RJ-45). The power indicator will cease to illuminate, indicating a power OFF condition.
