Vicon VI-DSP-2 Operating and safety instructions

Vicon Part No. 8009-8180-65-00 Section 1 Rev 0608
XX180-65-00
Video Intelligence System
Model VI-DSP-2 Single-Channel
Video Analytics Encoder
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2007 Vicon Industries Inc. All rights reserved.
Product specifications are subject to change without notice.
Vicon and its logo, ViconNet and its logo are registered trademarks of Vicon Industries Inc in the United States and other countries.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: www.vicon-cctv.com

iii
Important Notice
This manual is delivered subject to the following conditions and restrictions:
This manual contains proprietary information belonging to Vicon. Such
information is supplied solely for the purpose of assisting explicitly and
properly authorized users of the ViconNet system.
No part of its contents may be used for any other purpose, disclosed to any
person or firm or reproduced by any means, electronic or mechanical, without
the express prior written permission of Vicon.
The text and graphics are for the purpose of illustration and reference only.
The specifications on which they are based are subject to change without
notice.
The software described in this manual is furnished under a license. The
software may be used or copied only in accordance with the terms of that
agreement.
Information in this manual is subject to change without notice. Corporate and
individual names and data used in examples herein are fictitious unless
otherwise noted.
Trademarks
Vicon, the Vicon logo and ViconNet are registered trademarks of Vicon Industries Inc.
Raven is a trademark of Mango DSP Ltd.
Windows is a registered trademark of Microsoft Corporation.
All other proprietary names mentioned in this manual are the trademarks of their respective
owners.

iv
CONTENTS
PREFACE ........................................................................................................... 1
ABOUT THIS DOCUMENT.............................................................................................1
Conventions Used in this Document.............................................................................. 1
RELATED DOCUMENTS................................................................................................1
CHAPTER 1. NETWORK SETUP.............................................................................................. 2
OVERVIEW .................................................................................................................2
SETTING UP THE ENCODER..............................................................................................2
Connecting to the Encoder................................................................................................... 2
Encoder Network Setup ....................................................................................................... 6
RESETTING THE ENCODER ..............................................................................................7
CHAPTER 2. INSTALLING THE ENCODER.............................................................................. 8
OVERVIEW .................................................................................................................8
CONNECTORS AND INDICATORS........................................................................................8
Front Panel ......................................................................................................................... 8
Rear Panel.......................................................................................................................... 9
INSTALLATION........................................................................................................... 10
Connecting the Cabling.......................................................................................................11
Connecting the Power Supply..............................................................................................12
CHAPTER 3. TECHNICAL SPECIFICATIONS ........................................................................ 13
CHAPTER 4. VICON STANDARD EQUIPMENT WARRANTY .......................................... 14

1
Preface
About this Document
This guide provides network setup and installation instructions for the Model VI-DSP-2
MangoDSP Raven™ Single-Channel Video Analytics Encoder (encoder).
Conventions Used in this Document
Convention Example
Names of buttons, windows and tabs
are shown in bold font Press the Next button.
Referenced links are displayed in
italic and colored font See Predefined Schedule.
Related Documents
Document Description
None

2
NETWORK SETUP
Overview
The encoder is used to capture analog camera outputs and provide IP encoded
analytic data to the ViconNet Video Intelligence Video Analytics Server (VN-VI-
SERVER). One encoder is required for each analog camera output. In order to
communicate with the encoder(s), each must be set up with a unique IP address
on your network. The following paragraphs describe how to set up for encoder(s)
for network communication.
Setting up the Encoder
NOTE
The following steps might require that you change your workstation's IP address in
order to communicate with the encoder. Make sure that you note the workstation
settings or address prior to making any changes. You will change the IP address
back to the original address or setting, when you have completed setting up the
encoder.
If you are unsure of any of the following steps or on a Corporate LAN, please
consult your Network Administrator.
Connecting to the Encoder
The following steps assume that you are using Windows® XP or Windows Server
2000 (or higher) on your workstation. The default IP address of the encoder is:

Model VI-DSP-2 Encoder Network Setup
3
198.168.0.62. In order to communicate with the encoder, your workstation has to
be on the same network IP (198.160.0.XXX) as the encoder. If it is not, perform
the following:
1. Disconnect your workstation from the network and connect its network
interface with the Ethernet (ETH) connector on the rear panel of the encoder,
using a crossed LAN cable or an Ethernet switch.
2. Connect power to the encoder (See Installing the Encoder in this guide).
3. On your workstation, right-click My Network Places and click Properties.
4. Right-click Local Area Connection icon and click Properties. The Local Area
Connection Properties window displays.
5. Select Internet Protocol (TCP/IP) and click Properties. The Internet
Protocol (TCP/IP) Properties window displays.
NOTE
Depending upon how your system is set up, it may obtain an IP address
automatically or a fixed IP address may be listed. An example of each follows.

Model VI-DSP-2 Encoder Network Setup
4
6. If your screen resembles the screen shown with an IP address and Subnet
mask, write down your settings. You will need to reenter the settings when the
procedure is complete.
7. Change the IP address to: 192.168.0.1, and the Subnet mask to:
255.255.255.0.
8. Go to Start/All Programs/Accessories/Command Prompt or
Start/Run/cmd.

Model VI-DSP-2 Encoder Network Setup
5
9. In the Command Prompt window, type ping 192.168.0.62. You should see a
response similar to the window below.
NOTE
The encoder is preset with a default IP address of 192.168.0.62.
10.If you do not receive a response similar to that shown above, ensure that you
have followed all of the steps correctly.

Model VI-DSP-2 Encoder Network Setup
6
Encoder Network Setup
To set up the encoder with your network parameters, proceed as follows:

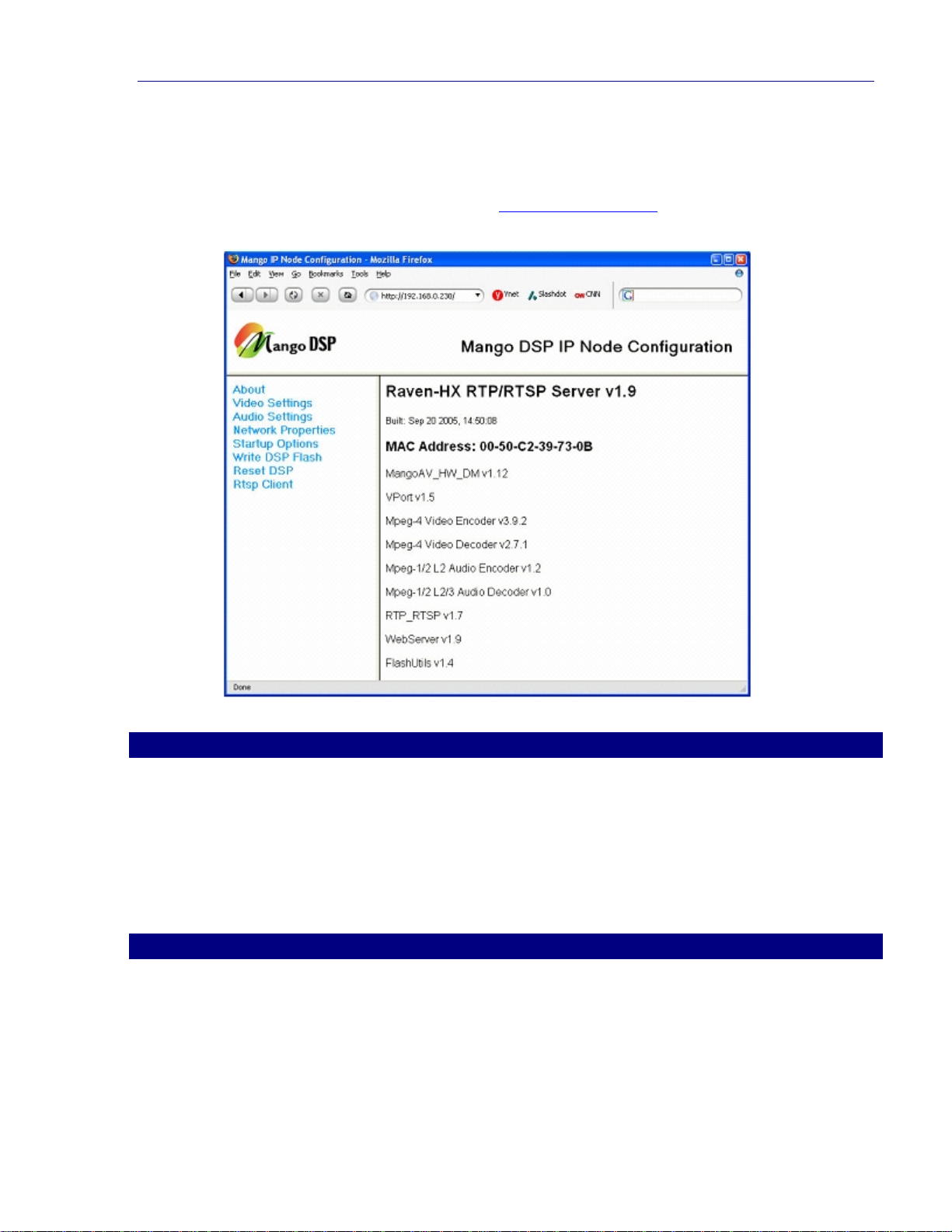

1. Open a web browser and enter http://192.168.0.62. You are now ready to set
up the encoder on your network. A browser window will display.
NOTE
If you received a firmware update from Vicon and wish to upgrade your firmware
version, click Write DSP Flash. Browse for the updated .bin file and click Write
Flash to update. When the process has completed, reset the unit and reload this
web page. See Resetting the Encoder in this guide for a description of this
procedure.
2. Click Network Properties link. The Mango DSP IP Node Configuration
web page displays.
NOTE
If you are unsure of any of the following steps or on a Corporate LAN, please
consult your Network Administrator.
The preferred method is to assign a fixed IP address to the encoder. There is
currently no way to discover the IP address the encoder has received from the
DHCP server.

Model VI-DSP-2 Encoder Network Setup
7
3. Enter Hostname, and select Fixed: Assign the following IP address
configuration to the hardware. Enter the values in each field. Provide a
unique IP address for the encoder. Click Save.
NOTE
Each encoder is preset with a unique MAC address that cannot be modified by the
user.
If you are setting up multiple encoders, they must all have a unique IP address.
For example: If you use the default network settings, you can set each encoder up
as follows: 192.168.0.XXX, where XXX is a unique number for each encoder.
4. Configuration is complete. Reset the encoder (see Resetting the Encoder) and
connect it to your network.
5. Reset your workstation to its original settings and reconnect it to the network.
Resetting the Encoder
You can reset the encoder by clicking on the Reset DSP link on the browser
interface, pressing the RESET button on the front panel or cycling power to the
encoder.

Model VI-DSP-2 Encoder Installing the Encoder
8
INSTALLING THE ENCODER
Overview
Once you have assigned the encoder a unique network IP address, you can install
it. The following paragraphs provide connection and installation information for the
encoder.
Connectors and Indicators
Front Panel
Connector or Indicator Function
RESET
Press this switch using a pen or other
object to reset the encoder.
AUDIO OUT and IN Future use.
VIDEO OUT, IN1 and IN2 IN1 is connected to camera output.
VIDEO OUT provides a video loop out to
a ViconNet DVR. VIDEO IN2 is for future
use.
Indicators 1,2,3,4 Light to indicate encoder is operating.

Model VI-DSP-2 Encoder Installing the Encoder
9

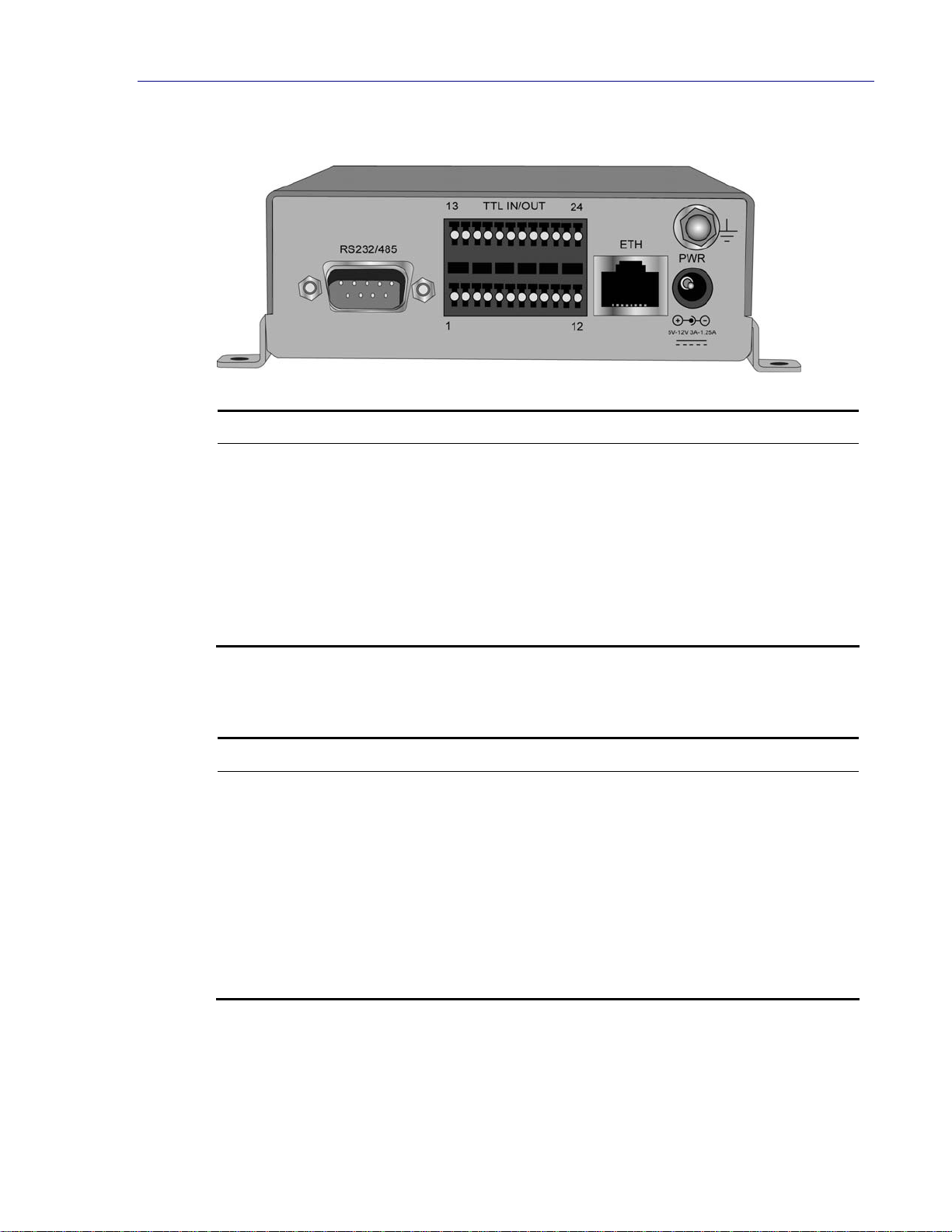

Rear Panel
Connector or Indicator Function
RS232/485 See the RS232/485 Interface Pin Out
Data table for more information.
TTL IN/OUT Provides connection for 4 TTL inputs
and 4 relay outputs. See the TTL
IN/OUT Pin Out Data table for more
information.
ETH Connection for network RJ-45 plug.
GND Ground terminal.
PWR 5V-12V 3A-1.25A Power supply connection.
RS232/485 Interface Pin Out Data
Pin Number Description
1 CH1_RS422_TX_P
2 CH1_RS232_RX
3 CH1_RS232_TX
4 CH1_RS422_RX_N
5 GND_DIGITAL
6 CH1_RS422_TX_N
7 CH2_RS232_RX
8 CH2_RS232_TX
9 CH1_RS422_RX_P

Model VI-DSP-2 Encoder Installing the Encoder
10
TTL IN/OUT Pin Out Data
Pin Number Description
1 RLY1_COM
2 RLY1_NO
3 RLY1_NC
4 RLY2_COM
5 RLY2_NO
6 RLY2_NC
7 RLY3_COM
8 RLY3_NO
9 RLY3_NC
10 RLY4_COM
11 RLY4_NO
12 RLY4_NC
13 ALARM_IN1
14 ALARM_IN2
15 ALARM_IN3
16 ALARM_IN4
17 GND_DIGITAL
18 Unused
19 Unused
20 Unused
21 Unused
22 Unused
23 Unused
24 Unused

Model VI-DSP-2 Encoder Installing the Encoder
11
Installation
Mount the encoder in a level, clean and dry indoor location on a shelf on in a rack.
The room or area temperature is climate controlled for human occupancy Connect
power supply, network cable, video cables and ground as follows. A typical
network installation is shown in the following figure.
WARNING
Disable the AC power to prevent installer injury and damage to the unit. Ensure all
connections are made prior to powering the unit.
Connecting the Cabling
Perform the following connections (refer to front and rear panel illustrations):
1. Insert one side of a standard LAN cable to the rear panel ETH RJ-45 connector.
Insert the other RJ-45 connector into the LAN side of the network (switch, wall
jack, etc.).
2. Connect camera video output cable to front panel VIDEO IN1 connector.
Connect VIDEO OUT cable to DVR video input.
3. Connect TTL input and/or relay outputs to rear panel TTL IN/OUT connector.

Model VI-DSP-2 Encoder Installing the Encoder
12
Connecting the Power Supply
Connect the power supply as follows:
1. Connect ground wire to rear panel GND terminal.
2. Connect power supply output to rear panel PWR 5V-12 connector.
3. Connect power supply to AC power.

Model VI-DSP-2 Encoder Technical Specifications
13
TECHNICAL SPECIFICATIONS
Input Voltage: +5 to 12 VDC; 3 A to 1.25 A
Processor: 1 TI DM642 @ 600/720 MHz.
Video Input: 1 Composite BNC.
Video Output: 1 Composite BNC.
UART: RS232 or RS485/422 (Simplex and Full Duplex).
Ethernet: 1 Fast Ethernet RJ-45 Connector.
On-Board Relays: 4 DPDT relays (up to 1 A @ 30 VDC load).
Alarm/Sensor
Inputs: 4 TTL.
LEDs: 4 general purpose LEDs.
Operating
Temperature: 32° to 122° F (0° to 50° C).
Storage
Temperature: -40° to 185° F (-40° to 85° C).
Dimensions: Height: 1.5 in. (38 mm).
Width: 4.25 in. (108 mm).
Length: 6.5 in. (165 mm).
Weight: 0.94 lb (0.43 kg)

Model VI-DSP-2 Encoder Vicon Standard Equipment Warranty
14
VICON STANDARD EQUIPMENT WARRANTY
Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and
workmanship under Normal Use from the date of original retail purchase for a period of three years,
with the following exceptions:
1. VCRs, all models: Labor and video heads warranted for 120 days from date of original retail purchase. All
other parts warranted for one year from date of original retail purchase.
2. Video monitor CRT (cathode ray tube) and LCD monitors, all models: One year from date of original retail
purchase.
3. Uninterruptible Power Supplies: Two years from date of original retail purchase.
4. VDR-304 and VDR-308 Recorder Series: One year from date of original retail purchase.
5. Normal Use excludes prolonged use of lens and pan-and-tilt motors, gear heads, and gears due to
continuous use of “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of
this warranty.
Date of retail purchase is the date original end-user takes possession of the equipment, or, at the sole discretion of the
Company, the date the equipment first becomes operational by the original end-user.
The sole remedy under this Warranty is that defective equipment be repaired or (at the Company’s option) replaced,
at Company repair centers, provided the equipment has been authorized for return by the Company, and the return
shipment is prepaid in accordance with policy.
The Company will not be obligated to repair or replace equipment showing abuse or damage, or to parts which in the
judgment of the Company are not defective, or any equipment which may have been tampered with, altered, misused,
or been subject to unauthorized repair.
Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant
that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be
discontinued at any time without notice at Vicon’s sole discretion. Vicon reserves the right to make changes
to its software in any of its products at any time and without notice.
This Warranty is in lieu of all other conditions and warranties express or implied as to the Goods, including
any warranty of merchantability or fitness and the remedy specified in this Warranty is in lieu of all other
remedies available to the Purchaser.
No one is authorized to assume any liability on behalf of the Company, or impose any obligations on it in connection
with the sale of any Goods, other than that which is specified above. In no event will the Company be liable for
indirect, special, incidental, consequential, or other damages, whether arising from interrupted equipment operation,
loss of data, replacement of equipment or software, costs or repairs undertaken by the Purchaser, or other causes.
This warranty applies to all sales made by the Company or its dealers and shall be governed by the laws of New York
State without regard to its conflict of laws principles. This Warranty shall be enforceable against the Company only in
the courts located in the State of New York.
The form of this Warranty is effective August 2, 2006.
THE TERMS OF THIS WARRANTY APPLY ONLY TO SALES MADE WHILE THIS WARRANTY IS IN EFFECT.
THIS WARRANTY SHALL BE OF NO EFFECT IF AT THE TIME OF SALE A DIFFERENT WARRANTY IS POSTED
ON THE COMPANY’S WEBSITE, WWW.VICON-CCTV.COM. IN THAT EVENT, THE TERMS OF THE POSTED
WARRANTY SHALL APPLY EXCLUSIVELY.
