Vicon IX4000AL User manual

Installation&
O
p
eration Manual
IX4000AL, IX4000AH
Colour Camera
Vicon Industries Inc. Does not warrant that the functions contained in this equipment will meet your requirments or
that the operation will be entirely error free or perform precisely as discribed in the documentation. This system
has not been designed to be used in life critical situations and must not be used for this purpose.
Copyright © 2009Vicon Industries Ltd All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES LTD, BRUNEL WAY, FAREHAM, HAMPSHIRE, PO15 5TX
TEL: [phone] FAX: [phone]
Technical Support: [phone]
WEB: www.vicon-cctv.com

-2-
Dear Customer!
By selecting this VICON product you have chosen a professional device which
guarantees the highest possible quality and reliability. We like to thank you very much for
your confidence in our products and kindly ask you to read the following instructions
carefully before commissioning the product in order to be able to take full advantage
of all quality features regarding this product line.
Contents Page
GENERAL INFORMATION 3
SAFETY PRECAUTIONS 3
COMPOSITION 3
MOUNTING THE CAMERA 4
MOUNTING THE CAMERA TO A WALL MOUNT 4
COMMISSIONING THE CAMERA 5
TIPS FOR CAMERA LOCATION 5
ADJUSTMENT OF BACK FOCUS 6
ADJUSTMENT OF ES-LENSES 6
FOCUSING THE CAMERA LENS 7
CIRCUIT POINTS AND OPERATION 7
MAIN SETUP 9
CAMERA CONFIGURATION 9
LENS 9
EXPOSURE 10
WHITE BAL. 11
BACKLIGHT 12
DNR 13
DAY / NIGHT 13
IMAGE ADJ 14
SPECIAL 15
EXIT 17
APPENDIX 18
TROUBLESHOOTING 18
TECHNICAL SPECIFICATIONS 19
CLEANING AND CARE 20
TECHNICAL SUPPORT 20

-3-
Safety Precautions
Read these instructions carefully before commissioning the camera in order to
avoid damages caused by improper installation or use.
Installation may only be carried out by authorised personnel according to the local
safety regulations.
Operate the camera with the designated voltage only.
Follow the safety instructions attached to the camera.
Never use the camera for other purposes than designated.
Repairs and adjustments at the camera may only be carried out by authorised
personnel.
In case of outdoor use you have to install the camera in a suitable weather
protection case incl. heating element.
If any liquid or solid matter should get into the housing, disconnect the camera
from power supply and have it checked by your authorised dealer before re-using
(danger of electronic shock!).
Do not disassemble the camera. To avoid electric shocks, never remove screws or
covers. There are no user-serviceable parts inside it. All maintenance may only be
carried out by authorised personnel according to the local safety regulations.
Install the camera by a least height of 2.30 m.
Composition
General Information
1. Auto Iris Lens Plug
2. Remote Plug
3. L Wrench
4. C-Mount Adapter
5. Instruction manual

-4-

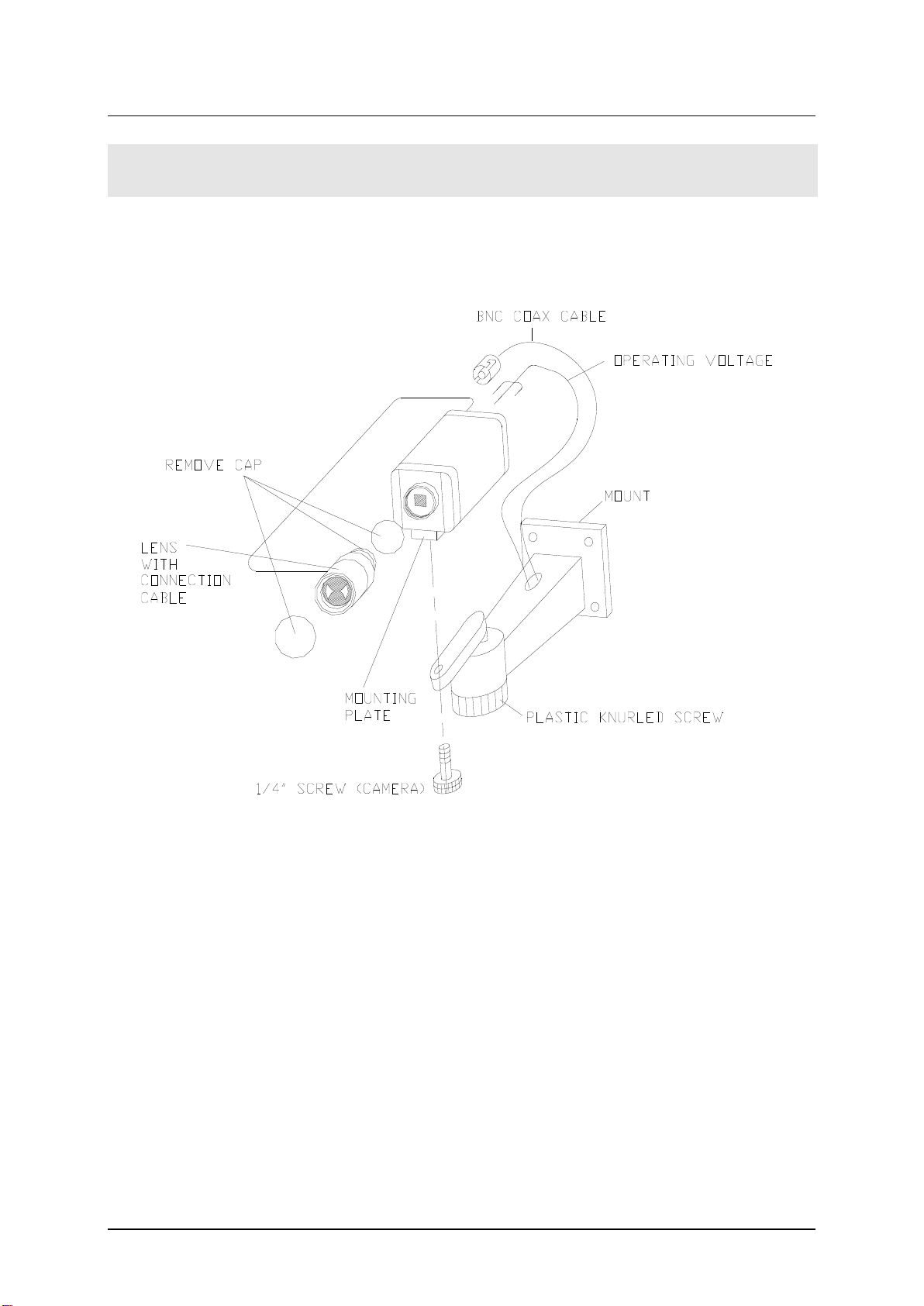

Mounting the Camera to a Wall Mount
Mounting the Camera

-5-
Tips for Camera Location
1.0 To avoid internal overheating:
-never expose the camera to direct sunlight without additional camera housing
-keep sufficient distance to direct heat sources.
2.0 Never install the camera at humid, oily or dusty locations without using an
additional housing. (without additional housing the camera is not suitable for
outdoor use!)
3.0 The camera should be installed out of reach (min. height: 2.30 m)
4.0 Do not aim the camera towards indoor lighting, the windows, the sunlight or the
sky (to get good pictures, camera and light should be aimed towards the object)
5.0 Reduce the picture detail to the
essential parts of the picture and place
the camera as close as possible to the
object (a smaller picture detail
guarantees sharper details).
6.0 Do not aim the camera towards a
window but instead towards the room.
7.0 Outdoors the camera should be
placed as high as possible so that the
horizon does not appear in the picture.
8.0 Avoid peak light as background (also
caused by reflections, e.g. window
panes).
Commissioning the Camera
wrong right

-6-
Adjustment of Back Focus
This adjustment should only be carried out, if the lens cannot be focused properly
using the lens focus ring. For such a case proceed as follows:
1 Loosen the Allan head screw with the attached
Allan head key. For large distances, turn the
focus ring of the lens almost (0.5 cm) to the
"endless" limit position. If you need to focus an
object near the camera, turn the focus ring of
the lens to a position 1cm before the "near"
limit position.
2 Use the back focus adjustment screw to adjust the distance between lens and CCD
chip until the picture is in focus. Then fix the Allan head screw using the Allan head
key.
3 Finally, focus the picture using the lens focus ring.
Adjustment of ES-Lenses
To adjust a lens with automatic iris (video driven) to the camera, please proceed as
follows:
1. Turn the level potentiometer (position: ES lenses at the lens) to the max. position
H (turn right). The monitor picture then appears to be too bright.
2. Slowly turn the level potentiometer back until the monitor picture appears to be
perfect and is not too bright anymore. Then turn the potentiometer back to the
right (in direction "H") just a little bit.
3. Check the lens performance by using the camera under different and/or changing
light conditions.
Locking screws

-7-
Focusing the Camera Lens
After you have selected the correct picture detail you have to adjust the lens focus.
The focus adjustment needs to be done with the iris fully open, since the camera has
the smallest depth of focus in this position. If the focus adjustment was not done with
the iris completely open, the picture would be sharp during the day but slowly getting
out of focus the more the light disappears. To fully open the lens, use a grey filter in
front of the lens, provided you are using a lens with automatic iris. Adjust the focus
while the iris is fully open using the lens focus ring. Make sure the most important
picture details are in optimum focus (use a service monitor). If it is not possible to
bring the picture into focus, please adjust the back focus of the camera as described
above.
If you intend to use I.R. illumination at a later stage, you must use an I.R. pass filter
together with the grey filter during focus adjustment to ensure that only I.R. light will
get through to the camera chip and the focus adjustment is done according to this
spectrum, only. Attention: I.R. light can only be used in combination with mono
cameras, not colour cameras!

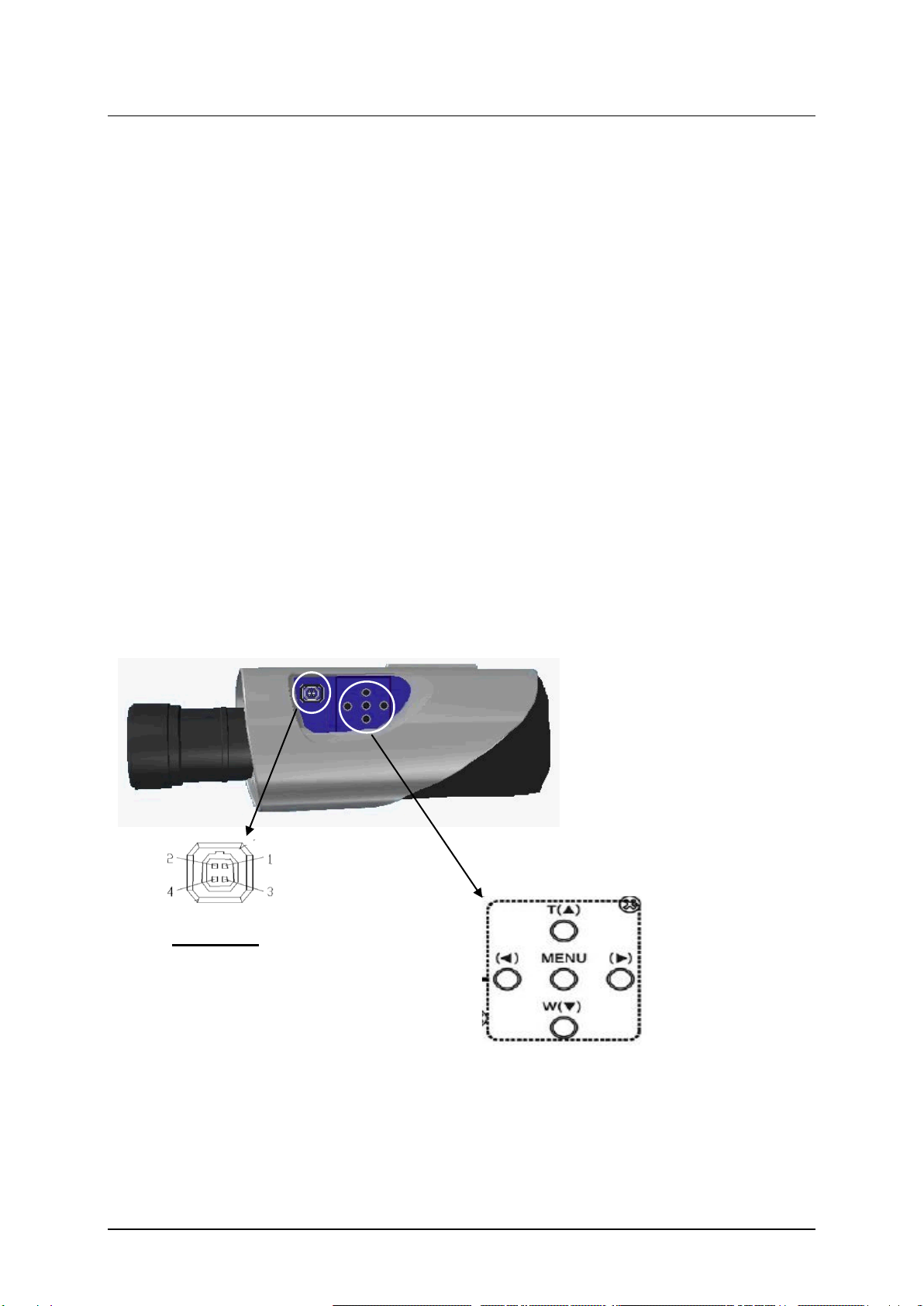

Circuit points and operation
3. Lens connector
4. Menu keys
1
2
DC - Lens
1. Control -
2. Control +
3. Drive+
4. common

-8-
Rear View
IX 4000A/L
IX 4000A/H
PL:
Power LED
AC24V / DC 12V:
Power connection, the polarity with
12V DC makes no difference.
VIDEO OUT:
Video output to monitor etc.
CONTROL:
1. Ext. In
Dry contact for external day/night switching siehe
Seite 13
2. Motion Out
output signal if motion is detected, siehe Seite 16
3. Gnd
Ground
4. 
RS 485 interface
5. 
RS 485 inerface
PL:
Power LED
230V AC:
Power cord
VIDEO OUT:
Video output to monitor etc.
CONTROL:
1. Ext. In
Dry contact for external day/night switching siehe
Seite 13
2. Motion Out
output signal if motion is detected, siehe Seite 16
3. Gnd
Ground
4. 
RS 485 interface
5. 
RS 485 inerface
AC24V/ DC12V
VIDEO OUT
CONTROL
POWER INLET
VIDEO OUT
CONTROL

-9-
Main Setup
Press the menu key on the left side of the
camera to open the set up menu. All settings
are accessible from this menu. Set the cursor
         
setting you will change. Change the settings
         
         b
menu is available, the setting parameter is
marked with this arrow .
LENS
In "LENS" you can choose between automatic lenses and manual lenses. With the
automatic lenses either DC or Video is readable on the right side. It depends on the
Video / DC switch position (ref. page 8).
             
         and Right     
brightness is reached, you can exit the submenu with the "Menu" key
Camera Configuration

-10-

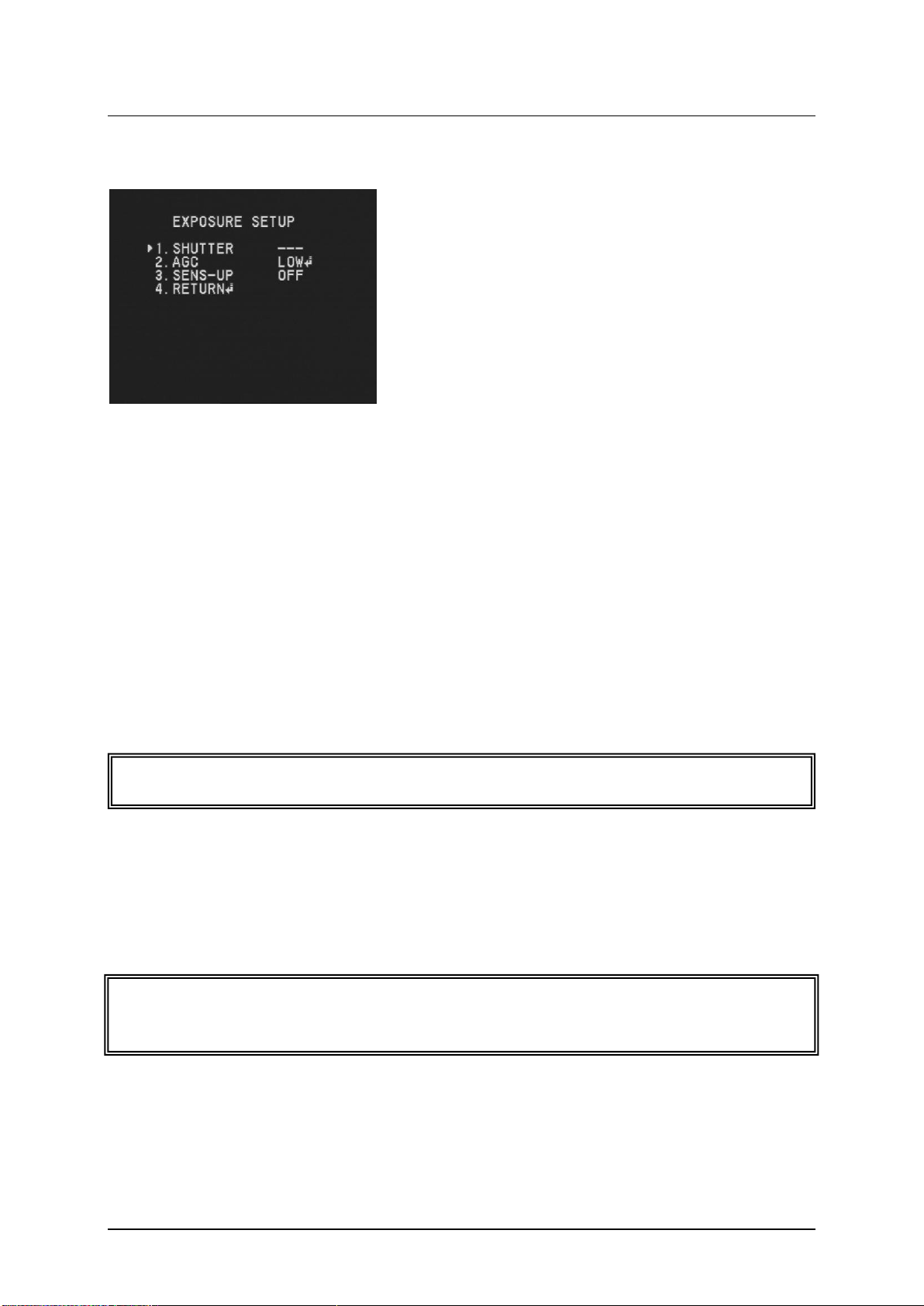

EXPOSURE
SHUTTER
A.FLK: Flickerless(PAL:1/100sec;NTSC:1/120sec)
MANUAL: fixed shutter from 1/50 sec up to 120000 sec., fixed slow shutter
from x2 up to x256
ESC: Auto shutter
For shutter value setting please enter the submenu.
AGC
Under low light condition the videosignal would increased automatically. The higher
the AGC the more noisy is the picture. Settings: Off, Low, High.
OFF: AGC disabled
LOW: automatic gain control from 0 30 dB
HIGH: automatic gain control from 0 42 dB
SENS –UP
AUTO: 
by increasing or decreasing the shutter speed. (X2~X256)
OFF: Sens up disabled
RETURN
Select this to save the changes in the EXPOSURE menu and return to the SETUP
menu.
Notes: Note that the higher the sens up level, the brighter the screen, but the more likely it
is that an after-image will appear. Although Noise, Spots, and Whitish symptoms
may occur in SENS-UP operation when the zoom level is increased, this is normal.
Je höher die Aufintegration, desto größer sind die Nachzieheffekte im Bild bei Bewegung.
Rauschen, Spots und weißstichige Bilder können bei höherer Aufintegration auftreten,
dies ist normal.
Notes: If the AGC is disabled, the DNR-, SENSE UP-, DAY/NIGHT- funktion are not
available.

-11-
WHITE BAL.
The White Balance function is used to adjust the screen colour. Five mode to have a
proper picture are available.
ATW
Select this when the colour temperature is between 1800°K and 10500°K.
INDOOR
Select this when the colour temperature is between 4500°K and 8500°K.
OUTDOOR
Select this when the colour temperature is between 1800°K and 10500°K. (sodium
light inclusion)
AWC
To find the optimal setting for the current luminance environment in this mode, set
the point the camera towards a sheet of white paper and press the SET button. If the
environment changes, readjust it.
MANUAL
Select this to fine-tune White Balance manually. Set White Balance first by using the
ATW or AWC mode. After that switch to MANUAL mode, fine-tune the White Balance
and then press the SET button.
Notes: White Balance may not work properly under the following conditions. In this case
select the AWC mode.
When the color temperature of environment surrounding the subject is out of
thecontrol range (e.g. clear sky, or sunset)
When the ambient illumination of the subject is dim.
If the camera is directed towards a fluorescent light or is installed in a placewhere
illumination changes dramatically, the White Balance operation maybecome unstable.

-12-
BACKLIGHT
This camera is designed so that it delivers a distinctive subject and background at
the same time, even when the subject is in backlight.
BLC
Enables a user to directly select a desired area
from a picture, and to view the area more clearly.

and enhancement level. The level can set to
LOW, MIDDLE and HIGH
WDR
When there are both bright and dark areas at the
same time, this mode makes both areas
distinctive.
LIMIT : Adjust the WDR Sensitivity by
selecting LOW, MIDDLE, or
HIGH.
LEVEL: Adjust the WDR Brightness by
controlling the bar from 0 to 100.
Notes: 
menu is selected.
Since the performance of the WDR function may be affected by the area of the
bright part of the screen, optimize the installation angle for the best WDR performance.

-13-
DNR
This function reduces the background noise in a low luminance environment. The
level of the DNR is set in the submenu.
DAY / NIGHT
With the IX 4000A you can display pictures in colour or black and white.
COLOR
The picture is always displayed in colour
B/W
The picture is always displayed in black and white.

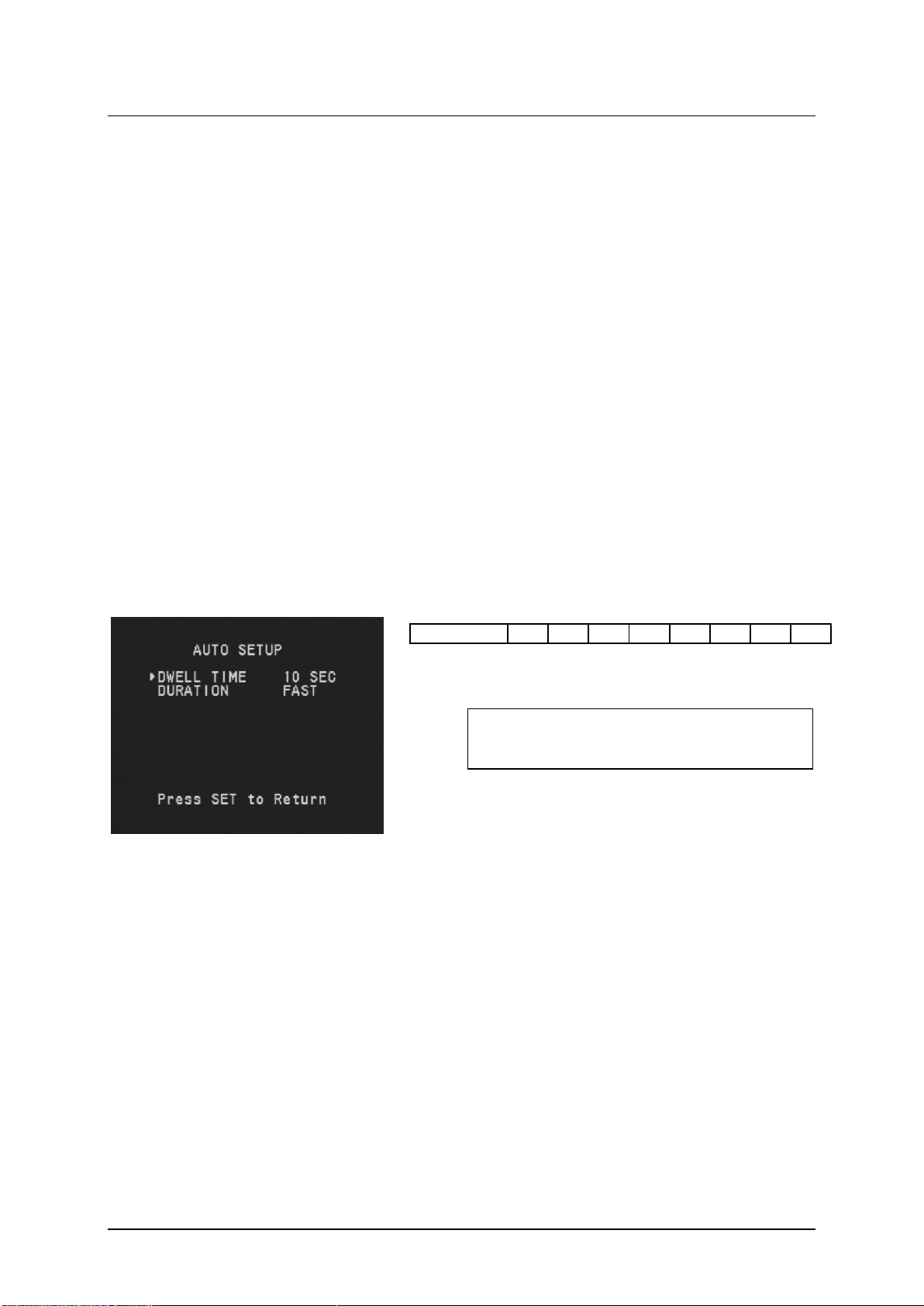

AUTO
The mode is switched to colour in a normal environment, but switches to B/W mode
when ambient illumination is low. To set up the switching time or speed for AUTO
mode, press the SET button.
Dwell time 5s 7s 10s 20s 30s 40s 50s 60s
COLOR => B/W BW => COLOR
FAST ~ 2,5Lux ~ 4Lux
SLOW ~ 0,8LUX ~ 6Lux
EXTERN
This mode allows you to switch the day / night mode via a dry contact. If the contact
is closed, the camera is in B/W mode.

-14-
IMAGE ADJ
FREEZE
You can view still or moving pictures.
Settings: ON, OFF
V –REV
You can flip the picture vertically on the screen.
Settings: ON, OFF
H –REV
You can flip the picture horizontally on the screen.
Settings: ON, OFF
D –ZOOM
You can use a digital zoom of x1~x10.
Settings: ON, OFF
Adjust the zoom factor in the submenu.
SHARPNESS
As you increase this value, the picture outline becomes stronger and clearer. Adjust
this value appropriately depending on the sharpness of the picture.
Adjust the sharpness in the submenu
Return
Select this to save the settings for the IMAGE ADJ. menu and to return to the SETUP
menu.

-15-
SPECIAL
SPECIAL

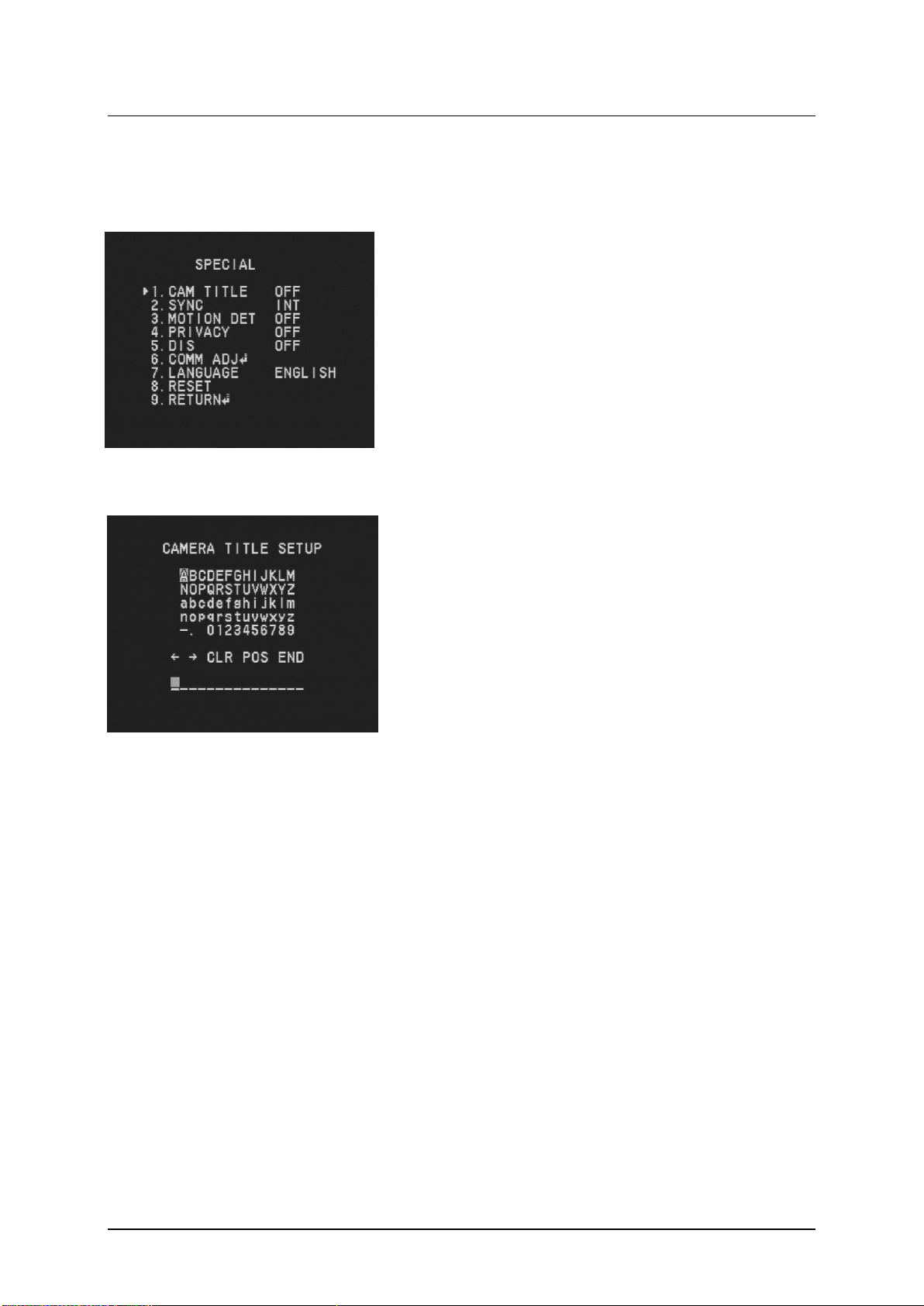

CAM TITLE If you enter a title, the title will appear on the
monitor.
If the SPECIAL menu screen is displayed, use
the Up and Down buttons so that the arrow

Left and Right buttons. When the CAM TITLE
         
monitor screen even if you enter one.
Press the SET button.
Use the 4 direction buttons to move to a desired
letter and select the letter by pressing the SET
button. Repeat this to enter multiple letters. You can enter up to 15 letters. If you
move the cursor to CLR and press the SET button, all the letters are deleted. To edit
a letter, change the cursor to the bottom left arrow and press the SET button. Move
the cursor over the letter to be edited, move the cursor to the letter to be inserted and

button. The entered title appears on the screen. Select the position to display the title
on the screen by using the 4 direction buttons and press the SET button. When the
             
SPECIAL menu.
SYNC
Activates the line lock function. If the camera is powered with 12V DC the camera is
set fixed to INT mode.

-16-
MOTION DET If you connect an alarm device to this camera,
you can monitor activity more efficiently, because
a signal is generated by the camera whenever
motion is detected. The motion detection signal is
output through the MOTION OUT pin at the rear
panel.
When the SPECIAL menu screen is displayed,
press the Up and Down buttons so that the arrow
indicates MOTION DET. Set up the mode using
the 4 direction buttons.
1. SENSITIVITY : You can select up to 8 MD areas. When SENSITIVITY number is
high, motion detection sensitivity is increased to recognise even small movement.
2. AREA MODE : Determines whether to use the MD area selected in SENSITIVITY.
3. SEL POS : Determines which of the 4 vertices of each MD area is to be used.
4. YPOS : Determines the co-ordinate of the vertical axis for SEL POS.
5. XPOS : Determines the co-ordinate of the horizontal axis for SEL POS.
6. FILL SET : Fills in a selected MD area. Fills in a selected MD area. The colour of
filling is sequentially selected as brown, orange, blue, cyan, yellowish green,
yellow and red.
7. RETURN : Select this to save the MOTION DET menu settings and return to the
SPECIAL menu.
PRIVACY
Hide an area you want to hide on the
screen.
When the SPECIAL menu screen is displayed,
press the Up and Down buttons so that the

Set up the mode using the 4 direction buttons.
1. AREA SEL : You can select up to 8 MD
areas.
2. AREA MODE : Determines whether to use
the area selected in the AREA SEL, and the
size and position of the area.
3. MASK COLOR : Determine area colour. You can select Grey, Green, Red, Blue,
Black, White.
4. TRANSP : Determine the transparency of selected area as controlling number
from 0 to 3.
5. RETURN : Select this to save the PRIVACY menu settings and return to the
SPECIAL menu.

-17-
DIS (Digital Image Stabiliser)
This function mitigates any picture movement due to external factors such as wind.

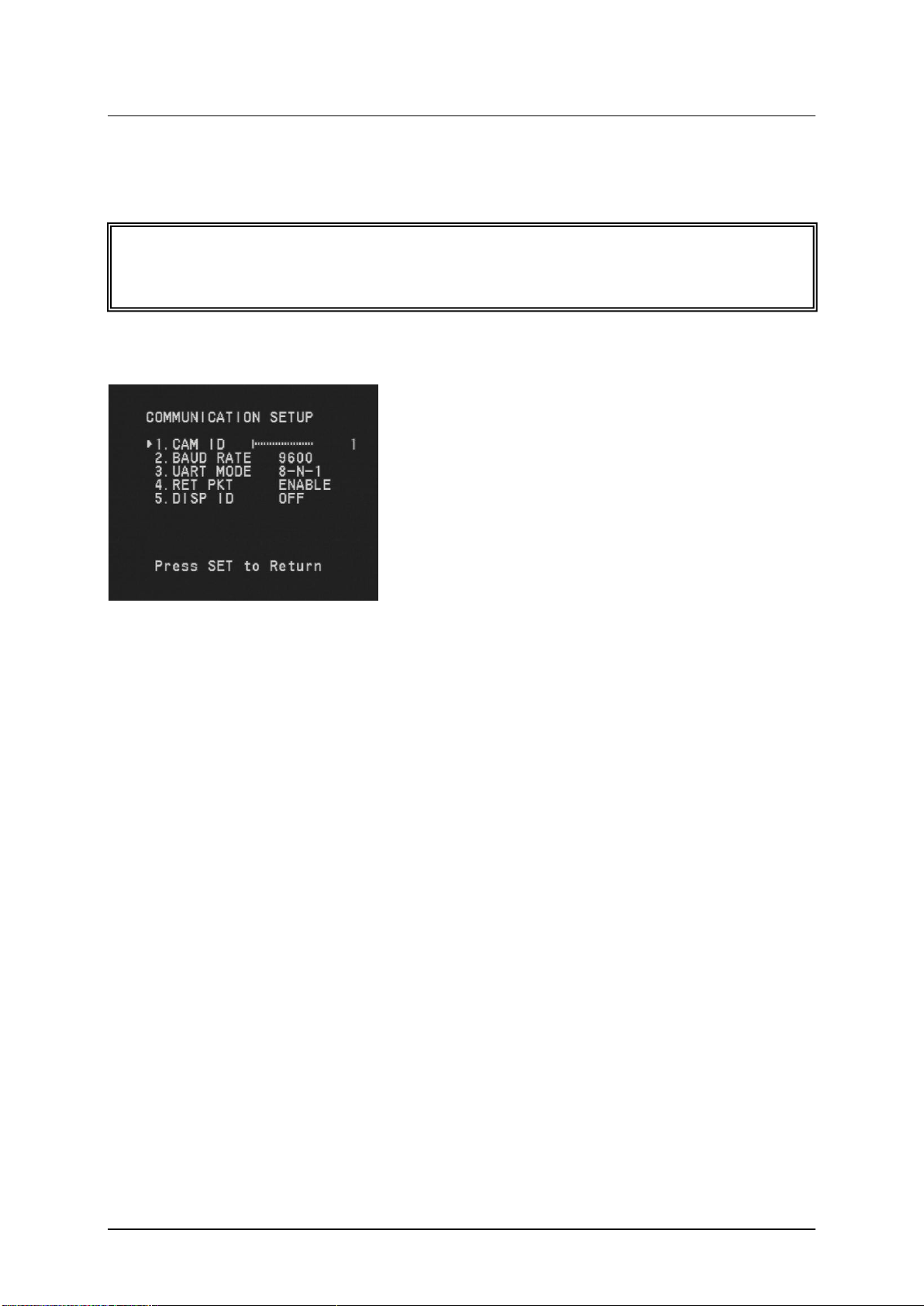

COMM ADJ This function sets up the camera communication
status when controlling the camera through an
external control device.
1. Determines the camera's identification
number (between 0 and 256).
2. You can select 2400/4800/9600/19200/38400
/57600 BPS.)
3. You can select NONE, EVEN or ODD for the
parity bits
4. Determines whether to send a command back
to the controller device when a
communication control command is sent to the camera.
5. Display camera title on top left corner of the screen.
LANGUAGE
You can select the menu language according to your requirements.
RESET
Resets the camera settings to the factory defaults.
RETURN
Select this to save the SPECIAL menu settings and return to the SPECIAL menu.
EXIT
Press the SET button in the EXIT menu to save the current settings and exit the SET
menu.
Notes:


e when object pattern is monotonic as like sky or white wall.

-18-
Troubleshooting
Error
Cause
No picture
- No operating voltage (check red LED)
- Coaxial connection interrupted (check video cable)
The picture is noisy
- Insufficient light
- The lens drive of the used lens (DC / AI) is not
properly adjusted to the camera (level too low)
The picture is too bright
- The lens drive of the used lens (DC / AI) is not
properly adjusted to the camera (level too high)
- Too much peak light; change camera location or
activate backlight function of the camera
The picture is not sharp
- Focus not adjusted properly
- Back focus not adjusted properly
- When used outdoors: heater defective; front pane of
camera housing gets steamy
The picture is distorted
- Different GND potentials between camera and
monitor; use opto coupler (e.g. VPT from videotronic)
- Bad connections
Ghost image
- Wrong 75 termination
- Shield of video cable interrupted
Synchronisation of cameras
does not work properly
- No or bad linelock connection between camera (12
V/DC version) and power adapter
- Mains plug twisted; turn the mains plug by 180° to
change the linelock phase
Please contact your authorised dealer with an exact failure description if none
of the above remedy measures fixes your problem.
Appendix

-19-
Technical Specifications
Camera type
IX 4000A L
IX 4000A H
CCD SENSOR

Total Pixels
795(H) x 595(V)
Effective Pixels
752(H) x 582(V)
Scanning System
2:1 Interlace
Resolution
Colour: 560TV Lines (typ.) / B/W: 700TV Lines (typ.)
Min. Illumination
0,3Lux / F1.2
0,001Lux (Colour Sens up), 0,00004 Lux (B/W Sens-up) at F1.2
(SensUp x256)
On-Screen Display
Yes: English, French, German, Spanish, Italy, Chinese
S/N (Y Signal)
52 dB (AGC Off, Weight ON)
AGC
LOW ( 0 30dB), HIGH (0 42dB), OFF
DNR
OFF / ON adjustable (1 32)
Synchronisation
LL (12V DC Int. only)
LL
WDR
Yes, 52dB (x128)
Backlight
Yes
DIS Digital Image Stabiliser
Yes
Digital Zoom
Yes, ON / OFF (10x adj.)
Day Night
Yes, ICR; Colour, B/W, Auto, Ext
Flickerless
yes
Electronic Shutter speed
AUTO / MANUAL (1/50 1/120.000 sec)
White Balance
ATW, AWC, MANUAL, OUTDOOR (1800°K 10.500°K)
INDOOR (4500°K 8500°K)
Sens up / DSS
AUTO, FIXED, OFF (selectable limit x2 x256)
Video Output
CVBS 1Vss / 75
Motion Detection
ON, OFF; 8 Zone, Alarm output TTL Level
Privacy Function
ON, OFF; 8 Zone (programmable)
Mirror
H-REV ON / OFF, V-REV ON / OFF
Blemish Compensation
256 point(Even 128 Point, ODD 128 Point)
Lens Mount
CS / C Mount
Iris Control
DC / Manual
Power source
12V DC 10%, 24V AC 10%
230VAC 10%
OperationTemp./Humidity
-10℃to +50℃/ 30% to 80% RH
Storage Temp./Humidity
-20°C to +60°C / 20% to 90% RH
Dimension (W x H x D)
70 x 56 x 130 mm

-20-
Cleaning and Care
Before you start to clean the camera body, disconnect the unit from power supply.
For reasons of electrical safety never clean the camera with water or other liquid
matters and never put the camera under water. To clean use a soft dry cloth.
Cleaning the camera inside is strictly forbidden and may only be done by your
authorised dealer.
Since all camera functions are self adjusting and the camera does not contain any
parts or components that are subject to wear we advise you not to open the camera
(except for the flap for settings), unless the camera appears to be defective.
Make sure to include these instructions when handing the camera over to third
parties.
Technical Support
Should you have any problems during installation you can reach our Technical
Hotline under the following telephone number: [phone].
