Vicon Roughneck Pro V2000D Series User manual

Quick Guide
Roughneck Pro V2000D Series
Outdoor Micro Dome Cameras
XX318-50-02
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8318-50-02 Product specifications subject to change without notice.
Issued: 9/2020 Copyright © 2020 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: [phone]) Fax: [phone]
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266)
UK: 44/(0) 1489-566300
www.vicon-security.com

Quick Guide
2
Table of Content
1Product Overview 5
1.1 Physical Characteristics 5
2Installation and Connection 8
2.1 Package Contents 8
2.2 Installation 8
2.2.1 Checking Appearance 8
2.2.2 Disassembling the Camera 8
2.2.3 Mounting the Camera 9
2.2.4 Connecting the Cables 10
2.2.5 PoE Port & Waterproof Connector (IWPWPC) Wiring Procedure 10
2.2.6 Positioning the Camera 11
2.2.7 Securing Desiccant 12
2.2.8 Reassembling the Camera 12
3Connection 13
3.1 Network Topology 13
3.2 System Requirements 13
3.3 Connecting Process 14
3.3.1 Default IP address 14
3.3.2 Connecting from a Computer & Viewing Preparation 14
3.4 IP Toolbox 18

Micro Dome Quick Guide
3
WARNING
⚫This camera operates at PoE (IEEE 802.3af Class 3).
⚫Installation and service should be performed only by qualified and experienced technicians and comply
with all local codes and rules to maintain your warranty.
⚫We are NOT liable of any damage arising either directly or indirectly from inappropriate installation which
is not depicted within this documentation.
⚫To reduce the risk of fire or electric shock, do not expose the product to rain or moisture.
⚫Wipe the camera with a dry soft cloth. For tough stains, slightly apply with diluted neutral detergent and
wipe with a dry soft cloth.
⚫Do not apply benzene or thinner to the camera, which may cause the surface to be melted or lens fogged.
⚫Avoid aligning the lens with extremely bright objects (e.g., light fixtures) for long periods of time.
⚫Although this camera is waterproof and suitable for both indoor and outdoor usages, do not immerse the
camera into water.
⚫Avoid operating or storing the camera in the following locations:
Extremely humid, dusty, or hot/cold environments (recommended operating temperature:
-4°F to +131°F/-20°C to +55°C)
Close to sources of powerful radio or TV transmitters
Close to fluorescent lamps or objects with reflections
Under unstable or flickering light sources
Get Started
This quick guide is designed as a reference for installation of the camera. For additional information on the
camera’s features, functions, and detailed explanation of the web interface controls, refer to User’s Manual
for details. Please read this quick guide thoroughly and save it for future use before attempting to install the
camera. From this guide you will get:
⚫Product Overview: The physical parts, features and dimensions of the camera.
⚫Installation and Connection: The instructions on installation and wires connection for the camera.
WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this product
(applicable in the European Union and other European countries with separate collection
systems). This product should be disposed of, at the end of its useful life, as per applicable
local laws, regulations, and procedures.

Quick Guide
4
FCC Compliance Statement
Informationto the user: This unit has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. These
limits are designed to provide reasonable protection against harmful interference in a residential installation.
This unit generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the manual, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this unit does cause harmful interference to radio or television reception, which can be determined by turning
the unit off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
⚫Reorient or relocate the receiving antenna.
⚫Increase the separation between the unit and receiver.
⚫Connect the unit to an outlet on a circuit different from that to which the receiver is connected.
⚫Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the unit.
CE Statement
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. The manufacturer declares that the unit supplied with this
guide is compliant with the essential protection requirements of EMC directive and General Product Safety
Directive GPSD conforming to requirements of standards EN55022 for emission, EN 50130-4 for immunity,
EN 300 and EN 328 for WIFI.
This product is IP67 rated for outdoor environments and IK10 rate for impact protection. The camera also
meets regulations required to be NDAA, GSA schedule and TAA approved.

Micro Dome Quick Guide
5
1Product Overview
1.1 Physical Characteristics

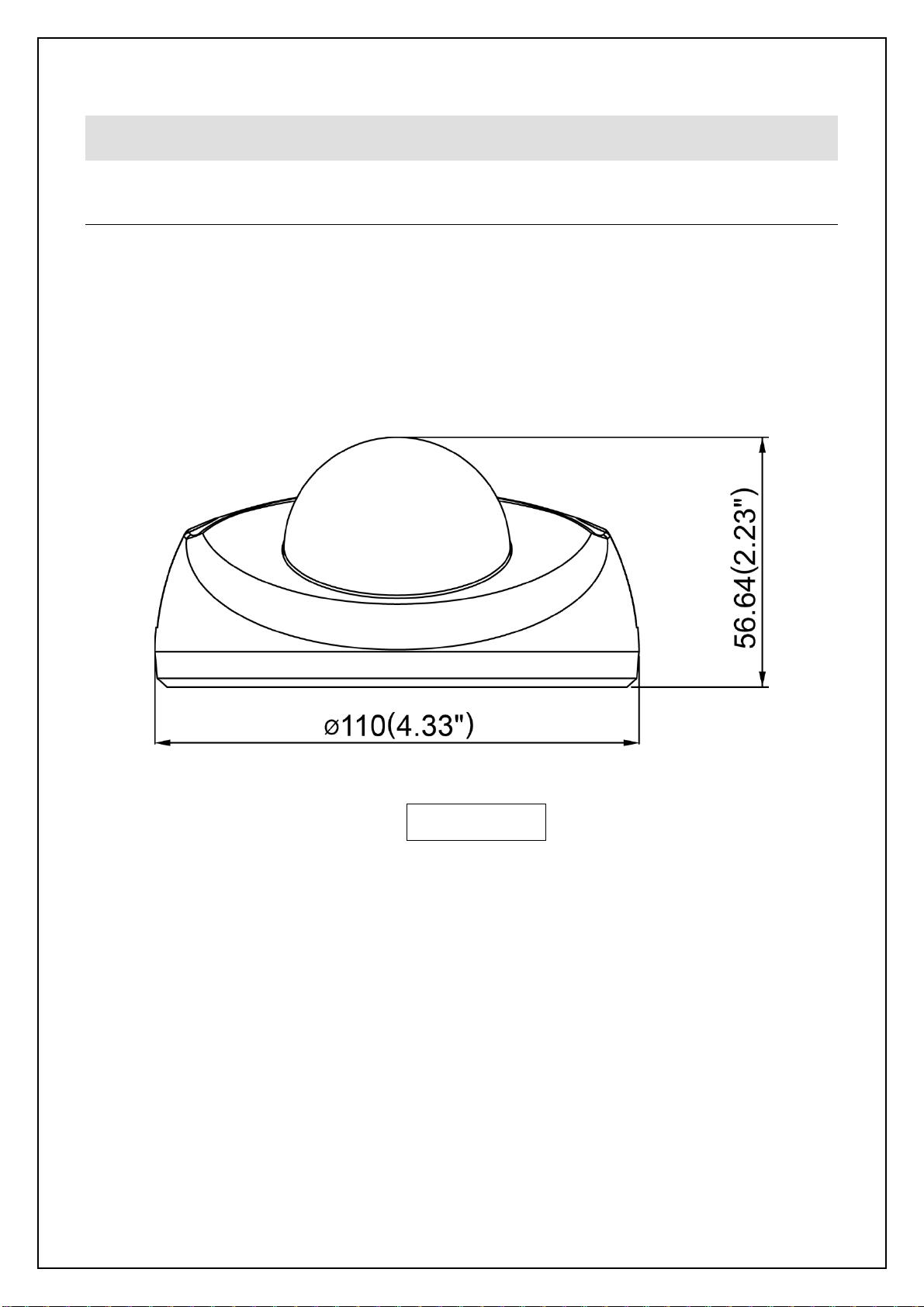

Figure 1 - 1: Physical Dimension
Unit: mm (in.)

Quick Guide
6

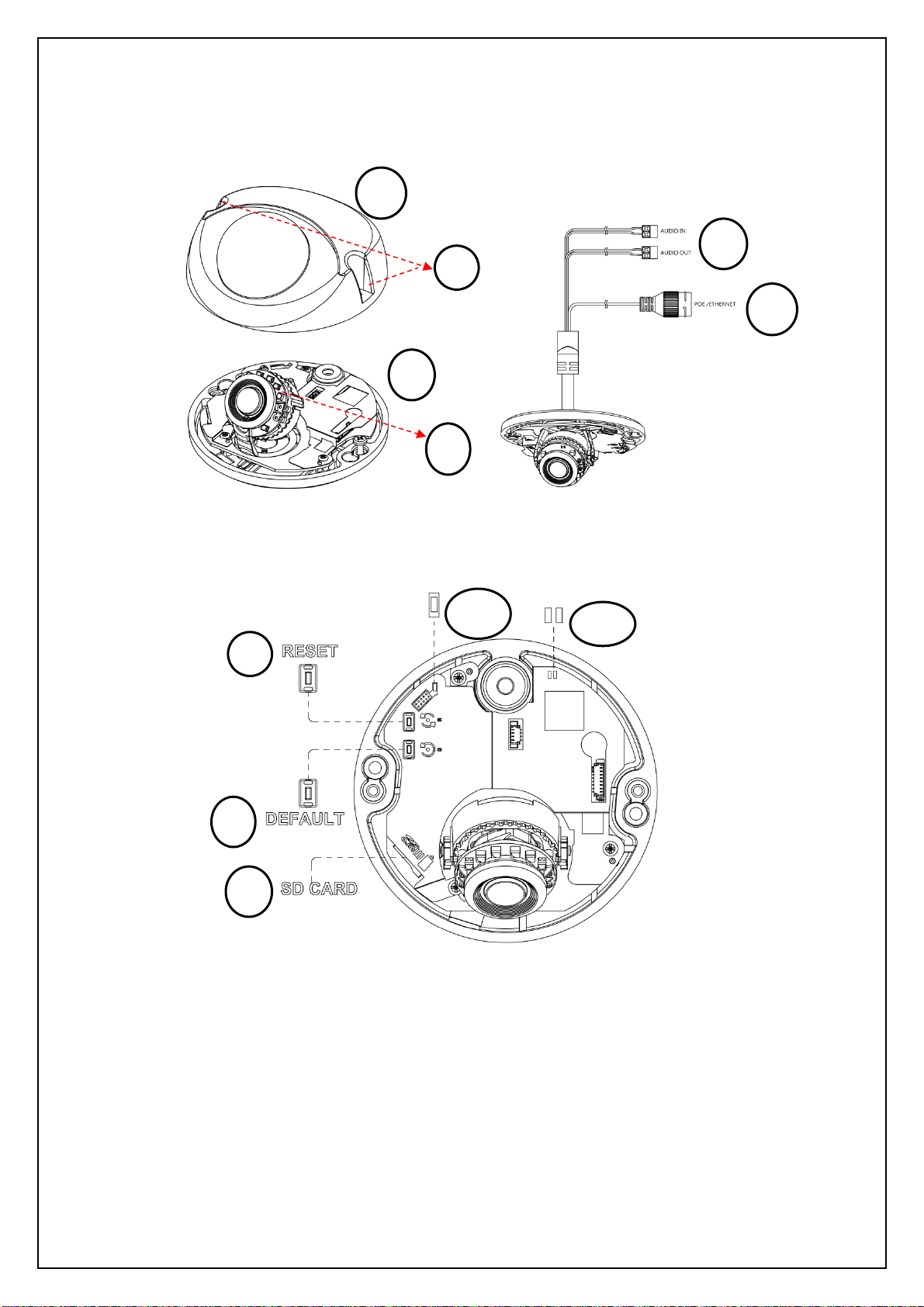

Figure 1 - 2: Parts Pictorial Index
2
1
3
4
5
6
7
10
8
9
11

Micro Dome Quick Guide
7
No
Name
Description
1
Camera Housing
Top cover of the camera.
2
Screws of Camera Housing
Screws for fixing Camera Housing to Camera Bottom Case.
3
Camera Bottom Case
Bottom base of the camera.
4
IR Board
IR LED embedded board for illumination under low-light
environment.
5
DI/DO Port
DI/DO (Digital Input/Output) ports are equipped for external devices,
e.g., smoke detector, siren, microphone.
Audio In: connect to external device like microphone that
receives sound for camera.
Audio Out: connect to device like speaker to be triggered
through alarm output signals.
6
RJ-45 Ethernet/PoE Port
Connect an Ethernet cable terminated with RJ-45 connector to the
PoE RJ-45 port for both power supply and network connectivity
purposes simultaneously.
7
Reset Button
Press the button for 1 second to reboot the camera.
8
Default Button
Press the button for 6 seconds to restore camera’s settings to
factory default settings.
9
Micro SD Card Slot
Insert a micro SD card (customer-supplied) into the slot for
recording and file storage.
10
Status LED
Solid Red
Indicates boot up is running. After 2 ~ 3
seconds:
- Solid Red to Flashing Green if boot up
is normal.
- Remains Solid Red if an error occurs.
- Turns off 3 minutes after a successful
boot.
Flashing Amber
Indicates firmware upgrade is running.
11
LED Indicators
Solid Green
Indicates a live connection is established.
Flashing Orange
Indicates data is being transmitted/received
between camera and the network.
Table 1 - 1: Parts Pictorial Index Description
Color
Name
White
Audio Out (+)
Gray
Audio Out (-)
Purple
Audio In (+)
Yellow
Audio In (-)
Table 1 - 2: Wire Color Code Chart

Quick Guide
8
2Installation and Connection
2.1 Package Contents
Check if all items listed below are included in the packing box.
⚫Fixed Flat Dome Camera * 1
⚫Plastic Anchor * 2
⚫Pan Head Screw (Tapping Type) * 2
⚫Security Torx Bit (T20) * 1
⚫Mounting Template * 1
⚫RJ45 Waterproof Connector Kit * 1
⚫Desiccant * 1
2.2 Installation
The following tools may be helpful to complete the installation:
⚫Drill
⚫Screwdrivers
⚫Wire cutters
2.2.1 Checking Appearance
When unpacking, check to see if there is any visible damage to the appearance of the camera and its
accessories. The protective materials used for the packaging should protect the camera from most accidents
during shipment. Remove the protective materials from the camera after every item is properly checked in
accordance with the list in Package Contents.
2.2.2 Disassembling the Camera
Refer to the steps and figure below for correct disassembly order of the camera.
1. Loosen the 2 screws of camera housing counterclockwise using the T20 security torx bit.
2. Gently pull the camera housing upward to separate it from the camera bottom case.

Micro Dome Quick Guide
9

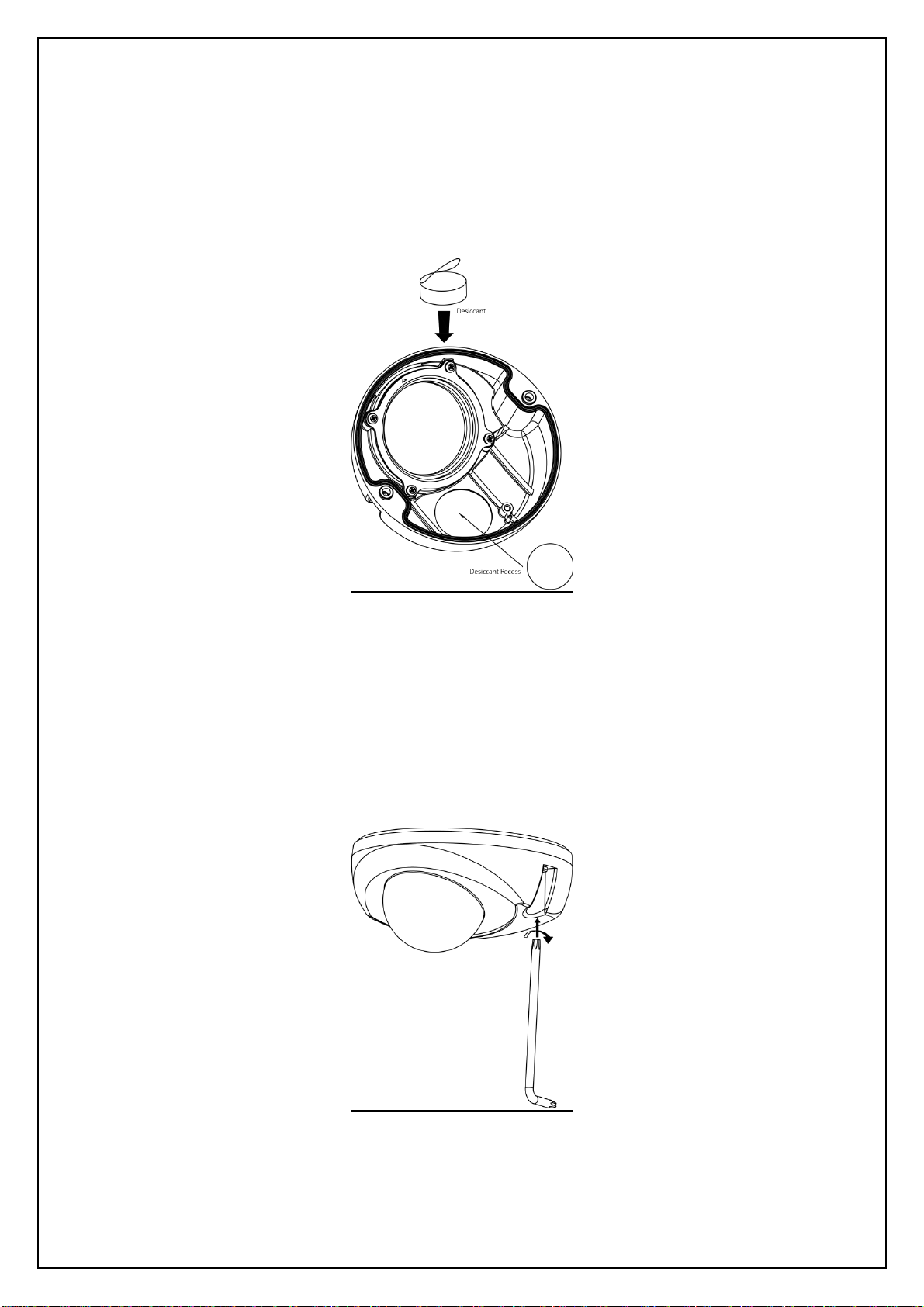

Figure 2 - 1: Disassembling the Camera
2.2.3 Mounting the Camera
1. Attach the mounting template to the wall or ceiling.
2. Drill two holes indicated on the mounting template and insert the supplied plastic anchors into the holes.
3. Drill another hole with Ø30mm in diameter, as indicated on the mounting template, in the wall or ceiling.
4. Pass all the signal cables through the hole.
5. Secure the camera bottom case to the wall or ceiling with the 2 pan head screws (TP4) supplied.
NOTE: The mounting height above ground level should be more than 9.8 ft (3 m) for wall mount height.

Quick Guide
10
Figure 2 - 2: Mounting the Camera
2.2.4 Connecting the Cables
1. PoE (Class 3): Connect an Ethernet cable terminated with RJ-45 connector to the PoE RJ-45 port for
both power supply and network connectivity purposes.
2. Insert audio in/out cables to the corresponding terminals of the camera, if required.
2.2.5 PoE Port & Waterproof Connector (IWPWPC) Wiring Procedure
1. Terminate the Ethernet cable with a RJ-45 connector after passing the cable through the waterproof
connector.
2. Encircle the PoE port with the rubber O-Ring firmly.
3. Plug the RJ-45 connector into the PoE port solidly for power supply and network connection.
4. Assemble the waterproof connector together with the PoE port tightly for ingress protection.
1
2
3
①Mounting Template
②Plastic Anchors * 2
③Pan Head Screws (TP4) * 2

Micro Dome Quick Guide
11

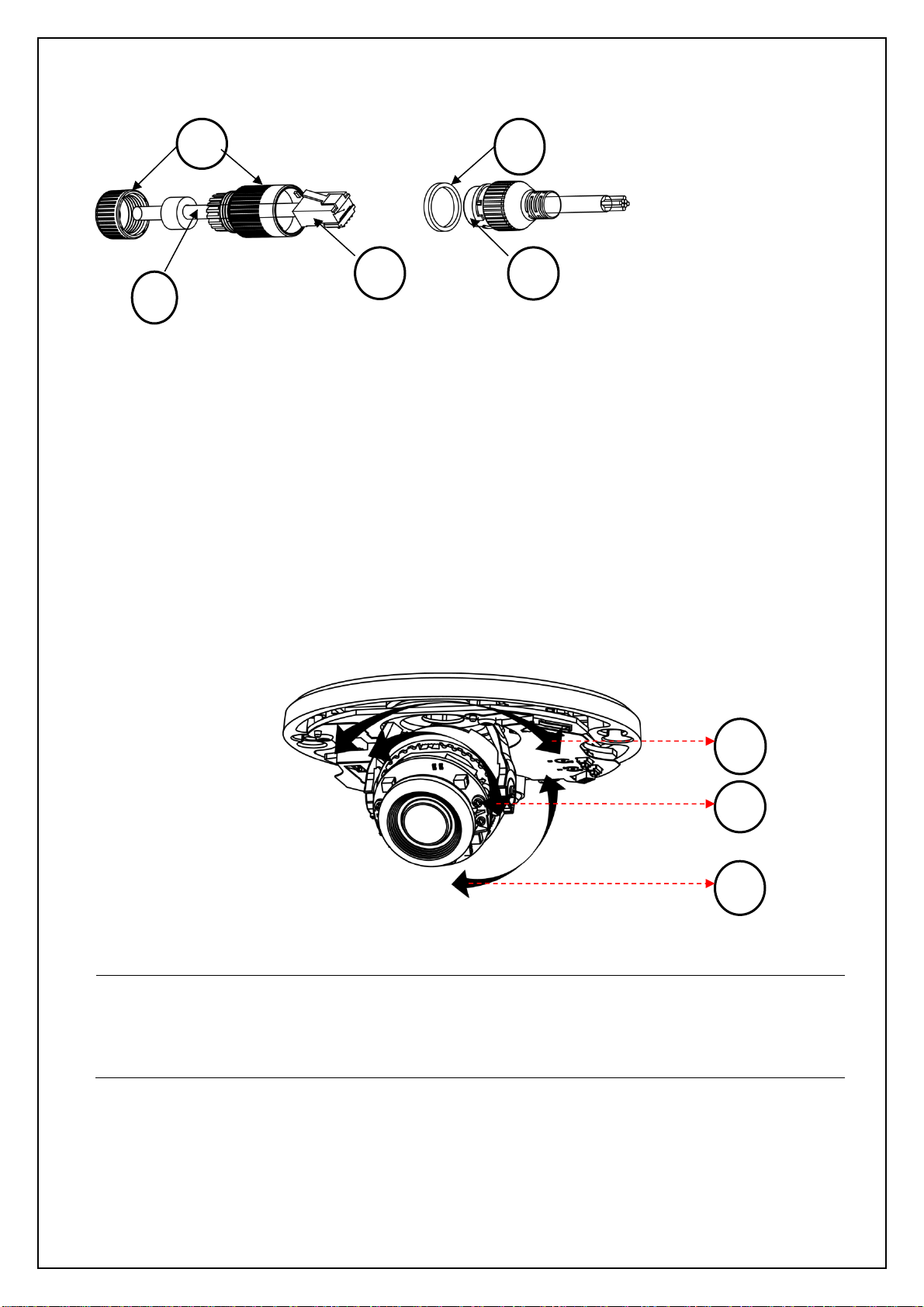

Figure 2 - 3: Waterproof Connector Wiring
2.2.6 Positioning the Camera
⚫Pan Adjustment (A)
Rotate the lens camera assembly to the desired field of view.
⚫Horizontal Rotation (B)
Rotate the lens camera assembly in the camera module, but do not turn assembly more than 355°, as
this may cause the internal cables to be twisted, disconnected or broken.
⚫Tilt Adjustment (C)
Tilt the camera lens to desired angle.
Figure 2 - 4: Positioning the Camera
Caution
Limitation for three axes position:
Pan range: 0° ～ 180°
Rotation range: 0° ～ 355°
Tilt range: 0° ～ 80°
①Waterproof
Connector
②Ethernet Cable
③RJ-45 Connector
④Rubber O-Ring
⑤PoE Port
1
2
3
4
5
A
B
C

Quick Guide
12
2.2.7 Securing Desiccant
1. Remove the desiccant from the package.
2. Flip over the camera housing and apply desiccant to the circle recess, as shown in the figure below.
NOTE: Be sure to apply the desiccant before camera assembly to avoid fogging.
Figure 2 - 5: Securing Desiccant
2.2.8 Reassembling the Camera
1. After mounting the camera bottom case to the surface, reattach the camera housing taking care to have
it in the correct direction.
2. Fasten the camera housing with camera bottom case by securing screws tightly using T20 torx bit to
complete installation.
Figure 2 - 6: Reassembling the Camera

Micro Dome Quick Guide
13
3Connection
3.1 Network Topology
The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real
time via both Internet and Intranet manners. Review the topology drawings shown below.

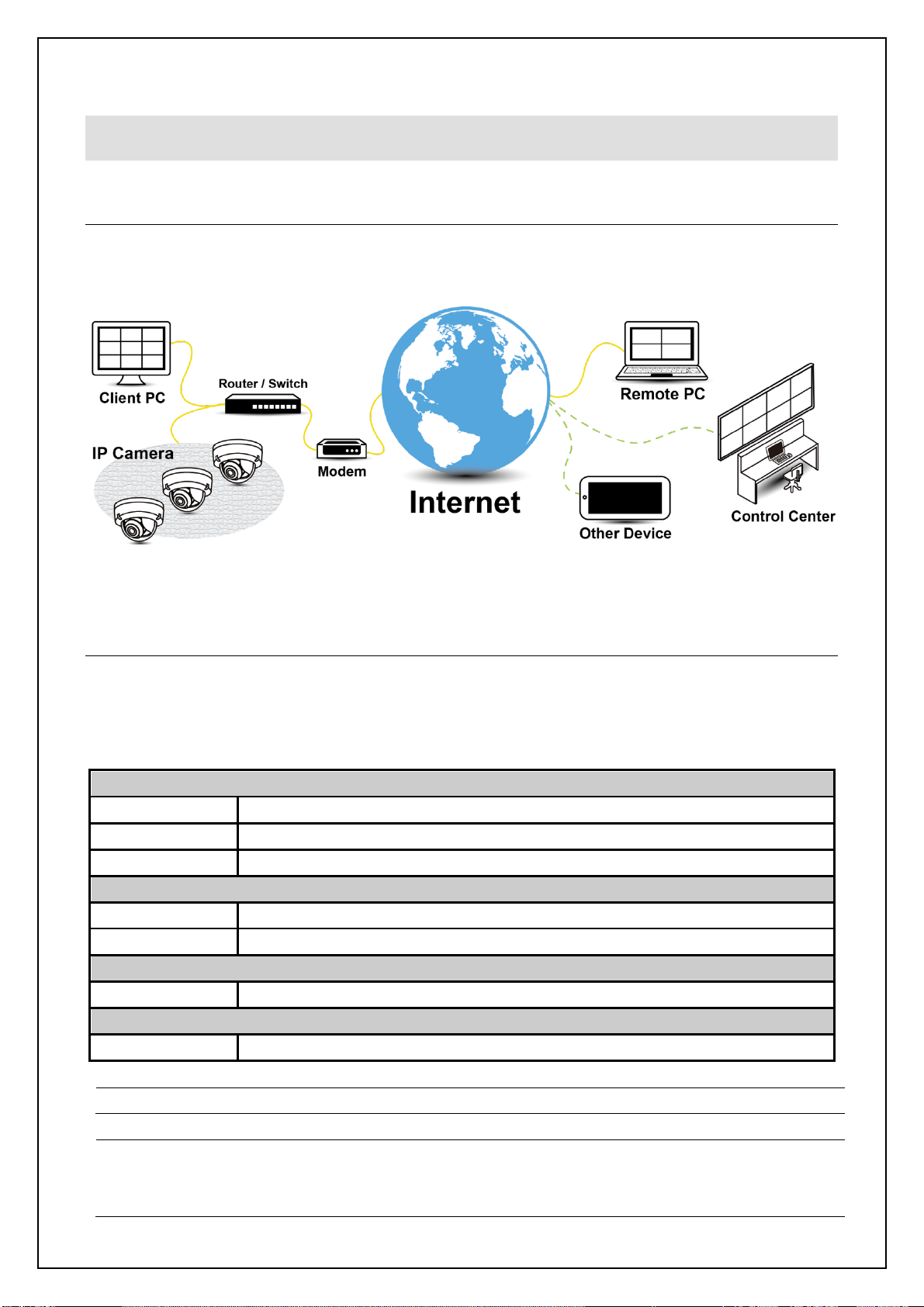

Figure 3 - 1: Network Topology
3.2 System Requirements
The table below lists the minimum requirement to implement and operate the camera. It is recommended not
to use any hardware/software component below these requirements for proper performance.
Table 3 - 1: System Requirements
System Hardware
CPU
i5-2430M CPU@ 2.40GHZ
RAM
6 GB or above
Display
NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500
System Software
Operating System
Windows 7 SP1, Windows 8, Windows 10
Browser
Internet Explorer 11, Mozilla Firefox, Chrome, Safari, Microsoft Edge
Unit
Power Supply
PoE (IEEE 802.3af Class 3)
Networking
Wired*
10/100BASE-T Ethernet (RJ-45 connector)
*A switch is required for surveillance on multiple cameras.
Note
All the installation and operations should comply with your local electricity safety rules.
Caution
When using PoE, this camera is to be connected only to PoE networks without routing to any
heterogeneous devices. A heterogeneous network is a network connecting computers and
other devices where the operating systems and protocols have significant differences.

Quick Guide
14
3.3 Connecting Process
3.3.1 Default IP address
Since this is a network-based camera, an IP address must be assigned. The camera’s default IP address is
obtained automatically through a DHCP server in your network; be sure to enable DHCP in "Network
Settings." If DHCP is not available, the camera will use APIPA (link-local address); IPv4 link-local addresses
are assigned from address block 169.254.0.0/16 (169.254.0.0 through 169.254.255.255).
3.3.2 Connecting from a Computer & Viewing Preparation
Connecting from a computer
1. Make sure the camera and your computer are in the same subnet.
2. Check whether the network available between the camera and the computer by executing ping the
default IP address. To do this, simply start a command prompt (Windows: from the “Start Menu”, select
“Program”. Then select “Accessories” and choose “Command Prompt”), and type “Ping” and then type
in your IP address. If the message “Reply from…” appears, it means the connection is available.

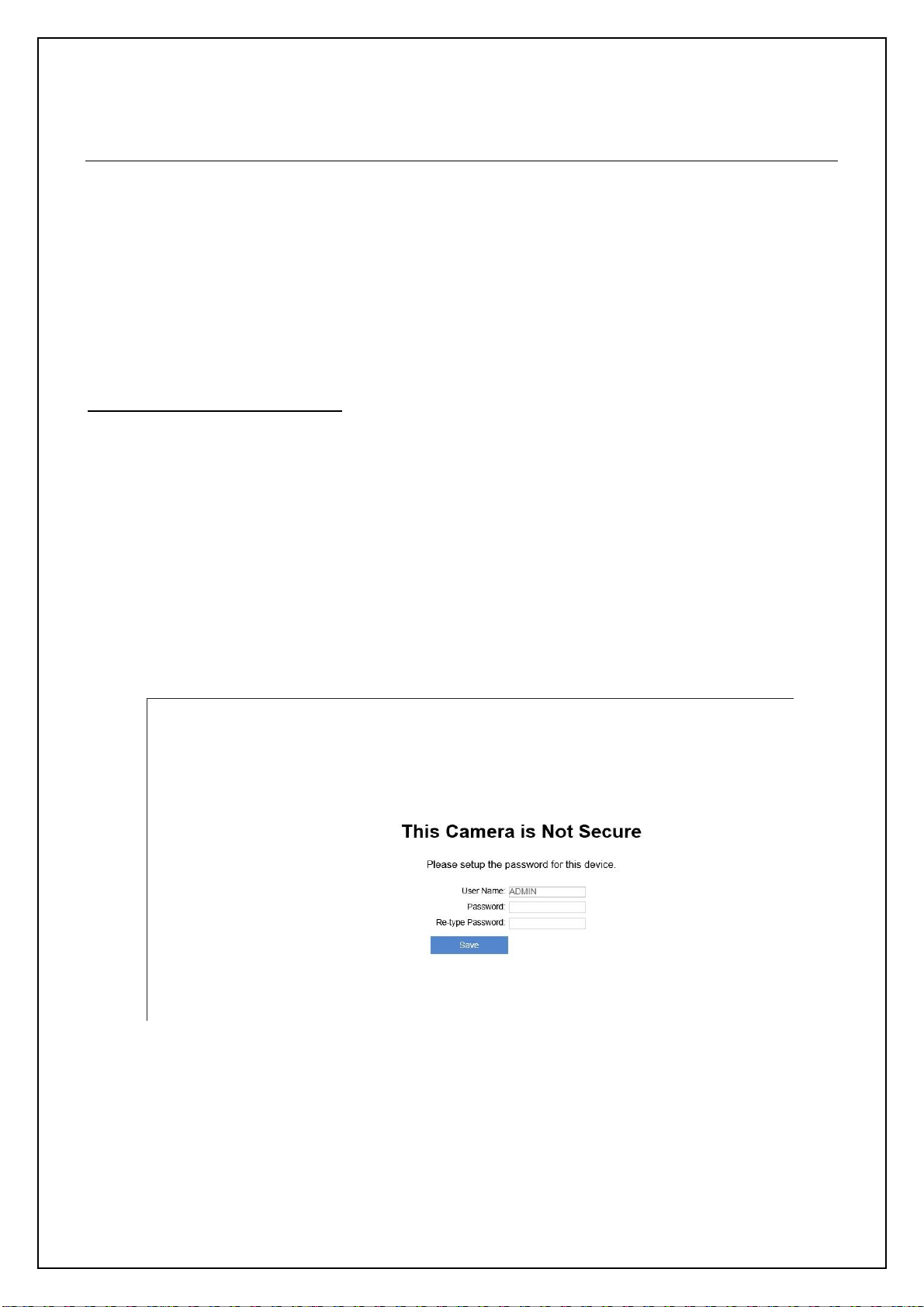

3. Start a browser e.g., Internet Explorer and enter IP address. A login window as shown below should
pop up. In the window, enter the default user name: ADMIN; it is required to change the password
when you login for the first time for added security, which requires at least 8 characters including 1
uppercase letter, 1 special character, alphanumeric characters to log in.
Further administration on the unit can be found in “User Manual."
Figure 3 - 2: Login Window

Micro Dome Quick Guide
15
Viewing Preparation
Images of the unit can be viewed through various browsers. Before viewing, follow these steps to enable the
display.
1. Enable Cookies per instructions below:
In Internet Explorer, click Internet Options on the Tools menu.
On the Privacy tab, move the settings slider to Low or Accept All Cookies.
Click OK.
2. When a proxy server is used, click Internet Options on the Tools menus of Internet Explorer, select
Connect tab, click LAN button, and set proxy server.

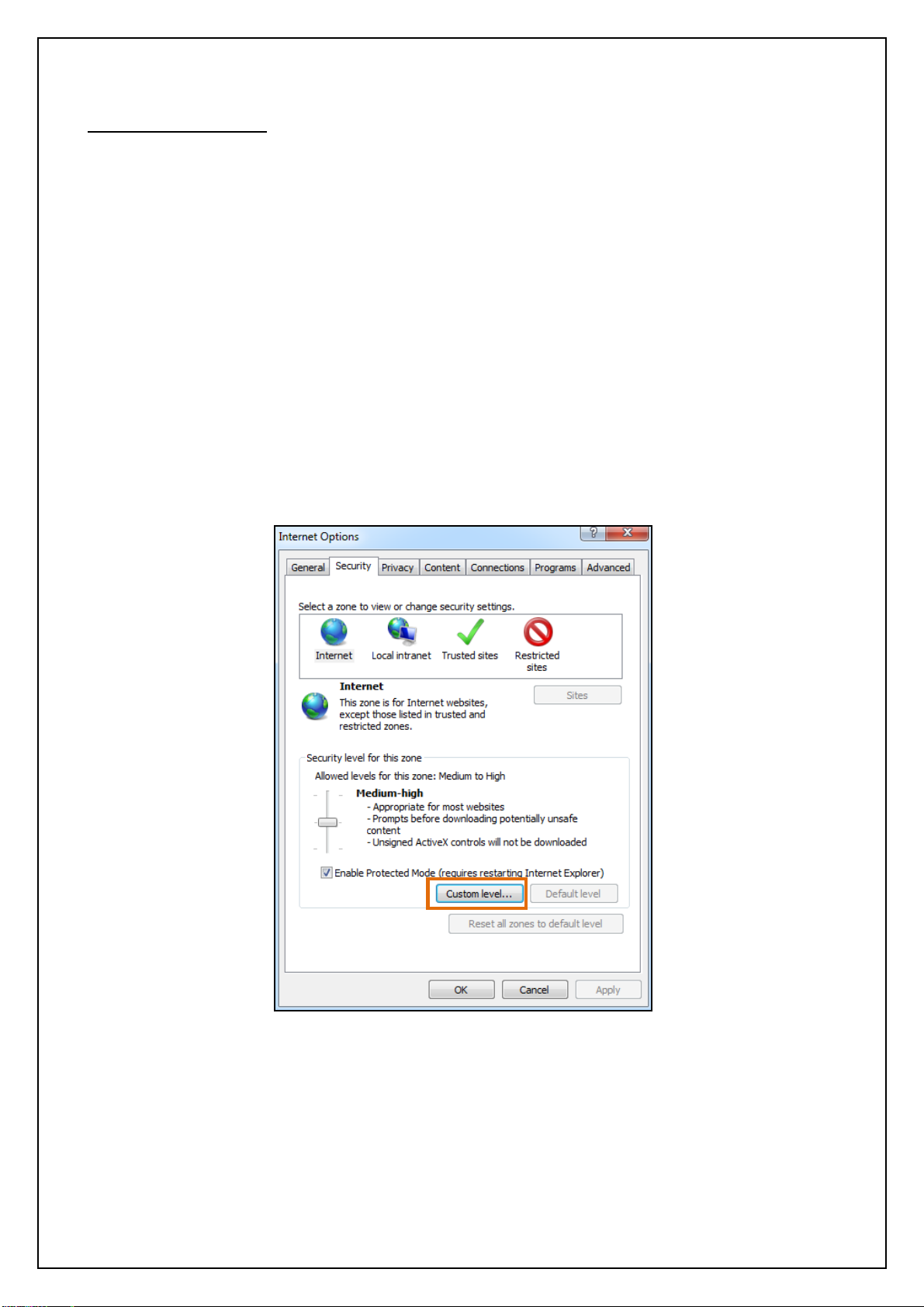

3. Change Security in Internet options per instructions below:
On tool menu, click Internet Options.
Press the Security tab.
If the camera operates inside of the intranet, click the Intranet icon.
If the camera operates outside of the intranet, click the Internet icon.
Click Custom Level. This will open the Security Settings – Internet Zone screen.
Figure 3 - 3: Security Settings 1/4

Quick Guide
16

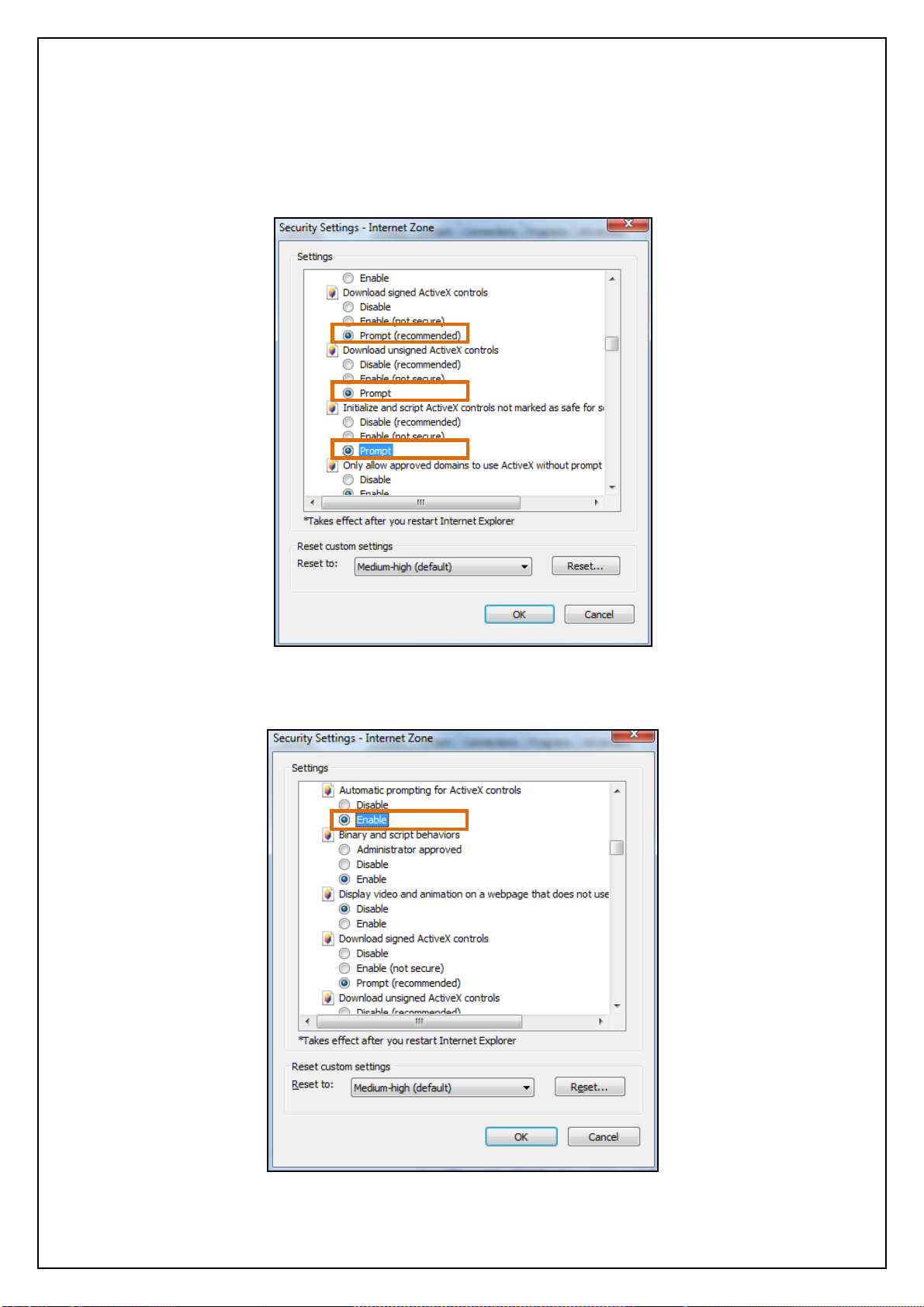

Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows:
【Download signed ActiveX controls】➔ Prompt (recommended)
【Download unsigned ActiveX controls】➔ Prompt
【Initialize and script ActiveX not marked as safe for scripting】➔ Prompt
Figure 3 - 4: Security Settings 2/4
【Automatic prompting for ActiveX controls】➔ Enable
Figure 3 - 5: Security Settings 3/4

Micro Dome Quick Guide
17

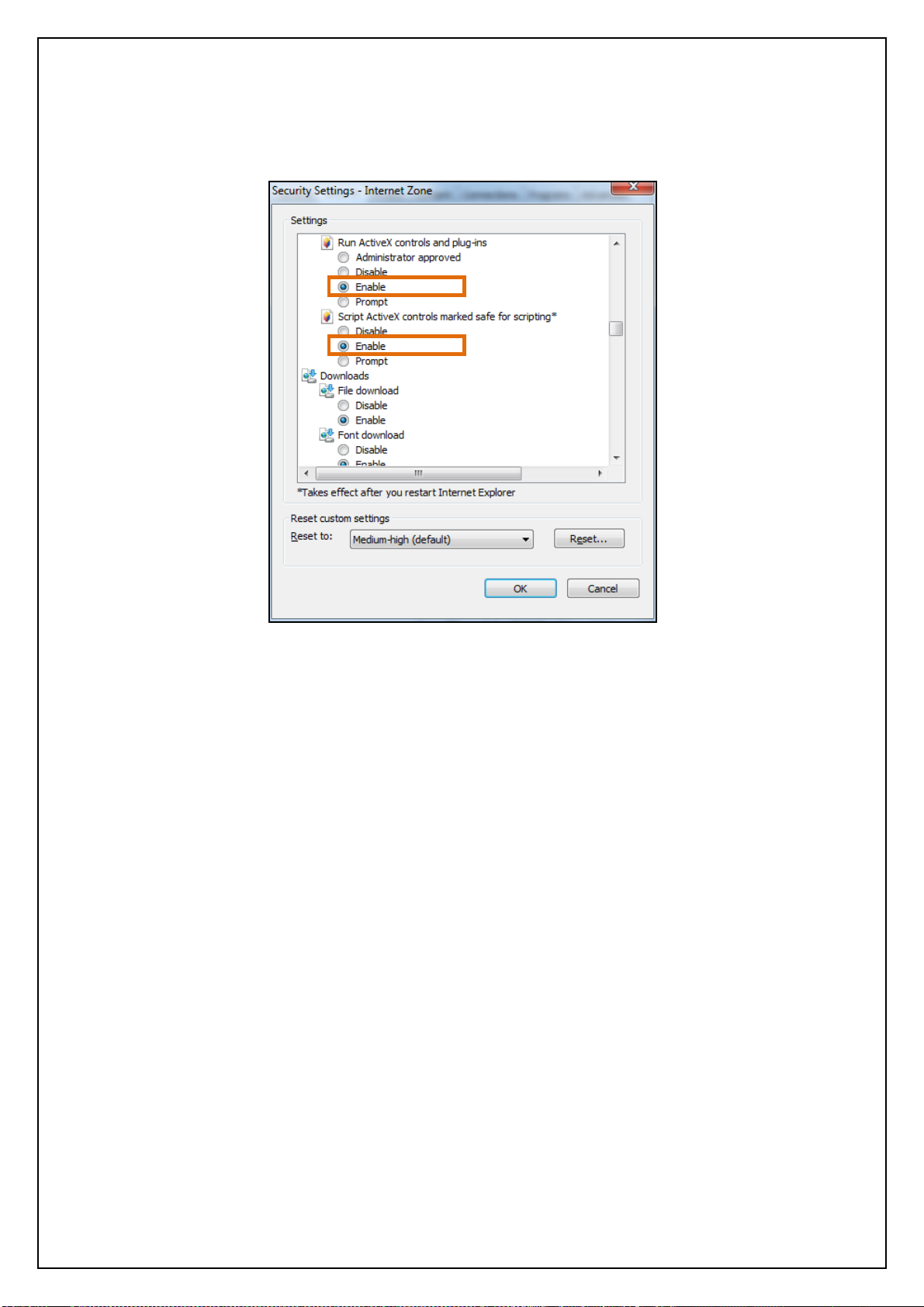

【Run ActiveX controls and plug-ins】➔ Enable
【Script ActiveX controls marked safe for scripting*】➔ Enable
Figure 3 - 6: Security Settings 4/4
Press OK to save the settings.
Close the all browser windows and restart the browser. This will allow the new settings to take
effect.
Type your setting IP address into the browser.
Then you should be able to see the camera image screen.

Quick Guide
18
3.4 IP Toolbox
IP Toolbox is a utility program that helps users to locate the camera(s) in local area network that computer is
connected to. Note that IP Toolbox works only in Microsoft Windows XP, Microsoft Windows Vista, and
Microsoft Windows 7 or above. Steps to get the utility program running are listed below.
1. Download the IP Toolbox folder to local computer. The latest IP Toolbox can be found on Vicon’s website
Camera Software Download page, vicon-security.com.
2. Double click on IPToolbox.exe in the IP Toolbox’s folder, and the IP Toolbox window should pop up as
below.
Figure 3 - 7: IP Toolbox
3. The window would list information of camera(s) in operation at the present time. Click the camera in the
list for which you want to configure the network settings.
4. Configure the following settings as needed.
▪User Name & Password: Before performing any operation to any listed camera, enter user name and
password for the selected camera, and then click “Verify” for authentication purposes.
▪Camera Name: Enter a descriptive name for the camera.
▪Network Settings: If you have a DHCP server on your network to assign IP addresses to network
devices, enable the “dhcp” option from dropdown menu of IP MODE. Otherwise, select “manual” to
manually enter the values for IP Address, Subnet Mask, Gateway and HTTP Port fields.
▪Click “Save” to enable the settings. Click “Cancel” to discard the settings.
5. Press “View” button; the designated browser page of the selected camera will pop up. Input the
corresponding User Name & Password to log in to the specific page of camera.
6. Press “Refresh” button; all the cameras currently connected to the network will appear on the list.
7. Press “Initialize” button; there are three options, Software default, Hardware default, and Reboot
camera for user to perform the factory default or reboot the camera. After clicking the preferred item, the
warning message will appear. Confirm again before you perform the selected function.
8. The “Filter” button on the upper-right corner allows user to perform a filtering search, which means you

Micro Dome Quick Guide
19
can input certain keywords into the field and also narrow down the range by selecting the criteria from the
dropdown menu for a target search on cameras connected.
9. Press “Auto Set IP Address” button to automatically give each camera an IP address from
predefined range and connected to predefined network internet controller.
▪User Name & Password: Enter username and password for the current auto set IP address setting.
▪Network Interface Controller: Select desired network interface controller that each camera(s) will
be connected to and also select the IP address and IP address range of the controller.

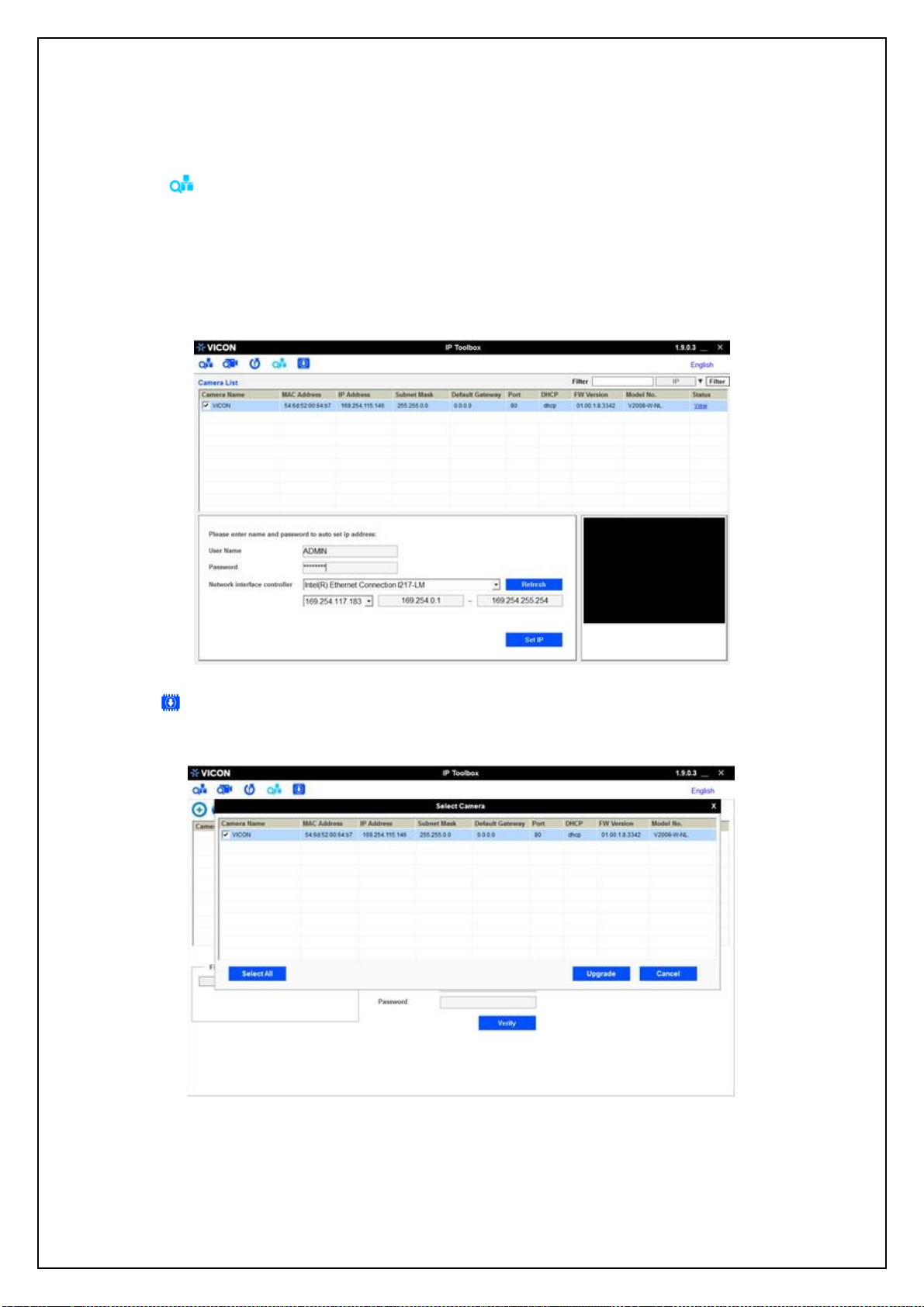

Figure 3 - 8: Auto Set IP Address
10. Click “FW Upgrade” button to upgrade the firmware of selected camera. A pop up window like the
image below will show up.
Figure 3 - 9: IP Toolbox FW Upgrade

Quick Guide
20
Follow the steps below to complete firmware upgrade:
▪Click or to add or remove camera to be upgraded (only verified cameras will be shown on
this list).
▪Select a camera or click “Select All” button to select a camera or all the cameras on the firmware
upgrade list, respectively.
▪Click “Add” or “Cancel” button to confirm the selected cameras for upgrade or to cancel the selection,
respectively.
▪Enter the path for the desired firmware (.tar) or click and then follow the instructions to find and
upload the .tar file.
▪When the process is complete, click again to return to the list of all cameras located in the local
network.
