Victory Prestige Assembly instructions

NOTICE:
For residential use only.
Installer: Leave this guide with the
homeowner.
Homeowner: Keep this guide for
future reference.
Professional
Under-Cabinet /
Wall-Mount Range
Hood
Model Name:
Available Sizes:
PRESTIGE
42”, 48”, 60”
Rev. 3062u.3a
INSTALLATION GUIDE
AND USERS MANUAL

Important Safety Notice................................................................... 3
Electrical Requirements.................................................................. 5
Venting Requiremens...................................................................... 6
Calculating Duct System Length.................................................... 7
Specications................................................................................... 7
Required Tools.................................................................................. 8
PartsSupplied................................................................................... 9
Dimensions........................................................................................ 10
Preparation........................................................................................ 12
Installation......................................................................................... 13
Venting Methods............................................................................... 19
Wiring Diagram................................................................................. 22
Range Hood Operations................................................................... 22
Troubleshooting................................................................................ 23
Use and Care Information................................................................ 24
Maintenance...................................................................................... 25
Bulb Replacement............................................................................ 26
Warranty............................................................................................. 28
Disclaimer.......................................................................................... 29
Contact Us........................................................................................ 29
TABLE OF CONTENTS
VICTORY range hoods
| PRESTIGE
2VICTORY range hoods PRESTIGE | 3

• The installation in this manual is intended for qualied installers, service technicians or persons with
similar qualied background. Installation and electrical wiring must be done by qualied professionals
and in accordance with all applicable codes and standards, including re-rated construction.
• DO NOT attempt to install this appliance yourself. Injury could result from installing the unit due to lack
of appropriate electrical and technical background.
• Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any
parts for installing, cleaning or servicing.
• Activating any switch ON before completing installation may cause ignition or an explosion.
• Due to the size and weight of this range hood, two-person installation is recommended.
To reduce the risk of re, electric shock, or injury to persons:
• For general ductilating use only. DO NOT use to exhaust hazardous or explosive materials and vapors.
• The combustion air ow needed for safe operation of fuel-burning equipment may be a󰀨ected by this
unit’s operation. Follow the heating equipment manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association (NFPA), and the American Society of Heat-
ing, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to preduct
power from being switched ON accidentally.
• Clean grease laden surfaces frequently. To reduce the risk of re and to disperse air properly, make sure
to duct air outside. DO NOT duct exhaust into spaces between walls, crawl spaces, ceiling, attics and/
or garages.
• Ducted fans MUST always be ducted to the outdoors.
• Use only metal ductwork and this unit MUST be grounded.
• Su󰀩cient air is needed for proper combustion and exhausting of gases through the duct to preduct back
drafting.
• When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
• All electrical wiring must be properly installed, insulated and grounded.
• Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease re.
• Check all joints on duct work to insure proper connection and all joints should be properly taped.
• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the vendor.
To reduce the risk of a stove top grease re:
• Keep all fans, spacers, lters, grease tunnels, oil containers and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, ba󰀪e, spaces, lter, grease tunnel and oil container.
• Always turn range hood ON when cooking at high heat or when cooking foods that produce ames.
• Use high settings on cooking range only when necessary.
• Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers
that may ignite. Heat oils slowly on low or medium settings.
IMPORTANT SAFETY NOTICE
Read all instructions before installing and operting this appliance
VICTORY range hoods
| PRESTIGE
2VICTORY range hoods PRESTIGE | 3

• Clean ductilating fan frequently.
• Always use appropriate cookware and utensils size.
• Always use cookware appropriate for the size of the surface element.
To reduce the risk of injury to persons in the educt of a stove top grease re:
• Smother ames with a close-tting lid, cookie sheet, or metal tray, then turn OFF the burner. Be careful
to PREDuct BURNS. Never pick up a pan that has ames—you may be burned. Keep ammable and/
or combustible material away from ames. If the ames DO NOT go out immediately, EVACUATE and
CALL the FIRE DEPARTMENT or dial your local emergency service immediately.
• DO NOT use WATER, including wet dishcloths or towels — it will result in a violent steam explosion
• Use an extinguisher ONLY if:
• You know you have a Class A, B, C extinguisher, and you already know how to operate it.
• The re is small and contained in the area where it has started.
• The re department is on the way.
• You can ght the re while having access to a safe exit.
To reduce the risk of injury to persons in the educt of a gas leaks:
• Extinguish any open ame.
• DO NOT turn on the range hood fan or any type of ductilator.
• DO NOT turn on the lights or any type of appliance.
• Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and re
department or dial your local emergency service immediately.
Your safety and the safety of others is very important. We have provided many important safety mes-
sages in this manual and on your appliance. Always read and obey all safety messages. All safety
messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and oth-
ers. All safety messages will follow the safety alert symbol and the word “WARNING”.
The manufacturer and/or distributor/reseller declines all responsibility in the educt of failure to observe
the instructions given here for installation, maintenance and suitable use of the product.
The manufacturer and/or distributor/reseller further declines all responsibility for injury due to negli-
gence and the warranty of the unit automatically expires due to improper maintenance.
The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal
property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
IMPORTANT SAFETY NOTICE
Read all instructions before installing and operting this appliance
VICTORY range hoods
| PRESTIGE
4VICTORY range hoods PRESTIGE | 5

IMPORTANT: Observe all governing codes and ordinances.
It is the customer’s responsibility:
• To contact a qualied electrician
• To assure that the electrical installation is adequate and in conformance with National Electrical
Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code,
Part 1 and C22. 2 No. 0-M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrician
determine that the ground path is adequate.
A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on
both sides of the line.
DO NOT ground to a gas pipe.
Check with a qualied electrician if you are not sure that the range hood is properly grounded.
DO NOT have a fuse in the neutral or ground circuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
The range hood must be connected with copper wire/plug only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through
exible armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain relief must be
provided at each end of the power supply cable.
Wire sizes (copper wire only) and connections must conform with the rating of the appliance as specied on
the model/serial rating label. Wire sizes must conform to the requirements of the National Electrical Code
ANSI/NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code Part 1 and C22. 2
No. 0-M91 - latest edition** and all local codes and ordinances. A U.L. - or C.S.A. - listed conduit connector
must be provided at each end of the power supply cable (at the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
ELECTRICAL REQUIREMENTS
VICTORY range hoods
| PRESTIGE
4VICTORY range hoods PRESTIGE | 5

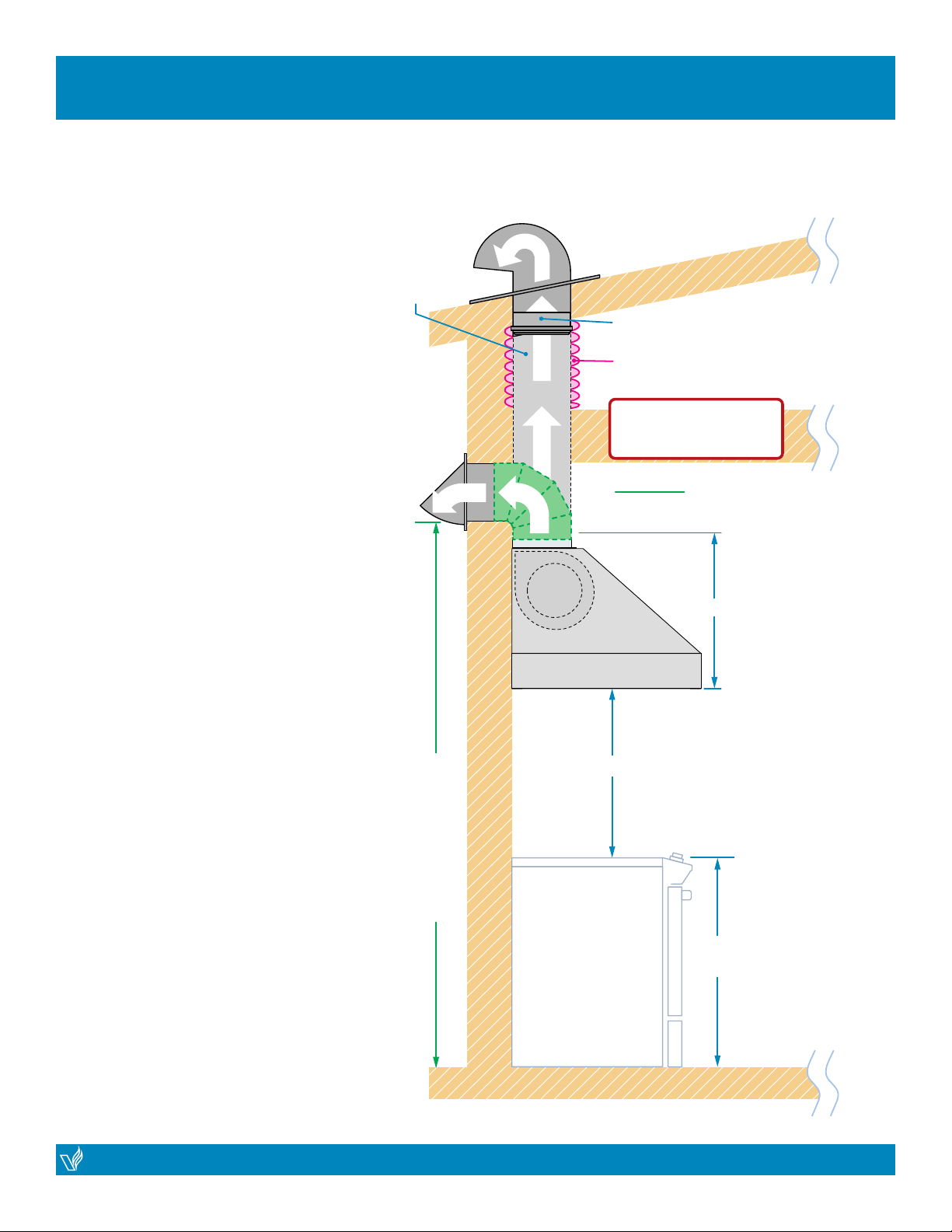

• Duct system must terminate to the outside (roof or side wall).
• DO NOT terminate the duct system in an attic or other enclosed area.
• DO NOT use 4” (10.2 cm) laundry-type wall caps.
• Use metal/aluminum duct only. Rigid metal/aluminum vent is recommended.
• DO NOT use plastic duct.
• Always keep the duct clean to ensure proper airow.
• Calculate the following gures before installation:
1. Distance from the oor to the ceiling.
2. Distance from countertop/stove to range hood (recommend* 30” to 36”).
3. Height of hood and duct cover.
For the most e󰀩cient & quiet operation:
• A distance of 30” to 36” is recommended* between stove top and the bottom of range hood.
• It is recommended that the range hood be vented vertically through the roof through 10” or bigger round metal/alumi-
num duct work.
• The size of the duct should be uniform.
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24” (61 cm) of straight duct between the elbows if more than one elbow is used.
• DO NOT install two elbows together.
• The length of duct system and number of elbows should be kept to a minimum to provide e󰀩cient performance.
• The duct system must have a damper. If roof or wall cap has a damper, DO NOT use damper (if supplied) on top of the
range hood.
• Use aluminum foil tape to seal all joints in the duct system.
• Use caulking to seal exterior wall or roof opening around the cap. USE 10” ROOF OR WALL VENT CAP MINIMUM.
IMPORTANT:
• A minimum of a 10” round duct (standard for this range hood) must be used to maintain maximum airow
e󰀩ciency.
• Always use rigid type metal/aluminum ducts if available to maximize airow when connecting to provided
duct.
• Please use Duct Run Calculation below to compute total available duct run when using elbows, transitions
and caps.
• ALWAYS, when possible, reduce the number or transitions and turns in the duct run. If a long duct run is
required, increase the duct size from 10” to 12”. If a reducer is used, install a long reducer instead of a pan-
cake reducer. Reducing the duct size will restrict airow and decrease e󰀩ciency.
• If turns or transitions are required: Install as far away from opening and as far apart, between 2, as pos-
sible.
• Minimum mount height between stove top to hood bottom should be no less than 30-inch*.
• Maximum mount height between stove top to hood bottom should be no higher than 36-inch*.
• It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat
damage and re hazard; while hoods mounted too high will be hard to reach and will loose its performance
and e󰀩ciency.
• If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood
mounting height above range.
Minimum Duct Size:
• Round - 10”
* Due to different ceiling height congurations, recommended height may not be applicable.
VICTORY range hoods
| PRESTIGE
6VICTORY range hoods PRESTIGE | 7
VENTING REQUIREMENTS

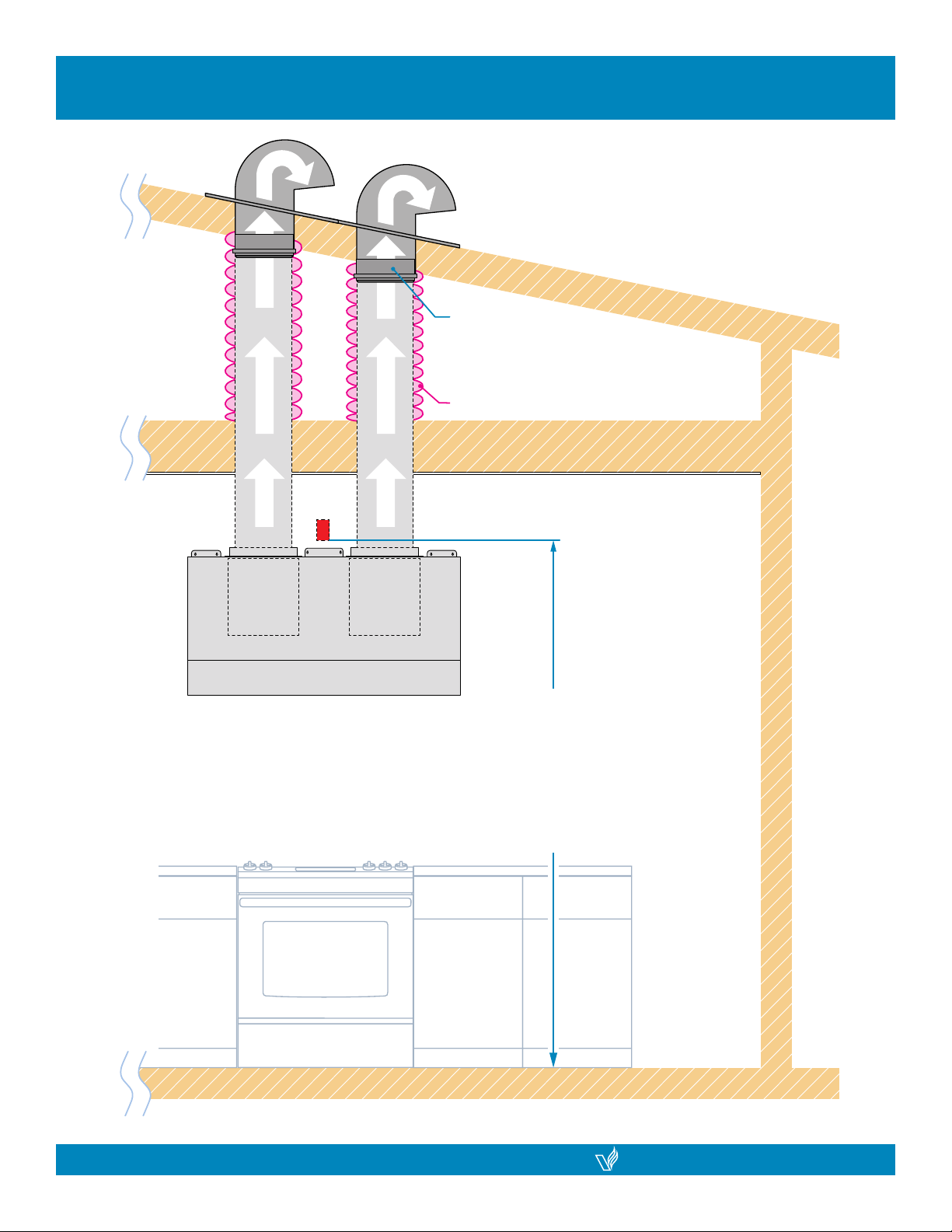

To calculate the length of the duct system you require, subtract the equivalent feet for each “Duct
piece” (Table Below) used in the system from the “Recommended maximum run” (Table Below). The
longest duct run that is acceptable (if completely straight) is 50 feet. The number of duct pieces (el-
bow, transition, etc.) installed in your duct run will determine the maximum length the duct run can be.
Please refer to the example below:
Duct Run Calculation:
Recommended maximum run
10” round rigid duct 50 ft
Duct piece deduction
Each 90º elbow used 9 ft
Each 45º elbow used 5 ft
Each round to rectangle transition
used
7 ft
Side wall cap with damper 7 ft
Roof cap 7 ft
Duct Run Calcuation example:
One roof cap, two 90º elbows, and one 45º elbow
used:
7ft + 9ft + 9ft + 5ft = 30ft used.
The above duct pieces used are equivalent to 30ft
of a straight duct run. Subtract 30ft from the al-
lowable 50ft. The remaining distance of 20ft is the
longest that the straight ducting (in addition to the
vent pieces) can be.
Body Stainless Steel (19 gauge)
Power Rating 120V/60Hz (USA & Canada standard)
General Input Power 830 W (360W + 2x200W + 2x35W)
Motor Input Power 2x 360 W
Ampere 8 A
Levels Of Speed Control 4 Levels
Maximum Airow 2000 CFM (2 x 1000 CFM)
Air Pressure 150 Pa (200 Pa Maximum)
Noise Level (sone) 1.5 Sone (33dB) / 2.5 Sone (40dB) / 4.5 Sone (50dB)
7.0 Sone (56dB)
Motor Type 2 Motors, Double Chamber Ultra Quiet ( Metal blades)
Fan Type Dual Centrifugal Squirrel Cage
Control Type Mechanical, Rotary Switches
Filtration Type Stainless Steel Ba󰀪e Filters and Grease Tunnels
Illumination Halogen 35W Type GU10 120V or (Optional) LED 5.5W
Venting Size 2x Top Transition 10 inches Round
Warranty 5 YEARS ( parts warranty )
* Subject to change without notice, please contact Victory Range Hoods for details.
VICTORY range hoods
| PRESTIGE
6VICTORY range hoods PRESTIGE | 7
CALCULATING DUCT SYSTEM LENGTH
SPECIFICATIONS*

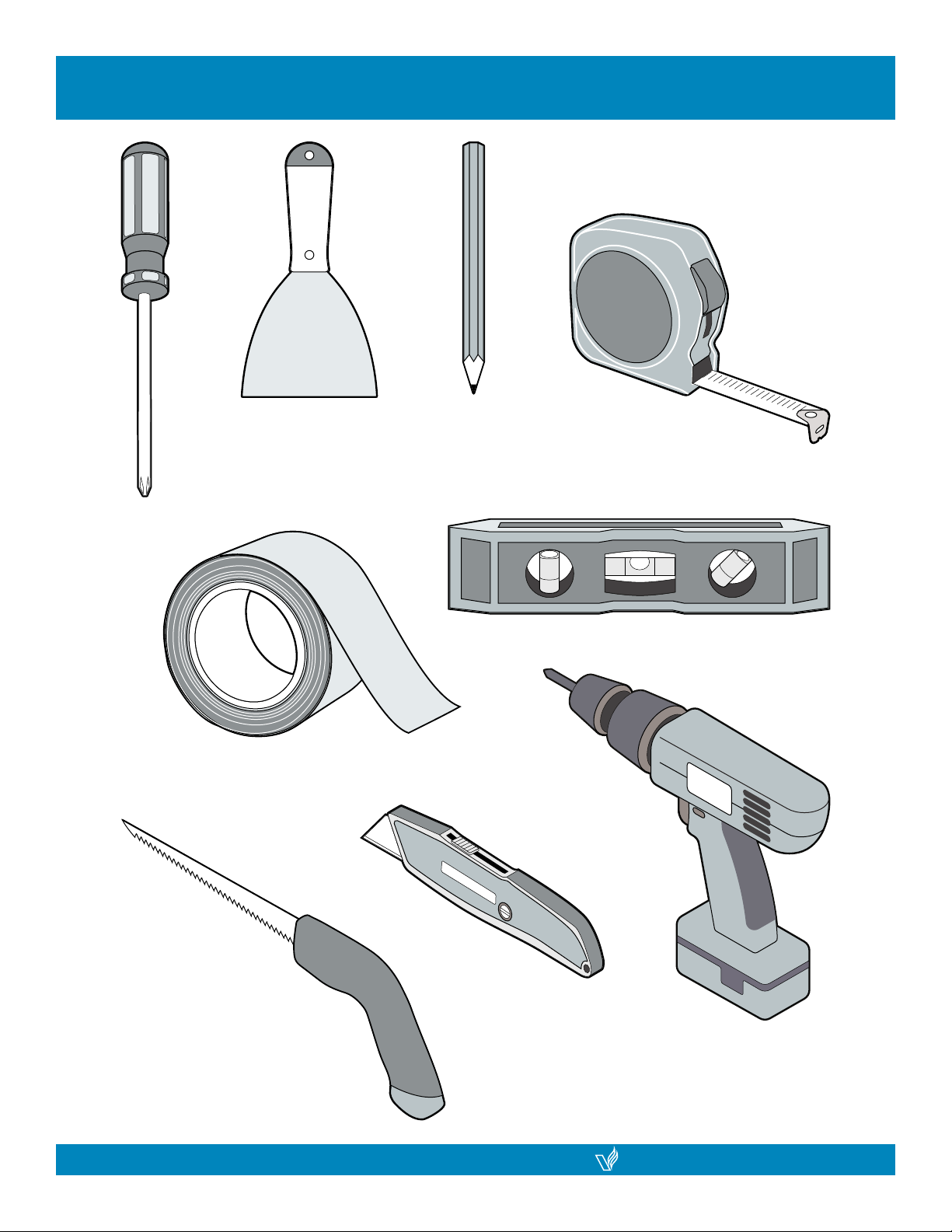

Putty Knife
Marker or Pencil
Tape Measure
Level
Phillips Screwdriver
Aluminum Tape
Power Drill
Utility Knife
Drywall Knife
VICTORY range hoods
| PRESTIGE
8VICTORY range hoods PRESTIGE | 9
REQUIRED TOOLS

M4 - 4mm
Countersink
(x12)
M4 - 4mm
Big Head
(x16)
M4 - 4mm
Bullet Head
(x24)
Ø - 10” Transition
(x2)
Baffle Filters
(x6)
Filter Handles
(x12)
Range Hood
Install Plates
(x3, may vary in shape/size
depending on model)
Grease Tunnel
(x2)
NOTE: Where necessary, additional screws will be needed for installation and added
support, but is not included. Please review contents before installation.
VICTORY range hoods
| PRESTIGE
8VICTORY range hoods PRESTIGE | 9

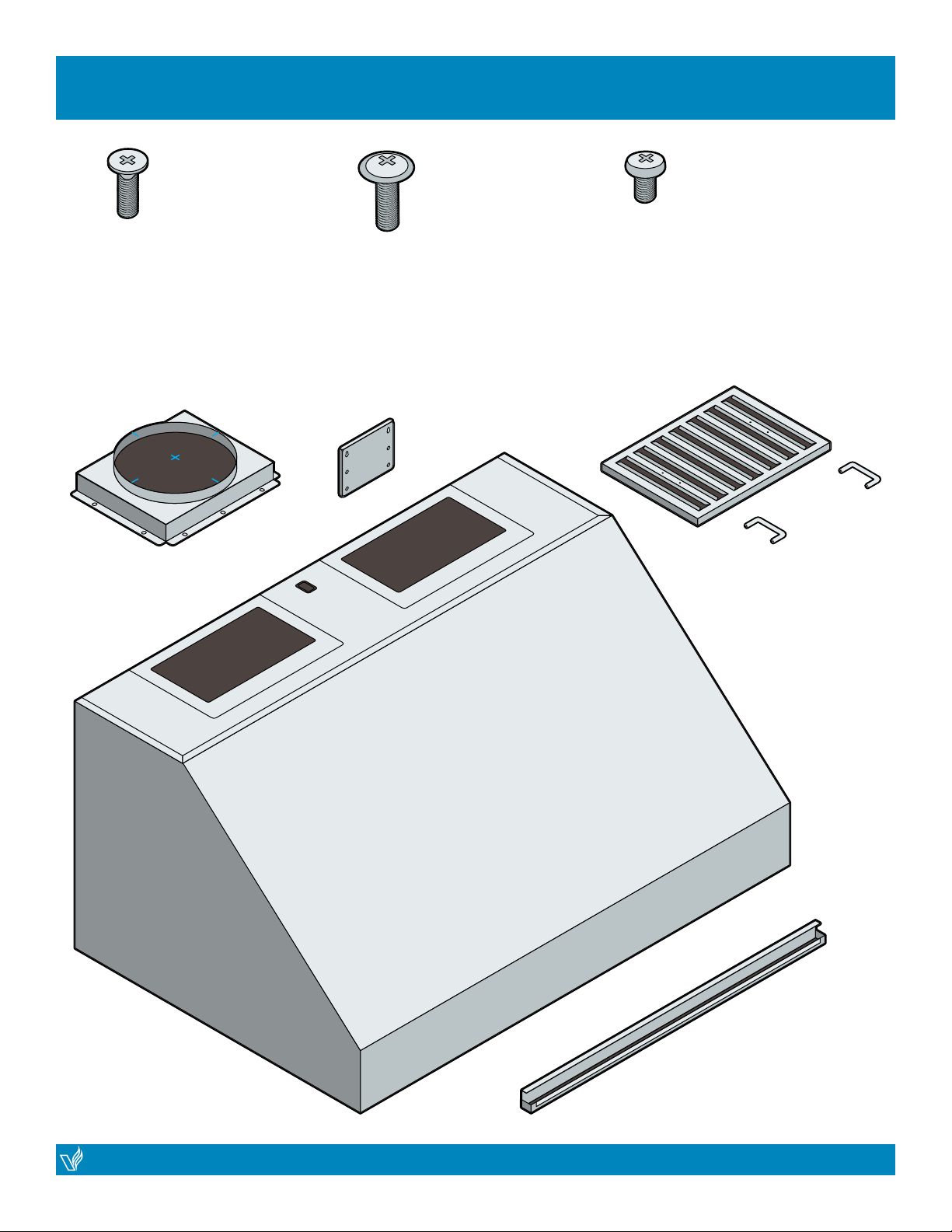

PARTS SUPPLIED

Ø 10”
12”
6”
SIDE VIEW
BOTTOM VIEW
FRONT VIEW
TOP VIEW
Hood shown: Model-48
Please refer to next pages for available
models and their respective dimensions
VICTORY range hoods
| PRESTIGE
10 VICTORY range hoods PRESTIGE | 11

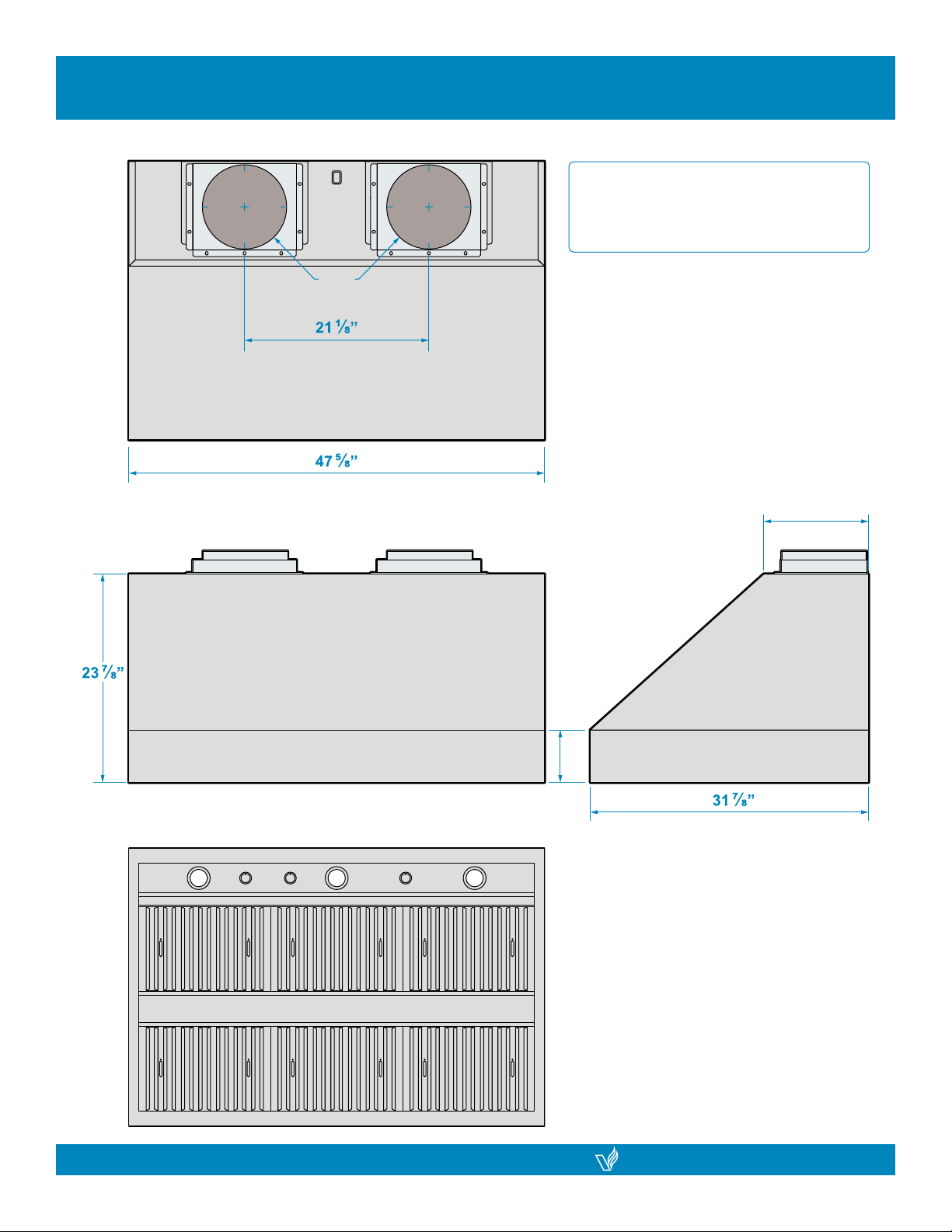

DIMENSIONS

6”
12”
10”- Ø Transition
VICTORY range hoods
| PRESTIGE
10 VICTORY range hoods PRESTIGE | 11
DIMENSIONS (continued)

BEFORE INSTALLING THE RANGE HOOD, CHECK FOR PHYSICAL DAMAGES.
THIS RANGE HOODS COMES WITH A WIRE AND PLUG.
TEST THE HOOD BEFORE INSTALLATION.
If there is a grinding noise coming from the motor, DO NOT INSTALL IT, contact us as soon as possible.
Advanced Preparations:
1. Read the entire installation guide and users manual thoroughly, understand instructions and warnings.
2. Be familiar with the controls of the range hood.
3. Place the range hood on a at, stable surface. Connect the range hood to a designated standard outlet
(please refer the product label for the suitable voltage of this unit) and verify no debris has entered the
duct openings, then turn on the range hood.
4. Place all supplied parts and required hardware on a at, stable surface and verify the existence of all
supplied parts.
5. Carefully remove the white/blue plastic protective coat from the chimney covers and range hood if any.
Preparations:
NOTE: To avoid damage to your hood, preduct debris from entering the duct opening.
1. Disconnect power cord, remove the stainless steel ba󰀪e lter and grease tunnel.
2. Set aside the stainless steel ba󰀪e lters and grease tunnel until the range hood is properly installed.
VICTORY range hoods
| PRESTIGE
12 VICTORY range hoods PRESTIGE | 13
PREPARATION

Plates may vary in shape and size
FRONT VIEW
Centerline
Min: 30”
Max: 36”
42”, 48”, 60”
10”- Ø Transitions
Top Installed
Range Hood placement
Cooking Surface
Ceiling
120v Outlet
location

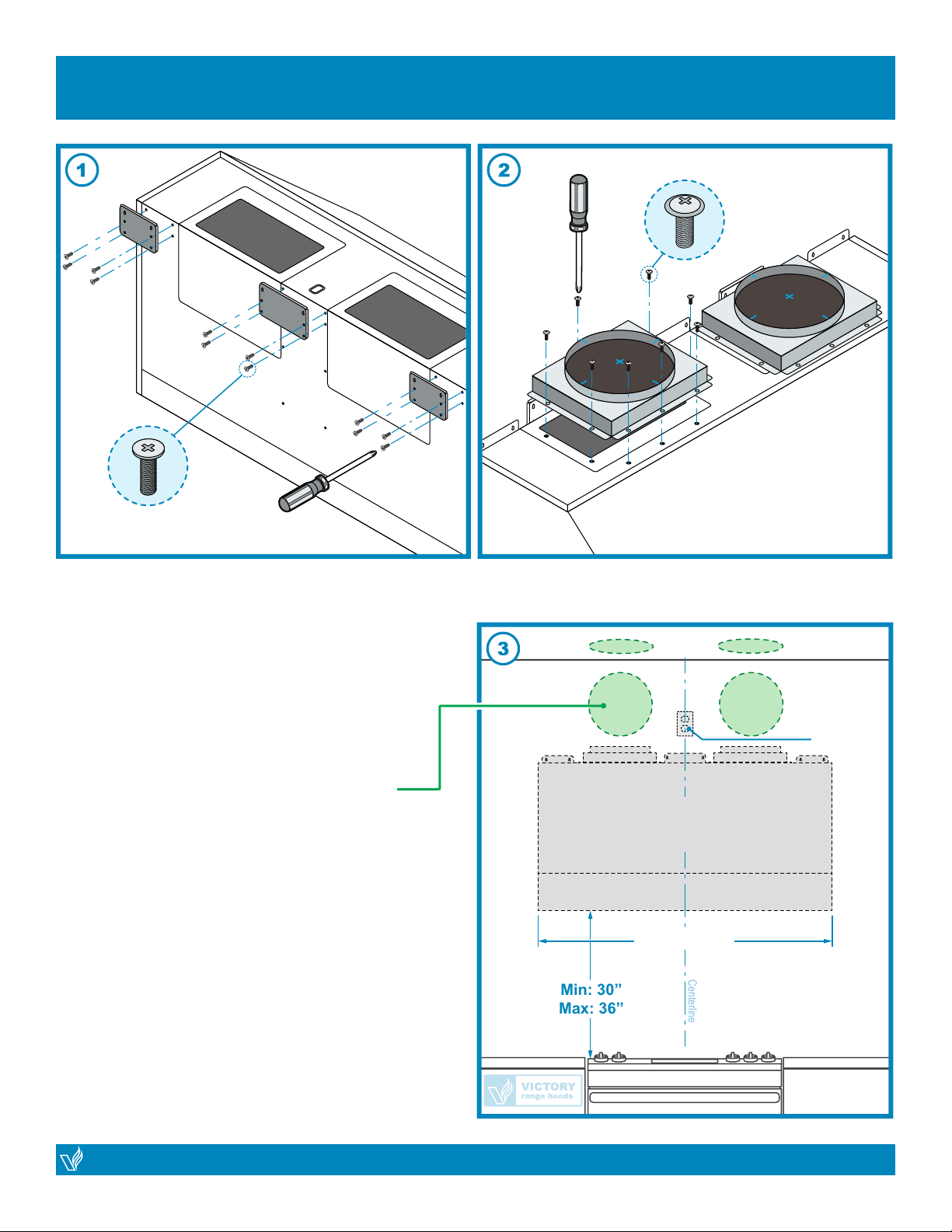

(1) Fasten installation plates using M4-4mm screws
(countersink) on to the back of the range hood.
(2) Fasten on 10” - Ø Transition on to the top exhaust
of range hood using M4-4mm (Big Head) screws.
(3) Measure the distance between the stove top and
the bottom of range hood. A distance of 30” to 36” is
recommended*.
*Due to dierent ceiling height congurations,
recommended height may not be applicable.
Areas to install wall or roof vent ducting.
VICTORY range hoods
| PRESTIGE
12 VICTORY range hoods PRESTIGE | 13
INSTALLATION

Centerline
Cut out drywall for
plywood brace
Determine spacing
between studs
Stud behind
the wall
10”- Ø Transitions
PRESTIGE
Range Hood
FRONT VIEW
Centerline
Ceiling
Wall
Dry wall cut out
Studs behind the wall
Placement of Range Hood
Centerline
Ceiling
Wall
Placement of Range Hood
Pilot holes to screw brace onto studs.
Drill holes at the rear panel of the
range hood in order to mount wood
screws (not included) in to the studs
for additional support.
(5) Use knife and saw to cut out drywall to accommo-
date plywood brace support.
(6) Screw on plywood to the exposed studs (wood-
screws not included). The inserted plywood should
be the same depth as the drywall slab it is replacing.
VICTORY range hoods
| PRESTIGE
14 VICTORY range hoods PRESTIGE | 15
INSTALLATION (continued)

Counter
Top
Centerline
Ceiling
Wall
Placement of
Range Hood
Centerline
Ceiling
Wall
Centerline
Ceiling
Wall
(7) Apply spackle in between spaces of the plywood
and drywall seamlessly. Sand down any rough
spackle to smooth out. Paint area if required.
(8) Use woodscrews (not included) to screw onto
the area of the plywood brace based on your
measurements already established.
NOTE: DO NOT USE threaded drywall anchors to support the hood when mounting the hood on
sheetrock. Mounting the hood on wall studs or lumbars is highly recommended.
CAUTION: Make certain the range hood is secure before releasing!
For safety purpose, pre-drilled mounting holes are provided through the back of the hood. For a more secure
installation, use as many mounting holes as needed to secure from the inside of hood.
VICTORY range hoods
| PRESTIGE
14 VICTORY range hoods PRESTIGE | 15
INSTALLATION (continued)

Centerline
Ceiling
Wall

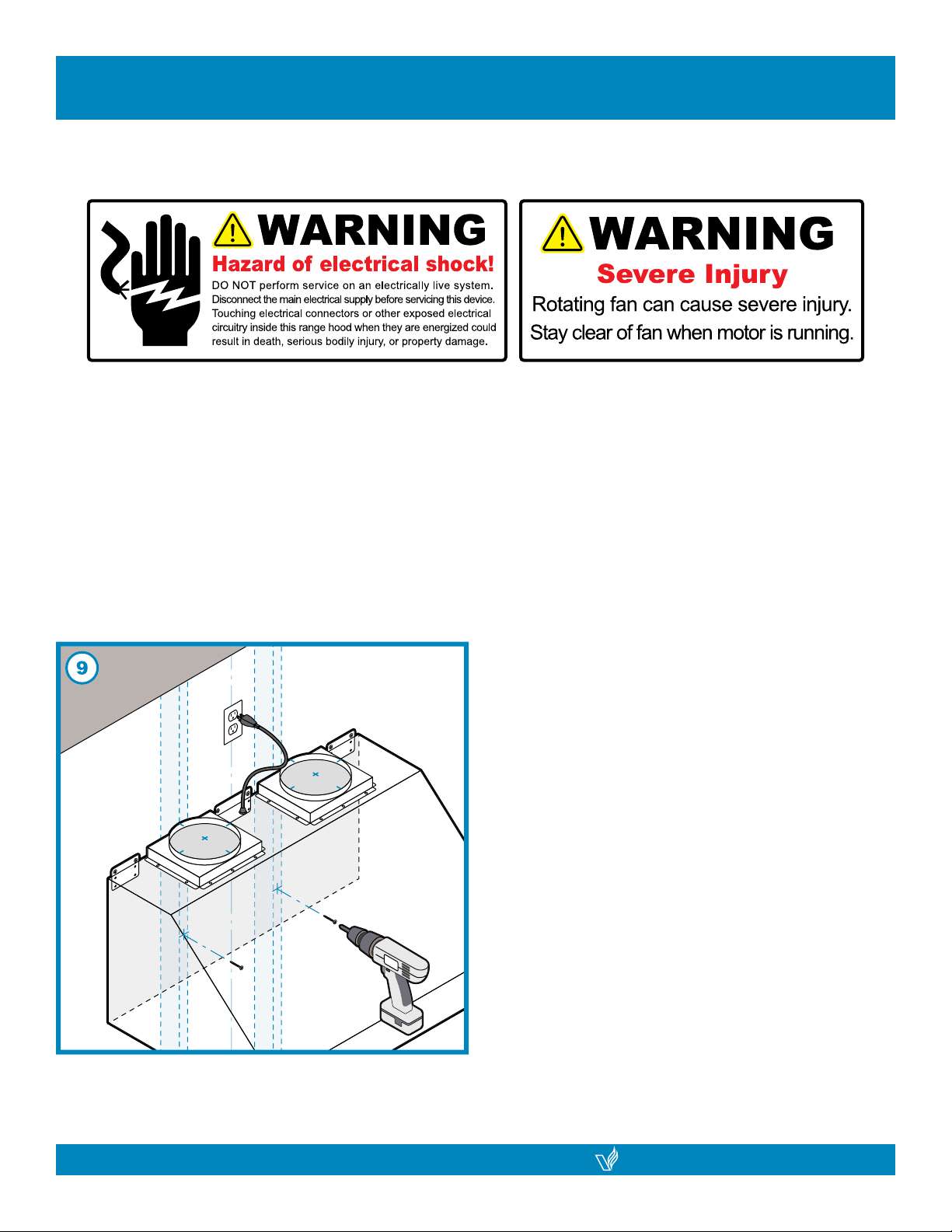

SAFETY WARNING: Risk of electrical shock. this range hood must be properly grounded. Make sure this
is done by qualied electrician in accordance with all applicable national and local electrical codes. Before
connecting wires, switch power o󰀨 at service panel and lock service panel to prevent power from being
switched on accidentally.
(9) From the inside rear panel of the range hood, use
woodscrews (not included) to mount into the studs
based on your measurements already established.
Connect the range hood to a designated standard
outlet and check the fan motor and lights are
functioning. Be alert of any electrical hazards and
refer to the product label for the suitable voltage
of this unit.
VICTORY range hoods
| PRESTIGE
16 VICTORY range hoods PRESTIGE | 17
INSTALLATION (continued)

10”- Ø
Elbow Duct
10”- Ø
Transition
Cut out hole
in wall to
accommodate
elbow duct.
Distance from
wall to transition
circumference
edge: ½”
WALL VENT
Ceiling
Wall
10” - Ø
Elbow Duct
inserted into
wall cut out
Use aluminum
foil tape to make
all joints secure
and air tight
Use aluminum
foil tape to make
all joints secure
and air tight
Distance from
wall to transition
circumference
edge: ½”
Distance from
wall to transition
circumference
edge: ½”
Centerline
10”- Ø Duct
10”- Ø
Transition
Cut out hole
in ceiling for
exhaust duct
OPTIONAL
ROOF VENT
OPTIONAL
ROOF VENT
Distance from
wall to transition
circumference
edge: ½”
Ceiling
Wall
Fasten screws from
below to mount cover
on to the range hood.
*Optional Cover (requested order)*Optional Cover (requested order)
10) Distance from wall to transition circumference edge
for 10” - Ø Transition will be ½”.
11) Use aluminum foil tape to make all joints secure and
air tight.
Use 10” round steel pipe to connect the exhaust on the
hood to the ductwork above. Use aluminum foil tape to
make all joints secure and air tight.
*Optional cover must be pre-ordered respective to model
width, and comes in di󰀨erent heights (12”, 24”, 36”). Use
M4-4mm screws to fasten cover to range hood.
VICTORY range hoods
| PRESTIGE
16 VICTORY range hoods PRESTIGE | 17
INSTALLATION (continued)

SIDE VIEW
BOTTOM
VIEW
Grease Tunnel x2
Place Grease Tunnel into the hood opening and insert
into slot holding, as shown below.
Ba󰀪e Filter
(1) Angle lter toward hood opening above the front light housing.
(2) Slide toward and into the recess above the light switch panel
while raising the lter at the rear.
Lower lter while sliding back until it rests onto Grease Tunnel.
VICTORY range hoods
| PRESTIGE
18 VICTORY range hoods PRESTIGE | 19
INSTALLATION GREASE TUNNEL AND FILTERS

Motor
36”
typical
Min: 30” Max: 36”
26 ½ ”
*Min height: 92 ½ ”
f
rom bottom of duct
to ground when range
height to stove is 30”
Min height: 98 ½ ”
from bottom of duct
to ground when range
height to stove is 36”
This Wall Vent method is possible
only if the ceiling height is 8 ½ ’ or higher
NOTE: for 8’ ceiling,
use
Roof Vent method
or Back Vent option
Optional Backdraft Damper
Wrap insulation required
for cold climates
10” Ø
Ducting
Wall
Vent
Roof
Vent
• This range hood is factory set for venting through the roof or wall.
• Duct work can terminate either through the roof or wall. To vent through a wall,
a 90° elbow is needed.
IMPORTANT:
• NEVER exhaust air or terminate
duct work into spaces between
walls, crawl spaces, ceiling,
attics or garages. All exhaust
must be vented to the outside.
• Use metal/aluminum duct work
only.
• Fasten all connections with
sheet metal screws and tape all
joints with certied Aluminum
Tape.
• Use caulking to seal exterior
wall or roof opening around the
cap.
• Colder climates require wrap-
ping insulation around the ducts
and optional blowers.
• The system must have a Back-
draft Damper.
* Due to di󰀨erent ceiling height congurations, recommended height may not be applicable.
VICTORY range hoods
| PRESTIGE
18 VICTORY range hoods PRESTIGE | 19
VENTING METHODS (side view)

MotorMotor
Backdraft Damper
Wrap insulation
required for cold climates
10” Ø Ducting System
*Min height: 92 ½”
from bottom of power outlet
to floor when range
height to stove is 30”
Min height: 98 ½”
from bottom of power outlet
to floor when range
height to stove is 36”
Roof Vents
* Due to di󰀨erent ceiling height congurations, recommended height may not be applicable.
VICTORY range hoods
| PRESTIGE
20 VICTORY range hoods PRESTIGE | 21
VENTING METHODS (front view)
