Victrola VTA-67 User manual

MODEL: VTA-67
3-IN-1 TURNTABLE

Safety Instructions.................................................................................................
Product overview..................................................................................................
Listening to a Vinyl Record...................................................................................
.
Listening to the FM Radio.....................................................................................
Listening to an External Audio Device(AUX Mode)..............................................
Listening to an External Audio Device(Bluetooth Mode).......................................
Maintenance/Proper Handing...............................................................................
Troubleshooting Guide..........................................................................................
Setup/Basic Operation..........................................................................................
Specifications........................................................................................................
FCC Statement and other warnings.....................................................................
1
3
5
6
6
6
7
8
10
12
13
CONTENTS

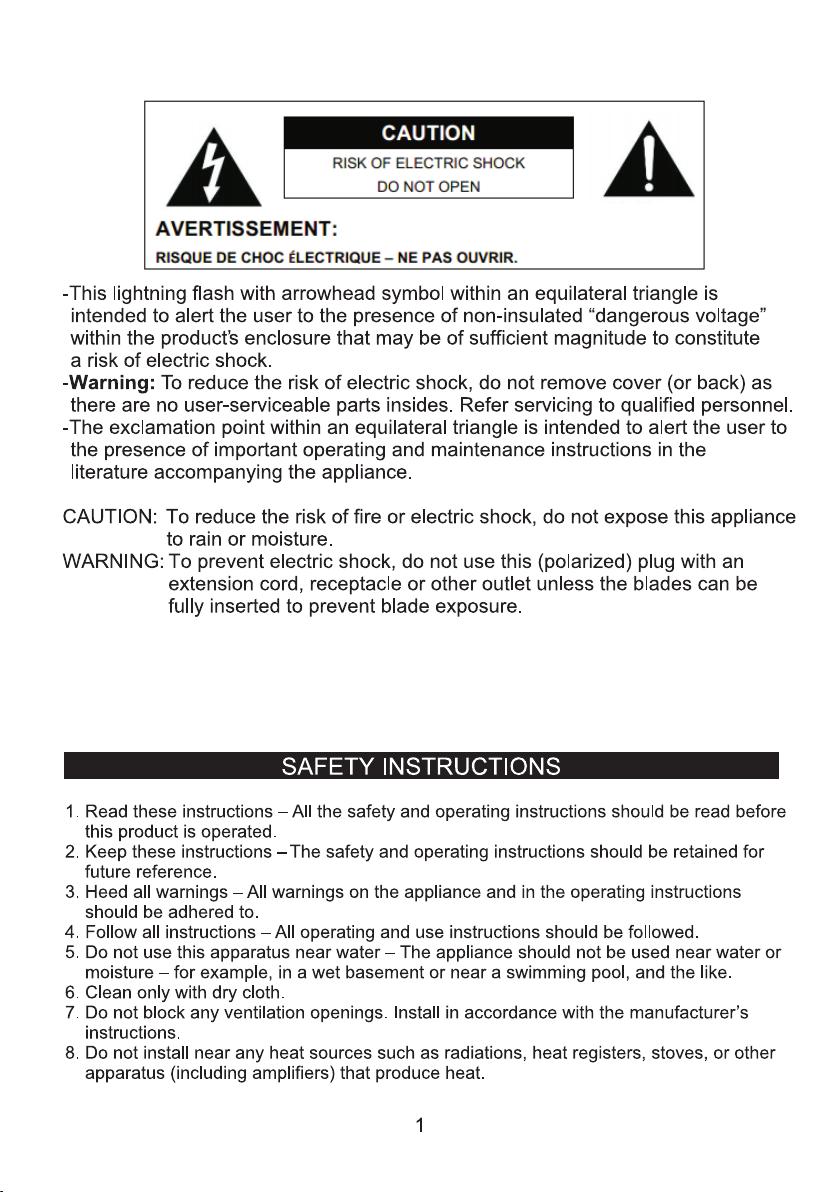

SAFETY INSTRUCTIONS
16. The mains plug is used as disconnect device, the disconnect device shall
remain readily operable.
17. To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture. The apparatus shall not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall not be placed on
apparatus.
18. Use the equipment in a moderate climate.
ACCESSORIES INCLUDED
• INSTRUCTION MANUAL
• POWER ADAPTER
• WARRANTY (BACK OF MANUAL)
3
PRODUCT OVERVIEW
Front view
1.
2.
3. Power: Press to turn the unit ON or OFF.
4. SEARCH /
In FM mode, press this button to automatically search stations.
In BT mode, press this button to play/pause playback.
5. FM /
Press to enter FM mode.
Press and hold to skip to the previous track or station.
6. BT /
Press to enter BT mode.
Press and hold to skip to the next track or station.
7. PHONO: Press to enter PHONO mode.
8.
Display Screen
3.5mm EARPHONE JACK:Accepts headphone/earphone plugs.
Press and hold
this button to search stations manually.
Volume Knob: Turn to adjust volume.
SEARCH FM BT PHONO
1
2
3
4 5 6 7
8

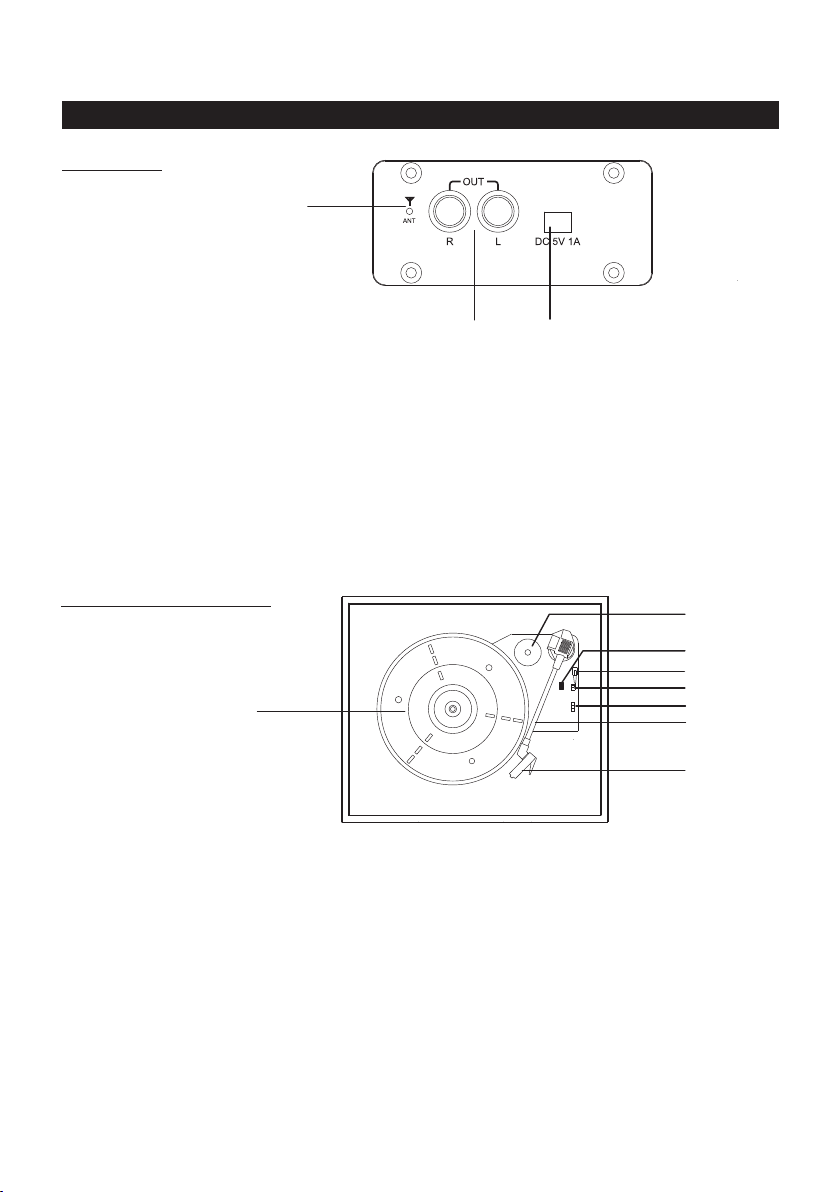

PRODUCT OVERVIEW
Rear view
10
9
11
4
9. FM wire antenna
While tuned to a station in FM mode, extend the wire and reposition.
10. LINE OUT jacks
For amplifier device with RCA auxiliary input sockets, insert the white and red
plugs on the RCA cable into the unit. Insert the opposite end into the amplifier
device. Be sure to connect the white plug to the white jack and the red plug
11. DC Input Jack
Connect the power adapter to the jack to power on the unit.
12
12. Turntable
13. 45 RPM adapter
14. Tone Arm holder
15. Cue Lever:
16.
Before use,gently push the Turn Arm holder to the right to release
the Tone Arm.
AUTO STOP ON/OFF SWITCH:Switch “ON”,the turntable will stop
automatically when finish playing.Switch “OFF”,the turntable will keep turning
when finish playing.
17. Speed Selector
18. Tone Arm󰾡
19. STYLUS
Part of the Turntable 13
15
16
17
19
18
14
1
to the red jack.

SETUP/BASIC OPERATION
Setup
1. Remove white protective needle cover by gently pulling towards front of unit.
2. Remove any packaging materials from the unit.
3.
Note:
- It is strongly recommended that this product should be operated
only from the type of power source indicated on the marking label.
Basic Operation
1. Press the POWER button to turn the unit on.
2. Select mode by pressing FM/BT/PHONO button on front panel.
3. Rotate the Volume Knob to adjust to the desired sound level.
Listening through RCA LINE OUT
For amplifier device listening,first reduce the volume level to minimum.Insert the
white and red plugs on the RCA cable into the unit,then insert the opposite end
into the amplifier device.Be sure to connect the white plug to the white jack and
the red plug to the red jack.
Listening through Earphones/Headphones(not included)
For private listening,first reduce the volume level to minimum.
Insert your headphones’ plug into the 3.5mm jack,then
adjust the volume up by turning the Volume Knob.
Note:The speakers will automatically be deactivated
while headphones are plugged in.
CONDENSATION WARNING:
When the unit is moved from a cold or warm place,or is used following a sudden
temperature change,there is the danger that water vapor in the air may condense
on the unit,preventing proper operation.In such cases,leave the unit for 1-2 hours
after powering on the unit to allow it to stabilize at the temperature of its
surroundings.
Connect the power adapter to the DC Input jack to power on the unit.
5

LISTENING TO A VINYL RECORD
1. Turn the unit ON by pressing the POWER button.
2. Press the PHONO button to enter the PHONO mode.
3. Gently open the dust cover.
4. Put the record on the turntable. Select the speed. When playing a
45 RPM record, use the included 45 adaptor.
5. Gently push the Tone Arm holder to the right to release the Tone Arm.
6. Raise the to lift the Tone Arm off the tone arm support.
7. Move the Tone Arm gently to the edge of the record
(or the starting point of the track).The turntable will begin to turn.
8. Gently lower the Tone Arm by slowly releasing the Cue Lever.
You can lower the Tone Arm manually if the Cue Lever
has not been raised.
9. Turn the Volume Knob to adjust the volume.
Cue Lever
LISTENING TO AN EXTERNAL DEVICE(AUX MODE)
LINE-OUT Jacks on the BACK of the unit:
If you play this device through external powered speakers,
you can connect the unit with an RCA component cable
(not inclued).Make sure to connect the white plug to the white
jack(left) and the red plug to the red jack(right).
6
LISTENING TO THE FM RADIO
1. Press the FM/
2. Press SEARCH/ button, the unit will search the stations and store the
stations it searches automatically.
NOTE: You can press SEARCH/ button again to stop searching.
3. Press and hold SEARCH/ button to search stations manually.,.
4. Press and hold the FM/ or BT/ button to skip to the previous/next stored
station.
Adjusting for Best Reception
FM broadcast: Extend and reposition the FM antenna.
10. When playback has finished, slightly lift the Tone Arm using the
Cue Lever and return it to the Tone Arm holder.
button to enter the FM mode.

LISTENING TO AN EXTERNAL DEVICE (BLUETOOTH MODE)
In BT(bluetooth) mode,this unit can play music from external devices which have
a built-in Bluetoothe feature.
GETTING CONNETTED USING BLUETOOTH
1. Press the BT/ button to enter BT mode.
2. The “bt” will flash on the Display Screen.
3. Turn ON the Bluetooth function on your external device.
NOTE: The effective distance between your external device and this unit is
10 meters(33ft).
4. Wait for the “VTA-67” to appear on the paired devices list of your external
device and press “VTA-67”.
5. A few seconds later your Bluetooth connection is successful and the “bt” on
the Display Screen will stop flashing.
6. Select the music media files on your external device, then press the
SEARCH/ button
In some instances: a window will ask you a password. Fill in “0000" then press
“OK” on your external device.
to begin playback.
7. To temporarily pause playback, press the SEARCH/ button. Press again to
resume.
8. To skip to the previous or next tracks, press and hold the FM/ or BT/
button to listen.
Note:Stop,fast forward/rewind are only available on your external device.
7

MAINTENANCE/PROPER HANDING
Handling Vinyl Records
•
• To clean a record, use a soft anti-static cloth to gently wipe the record surface.
• Keep records in their protective sleeves when not in use.
• Always store records upright on their edges.
• Avoid placing records in direct sunlight, close to a heat source
(radiators, stoves, etc.), or in a location subject to vibration, excessive dust,
heat, cold or moisture.
Do not touch the record’s grooves. Only handle records by the edges or the
label with clean hands. Touching the record surface will cause your record’s
quality to deteriorate.
8

TROUBLESHOOTING GUIDE
symptom
GENERAL
• Uint will not power on
Possible Cause
• Unit is unplugged.
Solution
• Connect the DC power
adapter to the jack.
• No sound output from
speakers
•
•
The volume level is set
too low.
The input selector does
not match the playback
source.
•
•
Adjust the volume.
Select the correct
input source.
• Noise/Distortion in
sound output
• The unit is too close to
a TV set or another
interfering device.
• Turn off the TV or
other appliance, and
relocate the unit.
• Unit fails to respond • It might result from
externa factors such as
ESD(Electro-static
discharge).
• Disconnect the power
cord and external
audio device.Re-plug
the power cord after
one mimute.
FM RADIO
• Cannot listen to any
station, or signal
appears weak
•
•
The station is not
tuned-in properly.
A TV set is being used
nearby and is interfering
with the radio reception.
•
•
Properly turn-in the
desired station.
Turn off the interfering
TV set.
• The sound is distorted • The antenna is not
oriented properly.
• Re-orient the antenna
until reception
improves.
PHONO
• Decline in turntable
audio performance
• The turntable stylus is
worn out.

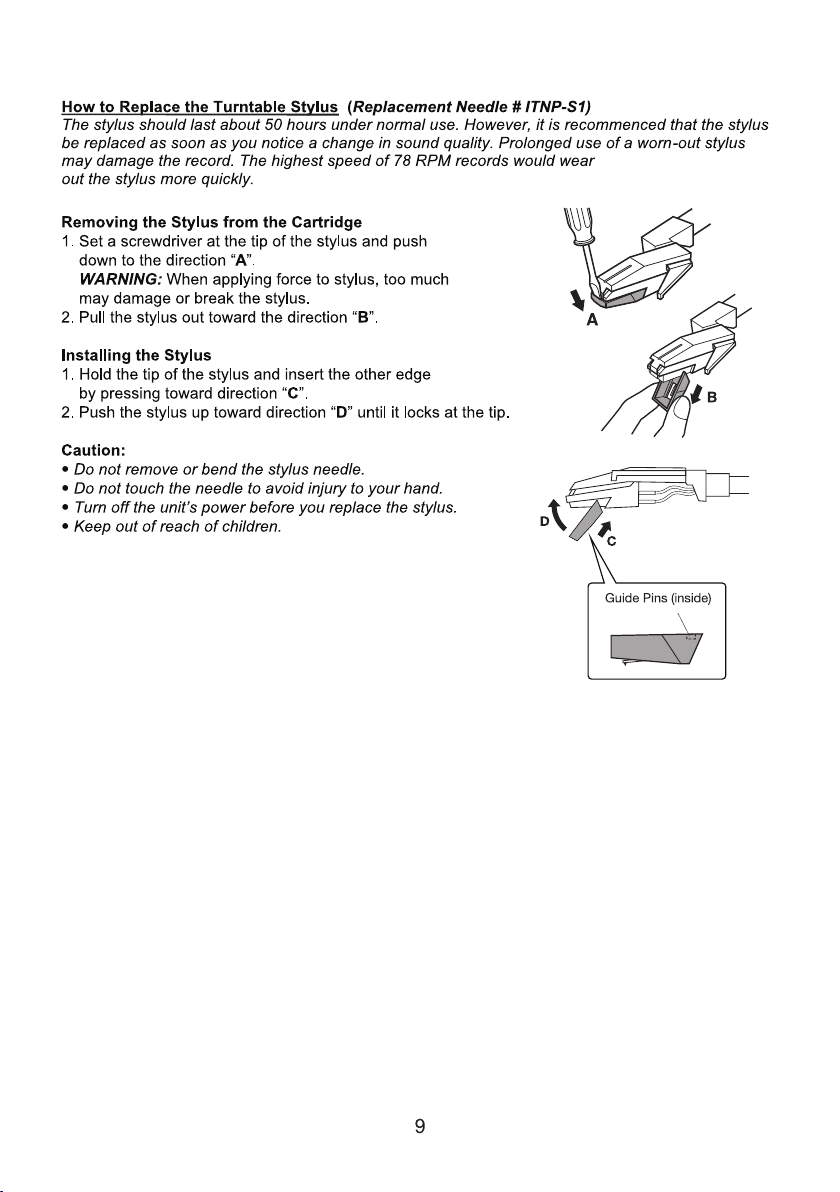

• Replace the stylus.
10

symptom
BLUETOOTH
• No sound
Possible Cause
•
•
• Your device is too far
from the unit or there’re
some obstacle between
your device and your
unit.
The unit is not switched
to Bluetooth mode.
Your device’s and/or
your unit’s volume is not
turn up.
Solution
•
•
• Turn up the volume
on your portable
device and/or the unit.
• Turn OFF your
bluetooth device and
unit.Then power them
both back ON.
Ensure the unit is
switched to BT mode.
Move your Bluetooth
device closer to unit.
• Sound has a lot of
static
• Your device is too far
away.
• Bring your device
closer to the turntable.
• Unable to pair with a
bluetooth device
• Your device dosen’t
have Bluetooth
connectivity.
• The Bluetooth pairing is
not successful
• Confirm that your
device is Bluetooth
compatible.
• Re-pair the unit and
device again.
For further assistance with your product, call Innovative Technology at
TOLL FREE# 1-877-ITECH-97 (1-877-483-2497).
Please note: As a result of continual improvements, the design and specifications
of this product are subject to change without notice.
Made in China.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Other trademarks and trade names are those of their respective owners.
11

SPECIFICATIONS
GENERAL
Power adapter -----------------DC 5V/1A
Power Consumption ----------5W
Power Output -------------------2X2W
FM Radio
Range -----------------------------------88 to 108 MHZ
RECORD PLAYER
Speeds ----------------------------------33-1/3 rpm, 45 rpm and78 rpm
BLUETOOTH
Bluetooth Version -------------------- Bluetooth V4.0
Bluetooth Profiles -------------------- A2DP, AVRCP
Bluetooth Frequency range ------- 2.402GHz-2.480GHz
Operating Distance ------------------10 meters (33 ft.)
Size--------------------------------12.7'’(322mm)W×11.4'’(290mm)D×5.2'’(132mm)H
Weight-----------------------------4.5 lbs (2kg)
12
