MODEL: VTA-240B
4-IN-1 TURNTABLE

2
Important Safety Instructions..................................................................................... 3!
Product Overview ...................................................................................................... 5!
Setup / Basic Operation ............................................................................................. 8!
Listening to the FM Radio ......................................................................................... 8!
Listening to an External Audio Device (BT Mode)................................................... 9!
Listening to an External Audio Device (AUX Mode) ............................................... 9!
Listening to a Vinyl Record....................................................................................... 9!
Maintenance / Proper Handling ............................................................................... 10!
Specifications........................................................................................................... 11!
Troubleshooting Guide ............................................................................................ 12!
!

3
CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
Important Safety Instructions
1. Read these instructions –All the safety and operating instructions should be read before this product is
operated.
2. Keep these instructions–The safety and operating instructions should be retained for future reference.
3. Heed all warnings–All warnings on the appliance and in the operating instructions should be
adhered to.
4. Follow all instructions –All operating and use instructions should be followed.
5. Do not use this apparatus near water –The appliance should not be used near water or moisture –
for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and at the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
12. Unplug the apparatus during lightning storms or when unused for
long periods of time.
13. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

4
14.

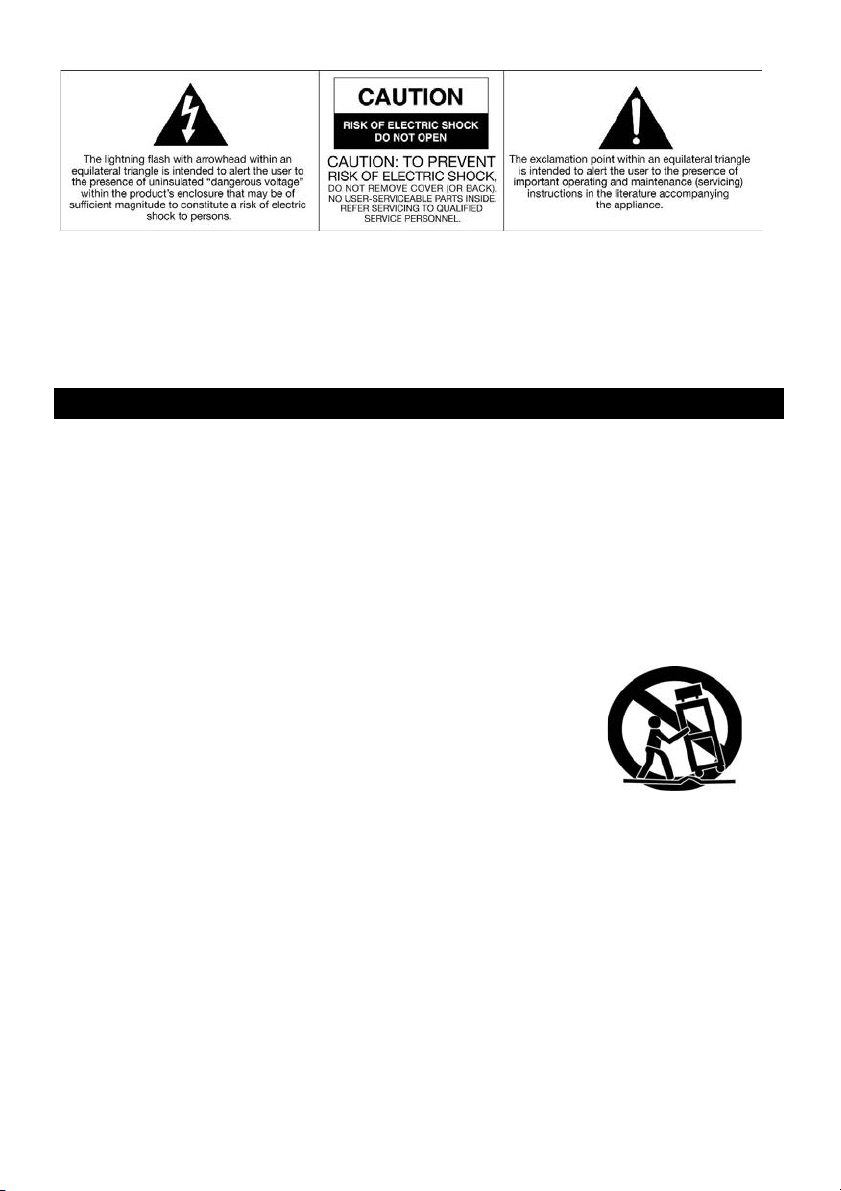

-This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of non-insulated “dangerous voltage”within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
-Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable
parts inside. Refer servicing to qualified personnel.
-The exclamation point within and equilateral triangle is intended to alert the user to the presence of important
operating and maintenance instructions in the literature accompanying the appliance.
15. The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
16. WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall not be placed on apparatus.
17. The use of the equipment in moderate climate.
18. The ventilation should not be impeded by covering the ventilation openings with items such as,
newspapers, tablecloths, curtains, etc.
19. No naked flame sources, such as lighted candles, should be placed on the apparatus.

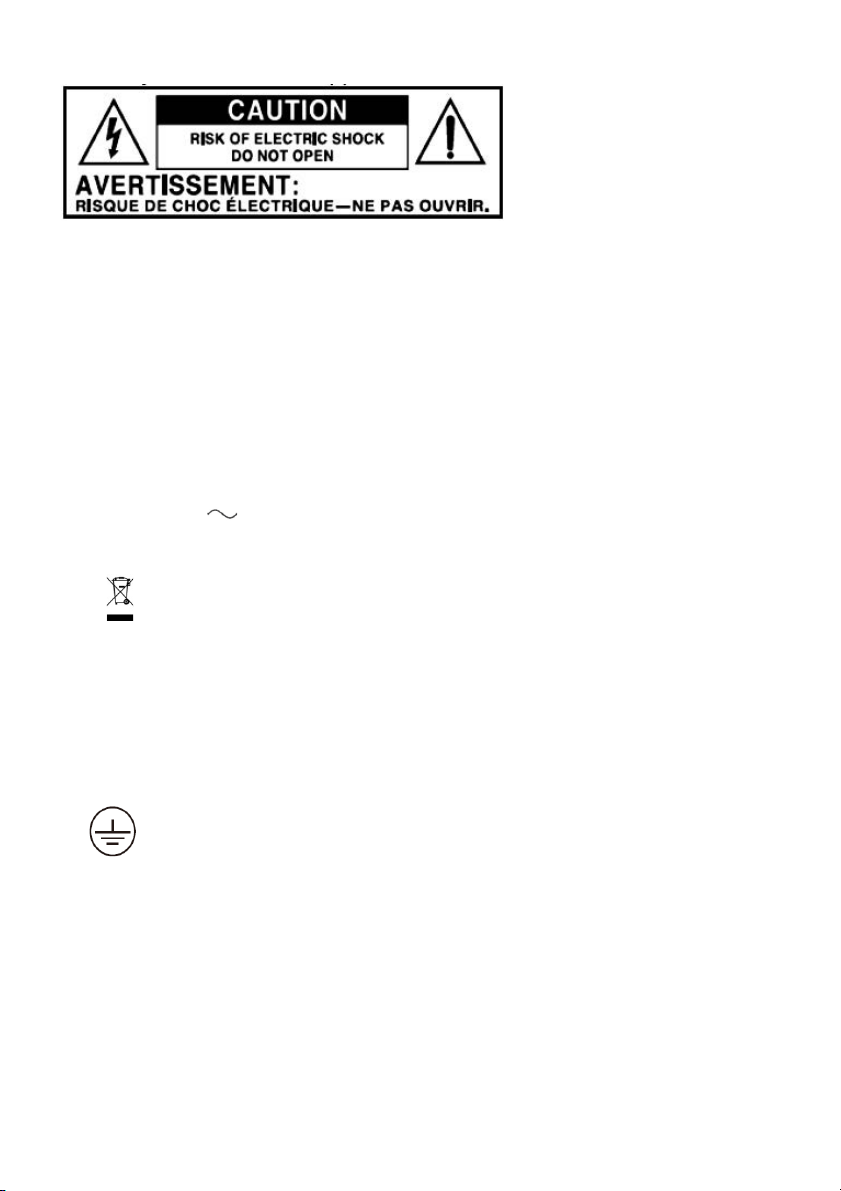

20. The symbol with Indication AC voltage.
21. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the
risk of electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
22.
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE).
This means that this product must be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment. User has the choice to give his
product to a competent recycling organization or to the retailer when he buys a new electrical or
electronic equipment.
23. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources.
24. To return your used device, please use the return and collection systems or contact the retailer where
the product was purchased. They can take this product for environmental safe recycling.
25. Protective earthing terminal. The apparatus should be connected to a mains socket outlet with
a protective earthing connection.
ACCESSORIES INCLUDED:
• RCA LINE OUT CABLE
• INSTRUCTION MANUAL
• WARRANTY
• 45 RPM ADAPTER
• TURNTABLE OPERATION SHEET
•DETACHABLE POWER CORD (2 PCS)

5
Product Overview
Front View
1. POWER /VOLUME: Rotate clockwise to turn the unit ON.
Rotatecounter-clockwise to turn the unit OFF.
WhenunitisON, rotate to adjust the volume.
2. LED DISPLAY: When unit is ON the display is backlit.
3. “FM, BT, AUX, PHONO” SELECTION KNOB: Rotate to select desiredfunction.
4. 3.5mm AUX-IN JACK: Connect your external source to the AUX-IN jack.
5. BLUETOOTH INDICATOR: Indicator will illuminate in BT mode.
6. RADIO TUNER KNOB: In FM mode, turn knob to tune to desired station.

6

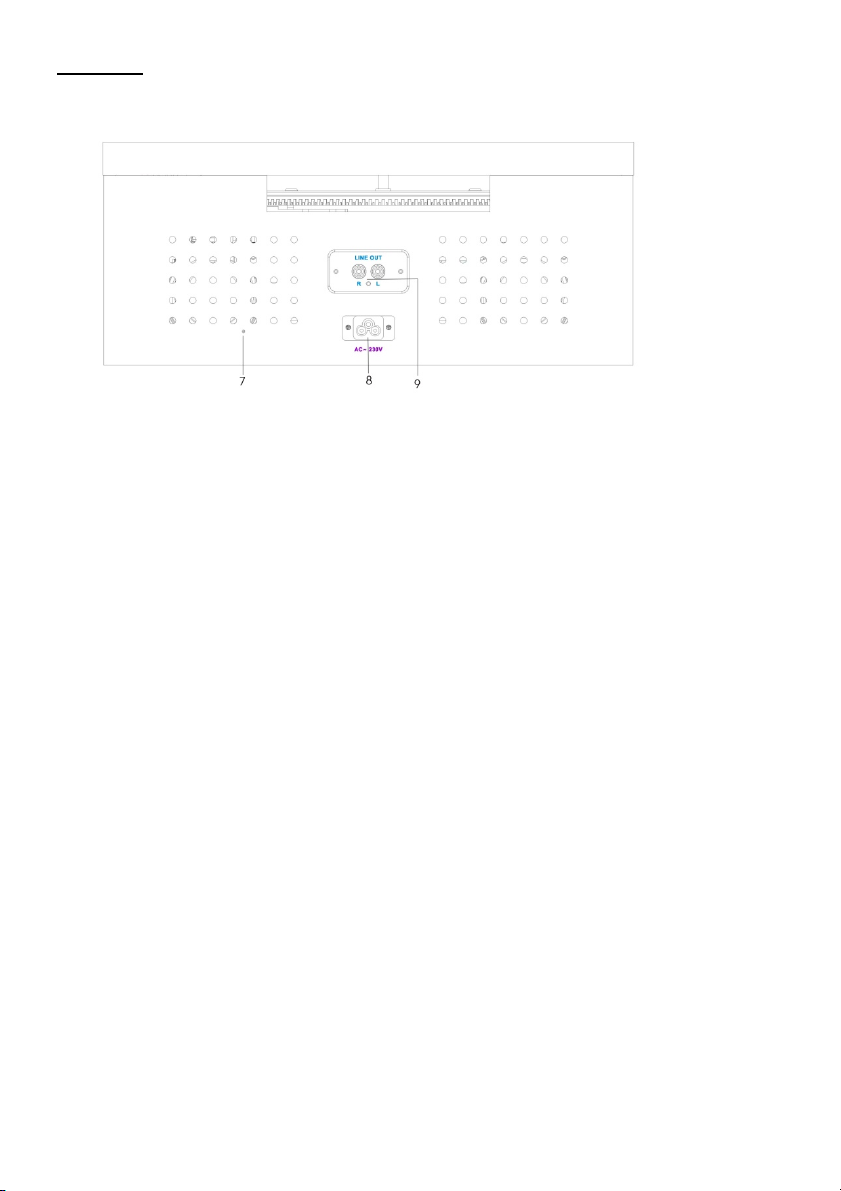

Rear View
7. FM wire antenna
While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.
8. AC SOCKET: Connect the AC power cord into AC connection socket and then insert the AC plug
into a wall outlet. It is strongly recommended that this product be operated only from the type of
power source indicated on the marking label.
9. LINE OUT jacks
For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA
cable into the unit. Insert the opposite end into the amplifier device. Be sure to connect the white
plug to the white jack and the red plug to the red jack.

7
Parts of the Turntable
A. Turntable
B. Safety Screw (for transport)
Before using the unit, turn the screw clockwise using a coin or screwdriver.
Important: When you transport the unit, turn the screw counterclockwise to secure the turntable.
C. Speed Selector
D. Tone Arm holder
E. Tone Arm-Before use, completely loosen the twist tie on the tone arm to lift tone arm.
F. Stylus
G. 45 RPM adaptor
H. Cue-lever-Use this lever to lift the tone arm.

8
Setup / Basic Operation
Setup
1. Remove white protective needle cover by gently pulling towards front of unit.
2. Remove any packaging materials from the unit.
3. Connect the AC power cord into an AC connection socket
and then insert the AC plug into a wall outlet.

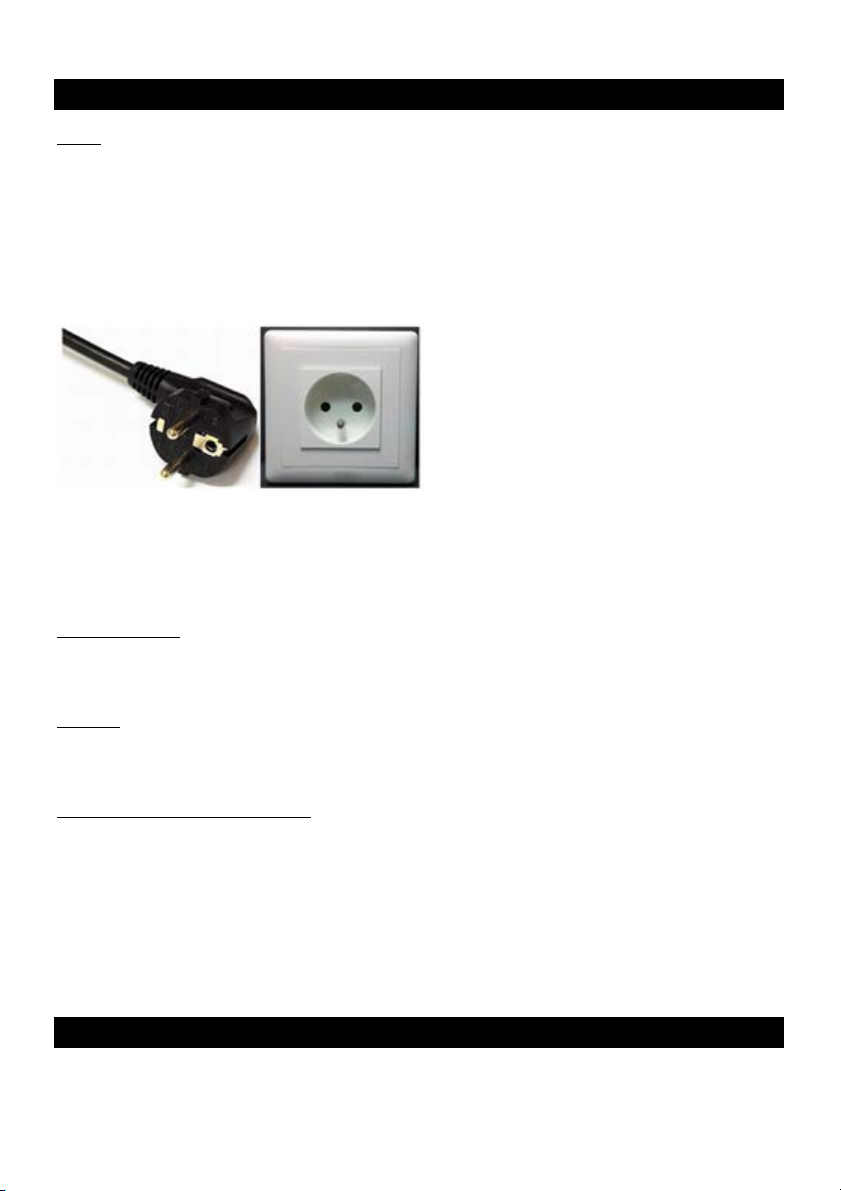

Note: For the plug shown below, you must use a socket with an earthing terminal.
Note:
-It is strongly recommended that this product should be operated only from the type of power source
indicated on the marking label.
-To prevent interference, avoid bundling audio signal cables together with the AC power cord.
Basic Operation
1. Rotate the POWER/VOLUME knob clockwise to turn the unit on. The LED display will illuminate.
2. Select the source by rotating the selection knob(FM/BT/AUX/PHONO).
3. Rotate the POWER/VOLUME knob to adjust to the desired sound level.
Standby
The main unit will switch to economic standby mode when the speaker is idle for approximately 15
minutes, except for Radio mode. Once the unit turnsinto standby mode, you need to turn the unit off
first. Then rotate the POWER/VOLUME knob clockwise to turn the unit on again.
Listening through RCA LINE OUT
For amplifier device listening, first reduce the volume level to minimum. Insert the white and red plugs
of the RCA cable into the corresponding colors on the unit. Then insert the opposite end into the
amplifier device.
Be sure to connect the white plug to the white jack and the red plug to the red jack.
CONDENSATION WARNING:
When the unit is moved from a cold or warm place, or is used following a sudden temperature change, there is the
danger that water vapor in the air may condense on the unit, preventing proper operation. In such cases, leave the
unit for 1-2 hours after plugging it into an AC outlet to allow it to stabilize at the temperature of its surroundings.
Listening to the FM Radio
1. Rotatefunction knob to select “FM” function.
2 Tune to the desired station by using the Radio Tuner Knob.

9
Listening to an External Audio Device (BT Mode)
In BT (Bluetooth) mode, this unit can play music from an external device with the Bluetooth feature.
GETTING CONNECTED USING BLUETOOTH
1. Rotate to select “BT”function.
2. The Bluetooth indicator will flash.
3. Set the Bluetooth function of your external device when the apparatus is on.
4. Set to search Bluetooth device on your external device.
NOTE: The effective distance between your external device and this apparatus is 10 meters.
4. When “VTA-240B” appears on the paired devices list on your external device, press “VTA-240B”
to connect. If a password is required, use “0000” then press “OK” on your external device.
5. When your Bluetooth connection is successful, Bluetooth LED indicator will remain lit.
NOTE: The Fast Forward/Rewind function is only available on your external device.
Listening to an External Audio Device (AUX Mode)
Rotate Function Knob to select the “AUX”function.
In AUX (auxiliary) mode, this unit can play audio from an external audio source (iPod, MP3 Player,
Portable CD Player, etc.)
There is a AUX-IN jack on the front side of the unit. When connecting a device that has a headphone
jack, use the cable with 3.5mm plugs on either end with the front AUX-IN jack.
1. Plug one end of the AUX-IN cable (not included) into the AUX-IN jack.
2. Plug the other end of the cable into the headphone jack of the external audio source.
NOTE: All operations are only available on your external device.
Listening to a Vinyl Record
1. Rotate the Function Knob to select the “PHONO”function.
2. Gently open the top cover.
Note: Be careful not to pinch your finger when opening/closing the top cover.
3. Place a vinyl record on the turntable. When playing a 45 RPM record, use the included adaptor.
4. Select the appropriate speed (4).
5. Remove the tone arm-rest holder to release the tone arm.
6. Move the tone arm gently to the edge of the record (or the starting point of a track).
The turntable will begin to turn.
7. When the record reaches the end, the tone arm will stop at the center of the record. Lift and return
the tone arm to the tone arm rest manually. Lock the tone arm-rest holder to protect the tone arm.
Important:
-Closing the top cover will help prevent dust from settling on the turntable.
-Always relock the tone arm clip before transporting the unit.
-Do not place anything on top of the turntable cover, especially while playing a record.

10
Maintenance / Proper Handling
Handling Vinyl Records
•Do not touch the record’s grooves. Only handle records by the edges or the label with clean hands.
Touching the record surface will cause your record’s quality to deteriorate.
•To clean a record, use a soft anti-static cloth to gently wipe the record surface.
•Keep records in their protective sleeves when not in use.
•Always store records upright on their edges
•Avoid placing records in direct sunlight, close to a heat source (radiators, stoves, etc.),
or in a location subject to vibration, excessive dust, heat, cold or moisture.
General Care
•When removing the power plug from the wall outlet, always pull directly on the plug.
Never pull the cord.
•To keep the laser pickup clean, do not touch it, and do not forget to close the disc tray.
•Do not attempt to clean the unit with chemical solvents as this might damage the finish.
•For cleaning, only use a clean, dry cloth.
•In order to shut off the power to this product completely, unplug the power cord from the
wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period
of time.
How to Replace the Turntable Stylus(Replacement Needle # ITNP-LC1)
The stylus should last about 50 hours under normal use. However, it is recommenced that the stylus be
replaced as soon as you notice a change in sound quality. Prolonged use of
a worn-out stylus may damage the record. The highest speed of 78 RPM
records would wear out the stylus more quickly.

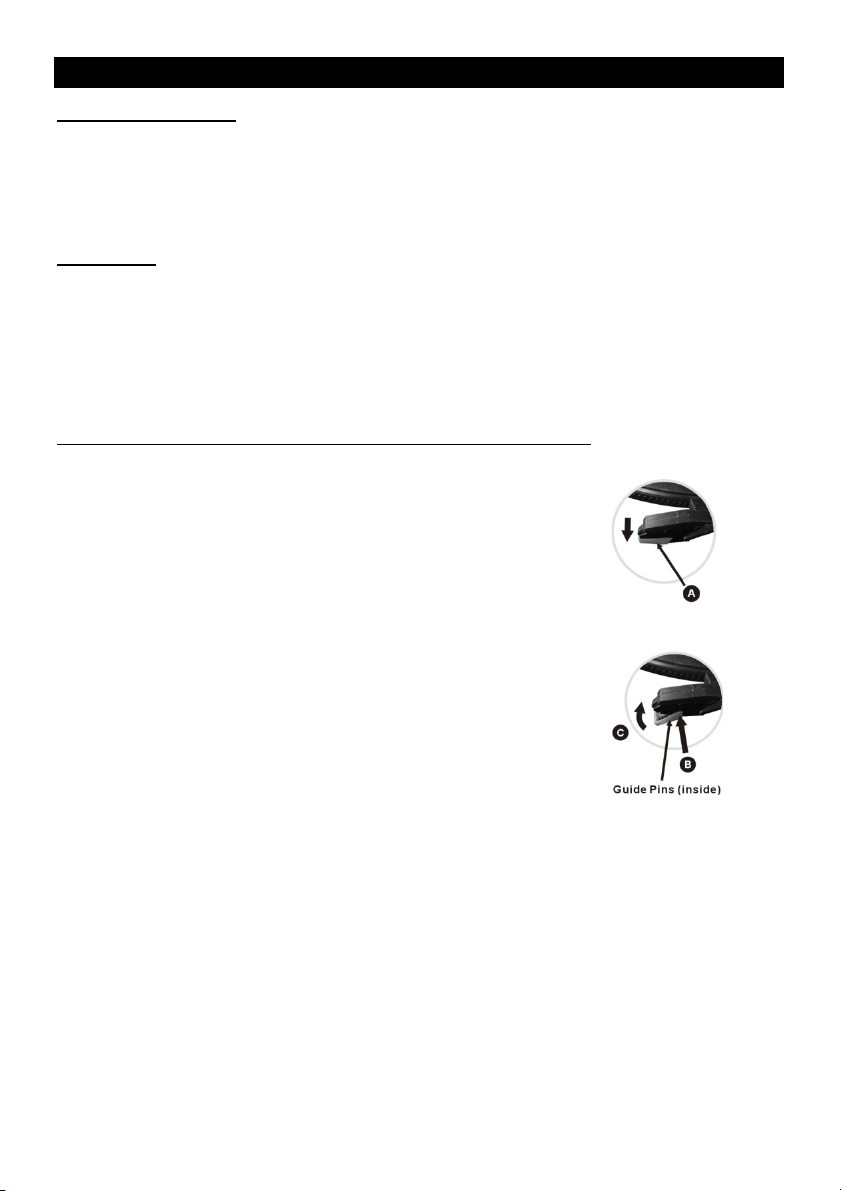

Removing the old stylus:
1. Set a screwdriver at the tip of the stylus and push downward (A).
2. Remove the stylus by pulling it simultaneously downward and forward.
Installing a new stylus:
1. Hold the front tip of the stylus and insert its rear edge (B) first.
2. Push the stylus upwards (C) until the tip locks into place.
Caution:
• Do not bend the stylus.
• Do not touch the needle to avoid injury your hand.
• Turn off the unit’s power before you replace the stylus.
• Keep out of reach of children.

11
Specifications
•Hereby, Innovative Technology Electronics, LLC, declares that this Wooden Music Center is in compliance with
the essential requirements and other relevant provisions of Directive 2014/53/EU.
•The full test of the EU declaration of conformity is available at the following internet address:
www.victrola.com/eudoc
GENERAL
Power Requirements AC 230 V~ 50 Hz
Power Consumption 40W
Dimensions (W x H x D) 14.6 in x 6.5 in x 15.4 in (approx.)
370x165x392mm (approx.)
Weight 12.1 lbs (approx.)
5.5 kg. (approx.)
AMPLIFIER
Output Power 5W + 5W
Frequency Response 60 to 20, 000 Hz
SPEAKER SYSTEM
Type 2-way
Impedance 8ohms
Input Power Max. 6W
FM RADIO
Range 88 to 108 MHz
RECORD PLAYER
Motor DC servo motor
Drive System Belt Drive
Speeds 33-1/3 RPM, 45 RPM and 78 RPM
S/N Ratio More than 50 dB
Cartridge Type Ceramic Stereo Cartridge
Stylus ITNP-LC1
BLUETOOTH
Bluetooth Version Bluetooth V2.1+EDR
Bluetooth Profiles A2DP, AVRCP
Bluetooth Frequency range 2.402GHz-2.480GHz
Operating Distance 33 feet / 10 meters

12
Troubleshooting Guide
Symptom
Possible Cause
Solution
•Unit will not power on.
•Unit is unplugged.
•Connect the unit to the
AC power supply.
•No sound output from
speakers.
•The volume level is set too low.
•The input selector does not
match the playback source.
•Adjust the volume.
•Select the correct input
source.
•Noise/Distortion in sound
output.
•The unit is too close to a TV set
or another interfering device.
•Turn off the TV or other
appliance, and relocate
the unit.
GENERAL
•Unit fails to respond.
•It might result from external
factors such as ESD
(Electro-static discharge).
•Disconnect the power
cord and external audio
device. Re-plug the
power cord after one
minute.
•Cannot listen to any
station, or signal appears
weak.
•The station is not tuned-in
properly.
•A TV set is being used nearby
and is interfering with the radio
reception.
•Properly tune-in the
desired station.
•Turn-off the interfering
TV set.
FM RADIO
•The sound is distorted.
•The antenna is not oriented
properly.
•Re-orient the antenna
until reception
improves.
PHONO
•Decline in turntable audio
performance.
•The turntable stylus is worn out.
•Replace the stylus.
AUX
•No sound output with
external audio device
plugged into AUX in jack.
•The unit is not on AUX mode.
•Ensure the unit is
switched to AUX mode.
•No sound.
•The unit is not switched to
Bluetooth mode.
•Your device’s and/or the unit’s
volume is not turned up.
•Your device is too far from the
unit or there is some obstacle
between your device and the
unit.
•Ensure the unit is
switched to AUX/BT
mode.
•Move your Bluetooth
device closer to unit.
•Turn up the volume on
your portable device
and/or the unit.
•Turn off your Bluetooth
device and unit then
power them both back
on.
•Sound is garbled.
•Your device’s and/or the unit’s
volume is not adjusted
properly.
•Turn down the volume
on your device/phone
and the unit.
BLUETOOTH
•Unable to pair with a
Bluetooth device.
•Your device doesn’t have
Bluetooth connectivity.
•The Bluetooth pairing is not
successful.
•Confirm that your
device is Bluetooth
compatible.
•Pair the unit and
device again.

13
Please note: As a result of continual improvements, the design and specifications of this product are
subject to change without notice.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Other trademarks and trade names are those of their respective owners.
This product is manufactured and sold by Innovative Technology Electronics LLC. Victrola and the
Victrola logo are trademarks of Technicolor or its affiliates and are used under license by Innovative
Technology Electronics LLC. Any other product, service, company, trade or product name and logo
referenced herein are neither endorsed nor sponsored by Technicolor or its affiliates.
Made in China.
Imported by:
Exertis Supply Chain Services Ltd.
M50 Business Park, Ballymount Rd. Upper,
Dublin 12, D12 T4C2, Ireland
