Victron energy BlueSolar 100/50A User manual

Manual
EN
Handleiding
NL
Manuel
FR
Anleitung
DE
Manual
ES
Användarhandbok
SE
Appendix
BlueSolar charge controllers
MPPT 100/30 MPPT 100/50

1
EN NL FR DE ES SE Appendix
1. General Description
1.1 PV voltage up to 100V
The charge controller is able to charge a lower nominal-voltage
battery from a higher nominal voltage PV array.
The controller will automatically adjust to a 12 or 24V nominal
battery voltage.
1.2 Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is
changing continuously, an ultra fast MPPT controller will improve
energy harvest by up to 30% compared to PWM charge
controllers and by up to 10% compared to slower MPPT
controllers.
1.3 Advanced Maximum Power Point Detection in case of
partial shading conditions
If partial shading occurs, two or more maximum power points may
be present on the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not
be the optimum MPP.
The innovative SmartSolar algorithm will always maximize energy
harvest by locking to the optimum MPP.
1.4 Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output
current up to 40°C (104°F).
1.5 Extensive electronic protection
Over-temperature protection and power derating when
temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
1.6 Internal temperature sensor
Compensates absorption and float charge voltages for
temperature. (range 6°C to 40°C)
1.7 Optional external voltage and temperature sensor
(range -20°C to 50°C)
The Smart Battery Sense is a wireless battery voltage-and-
temperature sensor for Victron MPPT Solar Chargers. The Solar
Charger uses these measurements to optimize its charge
parameters. The accuracy of the data it transmits will improve
battery charging efficiency, and prolong battery life (VE.Direct
Bluetooth Smart dongle needed).

2
Alternatively, Bluetooth communication can be set up between a
BMV-712 battery monitor with battery temperature sensor and the
solar charge controller (VE.Direct Bluetooth Smart dongle
needed).
For more detail please enter smart networking in the search box
on our website.
1.8 Automatic battery voltage recognition
The controller will automatically adjust itself to a 12V or a 24V
system one time only. If a different system voltage is required at
a later stage, it must be changed manually, for example with the
Bluetooth app, see section 1.12 and 3.8
1.9 Flexible charge algorithm
Fully programmable charge algorithm, and eight preprogrammed
algorithms, selectable with a rotary switch.
1.10 Adaptive three step charging
The Controller is configured for a three step charging process:
Bulk – Absorption – Float.
1.10.1. Bulk
During this stage the controller delivers as much charge current
as possible to rapidly recharge the batteries.
1.10.2. Absorption
When the battery voltage reaches the absorption voltage setting,
the controller switches to constant voltage mode.
When only shallow discharges occur the absorption time is kept
short in order to prevent overcharging of the battery. After a deep
discharge the absorption time is automatically increased to make
sure that the battery is completely recharged. Additionally, the
absorption period is also ended when the charge current
decreases to less than 2A.
1.10.3. Float
During this stage, float voltage is applied to the battery to
maintain it in a fully charged state.
1.10.4. Equalization
See section 3.8
1.11 Remote on-off
The solar chargers can be controlled remotely by a VE.Direct non
inverting remote on-off cable (ASS030550300). An input HIGH
(Vi > 8V) will switch the controller on, and an input LOW (Vi < 2V,
or free floating) will switch the controller off.

3
EN NL FR DE ES SE Appendix
Application example: on/off control by a VE.Bus BMS when
charging Li-ion batteries.

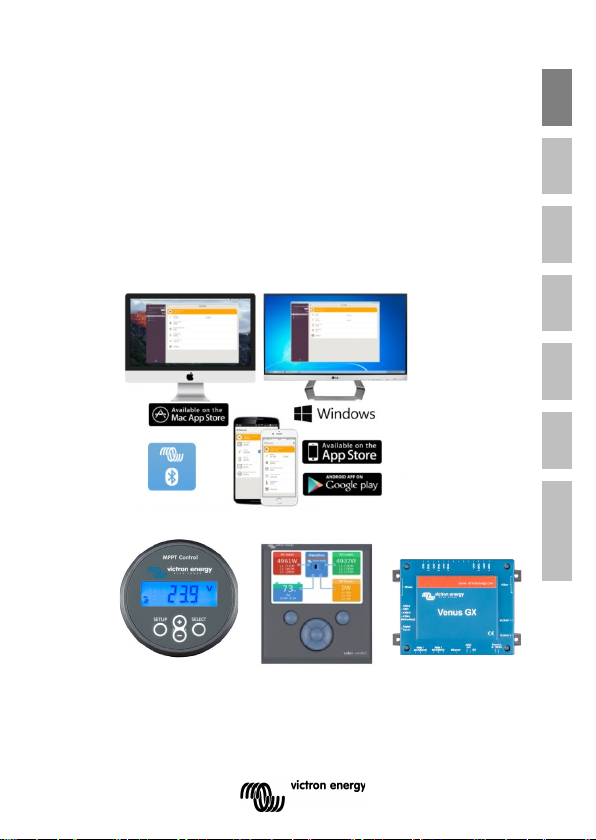

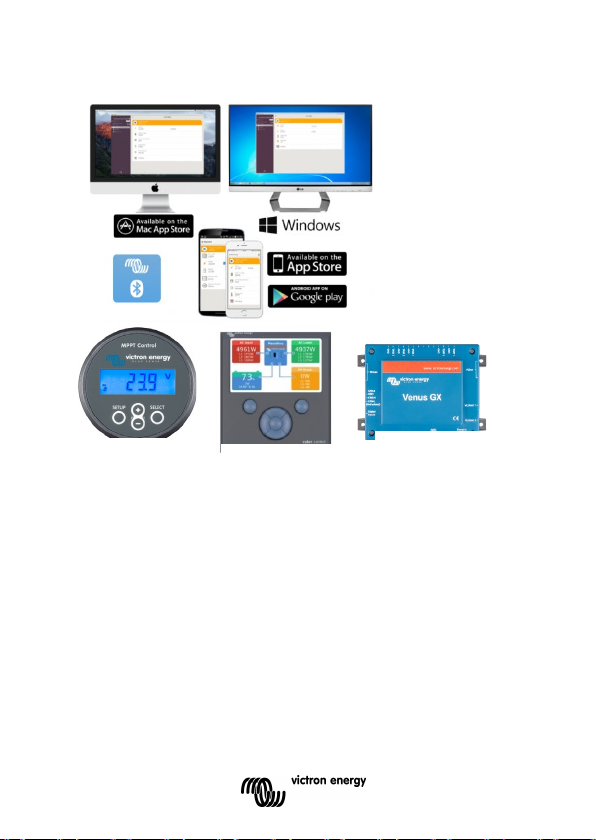

1.12 Configuring and monitoring
Configure the solar charge controller with the VictronConnect
app. Available for iOS & Android devices; as well as macOS and
Windows computers. An accessory might be required; enter
victronconnect in the search box on our website and see the
VictronConnect download page for details.
For simple monitoring, use the MPPT Control; a panel mounted
simple yet effective display that shows all operational parameters.
Full system monitoring including logging to our online portal,
VRM, is done using the GX Product range
MPPT Control

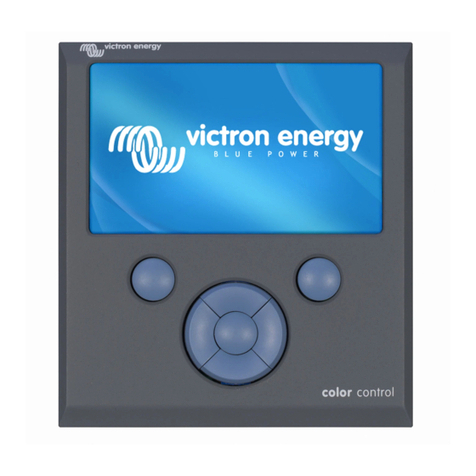

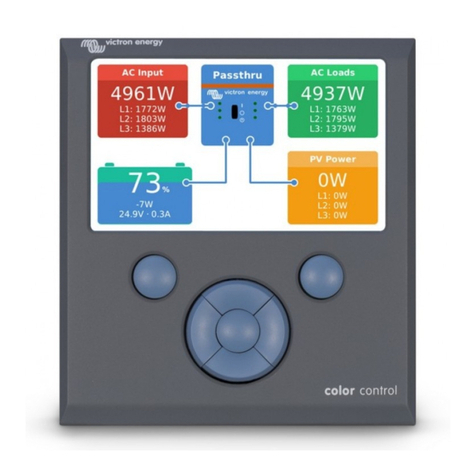

Color Control
Venus GX

4
2. Safety instructions
SAVE THESE INSTRUCTIONS - This manual contains
important instructions that shall be followed during
installation and maintenance.
● Please read this manual carefully before the product is
installed and put into use.
● This product is designed and tested in accordance with
international standards. The equipment should be used for
the designated application only.
● Install the product in a heatproof environment. Ensure
therefore that there are no chemicals, plastic parts, curtains or
other textiles, etc. in the immediate vicinity of the equipment.
● Ensure that the equipment is used under the correct operating
conditions. Never operate it in a wet environment.
● Never use the product at sites where gas or dust explosions
could occur.
● Ensure that there is always sufficient free space around the
product for ventilation.
● Refer to the specifications provided by the manufacturer of the
battery to ensure that the battery is suitable for use with this
product. The battery manufacturer's safety instructions should
always be observed.
● Protect the solar modules from direct light during
installation, e.g. cover them.
● Never touch uninsulated cable ends.
● Use only insulated tools.
● Connections must always be made in the sequence described
in section 3.5.
● The installer of the product must provide a means for cable
strain relief to prevent the transmission of stress to the
connections.
● In addition to this manual, the system operation or service
manual must include a battery maintance manual applicable
to the type of batteries used.
Danger of explosion from sparking
Danger of electric shock

5
EN NL FR DE ES SE Appendix
3. Installation
WARNING: DC (PV) INPUT NOT ISOLATED FROM BATTERY
CIRCUIT.
CAUTION: FOR PROPER TEMPERATURE COMPENSATION
THE AMBIENT CONDITION FOR CHARGER AND BATTERY
MUST BE WITHIN 5°C.
3.1. General
● Mount vertically on a non-flammable substrate, with the power
terminals facing downwards. Observe a minimum clearance of 10
cm under and above the product for optimal cooling.
● Mount close to the battery, but never directly above the battery (in
order to prevent damage due to gassing of the battery).
● Improper internal temperature compensation (e.g. ambient
condition battery and charger not within 5°C) can lead to reduced
battery lifetime.
We recommend using a direct battery voltage sense source
(BMV, Smart Battery Sense or GX device shared voltage sense)
if larger temperature differences or extreme ambient
temperature conditions are expected
● Battery installation must be done in accordance with the storage
battery rules of the Canadian Electrical Code, Part I.
● The battery and PV connections must guarded against
inadvertent contact (e.g. install in an enclosure or install the optional
WireBox M).
3.2 Grounding
● Battery grounding: the charger can be installed in a positive or
negative grounded system.
Note: apply a single ground connection (preferably close to the
battery) to prevent malfunctioning of the system.
● Chassis grounding: A separate earth path for the chassis ground
is permitted because it is isolated from the positive and negative
terminal.
● The USA National Electrical Code (NEC) requires the use of an
external ground fault protection device (GFPD). These MPPT
chargers do not have internal ground fault protection. The system
electrical negative
should be bonded through a GFPD to earth ground at one (and only
one) location.
● The plus and minus of the PV array should not be grounded.
Ground the frame of the PV panels to reduce the impact of
lightning.

6
WARNING: WHEN A GROUND FAULT IS INDICATED,
BATTERY TERMINALS AND CONNECTED CIRCUITS MAY BE
UNGROUNDED AND HAZARDOUS.
3.3 PV configuration (also see the MPPT Excel sheet on
our website)
● Provide a means to disconnect all current-carrying conductors
of a photovoltaic power source from all other conductors in a
building or other structure.
● A switch, circuit breaker, or other device, either ac or dc, shall
not be installed in a grounded conductor if operation of that
switch, circuit breaker, or other device leaves the grounded
conductor in an ungrounded state while the system remains
energized.
● The controller will operate only if the PV voltage exceeds
battery voltage (Vbat).
● PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter minimum PV voltage is Vbat + 1V.
● Maximum open circuit PV voltage: 100V.
The controller can be used with any PV configuration that
satisfies the three above mentioned conditions.
For example:
12V battery and mono- or polycristalline panels
● Minimum number of cells in series: 36 (12V panel).
● Recommended number of cells for highest controller efficiency:
72 (2x 12V panel in series or 1x 24V panel).
● Maximum: 144 cells (4x 12V or 2x 24V panel in series).
24V battery and mono- or polycristalline panels
● Minimum number of cells in series: 72 (2x 12V panel in series
or 1x 24V panel).
● Maximum: 144 cells.
Remark: at low temperature the open circuit voltage of a 144 cell
solar array may exceed 100V, depending on local conditions and
cell specifications. In that case the number of cells in series must
be reduced.
3.4 Cable connection sequence (see figure 1)
First: connect the battery.
Second: connect the solar array (when connected with reverse
polarity, the controller will heat up but will not charge the battery).
Torque: 1,6 Nm

7
EN NL FR DE ES SE Appendix
3.5 Configuration of the controller
Fully programmable charge algorithm (see the software page on
our website) and eight preprogrammed charge algorithms,
selectable with a rotary switch:
Note 1: divide all values by two in case of a 12V system.
Note 2: equalize normally off, see sect. 3.8.1 to activate
(do not equalize VRLA Gel and AGM batteries)
Note 3: any setting change performed with Bluetooth or via VE.Direct will
override the rotary switch setting. Turning the rotary switch will override prior
settings made with Bluetooth or VE.Direct.
Pos
Suggested battery type
Absorption
V
Float
V
Equalize
V
@%Inom
dV/dT
mV/°C
0 Gel Victron long life (OPzV)
Gel exide A600 (OPzV)
Gel MK
28,2 27,6
31,8
@8% -32
1
Gel Victron deep discharge
Gel Exide A200
AGM Victron deep discharge
Stationary tubular plate (OPzS)
28,6 27,6
32,2
@8% -32
2
Default setting
Gel Victron deep discharge
Gel Exide A200
AGM Victron deep discharge
Stationary tubular plate (OPzS)
28,8 27,6 32,4
@8% -32
3 AGM spiral cell
Stationary tubular plate (OPzS)
Rolls AGM
29,4 27,6
33,0
@8%
-32
4
PzS tubular plate traction
batteries or
OPzS batteries
29,8 27,6
33,4
@25%
-32
5
PzS tubular plate traction
batteries or
OPzS batteries
30,2 27,6
33,8
@25%
-32
6 PzS tubular plate traction
batteries or
OPzS batteries
30,6 27,6
34,2
@25%
-32
7
Lithium Iron Phosphate
(LiFePo4) batteries
28,4 27,0 n.a. 0

8
On all models with software version V 1.12 or higher a binary
LED code helps determining the position of the rotary switch.
After changing the position of the rotary switch, the LEDs will
blink during 4 seconds as follows:
Thereafter, normal indication resumes, as described below.
Remark: the blink function is enabled only when PV power is
present on the input of the controller.
3.6 LEDs
LED indication:
permanent on
blinking
off
Regular operation
LEDs
Bulk
Absorption
Float
Bulk (*1)



Absorption



Automatic equalisation (*2)



Float



Note (*1): The bulk LED will blink briefly every 3 seconds when the system is powered but
there is insufficient power to start charging.
Note (*2): Automatic equalisation is introduced in firmware v1.16
Fault situations
LEDs
Bulk
Absorption
Float
Charger temperature too high



Charger over-current



Charger or PV over-voltage



Internal error (*3)



Note (*3): E.g. calibration and/or settings data lost, current sensor issue.
Switch
position
LED
Bulk
LED
Abs
LED
Float
Blink
frequency
0
1
1
1
Fast
1
0
0
1
Slow
2
0
1
0
Slow
3
0
1
1
Slow
4
1
0
0
Slow
5
1
0
1
Slow
6
1
1
0
Slow
7
1
1
1
Slow

9
EN NL FR DE ES SE Appendix
For the latest and most up to date
information about the blink codes,
please refer to the Victron Toolkit app.
Click on or scan the QR code to get
to the Victron Support and
Downloads/Software page.
3.7 Battery charging information
The charge controller starts a new charge cycle every morning,
when the sun starts shining.
Lead-acid batteries: default method to determine length and
end of absorption
The charging algorithm behaviour of MPPTs differs from AC
connected battery chargers. Please read this section of the
manual carefully to understand MPPT behaviour, and always
follow the recommendations of your battery manufacturer.
By default, the absorption time is determined on idle battery
voltage at the start of each day based on the following table:
Battery voltage Vb
(@start-up)
Multiplier
Maximum
absorption time
Vb < 11,9V x 1 6h
11,9V < Vb < 12,2V x 2/3 4h
12,2V < Vb < 12,6V x 1/3 2h
Vb > 12,6V x 1/6 1h
(12V values, adjust for 24V))
The absorption time counter starts once switched from bulk to
absorption.
The MPPT Solar Chargers will also end absorption and switch to
float when the battery current drops below a low current threshold
limit, the ‘tail current’.
The default tail current value value is 2A.

10
The default settings (voltages, absorption time multiplier and tail
current) can be modified with the Victronconnect app via
Bluetooth (VE.Direct Bluetooth Smart dongle needed) or via
VE.Direct.
There are two exceptions to normal operation:
1. When used in an ESS system; the solar charger algorithm is
disabled; and instead it follows the curve as mandated by the
inverter/charger.
2. For CAN-bus Lithium batteries, like BYD, the battery tells the
system, including the solar charger, what charge voltage to
use. This Charge Voltage Limit (CVL) is for some batteries
even dynamic; changes over time; based on for example
maximum cell voltage in the pack and other parameters.
When, in case of the above-mentioned exceptions, several solar
chargers are connected to a GX device, these chargers will
automatically be synchronised.
Variations to expected behaviour
1. Pausing of the absorption time counter
The absorption time counter starts when the configured
absorption voltage is reached and pauses when the output
voltage is below the configured absorption voltage.
An example of when this voltage drop could occur is when PV
power (due to clouds, trees, bridges) is insufficient to charge
the battery and to power the loads.
When the absorption timer is paused, the absorption LED will
flash very slowly.
2. Restarting the charge process
The charging algorithm will reset if charging has stopped (i.e.
the absorption time has paused) for an hour. This may occur
when the PV voltage drops below the battery voltage due to
bad weather, shade or similar.
3. Battery being charged or discharged before solar charging
begins
The automatic absorption time is based on the start-up battery
voltage (see table). This absorption time estimation can be
incorrect if there is an additional charge source (eg alternator)
or load on the batteries.
This is an inherent issue in the default algorithm. However, in
most cases it is still better than a fixed absorption time
regardless of other charge sources or battery state.

11
EN NL FR DE ES SE Appendix
It is possible to override the default absorption time algorithm
by setting a fixed absorption time when programming the solar
charge controller. Be aware this can result in overcharging your
batteries. Please see your battery manufacturer for
recommended settings.
4. Absorption time determined by tail current
In some applications it may be preferable to terminate
absorption time based on tail current only. This can be
achieved by increasing the default absorption time multiplier.
(warning: the tail current of lead-acid batteries does not
decrease to zero when the batteries are fully charged, and this
“remaining” tail current can increase substantially when the
batteries age)
Default setting, LiFePO4 batteries
LiFePO4 batteries do not need to be fully charged to prevent
premature failure.
The default absorption voltage setting is 14,2V (28,4V).
And the default absorption time setting is 2 hours.
Default float setting: 13,2V (26,4V).
These settings are adjustable.
Reset of the charge algorithm:
The default setting for restarting the charge cycle is
Vbatt < (Vfloat – 0,4V) for lead-acid, and Vbatt < (Vfloat – 0,1V)
for LiFePO4 batteries, during 1 minute.
(values for 12V batteries, multiply by two for 24V)
3.8 Automatic equalization
Automatic equalization is default set to ‘OFF’. With the Victron
Connect app (see sect 1.12) this setting can be configured with a
number between 1 (every day) and 250 (once every 250 days).
When automatic equalization is active, the absorption charge will
be followed by a voltage limited constant current period. The
current is limited to 8% or 25% of the bulk current (see table in
sect. 3.5). The bulk current is the rated charger current unless a
lower maximum current setting has been chosen.
When using a setting with 8% current limit, automatic equalization
ends when the voltage limit has been reached, or after 1 hour,
whichever comes first.
Other settings: automatic equalization ends after 4 hours.

12
When automatic equalization is not completely finished within one
day, it will not resume the next day, the next equalization session
will take place as determined by the day interval.
4. Troubleshooting
Problem
Possible cause
Solution
Charger does not
function
Reversed PV connection Connect PV correctly
Reverse battery
connection
Non replacable fuse
blown.
Return to VE for repair
The battery is not fully
charged
A bad battery connection
Check battery
connection
Cable losses too high
Use cables with larger
cross section
Large ambient
temperature difference
between charger and
battery (Tambient_chrg >
Tambient_batt)
Make sure that
ambient conditions
are equal for charger
and battery
Only for a 24V system:
wrong system voltage
chosen (12V instead of
24V) by the charge
controller
Set the controller
manually to the
required system
voltage (see section
1.11)
The battery is being
overcharged
A battery cell is defect
Replace battery
Large ambient
temperature difference
between charger and
battery (Tambient_chrg <
Tambient_batt)
Make sure that
ambient conditions
are equal for charger
and battery

13
EN NL FR DE ES SE Appendix
5. Specifications
BlueSolar Charge
Controller
MPPT 100/30 MPPT 100/50
Battery voltage
12/24V Auto Select
Rated charge current
30A
50A
Nominal PV power, 12V 1a,b)
440W
700W
Nominal PV power, 24V 1a,b)
880W
1400W
Maximum PV open circuit
voltage
100V 100V
Max. PV short circuit current 2)
35A
60A
Maximum efficiency
98%
98%
Self-consumption
12V: 30 mA 24V: 20 mA
Charge voltage 'absorption'
Default setting: 14,4V / 28,8V (adjustable)
Charge voltage ‘equalization’ 3)
Default setting: 16,2V / 28,8V (adjustable)
Charge voltage 'float'
Default setting: 13,8V / 27,6V (adjustable)
Charge algorithm
multi-stage adaptive (eight preprogrammed algorithms)
or user defined algrithm
Temperature compensation
-16 mV / °C resp. -32 mV / °C
Protection
PV reverse polarity, Output short circuit
Over temperature
Operating temperature
-30 to +60°C (full rated output up to 40°C)
Humidity
95%, non-condensing
Maximum altitude
5000m (full rated output up to 2000m)
Environmental condition
Indoor type 1, unconditioned
Pollution degree
PD3
Data communication port
VE.Direct (see the data communication white paper
on our website)
ENCLOSURE
Colour
Blue (RAL 5012)
Power terminals
16 mm² / AWG6
Protection category
IP43 (electronic components),
IP22 (connection area)
Weight
1,3 kg
Dimensions (h x w x d)
130 x 186 x 70 mm
STANDARDS
Safety
EN/IEC 62109-1 / UL 1741 / CSA C22.2 NO.107.1-16
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1V.
2) A higher short circuit current may damage the controller in case of reverse polarity connection of
the PV array.
3) Default setting: OFF

1
EN NL FR DE ES SE Appendix
1. Algemene beschrijving
1.1 PV-spanning tot 100V
De laadcontroller kan een accu met een lagere nominale
spanning laden vanaf een PV-paneel met een hogere nominale
spanning.
De controller past zich automatisch aan aan een nominale
accuspanning van 12 of 24V.
1.2 Ultrasnelle Maximum Power Point Tracking (MPPT)
Vooral als het bewolkt is en de lichtintensiteit voortdurend
verandert, verbetert een ultrasnelle MPPT-controller de
energieopbrengst tot 30% in vergelijking met PWM-
laadcontrollers en tot 10% in vergelijking met tragere MPPT-
controllers.
1.3 Advanced Maximum Power Point Detection in het geval
van wisselende schaduw
In het geval van wisselende schaduw kan de vermogen-
spanningscurve twee of meer maximale vermogenspunten
bevatten.
Conventionele MPPT's benutten meestal plaatselijke MPP,
hetgeen mogelijk niet het optimale MPP is.
Het innovatieve BlueSolar-algoritme maximaliseert de
energieopbrengst altijd door het optimale MPP te benutten.
1.4 Uitstekend omzettingsrendement
Geen koelventilator. Het maximale rendement bedraagt meer dan
98%. Volledige uitgangsstroom tot 40°C (104°F).
1.5 Uitgebreide elektronische beveiliging
Beveiliging tegen overtemperatuur en vermogensvermindering bij
hoge temperaturen.
Beveiliging tegen PV-kortsluiting en omgekeerde PV-polariteit.
Beveiliging tegen PV-sperstroom.
1.6 Interne temperatuursensor
Compenseert absorptie- en druppelladingsspanningen voor
temperatuur (bereik 6°C tot 40°C).

2
1.7 Optionele externe spannings- en temperatuursensor
(bereik -20°C tot 50°C)
De Smart Battery Sense is een draadloze batterij spannings- en
temperatuursensor voor Victron MPPT Zonneladers. De Zonnelader
gebruikt deze afmetingen om diens laadparameters te
optimaliseren. De accuraatheid van de gegevens die het doorstuurt
zal de doeltreffendheid van het batterijladen verbeteren en de
levensduur van de batterij verlengen (VE.Direct Bluetooth Smart
dongle nodig).
Als alternatief kan Bluetooth communicatie ingesteld worden
tussen een BMV-712 batterijmonitor met
batterijtemperatuursensor en de zonnelaadcontroller (VE.Direct
Bluetooth Smart dongle nodig).
Voer, voor meer details, smart networking in in het zoekvakje op
onze website.
1.8 Automatische herkenning van de accuspanning
De controller past zich slechts een keer automatisch aan aan
een 12V- of een 24V-systeem. Als op een later moment een
andere systeemspanning is vereist, moet deze handmatig worden
gewijzigd, bijvoorbeeld met de Bluetooth-app, zie paragraaf 1.12
en 3.9.
1.9 Flexibel laadalgoritme
Volledig programmeerbaar laadalgoritme, en acht
voorgeprogrammeerde algoritmes die met een draaischakelaar
gekozen kunnen worden.
1.10 Adaptief drietraps laden
De controller is geconfigureerd voor een drietraps oplaadproces:
Bulklading, absorptielading en druppellading.
1.10.1. Bulklading
Tijdens deze fase levert de controller zoveel mogelijk laadstroom
om de accu's snel op te laden.
1.10.2. Absorptielading
Als de accuspanning de ingestelde absorptiespanning bereikt,
schakelt de controller over op de constante spanningsmodus.
Als enkel lichte ontladingen optreden, wordt de absorptietijd kort
gehouden om overlading van de accu te voorkomen. Na een
diepe ontlading wordt de absorptietijd automatisch verhoogd om
ervoor te zorgen dat de accu opnieuw volledig wordt geladen.

3
EN NL FR DE ES SE Appendix
Daarnaast wordt de absorptietijd ook beëindigd als de laadstroom
onder 2A daalt.
1.10.3. Druppellading
Tijdens deze fase wordt de druppelladingsspanning toegepast op
de accu om deze volledig opgeladen te houden.
1.10.4. Egalisatie
Zie paragraaf 3.8
1.11. Aan/uit op afstand
De zonneladers kan op afstand worden bestuurd door een
VE.Direct niet-omvormende kabel voor het op afstand in- of
uitschakelen (ASS030550300). De ingang HIGH (Vi > 8V)
schakelt de controller in en de ingang LOW (Vi < 2V, of ‘free
floating’) schakelt de controller uit.
1.12 Configuratie en bewaking
Configureer de zonnelaadcontroller met de VictronConnect app.
Beschikbaar voor iOS- & Android-toestellen; evenals voor
MacOS- en Windows-computers. Een accessoire kan vereist zijn;
voer victronconnect in in het zoekvakje op onze website en bekijk
de VictronConnect downloadpagina voor details.
Gebruik voor eenvoudig monitoring de MPPT Control; een
eenvoudig maar efficiënt op panel gemonteerd beeldscherm dat
alle operationele parameters toont. Monitoring van het volledige
systeem inclusief inloggen op ons online portaal, VRM, wordt
uitgevoerd via het GX Productgamma.

4
MPPT Control
Color Control
Venus GX
