Victron energy SmartSolar MPPT 150/85 Series User manual

Manual
EN
SmartSolar charge controllers
MPPT 150/85-Tr MPPT 150/85-MC4
MPPT 150/100-Tr MPPT 150/100-MC4

1
EN
1. General Description
Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using
Apple and Android smartphones, tablets or other devices.
VE.Direct port
For a wired data connection to a Color Control, PC or other devices.
Remote on-off input
On/off control by a VE.Bus BMS when charging Li-ion batteries.
Programmable relay
Can be programmed (a.o. with a smartphone) to trip on an alarm, or other
events.

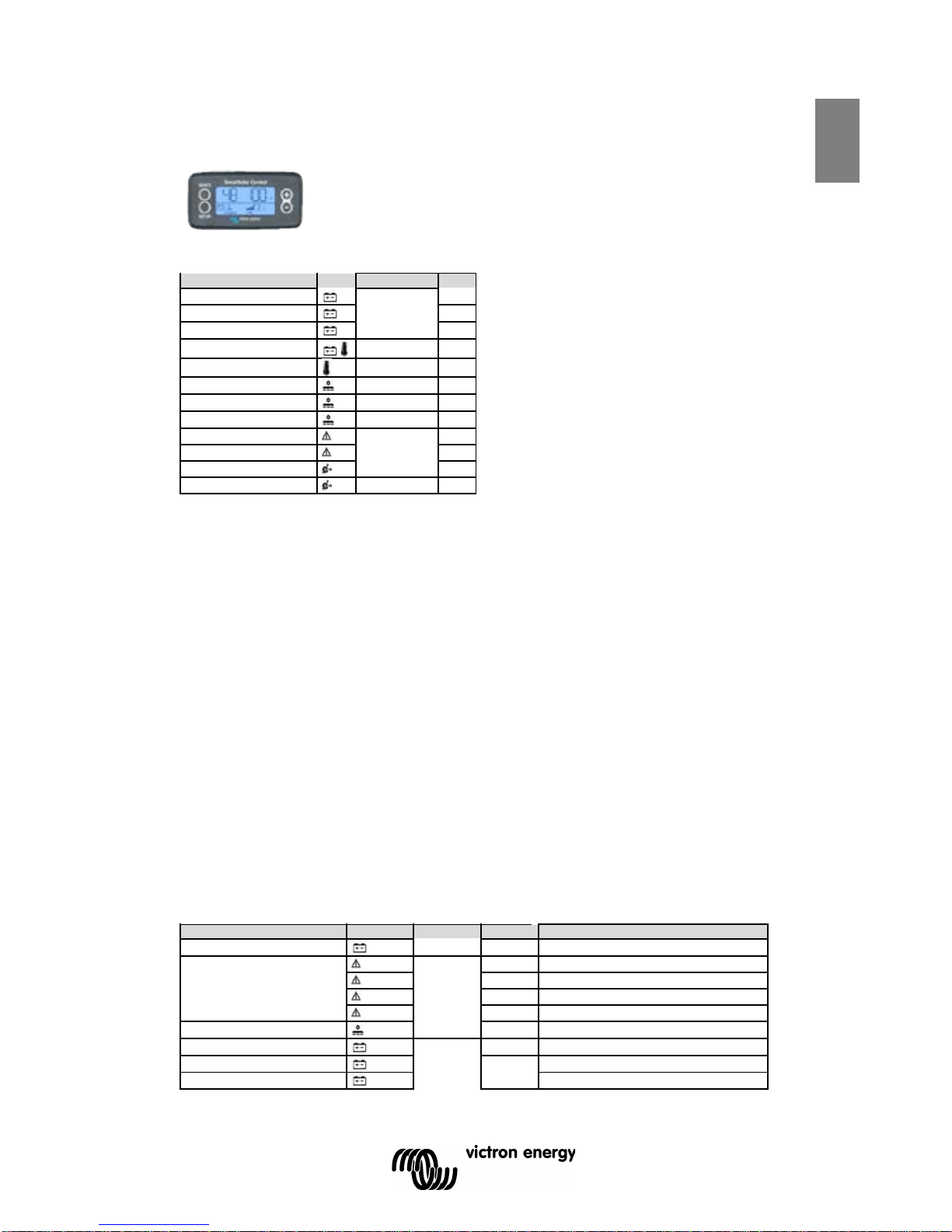

Optional: pluggable LCD display
Simply remove the rubber seal that protects the plug on the front of the
controller and plug-in the display.
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing
continuously, an ultra fast MPPT controller will improve energy harvest by
up to 30% compared to PWM charge controllers and by up to 10%
compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading
conditions
If partial shading occurs, two or more maximum power points may be
present on the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the
optimum MPP.
The innovative BlueSolar algorithm will always maximize energy harvest by
locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to
40°C (104°F).
Flexible charge algorithm
Eight preprogrammed algorithms, selectable with a rotary switch.
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV reverse polarity protection.
Internal temperature sensor
Compensates absorption and float charge voltages for temperature.

2
Automatic battery voltage recognition
The controllers will automatically adjust to a 12V, 24V or a 48V system. A
computer or a smartphone is required to set the controller to 36V.
Adaptive three step charging
The BlueSolar MPPT Charge Controller is configured for a three step
charging process: Bulk – Absorption – Float.
A regular equalization charge can also be programmed: see section 3.8 of
this manual.
Bulk stage
During this stage the controller delivers as much charge current as possible
to rapidly recharge the batteries.
Absorption stage
When the battery voltage reaches the absorption voltage setting, the
controller switches to constant voltage mode.
When only shallow discharges occur the absorption time is kept short in
order to prevent overcharging of the battery. After a deep discharge the
absorption time is automatically increased to make sure that the battery is
completely recharged. Additionally, the absorption period is also ended when
the charge current decreases to less than 2A.
Float stage
During this stage, float voltage is applied to the battery to maintain it in a fully
charged state.
Connectivity
See section 3.3 of this manual.

3
EN
2. Safety instructions
● Please read this manual carefully before the product is
installed and put into use.
● This product is designed and tested in accordance with
international standards. The equipment should be used for the
designated application only.
● Install the product in a heatproof environment. Ensure
therefore that there are no chemicals, plastic parts, curtains or
other textiles, etc. in the immediate vicinity of the equipment.
● Ensure that the equipment is used under the correct operating
conditions. Never operate it in a wet environment.
● Never use the product at sites where gas or dust explosions
could occur.
● Ensure that there is always sufficient free space around the
product for ventilation.
● Refer to the specifications provided by the manufacturer of the
battery to ensure that the battery is suitable for use with this
product. The battery manufacturer's safety instructions should
always be observed.
● Protect the solar modules from incident light during installation,
e.g. cover them.
● Never touch uninsulated cable ends.
● Use only insulated tools.
● Connections must always be made in the sequence described
in section 3.5.
● The installer of the product must provide a means for cable
strain relief to prevent the transmission of stress to the
connections.
● In addition to this manual, the system operation or service
manual must include a battery maintenance manual applicable to
the type of batteries used.
● Use flexible multistranded copper cable for the battery and PV
connections.
The maximum diameter of the individual strands is
0,4mm/0,125mm² (0.016 inch/AWG26).
A 25mm² cable, for example, should have at least 196 strands (class 5 or
higher stranding according to VDE 0295, IEC 60228 and BS6360). Also
known as H07V-K cable.
An AWG2 gauge cable should have at least 259/26 stranding (259 strands of
AWG26).
Danger of explosion from sparking
Danger of electric shock

4
In case of thicker strands the contact area will be too small and the
resulting high contact resistance will cause severe overheating,
eventually resulting in fire.
3. Installation
3.1 General
● Mount vertically on a non-flammable surface, with the power
terminals facing downwards.
● Mount close to the battery, but never directly above the battery
(in order to prevent damage due to gassing of the battery).
● Grounding: the heatsink of the controller should be connected
to the grounding point.
Tr models: use flexible multistranded copper cable for the battery and PV
connections: see safety instructions.
MC4 models: several splitter pairs will be needed to parallel the strings of
solar panels.
3.2 PV configuration
● The controllers will operate only if the PV voltage exceeds
battery voltage (Vbat).
● PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter minimum PV voltage is Vbat + 1V.
● Maximum open circuit PV voltage: 150V.
The controllers can be used with any PV configuration that satisfies the three
above mentioned conditions.
For example:
24V battery and mono- or polycristalline panels
● Minimum number of cells in series: 72 (2x 12V panel in series
or one 24V panel).
● Recommended number of cells for highest controller
efficiency: 144 cells (4x 12V panel or 2x 24V panel in series).
● Maximum: 216 cells (6x 12V or 3x 24V panel in series).
48V battery and mono- or polycristalline panels
● Minimum number of cells in series: 144
(4x 12V panel or 2x 24V panel in series).
● Maximum: 216 cells.
Remark: at low temperature the open circuit voltage of a 216 cell solar array
may exceed 150V, depending on local conditions and cell specifications. In
that case the number of cells in series must be reduced.

5
EN
3.3 Cable connection sequence (see figure 1)
First: connect the battery.
Second: connect the solar array (when connected with reverse polarity,
the controller will heat up but will not charge the battery).
3.4 More about automatic battery voltage recognition
The system voltage is stored in non volatile memory.
In case of a 24V or 48V battery, a reset (to 12V) occurs only when the
output voltage decreases to less than 2V and the voltage on the PV input
exceeds 7V. This may occur when the battery has been disconnected
before PV voltage starts to rise in the early morning. When the (24V or
48V) battery is reconnected later during the day, the system voltage is
restored to 24V resp. 48V after 10 seconds if the battery voltage exceeds
17,5V resp. 35V.
Automatic voltage recognition can be switched off and a fixed 12/24/36 or
48V system voltage can be set with a computer, a smartphone or a
pluggable LCD display.
The controller can be reset by short circuiting the output and applying a
voltage exceeding 7V on the input (for example with a small power supply,
or a solar panel) during a few seconds. After a reset, the controller will
automatically adjust itself to a 12V system, a 24V system (when
connecting a 24V battery with at least 17,5V) or a 48V system (when
connecting a 48V battery with at least 35V). A computer, a smart phone or
a pluggable LCD display is required to set the MPPT to 36V.
3.5 Battery charging information
The charge controller starts a new charge cycle every morning, when the
sun starts shining.
The maximum duration of the absorption period is determined by the
battery voltage measured just before the solar charger starts up in the
morning:
Battery voltage Vb (@start-up)
Maximum absorption time
Vb < 23,8V 6h
23,8V < Vb < 24,4V
4h
24,4V < Vb < 25,2V
2h
Vb > 25,2V
1h
(divide voltages by 2 for a 12V system and multiply by two in case of a 48V
system)
If the absorption period is interrupted due to a cloud or due to a power
hungry load, the absorption process will resume when absorption voltage is
reached again later on the day, until the absorption period has been
completed.

6
The absorption period also ends when the output current of the solar charger
drops to less than 2Amps, not because of low solar array output but because
the battery is fully charged (tail current cut off).
This algorithm prevents over charge of the battery due to daily absorption
charging when the system operates without load or with a small load.
3.6 Configuration of the controller with the rotary switch
Fully programmable charge algorithm (see the software page on our
website) and eight preprogrammed charge algorithms, selectable with a
rotary switch:
Pos
Suggested battery type
Absorption
V Float V
Equalize
V
@%Inom
dV/dT
mV/°C
0 Gel Victron long life (OPzV)
Gel exide A600 (OPzV)
Gel MK
28,2 27,6
31,8
@8% -32
1
Gel Victron deep discharge
Gel Exide A200
AGM Victron deep discharge
Stationary tubular plate (OPzS)
Rolls Marine (flooded)
Rolls Solar (flooded)
28,6 27,6 32,2
@8% -32
2
Default setting
Gel Victron deep discharge
Gel Exide A200
AGM Victron deep discharge
Stationary tubular plate (OPzS)
Rolls Marine (flooded)
Rolls Solar (flooded)
28,8 27,6 32,4
@8% -32
3 AGM spiral cell
Stationary tubular plate (OPzS)
Rolls AGM
29,4 27,6
33,0
@8% -32
4
PzS tubular plate traction batteries
or OPzS batteries
29,8
27,6
33,4
@25%
-32
5
PzS tubular plate traction batteries
or OPzS batteries
30,2
27,6
33,8
@25%
-32
6
PzS tubular plate traction batteries
or OPzS batteries
30,6
27,6
34,2
@25%
-32
7
Lithium Iron Phosphate (LiFePo
4
)
batteries
28,4 27,0 n.a. 0
Note: divide all values by two in case of a 12V system and multiply by two in
case of a 48V system.

7
EN
A binary LED code helps determining the position of the rotary switch.
After changing the position of the rotary switch, the LEDs will blink during 4
seconds as follows:
Thereafter, normal indication resumes, as described in the LEDs section.
3.7 Configuration of the controller with VictronConnect
Use VictronConnect to configure and monitor the charge controller.
VictronConnect is available for Android, iOS, Windows and Mac OS X.
VictronConnect is also available for download from the website
https://www.victronenergy.com/support-and-downloads/software
3.8 Automatic equalization
Automatic equalization is default set to ‘OFF’. By using the configuration
tool VictronConnect or the pluggable LCD display this setting can be
configured with a number between 1 (every day) and 250 (once every 250
days). When automatic equalization is active, the absorption charge will be
followed by a voltage limited constant current period (see table in section
3.5). The current is limited to 8% of the bulk current for all VRLA (Gel or
AGM) batteries and some flooded batteries, and to 25% of the bulk current
for all tubular plate batteries and the user defined battery type. The bulk
current is the rated charger current unless a lower maximum current setting
has been chosen.
In case of all VRLA batteries and some flooded batteries (algorithm number
0, 1, 2 or 3) automatic equalization ends when the voltage limit maxV has
been reached, or after t = (absorption time)/8, whichever comes first.
For all tubular plate batteries and the user defined battery type automatic
equalization ends after t = (absorption time)/2.
Switch
position
LED
Float
LED
Abs
LED
Bulk
Blink
frequency
0
1
1
1
Fast
1
0
0
1
Slow
2
0
1
0
Slow
3
0
1
1
Slow
4
1
0
0
Slow
5
1
0
1
Slow
6
1
1
0
Slow
7
1
1
1
Slow

8
When automatic equalisation is not completely finished within one day, it will
not resume the next day, the next equalisation session will take place as
determined by the day interval.
3.9 LEDs
LED indication:
permanent on
blinking
off
Regular operation
LEDs
Bulk
Absorption
Float
Not charging (*1)



Bulk



Absorption



Automatic equalisation



Float



Note (*1): The bulk LED will blink briefly every 3 seconds when the system is
powered but there is insufficient power to start charging.
Fault situations
LEDs
Bulk
Absorption
Float
Charger temperature too high



Charger over-current



Charger or panel over-voltage



Internal error (*3)



Note (*3): E.g. calibration and/or settings data lost, current sensor issue.
3.10 Connectivity
Bluetooth Smart (built-in): connect to a smartphone or tablet running iOS or
Android, see section 3.6 for the required software.
VE.Direct to USB cable (ASS030530000): connect to a PC a smartphone
with Android and USB On-The-Go support (requires additional USB OTG
cable), see section 3.6 for the required software.
VE.Direct to VE.Direct cable: connect to a MPPT Control or a Color Control
panel (BPP000300100R).
MPPT Control
Color Control

9
EN
3.11 Pluggable LCD display - Live data
Remove the rubber seal that protects the plug on the front of the controller
and plug-in the display module. The display is hot-swappable; this means
that the charger may be operational while the display is plugged in.
The following information will be displayed if the "-" button is pressed (in
order of appearance):
Displayed info
Icons
Segments
Units
Battery charge current (1)
 .
A
Battery voltage (1)
 .
V
Battery charge power

.

W
Battery temperature (2)

.

,

,

°C/°F
Charger temperature (2)
.,,
°C/°F
Panel current
.
A
Panel voltage
.
V
Panel power
.
W
Warning message
(3)  
Error message (3)  
HUB-1 operation (3) 
BMS operation (3) 
Notes:
1) The system voltage is shown in the first two segments.
2) A valid temperature is shown, --- = no sensor information or Err = invalid
sensor data.
3) These items are only visible when relevant.
Pressing the "-" button or the "+"button for 4 seconds activates the auto-
scroll-mode. Now all LCD-screens will pop-up one by one with short
intervals. The auto-scroll-mode can be stopped by pressing the "-" or the
"+" button shortly.
3.12 Pluggable LCD display - History data
The charge controller tracks several parameters regarding the energy
harvest. Enter history data by pressing the SELECT button when in
monitor mode, a scrolling text will be visible. Press + or – to browse the
various parameters as shown in the table below, press SELECT to stop
scrolling and show the corresponding value. Press + or – to browse the
various values. For the daily items it is possible to scroll back to 30 days
ago (data becomes available over time), a brief popup shows the day
number. Press SELECT to leave the historical menu and go back to the
monitor mode, alternatively press SETUP to return to the scrolling text.
Scrolling text
Icons (1)
Segments
Units
Displayed info
  
.

kWh
Total yield
 
 
Total error 0 (most recent)
 
Total error 1 (shown when available)
 
Total error 2 (shown when available)
 
Total error 3 (shown when available)
    
.

V
Total panel voltage maximum
  
 .
V
Total battery voltage maximum

 .
Day kWh
Daily yield
  
 .
Day V
Daily battery voltage maximum

10
Scrolling text
Icons (1)
Segments
Units
Displayed info
  
 .
Day V
Daily battery voltage minimum
 
 
Day
Daily error 0 (most recent)
 
Day
Daily error 1 (shown when available)
 
Day
Daily error 2 (shown when available)
 
Day
Daily error 3 (shown when available)
 
 
Day
Daily time spent in bulk (minutes)
 
 
Day
Daily time spent in absorption (minutes)
 
 
Day
Daily time spent in float (minutes)
 
 
Day W
Daily power maximum
  
 
.

Day A
Daily battery current maximum
  
 .
Day V
Daily panel voltage maximum
Notes:
1) When the charger is active the icons Bulk/Abs/Float will be overruled by
the charge process.
3.13 Pluggable LCD display - Setup menu
a. To enter the SETUP Menu, press and hold the SETUP-button during 3
seconds. The “Menu” icon will light up and a scrolling text is visible.
b. Press the "-" or "+" button to scroll through the parameters.
c. The table below lists, in order of appearance, all parameters which can be
adjusted by pressing the "-" button.
d. Press SELECT: the parameter to change will now blink.
e. Use the "-" or "+" button to chose the desired value.
f. Press SELECT to confirm the change, the value will stop blinking, and the
change is made final.
g. Press SETUP to return to the parameters menu. With the "-" or "+" button
it is now possible to scroll to another parameter that needs change.
h. To return to normal mode, press SETUP during 3 seconds.
Scrolling text
Icons
Segments
Units
Function or parameter
   
,

On/off switch
   


.

-.
A
Maximum charge current
  
,-
V
System voltage
  

,

-

Type
Charge algorithm (1)
  

.-

.

-.
V
Absorption voltage (2)
  
.-.-.
V
Float voltage (2)
  

.-.-.
V
Equalization voltage (2)
  


,
Automatic equalization (3)
  

,
Manual equalization (4)
  

.

,

--

Relay function (5)
   

 .-

.

-.
V
Low battery voltage alarm set
   

 .-.-.
V
Low battery voltage alarm clear
   

 .-

.

-.
V
High battery voltage alarm set
   

 
.

-.-

.

V
High battery voltage alarm clear
   

 .-.
V
High panel voltage alarm set
   
 
 .-

.

-.
V
High panel voltage alarm clear

11
EN
Scrolling text
Icons
Segments
Units
Function or parameter
   
 


-
Relay minimum closed time
(minutes)
  


.

-.-

.

.

°C mV
Battery temperature
compensation per cell (2)
   

,
h
Bulk time protection
  
 
.-

.

-.
h
Absorption time
  
 

.

.
A
Charge current below 5°C
  
 ,
BMS Present (6)
  
Load operation mode (7)
   
Load user defined low voltage
   

Load user defined high voltage
  


-
Backlight intensity
  

,,
Backlight automatic turn off after
60s (8)
   
--

Text scroll speed
  
 
VE.Direct port RX pin mode (9)
  
 
VE.Direct port TX pin mode (10)
  
 -
VE.Direct device instance
  
.
Software version
  

Reset to default settings (11)
  

History data reset (12)
  
 ,
Lock settings
  
,
Temperature unit °C/°F
Notes:
1) The factory defined battery type can be selected with the rotary switch
next to VE.Direct connector. The selected type will be shown here. The
setting can alter between a factory defined type and "USER".
2) These values can ONLY be changed for the battery type "USER". The
values in the table are for a 24V-battery.
3) Automatic equalisation can be set to “OFF” (default) or a number
between 1 (every day) and 250 (once every 250 days). See section 3.7 for
more details about automatic equalisation.
4) To allow the charger to equalise the battery properly, use the manual
equalise option only during absorbtion and float periods, and when there is
sufficient sunlight. Press SELECT: the text “” will blink, press
SELECT again to start equalisation. To terminate the equalisation mode
prematurely, enter the setup menu and navigate to setup item 10, press
SELECT: the text “” will blink, press SELECT again to stop
equalisation. The manual equalise duration is 1 hour.
5) This item configures the relay behaviour (setup item 11)
Value
Description
0 Relay always off
1 Panel voltage high (setup items 17 and 18)
2 Temperature high (>85C)
3 Battery voltage too low (setup items 12 and 13, default)
4
Equalization active
5 Error condition present
6 Temperate low (<-20C)
7 Battery voltage too high (setup items 14 and 15)
8 Charger in float or storage

12
9
Day detection (panels irradiated)
10
Load output
6) The parameter BMS present will be set to 'Y'es internally when a
compatible BMS is detected, this setting can be used to revert the charger to
normal operation (i.e. without BMS) by setting it manually to 'N'o. Do not set
this parameter to 'Y'es when using a VE.Bus BMS connected to the remote
on-off input.
7) Load operation mode
Value
Description
0
Load output always off
1
Batterylife algorithm (default)
2
Conventional algorithm 1 (off<22.2V, on>26.2V)
3
Conventional algorithm 2 (off<23.6V, on>28.0V)
4
Load output always on
5
User defined algorithm 1 (off<20.0V, on>28.0V)
6
User defined algorithm 2 (off<20.0V<on<28.0V<off)
8) VE.Direct port RX pin mode
Value
Description
0
Remote on/off (default)
1
Load output configuration
2
Load output on/off
9) VE.Direct port TX pin mode
Value
Description
0
Normal VE.Direct communication (default)
1
Pulse every 0.01kWh
2
Light dimming control (pwm normal)
3
Light dimming control (pwm inverted)
4
Virtual load output
10) Backlight automatic turn-off has the following options: OFF=backlight
remains lit all the time, ON=the backlight will dim 60s after the last keypress,
AUTO=when charging the backlight is lit, otherwise it will dim.
11) Press SELECT: the text “” will blink, press SELECT again to reset
to original factory settings. The charger will re-boot. The history data will not
be affected (kWh counter, etc).
12) Press SELECT: the text “” will blink, press SELECT again to erase
the history data (kWh-counter, etc). Note that this takes a few seconds to
complete.
Note: any setting change performed with the pluggable LCD display or
via Bluetooth will override the rotary switch setting. Turning the rotary
switch will override prior settings made with the pluggable LCD display
or via Bluetooth.
Warning
Some battery manufacturers do recommend a constant current
equalization period, and others do not. Do not use constant current
equalization unless recommend by the battery supplier.

13
EN
4. Troubleshooting
Problem
Possible cause
Solution
Charger does not
function
Reversed PV connection Connect PV correctly
Reverse battery
connection
Non replacable fuse
blown.
Return to VE for repair
The battery is not fully
charged
A bad battery connection
Check battery
connection
Cable losses too high
Use cables with larger
cross section
Large ambient
temperature difference
between charger and
battery (Tambient_chrg >
Tambient_batt)
Make sure that
ambient conditions
are equal for charger
and battery
Only for a 24V or 48V
system: wrong system
voltage chosen (e.g. 12V
instead of 24V) by the
charge controller
Disconnect PV and
battery, reconnect
battery first. Make
sure that the battery
voltage is higher than
17.5V (24V system) or
35V (48V system).
The battery is being
overcharged
A battery cell is defect
Replace battery
Large ambient
temperature difference
between charger and
battery (Tambient_chrg <
Tambient_batt)
Make sure that
ambient conditions
are equal for charger
and battery

14
Using the pluggable LCD display or VictronConnect and the procedures
below, most errors can be quickly identified. If an error cannot be resolved,
please refer to your Victron Energy supplier.
Error nr.
Problem
Cause / Solution
n. a.
The LCD does not light up
(no backlight, no display)
The internal power supply used for powering
the converter and the backlight is derived from
either the solar-array or the battery.
If PV and battery voltage are both below 6V
the LCD will not light up. Make sure that the
LCD display is properly inserted into the
socket.
n. a.
The LCD does not light up
(backlight works, no display,
charger seems to work)
This may be due to low ambient temperature.
If the ambient temperature is below -100C
(140F) the LCD-segments can become vague.
Below -200C (-40F) the LCD-segments can
become invisible.
During charging the LCD-display will warm up,
and the screen will become visible.
n. a.
The charge controller does
not charge the battery
The LCD-display indicates that the charge-
current is 0 Amps.
Check the polarity of the solar-panels.
Check the battery breaker
Check if there is an error indication on the LCD
Check if the charger is set to "ON" in the
menu.
Check if the Remote input is connected.
Check if the right system voltage has been
selected
n. a.
High temperature: the
thermometer icon blinks
This error will auto-reset after temperature has
dropped.
Reduced output current due to high
temperature.
Check the ambient temperature and check for
obstructions near the heatsink.
Err 2
Battery voltage too high
(>76,8V)
This error will auto-reset after the battery
voltage has dropped.
This error can be due to other charging
equipment connected to the battery or a fault
in the charge controller.
Err 17
Controller overheated
despite reduced output
current
This error will auto-reset after charger has
cooled down.
Check the ambient temperature and check for
obstructions near the heatsink.
Err 18
Controller over-current
This error will auto-reset.
Disconnect the charge controller from all
power-sources, wait 3 minutes, and power up
again.
If the error persists the charge controller is
probably faulty.
Err 20
Maximum Bulk-time
exceeded
This error can only occur when the maximun
bulk-time protection is active. This error will not
auto-reset.
This error is generated when the battery-
absorption-voltage is not reached after 10
hours of charging.
For normal solar installations it is advised not
to use the maximum bulk-time protection.
Err 21
Current sensor issue
The charge controller is probably faulty.

15
EN
Error nr.
Problem
Cause / Solution
This error will not auto-reset.
Err 26
Terminal overheated
Power terminals overheated, check wiring and
fasten bolts if possible.
This error will auto-reset.
Err 33
PV over-voltage
This error will auto-reset after PV-voltage has
dropped to safe limit.
This error is an indication that the PV-array
configuration with regard to open-circuit
voltage is critical for this charger. Check
configuration, and if required, re-organise
panels.
Err 34
PV over-current
The current from the solar-panel array has
exceeded 75A. This error could be generated
due to an internal system fault.
Disconnect the charger from all power-
sources, wait 3 minutes, and power-up again.
If the error persists the controller is probably
faulty.
This error will auto-reset.
Err 38
Input shutdown due to
battery over-voltage
To protect the battery from over-charging the
panel input is shut down. To recover from this
condition first disconnect the solar panels and
disconnect the battery. Wait for 3 minutes
reconnect the battery first and next the panels.
If the error persists the charge controller is
probably faulty.
Inf 65
Communication warning
Communication with one of the paralleled
controllers was lost. To clear the warning,
switch the controller off and back on.
Inf 66
Incompatible device
The controller is being paralleled to another
controller that has different settings and/or a
different charge algorithm.
Make sure all settings are the same and
update firmware on all chargers to the latest
version.
Err 67
BMS connection lost
Connection to the BMS lost, check the
connection (Cabling / Bluetooth link). When
the charger needs to operate in stand-alone
mode again, change to setup menu setting
‘BMS’ from ‘Y’ to ‘N’ (setup item 31).
Err 114
CPU temperature too high
This error will reset after the CPU has cooled
down.
If the error persists, check the ambient
temperature and check for obstructions near
the air inlet and outlet holes of the charger
cabinet.
Check manual for mounting instructions with
regard to cooling. If error persists the controller
is probably faulty.
Err 116
Calibration data lost
This error will not auto-reset.
Err 119
Settings data lost
This error will not auto-reset.
Restore defaults in the setup menu (setup item
62).
Disconnect the charge controller from all
power-sources, wait 3 minutes, and power up
again.

16
5. Specifications
SmartSolar charge controller
MPPT 150/85
MPPT 150/100
Battery voltage
12/24/48V Auto Select (36V: manual)
Maximum battery current
85A
100A
Maximum PV power, 12V 1a,b)
1200W
1450W
Maximum PV power, 24V 1a,b)
2400W
2900W
Maximum PV power, 36V 1a,b)
3600W
4350W
Maximum PV power, 48V 1a,b)
4900W
5800W
Max. PV short circuit current 2)
70A
70A
Maximum PV open circuit voltage
150V absolute maximum coldest conditions
145V start-up and operating maximum
Peak efficiency
98%
Self consumption
Less than 35mA @ 12V / 20mA @ 48V
Charge voltage 'absorption'
Default setting: 14,4V / 28,8V / 43,2V / 57,6V
Charge voltage 'float'
Default setting: 13,8V / 27,6V / 41,4V / 55,2V
Charge voltage 'equalization'
Default setting: 16,2V / 32,4V / 48,6V / 64,8V
Charge algorithm
multi-stage adaptive
Temperature compensation
-16mV/°C / -32mV/°C / -64mV/°C
Protection
Battery reverse polarity (fuse, not user accessible)
PV reverse polarity / Output short circuit / Over temperature
Operating temperature
-30 to +60°C (full rated output up to 40°C)
Humidity
95%, non-condensing
Maximum altitude
2000m
Environmental condition
Indoor, unconditioned
Pollution degree
PD3
Data communication port
VE.Direct or Bluetooth
Remote on/off
Yes (2 pole connector)
Relay (programmable)
DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC
Parallel operation
Yes (not synchronized)
ENCLOSURE
Colour
Blue (RAL 5012)
PV terminals 3)
35mm² / AWG2 (Tr models),
or three pairs of MC4 connectors (MC4 models)
Battery terminals
35mm² / AWG2 or three sets of MC4 connectors
Protection category
IP43 (electronic components)
IP22 (connection area)
Weight
4,5kg
Dimensions (h x w x d)
Tr models: 216 x 295 x 103mm
MC4 models: 246 x 295 x 103mm
STANDARDS
Safety
EN/IEC 62109
1a) If more PV power is connected, the controller will limit input power to the maximum power.
1b) PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter minimum PV voltage is Vbat + 1V.
2) A PV array with a higher sort circuit current may damage the controller.
3) MC4 models: several splitter pairs will be needed to parallel the strings of solar panels
