ENGLISH
VERSO Hi-PoE IPM
Polycarbonate housing with IPM technology for IP cameras

EN
English - Instruction manual
ENGLISH
VERSO Hi-PoE IPM
Polycarbonate housing with IPM technology for IP cameras

Contents
ENGLISH 1
1 About this manual ....................................................................................................................3
1.1 Typographical conventions ................................................................................................................................................ 3
2 Notes on copyright and information on trademarks.............................................................3
3 Safety rules................................................................................................................................3
4 Identication.............................................................................................................................5
4.1 Product description and type designation................................................................................................................... 5
4.2 Product marking..................................................................................................................................................................... 5
5 Preparing the product for use .................................................................................................6
5.1 Unpacking................................................................................................................................................................................. 6
5.2 Contents .................................................................................................................................................................................... 6
5.3 Safely disposing of packaging material ......................................................................................................................... 6
5.4 Preparatory work before installation............................................................................................................................... 6
5.4.1 Mounting the bracket ............................................................................................................................................................................ 6
6 Installation ................................................................................................................................7
6.1 Housing opening.................................................................................................................................................................... 7
6.2 Slide removal ........................................................................................................................................................................... 7
6.3 Installation of cable glands................................................................................................................................................. 7
6.4 Installation of the GEKO IRH illuminator (optional) ................................................................................................... 7
6.4.2 Brackets and adaptors............................................................................................................................................................................ 8
6.4.1 Installation of the version with double lter for air renewal.................................................................................................... 8
6.4.2 Ethernet cable installation....................................................................................................................................................................8
6.4.3 How to install the camera..................................................................................................................................................................... 9
6.4.4 Connection of the GEKO IRH illuminator (optional).................................................................................................................... 9
6.4.5 PoE cable connection...........................................................................................................................................................................10
6.4.6 Connection of the blower with double lter for air renewal (optional).............................................................................10
7 Conguration..........................................................................................................................10
8 Switching on ...........................................................................................................................11
9 Maintenance ...........................................................................................................................12
9.1 Kit for upgrading of the equipment..............................................................................................................................12
10 Cleaning ................................................................................................................................12
10.1 Cleaning the window and plastic parts .....................................................................................................................12
11 Information on disposal and recycling...............................................................................13
12 Technical data .......................................................................................................................13
12.1 General ..................................................................................................................................................................................13
12.2 Mechanical ...........................................................................................................................................................................13
12.3 Electrical................................................................................................................................................................................13
12.4 Environment........................................................................................................................................................................13
12.5 Certications........................................................................................................................................................................13
13 Technical drawings ...............................................................................................................14

Instruction manual - English - EN
3MNVCHPVHPOE_2024_EN
1 About this manual
Read all the documentation supplied carefully before
installing and using this product. Keep the manual in
a convenient place for future reference.
1.1 Typographical conventions
DANGER!
High level hazard.
Risk of electric shock. Disconnect the
power supply before proceeding with any
operation, unless indicated otherwise.
CAUTION!
Medium level hazard.
This operation is very important for the
system to function properly. Please read
the procedure described very carefully and
carry it out as instructed.
INFO
Description of system specications.
We recommend reading this part carefully
in order to understand the subsequent
stages.
2 Notes on copyright and
information on trademarks
The mentioned names of products or companies are
trademarks or registered trademarks.
3 Safety rules
CAUTION! Device installation and
maintaining must be performed by
specialist technical sta only.
• CAUTION! The electrical system to which the unit
is connected must be equipped with an automatic
bipolar circuit breaker. The circuit breaker for main
supply voltage phase units must have a level of
intervention of 20A max. The circuit breaker for low
voltage units must have a level of intervention of
6A max. This circuit breaker must be of the Listed
type. The minimum distance between the circuit
breaker contacts must be 3mm (0.1in). The circuit
breaker must be provided with protection against
the fault current towards the ground (dierential)
and the overcurrent (magnetothermal).
• The manufacturer declines all responsibility
for any damage caused by an improper use
of the appliances mentioned in this manual.
Furthermore, the manufacturer reserves the right
to modify its contents without any prior notice.
The documentation contained in this manual has
been collected and veried with great care. The
manufacturer, however, cannot take any liability
for its use. The same thing can be said for any
person or company involved in the creation and
production of this manual.
• Before starting any operation, make sure the
power supply is disconnected.
• Be careful not to use cables that seem worn or old.
• Never, under any circumstances, make any
changes or connections that are not shown in
this handbook. Improper use of the appliance
can cause serious hazards, risking the safety of
personnel and of the installation.
• Use only original spare parts. Non-original spare
parts could cause re, electrical discharge or other
hazards.

EN - English - Instruction manual
4 MNVCHPVHPOE_2024_EN
• Comply with all the national standards during the
device installation.
• This device was designed to be permanently
secured and connected on a building or on a
suitable structure. The device must be permanently
secured and connected before any operation.
• Before proceeding with installation, check the
supplied material to make sure it corresponds
to the order specication by examining the
identication labels (4.2 Product marking, page 5).
• Any device which could be installed inside the
product must comply with the current safety
standards.
• If the installation is NEMA TYPE 4X, the installer
must replace the cable glands of the product with
NEMA TYPE 4X cable glands.
• For all connections, use cables that are able to
withstand temperatures of at least 75°C (167°F).
• The product is designed to house only cameras
that are properly certied according to IEC/UL
60950-1 or IEC/UL 62368-1 (7W max).
• A power disconnect device must be included
in the electrical installation, and it must be very
quickly recognizable and operated if needed.
• To connect the power supply line use the
appropriate junction-box (UPTJBUL). For further
information, refer to the product use and
installation manual.
• Use Listed tube crimping lugs for the connection
of the network conductors to the terminals. The
copper tube crimping lugs must be suitable for
the type of installation (from -20°C (-4°F) a +80°C
(+176°F) min., V-0). Copper tube crimping lugs
examples: RP, BP o YP (Cembre).
• Power supply to the product must be exclusively
provided by the PoE cable (Power over Ethernet).
• Installation category (also called Overvoltage
Category) species the level of mains voltage
surges that the equipment will be subjected to.
The category depends upon the location of the
equipment, and on any surge voltage protection
provided. Equipment in an industrial environment,
directly connected to major feeders/short branch
circuits, is subjected to Installation Category
III. If this is the case, a reduction to Installation
Category II is required. This can be achieved by
use of an insulating transformer with an earthed
screen between primary and secondary windings,
or by tting UL listed Surge Protective Devices
(SPDs) from live to neutral and from neutral to
earth. Listed SPDs shall be designed for repeated
limiting of transient voltage surges and the
following rated operation conditions: Type 2 (SPDs
permanently connected to the power network and
intended for installation on the load side of the
service equipment); Nominal Discharge Current
(In) 20kA min. For example: FERRAZ SHAWMUT,
STT2240SPG-CN, STT2BL240SPG-CN rated
120Vac/240Vac, (In=20kA). Maximum distance
between installation and reduction is 5m.

Instruction manual - English - EN
5MNVCHPVHPOE_2024_EN
4 Identication
4.1 Product description and type
designation
The VERSO Hi-PoE IPM housing optimally exploits
POE and Hi-POE technology, using the power
supplied by the Ethernet cable as the sole source of
power for all the devices connected, thus ensuring
the maximum eciency and exibility of the network
system as well as user-friendly installation and low
costs.
The innovative IPM (Intelligent Power Management)
system enables extremely quick and easy installation
with the use of a single Ethernet connecting cable.
The Hi-POE IPM system automatically detects all
the options, like heating, fan and illuminator and
then autonomously balances the power to ensure
suitable distribution of the same to the connected
devices. This guarantees the optimal operation of the
IP camera between -30°C (-22°F) and +60°C (140°F),
with heat regulation and cold start (activation at low
temperature).
The IPM system oers an opportunity to ret
analogue systems with already installed housings by
simply changing the slide and internal electronics.
This enables the digital conversion, speeding up
the installation and thereby minimizing costs and
environmental impact.
4.2 Product marking
See the label attached to the product.

EN - English - Instruction manual
6 MNVCHPVHPOE_2024_EN
5 Preparing the product for
use
Any change that is not expressly approved
by the manufacturer will invalidate the
guarantee.
5.1 Unpacking
When the product is delivered, make sure that the
package is intact and that there are no signs that it
has been dropped or scratched.
If there are obvious signs of damage, contact the
supplier immediately.
When returning a faulty product we recommend
using the original packaging for shipping.
Keep the packaging in case you need to send the
product for repairs.
5.2 Contents
Check the contents to make sure they correspond
with the list of materials as below:
• Housing
• RJ45 wiring
• Housing equipment:
• Allen wrench
• Spacers
• Cable glands gaskets
• Cable glands (x3)
• Bolts and screws
• Screws for camera
• Instruction manual
5.3 Safely disposing of packaging
material
The packaging material can all be recycled. The
installer technician will be responsible for separating
the material for disposal, and in any case for
compliance with the legislation in force where the
device is to be used.
5.4 Preparatory work before
installation
5.4.1 Mounting the bracket
The product must be fastened with suitable
equipment. The fastening means must
guarantee mechanical sealing when a force
equal to at least 4 times the weight of the
device is applied.

Instruction manual - English - EN
7MNVCHPVHPOE_2024_EN
6 Installation
The product may be interfaced with
devices not manufactured by VIDEOTEC.
VIDEOTEC recommends a test prior to
installation. VIDEOTEC will not be liable for
any installation costs or lost revenues in the
event a compatibility problem will occur.
6.1 Housing opening
Loosen the 2 screws on the side, turn the cover and
the upper half of the body about the opening hinge
axis.
Fig. 1
After installation and wiring, close the
product.
6.2 Slide removal
To remove the slide it is necessary to unscrew the
xing screws as shown in gure.
Fig. 2
6.3 Installation of cable glands
For the internal cable routing brackets
it is necessary to use the sealing ring kit
(OWBIP). The reduced space does not allow
the use of the supplied cable glands. The kit
must be bought separately.
Inside the supply are 3 cable glands that must be
installed at the bottom of the housing as shown
in gure. The cable glands that are not used must
be sealed with the cap to avoid water entering the
housing.
Fig. 3
6.4 Installation of the GEKO IRH
illuminator (optional)
Maximum power of the illuminator must
not exceed 6W.
To install the illuminator it is necessary to
use the illuminator bracket (OSUPPIR). The
kit must be bought separately.
Use the cable glands or the smallest sealing ring to
avoid water entering the housing.
To install the illuminator under a housing, refer to the
installation manual.
For further details on conguration and use refer to
the relative chapter (6.4.4 Connection of the GEKO
IRH illuminator (optional), page9).

EN - English - Instruction manual
8 MNVCHPVHPOE_2024_EN
6.4.2 Brackets and adaptors
The product can be xed on a bracket or an adaptor.
For further information refer to the product's
technical data sheet or directly contact VIDEOTEC.
6.4.1 Installation of the version with
double lter for air renewal
During installation pay attention to the
orientation of the air inlet lter ns.
Fig. 4
Depending on the angle of inclination of the housing,
the orientation of the lter ns must prevent water
penetrating in case of rain:
To guarantee weatherproof protection, install the
housing on the support following the inclination
limits as shown in the picture.
45°
45°
0˚
Fig. 5Maximum tilt of the transversal axis: 0°.
Maximum tilt of the longitudinal axis: ±45°.
6.4.2 Ethernet cable installation
Insert the Ethernet cable in the gasket and block it as
shown in gure.
Fig. 6
Fit the gasket (01) to the cable gland M20 (02). Fasten
the cable gland to the bottom of the housing (03)
using the M20 nut (04).
Pay attention to the xing. Tightening
torque: 7Nm.
Pass the cable with connector RJ45 (05) through the
M20 cable gland (02). Tighten the cable gland cap
(06).
02
01
05
06
04
03
Fig. 7

Instruction manual - English - EN
9MNVCHPVHPOE_2024_EN
6.4.3 How to install the camera
The correct operation of the equipment,
within the temperature range indicated, is
guaranteed only if you use camera and lens
with temperature limits equal to at least
-10°C and +60°C.
It is possible to install only PoE type
cameras.
Mount the camera using the supplied screws (01) and
spacers (02).
Apply at least one spacer to guarantee electrical
isolation between the slide and the camera.
Position the camera lens close to the glass to avoid
visual interference or optical reections.
Connect the camera to the J2 connector (PoE OUT)
with the supplied cable (03).
02
01
03
Fig. 8
Ret the slide in its housing and x the screws and
washers previously removed.
Fig. 9
6.4.4 Connection of the GEKO IRH
illuminator (optional)
Connect the illuminator to the J6 terminal as
described in the diagram below.
1234
Fig. 10
CONNECTION OF THE GEKO IRH ILLUMINATOR
Illuminator Terminal J6
Green (telemetry) 1
Red (telemetry) 2
White (power supply) 3
Black (power supply) 4
Tab. 1
To adjust the lighting threshold of the illuminator
refer to the product's use and installation manual.

EN - English - Instruction manual
10 MNVCHPVHPOE_2024_EN

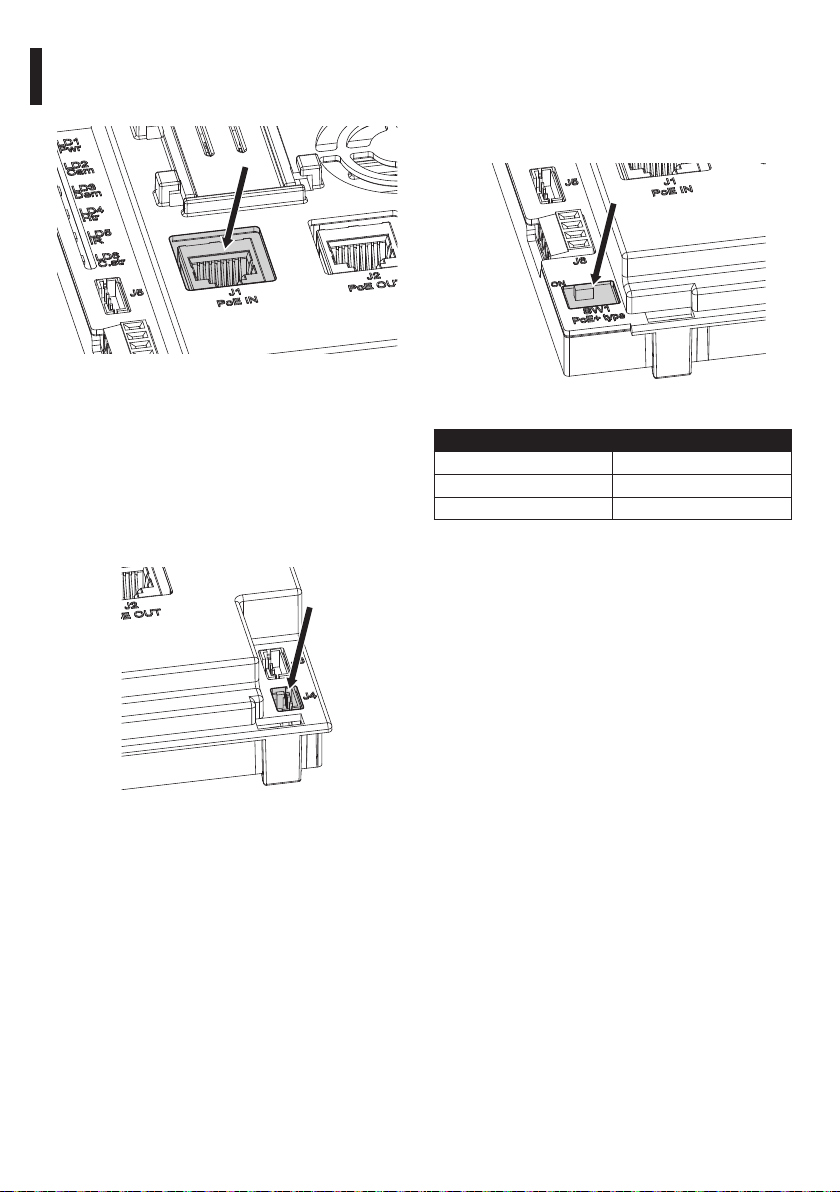

6.4.5 PoE cable connection
Connect the PoE cable from the Power Injector to the
J1 connector.
Fig. 11
Before powering the device, you must set the
maximum power consumption of the housing
operating on dip switch SW1 (7 Conguration, page
10).
6.4.6 Connection of the blower with
double lter for air renewal (optional)
Connect the fan cable to the J4 connector.
Fig. 12
7 Conguration
Before powering the device, you must set the
maximum power consumption of the housing
operating on dip switch SW1.
Fig. 13
POWER CONSUMPTION CONFIGURATION
SW1 Maximum power
OFF PoE class 3 (13W max)
ON Hi-PoE class 4 (25W max)
Tab. 2
According to the power consumption, the system
can supply the options described in the table (Tab. 3,
page11).

Instruction manual - English - EN
11MNVCHPVHPOE_2024_EN
VERSO HIPOE IPM AVAILABLE MODELS AND FEATURES
Operating
temperature
Injector Camera Demisting Hea-
ting system
Illuminator Heater Fan with double
air lter
From -10°C (14°F)
up to +60°C
(140°F)
PoE class 3 (13W) PoE max. class
2 (7W)
√––√
Hi-PoE class 4
(25W)
PoE max. class 3
(13W)
√√–√
From -10°C (14°F)
up to +60°C
(140°F)
PoE class 3 (13W) PoE max. class
2 (7W)
√–––
Hi-PoE class 4
(25W)
PoE max. class 3
(13W)
√√– –
From -30°C (-22°F
) up to +60°C
(140°F)
Hi-PoE class 4
(25W)
PoE max. class 3
(13W)
√–√–
Tab. 3
8 Switching on
The automatic pre-heating (De-Ice) process
could be started whenever the device is
switched on and the ambient temperature
is below 0°C (+32°F). The procedure is
necessary to guarantee correct operation
of the devices even at low temperatures.
The duration ranges depending on
environmental conditions (from 60 minutes
up to 120 minutes).
During the lighting phase the device reads the
status of the dip switch and automatically detects
all the connected options for the correct energy
management of the housing.

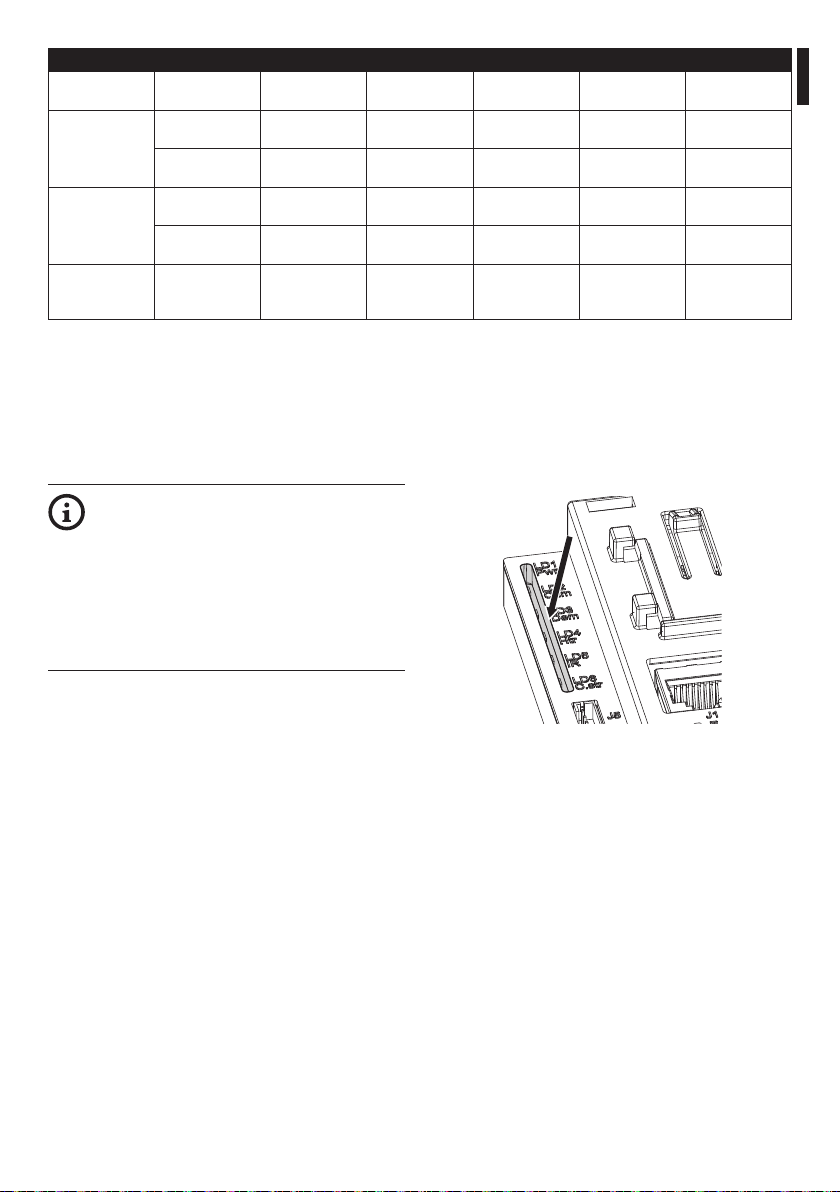

The LEDs shown in the gure allow to check the
product's operating status.
Fig. 14
Refer to the table to identify the operating status.

EN - English - Instruction manual
12 MNVCHPVHPOE_2024_EN
OPERATING STATUS
LED LED Status Apparatus Status
LD1 (Power
supply)
O The device is not powered
On The device is correctly powered
LD2 (Ca-
mera)
O The camera is not connected or
Cold Start is active
On The camera is correctly powered
1 ashing The camera has a low identication
resistance
2 ashings The camera has a high identica-
tion resistance
5 ashings The camera has an excessive ener-
gy consumption
9 ashings The camera requires more energy
than the available
LD3 (Demi-
sting)
O Demisting was not correctly
detected
1 ashing Standard demisting is inactive
2 ashings The anti-ice system (optional) is
inactive
On Demisting, or anti-ice system, is in
function
LD4 (Heater) O Heating is not available or power
available is not sucient
1 ashing Heating is inactive
On Heating is active
LD5 (Illumi-
nator)
O The illuminator (optional) is not
detected or the available power is
not sucient
1 ashing The illuminator is correctly
powered (illuminator activation is
controlled by its photocell)
LD6
(Delayed
activation)
O Heating is not available
1 ashing The pre-heating procedure is
inactive
On The pre-heating procedure is
underway
Tab. 4
9 Maintenance
9.1 Kit for upgrading of the
equipment
Remove the slide (01), the electronic board (02) and
the heating (03).
02
01
03
Fig. 15
If the housing is provided with a blower with a
double lter for air renewal it is also necessary to
replace the blower with the one included in the kit.
Fig. 16
For kit installation information refer to chapter 6
Installation, page7.
10 Cleaning
10.1 Cleaning the window and
plastic parts
Avoid ethyl alcohol, solvents, hydrogenated
hydrocarbide, strong acid and alkali. Such
products may irreparably damage the
surface.
We recommend using a soft cloth with neutral soap
diluted with water or specic products to clean the
glasses lenses.

Instruction manual - English - EN
13MNVCHPVHPOE_2024_EN
11 Information on disposal
and recycling
The European Directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE) mandates
that these devices should not be disposed of in the
normal ow of municipal solid waste, but they should
be collected separately in order to optimize the
recovery stream and recycling of the materials that
they contain and to reduce the impact on human
health and the environment due to the presence of
potentially hazardous substances.
The symbol of the crossed out bin is marked
on all products to remember this.
The waste may be delivered to appropriate collection
centers, or may be delivered free of charge to the
distributor where you purchased the equipment at
the time of purchase of a new equivalent or without
obligation to a new purchase for equipment with size
smaller than 25cm (9.8in).
For more information on proper disposal of these
devices, you can contact the responsible public
service.
12 Technical data
12.1 General
Made of strong technopolymer (polycarbonate),
RAL9002 colour
Sunshield in ABS
Epoxypolyester powder painting, RAL9002 colour
Stainless steel external screws
12.2 Mechanical
Internal usable area (WxHxL): 70x70x230mm
(2.7x2.7x9.0in)
Cable glands: 1xM12, 1xM16, 1xM20
Polycarbonate window (WxH): 105x64mm (4.1x2.5in)
Unit weight: 1.6kg (3.5lb)
12.3 Electrical
Power absorbed in input: PoE class 3 (13W) or Hi-PoE
class 4 (25W) selectable with dip switch
Available power for camera (PoE IN class 3): PoE Class
2 (7W)
Available power for camera (Hi-PoE IN class 4): PoE
class 3 (13W) with Ton -10°C ±2°C “cold start” function
Data line: 10/100Base-T
Illuminator GEKO IRH, low power: 6W
Heater: 8W, electronically controlled, Ton 20°C±2°C
(68°F±4°F), To 23°C±2°C (73.4°F±4°F)
Fan with thermostat for camera cooling for versions
with double air lter: Ton 35°C±2°C (95°F±4°F), To
32°C±2°C (89.6°F±4°F)
Demisting with forced hot air: 5W
Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
Compatible with the Power Injector (OHEPOWINJ:
VIDEOTEC optional accessory)
12.4 Environment
For indoors and outdoors installation
Operating temperature: From -10°C (14°F) up to
+60°C (140°F)
Operating temperature (with heater): From -30°C
(-22°F ) up to +60°C (140°F)
Chemical agents resistance
• High resistance: basics, alcohols, gas, hydrocarbon
• Good resistance: Organic acids, inorganic acids,
oils
• Low resistance: Solvents
12.5 Certications
Electrical safety (CE): EN60950-1, IEC60950-1
Electromagnetic compatibility (CE): EN50130-4,
EN61000-6-3, EN55032 Class B, FCC Part. 15 Class B,
ICES-003 Class B
Outdoor installation (CE): EN60950-22, IEC 60950-22
IP protection degree (EN60529):
• IP66/IP67 (with cable glands)
• IP66/IP67 (with sealing rings and an internal cable
channel)
• IP55 (with bracket with internal cable channel)
• IP44 (for models with double lter for ventilation)
IK protection degree (EN62262): IK10
UL certication:
• cULus Listed, TYPE 4X (except for versions with
double lter for the air exchange)
• UL94, V1 (re-self extinguish)
EAC certication

MNVCHPVHPOE_2024_EN
13 Technical drawings
The indicated measurements are expressed in millimetres.
70
70113
141
230
466
70 171
40 73
70
62
70
156
422 156
101
129
B
B
A
A
A - A B - B
USABLE
AREA
USABLE AREA
Fig. 17 VERSO Hi-PoE IPM.
Headquarters Italy Videotec S.p.A.
Via Friuli, 6 - I-36015 Schio (VI) - Italy
Tel. [phone] - Fax [phone]
Email: [email protected]
France Videotec France SARL
Immeuble Le Montreal, 19bis Avenue du Québec, ZA de Courtaboeuf
91140 Villebon sur Yvette - France
Tel. [phone] - Fax [phone]
Email: [e-mail]
Asia Pacic Videotec (HK) Ltd
Flat 8, 19/F. On Dak Industrial Building, No. 2-6 Wah Sing Street
Kwai Chung, New Territories - Hong Kong
Tel. [phone] - Fax [phone]
Email: [e-mail]
Americas Videotec Security, Inc.
Gateway Industrial Park, 35 Gateway Drive, Suite 100
Plattsburgh, NY 12901 - U.S.A.
Tel. [phone] - Fax [phone]
Email: [e-mail]
www.videotec.com

IT
Italiano - Manuale di istruzioni
ITALIANO
VERSO Hi-PoE IPM
Custodia in policarbonato con tecnologia IPM per telecamere IP

Sommario
ITALIANO 1
1 Informazioni sul presente manuale ........................................................................................3
1.1 Convenzioni tipograche.................................................................................................................................................... 3
2 Note sul copyright e informazioni sui marchi commerciali...................................................3
3 Norme di sicurezza ...................................................................................................................3
4 Identicazione ..........................................................................................................................5
4.1 Descrizione e designazione del prodotto ..................................................................................................................... 5
4.2 Marcatura del prodotto........................................................................................................................................................ 5
5 Preparazione del prodotto per l'utilizzo.................................................................................6
5.1 Disimballaggio ........................................................................................................................................................................ 6
5.2 Contenuto................................................................................................................................................................................. 6
5.3 Smaltimento in sicurezza dei materiali di imballaggio............................................................................................. 6
5.4 Lavoro preparatorio prima dell’installazione ............................................................................................................... 6
5.4.1 Fissaggio del supporto .......................................................................................................................................................................... 6
6 Installazione..............................................................................................................................7
6.1 Apertura della custodia........................................................................................................................................................ 7
6.2 Rimozione della slitta............................................................................................................................................................ 7
6.3 Assemblaggio dei pressacavi............................................................................................................................................. 7
6.4 Installazione dell'illuminatore GEKO IRH (opzionale)................................................................................................ 7
6.4.2 Supporti e adattatori .............................................................................................................................................................................. 8
6.4.1 Installazione della versione con doppio ltro per ricambio dell'aria.................................................................................... 8
6.4.2 Installazione del cavo Ethernet........................................................................................................................................................... 8
6.4.3 Installazione della telecamera............................................................................................................................................................. 9
6.4.4 Collegamento dell'illuminatore GEKO IRH (opzionale).............................................................................................................. 9
6.4.5 Collegamento del cavo PoE ...............................................................................................................................................................10
6.4.6 Collegamento del ventilatore con doppio ltro per il ricambio dell'aria (opzionale)...................................................10
7 Congurazione .......................................................................................................................10
8 Accensione ..............................................................................................................................11
9 Manutenzione.........................................................................................................................12
9.1 Kit per ammodernamento degli impianti ...................................................................................................................12
10 Pulizia ....................................................................................................................................12
10.1 Pulizia della nestra e delle parti in plastica ............................................................................................................12
11 Informazioni sullo smaltimento e il riciclo .........................................................................13
12 Dati tecnici ............................................................................................................................13
12.1 Generale................................................................................................................................................................................13
12.2 Meccanica.............................................................................................................................................................................13
12.3 Elettrico..................................................................................................................................................................................13
12.4 Ambiente ..............................................................................................................................................................................13
12.5 Certicazioni........................................................................................................................................................................13
13 Disegni tecnici ......................................................................................................................14

Manuale di istruzioni - Italiano - IT
3MNVCHPVHPOE_2024_IT
1 Informazioni sul presente
manuale
Prima di installare e utilizzare questo prodotto,
leggere attentamente tutta la documentazione
fornita. Tenere il manuale a portata di mano per
consultazioni successive.
1.1 Convenzioni tipograche
PERICOLO!
Pericolosità elevata.
Rischio di scosse elettriche. Prima di
eseguire qualsiasi operazione assicurarsi di
togliere tensione al prodotto, salvo diversa
indicazione.
ATTENZIONE!
Pericolosità media.
L'operazione è molto importante per il
corretto funzionamento del sistema. Si
prega di leggere attentamente la procedura
indicata e di eseguirla secondo le modalità
previste.
INFO
Descrizione delle caratteristiche del
sistema.
Si consiglia di leggere attentamente per
comprendere le fasi successive.
2 Note sul copyright e
informazioni sui marchi
commerciali
I nomi di prodotto o di aziende citati sono marchi
commerciali o marchi commerciali registrati
appartenenti alle rispettive società.
3 Norme di sicurezza
ATTENZIONE! L'installazione e la
manutenzione del dispositivo devono
essere eseguite solo da personale tecnico
specializzato.
• ATTENZIONE! L’impianto elettrico al quale
è collegata l’unità deve essere dotato di un
interruttore di protezione bipolare automatico.
L'interruttore per le unità a tensione di rete
deve avere un livello di intervento di 20A max.
L'interruttore per le unità a bassa tensione deve
avere un livello di intervento di 6A max. Tale
interruttore deve essere di tipo Listed. La distanza
minima tra i contatti dell'interruttore di protezione
deve essere di 3mm. L’interruttore deve essere
provvisto di protezione contro la corrente di
guasto verso terra (dierenziale) e la sovracorrente
(magnetotermico).
• Il produttore declina ogni responsabilità per
eventuali danni derivanti da un uso improprio
delle apparecchiature menzionate in questo
manuale. Si riserva inoltre il diritto di modicarne il
contenuto senza preavviso. Ogni cura è stata posta
nella raccolta e nella verica della documentazione
contenuta in questo manuale. Il produttore,
tuttavia, non può assumersi alcuna responsabilità
derivante dall'utilizzo della stessa. Lo stesso
dicasi per ogni persona o società coinvolta nella
creazione e nella produzione di questo manuale.
• Prima di eseguire qualsiasi operazione assicurarsi
di togliere tensione al prodotto.
• Non utilizzare cavi con segni di usura o
invecchiamento.
• Non eettuare per nessun motivo alterazioni o
collegamenti non previsti in questo manuale.
L'uso di apparecchi non idonei può portare a
gravi pericoli per la sicurezza del personale e
dell'impianto.
• Utilizzare solo parti di ricambio originali. Pezzi di
ricambio non originali potrebbero causare incendi,
scariche elettriche o altri pericoli.

IT - Italiano - Manuale di istruzioni
4 MNVCHPVHPOE_2024_IT
• Si devono rispettare le normative nazionali per
l'installazione del dispositivo.
• Questo dispositivo è stato progettato per essere
ssato e collegato in maniera permanente
su un edicio o su una struttura adeguata. Il
dispositivo deve essere ssato e collegato in
maniera permanente prima di eettuare qualsiasi
operazione.
• Prima di procedere con l'installazione, controllare
che il materiale fornito corrisponda alle speciche
richieste esaminando le etichette di marcatura (4.2
Marcatura del prodotto, pagina 5).
• Ogni dispositivo che può essere installato
all’interno del prodotto deve essere conforme alle
norme di sicurezza attuali.
• Se l'installazione deve essere di tipo NEMA TYPE
4X, l'installatore deve sostituire i pressacavi del
prodotto con dei pressacavi di tipo NEMA TYPE 4X.
• Per tutte le connessioni, utilizzare cavi idonei a
sopportare temperature di almeno 75°C.
• Il prodotto è progettato per alloggiare solo
telecamere opportunamente certicate secondo
IEC/UL 60950-1 o IEC/UL 62368-1 (7W max).
• L’impianto elettrico deve essere dotato di un
sezionatore di rete prontamente riconoscibile e
utilizzabile in caso di necessità.
• Per la connessione della linea di alimentazione
utilizzare l’apposita scatola di connessione (UPTJ
BUL). Per ulteriori informazioni fare riferimento al
manuale d’uso ed installazione del prodotto.
• Utilizzare dei capicorda Listed per la connessione
dei conduttori di rete ai morsetti. I capicorda devo
essere adeguati al tipo di installazione (da -20°C a
+80°C min., V-0). Esempi di capicorda: RP, BP o YP
(Cembre).
• L'alimentazione del prodotto deve essere fornita
esclusivamente dal cavo PoE (Power over Ethernet).
• La categoria di installazione (detta anche categoria
di sovratensione) specica i livelli della tensione
transitoria di rete alla quale l’apparato è soggetto.
La categoria dipende dal luogo di installazione
e dalla presenza di dispositivi di protezione
contro le sovratensioni. Un dispositivo per
ambienti industriali, connesso ai rami principali
dell’impianto di alimentazione è soggetto alla
categoria di installazione III. Se questo è il caso, è
richiesta una riduzione alla categoria II. Ciò può
essere ottenuto utilizzando un trasformatore
di isolamento con schermatura connessa a
terra tra il primario ed il secondario, o tramite
l’impiego di dispositivi di protezione contro le
sovratensioni (SPD), UL listed, connessi tra la fase
ed il neutro e tra il neutro e terra. I dispositivi SPD
UL listed, dovranno essere predisposti per limitare
sovratensioni transitorie in modo ripetitivo e per
le seguenti condizioni nominali di funzionamento:
Tipo 2 (Dispositivi SPD connessi permanentemente
alla rete di alimentazione, per installazioni dal lato
del carico del dispositivo di servizio); Corrente
nominale di scarica (In) 20kA minimi. Si possono
utilizzare ad esempio: FERRAZ SHAWMUT,
ST23401PG-CN, ST240SPG-CN specicati per
120Vac/240Vac, (In=20kA). La distanza massima tra
l'installazione e la riduzione è di 5m.
