Viessmann VITOPLANAR EI2 User manual

Installation instructions
for contractors
VIESMANN
Vitoplanar EI2/EI3/EI5
Type EI2.A180DI to EI2.A700DI, EI2.A500M to EI2.A1000M, EI2.A350B to
EI2.A700B, EI3.A500GW to EI3.A1000GW, EI3.A350B to EI3.A700B,
EI5.A250S to EI5.A1000S
Infrared heater
VITOPLANAR EI2/EI3/EI5
5855601 GB 2/2020

2
Please follow these safety instruc-
tions closely to prevent accidents
and material losses.
Safety instructions explained
Danger
This symbol warns against the risk
of injury.
!Please note
This symbol warns against the risk
of material losses and environmen-
tal pollution.
Note
Details identified by the word "Note"
contain additional information.
Target group
These instructions are exclusively inten-
ded for qualified contractors.
Installation and commissioning as well
as repairs and service work may only be
carried out by a licensed contractor or a
qualified person in compliance with all
safety regulations. This person must first
check whether the electrical system in
the building complies with the applicable
standards. The responsibility of the
manufacturer is limited to the delivery of
the appliance.
This appliance can also be operated by
children aged 8 and older, as well as by
individuals with reduced physical, sen-
sory or mental faculties or those lacking
in experience and knowledge, provided
such individuals are supervised or have
been instructed in the safe use of this
appliance and any risks arising from it.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention
of accidents
■Statutory regulations for environmental
protection
■Codes of practice of the relevant trade
associations
■Relevant country-specific safety regu-
lations
Work on the appliance
■Work on electrical equipment may only
be carried out by a qualified electrician.
■Only connect appliances to correctly
installed sockets.
■When working on the appliance, dis-
connect the power plug.
■Isolate the appliance from the power
supply (e.g. by removing the separate
fuse or by means of a mains isolator)
and check that it is no longer live.
■Safeguard the appliance against
reconnection.
Safety instructions
5855601

3
Danger
Hot surfaces on the appliance can
cause burns.
Before maintenance and service
work, switch off the appliance and
let it cool down.
Operation of the appliance
Danger
Damaged equipment poses a
safety hazard.
Check the appliance for external
damage. Never start up a damaged
appliance.
■The appliance may only be operated in
its original condition without modifica-
tions and in perfect technical condition.
All protection equipment must work
faultlessly and be freely accessible.
■To prevent the appliance overheating,
do not cover it.
■Children younger than the age of 3
must be kept away from the appliance
unless they are constantly supervised.
Children between the ages of 3 and 8
may only switch the appliance on and
off if they are supervised or have been
instructed in the safe use of the appli-
ance and have understood the result-
ing risks, provided that the appliance is
placed or installed in its normal posi-
tion of use. Children between the ages
of 3 and 8 must not plug the appliance
into a wall socket, regulate the appli-
ance, clean the appliance or carry out
maintenance.
■The appliance may only be commis-
sioned once it has been installed.
■The appliance must not be used in the
immediate vicinity of a bathtub, shower
or swimming pool.
■The appliance must not be used in
small rooms inhabited by persons who
cannot leave the room independently,
unless constant monitoring is ensured.
Danger
Covering the surface can cause
a fire hazard.
■Do not cover the appliance,
whether partially or wholly,
e.g. with a towel.
■Do not dry any objects on the
appliance.
!Please note
Even covering parts of the front can
lead to overheating and damage to
the heating element.
■Do not cover the appliance,
whether partially or wholly, e.g.
with a towel.
■Do not dry any objects on the
appliance.
!Please note
Mechanical loads can damage the
appliance.
■Do not lean against the appliance
■Do not lean objects against the
appliance
Auxiliary components and individual parts
For replacement, use only spare parts
supplied or approved by Viessmann.
Safety instructions (cont.)
5855601

4
1. Information Disposal of packaging ............................................................................ 5
Symbols ................................................................................................. 5
Intended use .......................................................................................... 5
Product information ................................................................................ 5
■Vitoplanar EI2 (DI = Design) ............................................................... 5
■Vitoplanar EI2 (M = Mirror) ................................................................. 6
■Vitoplanar EI2 (B = Bathroom) ............................................................ 6
■Vitoplanar EI3 (GW = Glass White) .................................................... 6
■Vitoplanar EI3 (B = Bathroom) ............................................................ 6
■Vitoplanar EI5 (S = Steel) ................................................................... 6
2. Preparing for installation Before installation .................................................................................. 7
Clearance dimensions ........................................................................... 7
■Installation room requirements ........................................................... 7
3. Installation sequence Mounting the appliance on the wall ....................................................... 8

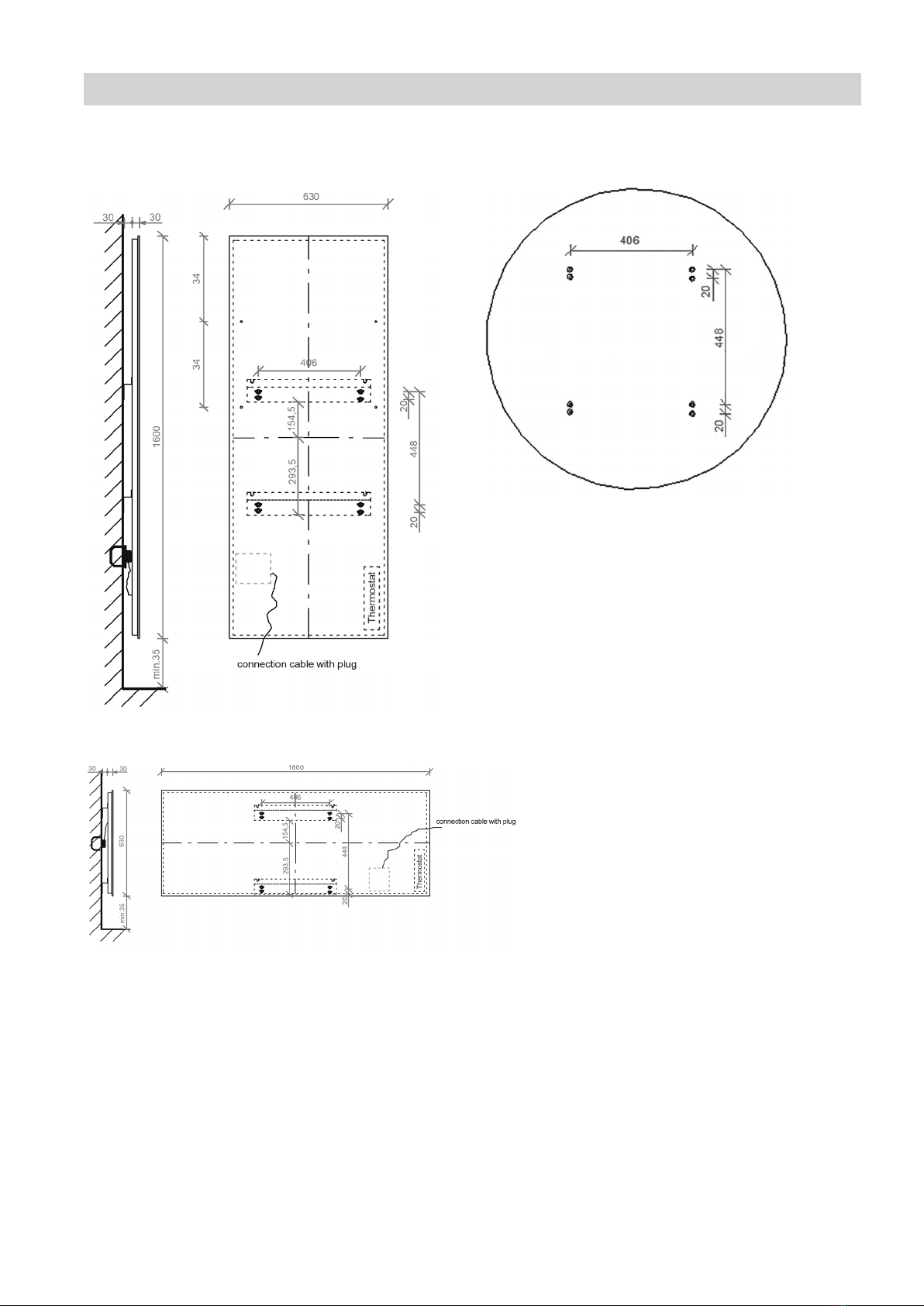

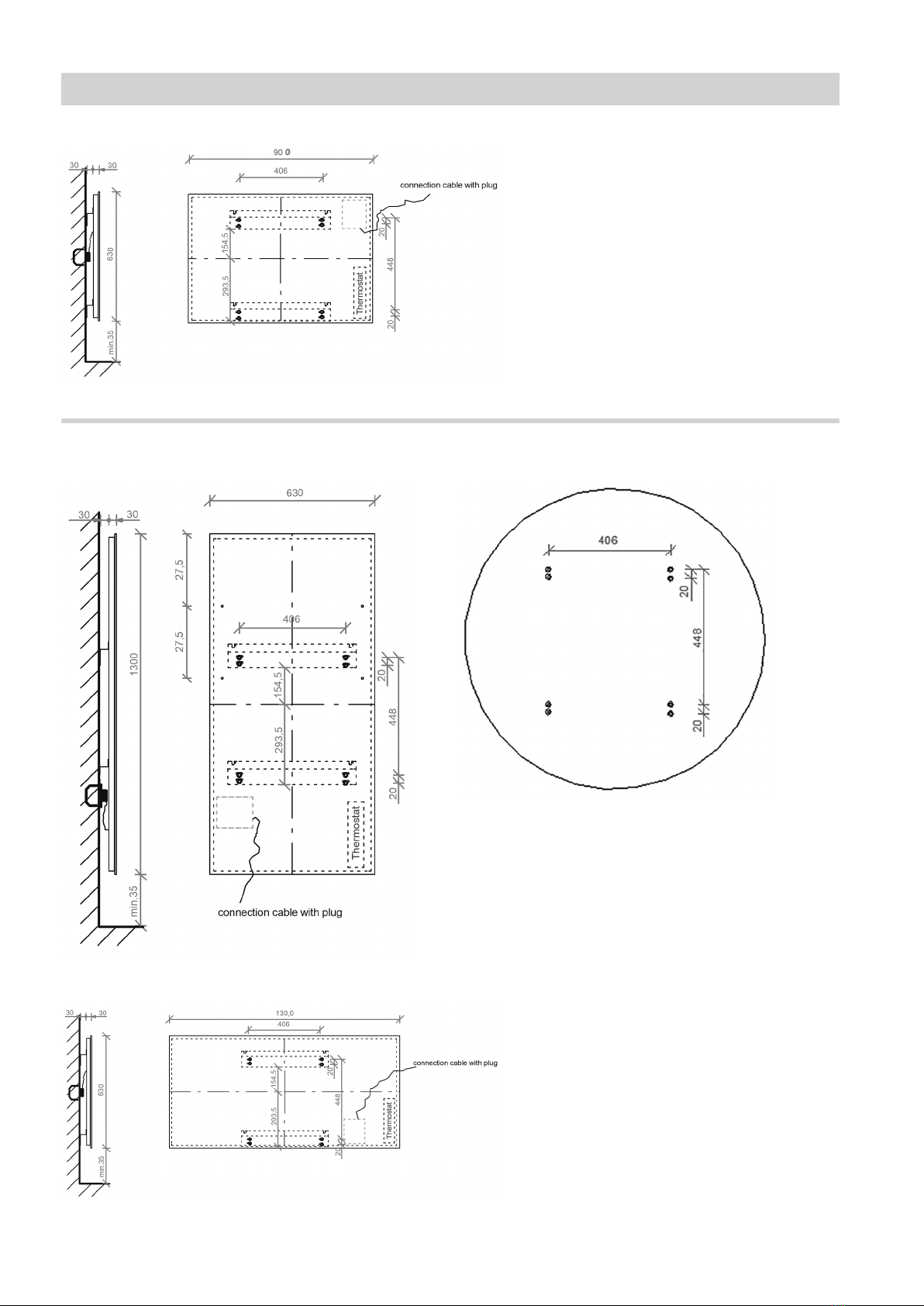

Position of mounting brackets ................................................................ 9
■Vitoplanar, type EI5.A250S and EI2.A180DI ...................................... 9
■Vitoplanar, type EI_.A500_, EI2.A350DI, EI2.A350B and EI3.A350B 9
■Vitoplanar, type EI_.A750_, EI2.A500DI, EI2.A500B and EI3.A500B 10
■Vitoplanar, type EI_.A1000_, EI2.A700DI, EI2.A700B and
EI3.A700B .......................................................................................... 11
Electrical connection .............................................................................. 12
■Connection via wall junction box ........................................................ 12
■Connection with standard plug ........................................................... 12
Commissioning and instructing the user ................................................ 12
4. Appendix Specification .......................................................................................... 13
■Energy consumption data ................................................................... 14
Final decommissioning and disposal ..................................................... 15
Declaration of Conformity ...................................................................... 15
Index
5855601

5
Please dispose of packaging waste in line with statu-
tory regulations.
Symbols
Symbol Meaning
Reference to another document containing
further information
Warning of material losses and environ-
mental pollution
Intended use
The appliance may only be used for its intended pur-
pose in areas where the occupants can leave the
rooms independently or where constant monitoring is
ensured.
It is intended exclusively for room heating.
Using the appliance if it is not installed or for any pur-
pose other than room heating shall be deemed inap-
propriate.
Intended use presupposes that a permanent installa-
tion in conjunction with permissible components
designed for this purpose has been carried out.
The appliance should be able to radiate freely into the
room.
The appliance must not be used in the immediate
vicinity of a bathtub, shower or swimming pool.
All other use is deemed inappropriate. Any resulting
losses are excluded from the manufacturer's liability.
Any usage beyond this must be approved by the man-
ufacturer in each individual case.
Intended use also includes adherence to maintenance
and inspection intervals.
Product information
Direct electric heating for rapid heating of living spaces
■Optimised insulation reduces proportion of convec-
tion
■Large infrared radiant surface
■Maintenance-free, no magnetic field
■Plug & play system for simple, individual control
■Horizontal and vertical installation
Vitoplanar EI2 (DI = Design)
Type Output in kW
EI2.A180DI 0.18
EI2.A350DI 0.35
EI2.A500DI 0.5
EI2.A700DI 0.7
Infrared heater, glass, design
■Individually designable glass surface
■TSG as an excellent radiation emitter
■Optimised surface temperature (70 °C)
Disposal of packaging
5855601

6
Vitoplanar EI2 (M = Mirror)
Type Output in kW
EI2.A500M 0.5
EI2.A750M 0.75
EI2.A1000M 1
Infrared heater, glass, mirror
■Infrared heater as mirror version
■Glass is an excellent emitter of radiation
Vitoplanar EI2 (B = Bathroom)
Type Output in kW
EI2.A350B 0.35
EI2.A500B 0.5
EI2.A700B 0.7
Infrared heater, glass, mirror, bathroom version
■Infrared heater as mirror version
■Bathroom version with towel holder
■Optimised surface temperature (70 °C)
Vitoplanar EI3 (GW = Glass White)
Type Output in kW
EI3.A500GW 0.5
EI3.A750GW 0.75
EI3.A1000GW 1
Infrared heater, glass, pure white
■Infrared heater as glass version
■Glass is an excellent emitter of radiation
Vitoplanar EI3 (B = Bathroom)
Type Output in kW
EI3.A350B 0.35
EI3.A500B 0.5
EI3.A700B 0.7
Infrared heater, glass, bathroom version
■Infrared heater as glass version
■Bathroom version with towel holder
■Optimised surface temperature (70 °C)
Vitoplanar EI5 (S = Steel)
Type Output in kW
EI5.A250S 0.25
EI5.A500S 0.5
EI5.A750S 0.75
EI5.A1000S 1
Infrared heater, steel, white
■Infrared heater as steel version
■Version only suitable for wall mounting
Product information (cont.)
5855601

7
Danger
The appliance may fall off the wall if unsuitable
fixing materials are used. This may result in dan-
gerous injuries and damage to the appliance.
Secure the appliance only with the mounting
brackets for wall mounting included in the stand-
ard delivery.
Only use screws and rawl plugs that are suitable
for the type of wall (masonry, concrete, plaster-
board, etc.).
Fig. 1 Mounting brackets and hexagon screws
(standard delivery)
!Please note
Installation on uneven surfaces can cause dam-
age to the heating surface due to stress.
Only fit the appliance to level walls.
Standard delivery for wall mounting:
■2 x mounting brackets
■4 x hexagon screws M8 x 16
Clearance dimensions
Fig. 2 Minimum clearances
Danger
If the appliance is operated without maintaining
the minimum clearances, flammable objects
may catch fire.
Observe the specified minimum clearances.
Note
When installing the appliance in bathrooms, observe
the safety zones according to DIN VDE 0100 part 701!
Note
Horizontal or vertical installation is possible.
Installation room requirements
!Please note
Impermissible ambient conditions can lead to
damage to the appliance (risk of overheating)
and to a fire hazard.
■Do not use the appliance in the immediate
vicinity of a bathtub, shower or swimming pool.
■Do not install the appliance directly below a
wall socket.
■The appliance must not be used in small
rooms inhabited by persons who cannot leave
the room independently, unless constant moni-
toring is ensured.
Before installation
5855601

8
1. Select the position for the mounting brackets
depending on the product type and installation
type. See page 9 onwards.
2. Mark the drill holes using a spirit level and drilling
template (standard delivery).
!!!
8 x
3. Drill holes.
8 x
4. Secure the mounting brackets using suitable rawl
plugs and screws.
Danger
The appliance may fall off the wall if unsuita-
ble fixing materials are used. This may result
in dangerous injuries and damage to the
appliance.
Secure the appliance only with the mounting
brackets for wall mounting included in the
standard delivery.
Only use screws and rawl plugs that are
suitable for the type of wall (masonry, con-
crete, plasterboard, etc.).
5. Place the infrared heater on the mounting bracket
and secure with screws.
!Please note
Mechanical stress on the surface, e.g. if
people or objects lean against it, can lead to
damage.
Prevent force being applied to the surface.
Mounting the appliance on the wall
5855601

9
Vitoplanar, type EI5.A250S and EI2.A180DI
Vertical
Fig. 3
Horizontal
Fig. 4
Vitoplanar, type EI_.A500_, EI2.A350DI, EI2.A350B and EI3.A350B
Vertical
Fig. 5
Drill holes
Fig. 6
Position of mounting brackets
5855601

10
Horizontal (only type EI_.A500_ and EI2.A350DI)
Fig. 7
Vitoplanar, type EI_.A750_, EI2.A500DI, EI2.A500B and EI3.A500B
Vertical
Fig. 8
Drill holes
Fig. 9
Horizontal (only type EI_.A750_ and EI2.A500DI)
Fig. 10
Position of mounting brackets (cont.)
5855601

11
Vitoplanar, type EI_.A1000_, EI2.A700DI, EI2.A700B and EI3.A700B
Vertical
Fig. 11
Drill holes
Fig. 12
Horizontal (only type EI_.A1000_ and EI2.A700DI)
Fig. 13
Position of mounting brackets (cont.)
5855601

12
Connection to wall junction box, alternatively to stand-
ard socket
Fig. 14 Electrical connection
RTH Room thermostat (accessories)
Connection via wall junction box
Danger
Incorrect wiring can lead to serious injury from
electrical current and result in appliance dam-
age.
Connection to wall junction boxes must only be
carried out by qualified contractors.
Danger
A damaged connecting cable can lead to electric
shock and short circuit.
Check the connecting cable for damage before
installation.
On the installation side, install an omnipolar isolator
with a contact opening width of at least 3 mm in the
permanent electrical installation in accordance with the
installation regulations.
Note
The connecting cable can be extended with a cable of
type H05VV-F3G 1.5 mm².
A direct connection to the appliance is not possible.
Connection with standard plug
Danger
A damaged connecting cable can lead to electric
shock and short circuit.
Check the connecting cable for damage before
installation.
Correctly connect the supplied connecting cable with
plug to the junction box.
Commissioning and instructing the user
Commissioning and user instruction must be carried
out by the contractor performing the installation. The
operator must be instructed as to how the radiant
heater works and in particular be informed about the
minimum clearances to be observed.
Electrical connection
5855601

13
Vitoplanar EI2
Type EI2. A180DI A350DI A500DI A700DI
Electrical values
Output W 180 350 500 700
Rated voltage V~ 230
IP rating IP X4
Protection class I
Surface temperature °C Max. 70
Dimensions
Width mm 500 900 1300 1600
Height mm 630
Depth mm 30
Weight kg 8 14 20 25
Vitoplanar EI2
Type EI2 A500M A750M A1000M
Electrical values
Output W 500 750 1000
Rated voltage V~ 230
IP rating IP X4
Protection class I
Surface temperature °C Max. 95
Dimensions
Width mm 900 1300 1600
Height mm 630
Depth mm 30
Weight kg 14 20 25
Vitoplanar EI2
Type EI2. A350B A500B A700B
Electrical values
Output W 350 500 700
Rated voltage V~ 230
IP rating IP X4
Protection class I
Surface temperature °C Max. 70
Dimensions
Width mm 900 1300 1600
Height mm 630
Depth mm 30
Weight kg 14 20 25
Specification
5855601

14
Vitoplanar EI3
Type EI3 A500GW A750GW A1000GW
Electrical values
Output W 500 750 1000
Rated voltage V~ 230
IP rating IP X4
Protection class I
Surface temperature °C Max. 95
Dimensions
Width mm 900 1300 1600
Height mm 630
Depth mm 30
Weight kg 14 20 25
Vitoplanar EI3
Type EI3. A350B A500B A700B
Electrical values
Output W 350 500 700
Rated voltage V~ 230
IP rating IP X4
Protection class I
Surface temperature °C Max. 70
Dimensions
Width mm 900 1300 1600
Height mm 630
Depth mm 30
Weight kg 14 20 25
Vitoplanar EI5
Type EI5 A250S A500S A750S A1000S
Electrical values
Output W 250 500 750 1000
Rated voltage V~ 230
IP rating IP X4
Protection class I
Surface temperature °C Max. 95
Dimensions
Width mm 500 900 1300 1600
Height mm 630
Depth mm 26
Weight kg 6 10 14.5 18
Energy consumption data
In conjunction with the Vitoplanar wireless thermostat
or the Vitoplanar switch mounting thermostat, the prod-
uct data corresponds to the EU regulations of the
directive on the environmentally sound design of
energy related products (ErP).
Specification (cont.)
5855601

15
Viessmann products can be recycled. Components
and substances from the system are not part of ordi-
nary household waste.
For decommissioning the system, isolate the system
from the power supply and allow components to cool
down where appropriate.
All components must be disposed of correctly.
Declaration of Conformity
We, Viessmann Werke GmbH & Co. KG, D-35107
Allendorf, declare as sole responsible body that the
named product complies with the European directives
and supplementary national requirements in terms of
its design and operational characteristics.
Using the serial number, the full Declaration of Con-
formity can be found on the following website:
www.viessmann.co.uk/eu-conformity
Final decommissioning and disposal
5855601

16
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Viessmann Werke GmbH & Co. KG
D-35107 Allendorf
Telephone: [phone]
Fax: [phone]
www.viessmann.com
5855601 Subject to technical modifications.
