Viessmann VITOPLANAR EI2 User manual

Operating instructions
for the system user
VIESMANN
Infrared heater
VITOPLANAR EI2
5855608 GB 2/2018 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These operating instructions are intended for users of
the appliance.
This appliance can also be operated by children
aged 8 and older, as well as by individuals with
reduced physical, sensory or mental faculties or those
lacking in experience and knowledge, provided such
individuals are supervised or have been instructed in
the safe use of this appliance and any risks arising
from it.
Keep children younger than the age of 3 away from the
appliance. Children between the ages of 3 and 8 may
only switch the appliance on and off if they are super-
vised or have been instructed in the safe use of the
appliance and have understood the resulting risks, pro-
vided that the appliance is placed or installed in its nor-
mal position of use. Children between the ages of
3 and 8 must not plug the appliance into a wall socket,
regulate the appliance, clean the appliance or carry out
maintenance.
!Please note
Supervise children in the proximity of the appli-
ance.
■Never permit children to play with the appli-
ance.
■Cleaning and user maintenance must never
be carried out by unsupervised children.
Danger
Incorrectly executed work on the appliance can
lead to life threatening accidents.
Work on electrical equipment may only be car-
ried out by a qualified electrician.
If there is a fire
Danger
Failure to observe the operating instructions
may result in a fire hazard.
The appliance must not be used in small rooms
inhabited by persons who cannot leave the room
independently, unless constant monitoring is
ensured.
Installation room requirements
!Please note
Impermissible ambient conditions can lead to
damage to the appliance (risk of overheating)
and to a fire hazard.
■Do not use the appliance in the immediate
vicinity of a bathtub, shower or swimming pool.
■Do not install the appliance directly below a
wall socket.
■The appliance must not be used in small
rooms inhabited by persons who cannot leave
the room independently, unless constant moni-
toring is ensured.
Safety instructions
Safety instructions
5855608

3
Auxiliary components, spare and wearing parts
!Please note
Components that were not tested with the appli-
ance may cause appliance damage, or may
affect its functions.
Installation or replacement work must only be
carried out by a qualified contractor.
Information on operation
Danger
If the surface of the appliance or the power
cable with the ON/OFF switch is damaged, there
is a risk of burns or electric shock.
The appliance must not be operated if damaged.
Switch off the appliance, unplug the standard
plug (if present) from the socket and notify a
qualified contractor.
Danger
The surface of the appliance can become very
hot and cause burns if prolonged contact is
made.
Do not leave children or vulnerable persons
unattended near the appliance.
!Please note
Impermissible use may result in damage to the
appliance (risk of overheating) and fire.
■Do not cover the appliance, even partially,
e.g. with a towel.
■Do not dry any objects on the appliance.
■Do not expose the appliance to mechanical
loads:
–No persons should lean against it
–No objects, e.g. furniture, should be leant
against it
Safety instructions
Safety instructions (cont.)
5855608

4
Symbol Meaning
Reference to another document containing
further information
Warning of material losses and environ-
mental pollution
Intended use
The appliance may only be used for its intended pur-
pose in areas where the occupants can leave the
rooms independently or where constant monitoring is
ensured. Using the appliance if it is not installed or for
any purpose other than room heating shall be deemed
inappropriate.
Intended use presupposes that a permanent installa-
tion in conjunction with permissible components
designed for this purpose has been carried out.
The appliance should be able to radiate freely into the
room.
This heater must not be used in the immediate vicinity
of a bathtub, shower or swimming pool.
All other use is deemed inappropriate. Any resulting
losses are excluded from the manufacturer's liability.
Any usage beyond this must be approved by the man-
ufacturer in each individual case.
Product information
Vitoplanar EI2
Type Output in
kW
Dimensions
in mm
Weight in
kg
EI2.A1000GW 1 1050 x 630 32
EI2.A1500GW 1.5 1600 x 630 42
Direct electric heating for rapid heating of living spaces
■Infrared heater, glass, pure white
■Glass is an excellent emitter of radiation
■Heat storage for up to 1 hour
■Large infrared radiant surface
■Maintenance-free, no magnetic field
■Plug & play system for simple, individual control
■Horizontal installation only
Note
In conjunction with the Vitoplanar wireless thermostat
or the Vitoplanar switch mounting thermostat, the prod-
uct data corresponds to the EU regulations of the
directive on the environmentally sound design of
energy related products (ErP).
Permissible ambient conditions

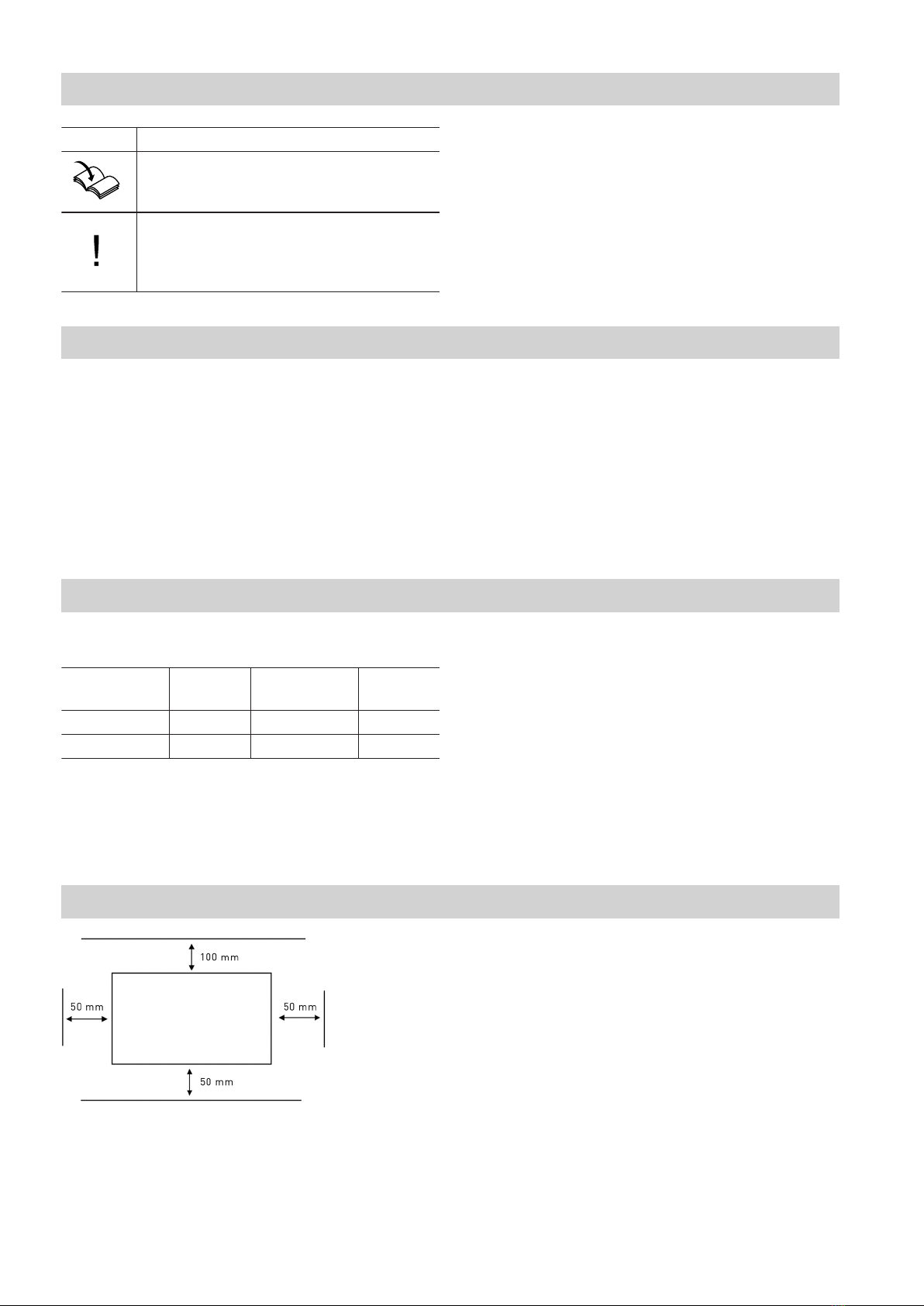

Fig. 1 Minimum clearances
!Please note
If the appliance is operated without maintaining
the minimum clearances, flammable objects
may catch fire.
Observe the specified minimum clearances.
Introductory information
Symbols
5855608

5
Commissioning the appliance
!Please note
If the appliance is operated without being instal-
led correctly, it may be damaged.
The appliance may only be operated when
installed correctly.
1. Ensure that the room thermostat is connected to
the heater according to the specifications. The
room thermostat must be switched on and ready
for operation.
Operating instructions for the wired room
thermostat or wireless thermostat
2. Only for version with standard plug:
Plug the standard plug of the heater into a perma-
nently installed standard socket.
3. Switch on the appliance at the ON/OFF switch.
Danger
If the surface of the appliance or the power
cable is damaged, there is a risk of burns or
electric shock.
The appliance must not be operated if dam-
aged. Switch off the appliance, unplug the
standard plug (if present) from the socket
and notify a qualified contractor.
Danger
The surface of the appliance can become
very hot and cause burns if prolonged con-
tact is made.
Do not leave children or vulnerable persons
unattended near the appliance.
Introductory information
Commissioning
5855608

6
Operation takes place exclusively via the wired room
thermostat or via the wireless thermostat.
Operating instructions for the wired room ther-
mostat or wireless thermostat
Switching on and off
Switching the appliance on
Danger
If the surface of the appliance or the power
cable is damaged, there is a risk of burns or
electric shock.
The appliance must not be operated if damaged.
Switch off the appliance, unplug the standard
plug (if present) from the socket and notify a
qualified contractor.
Danger
The surface of the appliance can become very
hot and cause burns if prolonged contact is
made.
Do not leave children or vulnerable persons
unattended near the appliance.
1. Only for version with standard plug:
Plug the standard plug into a permanently installed
standard socket.
2. Switch on the appliance at the ON/OFF switch.
The appliance is ready for operation.
Note
Depending on its size, the heater takes some time
to reach the operating temperature. Only then does
the heat radiation take full effect.
Switching the appliance off
Switch off the appliance at the ON/OFF switch.
Maintenance
Maintenance
The heater is maintenance-free.
Cleaning
!Please note
If the appliance is cleaned while hot, it may be
damaged.
Allow the heater to cool down completely before
cleaning.
!Please note
Incorrect cleaning agents (e.g. scouring agents)
may damage the surfaces of the appliance.
Only use commercially available glass cleaners
to clean the surfaces.
Clean the surfaces with a commercially available glass
cleaner.
Operation
Programming unit
5855608

7
Cause Remedy
ON/OFF switch is switched off. Turn on the ON/OFF switch.
Set temperature on the room thermostat is lower than
the actual temperature in the room.
Change the set temperature on the room thermostat.
Fuse has blown or is faulty. Check fuse in domestic distribution board.
Radiated heat is insufficient
Cause Remedy
Objects between heater and person are obstructing ra-
diation.
Remove objects between heater and person.
Distance between heater and person too great. Reduce distance to the heater.
Appliance size is too small. Select appliance with higher output.
What to do if...
Appliance does not heat
5855608

8
Disposal of packaging
Your contractor will dispose of the packaging from your
Viessmann product.
DE: Packaging waste is channelled for recycling to a
certified disposal contractor in line with statutory
regulations.
AT: Packaging waste is channelled for recycling to a
certified disposal contractor in line with statutory
regulations. Use the ARA statutory disposal sys-
tem (Altstoff Recycling Austria AG, licence num-
ber 5766).
Final decommissioning and disposal of the heater
Viessmann products can be recycled. The heater does
not belong in the household waste.
Speak to your contractor about the correct disposal of
your old system.
Your contact
Contact your local contractor if you have any questions about your system or wish to arrange maintenance or
repair work. You can find local contractors on the internet at www.viessmann.de.
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Viessmann Werke GmbH & Co. KG
D-35107 Allendorf
Telephone: [phone]
Fax: [phone]
www.viessmann.com
5855608 Subject to technical modifications.
Information on disposal
