Viessmann VITOPLANAR EI2 User manual

Installation instructions
for contractors
VIESMANN
Vitoplanar EI2
Type EI2.A1000GW and EI2.A1500GW
Infrared heater
VITOPLANAR EI2
5855607 GB 2/2018

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
Installation and commissioning as well as repairs and
service work may only be carried out by a licensed
contractor or a qualified person in compliance with all
safety regulations. This person must first check
whether the electrical system in the building complies
with the applicable standards. The responsibility of the
manufacturer is limited to the delivery of the appliance.
This appliance can also be operated by children aged
8 and older, as well as by individuals with reduced
physical, sensory or mental faculties or those lacking
in experience and knowledge, provided such individu-
als are supervised or have been instructed in the safe
use of this appliance and any risks arising from it.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■All current safety regulations as defined by DIN, EN,
DVGW, TRGI, TRF, VDE and all locally applicable
standards
aÖNORM, EN, ÖVGW G K directives,
ÖVGW-TRF and ÖVE
cSEV, SUVA, SVGW, SVTI, SWKI, VKF and
EKAS guideline 1942
Work on the appliance
■Work on electrical equipment may only be carried
out by a qualified electrician.
■Only connect appliances to correctly installed sock-
ets.
■When working on the appliance, disconnect the
mains plug.
■Isolate the appliance from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer live.
■Safeguard the appliance against reconnection.
Danger
Hot surfaces on the appliance can cause burns.
Before maintenance and service work, switch off
the appliance and let it cool down.
Operation of the appliance
Danger
Damaged equipment poses a safety hazard.
Check the appliance for external damage. Never
start up a damaged appliance.
Safety instructions
5855607

3
■The appliance may only be operated in its original
condition without modifications and in perfect techni-
cal condition. All protection equipment must work
faultlessly and be freely accessible.
■To prevent the appliance overheating, do not cover it.
■Children younger than the age of 3 must be kept
away from the appliance unless they are constantly
supervised. Children between the ages of 3 and 8
may only switch the appliance on and off if they are
supervised or have been instructed in the safe use of
the appliance and have understood the resulting
risks, provided that the appliance is placed or instal-
led in its normal position of use. Children between
the ages of 3 and 8 must not plug the appliance into
a wall socket, regulate the appliance, clean the appli-
ance or carry out maintenance.
■The appliance may only be commissioned once it
has been installed.
■The appliance must not be used in the immediate
vicinity of a bathtub, shower or swimming pool.
■The appliance must not be used in small rooms
inhabited by persons who cannot leave the room
independently, unless constant monitoring is
ensured.
!Please note
Impermissible use may result in damage to the
appliance (risk of overheating) and fire.
■Do not cover the appliance, even partially, e.g.
with a towel.
■Do not dry any objects on the appliance.
■Do not expose the appliance to mechanical
loads:
–No persons should lean against it
–No objects, e.g. furniture, should be leant
against it
Auxiliary components and individual parts
For replacement, use only spare parts supplied or
approved by Viessmann.
Safety instructions (cont.)
5855607

4
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols
Symbol Meaning
Reference to another document containing
further information
Warning of material losses and environ-
mental pollution
Intended use
The appliance may only be used for its intended pur-
pose in areas where the occupants can leave the
rooms independently or where constant monitoring is
ensured.
It is intended exclusively for room heating.
Using the appliance if it is not installed or for any pur-
pose other than room heating shall be deemed inap-
propriate.
Intended use presupposes that a permanent installa-
tion in conjunction with permissible components
designed for this purpose has been carried out.
The appliance should be able to radiate freely into the
room.
The appliance must not be used in the immediate
vicinity of a bathtub, shower or swimming pool.
All other use is deemed inappropriate. Any resulting
losses are excluded from the manufacturer's liability.
Any usage beyond this must be approved by the man-
ufacturer in each individual case.
Intended use also includes adherence to maintenance
and inspection intervals.
Product information
Vitoplanar EI2
Type Output in
kW
Dimensions
in mm
Weight in
kg
EI2.A1000GW 1 1050 x 630 32
EI2.A1500GW 1.5 1600 x 630 42
Direct electric heating for rapid heating of living spaces
■Infrared heater, glass, pure white
■Glass is an excellent emitter of radiation
■Heat storage for up to 1 hour
■Large infrared radiant surface
■Maintenance-free, no magnetic field
■Plug & play system for simple, individual control
■Horizontal installation only
Disposal of packaging
5855607

5
Danger
Using unsuitable fixing materials may cause the
appliance to fall off the wall suddenly.
Secure the product to the wall using the fixings
provided for this purpose in the standard deliv-
ery.
Only use screws and rawl plugs that are suitable
for the type of wall (masonry, concrete, plaster-
board, etc.).
!Please note
Installation on uneven surfaces can cause dam-
age to the heating surface due to stress.
Only fit the appliance to level walls.
Standard delivery for wall mounting:
Fig. 1
Fixing parts
■2 x eccentric discs
■1 x cable clip, self-adhesive
Clearance dimensions
Fig. 2 Minimum clearances
Danger
Operating the appliance with insufficient clear-
ances may result in flammable objects catching
fire.
Observe the specified minimum clearances.
Note
Can only be installed horizontally
Before installation
5855607

6

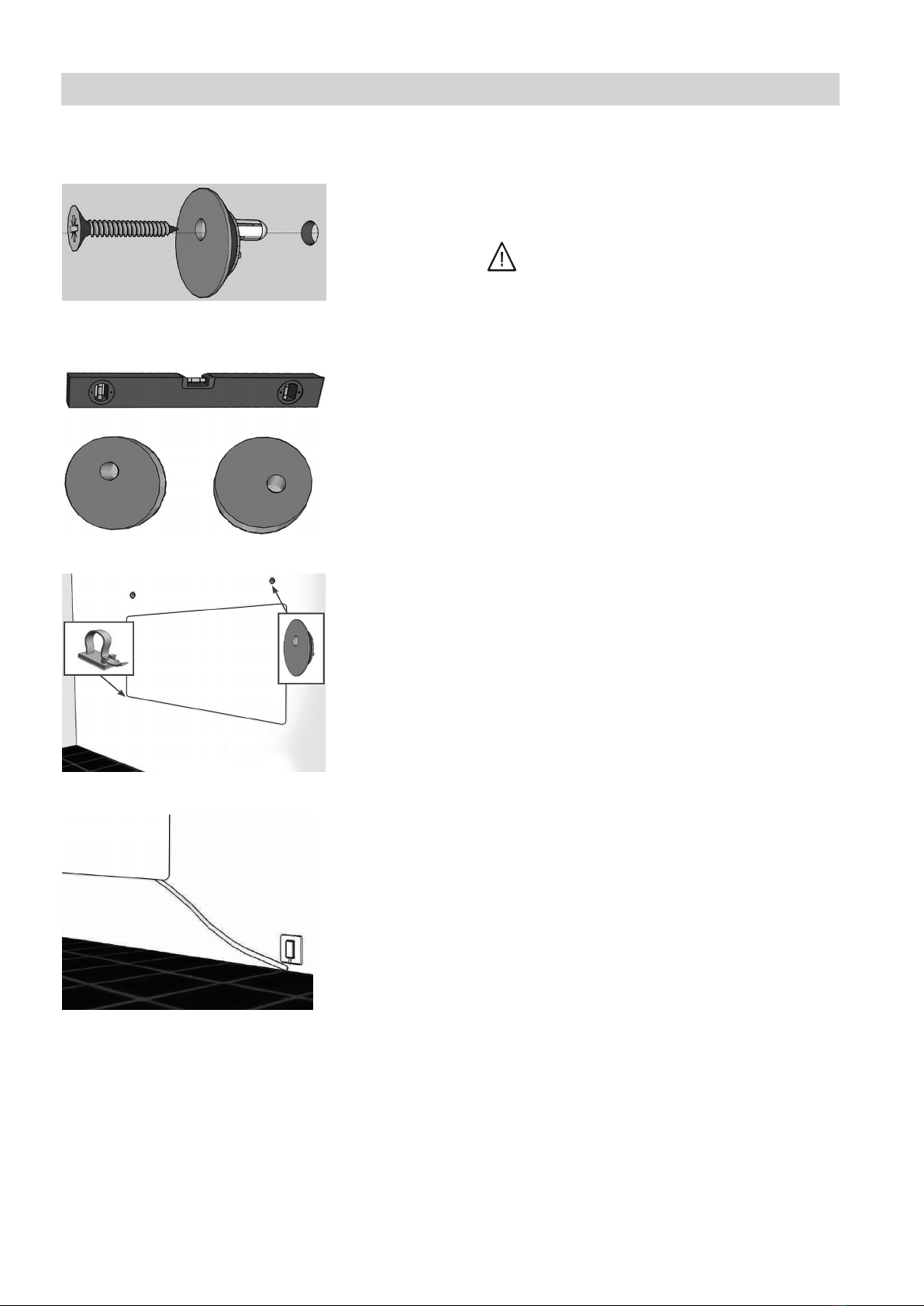

1. Select suitable hole spacings depending on the
product type, as shown on the following pages.
Fig. 3
2. Secure the eccentric discs in place using suitable
rawl plugs and screws.
Danger
Using unsuitable fixing materials may cause
the appliance to fall off the wall suddenly.
Only use screws and rawl plugs that are
suitable for the type of wall (masonry, con-
crete, plasterboard, etc.).
Fig. 4
3. Align the eccentric discs horizontally and tighten
the screws.
Fig. 5
4. Secure the self-adhesive cable clip to the bottom of
the metal frame at the rear of the appliance.
Note
The position of the cable clip should be appropriate
for the power supply.
Fig. 6
5. Connect the appliance. See "Electrical connec-
tion".
Mounting the appliance on the wall
5855607

7

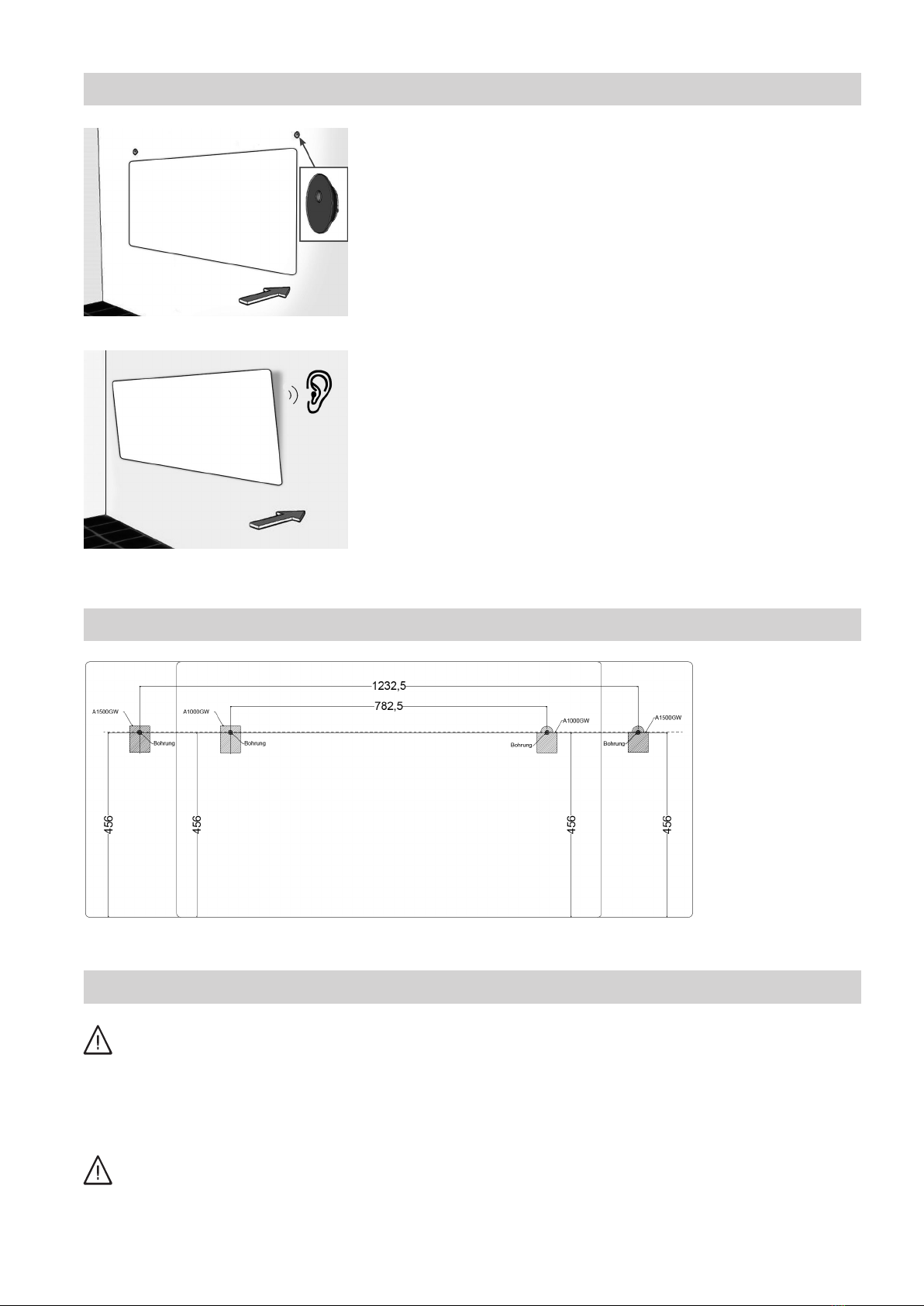

Fig. 7
Fig. 8
6. !Please note
Mechanical stress on the surface, e.g. if
people or objects lean against it, can lead to
damage.
Prevent force being applied to the surface.
Slide the appliance onto the eccentric discs.
The heater is locked in place when you hear a met-
allic noise.
Hole spacings
Fig. 9
Electrical connection
Danger
Incorrect wiring can lead to serious injury from
electrical current and result in appliance dam-
age.
Connection to wall junction boxes must only be
carried out by qualified contractors.
Danger
A damaged connecting cable can lead to electric
shock and short circuit.
Check the connecting cable for damage before
installation.
Mounting the appliance on the wall (cont.)
5855607

8
Connection to wall junction box, alternatively to stand-
ard socket
Fig. 10 Electrical connection
RTH Room thermostat (accessories)
1. On the installation side, install an omnipolar isola-
tor with a contact opening width of at least 3 mm in
the permanent electrical installation in accordance
with the installation regulations.
2. Correctly connect the supplied connecting cable
with plug to the junction box.
Note
The connecting cable can be extended with a
cable of type H05VV-F3G 1.5 mm².
A direct connection to the appliance is not possi-
ble.
Commissioning and instructing the user
Commissioning and user instruction must be carried
out by the contractor performing the installation. The
operator must be instructed as to how the radiant
heater works and in particular be informed about the
minimum clearances to be observed.
Electrical connection (cont.)
5855607

9
Type EI2 A1000GW A1500GW
Electrical values
Output W 1000 1500
Rated voltage V~ 230
IP rating IP 24
Protection class I
Surface temperature °C Max. 95
Dimensions
Width mm 1050 1600
Height mm 630
Depth mm 90
Weight kg 32 42
Energy consumption data
In conjunction with the Vitoplanar wireless thermostat
or the Vitoplanar switch mounting thermostat, the prod-
uct data corresponds to the EU regulations of the
directive on the environmentally sound design of
energy related products (ErP).
Final decommissioning and disposal
Viessmann products can be recycled. Components
and substances from the system are not part of ordi-
nary household waste.
For decommissioning the system, isolate the system
from the power supply and allow components to cool
down where appropriate.
All components must be disposed of correctly.
Declaration of Conformity
Using the serial number, the Declaration of Conformity
can be found on the following website:
www.viessmann.co.uk/eu-conformity
Specification
5855607
