Operating instructions
for the system user
Heating system with Vitotronic 200 control unit
for weather-compensated mode
VITODENS
VITOPEND
VITOLADENS
5592 545 GB 4/2007 Please keep safe.

Please follow these safety instructions closely to prevent accidents and
material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and
environmental pollution.
Note
Details identified by the word "Note"
contain additional information.
Target group
These operating instructions are for
the heating system user.
Danger
Incorrectly executed work on
the heating system can lead to
life‐threatening accidents.
&Work on gas appliances must
only be carried out by a quali-
fied gas fitter.
&Work on electrical equipment
must only be carried out by a
qualified electrician.
If you smell gas
Danger
Escaping gas can lead to
explosions which may result in
serious injury.
&Never smoke. Prevent naked
flames and sparks. Never
switch electrical lights or
equipment ON or OFF.
&Close the gas shut‐off valve.
&Open windows and doors.
&Remove all people from the
danger zone.
&Notify your gas or electricity
supplier and your local heat-
ing contractor from outside
the building.
&Shut off the electricity supply
to the building from a safe
place (outside the building).
If you smell flue gas
Danger
Flue gas can lead to life‐threa-
tening poisoning.
&Shut down the heating sys-
tem.
&Vent the boiler room.
&Close all doors in the living
space.
For your safety
2
Safety instructions
5592 545 GB

In case of fire
Danger
Fire creates the risk of burning
and explosions.
&Shut down the heating sys-
tem.
&Close the shut‐off valves of
the fuel lines.
&Use a tested fire extin-
guisher, class ABC.
Boiler room requirements
!Please note
Incorrect ambient conditions
canleadtodamagetothe
heating system and put the
safe operation at risk.
&Ensure ambient tempera-
tures above 0 ºC and below
35 ºC.
&Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids)
and excessive dust (e.g.
through grinding/polishing
work).
&Avoid continuously high
humidity levels (e.g. through
frequent drying of washing).
&Never close existing ventila-
tion apertures.
Ancillary components, spare and
wearing parts
!Please note
Components which are not
tested with the heating system
mayleadtodamagetothe
heating system, or may affect
their various functions.
Installation or replacement
must only be carried out by
qualified personnel.
For your safety (cont.)
3
Safety instructions
5592 545 GB

Introductory information
Commissioning........................................................................................... 6
Your system is preset at the factory............................................................. 6
Where to find the controls
Summary of controls and indicators ............................................................ 7
&Opening the control unit ........................................................................... 7
&Functions ................................................................................................ 8
&Symbols in the display ............................................................................. 9
&Heating system with two heating circuits .................................................. 10
Start-up/shutdown
Starting the heating system......................................................................... 12
Shutting down the heating system............................................................... 13
Starting a heating circuit and DHW heating ................................................. 13
Shutting down a heating circuit and stopping DHW heating.......................... 14
Starting DHW heating only .......................................................................... 15
Stopping DHW heating ............................................................................... 16
Adjusting the room temperature
Setting a permanent room temperature ....................................................... 17
&Selecting a standard room temperature.................................................... 18
&Selecting a reduced room temperature ..................................................... 19
&Selecting a time program (switching times)............................................... 19
Changing the room temperature for a few days only .................................... 21
&Selecting the holiday program .................................................................. 21
Changing the room temperature for a few hours only ................................... 23
&Selecting economy mode ......................................................................... 23
&Selecting party mode ............................................................................... 23
Selecting DHW heating
Selecting constant DHW heating................................................................. 25
&DHW temperature setting......................................................................... 25
&Selecting a time program (switching times)............................................... 26
Selecting DHW heating for a few hours only ................................................ 29
Selecting DHW heating only once ............................................................... 29
Further adjustments
Time and date............................................................................................. 31
Language ................................................................................................... 31
Adjusting the display contrast ..................................................................... 32
Standard settings ....................................................................................... 32
Index
4
Index
5592 545 GB

Scanning options
Scanning information .................................................................................. 33
Scanning time programs ............................................................................. 34
&Central heating time program ................................................................... 34
&DHW time program .................................................................................. 35
Scanning fault display................................................................................. 35
What to do if...
Rooms are too cold..................................................................................... 37
Rooms are too hot ...................................................................................... 38
There is no hot water .................................................................................. 39
The DHW is too hot..................................................................................... 39
"Select htg.circuit" flashes in the display ..................................................... 40
"Fault" flashes at the display ....................................................................... 40
The time flashes at the display .................................................................... 40
"Service" is displayed ................................................................................. 40
"Remote control" is displayed...................................................................... 41
"Ext. control" is displayed............................................................................ 41
"Ext. program" is displayed ......................................................................... 41
"Ext.room t.setpt." is displayed.................................................................... 41
"Without function" is displayed .................................................................... 42
Vitoladens - Ordering fuel oil
Vitoladens –ordering fuel oil ....................................................................... 43
&Fuel oil quality ......................................................................................... 43
&Fuel oil additives...................................................................................... 43
&Combustion improvers ............................................................................. 43
&Biofuels ................................................................................................... 43
Maintenance
Cleaning..................................................................................................... 44
Inspection and maintenance ....................................................................... 44
&Boiler....................................................................................................... 44
&DHW cylinder (if installed)........................................................................ 44
&Safety valve (DHW cylinder) .................................................................... 45
&Potable water filter (if installed) ................................................................ 45
Energy saving tips .................................................................................... 46
Keyword index .......................................................................................... 47
Index (cont.)
5
Index
5592 545 GB

The commissioning and matching up
of the control unit to local conditions
and the structural characteristics of
thebuildingmustbecarriedoutby
your heating contractor. During com-
missioning, or after prolonged time
outofuse,itmaybenecessarytoset
thetimeanddate.
As the user of new combustion equip-
ment, you may be obliged to notify
your local flue gas inspector of the
installation [check local regulations].
Your local flue gas inspector will also
inform you [where appropriate] about
work he may be required to perform
on your combustion equipment (e.g.
regular checks, cleaning).
Your system is preset at the factory
The control unit is preset at the fac-
tory for standard operation. Your heat-
ing system is therefore ready for use:
&Between 6:00 and 22:00 h the sys-
tem provides central heating with
standard room temperature.
&DHW will be heated between 5:30
and 22:00 h. DHW will be heated to
the set temperature subject to a
DHW cylinder being installed. The
DHW circulation pump is switched
ON (if connected to the control unit).
&Between 22:00 and 06:00 h the
system provides central heating
with the reduced room temperature
(set to 3 °C, frost protection).
&Between 22:00 and 05:30 h the
DHW cylinder temperature will not
be boosted. The DHW circulation
pump is switched OFF (if connected
to the control unit).
&The system automatically changes
over between summer and winter
time.
You may change the factory settings
in accordance with personal require-
ments.
Note
All data is saved in case of power fail-
ure.
Commissioning
6
Introductory information
5592 545 GB

You can change all settings for your heating system, centrally, at the program-
ming unit. You may also make such adjustments for the respective heating cir-
cuit at the remote control unit, if your system is equipped with such a unit.
Remote control operating instructions

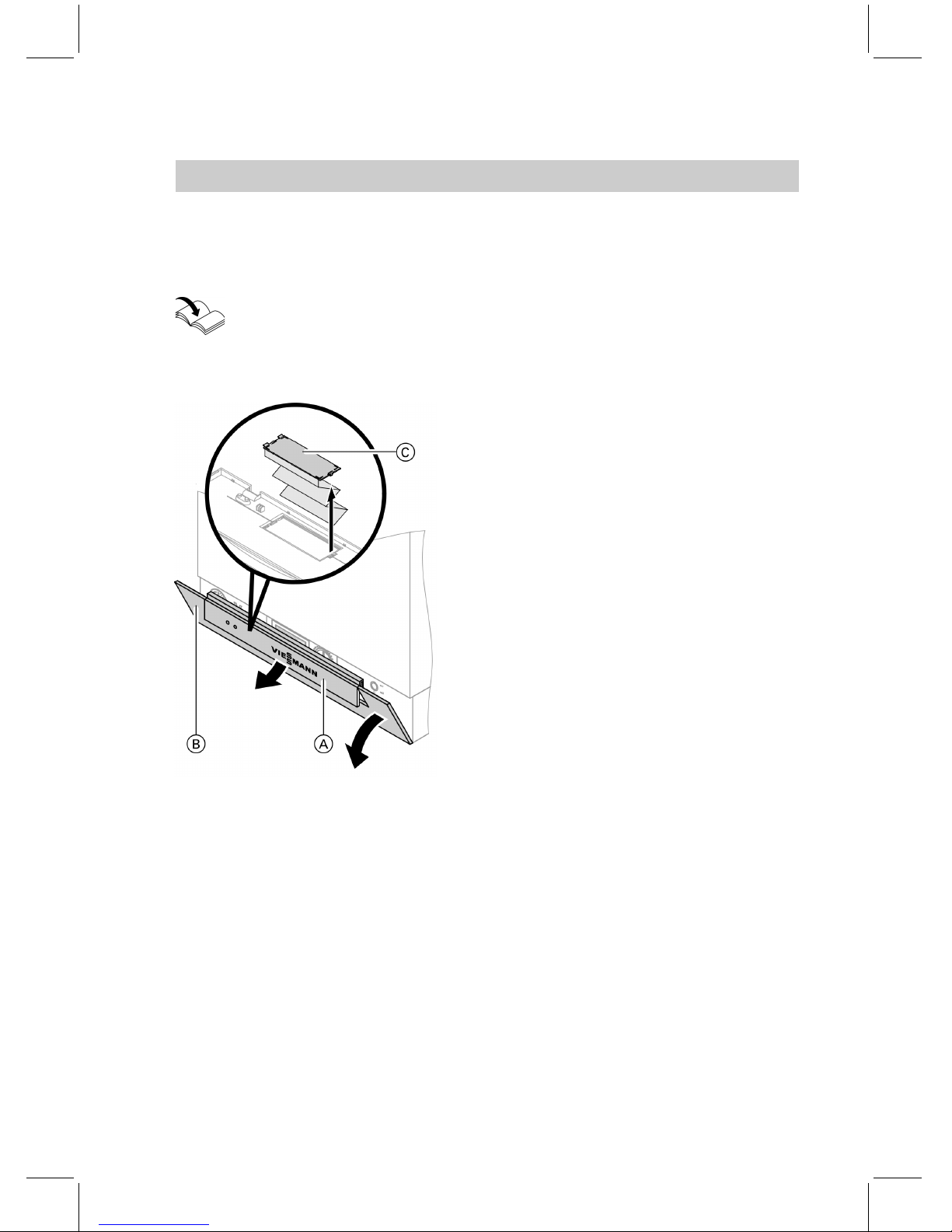

Opening the control unit
ACover
BControl unit flap (open to make
adjustments)
CFlap with abridged operating
instructions
Lift cover Aand pivot control unit flap
Bdown. All boiler controls are
located behind the control unit flap.
On the inside of control unit flap B,
an abridged version of these operating
instructions can be found behind a
further flap C. The abridged operat-
ing instructions can be removed with
the flap.
Summary of controls and indicators
7
Wheretofindthecontrols
5592 545 GB

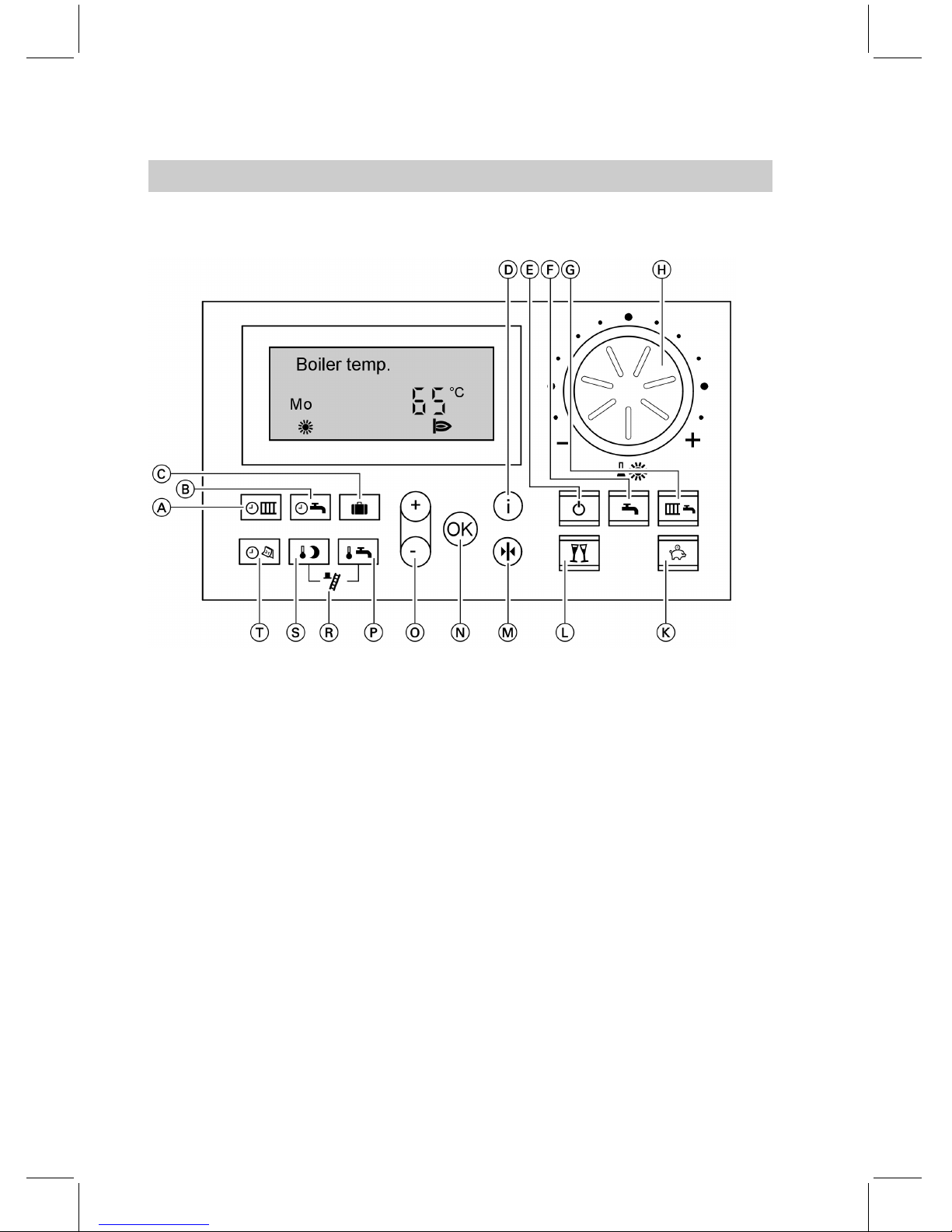

Functions
ATime program, heating circuit
BTime program, DHW
and circulation time program
CHoliday program (page 21)
DHelp (page 33)
EStandby mode (page 14)
FDHW only (page 15)
GHeating and DHW (page 13)
HStandard room temperature
(page 18)
KEconomy mode (page 23)
LParty mode (page 23)
MStandard setting
NConfirmation
OSetting values
PDHW temperature (page 25)
REmissions test function (only for
heating engineers)
SReduced room temperature
(page 19)
TTime/date (page 31)
Summary of controls and indicators (cont.)
8
Wheretofindthecontrols
5592 545 GB

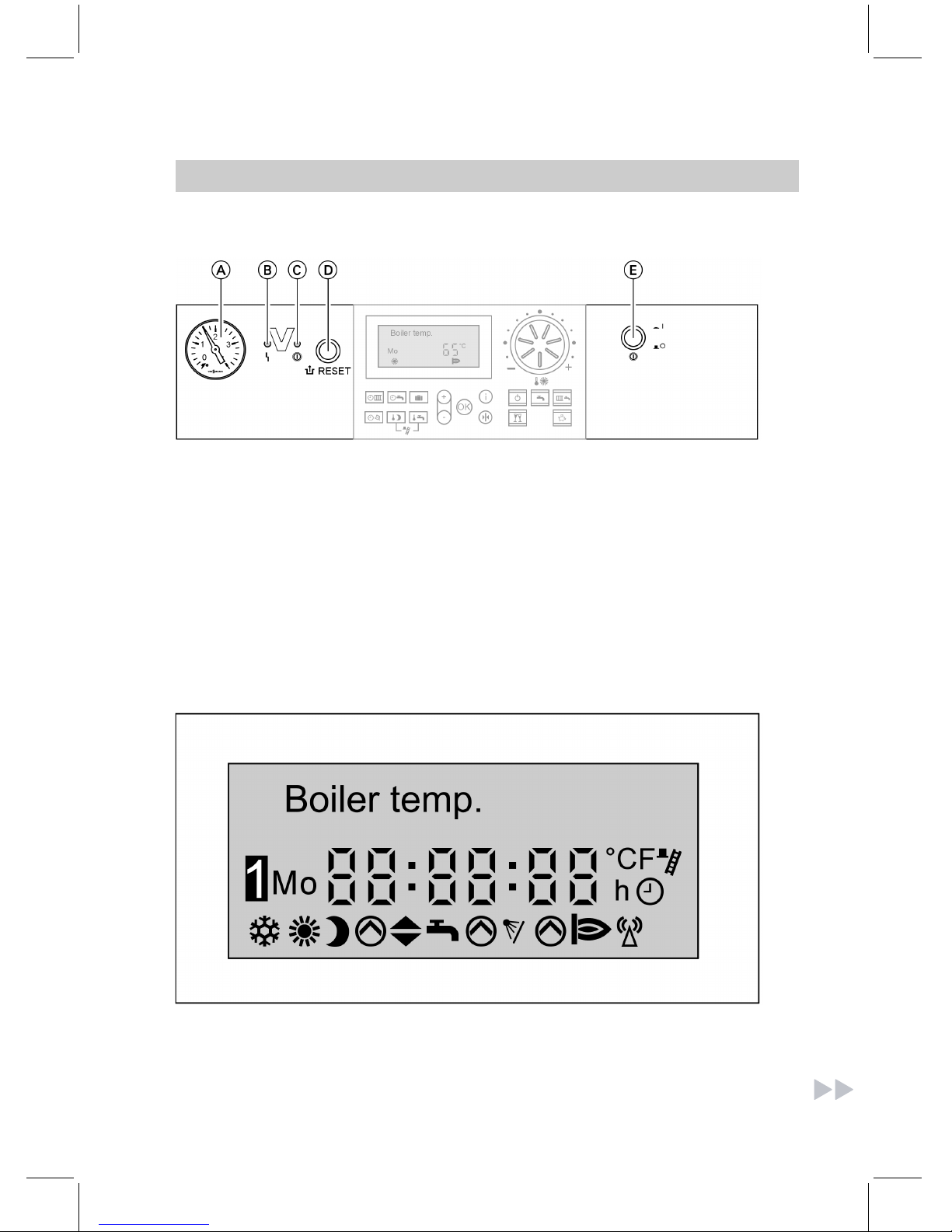

Further controls and indicators
APressure gauge
BFault indicator (red)
CON indicator (green)
DReset button
EON/OFF switch
Symbols in the display
These symbols are not always displayed, but appear subject to the system ver-
sion and the operating state.
Flashing displays indicate that modifications can be made.
eRisk of frost
sCentral heating with standard
room temperature
mCentral heating with reduced
room temperature
pCirculation pump running
Summary of controls and indicators (cont.)
9
Wheretofindthecontrols
5592 545 GB

|Mixer "OPEN"
~Mixer "CLOSE"
wDHW heating enabled
Êp DHW heating via solar heating
system
ABurner "On"
QRadio clock reception (only with
radio clock module, accessory)
uFor time setting and time scan
SEmissions test function
EBurner fault (appears instead of
the day of the week)
In case of two heating circuits:
Selected heating circuit
Heating system with two heating circuits
When two heating circuits have been connected to your heating system, select
that heating circuit to which the setting should apply before making adjustments
at the control unit.
Note
"Select htg.circuit" will be displayed should you begin making adjustments
prior to selecting the relevant heating circuit.
Press the following keys:

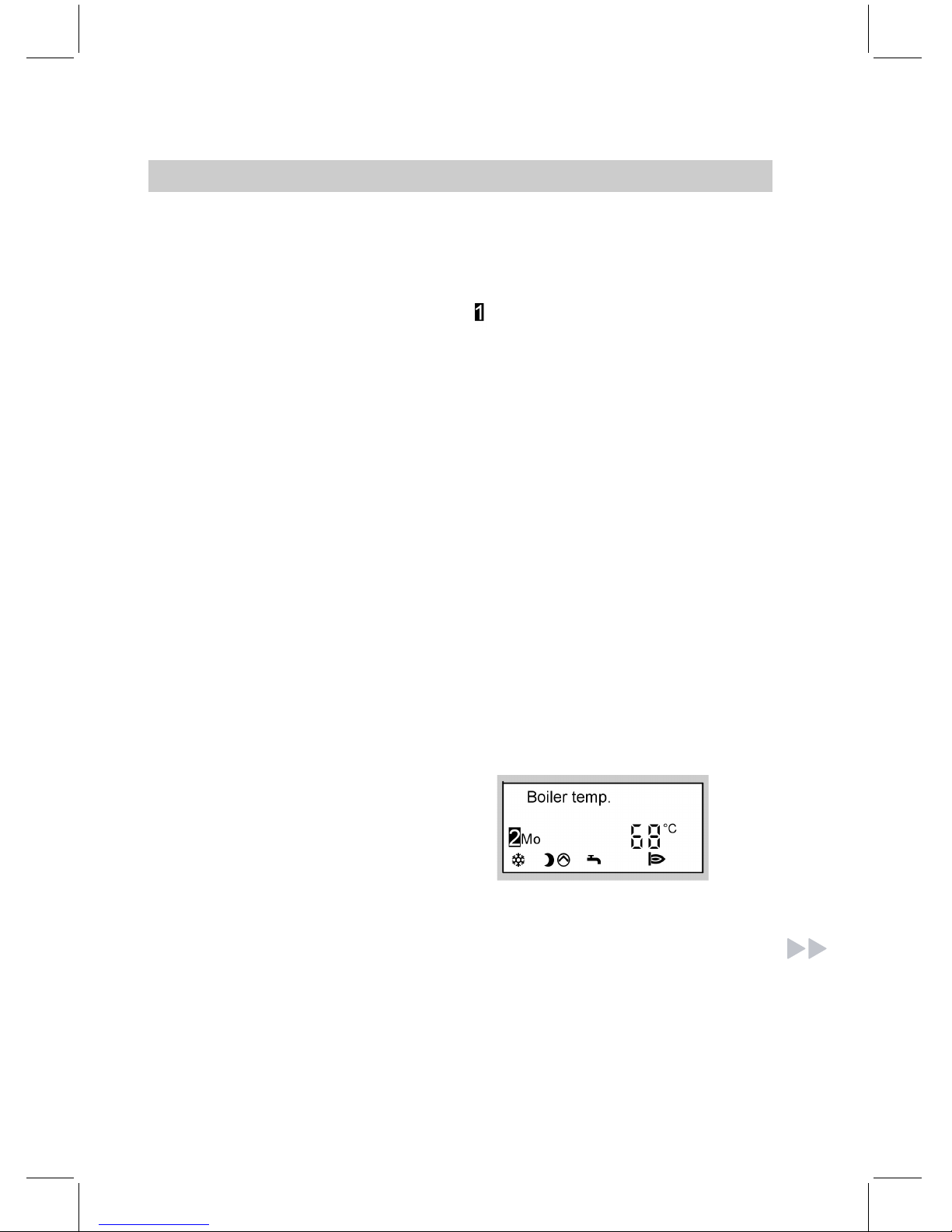

1. a"1r"flashes on the display.
2. dfor selecting heating circuit A1
(heating circuit without mixer)
or
3. afor heating circuit M2 (heating
circuit with mixer)
"2r"flashes on the display.
4. dfor selecting heating circuit M2
(heating circuit with mixer).
Note
Afterapprox.4sorifyoupressd
again, the following will be dis-
played:
Thefigureinfrontofthedayindi-
cates which heating circuit has
been selected.
Summary of controls and indicators (cont.)
10
Wheretofindthecontrols
5592 545 GB
