Viessmann VITOVENT 300 User manual

VIESMANN
Installation instructions
for contractors
Vitovent 300
Domestic ventilation system with heat recovery and remote
control; air flow rate up to 180 m
3
/h
VITOVENT 300
5592 914 GB 8/2007 Dispose after installation.

Please follow these safety instructions closely to prevent accidents and
material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
Note
Details identified by the word "Note"
contain additional information.
Target group
These instructions are exclusively
designed for qualified personnel.
&Work on gas appliances must only
be carried out by a qualified gas fit-
ter.
&Work on electrical equipment must
only be carried out by a qualified
electrician.
Regulations
Observe the following when working
on this system
&all legal instructions regarding the
prevention of accidents,
&all legal instructions regarding
environmental protection,
&the Code of Practice of relevant
trade associations,
&all current safety regulations as
defined by DIN, EN, DVGW, TRGI,
TRF, VDE and all locally applicable
standards.
Working on the system
&Isolate the system from the power
supply and check that it is no longer
'live', e.g. by removing a separate
fuse or by means of a mains isola-
tor.
&Safeguard the system against
unauthorised reconnection.
&When using gas as fuel, also close
the main gas shut‐off valve and
safeguard against unauthorised
reopening.
Safety instructions
2
5592 914 GB

Preparing for installation
System diagram.......................................................................................... 4
Air distribution ............................................................................................ 7
Routing lines .............................................................................................. 8
Thermal insulation ...................................................................................... 9
Preventing flow noise and pressure drop..................................................... 9
&Silencer ................................................................................................... 10
Installation versions of the air outlets .......................................................... 11
&Floor-level outlet...................................................................................... 11
&Slotted outlet (for wall or ceiling mounting) ............................................... 12
Positioning ................................................................................................. 13
&Location .................................................................................................. 13
&Operation with open flue combustion equipment....................................... 14
&Operation with cooker hoods and extract air dryers .................................. 14
&Clearance dimensions ............................................................................. 14
&Installation conditions .............................................................................. 14
Installation sequence
Installing the ventilation air and extract air device........................................ 15
&Installing the device ................................................................................. 15

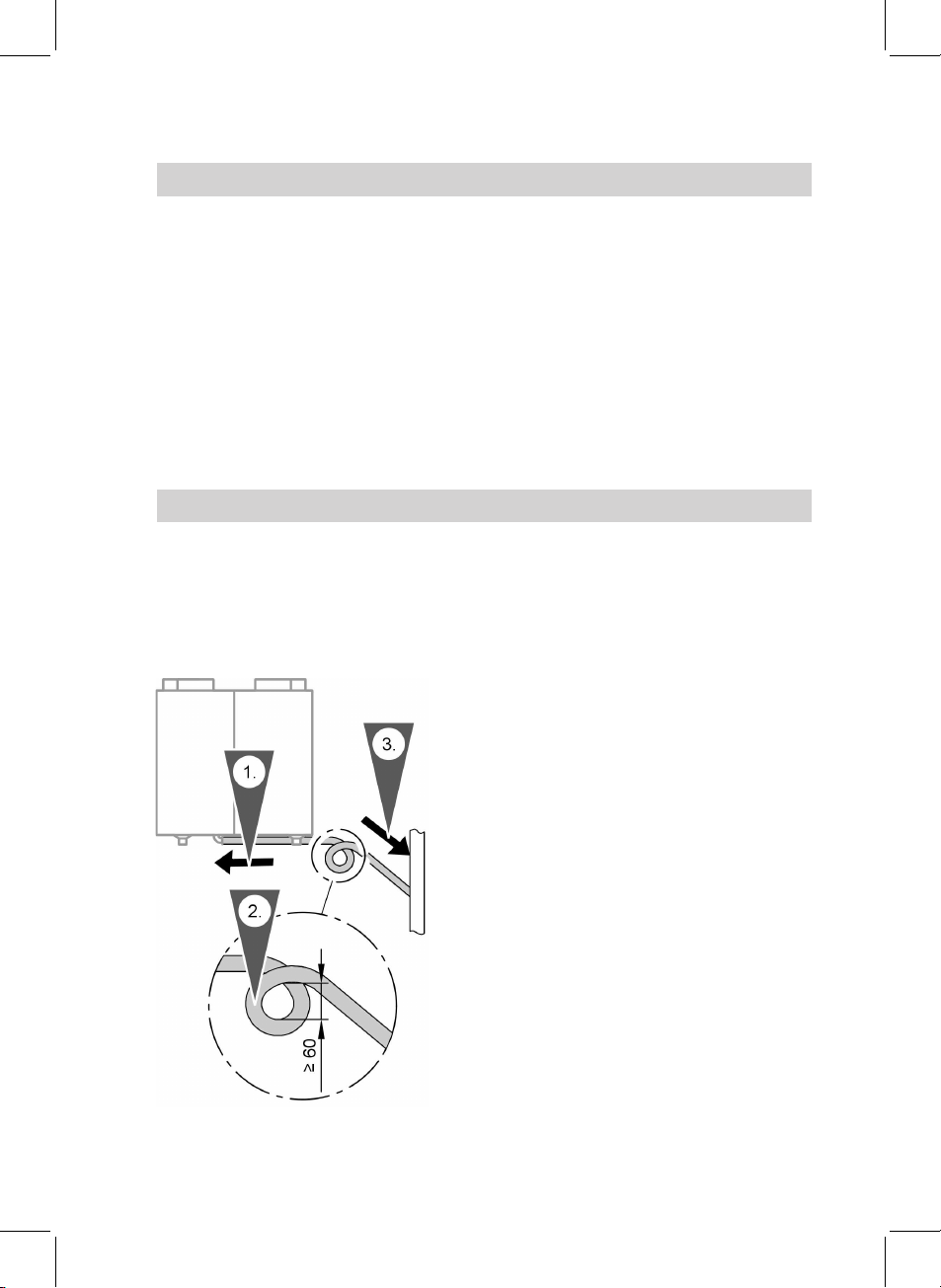

&Hanging the device on the wall................................................................. 15
Connection of the ductwork......................................................................... 16
Connecting the condensate drain................................................................ 17
&Condensate drain via water drain plug...................................................... 17
&Condensate drain via siphon.................................................................... 18
Electrical connections................................................................................. 19

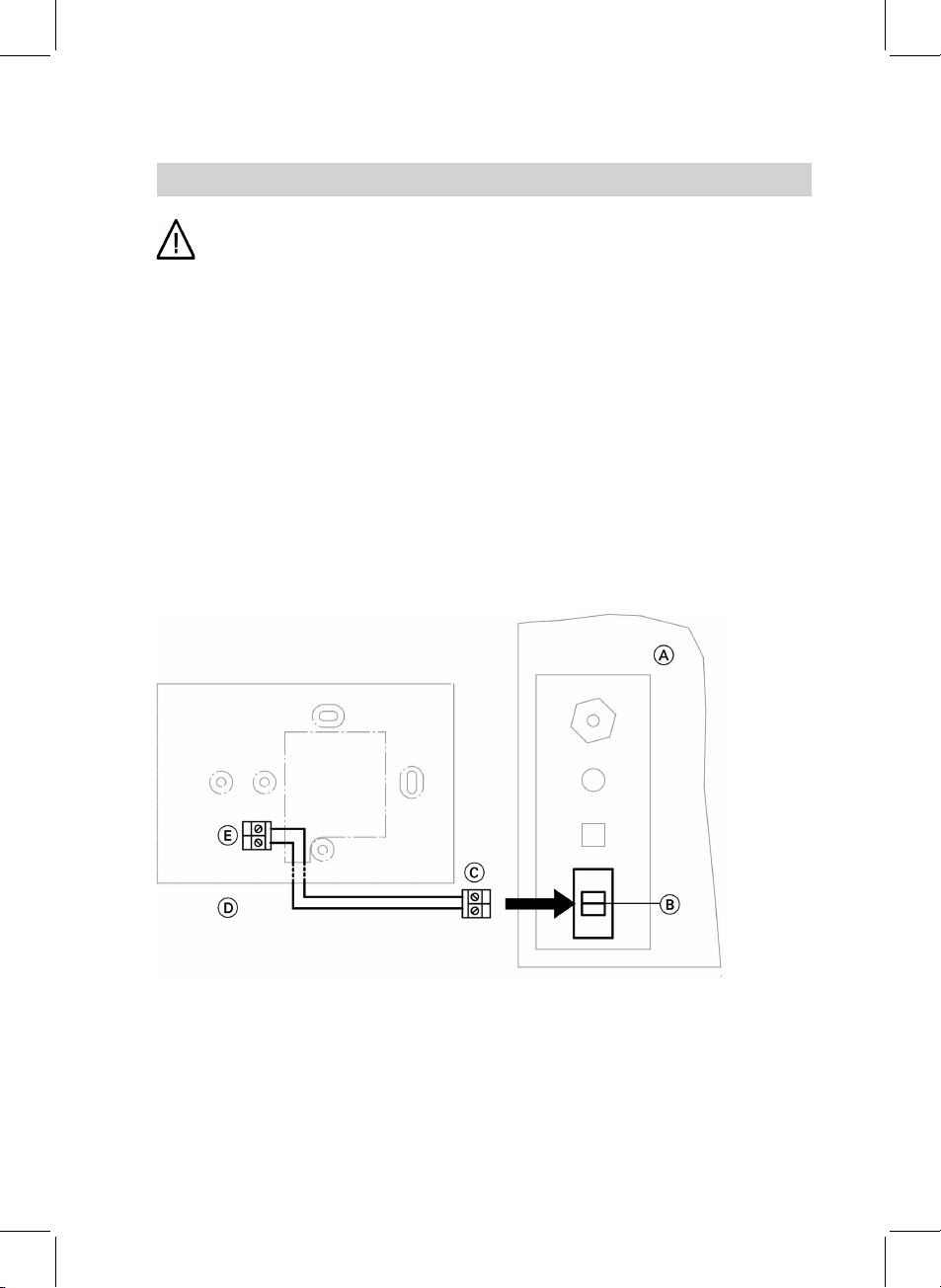

&Connecting the remote control ................................................................. 19
&Connecting to the power supply ............................................................... 20
External wall connection ............................................................................. 21
Expelled air roof outlet ................................................................................ 22
Extract air valve.......................................................................................... 22
Flo.............................................................................................................. 23
Ventilation air aperture for ceiling mounting................................................. 23
Ventilation air aperture for wall mounting..................................................... 24
Slotted outlet for wall and ceiling mounting.................................................. 25
Floor-level outlet......................................................................................... 26
Commissioning and adjustment .................................................................. 27
Index
3
5592 914 GB

Note: Legend see from page 5

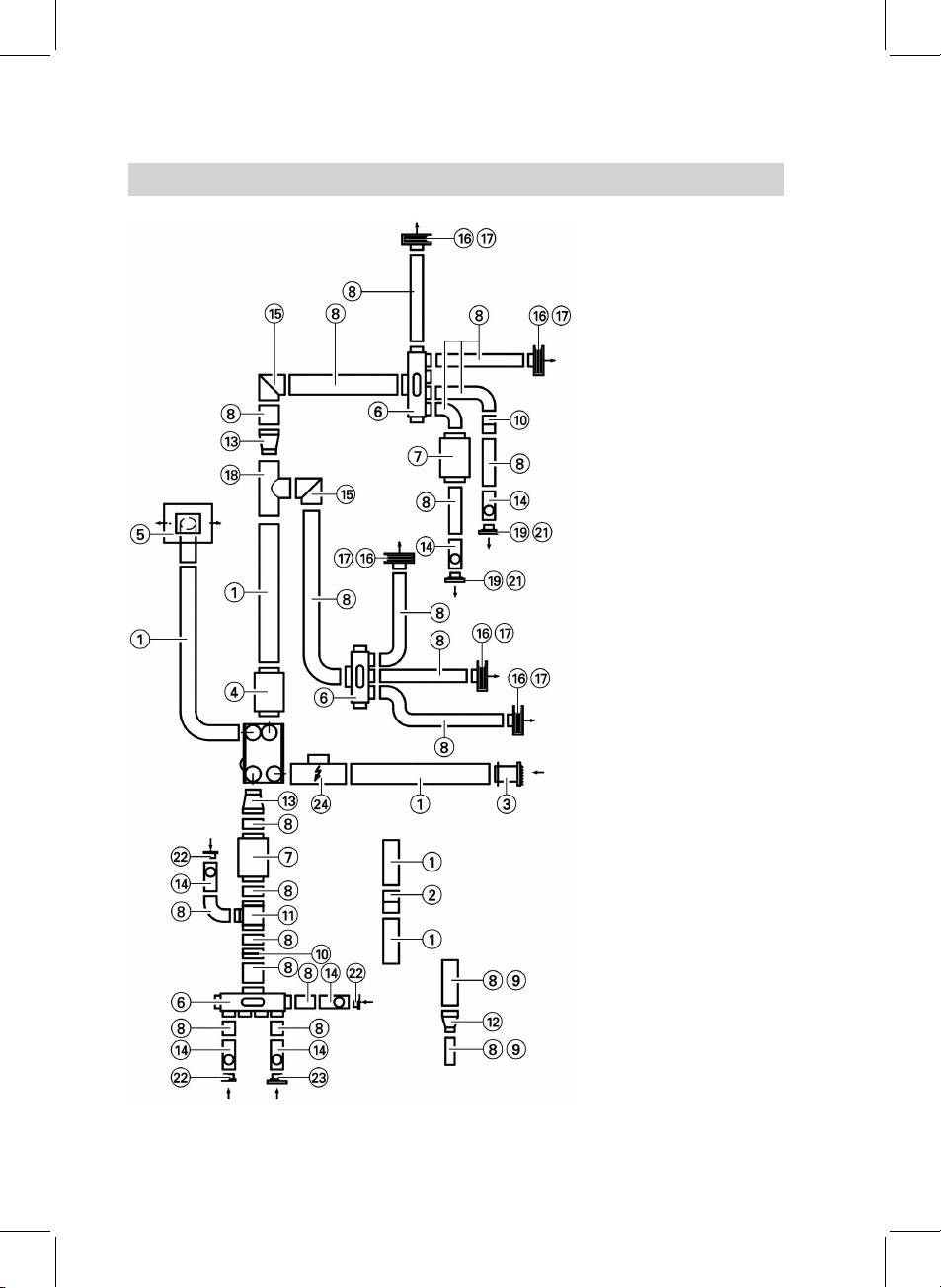

System diagram
4
5592 914 GB

ACeiling
AWall
BFloor
ACeiling
BWall
Duct system System
(DN)
Part no.
1Flexible pipe thermally insulated
(round), 2.5 m long
125 7249 101
160 9521 450
swaged (round), 5 m
long
125 7249 102
160 9521 455
2Connecting piece (round) for joining two
flex pipes
125 7249 103
160 9521 437
qT Bend (90°) 125 7249 106
160 9521 431
(45°) 125 7249 107
160 9521 725
1Folded spiral-seam tube 3 m long 125 7249 104
160 9521 428
3Outside air inlet grille 160 9562 053
4Silencer 125 7249 105
160 9541 461
System diagram (cont.)
5
5592 914 GB

Duct system System
(DN)
Part no.
5Expelled air roof outlet (round) with pro-
tective grille
160 9562 054
6Air distribution
box (flat)
6 connections 100/150 9542 586
3 connections 100/150 9562 050
7Silencer flexible (flat) 100 9542 573
150 9542 574
crush-resistant 100 9562 049
8Flat duct –flexible Length 3 m 100 9542 570
150 9542 571
Length 15 m 100 9559 070
9Flat duct –rigid 3 m long 150 9542 572
qP Connecting piece (flat) 100 9542 575
150 9542 576
qQ Tee (flat) Branch, broad side 150/100 9542 577
150/150 9542 578
Branch, narrow side 150/100 9542 579
150/150 9542 580
qW Reducer (flat) 150/100 9542 581
qE Adaptor duct system round to flat System 150
to DN 125
7249 111
System 150
to DN 160
9542 582
qR Reversing piece (flat) with round connec-
tion
System 100
to DN 100
9542 583
qT Elbow 90º narrow side 100 9562 057
150 9562 056
qZ Slotted outlet for wall and ceiling mounting 100 9542 566
qU Floor level outlet, stainless steel grate 100 9559 914
qI Tee DN 125 to
DN 125
7249 110
System 150
to DN 125
7249 112
System 150
to DN 160
9562 051
DN 160 to
DN 160
7190 179
System diagram (cont.)
6
5592 914 GB

Not shown System
(DN)
Part no.
Reducer
for the connection of pipework and for adapting
pipes DN 125 to the outside air filter box
DN 160 to
DN 125
7249 108
DN 125 to
DN 100
7249 109
Elbow 90º broad side made of 2 sections 100 9542 584
150 9542 585
made of 3 sections 150 9562 055
Ventilation apertures System
(DN)
Part no.
qZ Slotted outlet with connecting box, 128 × 51
(system 100)
100 9542 566
qU Floor-level outlet (system 100), anodised
aluminium grate
100 9559 914
qO Ventilation air aperture for ceiling mounting
in the centre of a room, DN 100
100 9523 956
wQ Ventilation air aperture for wall mounting,
DN 100
100 9521 425
Extract air apertures System
(DN)
Part no.
wW Extract air valve, DN 100 100 9521 448
wE Kitchen extract air valve, DN 100 100 9542 601
Air distribution
Air is distributed through air distribu-
tion boxes with flat ducts (system 100)
in conjunction with suitable branches,
silencers, clean-out covers and air
outlets/inlets.
Routing the air supply ductwork takes
priority over the heating, DHW and
drainage networks to avoid compli-
cated pipe runs.
System diagram (cont.)
7
5592 914 GB

ABedroom
BLiving room
CKitchen
DWC
EBathroom
FExtract air
GVentilation air
HOutside air
KExpelled air
LAir distribution box
MFlat duct
NVitovent 300
Routing lines
&Secure the air distribution system
with clips or perforated straps.
&Never let lines sag to prevent the
accumulation of condensate.
&Push individual elements together
with joints or female connections.
&Secure joints with self-tapping
screws or blind rivets and seal air-
tight with shrink tape.
&Use reducers in accordance with
the required flow rate and the pre-
vailing building conditions.
Air distribution (cont.)
8
5592 914 GB

&Never let drilling swarf drop into the
device connectors.
&Secure the flexible pipe with a hose
clip to the ventilation air connector
on the device.
Thermal insulation
Thermally insulate parts of the air dis-
tribution system that are routed
through unheated areas.
Provide outside air and expelled air
lines with a vapour diffusion-proof
insulation layer.
Provide ventilation air and extract
air lines with an insulation layer of at
least 50 mm thickness.
Preventing flow noise and pressure drop
&Install the air distribution box near
the central device.
&Maintain a max. distance between
the ventilation air and extract air
lines from the device and the air dis-
tribution box of 5 m.
&Install silencers on the ventilation
air and extract air side immediately
above the device (behind the adap-
tor from round to flat).
&Symmetrical ductwork design.
&Short runs, few bends.
Routing lines (cont.)
9
5592 914 GB

Silencer
Flexible versions
System Di-
men-
sio-
ns
a b c
100 flexible mm 128 202 117
150 flexible mm 207 304 104
Preventing flow noise and pressure drop (cont.)
10
5592 914 GB

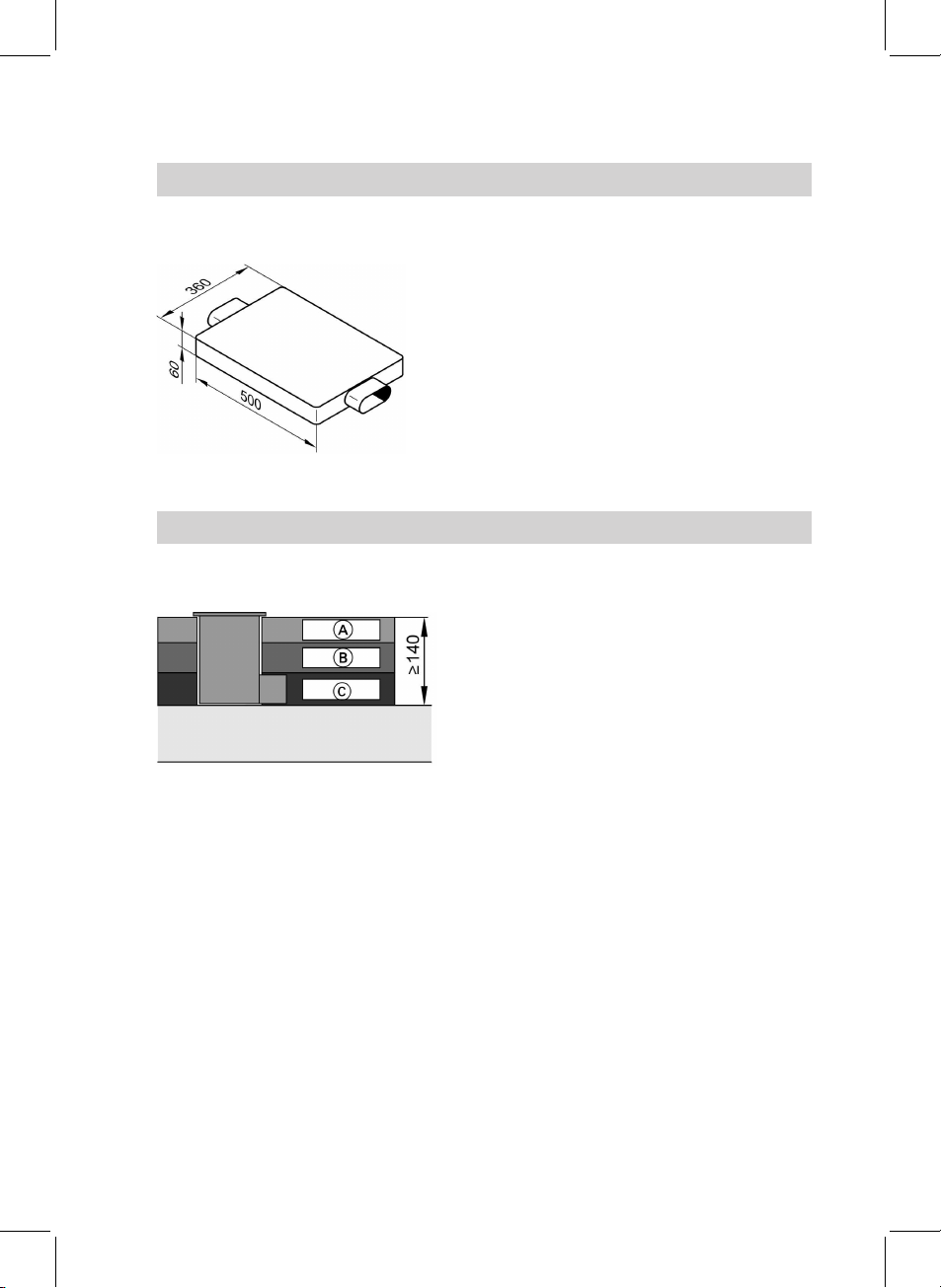

Crush-resistant version
Installation versions of the air outlets
Floor-level outlet
AScreed (50 to 60 mm)
BImpact sound insulation (30 mm)
CFlat duct (51 mm)
Preventing flow noise and pressure drop (cont.)
11
5592 914 GB

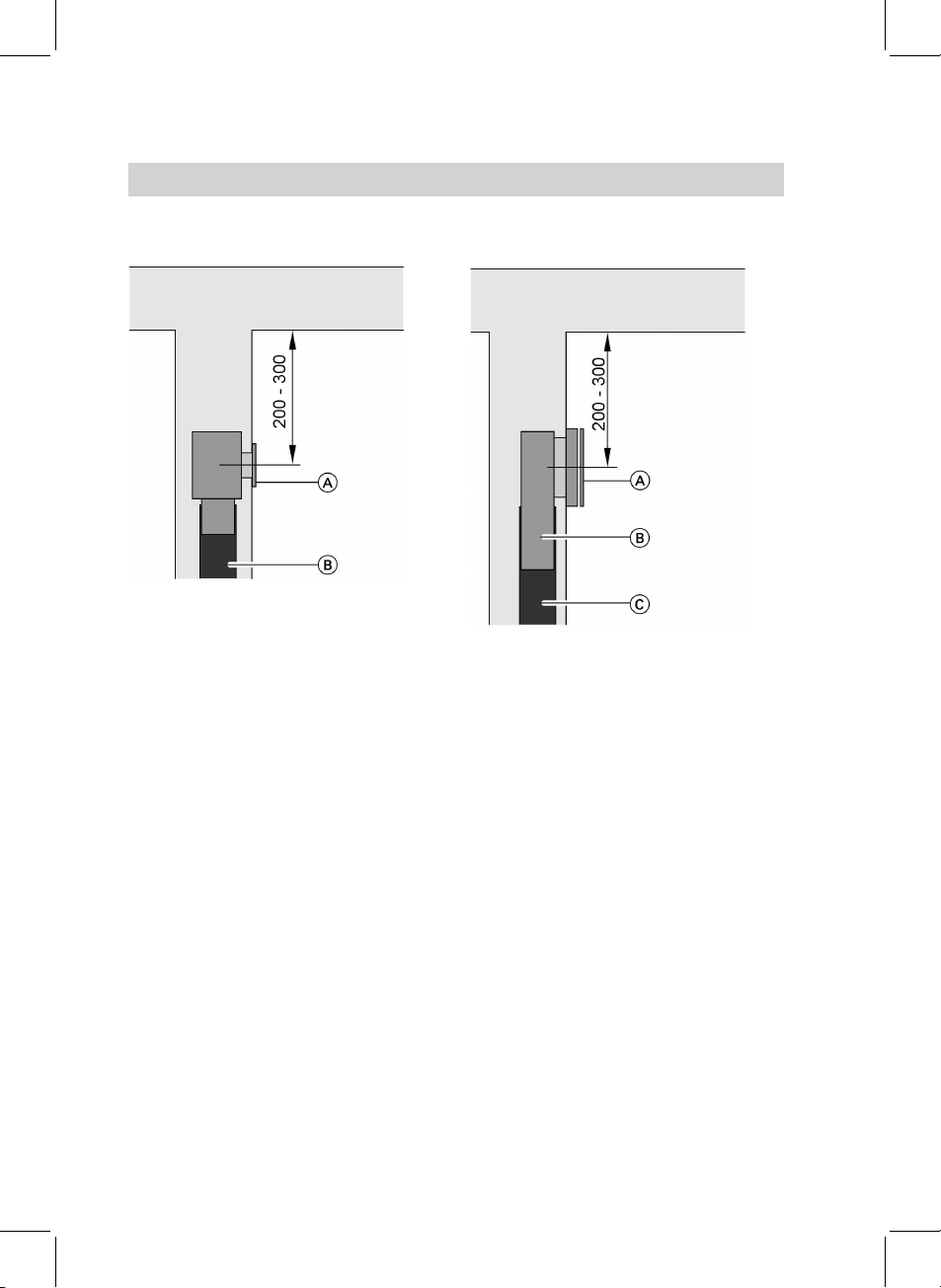

Slotted outlet (for wall or ceiling mounting)
AVentilation air via slotted outlets
BFlat duct (51 mm)
AVentilation air via a wall mounted
valve DN 100
Extract air via extract air valve
DN 100
BDiverter (flat to round DN 100)
CFlat duct (51 mm)
Installation versions of the air outlets (cont.)
12
5592 914 GB

AScreed (50 to 60 mm)
BImpact sound insulation (30 mm)
CFlat duct (51 mm)
DDiverter (flat to round DN 100)
EVentilation air via a ceiling
mounted valve DN 100
Extract air via extract air valve
DN 100 / kitchen extract air valve
DN 100
Positioning
Location
The ventilation device must be
installed in a dry area, free from the
risk of frost that affords the shortest
possible pipe runs to the ventilation
air or extract air areas. The
Vitovent 300 requires an ordinary
domestic power supply and a conden-
sate drain for the condensate created
during operation.
The Vitovent 300 can be installed
freestanding or wall mounted. The
device must be accessible for mainte-
nance purposes.
Install the remote control unit in a cen-
tral location, e.g. living room, kitchen
or hallway. Install a 2-core control
cable for connecting the remote con-
trol to the ventilation device.
Preferably install the ventilation
device inside the airtight and ther-
mally insulated building envelope.
The following are ideal locations:
&Utility room and domestic offices on
the ground floor
&Wall mounted cupboard
&Cellar
&Thermally insulated long pane attic
room.
Installation versions of the air outlets (cont.)
13
5592 914 GB

Operation with open flue combustion equipment
When installing domestic ventilation
systems together with open flue com-
bustion equipment (open flue gas
fired boilers or open fireplaces),
ensure that the operation of the
domestic ventilation system does not
create negative pressure.
The pressure drop in the installation
room may be up to 0.04 mbar. A
higher pressure drop could cause the
return flow of flue gases, if the ventila-
tion system and the open flue equip-
ment are operated simultaneously. In
such cases, install an interlocking cir-
cuit.
Operation with cooker hoods and extract air dryers
Never link up extractor fans and
extract air dryers and the ventilation
equipment pipework.
Design cooker hoods as re-circulating
or expelled air extractors.
Clearance dimensions
When installing the device ensure,
that its front can be fully opened for
maintenance purposes (min. 500 mm
clearance in front of the device).
Installation conditions
The ventilation air and extract air
device can be installed in any dry
location inside the house that is free
from the risk of frost, where the low
operating noise will not cause any nui-
sance in the living space. The power
supply must be made via a correctly
earthed standard socket with its own
fuse protection and a condensate
drain. The remote control unit can be
fitted anywhere in the house (max.
cable length: 50 m).
Positioning (cont.)
14
5592 914 GB

Installing the device
Position the device level on its rubber
feet.
Note
It may be necessary to provide a
plinth to safeguard the free drainage
of condensate (see page 17).
Hanging the device on the wall
Installing the ventilation air and extract air device
15
5592 914 GB

1. Undo the screws in the back of the
device.
2. Secure the retaining brace to the
back of the device.
3. Affix the rubber mounts
supplied Ain accordance with the
diagram to the back of the device.
4. Fit rubber profile Cto the wall
retainer and mount level on the wall
with the screws and rawl plugs sup-
plied.
Fit rubber washers Bsupplied as
anti-vibration insulator between the
wall and the wall retainer.
5. Hook the device into the wall retai-
ner and level out.
Connection of the ductwork
Installing the ventilation air and extract air device (cont.)
16
5592 914 GB

AVentilation air connector (DN 125)
BExtract air connector (DN 125)
COutside air connector (DN 125)
DExpelled air connector (DN 125)
ECondensate drain hose
(hose connection internal Ø
12 mm)
FHeight of the adjustable feet
&Push the relevant lines onto the
appropriate connectors.
&Secure the lines on the ventilation
air and expelled air connector with
hose clips.
Connecting the condensate drain
Note
Never twist the condensate drain elbow on the device.
Condensate drain via water drain plug
1. Push the condensate drain hose
(1.5 m, supplied in the pack) onto
the condensate drain elbow on the
device.
2. Install the stench trap/siphon.
3. Connect the condensate drain hose
with a constant slope to the on-site
sewer.
Connection of the ductwork (cont.)
17
5592 914 GB

Note
Should the condensate drain hose run
partially through unheated rooms,
protect it from frost in such areas (e.g.
thermal insulation or ribbon heater).
Condensate drain via siphon
1. Push the condensate drain hose
(1.5 m, supplied in the pack) onto
the condensate drain elbow on the
device.
2. Connect the condensate drain hose
with a slope and airtight to a siphon
(on-site).
3. Connect the siphon to the on-site
sewer.
Note
Should the condensate drain hose run
partially through unheated rooms,
protect it from frost in such areas (e.g.
thermal insulation or ribbon heater).
Connecting the condensate drain (cont.)
18
5592 914 GB

Danger
Incorrectly executed electrical
work can lead to injuries and
material losses.
Carry out the power supply
connection and all earthing
measures in accordance with
IEC 364, the requirements of
your local power supply utility,
VDE or national regulations.
The power supply must be made via a
correctly earthed standard socket with
its own fuse protection (230 V/50 Hz).
When installing open flue heating
equipment (type B to TRGI '86/96)
inside the living space or in rooms
connected with several other rooms,
from where combustion air is drawn,
interlock the domestic ventilation sys-
tem electrically with the heating
equipment to prevent both running
simultaneously.
Observe the regulations specified in
TRGI '86/96 , 5.1.22 as well as the
DVGW Code of Practice G 670 [or
local regulations].
Connecting the remote control
ATop of the Vitovent 300 device
BSocket, OpenTherm BUS cable
CPlug, OpenTherm BUS cable
DWall mounting base, remote con-
trol
ETerminals "OT BUS"
Electrical connections
19
5592 914 GB

Danger
Touching 'live' components can
result in the transfer of danger-
ous body currents.
When connecting the remote
control, isolate the device from
the power supply and safe-
guard against reconnection.
1. Remove the back of the remote
control (wall mounting base D)
from the remote control.
For this, press on the locking tabs
on the bottom of the device.
2. Lead the cable (2-core, min. cross-
section 0.5 mm
2
, max. length 50 m)
through the cable entry in the wall
mounting base. Connect the cable
in accordance with the diagram to
terminals X1 Eof the remote con-
trol.
Note
These cores may be interchanged.
3. Secure the wall mounting base to
the intended installation location.
Note
Installation conditions:
&On an internal wall in the living
space, at a height of approx.
1.5 m from the floor.
&Not near windows and doors.
&Not above radiators.
&Not near heat sources (direct
sunlight, fireplace, TV set etc.).
4. Push the top part of the remote
control onto the wall mounting
base.
5. Connect the remote control cable
in accordance with the diagram to
plug C(plugged into socket Bon
the l.h. top of the Vitovent 300 A).
Note
Never route this cable alongside
230 V cables.
6. Push plug Cinto socket Bof the
OpenTherm BUS connection on
the l.h. top of the Vitovent 300.
Connecting to the power supply
Push the power plug into a safety out-
let with separate fuse protection.
Electrical connections (cont.)
20
5592 914 GB
