Viessmann Vitodens 100-W User manual

Operating instructions
for the system user
VIESMANN
Heating system
with control unit for constant temperature or weather-compensated
mode
VITODENS 100-W
5592 606 GB 11/2011 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are for the
heating system user.
This unit is not designed to be used by
persons (including children) with limited
bodily, sensory or mental capacities, or
lacking experience and/or lacking knowl-
edge, unless they are supervised by a
person responsible for their safety, or
have received instructions from such a
person as to how to use the unit.
!Please note
Children should be supervised.
Ensure that children do not play
with the unit.
Danger
Incorrectly executed work on the
heating system can lead to life-
threatening accidents.
■ Work on gas appliances must
only be carried out by a regis-
tered gas fitter.
■ Work on electrical equipment
must only be carried out by a
qualified electrician.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Never
switch lights or electrical appli-
ances ON or OFF.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Remove all people from the
danger zone.
■ Notify your gas or electricity
supplier and your heating con-
tractor from outside the build-
ing.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
For your safety
5592 606 GB

3
If you smell flue gas
Danger
Flue gas can lead to life-threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the boiler room.
■ Close all doors in the living
space.
In case of fire
Danger
Fire creates the risk of burning
and explosions.
■ Shut down the heating system.
■ Close the shut-off valves of the
fuel lines.
■ Use a tested fire extinguisher,
class ABC.
Boiler room requirements
!Please note
Incorrect ambient conditions can
lead to damage to the heating
system and put the safe opera-
tion at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
■ Never close existing ventilation
apertures.
Ancillary components, spare and
wearing parts
!Please note
Components that are not tested
with the heating system may lead
to damage to the heating system,
or may affect their various func-
tions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 606 GB

4
Introductory information
Commissioning..................................................................................................... 5
Your system is preset at the factory..................................................................... 5
Where to find the controls
Summary of controls and indicators..................................................................... 6
■Control and display elements............................................................................ 6
■ Indicators on display......................................................................................... 6
Operating mode of the heating system................................................................ 7
■Operation without room temperature control unit.............................................. 7
■ Operation with room temperature control unit................................................... 7
■ Weather-compensated mode............................................................................ 7
Start-up/shutdown
Starting the heating system.................................................................................. 8
Shutting down the heating system....................................................................... 8
■Switching the Vitodens off with frost protection................................................ 8
■Shutting down the heating system.................................................................... 9
Settings
Heating................................................................................................................. 10
Domestic hot water............................................................................................... 10
Displays
Heating water temperature................................................................................... 11
What to do if...
System characteristics......................................................................................... 12
Fault indicator on display...................................................................................... 13
Maintenance
Cleaning............................................................................................................... 14
Inspection and maintenance................................................................................ 14
■.......................................................................................................................... 14
Energy saving tips............................................................................................. 15
Keyword index.................................................................................................... 16
Index
Index
5592 606 GB

5
The commissioning and matching up of
the control unit to local conditions and
the building characteristics must be car-
ried out by your heating contractor.
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Local flue gas
inspectors will also inform you [where
appropriate] about work they may be
required to perform on your combustion
equipment (e.g. regular checks, clean-
ing).
Gas council no.
Rated heating output range
kW
Gas council no.
7.9 - 13 41-819-21
7.9 - 16 41-819-22
7.9 - 19 41-819-23
7.9 - 26 41-819-24
11.0 - 35 41-819-25
Your system is preset at the factory
The control unit is preset at the factory
for standard operation.
Your heating system is therefore ready
for operation. You may change the fac-
tory settings in accordance with individ-
ual requirements.
Introductory information
Commissioning
5592 606 GB

6
Control and display elements
A B C D
r
r
A
°C
06
ADisplay
Bà Rotary selector "Service set-
tings" (only for heating contractors)
Ctr Rotary selector "Heating water
temperature"
DON/OFF switch
Indicators on display
r
A
8:8:8°C
°F
A C D
HG F
8:8:8
SERV
E
B
AHeating mode
BDHW heating
CDisplay value or fault code
DTemperature (in conjunction with
the display value)
EService setting active (only for con-
tractors)
FCurrent burner output
GBurner in operation
HFault
Where to find the controls
Summary of controls and indicators
5592 606 GB

7
Operation without room temperature control unit
The required heating water temperature
can be set with the rotary selector
"tr" (see page 10).
Operation with room temperature control unit
Please make any adjustments to the
connected room temperature control unit
using the relevant operating instruc-
tions.
Note
The heating water temperature must be
set sufficiently high using the rotary
selector "
tr
" for the desired room tem-
perature to be reached.
Weather-compensated mode
In weather-compensated mode, the
heating water temperature is regulated
subject to the outside temperature.
Rotary selector "tr" enables you to
increase or reduce the room tempera-
ture.
Where to find the controls
Operating mode of the heating system
5592 606 GB

8
We recommend you contact your local heating contractor if you are planning to start
up a heating system that has not been used for a long period.
1. Check that the heating system is
full.
2. Open the gas shut-off valve.
3. Switch on the ON/OFF switch.
Your heating system and room tem-
perature control unit (if connected)
are now ready for operation.
Shutting down the heating system
Switching the Vitodens off with frost protection
If you do not wish to use your boiler for several days you can switch the unit off.
r
1. Turn rotary selector "tr" to "0".
2. Turn cylinder temperature controller
(if provided) to "0" or lowest setting.
Note
Frost protection is now active for the
boiler.
Frost protection for the entire heating
system - see operating instructions for
the room temperature control unit.
Start-up/shutdown
Starting the heating system
5592 606 GB

9
Shutting down the heating system
Shut down your heating system completely if it will not be needed for longer periods
of time (several months).
We recommend you contact your local heating contractor if you are planning to take
your heating system out of use for longer periods. Your heating contractor can then
take any necessary action, subject to requirements, e.g. system frost protection or
preserving the heating surfaces.
1. Close the gas shut-off valve and safe-
guard against unauthorised reopen-
ing.
2. Switch ON/OFF switch OFF.
The power to the system is now
switched off.
Note that the system is no longer
frost-protected.
Start-up/shutdown
Shutting down the heating system (cont.)
5592 606 GB

10

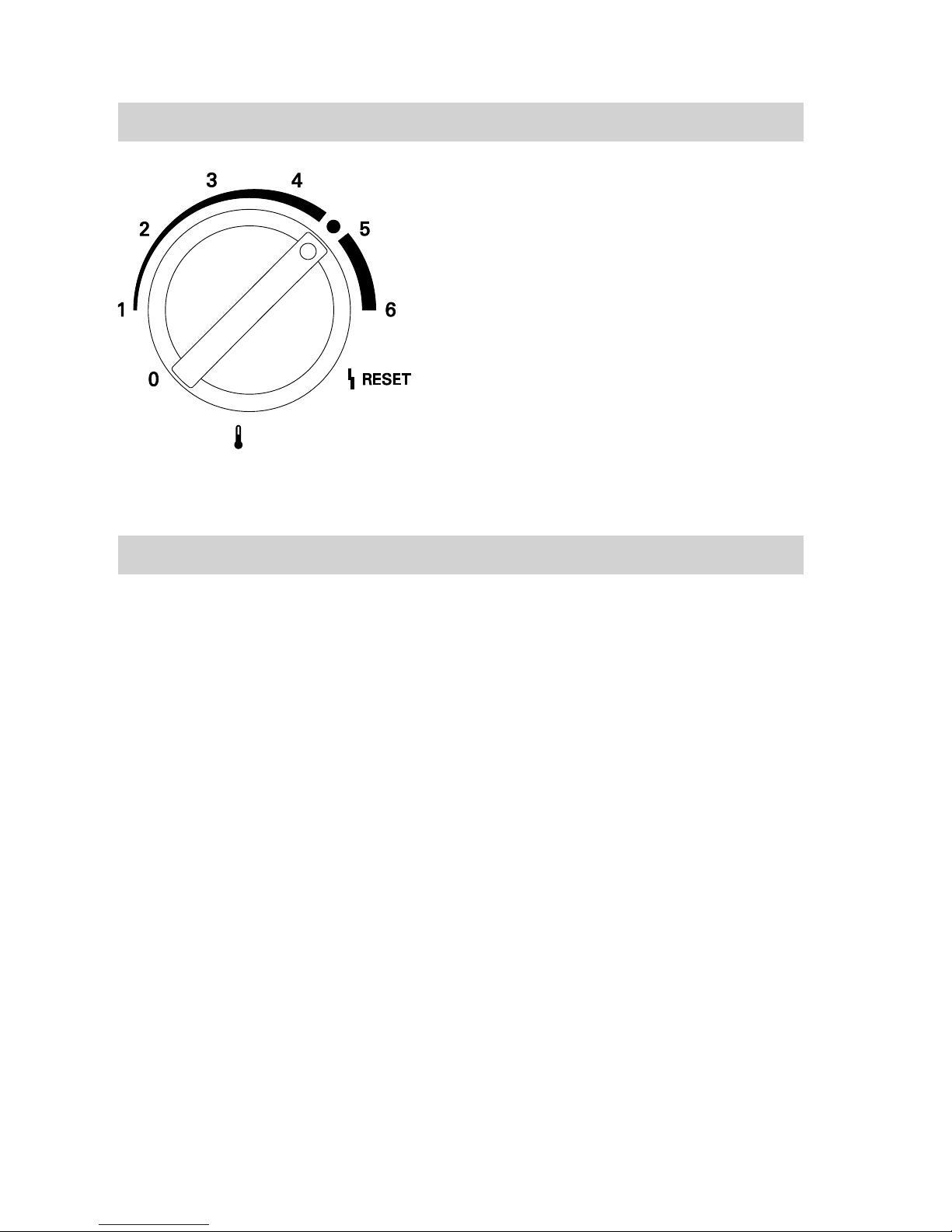

r
Switching on:
Move rotary selector "tr" to the
required heating water temperature.
Note
If a room temperature control unit is con-
nected, use this unit to set the desired
room temperature (see page 7).
If central heating is active, the display
shows "r".
Switching off:
Turn rotary selector "rt" to "0".
Domestic hot water
If a DHW cylinder is part of your heating system, select the DHW temperature at the
DHW cylinder controller.
Select the DHW temperature in accordance with your personal requirements (e.g. for
showering).
Settings
Heating
5592 606 GB

11
A
°C
06
r
The boiler water temperature appears on
the display at all times during operation.
Displays
Heating water temperature
5592 606 GB

12
What to do if... Cause Remedy
... the heating system will
not start
No mains voltage Switch the ON/OFF switch ON
Rotary selector
"tr" is on "0"
Setting the desired heating water
temperature (see page 10)
Fuse/MCB in the
power distribution
board (domestic
mains fuse) or in
control unit has
blown/responded
Notify your local heating contrac-
tor
... the burner is not started
or starts intermittently
No gas available Open the gas shut-off valve and
if necessary check with your gas
supply utility
Control unit fault Check the fault code on the dis-
play (see page 13). Contact
your local heating contractor with
the fault code
... the burner fails to start,
fault message "U" is dis-
played
False start Reset burner fault (see
page 13) – if this attempt to
start also fails, notify your heat-
ing contractor
Water shortage Notify your local heating contrac-
tor
… the burner shuts down
even if the rooms have not
reached their required tem-
perature
Fault in the ventila-
tion air supply or
flue system
Notify your local heating contrac-
tor
Heating water tem-
perature or required
room temperature
are set too low
Raise the heating water temper-
ature at rotary selector "tr"
(see page 10) or increase the re-
quired room temperature (see
remote control unit operating in-
structions)
Air in the heating
system
Bleed radiators
... the rooms have not
reached the required tem-
perature, even though the
burner is operational
Circulation pump
faulty
Notify your local heating contrac-
tor
What to do if...
System characteristics
5592 606 GB

13
Reset burner fault (press Reset)
r
Turn rotary selector "rt" to position "U
RESET" for less than 2 s and then back
to the control range.
Fault indicator on display
Any fault in the heating system will be shown on the display.
You can check the fault code on the display and then notify your heating contractor
accordingly. This allows the heating contractor to better prepare for the service call
and may save additional travelling costs.
2f
What to do if...
System characteristics (cont.)
5592 606 GB

14
All appliances may be cleaned with a
commercially available domestic clean-
ing agent (non-scouring).
Inspection and maintenance
The inspection and maintenance of a heating system is prescribed by the Energy
Savings Ordinance [EnEV - Germany] and the DIN 4755, DIN 1988-8 and EN 806
standards.
Regular maintenance ensures trouble-free, energy-efficient and environmentally
responsible heating. For this it is recommended you enter an inspection and main-
tenance contract with your heating contractor.
Boiler
Increasing boiler contamination raises
the flue gas temperature and thereby
increases energy losses. All boilers
should therefore be cleaned annually.
Logbook
Please ensure that you have a Logbook
supplied with your appliance. This Log-
book should be completed by your instal-
ler to verify that the correct installation
and commissioning procedure was fol-
lowed.
Failure to complete the Logbook may
result in difficulties should a problem
arise with your appliance during the
guarantee period. This Logbook forms
part of the industry's Benchmark code of
practice for the installation, commission-
ing and servicing of central heating sys-
tems.
All Gas Safe Registered Installers carry
a ID card and have a registration num-
ber. Both should be recorded in your
Logbook. You can check your installer is
Gas Safe registered by calling GasSafe
register on [phone] or visit
the website www.gassaferegister.co.uk
Maintenance
Cleaning
5592 606 GB

15
You can also save energy by taking the following steps:
AC
B
D
■ Correct ventilation.
Briefly open window A fully and at the
same time close the thermostatic
valves B.
■ Never overheat rooms;
endeavour to achieve a room temper-
ature of 20 °C; you can save up to 6%
on your heating bills for every degree
you reduce your room temperature.
■ Close roller shutters (where installed)
at dusk.
■Adjust thermostatic valves B cor-
rectly.
■Never cover radiators C and thermo-
static valves B.
■ Utilise the setting options offered by
control unit D.
■ Only activate the DHW circulation
pump if DHW is being drawn.
■ Controlled DHW consumption: A
shower generally uses less energy
than a full bath.
Energy saving tips
Energy saving tips
5592 606 GB

16
C
Changing the temperature.............7, 10
Commissioning....................................5
Controls................................................6
D
DHW temperature..............................10
Display.................................................6
Display elements..................................6
E
Error (fault).........................................13
F
Fault...................................................12
Frost protection....................................8
H
Heating water temperature................10
I
Inspection...........................................14
M
Maintenance......................................14
Maintenance contract.........................14
N
Notice of completion............................5
R
Reset..................................................13
Room temperature...............................7
S
Starting.................................................8
T
Temperature display..........................11
Your contact
Contact your local contractor if you have any questions regarding the maintenance
and repair of your system. You may, for example, find local contractors on the internet
under www.viessmann.com.
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Viessmann Werke GmbH&Co KG
D-35107 Allendorf
Telephone: [phone]
Fax: [phone]
www.viessmann.com
5592 606 GB Subject to technical modifications.
Keyword index
Keyword index
