ViewSonic PJD5353 User manual

PJD5353 Short Throw Portable XGA Projector
ViewSonic’s PJD5353 short throw DLP projector is ideal
for use in the ofce or on the campus. It delivers amazingly
clear images with 2500 ANSI lumens, 3000:1 contrast ratio
and XGA 1024x768 native solution. With a short throw
lens, it offers large images from short distances – project a
50” image from only 2.3 feet away. The projector is packed
with features like multiple PC and video inputs, HDMI for
HD video signals, 120Hz/3D-ready for 3D applications
and integrated speaker for multimedia. With ViewMatch™
technology adjusts color perfectly, so your presentations will
be rich and vibrant regardless of any setting. This projector
weighs only 5.7 lbs and is equipped with energy-saving
Eco-mode which lowers power consumption and extends
lamp life up to 6000 hours. The PJD5353 short throw XGA
DLP projector delivers excellent performance and value for
small business and education applications.
1
2
3
4
PJD5353
Short throw lens for large, stunning images in small places
The short throw lens enables large images to be projected from short distances in small
rooms with space limitations. No distracting shadows on the projected image and no blinding
lights in front of the presenters. A screen size of 50-inch is possible from just 2.3 feet.
BrilliantColor™ technology
Latest BrilliantColor technology delivers stunning all-digital clarity with life-like color,
sharp graphics and outstanding video. The sophisticated 6-segment color wheel
enhances the yellow color performance that is key to accurate and vivid color
reproduction.
HDMI True digital connectivity
HDMI is the highest and future-proof video standard, guaranteed for true
digital picture clarity.
Long Lamp Life 6000 hours
The new advanced lamp technology extends the lamp life up to 6000 hours*
and saves on maintenance costs.
53D-Ready Powered by DLP® Link™ Technology
Supports up to 120Hz frame rate.
6Give Greener Presentations & Save
Use energy-saving Eco-mode to lower power consumption, extend lamp life
and reduce noise. Filter-less design for saving maintenance costs and labor.
7New slim design
With only 3.2 inch height and lightweight of 5.7 lbs, it’s designed for portability
and is easy to move from location to location.

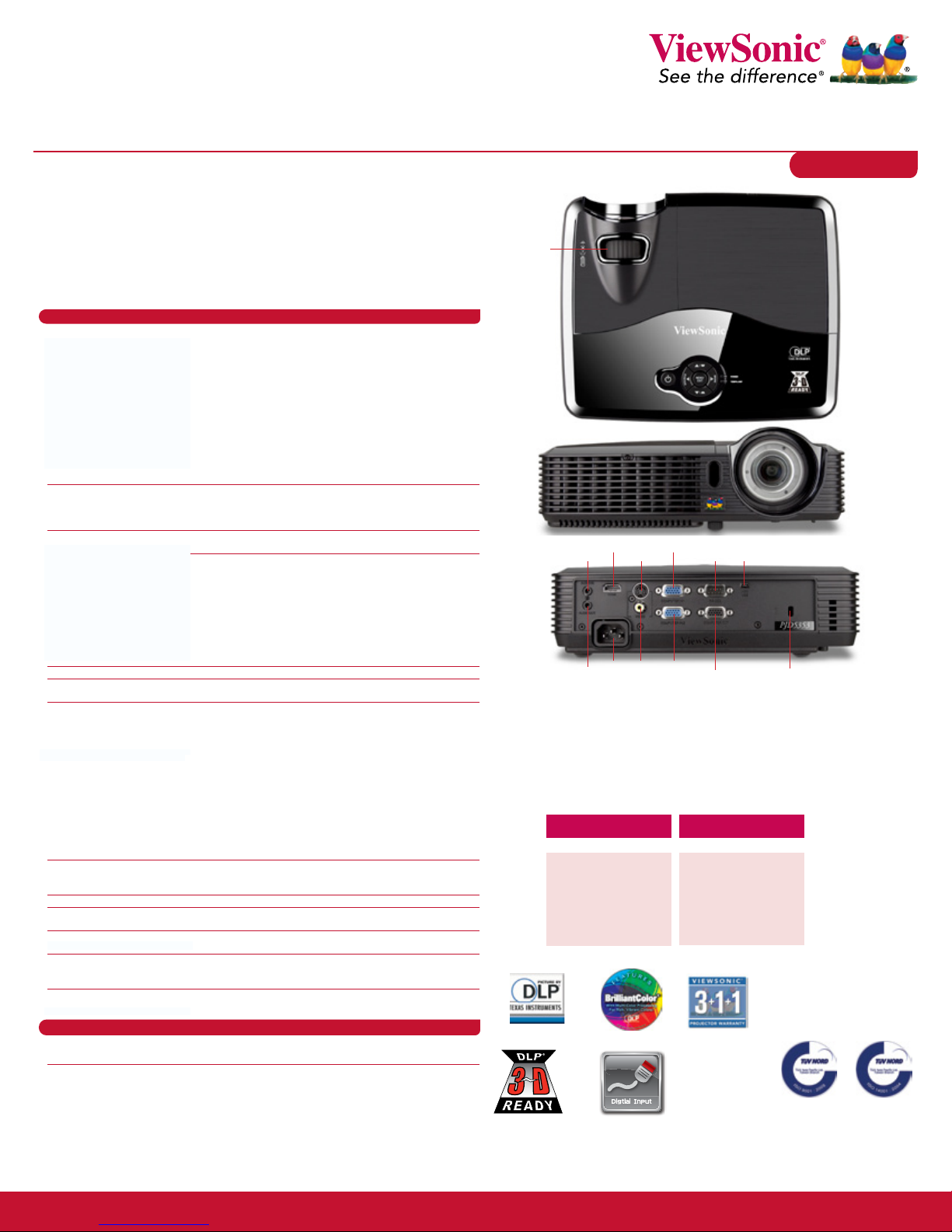

PJD5353 Short Throw Portable XGA Projector
PJD5353
Specications
DISPLAY Type: 0.55" Digital Micromirror Device (DLP™)
Resolution: XGA 1024x768 (Native)
Lens: Fixed Manual optical zoom / Manual optical focus
Keystone: Vertical digital keystone correction, +/- 40º
Size: 40" - 300" / 1.0m - 7.6m
Throw Distance: 1.6ft - 14.0ft / 0.5m - 4.3m
Throw Ratio: 0.68:1
Lamp: 180 watt
Lamp Life (Normal / Eco-mode): 5000 / 6000* hours
Brightness: 2,500 Lumens
Contrast Ratio: 2000:1 (typ) / 3000:1 (dynamic)
Aspect Ratio: 4.3 (native), 16:9, auto
Color Depth: 24 bits, 16.7M Colors (8+8+8)
Color Wheel: 6-Seg RGBCYW / 7200RPM
INPUT SIGNAL Computer : NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
and Video SECAM ( B, D, G, K, K1, L), SD 480i and 576i, ED 480p
and 576p, HD 720p, 1080i and 1080p
Frequency: Fh: 31 -100KHz, Fv: 50 -120Hz
COMPATIBILITY PC: VGA to UXGA
MAC®: Up to UXGA (scaled)
CONNECTOR RGB Input: 15-pin mini D- sub (x2)
RGB Output:15-pin mini D- sub
Digital Input: HDMI 1.3
Component: 15-pin mini D-sub (x2, shared with RGB)
Composite Input: RCA jack
S-video Input: 4-pin mini-DIN
Audio Input: 3.5mm mini jack
Audio Output: 3.5mm mini jack
Control: RS-232 (DB-9)
USB: Mini B (for mouse control rmware update)
AUDIO Speaker: 2W
POWER Voltage: 100 ~ 240VAC (Auto Switching), 50/60Hz (universal)
Consumption: 235W (typ) <1W (stand-by mode)
CONTROLS Basic: Power, keystone/arrow keys, left/source, menu/exit, right/mode
OSD: Picture: Color Mode, Brightest PC, ViewMatch, Movie,
User 1, User 2, White board, Black board, Green board, Brightness,
Contrast, Color setting, User color, White intensity, Gamma, Aspect
Ratio, Keystone, 3D sync, 3D invert
Video / Audio: Frequency, Tracking, H & V position, Zoom, Video
setting, Audio setting
Setting (Basic): Projector Projection, Menu Setting, Signal Type, Blank
Screen, Test Pattern, Start up screen, Message, Auto source, Power
saving, Green mode
Option (Advanced): Closed Caption, DCR, Password,
Presentation Timer, High Altitude, Lamp setting, Factory Default
Information: Current System Status, Input Source, Resolution,
H & V Frequency, Lamp hours
OPERATING CONDITIONS Temperature: 32 F-104 F (0ºC-40ºC)
Humidity: 10%-80% (non-condensing)
Altitude: 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
NOISE LEVEL Normal / Eco-mode: 32dB / 30dB
DIMENSIONS (WxHxD) Physical: 11.2" x 3.2" x 9.2" (in) / 294 x 82 x 234 (mm)
Packaging: 13.0" x 13.0" x 5.5" (in) / 330 x 330 x 140 (mm)
WEIGHT Net: 5.7 lb. (2.6kg)
Gross: 7.5 lb. (3.4kg)
REGULATIONS RoHS,CB, CCC, PSB, C-tick, KC, SASO, CE, GOST-R, Ukr, Erp,
SVHC list & REACH DoC, UL, FCC(including ICES-003), cUL/ CSA,
Argen, NOM
WARRANTY 3-year limited warranty on parts, 1-year limited warranty on lamp, 1st
year Express Exchange® service.
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
*Lamp life may vary based on actual usage and other factors. Specifications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details.Corporate names, trademarks stated herein are the property of their respective companies, DLP® and DLP logo are registered trademarks of Texas Instruments and
BrilliantColor™ is a trademark of Texas Instruments. Copyright © 2011 ViewSonic Corporation. All rights reserved. [15859-00B-10/11] PJD5353
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
ViewSonic PJD5353 projector, power cable, VGA cable, remote control with batteries, Quick Start Guide,
ViewSonic Wizard CD (with User Guide)
Package Contents
Optinal Accessories
> Replacement Lamp RLC-072
> Short Throw Wall Mount Kit WMK-027
> Wireless Presentation Gateway WPG-360
> 3D HD Video Processor VP3D1
> 3D Active Shutter Glasses PGD-250
> Soft Case PJ-CASE-001
> Extended 5-year warranty PRJ-EW-07-02
Projection Distance Screen Size
(4:3)
Feet
1.6
2.6
3.6
6.9
9.2
11.5
14.0
Inches
40
60
80
150
200
250
300
Meters
0.5
0.8
1.1
2.1
2.8
3.5
4.3
Meters
1.02
1.52
2.03
3.81
5.08
6.35
7.62
Audio Out
Audio In
HDMI
S-Video
Video
Computer In 1
Computer In 2
RS-232
Computer Out
USB
Ac Power
Kensington Lock
Focus Ring
