ViewSonic PJD6251 VS12585 User manual

ViewSonic®
IMPORTANT: Please read this User Guide to obtain important information on install-
ing and using your product in a safe manner, as well as registering your product for
future service. Warranty information contained in this User Guide will describe your
limited coverage from ViewSonic Corporation, which is also found on our web site
at http://www.viewsonic.com in English, or in specic languages using the Regional
selection box in the upper right corner of our website.
“Antes de operar su equipo lea cuidadosamente las instrucciones en este manual”
- User Guide
- Guide de l’utilisateur
- Bedienungsanleitung
- Guía del usuario
- Guida dell’utente
- Guia do usuário
- Användarhandbok
- Käyttöopas
- Руководство пользователя
- 使用手冊 (繁體)
- 使用手冊 (簡體)
- 사용자 안내서
- คู่มือการใช้งาน
- Podręcznik użytkownika
- Kullanιcι kιlavuzu
PJD6251
DLP Projector
Model No. : VS12585

Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EC.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive
2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent or
discarded batteries or accumulators as unsorted municipal waste, but use the return and
collection systems available.
If the batteries, accumulators and button cells included with this equipment, display the
chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of
more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean with a soft, dry cloth.
7.
Do not block any ventilation openings. Install the unit in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade and the third prong are provided
for your safety. If the provided plug does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs.
Convenience receptacles and the point where they exit from the unit. Be sure that the
power outlet is located near the unit so that it is easily accessible.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the unit. When a cart is used, use caution when
moving the cart/unit combination to avoid injury from tipping over.
13. Unplug this unit when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the unit
has been damaged in any way, such as: if the power-supply cord or plug is damaged,
if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or
moisture, or if the unit does not operate normally or has been dropped.

Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS Directives
as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic ceramic
parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up
to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
EN-1

Copyright Information
Copyright©ViewSonic®Corporation, 2010.All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are
trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this material, or
the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change
product specications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please
register your product on the Internet at: www.viewsonic.com. The ViewSonic
®
Wizard CD-ROM also
provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
PJD6251
ViewSonic DLP Projector
VS12585
PJD6251_UG_ENG Rev. 1B 01-01-10
_______________________________
_______________________________
The lamp in this product contains mercury.
Please dispose of in accordance with local, state or federal laws.
EN-2

EN-3
Notes on the AC Power Cord
AC Power Cord must meet the requirement of countries where you use this projector.
Please confirm your AC plug type with the graphics below and ensure that the proper
AC Power Cord is used. If the supplied AC Power Cord does not match your AC outlet,
please contact your sales dealer. This projector is equipped with a grounding type AC
line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose
of this grounding type plug. We highly recommend using a video source device also
equipped with a grounding type AC line plug to prevent signal interference due to
voltage fluctuations.
Ground

EN-4
CONTENTS
Introduction ........................................................................................................5
Projector Features .......................................................................................................5
Package Contents .......................................................................................................6
Projector Overview ......................................................................................................7
Using the Product ........................................................................................ 9
Control Panel .............................................................................................................. 9
Connection Ports .......................................................................................................10
Remote Control .........................................................................................................11
Installing the Batteries ...............................................................................................12
Remote Control Operation ........................................................................................13
Installation ........................................................................................................14
Connecting the Projector ...........................................................................................14
Powering On/Off the Projector ..................................................................................15
Adjusting the Projector ..............................................................................................16
Menu Operation ............................................................................................18
Network Control .........................................................................................25
Maintenance .................................................................................................. 40
Cleaning the Lens .....................................................................................................40
Cleaning the Projector Housing ................................................................................40
Replacing the Lamp ..................................................................................................41
Specifications ...............................................................................................43
Appendix ........................................................................................................... 44
LED Indicator Messages ...........................................................................................44
Compatibility Modes ..................................................................................................45
Troubleshooting ........................................................................................................47
RS-232 Command and Configuration .......................................................................48
IR Control Code ........................................................................................................50

EN-5
Introduction
Projector Features
The projector integrates high-performance optical engine projection and a user - friendly
design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 1.397cm / 0.55" Texas Instruments DLP®technology
XGA (1024 x 768 pixels)
Auto image re-sizing (Auto-Sync.) to 1024 x 768 full screen with scaling
compression compatibility for VGA, SVGA, XGA and SXGA
Compatibility with Macintosh®computers
Compatibility with NTSC, PAL, SECAM and HDTV
D-Sub 15-pin terminal for analog video connectivity
User-friendly, multi-language on-screen display
Advanced electronic keystone correction
RS-232 connector for serial control
RJ-45 connector for networked control
 The information in this manual is subject to change without notices.
 The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.

EN-6
Package Contents
When you unpack the projector, make sure you have all these components:
Optional accessories
Projector with Lens Cap AC Power Cord Remote Control (IR) & batteries
Projector Carrying Case VGA Cable (D-SUB to D-
SUB)
ViewSonic CD
Wizard
Quick Start
Guide
RS232 cable
P/N: J2552-0208-00
RGB to component adapter
P/N: J2552-0212-00
 Contact you dealer immediately if any items are missing, appear damaged, or if
the unit does not work
.
 Save the original shipping carton and Packing material; they will come-in handy
if you ever to ship your unit. for maximum protection, repack your unit as it was
originally packed at the factory.

EN-7
Projector Overview
Front View
Lens cap
Elevator button
Speaker
Lens cap strap
Focus ring
Projection lens
Zoom ring
Front IR remote control sensor
Control panel
Ventilation holes (intake)
Lamp cover
11 10 9
1 3 54
7
62
8
17
2 8
3 9
4 10
511
6

EN-8
Rear View
Connection ports
AC power socket
Kensington lock
Rear IR remote control sensor
Ventilation holes (exhaust)
Security bar
Bottom View
Ceiling mount (M4*6)
Tilt-adjustment feet
13
2
4 5
6
1
2
23
4
5
6
1
22
 This projector can be used with a ceiling mount for support. The ceiling mount is
not included in the package.
 Contact your dealer for information to mount the projector on a ceiling.
2
1
70.0mm 90.0mm
143.0mm

EN-9
Using the Product
Control Panel
LED
Button Function
Power (Power LED indicator)
Refer to “LED Indicator Messages”.
TEMP (Temperature LED indicator)
Refer to “LED Indicator Messages”.
LAMP (Lamp LED indicator)
Refer to “LED Indicator Messages”.
/Keystone
Manually correct distorted images resulting from an angled projection.
Four directional buttons
Use four directional buttons to select items or make adjustments to your selection.
ENTER
Enter to sub-menu and confirm the menu selection.
SOURCE
Manually select an input source.
MENU/EXIT
Display or exit the on-screen display menus.
Power
Turn the projector on or off.
1 3
4
6
7
5
4
2
8
9
1
2
3
4
5
6
7
8
9

EN-10
Connection Ports
LAN
For network control.
USB
This connector is for firmware update and mouse function support.
HDMI
Connect HDMI output from video equipment to this jack.
VIDEO
Connect composite video output from video equipment to this jack.
S-VIDEO
Connect S-Video output from video equipment to this jack.
MONITOR OUT
Connect to a computer display, etc.
AUDIO OUT
Connect to a speaker or other audio input equipment.
COMPUTER IN 1
Connect image input signal (analog RGB or component) to this jack.
RS-232
When operating the projector via a computer, connect this to the controlling computer's
RS-232C port.
COMPUTER IN 2
Connect image input signal (analog RGB or component) to this jack
12V OUT
12V DC out
AUDIO IN
Connect an audio output from video equipment to this jack. The upper AUDIO IN
is Audio 1, and the lower one is Audio 2. When Audio 1 is turned on, Audio 2 will
turn off automatically and vice versa.
2 5 6 8 9 11 124 7 1031
1
2
3
4
5
6
7
8
9
10
11
12

EN-11
Remote Control
POWER
Turn the projector on or off.
VGA1
Select analog RGB signal from
COMPUTER IN 1 terminal.
Source
Manually select an input source by
sequence.
Enter
Confirmed selections.
Keystone+ / -
Adjust image distortion caused by
tilting the projector.
ViewM
Switch in between high brightness
performance or Accuracy color
performance.
Freeze
Press “Freeze” to pause the screen
image. Press again to cancel the
freeze function.
Four directional buttons
Use four directional buttons to select items
or make adjustment to your selection.
Mouse
Switch between OSD control and
Mouse control (Apply to Navigation
buttons, Enter/Mouse Left Click, and
Exit/Mouse Right Click buttons).
Exit
Exit OSD Menu.
Laser
Aim the remote at the viewing
screen, press and hold this button to
activate the laser pointer.
Magnify
Zoom in and out the images.
VGA2
Select analog RGB signal from
COMPUTER IN 2 terminal.
Volume + / -
Adjust the volume level.
Video
Select video signal from video
equipment.
Mute
Cut off the sound temporarily. Press again
to cancel the Mute function.
Auto
Resynchronize the projector to the
input signal from a computer. This
function is available for computer
mode only.
Light
Enable backlight functions of the remote
control’s buttons.
MENU
Display on-screen display menus.
Blank
Cut off the screen temporarily. Press again
to cancel the Blank Screen function.
1
2
3
4
5
6
714
815
916
10 17
11 18
12 19
13 20

EN-12
Installing the Batteries
1. Open the battery cover in the
direction shown.
2. Install batteries as indicated by the
diagram inside the compartment.
3. Close the battery cover into
position.
Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
 Make sure the plus and minus terminals are correctly aligned when loading a battery.
 Keep the batteries out of the reach of children. There is a danger of death by
accidentally swallowing the batteries.
 Remove batteries from remote control when not using for extended periods.
 Do not dispose of the used batteries along with household waste. Dispose of used
batteries according to local regulations.
 Danger of explosion may happen if batteries are incorrectly replaced. Replce all
the batteries with new ones.
 Batteries should not be in or near to fire or water, keep batteries in a dark, cool
and dry place.
 If suspect battery leakage, wipe out the leakage and then replace new batteries.
If the leakage adheres to your body or clothes, rinse well with water immediately.

EN-13
Remote Control Operation
Point the remote control at the infrared remote sensor and press a button.
Operating the projector from
the front
Operating the projector from
the rear
10 15
7m
5m
5m
10 15
7m
5m
5m
 Do not point the laser directly to the people's eyes (especially small children).
There is a danger of injury to the eyes.
The remote control may not operate when there is sunlight or other strong
light such as a fluorescent lamp shining on the remote sensor.
Operate the remote control from a position where the remote sensor is visible.
Do not drop the remote control or jolt it.
Keep the remote control out of locations with excessively high temperature or
humidity.
Do not get water on the remote control or place wet objects on it.
Do not disassemble the remote control.

EN-14
Installation
Connecting the Projector
USB Cable Composite Video Cable
VGA Cable (D-Sub to D-Sub) S-Video Cable
RS-232 Cable Internet Cable
Audio Cable HDMI Cable
VGA (D-Sub) to HDTV (RCA) Cable
1 6
2 7
3 8
4 9
5
22
14
Desktop type
Laptop type
23
5
5
67
8
4
WPG-350
49
 When connecting cable, power cords of both projector and external equipment
should be disconnected from AC outlet.
 The figure above is a sample connection. This does not mean that all of these
devices can or must be connected simultaneously.
 The cables that come with the projector may differ from the above illustration.
The included cables are based on actual shipment delivery.

EN-15
Powering On/Off the Projector
Powering On the Projector:
1. Remove the projector lens cap.
2. Complete the AC power cord and peripheral signal cable(s) connections.
3. Press button to turn on the projector.
The projector takes a minute or so to warm up.
4. Turn on your source (computer, notebook, DVD, etc.). The projector automatically
detects your source.
If you are connecting multiple sources to the projector simultaneously, press
the SOURCE button on the control panel or the Source button on the remote
control.
Warning
Remove the lens cap first before powering on.
Never look into the lens when the lamp is on. This can damage your eyes.
This focal point concentrates high temperature. Do not place any object near
it to avoid possible fire hazard.
Powering Off the Projector:
1. Press button to turn off the projector lamp. You will see a message "Power
off? Press Power again" appear on the screen.
2. Press button again to confirm.
The cooling fans continue to operate for cooling cycle.
 When the Lamp LED begins flashing, the projector has entered stand-by mode.
If you want to turn the projector back on, you must wait until the projector has
completed the cooling cycle and has entered stand-by mode. Once in stand-
by mode, simply press button to restart the projector.
3. Disconnect the AC power cord from the electrical outlet and the projector.
4. Do not turn on the projector right after power off.

EN-16

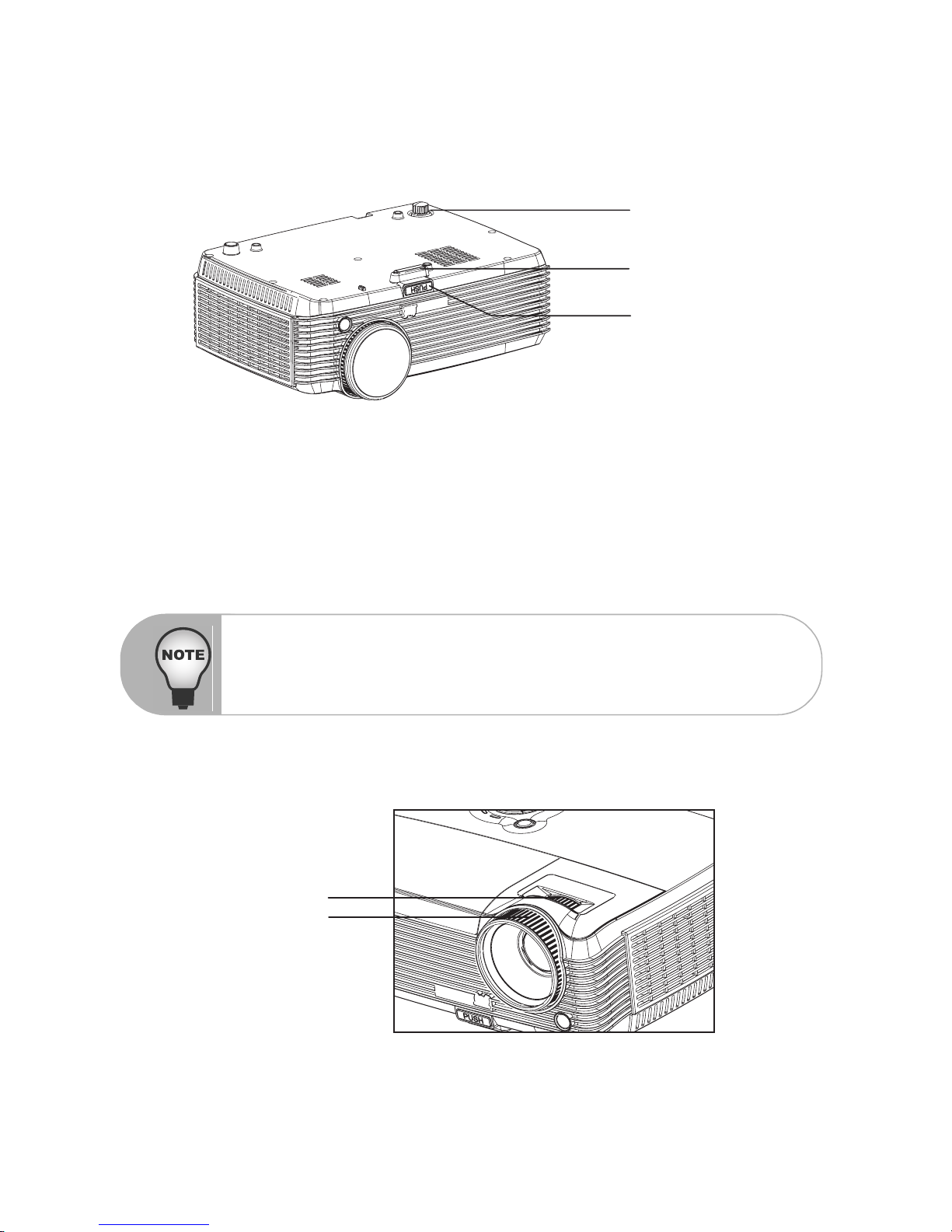

Adjusting the Projector
Adjusting the Projector Height
The projector is equipped with an elevator foot to adjust the image height.
To raise or lower the image:
1. To raise or lower the image, press the elevator button and raise or lower the front
of the projector. Release the button to lock the adjustment.
2. To level the image on the screen, turn the tilt-adjustment foot to fine-tune the
height.
Adjusting the Projector Zoom and Focus
1. Focus the image by rotating the focus ring. A still image is recommended for focusing.
2. Adjust the image by sliding the zoom ring.
Elevator button
Elevator foot
Tilt-adjustment foot
 To avoid damaging the projector, make sure that the elevator foot and tilt-
adjustment foot are fully retracted before placing the projector in its carrying
case.
Focus ring
Zoom ring

EN-17
Adjusting Projection Image Size
Refer to the graphic and table below to determine the screen size and projection distance.
 Position the projector in a horizontal position; other positions can cause heat
build-up and damage to the projector.
 Keep a space of 30 cm or more between the sides of the projector.
 Do not use the projector in a smoky environment. Smoke residue may build-
up on critical parts and damage the projector or its performance
.
 Consult with your dealer for special installation such as suspending from a
ceiling.
Screen size
Diagonal
4 : 3 Screen
eleTediW
Projection distance Projection distance
m inch m inch
66.9
86.6
102.4
118.1
137.8
153.5
173.2
204.7
259.8
433.1
1.02m / 40"
1.52m / 60"
2.54m / 100"
3.05m / 120"
5.08m / 200"
Wide: 1.4m / 55.1” Tele: 1.7m / 66.9”
Wide: 2.1m / 82.7” Tele: 2.6m / 102.4”
Wide: 3.6m / 141.7” Tele: 4.4m / 173.2”
Wide: 4.3m / 169.3” Tele: 5.2m / 204.7”
Wide: 7.2m / 283.5 Tele: 8.8m / 346.5”
1.02m / 40"
1.27m / 50"
1.52m / 60"
1.78m / 70"
2.03m / 80"
2.29m / 90"
2.54m / 100"
3.05m / 120"
3.81m / 150"
5.08m / 200"
6.35m / 250"
7.62m / 300"
1.80
1.40
2.10
2.50
2.80
3.20
3.60
4.30
5.40
7.20
9.00
10.80
1.70
2.20
2.60
3.00
3.50
3.90
4.40
5.20
6.60
6.60
11.00
55.1
70.9
82.7
98.4
110.2
126.0
141.7
169.3
212.6
283.5
354.3
425.2
346.5
519.7
13.20
