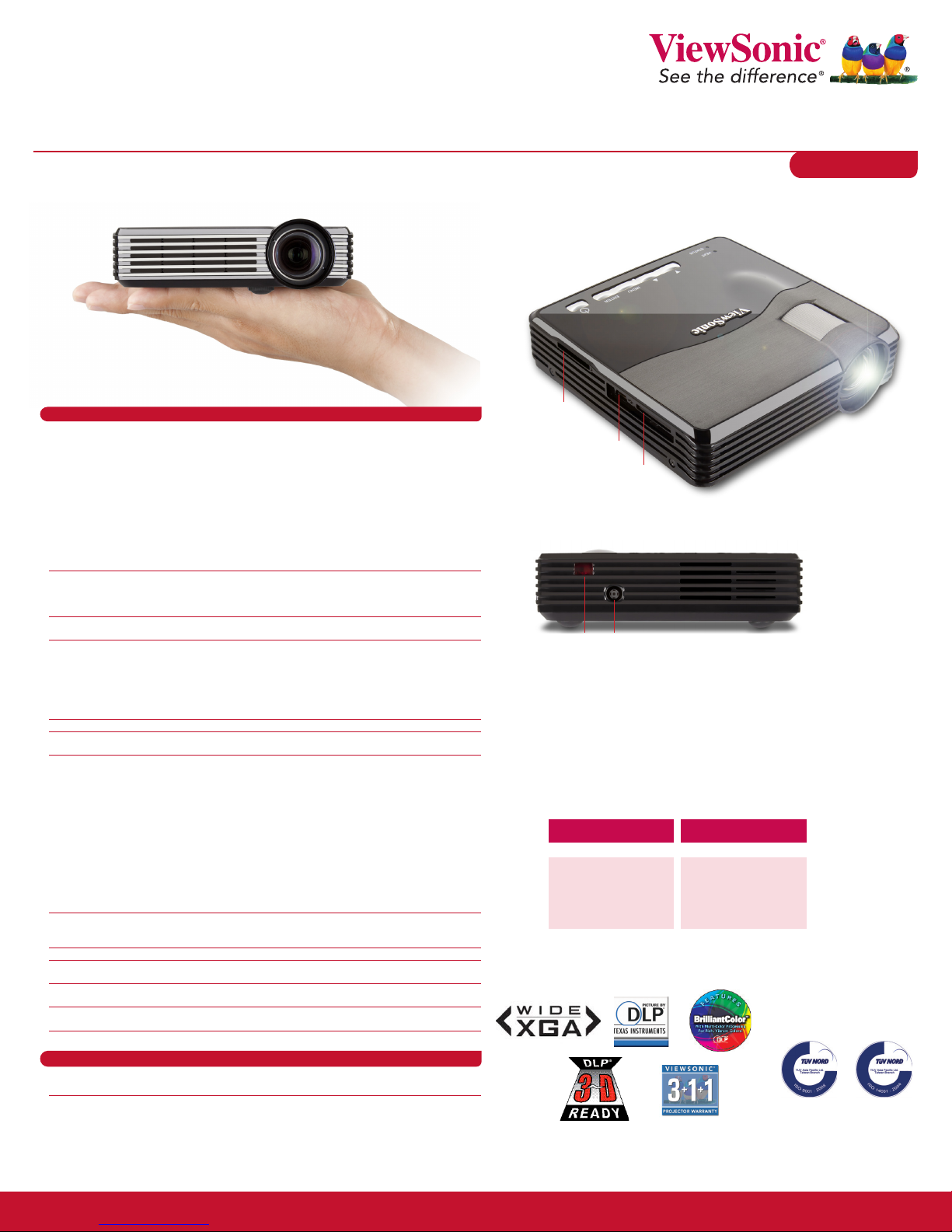

ViewSonic PLED-W200 User manual

PLED-W200 Pico WXGA LED Projector
Palm-Sized 720p Projector
ViewSonic’s PLED-W200 is a palm-sized LED
projector ideal for business travelers. It delivers
incredibly sharp, vibrant images with WXGA
1280x800 native resolution, 250 ANSI lumens
and 120% NTSC color scale, making it perfect for
HD 720p and widescreen viewing. With LED light
source technology, the PLED-W200 can last over
20,000 hours of lamp life while operating at a low
power consumption. It is also packed with features
like pocket-sized with lightweight 0.9 lb design,
multiple PC and video inputs, SD slot for PC-
less presentation, USB display, 120Hz/3D-ready,
auto vertical keystone correction and integrated
speakers. The PLED-W200 Pico WXGA LED
projector delivers the best performance and value
for on-the-road presenters and business travelers.
1
2
4
3
5
6
PLED-W200
LED Technology
Utilizes mercury-free LED light source designed for long projection life over 20,000
hours, helping to save energy costs and reduce maintenance.
Palm-Sized Ultra Portable Design
With dimensions of 5.1” x 5.0” x 1.3” and lightweight at only 0.9 lb, it’s designed for
portability and convenience to move from location to location.
True 720p HD resolution for widescreen brilliance
Perfect for wide notebook to screen or even HD DVDs and PC games.
250 ANSI lumens with BrilliantColor Technology
Latest BrilliantColor technology delivers stunning all-digital clarity with life-like
color, sharp graphics and outstanding video. With 2000:1 high contrast ratio
and 120% NTSC color gamut, it’s the bright choice for mobile presenters.
PC-Less Presention with SD
Present PowerPoint, Word, Excel, PDF, video or photo directly from a SD
USB Display
Project your presentation through USB connection without the clutter of
running a bulky VGA cable.
73D-Reday Powered by DLP Link Technology
Supports up to 120Hz frame rate.
8Automatic Vertical Keystone Correction
Built-in level sensor automatic corrects and adjusts the distorted image to have a
perfect straight shape.

PLED-W200 Pico WXGA LED Projector
PLED-W200
Specications
DISPLAY Type: 0.45" Digital Micromirror Device (DLP™)
Resolution: WXGA 1280x800 (native)
Lens: Fixed Manual optical zoom/Manual optical focus
Keystone: Auto Vertical keystone correction, +/- 40º
Size: 24" - 80" / 0.61m - 2.0m
Throw Distance: 2.0ft - 6.5ft / 0.6m - 2.0m
Throw Ratio: 1.16:1
Lamp Life: >20000 hours
Brightness: 250 Lumens
Contrast Ratio: 2000:1
Aspect Ratio: 16:10 (native), 16:9, 4:3, auto
Color Depth: 1.07B Color (R/G/B 10bit)
Color Gamut: 120% NTSC
INPUT SIGNAL Computer and Video: NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM ( B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i
and 1080p
Frequency: Fh: 31 -100KHz, Fv: 50 -120Hz
COMPATIBILITY PC: VGA to WSXGA+
MAC®: Up to SXGA+ (scaled)
CONNECTOR RGB Input: 15-pin mini D- sub (CEA adapter)
Component Input: 15-pin mini D- sub (shared with RGB)
Composite Input: RCA jack (CEA adapter)
Audio Input: 3.5mm mini jack (CEA adapter)
SD: SDHC up to 32GB (for PC-Less Presentation)
support PowerPoint, Word, Excel,PDF, video, photo)
USB: Type A: rmware update (CEA adapter), Mini B: for USB Display
AUDIO Speaker: 2W (x2)
POWER Voltage: 100 ~ 240VAC (Auto Switching), 50/60Hz (universal)
Consumption: <50W (typ) / <1W (stand-by mode)
CONTROLS Basic: Power, arrow keys, menu, enter
OSD: Picture: Image / Brightness / Contrast / Color Setting / Auto Keystone /
Keystone / Aspect Ratio / White Intensity / Gamma
Video/Audio: Frequency / Tracking / H Position / V Position / Over Scan / Noise
Reduction / Video Setting / Speaker Volume / Mute
Settings: Menu Position / Projection / Signal Type / Power Saving / Auto Source /
ECO Mode / High Altitude / OSD Timeout / OSD Transparency / White Balance
Options: Blank Screen / Splash Screen / Password / Close Caption / Green Mode /
Others / Function
Information: Input Source / Resolution / H. Frequency / V. Frequency / LED Hours /
LED Hours Reset / Factory Default
Language: English / German / French / Spanish / Italian / Russia / Korean / Thai /
Portuguese / Traditional Chinese / Simplify Chinese / Japanese / Nederland /
Svenska / Turkish / Suomi / Polski
OPERATING Temperature: 32 ºF-104 ºF (0 ºC-40 ºC)
CONDITIONS Humidity: 10%-90% (non-condensing)
Altitude: 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
NOISE LEVEL <32 dB
DIMENSIONS Physical: 5.1" x 1.3" x 5.0" (in) 130 x 32 x 126 (mm)
(WxHxD) Packaging: 9.3" x 5.0" x 7.1" (in) 237 x 128 x 181 (mm)
WEIGHT Net: 0.9 lb. (0.4kg)
Gross: 2.6 lb. (1.2kg)
REGULATIONS REACH, CB, CCC, CE(including C-tick), GOST-R, UL, FCC-B(including ICES-003),
cUL, UL AR-SMark, NOM
WARRANTY 3-year limited warranty on parts, labor and backlight.
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
Specifications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.Corporate names, trademarks
stated herein are the property of their respective companies, DLP® and DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. Copyright © 2011
ViewSonic Corporation. All rights reserved. [15832-00B-09/11] PLED-W200
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
ViewSonic PLED-W200 projector, soft case, power adapter, CEA adapter, remote control with batteries,
Quick Start Guide, ViewSonic Wizard CD (with User Guide)
Package Contents
IR Sensor Power Connector
Optinal Accessories
>3D HD Video Processor VP3D1
>3D Active Shutter Glasses PGD-250
>Wireless Presentation Gateway WPG-360
>Extended 5-year warranty PRJ-EE-07-02
Projection Distance Screen Size
(16:10)
Feet
2.0
3.3
3.9
5.2
6.6
Inches
24
40
48
64
80
Meters
0.6
1.0
1.2
1.6
2.0
Meters
0.61
1.02
1.22
1.63
2.03
SD Reader
CEA Connector
Mini-B USB Port
