Vikan 1114 User manual

Assembly Guide
Mobile Shadow Board

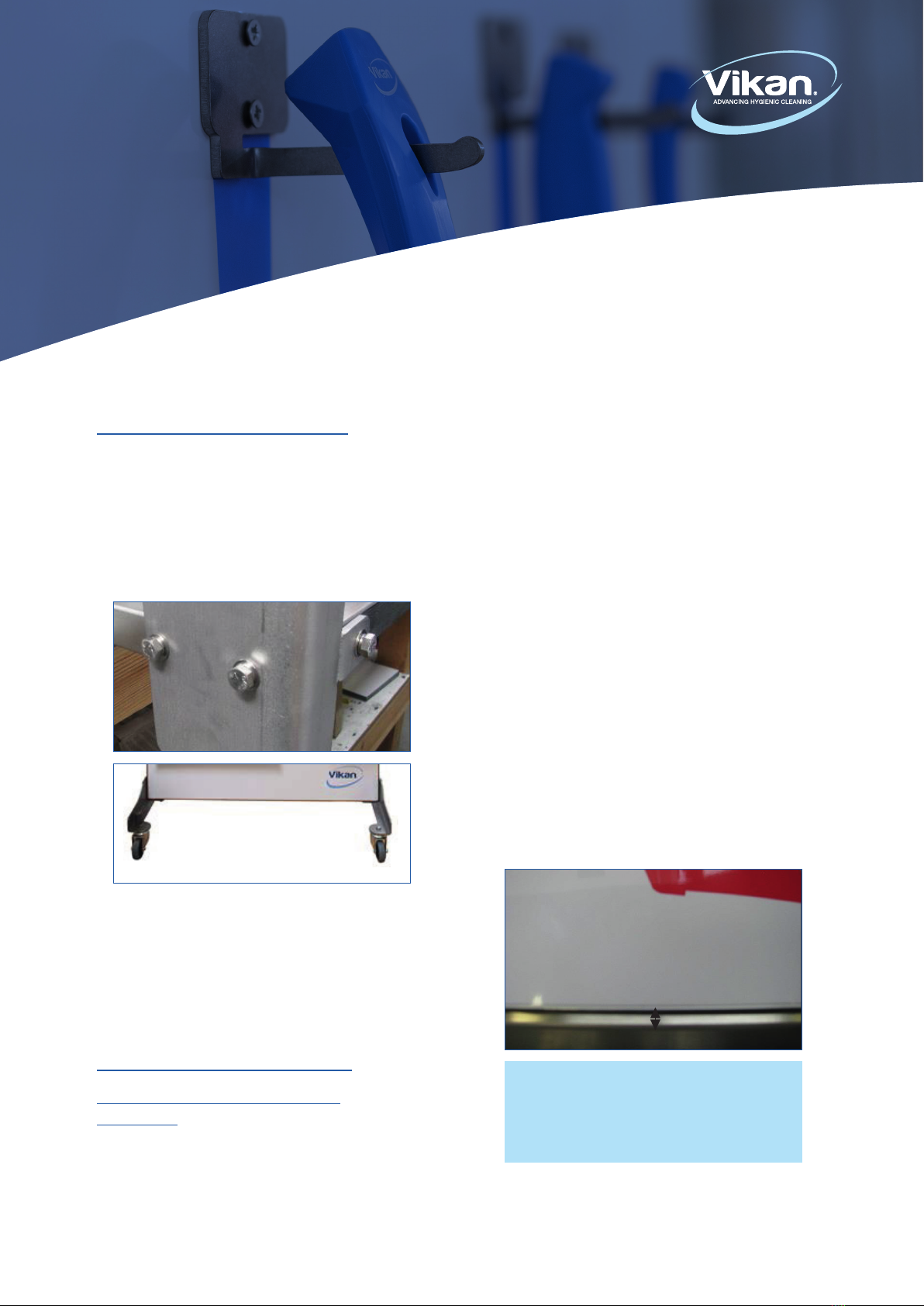

1. Lay the frame on a work bench/table,
shadow board face up.
2. Attach the base sections (which includes
the wheels), to the body of the frame using
fixings provided.
3. Stand the frame in its upright position.
4. Position and fix hooks/brackets into place
on shadow board side 1), referring to the
supplied hook & bracket fitting guidance.
Double sided version
5. Position and fix hooks/brackets into place
on shadow board (side 2) referring to the
supplied hook & bracket fitting guidance.
6. Lay the frame on a work bench/table with
shadow board (side 1) face down.
Please ensure the shadow board face is
supported so the hooks/brackets do not
come into contact with the bench/table
surface. We suggest a non-abrasive item
such as blue tork roll is used.
7. Ensure the surface of the frame is clean
and grease free using a degreasing cleaning
solution such as white spirit.
8. Place the shadow board (side 2) face up on
the frame position so there is a 5mm edge
all the way around. Please ensure the
directions of the shadows mirror those on
side 1. (DO NOT REMOVE PROTECTIVE
FILM FROM TAPE AT THIS STAGE)
Please ensure shadow board is in correct position
before securing into place with the double sided
tape. Once stuck down it may be difficult to re-
move without causing damage to the board.
Single sided version
5 mm
Please handle the shadow board
with care whilst assembling
The frame is supplied with
shadow board (side 1) attached.
Please continue with the following
instructions

9. Clamp the bottom edge into position
10. Raise the opposite end and support,
then peel the protective film from the
double sided tape on reverse of the
elevated board section (to approximately
1/3 way down)
11. Remove the support and gently lower,
press firmly with palm of hand.
12. Repeat procedure for the opposite end,
remembering to degrease the frame surface.
13. Remove the support and gently lower,
press firmly.
Please note the illustrations do not show hooks
or brackets fixed in position
Double sided tape
Assembly Guide

Assembly Guide
Wall Mounted
Shadow Board
Please handle the board with care whilst
mounting.
If the board is ordered with spacers and hooks,
then holes are predrilled for mounting these on
the board. If the board is not ordered with
spacers and hooks then holes are not pre-drilled.
1. Pre-drill with a sharp High speed steel (HSS)
drill bit.
a. When pre-drilling please ensure that the
board is held firm against a solid flat surface
(see below illustration):
2. Allign Board into position and mark drill
location on the wall.
3. Use the enclosed 5 rawl-plugs and screws
for mounting the spacers.
4. Do not overtighten screws (touch tight only).
5. The 5th spacer can be used for stabilizing
the shadow board when mounting on the
wall and equipped with tools.
6. When mounting the 5th spacer, please
remove the distance pieces on the spacer
for easier adjustment on the wall.
Mounting on wall
Please handle the shadow board
with care whilst mounting.

Assembly Guide
Wall Mounted
Shadow Board
1. Insert thread of magnet into pre-drilled hole
through back of shadow board. Secure into
place using washer then dome nut.
Magnets required per board:
x6 + central support: 1103/2103, 1112/2112
x6: 1104/2104, 1111/2111
x4: 1101/2101, 1110/2110, 1102/2102
2. The square support piece can be used to
stabilise large/heavy shadow boards when
mounting on the wall.
3. When mounting the support piece, remove
the orange tape on the back of the support
and place the piece in the centre of the
reverse side of the board.
4. Insert thread of magnet into pre-drilled hole
from the back of shadow board. Secure in
place using washer, then domed nut.
Mounting on wall
Magnets

Hook, Bracket & Handle Holder tting guide
Visit us at vikan.com
Hook Handle Holder * Shovel Bracket
Bucket Bracket
* Mounting of handles with no
hanging hole
Place the screws through back of shadow board
(holes are pre-drilled for use)
Position hook or bracket on face of shadow board
over the screws followed by washer then dome nut.
Tighten securely.
* Position large washer on reverse of board and small washer
on face of shadowboard, when mounting wall bracket.
Place the screws through back of shadow board
(holes are pre-drilled for use)
Position hook or bracket on face of shadow board
over the screws followed by washer then dome nut.
Tighten securely.
* Position large washer on reverse of board and small washer
on face of shadowboard, when mounting wall bracket.
* Mounting of handles with no
hanging hole

Visit us at vikan.com
Cleaning instruction
Shadow boards can be wiped down using a non-abrasive cloth with warm water
and cleaning chemicals such as detergents and disinfectant.
It would NOT be advisable to use a pressure washer to clean the shadow boards.
The use of Ammonia, Acetone and Bleach, should be avoided.
