Viking 5 Series Installation guide

Installation/
Use & Care
MANUAL
5 SERIES
Outdoor Gas Grills
VQGI5301, VQGI5361, VQGI5421, VQGI5541
VQGFS5301, VQGFS5361, VQGFS5421, VQGFS5541

2
|INSTALLATION / USE & CARE
WARNINGS
WARNING
This product complies with ANSI standard Z21.58/CSA
1.6 latest edition and has been tested and approved by
Intertek.
To obtain replacement parts or service contact:
Viking Range, LLC
Preferred Customer Service
111 Front Street
Greenwood, Mississippi 38930
Service: [phone]
• Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane
cylinders in the grill cabinet or in the vicinity of this or any other appliance. Do not store propane cylinders
indoors or on their sides.
• Children should never be left alone or unattended in an area where a grill is located. Place your grill well
away from areas where children play. Do not store items that may interest children in or around the grill, in
the cart, or in the masonry enclosure.
• Never move the grill when hot. When in use, portions of the grill are hot enough to cause severe burns.
• Always maintain the required clearances from combustibles as detailed. The grill is designed for outdoor
use only. Never use in a garage, building, shed, breezeway, or other enclosed area. Do not use this grill
under any unprotected overhead combustible construction.
• Gas grills are not designed or certified for and are not to be installed in or on recreational vehicles,
portable trailers, boats or any other moving installation.
• Always have an ABC Fire Extinguisher accessible — never attempt to extinguish a grease fire with water or
other liquids.
• Storing your grill: Store your grill in a well-ventilated area. If stored indoors, detach and leave L.P. cylinder
outdoors in a well-ventilated area away from heat and away from where children may tamper with it.
• Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Electrical cords
should be placed away from walkways to avoid tripping hazard.
• Do not repair or replace any part of the grill unless specifically recommended in this manual. Other service
should be performed by a qualified technician.
• If the grill is installed by a professional installer or technician, be sure that he/she shows you where your
gas supply shut-off is located. All gas lines must have a shut-off that is readily and easily accessible. If you
smell gas, check for gas leaks immediately. Check only with a soap and water solution. (See INDEX: “Leak
Testing” for further details.) Never check for gas leaks with an open flame.
• Inspect the L.P. gas supply hose prior to each use of the grill. If there is evidence of excessive abrasion or
wear, or the hose is cut, it must be replaced before using the grill.
• Never remove the grounding prong from the plug or use this product with an ungrounded, 2-prong
adapter.
THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.

INSTALLATION / USE & CARE |3
WARNINGS
READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of:
1. Fire
2. Burn hazard, personal injury or property damage
3. Ruined steaks or other unpleasant cooking experiences
4. Unapproved installation or servicing.
THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or death.
Read this manual thoroughly before installation, use, or servicing of this product.
IF YOU SMELL GAS:
1. Shut off all gas supply lines to the grill.
2. Extinguish any open flames.
3. Carefully open the lid. Remember, it may be
extremely hot!
4. If odor continues, keep everyone away from the
grill and immediately call your gas supplier or
your fire department.
1. DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
WARNING
DANGER
WARNING

4
|INSTALLATION / USE & CARE
WARNINGS
WARNING
STATE OF MASSACHUSETTS
1. Massachusetts requires all gas be installed using a plumber or gas fitter carrying the appropriate
Massachusetts license.
2. All permanently-installed natural gas or propane installations require a “T” handle type manual gas valve be
installed in the gas supply line to this appliance.
3. This does not apply to portable propane installations using a 20 pound cylinder.
1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa).
2. The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
WARNING
1. Always maintain the required clearances from combustible construction as detailed. The grill is designed for
outdoor use only. Never use in a garage, building, shed, breezeway or other enclosed area. This grill shall not
be used under any unprotected overhead combustible construction.
2. Gas grills are not design certified for and are not to be installed in or on recreational vehicles, portable
trailers, boats or any other moving installation.
3. Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Electrical cords
should be placed away from walkways to avoid creating a tripping hazard.
4. Do not repair or replace any part of the grill unless specifically recommended in this manual. Other service
should be performed by a qualified technician.
5. All gas lines must have a shut-off that is readily and easily accessible. Be sure the owner knows where the
shut-off is located. If you smell gas, check for gas leaks immediately. Check only with a soap and water
solution. Never check for gas leaks with an open flame. (See INDEX: “Leak Testing” for further details.)

INSTALLATION / USE & CARE |5
BEFORE YOU START 6
If Shipment Arrives Damaged 6
Important Notes 6
SPECIFICATIONS & INSTALLATION 8
UNPACKING & ASSEMBLY 14
GAS CONNECTIONS 16
Natural Gas 16
LP Gas 17
Gas Conversion Kits 18
ELECTRICAL CONNECTIONS 19
FINAL CHECKS 20
Leak Testing 20
CHECKLIST BEFORE EACH USE 22
A MESSAGE TO OUR CUSTOMERS 22
IMPORTANT SAFETY PRECAUTIONS 22
GRILLING IN WINDY CONDITIONS 24
USING YOUR GRILL 25
Pre-Grill Checklist 25
Lighting your Grill 26
Basic Grilling 28
Using the ProSear™ Burner 29
Using the Rotisserie Burner 30
Using the Smoker Box 31
CLEANING YOUR GRILL 32
TROUBLESHOOTING YOUR GRILL 34
Potential Problems 35
CONTACTING CUSTOMER SERVICE 38
VIKING RANGE, LLC LIMITED WARRANTY 39
VIKING RANGE, LLC COMMON AREA LIMITED WARRANTY 40
WIRING SCHEMATICS 41
30 Rotisserie Grill 41
36 & 42 Rotisserie Grill 42
54 Rotisserie Grill 43
TABLE OF CONTENTS

6
|INSTALLATION / USE & CARE
VISIBLE LOSS OR DAMAGE
Be certain any visible damage to the carton is noted on
freight bill or express receipt and signed by the person
making delivery.
FILE CLAIM FOR DAMAGES IMMEDIATELY, regardless of
extent of damage.
CONCEALED LOSS OR DAMAGE
If damage is unnoticed until the grill is unpacked, notify the
transportation company or carrier immediately and file a
“concealed damage” claim with them. This should be done
within (15) days of the date delivery is made to you. Be
sure to hold on to the container for inspection. We cannot
assume responsibility for damage or loss incurred in transit.
(See INDEX: “Obtaining Service” for further details.)
• Never install this product into a combustible enclosure without an insulated jacket. Doing so could result in fire,
property damage and personal injury.
• Never locate the grill under a roof or overhang, in a building, garage, shed or other such enclosed area.
• Never locate the grill under unprotected combustible construction.
• Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural Gas and propane Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, in Canada.
BEFORE YOU START
WARNING
IF SHIPMENT ARRIVES DAMAGED
IMP
O
RTANT N
O
TE
S
W
HERE’
S
THE WIND
?
When selecting a suitable location, consider important fac-
tors such as exposure to the wind and foot-traffic patterns
.
If you have a freestanding grill, position it so the prevailing
wind blows into the front control panel (at your back when
grilling), su
pp
orting the
p
ro
p
er front-to-rear airflow
.
Built-in grills located in areas with
p
revailing winds should
be
p
rotected by a wind barrier.
Winds hittin
g
the
b
a
ck
of the grill directly may cause prob-
k
lems, as well as wind blowin
g
alon
g
the hood ga
p
.
HOW LONG IS YOUR RUN
?
Keep all gas supply lines as short as possible because gas
lines lose pressure over distance and with each elbow and
t
ee that is added. This drop in pressure affects grill per
-
f
ormance. (See INDEX: “Gas Supply Line Runs” for furthe
r
details.
)
ARE Y
OU
“
O
N-THE-LEVEL”
?
Proper leveling during installation is critical. A grill that is
out of level will
c
ause errati
c
burner
c
ombustion and inef
-
fi
cient, uneven heating. A carpenter’s spirit level should be
used to level the grill both front-to-back and side-to-side
.
If the floor is uneven or has a decided slope, re-leveling
may be required each time you move a freestanding unit.
Be sure wind doesn’t blow into the hood gap.

INSTALLATION / USE & CARE |7
BUILT-IN INSTALLATIONS
This built-in grill is designed for easy installation into
masonry enclosures.
NOTE: Built-in grills are intended either for installation in a
built-in enclosure constructed of non-combustible materi-
als or for an installation in a built in enclosure constructed
of combustible material when installed with a insulating
jacket (LIJ).
For non-combustible applications, the grill drops into the
opening shown in the cutout detail drawing (See INDEX:
“Gas Requirements”) and hangs from its counter-top trim.
A deck is not required to support it from the bottom.
When using the insulated jacket in a combustible enclo-
sure, the jacket must be supported from the bottom by a
ledge on each side or a full deck beneath the jacket.
(See INDEX: “Gas Requirements”) Pay special attention to
the provisions shown for gas line hook-up.
The enclosure should have ventilation holes to prevent gas
build-up in the event of a leak. The deck ledges and coun-
ter should be flat and level. (refer to ANSI Z21.58 Standard
for Outdoor Cooking Gas Appliances, Section 1.7 Enclo-
sures For Self Contained LP-Gas Supply Systems)
This grill requires that a 120 volt, 60 hertz, 15 amp GFI
certified outlet be installed by a qualified electrician.
CLEARANCE TO COMBUSTIBLE MATERIALS
Minimum clearance from the sides and back of the grill to
adjacent combustible construction below the counter top
surface is 12” from the sides and 6 1/4” from the back of
the hood.
Minimum clearance from sides and back of grill to ad-
jacent combustible construction extending above the
counter top surface is 12” from the sides and 6 1/4” from
the back.
Do not use this appliance under unprotected overhead
combustible surfaces.
A minimum of 6” of clearance is needed on the left side of
the grill above the counter top for the motor and skewer.
If the grill is to be placed into a combustible enclosure, an
approved insulated jacket is necessary and is available
only from your Viking Range, LLC dealer. Insulated jackets
have been designed and tested specifically for your grill.
REAR HOOD CLEARANCE
A 3 inch clearance is required behind the grill to allow the
front hood to open.
The grill exhausts combustion products and cooking
greases to the back. Never locate the grill where this ex-
haust will be difficult to clean.
BEF
O
RE Y
OU
S
TART
...
co
n
t
in
ued
3” (7.6 cm)

8
|INSTALLATION / USE & CARE
The guides, measurements and dimensions detailed below are designated to assist you with planning your outdoor kitchen.
NOTE: Due to continuing product innovation, specifications are subject to change without notice.
IMPORTANT: Please reference the Care & Use / Installation manual for details on gas plumbing requirements, electrical specifications and
the proper installation of your outdoor kitchen equipment. This manual can be downloaded from our website at www.vikingrange.com.
GRILLS
MODEL A B C
VQGI5301 29.00 10.88 24.50
VQGI5361 35.00 10.13 22.00
VQGI5421 41.00 10.88 24.50
VQGI5541 53.00 10.88 24.50
COMPLEMENTARY PRODUCTS
SIDE BURNERS
MODEL A B C
VQGSB5131 12.13 10.63 24.50
VQGPB5201 19.00 10.63 22.00
WARMING DRAWERS
MODEL A B C
VQEWD5301 28.50 10.00 20.50
VQEWD4201 40.25 19.38 24.50
WITH INSULATED JACKET INSTALLED
MODEL A B C
VIJ5301 36.00 11.63 26.50
VIJ5361 42.00 11.63 24.00
VIJ5421 48.00 11.63 26.50
VIJ5541 60.00 11.63 26.50
S
PE
C
IFI
C
ATI
O
N
S
&
IN
S
TALLATI
ON

INSTALLATION / USE & CARE |9
5”
4.5” 3”
AA
B
C
COUNTER TOP NOTCH DETAIL
Only required if island counter top overhangs the face of the island
MAXIMUM RUNS FOR ALL
APPLIANCES ON SUPPLY LINE
Run Length
3/4” Pipe (in feet)
Max BTU for all
Appliances on line
10 360,000
20 245,000
30 198,000
40 169,000
50 150,000
60 135,000
70 123,000
80 115,000
MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES
MODEL-SPECIFIC BTU OUTPUTS
MODEL H BURNER (Btu) ROTISSERIE (Btu) PROSEAR™ (Btu) TOTAL INPUT
VQGI5301/VQGFS5301 (N/L)SS 1 @ 25,000 1 @ 14,000 1 @ 21,000 62,000 Btu/Hr
VQGI5361/ VQGFS5361 (N/L)SS 2 @ 25,000 1 @ 14,000 1 @ 21,000 87,000 Btu/Hr
VQGI5421/ VQGFS5421 (N/L)SS 2 @ 25,000 1 @ 16,000 1 @ 21,000 89,000 Btu/Hr
VQGI5541/ VQGFS5541 (N/L)SS 3 @ 25,000 2 @ 14,000 1 @ 21,000 126,000 Btu/
Hr

10
|INSTALLATION / USE & CARE
DIMEN
S
I
O
N
S
30"
11"
9"
REAR
MANIFOLD
LOCATION
21
/2"21
/2"253/8"
277
/8"
13/4"
211
/2"
101/2"
141/2"
253
/16"
11"
3"
30"
32"
36" 351/2"
361
/2"
553/4"
31/8"
87
/8"
263/4
30"
351
/4"
(DOORS OPEN AT 90°)
REAR CORD
LOCATION
11"
(DOORS OPEN AT 90°)
GAS
EXIT
50"
CORD
141/2"
13/4"
83/4"
263/4"
21/2"251/4"
151/8"
6011
/16"
87
/8"
VQ
G
I5301
VQ
G
F
S
5301

INSTALLATION / USE & CARE |11
DIMEN
S
I
O
N
S
36"
36"
411
/4"
(DOORS OPEN AT 90°)
353/16"
421
/2"
613/4"
31/8"
87
/8"
263/4
REAR CORD
11"
(DOORS OPEN AT 90°)
GAS
EXIT 50"
CORD
147/8"
13/4"
87/16"
263/4"
21/2"22
3/4"
181/8"
5811
/16"
87
/8"
36" 32"
36"
11"
9"
REAR
MANIFOLD
LOCATION
11
/8"21
/2"
227/8"
253
/8"
13/4"
19"
97/8"
147/8"
231
/2"
11"
3"
VQG
I5
3
61
VQ
G
F
S
5361

12
|INSTALLATION / USE & CARE
DIMEN
S
I
O
N
S
11"
(DOORS OPEN AT 90°)
GAS
EXIT
CORD
141/2"
13/4"
83/4"
263/4"
21/2"251/4"
211/8"
6011/16"
63
/16"
50"
42"
42"
445
/8"
(DOORS OPEN AT 90°)
351/2"
481
/2"
67 3/4"
13/16"
63
/16"
263/4"
REAR CORD
LOCATION
36" 32"
253/8"
277
/8"
13/4"
211
/2"
101/2"
141/2"
253
/16"
11"
3"
21 /2"
42"
11"
9"
21
/2"
REAR
MANIFOLD
LOCATION
V
QG
I54
2
1
V
Q
G
F
S
5421

INSTALLATION / USE & CARE |13
DIMEN
S
I
O
N
S
54"
11"
9"
REAR
MANIFOLD
LOCATION
21 /2"21
/2"
253/8"
277 /8"
13/4"
211 /2
2
"
103/16"
1413 /16"
251 /
11"
3"
"
54"
54"
591 /4"
(DOORS OPEN AT 90°)
32"
36"
353/16"
601 /2"
79 3/4"
31/8"
87
/8"
GAS EXIT
LOCA TION S
REAR
269/16
REAR CORD
LOCA TION
11"
(DOORS OPEN AT 90°)
GAS
EXIT
50"
CORD
1413 /16"
13/4"
85/8"
269/16"
21/2"251/4"
181/8"
6011
/16"
87
/8"
VQ
G
I5541
VQ
G
F
S
5541

14
|INSTALLATION / USE & CARE
The grill arrives nearly ready to use and requires only minor
assembly.
By carefully following the uncrating and unpacking steps,
you will improve your first experience with the grill.
Shipping weight on smaller units is app. 300 pounds and
larger units may weigh over 500 pounds.
CRATE & CARTON
• IMPORTANT! Do not remove staples around the top of
the carton. These staples hold a wooden pallet in place
inside the carton that protects the unit from damage.
Removing these staples may cause the pallet to fall on
the top of grill.
How to Remove the Carton
• Cut the main strap holding the grill to the pallet.
• Remove the staples at the bottom of the carton.
• Lift off the carton.
• With assistance, remove the grill from the pallet and
place into desired location.
The wheels sit down in the gaps of the shipping crate so
that the grill can sit safely and solidly on the crate during
shipping. The grill cannot be slid directly off of the pallet.
One way to safely move the grill off of the pallet is by lifting
one end of the grill high enough to place a ramp under the
wheel and then lift the
other end while rolling
the grill off of the pallet.
INTERIOR PACKING
Viking Range, LLC uses sturdy tie-down cables and straps
to ensure your grill arrives at your home in the same condi-
tion that it left our factory. BE SURE YOU HAVE REMOVED
ALL TIE DOWNS BEFORE USING YOUR GRILL.
• Remove the white accessory box and wood packing, the
grill racks, and remove any loose items from the firebox.
• Carefully cut the cable ties securing the warming rack and
rotisserie spit (if equipped).
• Cut the strapping that secures the briquette trays and
carefully lift them out, front first.
Make sure you remember to remove the tie-downs on the
burners.
• On ProSear™ models, cut and remove ties from the
burner partition on the left side of the ProSear™ burner.
• Ensure that all burners are properly seated on the burner
valve orifice and sitting level with the legs in the frame
slots and no side-to-side movement.
U
NPA
C
KIN
G
&
A
SS
EMBLY
Use two or more people to move or install this
unit. Failure to follow this instruction can result in
back or other personal injuries.
WARNING:
EXCESSIVE WEIGHT HAZARD!
CAR
E
Grill will not
slide directly
off pallet.

INSTALLATION / USE & CARE |15
Inside View, Orifice all
the way into venturi
Heat Shield Removed,
Orifice/Venturi Position
Legs in slot
Burner sitting flat
Orifice all the way
into the venturi
U
NPA
C
KIN
G
&
A
SS
EMBL
Y
...
c
ontinue
d

16
|INSTALLATION / USE & CARE
WARNING
NEVER CONNECT A GAS LINE DIRECTLY TO THE GRILL. A PRESSURE REGULATOR MUST BE INSTALLED ON
A
LL GAS EQUIPMENT. ALL LOCAL CODES REQUIRE THAT THE PRESSURE REGULATOR SUPPLIED WITH YOUR
G
RILL I
S
U
S
ED. REM
O
VIN
G
O
R FAILIN
G
T
O
IN
S
TALL THE PRE
SS
URE RE
G
ULAT
O
R
C
AN RE
S
ULT IN FIRE AND
SERIOUS PERSONAL INJURY AND WILL VOID THE WARRANTY
.
The grill is factory set to use either propane (LP) or natural
gas (NAT). It is critical that the gas you use matches that
which the grill was set up for. You can verify that by check-
ing the rating plate.
The Rating plate lists serial numbers, model numbers and gas
type. This one is underneath the drip tray.
The rating plate is located in one or more of the following
places:
• Attached to the underside of the drip tray
• On the heat shield behind the front panel
Ensure that the gas supplied meets with the minimum
pressure requirements. Do not operate the grill on any gas
other than that for which the grill has been set.
Fuel WC Max Inlet WC Min Under
Full Load
Nat Gas 7 in 4 in
LP 14 in 11 in
Water Column Requirements
Both the regulator and the manifold orifices have been
tuned for the type of gas specified on the rating plate.
Converting to a different type of gas requires a conversion
kit, available from your dealer and must be installed by a
qualified technician.
Installation must conform with local codes or, in the ab-
sence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural Gas and propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, in Canada.Canadian installations
must conform to CGA-B149.1/.2 natural gas/propane instal-
lation code. (Canada)
NATURAL GAS
Viking Range, LLC recommends that only qualified profes-
sionals perform the required plumbing on this product.
To ensure satisfactory performance, the gas supply line
must be sized to accommodate the total BTU requirements
of all the gas-fired equipment that will be connected to that
line.
In no case should pipe less than 3/4” inside diameter or 1”
outside diameter ever be used to connect this product.
• Calculate the total BTU output of all equipment and
refer to “INDEX: Gas Supply Line Runs” for allowable run
distances for ¾ inch pipe. Failure to meet these minimum
requirements may reduce performance of the grill and
any other appliances running on that supply line.
• Always keep supply line runs as short as possible. (See
INDEX: “BTU Output” for specific model outputs)
• A gas shut-off valve must be installed in an easily acces-
sible location by a qualified plumber.
• Keep threading compound off of the first two pipe
threads to avoid having any small pieces of compound
break loose and clog a burner valve or orifice. Do not use
threading compound on any flare fittings.
For built-in installations, it is recommended that any flexible
pipe used be kept as short as possible. (See INDEX: “Gas
Connections” for typical permanent hook up.)
G
A
S
CO
NNE
C
TI
O
N
S
mu
u
st
t
b
e
e
si
ze
e
d
to
o
a
ccommodate the
t
t
otal BTU require
me
e
nts
Keep last two
threads clean
p
p

INSTALLATION / USE & CARE |17
F
or
f
reestandin
g
units usin
g
natural
g
as, usin
g
a metal fle
x
hose is recommended.
This is available at your local hardware store or from your
d
ealer
.
LP
G
A
S
Grills set u
p
for LP gas come e
q
ui
pp
ed with an LP hose/
regulator assembly for connection to a standard 20 lb.
LP cylinder. (Ty
p
e 1). All fittings necessary to attach the
assembl
y
to the
g
rill are included.
Permanent
l
y p
l
um
b
e
d
LP connections, suc
h
as t
h
ose in
l
ine
with a bulk cylinder, require a 4/11 regulator
.
When using the 4/11 regulator you must ensure that it
is set for the
p
ro
p
er fuel ty
p
e. This is done by removing
the regulator ca
p
and gasket and looking at the bottom
of the plunger to see what fuel type is visible. This is the
regulator fuel setting. NAT is for natural gas and LP is for
p
ro
p
ane gas. The LP setting can be further identified by
the large diameter disk on the bottom of the plunger. To
change from one gas to the other sim
p
ly
p
ush the
p
lunge
r
to the side to snap it out of the cap, turn the plunger so
it reads the desired gas type on the bottom, and push
the plunger until it snaps back into place in the cap then
replace the cap into the regulator
.
Never connect an unregulated gas line to the grill.
LP Cylinder Requirements
The LP c
y
linder must be constructed and marked in accor
-
dance with the s
p
ecifications for LP gas cylinders of the U.S.
Department of Transportation (DOT) and designed for use
wit
h
a Type 1 system on
l
y.
C
y
linders of free standin
g
g
rills must be secured usin
g
the
provi
d
e
d
cy
l
in
d
er retention system to avoi
d
acci
d
enta
l
movement.
When exchan
g
in
g
y
ou
r
cylinder for a refill,
exchange only for a
Type 1 20
lb
cy
l
in
d
er wit
h
an over-fill protection
devi
c
e.
Never use a c
y
linder with a dama
g
ed valve.
A dented or rust
y
LP c
y
linder ma
y
be hazardous and should
be avoided. If in doubt, have it checked by your LP su
pp
lier.
Always check for leaks after every LP cylinder change. (See
INDEX: “Leak Test” for further details.)
Always shut off the LP-gas supply at the cylinder when the
grill is not in use.
Cylinders must be stored outdoors in a well-ventilated area
out of the reach of children. If your grill is stored indoors,
the LP c
y
linder must be stored outside.
LP Connections
Make sure the LP cylinder valve is fully closed. It is
p
ossible
for the valve to be o
p
en without releasing gas but, as soon
as
y
ou start connectin
g
the re
g
ulator,
g
as will leak from the
c
onne
c
tion.
LP cylinder with type 1 valve connection
G
A
S
CO
NNE
C
TI
O
N
S
...
co
n
t
in
ued
Do not change the regulator/hose assembly or
use any other assembly than the one supplied
with your grill.
Do not attempt to use a 5LP-A equipped
regulator/hose assembly with a standard 510 POL
cylinder/valve assembly.
Do not store a spare LP-gas cylinder under or
near this appliance.
Never fill the cylinder beyond 80 percent full.
If the information above is not followed exactly, a
fire causing death or serious injury may occur.
WARNING

18
|INSTALLATION / USE & CARE
G
A
S
CO
NNE
C
TI
O
N
S
...
co
n
t
in
ued
Insert the regulator inlet into the cylinder valve and turn the
black coupler clockwise until the coupler is hand tight. Do
not over-tighten this connection.
To disconnect the coupler, first make sure the main cylinder
valve is turned off. Grasp the coupler and turn counter
clockwise. The inlet will then disengage.
Always leak-test the connection after refilling or exchanging
LP cylinders. (See INDEX: “Leak Test” for further details.)
GAS LINE PURGING
You should purge the gas line of air before attempting to
light the grill.
• Make sure all grill controls are in the “OFF” position.
• Slowly turn on the main gas supply.
• Push in the rotisserie knob and confirm that the igniter
is glowing. It is furthest from the fuel source and will
completely purge the lines. It will take several seconds for
the burner to light.
• Hold the knob ON for about 20 seconds to allow the air
in the system to purge and the burner to light
• Wait at least 5 minutes after shutting off the control
before attempting to light the burners.
GAS CONVERSION KITS
Gas conversion kits are available from Viking Range, LLC
to allow the grill to operate on either Natural gas or LPG.
These kits should be installed by a qualified technician.
The kits come with complete installation instructions.
These instructions should be read completely and fully
understood before installing the conversion kit.
BUILT-IN SIDE BURNER INSTALLATION
• Shut off the gas supply at the main valve.
• Disconnect all plumbing (if already attached) from the grill
and the gas supply valve.
• Remove all the fittings from the grill manifold.
• Install the side burner into the counter top cutout.
• Connect the gas supply to the grill and side burner as
shown in the two diagrams on this page.
• Turn the gas supply on and leak test all connections. (See
INDEX: “Leak Test” for further details.)

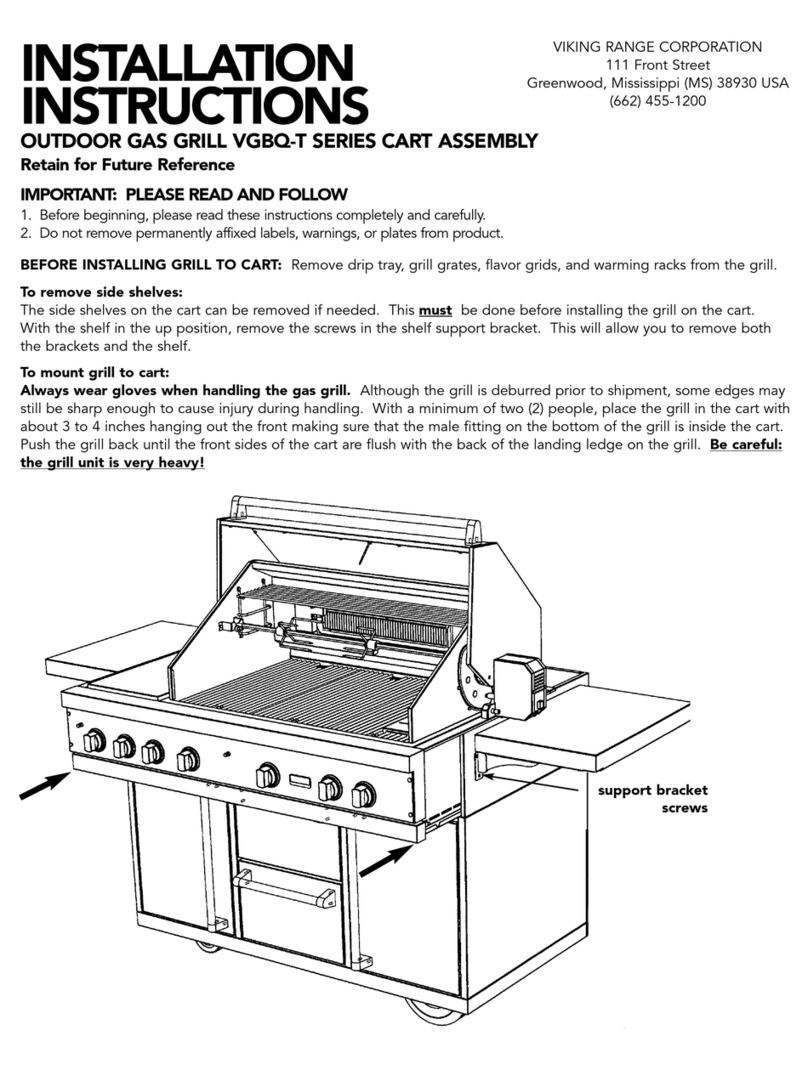

CART INSTALLATION
• Shut off the gas supply at the main valve.
• Disconnect all plumbing (if already attached) from the grill
and the gas supply valve.
• Remove all the fittings from the grill manifold.
• Install the side burner onto the cart according to the
directions supplied with the cart mounting kit.
• Connect the gas supply to the grill and the side burner as
shown in the diagrams on this page for your gas type.
• Turn the gas supply on and leak test all connections. (See
INDEX: “Leak Test” for further details.)

INSTALLATION / USE & CARE |19
Installation requires an outdoor 120VAC 15A GFI (Ground
Fault Interrupter) electrical outlet adjacent to the grill.
The GFI outlet features an internal breaker that reduces
shock hazard. This type of outlet should be installed by a
qualified electrician either inside the island enclosure for
built-in units, or near the location where a free-standing unit
will be used.
For built-in grills, the supplied 12VDC should be installed
below the grill within the cabinet enclosure. Select a
location where the transformer is protected against water,
heat and physical damage.
When installing the transformer to the grill be careful to
prevent the wiring and transformer from contacting any
hot surfaces behind or below the grill. It is recommended
that the transformer be located below the grill in a readily
accessible location. Be sure to provide adequate access to
facilitate service if the transformer or connections should
need future maintenance.
If the electrical system fails to operate, a connection may
have come loose in shipping or the GFI may have tripped,
requiring a reset. See the Troubleshooting section for more
details.
CONNECTION TO AC
ELE
C
TRI
C
AL
CO
NNE
C
TI
O
N
S
• Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the
National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005.
• Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance.
• IMPORTANT: When connecting your rotisserie motor, first connect the motor to the grill and then plug the grill
into the outlet.
• This grill is equipped with a three prong (grounding) electric plug for your protection against shock hazard and
must be plugged directly into a properly grounded three prong outlet. Never cut or remove the grounding
prong from this plug.
• Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved
for outdoor use with a “W-A” marking.
• To protect against electric shock, do not immerse any part of the power cord, an extension cord or any plugs in
water or other liquid.
• Unplug the product from the outlet when not in use and before cleaning. Allow it to cool before putting on or
taking off parts.
• Do not let the cord hang over the edge of a table or touch hot surfaces.
• Do not use an outdoor cooking gas appliance for purposes other than intended.
• Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance
malfunctions or has been damaged in any manner. Contact the manufacturer for repair.
WARNING: ELECTRICAL GROUNDING

20
|INSTALLATION / USE & CARE
FINAL
C
HE
C
K
S
LEAK TESTING
Leak Test Procedure:
• Create a soapy solution of 1 part soap and 3 parts water.
• Confirm that all control knobs are in the off position.
• Turn on the fuel supply. For natural gas, turn the valve
handle 1/4 turn to align with the gas flow.
• For L.P., turn the cylinder valve knob counter clockwise
one full rotation.
• Apply the soap solution generously by paint brush or
squirt bottle on all connections and fittings.
• If bubbles appear to “grow” on any of the connections,
you have a gas leak. IMMEDIATELY turn off the gas
supply.
Fixing a Gas Leak:
• Shut off the gas supply
• Turn all grill controls to the “ON” position to purge the
grill of any gas build-up, then turn the controls back
“OFF”.
• Wash off the soapy solution with cold water and dry.
• Tighten the loose joint, or replace the faulty part with
manufacturer-recommended replacement parts.
• DO NOT attempt to repair the L.P. cylinder valve if it
is damaged. The only way to safely resolve a damaged
cylinder is to REPLACE IT.
• Repeat the leak test to ensure that no leaks are present.
LOW HEAT BURNER ADJUSTMENT
FOR MAIN BRASS BURNERS AND SIDE BURNERS
ONLY!
DO NOT ADJUST THE ROTISSERIE BURNER.
The main brass burners and side burners on your grill
feature an adjustable low setting.
Fluctuations in gas pressure, gas conversion and even in the
quality of the gas itself may affect burner performance at the
“LOW” setting. It could be either too high or too low.
To Adjust the Burner to a Low Setting:
• Make sure the grill is cool.
• Remove the racks so you can see the flames while
adjusting the burners.
• Light the burner and allow it to preheat on high for 3
minutes.
• Turn the burner to “LOW”.
• Pull off the control knob.
• While holding the valve shaft with pliers as shown insert a
small flat screwdriver into the center shaft and adjust the
flame’s low setting.
Clockwise will lower the flame setting, counterclockwise will
raise it.
The proper setting is where the flame is stable at its low-
est setting. A slight flutter will be present in the crossover
portion of the front of the burner before the burner itself
becomes weak.
The factory setting for propane gas is ½ to ¾ turn from the
very bottom of the adjustment. The setting for natural gas
is 1-½ to 1-¾ from the bottom. After the low settings are
proper, turn all burners to high for visual inspection.
Please note the low flame adjustment is not available for
the rotisserie valve.
To prevent fire or explosion hazard, DO NOT
smoke or allow any potential source of ignition
(sparks, electrical arcing, etc) in the area while
performing a leak test. Leak tests should be
conducted outdoors only. Never conduct a leak
test using fire or flame.
DANGER!
