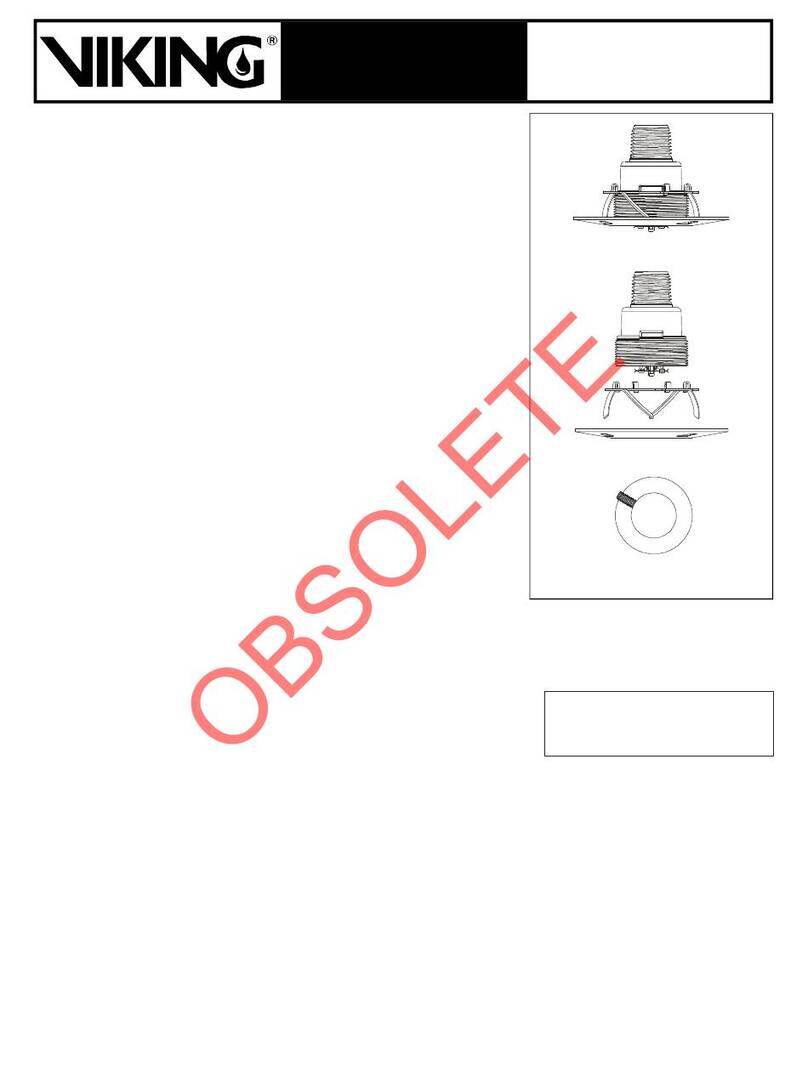

1. PRODUCT NAME
VIKING Microfast®Model M-5
Residential Pendent Sprinkler
5.5 K-Factor
Base Part No. 10050
Manufactured since 1997.
2. MANUFACTURER
THE VIKING CORPORATION
210 N. Industrial Park Road
Hastings, Michigan 49058, U.S.A.
Telephone: [phone]
[phone]
Fax Number: [phone]
From outside the U.S.A.:
Telephone: [phone]
Fax Number: [phone]
e-mail: [e-mail]
3. PRODUCT DESCRIPTION

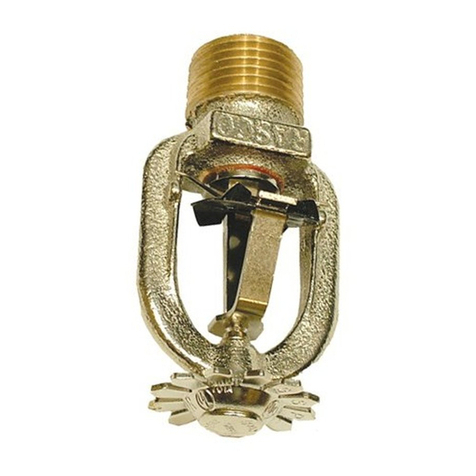

The Viking Microfast® Model M-5 Resi-
dential Pendent Sprinkler is a small,
high-sensitivity, glass-bulb spray sprin-
kler. The sprinkler is available in several
finishes andtemperatureratingsto meet
design requirements.
The sprinkler is listed for use below
smooth, flat, horizontal ceilings and
ceilings with slopes up to and includ-
ing a 6/12 pitch (26.6°), with spacings
up to 20’ by 20’.
The sprinkler design, with a K-Factor of
5.5, allows efficient use of available
water supplies for the hydraulically de-
signed fire-protection system. The
small, rugged 3mm glass bulb and spe-
cial deflector combine speed of opera-
tion and areas of coverage to meet the
residential sprinkler standards. During
fire conditions, the heat-sensitive liquid
in the glass bulb expands, causing the
bulbto shatter,releasing the pipcap and
sealing spring assembly. The water
flowing through the sprinkler orifice
strikes the sprinkler deflector, forming a
uniform spray pattern to extinguish or
control the fire.
4. TECHNICAL DATA
See approval charts (pages 141 c and
141 d) for listings.
Rated to 175 PSI (1 207 kPa) water
working pressure.
Factory tested pneumatically to 95 PSI
(655 kPa).
See approval charts for minimum water
supply requirements and maximum
areas of coverage.
Glass-bulb fluid temperature rated to
-65°F (-55°C).
Spring: USA Patent No. 4,570,720
See pages 141 c and 141 d for
temperature ratings.
Thread Size: Nominal 1/2" (15mm) NPT
K Factor: 5.5 (7,9 metric*)
* Metric K Factor shown is for use
when pressure is measured in kPa.
When pressure is measured in BAR,
multiply the metric K Factor shown by
10.0.
Finishes: Bright Brass, Chrome-
Enloy®(patents pending), White
(Paint), and Navajo White (Paint)
Materials:
Frame - Brass Castings UNS-C84400
Deflector - Brass UNS-C26000
Bulb - Glass
Nominal 3mm diameter
Seal - Teflon®tape
Spring - Nickel alloy
Screw - Brass UNS-C36000
Pip Cap - Copper UNS-C14500
Accessories:
Refer to the "Sprinkler Accessories" of
the
Viking Engineering and Design Data
book for approved sprinkler wrench and
other accessories.
5. AVAILABILITY AND SERVICE
Viking sprinklers are available through a
network of domestic, Canadian, and in-
ternational distributors. See the Yellow
Pages of the telephone directory (listed
under “Sprinklers-Automatic-Fire”) or
write to The Viking Corporation.
Viking Technical Data may be found on
The Viking Corporation’s Web site,
located at http://www.vikingcorp.com.
The Web site may include a more recent
edition of this Technical Data page.
6. GUARANTEES
For details of warranty, refer to Vikin
g
’s
current list price schedule or contact Vi-
kin
g
directly.
7. INSTALLATION
WARNING: Vikin
g
sprinklers are manu-
factured and tested to meet the ri
g
id
requirements of the approvin
g
a
g
ency.
The sprinklers are desi
g
ned to be in-
stalled in accordance with reco
g
nized
installation standards. Deviation from
the standards or any alteration to the
sprinkler after it leaves the factory in-
cludin
g
, but not limited to, paintin
g
, plat-
in
g
, coatin
g
, or modification, may render
the sprinkler inoperative and will auto-
matically nullify the approval and any
g
uarantee made by The Vikin
g
Corpora-
tion.
A. Sprinklers are to be installed in ac-
cordance with the latest published
standardsoftheNationalFireProtec-
tion Association, Factory Mutual,
Loss Prevention Council, Assemblee
Pleniere, Verband der Sachver-
sicherer or other similar or
g
aniza-
tions,andalsowithprovisionsof
g
ov-
ernmental codes, ordinances, and
standards whenever applicable. For
conditionsnotspecificallycoveredby
the standards, refer to the "Vikin
g
Residential Installation Guide". Fi-
nal approval and acceptance of all
Residential Sprinkler Installations
must be obtained from the Author-
ity Having Jurisdiction. Residen-
tial sprinklers are special-service
sprinklers for use in one- and two-
family dwellin
g
s, mobile homes, and
residentialportions ofotheroccupan-
cies, where allowed. The use of resi-
dential sprinklers may be limited due
to occupancy and hazard. The mini-
mum flow rate indicated for a listed
areaofcovera
g
emustbeprovidedat
the sprinkler. Therefore, the system
must be hydraulically calculated.
Refer to the Authority Havin
g
Juris-
diction prior to installation.
B. Sprinklers must be handled with care.
They must be stored in a cool, dry
place in their ori
g
inal container.
Never install sprinklers that have
been dropped or dama
g
ed in any
way. Never install any
g
lass-bulb
sprinkler if the bulb is cracked or if
there is a loss of liquid from the bulb.
If a
g
lass bulb lacks the appropriate
amount of fluid, it should be set aside
and returned to Vikin
g
(or an author-
izedVikin
g
distributor) for analysis as
soon as possible. If the sprinkler is
Sprinkler 141 a
May 21, 1998
Form No. F_ 060697 Replaces sprinkler pa
g
e 141 a-e, dated April 9, 1998
(added reference to Vikin
g
’s website and made a
correction in the approval chart on pa
g
e 141 d).
Units of measure in parentheses may be approximations.
TECHNICAL DATA Microfast®MODEL M-5
RESIDENTIAL PENDENT
SPRINKLER, 5.5 K-FACTOR
OBSOLETE

notreturnedtoVikin
g
,itshouldbede-
stro
y
ed immediatel
y
. Never install
sprinklers which have been exposed
to temperatures in excess of maxi-
mum ambient temperature allowed.
Such sprinklers should be destro
y
ed
immediatel
y
.
C. Corrosion-resistant sprinklers must
beinstalledwhensubjecttocorrosive
atmospheres. Vikin
g
Microfast®
Model M-5 Residential Pendent
Sprinklers are not intended for use in
corrosive environments.
D. Use care when locatin
g
sprinklers
near fixtures that can
g
enerate heat.
Do not install sprinklers where the
y
will be exposed to temperatures that
exceed the maximum recommended
ambient temperature for the tem-
perature ratin
g
used.
E. Sprinklers must be protected from
mechanical dama
g
e. Adequate heat
mustbeprovidedwhensprinklersare
installed on wet pipe s
y
stems.
F.TheMicrofast®ModelM-5Residential
Pendent Sprinkler must be installed
after the pipin
g
is in place to prevent
mechanicaldama
g
e,andmustbein-
stalled in the pendent position. Be-
fore installin
g
, besure the sprinkleris
the appropriate model and st
y
le, and
has the proper orifice size, tempera-
ture ratin
g
, and response charac-
teristics. Appl
y
a small amount of
pipe-joint compound or tape to the
male threads onl
y
, takin
g
care not to
allow a build-up of compound inside
the orifice. Install the sprinkler on the
pipin
g
usin
g
the special sprinkler
wrench onl
y
, while takin
g
care not to
dama
g
ethesprinkleroperatin
g
parts.
DONOTusethesprinklerdeflectorto
start or thread the sprinkler into a fit-
tin
g
.
G. After installation, the entire sprinkler
s
y
stemmustbetestedinaccordance
with the reco
g
nized installation
standards. The test is applied after
sprinklerinstallationtoensurethatno
dama
g
ehasoccurredtothesprinkler
durin
g
shipment and installation, and
to make sure the unit has been prop-
erl
y
ti
g
htened. If a thread leak should
occur, normall
y
the unit must be re-
moved, new pipe-joint compound or
tape applied, and then reinstalled.
This is due to the fact that when the
joint seal leaks, the sealin
g
com-
pound is washed out of the joint.
8. MAINTENANCE
NOTICE: The owner is responsible for
maintainin
g
the fire-protection s
y
stem
and devices in proper operatin
g
condi-
tion. For minimum maintenance and in-
spection requirements, refer to the Na-
tional Fire Protection Association Pam-
phlet that describes care and mainte-
nance of sprinkler s
y
stems. In addition,
the Authorit
y
Havin
g
Jurisdiction ma
y
have additional maintenance, testin
g
,
and inspectionrequirementswhichmust
be followed.
A. Sprinklers must be inspected on a
re
g
ular basis for corrosion, mechani-
cal dama
g
e, obstructions, paint, etc.
Thefrequenc
y
oftheinspectionsma
y
var
y
due to corrosive atmospheres,
water supplies, and activit
y
around
the device.
B. Sprinklers that have been field
painted or mechanicall
y
dama
g
ed
mustbereplacedimmediatel
y
.Sprin-
klersshowin
g
si
g
ns of corrosion shall
be tested and/or replaced immedi-
atel
y
as required. Residential sprin-
klers that are 20
y
ears old shall be
tested and/or replaced as required.
Never attempt to repair or reassem-
ble a sprinkler. Sprinklers that have
operated cannot be reassembled or
re-used, but must be replaced.
When replacin
g
sprinklers, use onl
y
new sprinklers.
C. The sprinkler dischar
g
e pattern is
critical for proper fire protection.
Nothing should be hung from, at-
tached to, or otherwise obstruct
the discharge pattern. All obstruc-
tions must be immediatel
y
removed
or, if necessar
y
, additional sprinklers
installed.
D. When replacin
g
existin
g
sprinklers,
the s
y
stem must be removed from
service. Refer to the appropriate s
y
s-
tem description and/or valve instruc-
tions. Prior to removin
g
the s
y
stem
from service, notif
y
all Authorities
Havin
g
Jurisdiction. Consideration
should be
g
iven to emplo
y
ment of a
fire patrol in the affected area.
1. Remove the s
y
stem form service,
drain all water, and relieve all
pressure on the pipin
g
.
2.Usin
g
the special sprinklerwrench,
turn the unit counterclockwise to
remove the old sprinkler from the
pipin
g
in which it is installed.
3. Install the new unit. Care must be
taken to ensure that the replace-
mentsprinkler is the proper model
and st
y
le, and has the appropriate
orifice size, temperature ratin
g
,
and response characteristics.
Approvals and listin
g
s of the re-
placement sprinkler should match
those for the existin
g
sprinkler. A
full
y
stocked spare sprinkler cabi-
netshouldbeprovidedforthispur-
pose.
4. Place the s
y
stem back in service
and secure all valves. Check and
repair all leaks.
E. Sprinkler s
y
stems that have been
subjectedtoafiremustbereturnedto
service as soon as possible. The en-
tire s
y
stem must be inspected for
dama
g
e, and repaired or replaced as
necessar
y
.Sprinklersthathavebeen
exposed to corrosive products of
combustion orhi
g
hambienttempera-
tures, but have not operated, should
be replaced. Refer to the Authorit
y
Havin
g
Jurisdiction for minimum re-
placement requirements.
May 21, 1998
Sprinkler 141 b
TECHNICAL DATA Microfast®MODEL M-5
RESIDENTIAL PENDENT
SPRINKLER, 5.5 K-FACTOR
OBSOLETE

Sprinkler 141 c
May 21, 1998
TECHNICAL DATA Microfast®MODEL M-5
RESIDENTIAL PENDENT
SPRINKLER, 5.5 K-FACTOR
Sprinkler Nominal Sprinkler
Ceiling Temperature at Sprinkler
Temperature Temperature Rating Maximum Ambient Maximum Recommended Bulb
Classification (Fusing Point) Temperature Allowed1 Ambient Temperature2Color
Ordinary 155°F (68°C) 135°F(46°C)100°F (38°C) Red
Intermediate 175°F (79°C) 155°F (68°C)150°F (65°C) Yellow
Sprinkler Finishes: Brass, Bright Brass, Chrome-Enloy®, White (Paint), and Navajo White (Paint)
1 Based on National Fire Prevention and Control Administration, Contract No. 7-34860.
2Based on NFPA-13. Other limits may apply depending on fire loading, sprinkler location, and other Authority-Having-Jurisdiction requirements.
Refer to specific installation standards.
Deflector Thread Nominal Nominal Overall
Style Size NPT Orifice K Factor 9Length Base Part Number3
Pendent 1/2 inch 1/2 inch 5.5 US 2.25 inch
(15 mm) (15 mm) (7,9 metric) (69,9 mm) 10050
KEY
AREAS OF COVERAGE4Temperature
Finish
A1X Escutcheon
Smooth, Flat, Horizontal Ceilings
Maximum Area Minimum Water Supply Requirements7Approvals2
of Coverage6
One Sprinkler Two or More UL5C-UL8FM NYC
Width Length
12 ft. x 12 ft. 16 GPM @ 8.5 PSI 14.5 GPM @ 7.0 PSI
3,7 m x 3,7 m 60,6 L/Min @ 58,6 kPa 54,9 L/Min @ 48,3 kPa A1X A1X -- --
14 ft. x 14 ft. 19 GPM @ 11.9 PSI 16 GPM @ 8.5 PSI
4,3 m x 4,3 m 71,9 L/Min @ 82,0 kPa 60,6 L/Min @ 58,6 kPa A1X A1X -- --
16 ft. x 16 ft. 19 GPM @ 11.9 PSI 16 GPM @ 8.5 PSI
4,9 m x 4,9 m 71,9 L/Min @ 82,0 kPa 60,6 L/Min @ 58,6 kPa A1X A1X -- --
18 ft. x 18 ft. 21 GPM @ 14.6 PSI 17.5 GPM @ 10.1 PSI
5,5 m x 5,5 m 79,5 L/Min @ 100,7 kPa 66,2 L/Min @ 69,6 kPa A1X A1X -- --
20 ft. x 20 ft. 24 GPM @ 19.0 PSI 19 GPM @ 11.9 PSI
6,1 m x 6,1 m 90,8 L/Min @ 131,0 kPa 71,9 L/Min @ 82,0 kPa A1X A1X -- --
APPROVED APPROVED APPROVED
TEMPERATURES FINISHES ESCUTCHEONS
A - 155°F (68°C) and 175°F (79°C) 1 - Brass, Bright Brass, Chrome-Enloy®, X - Standard surface or F-1
B - 155°F (68°C) ONLY White (Paint), and Navajo White (Paint) Adjustable Escutcheon10,
C - 175°F (79°C) ONLY or recessed with E-1 Recessed
Escutcheon
FOOTNOTES
3Base part number shown. For complete part number, see price list.
4This chart shows the listings and approvals available at the time of printing. Other approvals are in process. Check with the
manufacturer for any additional approvals.
5Listing is for residential occupancies with smooth, flat, horizontal ceilings and ceilings with slopes up to a 6/12 pitch (26.6°).
See Footnotes 6, 7, and 8.
6Listed area of coverage measured along ceiling. Consult Figures 1 and 2, page 141 e, and "Residential Installation Guide"
paragraphs that pertain to sprinklers with listings for both smooth, flat, horizontal, and sloped ceilings for installation details.
7 For areas of coverage smaller than shown, use the "Minimum Water Supply Requirement" for the next largest area listed.
Flows and pressures listed are per sprinkler.
8Listed by Underwriters Laboratories Inc. for use in Canada.
9Metric K Factor shown is for use when pressure is measured in kPa. When pressure is measured in BAR, multiply the metric
K Factor shown by 10.0.
10 The Model F-1 Adjustable Escutcheon is considered a surface-mounted escutcheon because it does not allow the fusible element
of the sprinkler to be recessed behind the face of the wall or ceiling.
OBSOLETE

Sprinkler 141 d May 21, 1998
Sprinkler Nominal Sprinkler Ceiling Temperature at Sprinkler
Temperature Temperature Rating Maximum Ambient Maximum Recommended Bulb
Classification (Fusing Point) Temperature Allowed1Ambient Temperature2
Color
Ordinary 155°F (68°C) 135°F (46°C) 100°F (38°C) Red
Intermediate 175°F (79°C) 155°F (68°C) 150°F (65°C) Yellow
Sprinkler Finishes: Brass, Bright Brass, Chrome-Enloy®, White (Paint), and Navajo White (Paint)
1 Based on National Fire Prevention and Control Administration, Contract No. 7-34860.
2Based on NFPA-13. Other limits may apply depending on fire loading, sprinkler location, and other Authority-Having-Jurisdictionrequirements.
Refer to specific installation standards.
Deflector Thread Nominal Nominal Overall
Style Size NPT Orifice K Factor 9Length Base Part Number3
Pendent 1/2 inch 1/2 inch 5.5 US 2.25 inch
(15 mm) (15 mm) (7,9 metric) (69,9 mm) 10050
KEY
AREAS OF COVERAGE4Temperature
Finish
(Refer to Figures 1 and 2, page 141 e) A1X Escutcheon
Sloped Ceilings (with slopes up to and including a 6/12 (26.6°) pitch )
Maximum Area Minimum Water Supply Requirements7Approvals2
of Coverage6
One Sprinkler Two or More UL5C-UL8FM NYC
Width Length
12 ft. x 12 ft. 20 GPM @ 13.2 PSI 16 GPM @ 8.5 PSI
3,7 m x 3,7 m 75,7 L/Min @ 91,0 kPa 60,6 L/Min @ 58,6 kPa B1X B1X -- --
12 ft. x 12 ft. 21 GPM @ 14.6 PSI 16 GPM @ 8.5 PSI
3,7 m x 3,7 m 79,5 L/Min @ 100,7 kPa 60,6 L/Min @ 58,6 kPa C1X C1X -- --
14 ft. x 14 ft. 20 GPM @ 13.2 PSI 16 GPM @ 8.5 PSI
4,3 m x 4,3 m 75,7 L/Min @ 91,0 kPa 60,6 L/Min @ 58,6 kPa B1X B1X -- --
14 ft. x 14 ft. 21 GPM @ 14.6 PSI 16 GPM @ 8.5 PSI
4,3 m x 4,3 m 79,5 L/Min @ 100,7 kPa 60,6 L/Min @ 58,6 kPa C1X C1X -- --
16 ft. x 16 ft. 20 GPM @ 13.2 PSI 16 GPM @ 8.5 PSI
4,9 m x 4,9 m 75,7 L/Min @ 91,0 kPa 60,6 L/Min @ 58,6 kPa B1X B1X -- --
16 ft. x 16 ft. 21 GPM @ 14.6 PSI 16 GPM @ 8.5 PSI
4,9 m x 4,9 m 79,5 L/Min @ 100,7 kPa 60,6 L/Min @ 58,6 kPa C1X C1X -- --
18 ft. x 18 ft. 22 GPM @ 16.0 PSI 18 GPM @ 10.7 PSI
5,5 m x 5,5 m 83,3 L/Min @ 110,3 kPa 68,1 L/Min @ 73,8 kPa A1X A1X -- --
20 ft. x 20 ft. 28 GPM @ 25.9 PSI 24 GPM @ 19 PSI
6,1 m x 6,1 m 106,0 L/Min @ 178,6 kPa 90,8 L/Min @ 131,0 kPa A1X A1X -- --
APPROVED APPROVED APPROVED
TEMPERATURES FINISHES ESCUTCHEONS
A - 155°F (68°C) and 175°F (79°C) 1 - Brass, Bright Brass, Chrome-Enloy®, X - Standard surface or F-1 Adjustable
B - 155°F (68°C) ONLY White (Paint), Navajo White (Paint) Escutcheon10, or recessed with E-1
C - 175°F (79°C) ONLY Recessed Escutcheon
FOOTNOTES
3 Base part number shown. For complete part number, see price list.
4 This chart shows the listings and approvals available at the time of printing. Other approvals are in process. Check with the manufacturer for any
additional approvals.
5 Listing is for residential occupancies with smooth, flat, horizontal ceilings and ceilings with slopes up to a 6/12 pitch (26.6°).
See Footnotes 6, 7, and 8.
6 Listed area of coverage measured along ceiling. Consult Figures 1 and 2, page 141 e, and "Residential Installation Guide" paragraphs that pertain
to sprinklers with listings for both smooth, flat, horizontal, and sloped ceilings for installation details.
7 For areas of coverage smaller than shown, use the "Minimum Water Supply Requirement" for the next largest area listed. Flows and pressures
listed are per sprinkler.
8 Listed by Underwriters Laboratories Inc. for use in Canada.
9 Metric K Factor shown is for use when pressure is measured in kPa. When pressure is measured in BAR, multiply the metric K Factor shown by 10.0.
10 The Model F-1 Adjustable Escutcheon is considered a surface-mounted escutcheon because it does not allow the fusible element of the sprinkler to be
recessed behind the face of the wall or ceiling.
TECHNICAL DATA Microfast®MODEL M-5
RESIDENTIAL PENDENT
SPRINKLER, 5.5 K-FACTOR
OBSOLETE

Figure 1: Installation Guidelines
Figure 2: Installation Guidelines - Lofts
NOTES:
1. Actual installations ma
y
require multiple sprinklers. A sin
g
le sprinkler installation has been shown for clarit
y
.
2. For "cathedral" ceilin
g
applications, install sprinklers in a s
y
mmetrical mirror-ima
g
e of Fi
g
ure 1.
3. For areas of covera
g
e smaller than the listed areas (up to 20’ x 20’), with slopes between a 0/12 pitch (0°) and a 6/12
pitch (26.6°), the "Minimum Water Suppl
y
Requirements" for the next lar
g
est "sloped" installation must be used.
Refer to approval chart on pa
g
e 145 a.
Sprinkler 141 e
May 21, 1998
TECHNICAL DATA Microfast®MODEL M-5
RESIDENTIAL PENDENT
SPRINKLER, 5.5 K-FACTOR
Listed Areas of Covera
g
e
correspond to areas measured
alon
g
ceilin
g
slope.
(For sloped ceilin
g
installations,
actual floor covera
g
e will be
less than listed area.)
Maximum ceilin
g
slope = 6/12 (26.6°).
Refer to chart on
pa
g
e 141 d
for listed areas
of covera
g
e.
Minimum 8" lintel for loft / upper
level (cathedral) applications.
Maximum 6/12
pitch (26.6°).
Refer to approval
chart on pa
g
e 141 d.
OBSOLETE
