Viking Professional VUC181 User manual

INSTALLATION
INSTRUCTIONS
UNDERCOUNTER TRASH COMPACTOR
Retain for Future Reference
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
[phone]
IMPORTANT - PLEASE READ AND FOLLOW
•Before beginning, please read these instructions completely and carefully.
•Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
•Please observe all local and national codes and ordinances.
•Please ensure that this product is properly grounded.
•The installer should leave these instructions with the consumer who should retain for local inspector’s use and for
future reference
BEFORE YOU START INSTALLATION
Proper installation is your responsibility. Make sure you have everything necessary for correct installation. It is the
personal responsibility and obligation of the customer to contact a qualified installer to assure that electrical installation
meets all local and national codes and ordinances.
Grounded electrical outlet is required. (See “Electrical Requirements”)
Check the location where the compactor will be installed. Compactor is designed for recessed installation. Cabinet
opening should be square. You should be able to fully open the compactor drawer. Allow 25” (63.5 cm) in front of
compactor to remove drawer. Six inches of clearance is needed on the right side of the compactor drawer to be able
to remove basket/bag.
WARNING: FIRE HAZARD
Do not let any item fall or collect behind the compactor. To do so may result in a fire.
FFRROONNTTRREEAARRSSIIDDEE
17 13/16”
(45.2 cm)
Min.
34 3/16”
(86.8 cm)
Max.
35 11/16”
(90.6 cm)
3 1/2”
(8.9 cm)
Electric/Cord Data
•2-wire with ground/
3 prong plug
•bracket to end -
54” (137.2 cm)
•total length -
72” (182.9 cm)
•115 VAC/60 hz
•separate 15 amp min.
26 1/16” (66.2 cm)
23 5/8” (60.0 cm)
24 1/2” (62.2 cm) 2 7/8” (7.3 cm)

2
ELECTRICAL REQUIREMENTS
Important: Observe all governing codes and ordinances
WARNING: ELECTRICAL SHOCK HAZARD
•Electrical ground is required on this appliance.
•Improper connection of the equipment-grounding conductor can result in electric shock.
•Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.
•Do Not modify the plug on the power supply cord. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
•Do Not use an extension cord with this appliance. Such use may result in a fire, electrical shock or other personal
injury.
•Do Not have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in
electrical shock.
Failure to follow these instructions could result in fire, electrical shock or other personal injury.
A 115 volt, 60 Hz fused electrical supply is required. (Time-delay fuse or circuit breaker is recommended). It is
recommended that a separate circuit serving only this appliance be provided.
RECOMMENDED GROUNDING METHOD
DDooNNoott,,uunnddeerraannyycciirrccuummssttaanncceess,,rreemmoovveetthheeppoowweerrssuuppppllyyccoorrddggrroouunnddiinnggpprroonngg..
For your personal safety, this appliance must be grounded. This appliance is
equipped with a power supply cord having a 3-prong grounding plug. To minimize
possible shock hazard, the cord must be plugged into a mating 3-prong, grounding
type, wall receptacle, grounded in accordance with the National Electrical Code
ANSI/NFPA 70 latest edition and all local codes and ordinances. If a mating wall
receptacle is not available, it is the personal responsibility and obligation of the
customer to have a properly grounded, 3-prong, wall receptacle installed by a
qualified electrician.

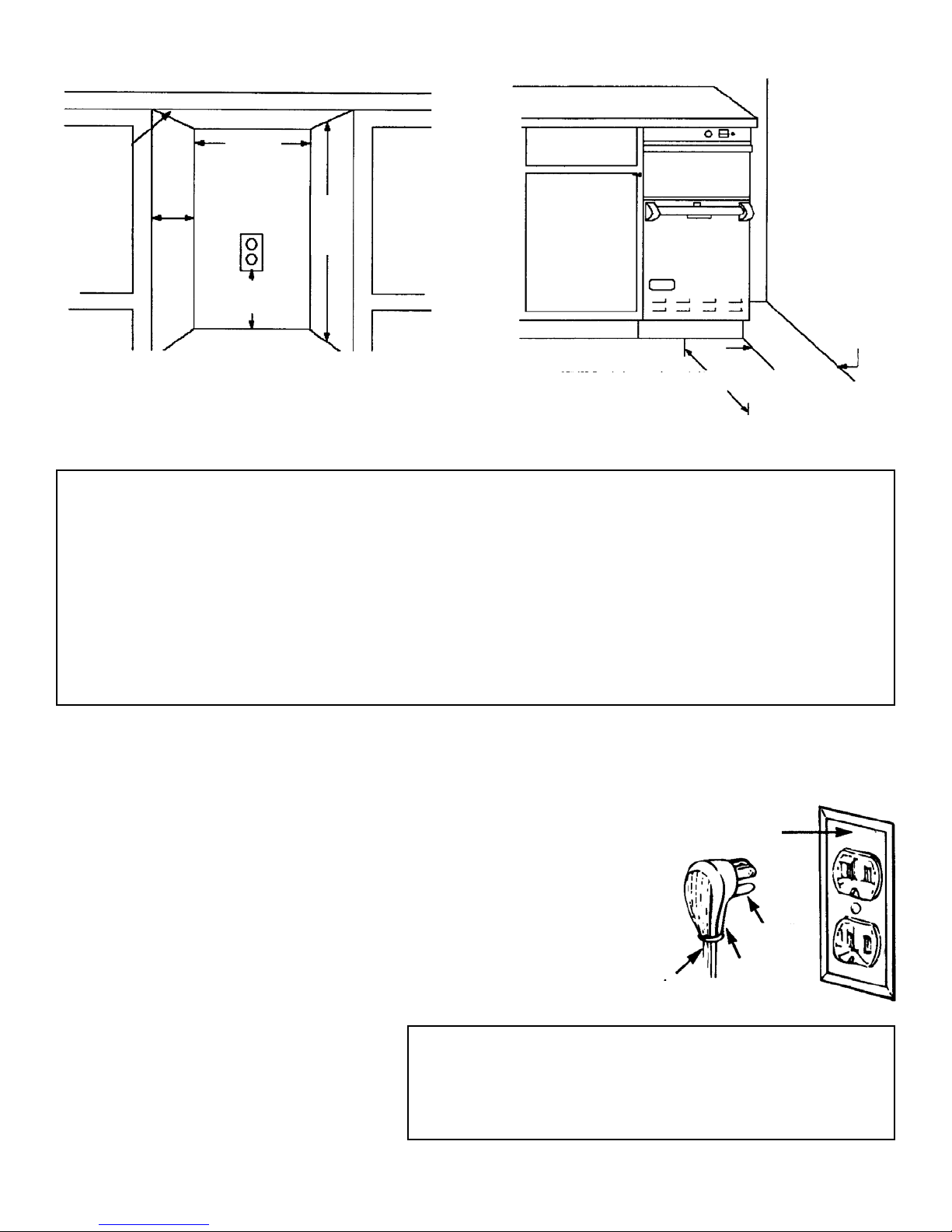

CUTOUT CLEARANCES
1/4” (.6 cm)
Min. clearance
from
compactor
top to
underneath
side of
countertop
24”
(61.0 cm)
Min.
18” Min.
(45.7 cm)
34 1/4”
(87.0 cm)
Min.
12” (30.5 cm)
Min.
6” (15.2 cm)
clearance
right side of
drawer for
bag removal
25” (63.5 cm) clearance needed to fully
open or remove compactor drawer
3-prong
grounding-type
wall receptacle
grounding
prong
3-prong
grounding
plug
power supply cord
START INSTALLATION
Begin with compactor in room where it will be
installed.
CAUTION: PRODUCT/FLOOR DAMAGE
•Do not grasp the console to move the compactor.
•Before moving compactor across floor, slide compactor onto
cardboard or hardboard. Failure to follow these instructions
may result in damage to floor covering or product.

3
WARNING: PERSONAL INJURY HAZARD
When moving or lifting the compactor, use a glove to protect
and cushion you hand. Failure to follow these instructions may
result in personal injury.
CAUTION: FLOOR DAMAGE
Do not allow the rear frame of the compactor
to touch the floor when lifting or rolling.
Doing so could damage floor covering.
1. Remove compactor from shipping carton. Remove all protective packaging materials such as tape and shipping
pads. Waxy residue from protective shipping material may be removed with a mild solution of liquid household
cleanser and water.
2. Check that power supply cord is attached to the cord bracket on the rear of the
compactor.
3. Measure the height of the cabinet opening from the underside of the
countertop to floor. Subtract 1/4” (.6 cm) from this measurement. Adjust
compactor to this height using pliers to lower the compactor leveling feet away
from the compactor.
4. Move compactor to final position. Turn key to STOP/LOCK position.
5. Place level on top of compactor. Check that compactor is level from front to
back and side to side. Adjust the four leveling feet until compactor is level.
Allow at least 1/4” (.6 cm) clearance between the compactor top and
countertop.
6. Install anti-tip bracket. See instructions below
7. Read use and care manual to fully understand your new compactor. Keep all
literature in a safe place for future reference.
Cord
bracket
IInnssttaalllliinnggtthheeAAnnttii--TTiippBBrraacckkeett::
1. After leveling legs, measure from the floor to the top of the compactor base plate from the backside. See Figure 1.
This “A” measurement will determine the height needed for the bracket.
2. Measure from the floor to the bottom of the bracket with the measurement “A” + 1/8” (0.3 cm) and mark the two
holes with a marker or pencil. Place the two screws into the bracket and tighten firmly to wall. See Figure 2. Note:
Place the screws into a wall stud for better stability.
3. Plug power supply cord into grounded outlet. Move compactor into final position, making sure the bracket fits
inside the opening in the rear of the unit.
FFiigguurree11
FFiigguurree22

Viking Range Corporation
111 Front Street • Greenwood, Mississippi 38930 USA • [phone]
Specifications subject to change without notice
F1214G (PS0805VR)

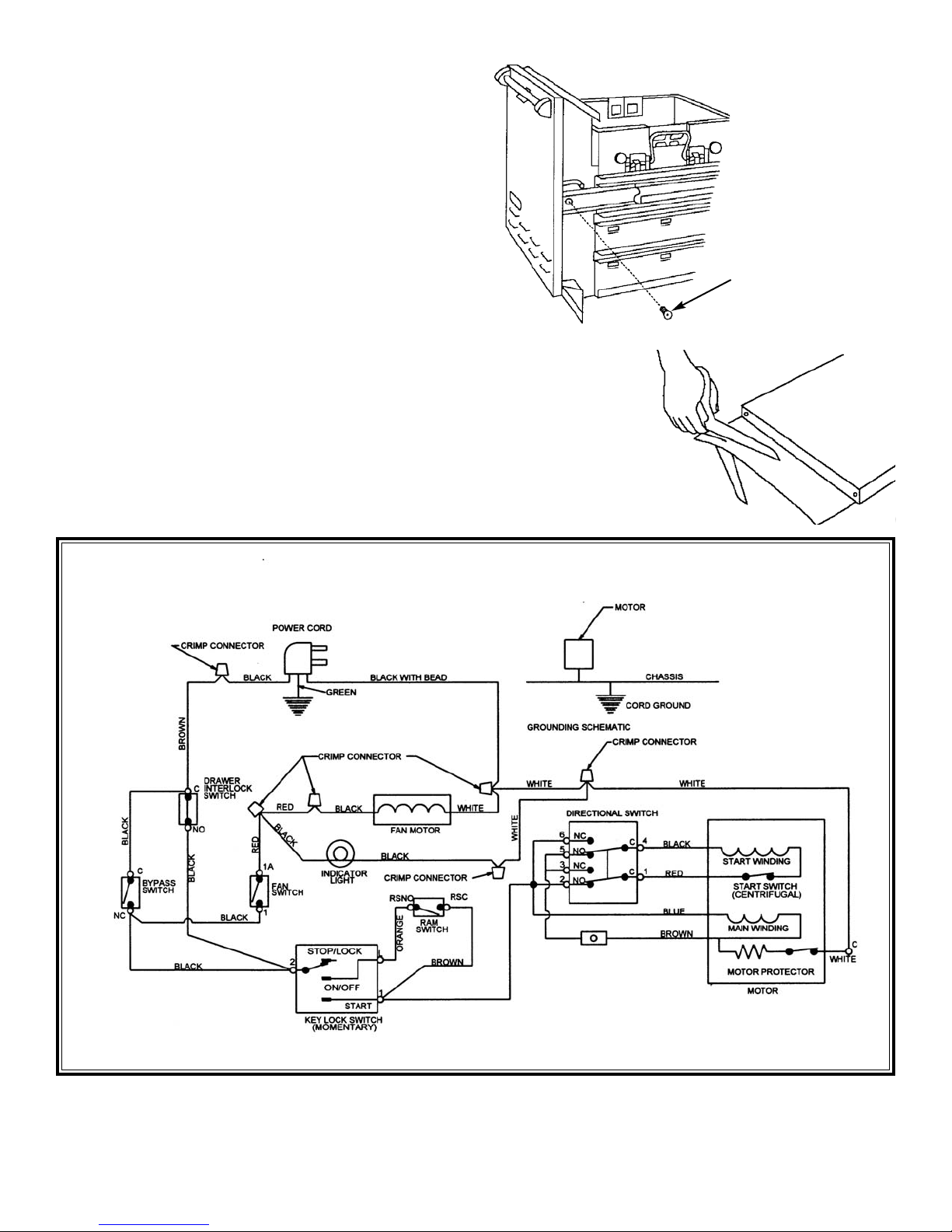

WIRING DIAGRAM
18” W. TRASH COMPACTOR
WARNING:
ELECTRICAL SHOCK HAZARD
Disconnect from electric supply before servicing
DDIIAAGGRRAAMMSSHHOOWWNNWWIITTHH
CCOOMMPPOONNEENNTTSSIINNTTHHEEFFOOLLLLOOWWIINNGG
PPOOSSIITTIIOONNSS::
DDRRAAWWEERR““CCLLOOSSEEDD””
KKEEYYSSWWIITTCCHH““OOFFFF””
RRAAMM““UUPP::
C
CHHAARRCCOOAALLAAIIRRFFIILLTTEERR““OOFFFF””
ADJUSTING TOE PLATE
If the toe plate rubs the floor covering, the toe plate
clearance may be changed as follows:
1. Mark on each side of the toe plate the amount of toe
plate that rubs the floor.
2. Fully open compactor drawer. Remove drawer retaining
screws from track assembly on each side of drawer.
Carefully remove the drawer from the track assembly.
Place drawer on its back on top of two corner posts from
carton.
3. With a ruler and a pencil or chalk, draw a line where the
toe plate interferes with the floor covering.
4. Use a pair of scissors or a utility knife to cut toe plate
along line.
5. Carefully slide drawer back into track assembly. Check
the toe plate clearance. If toe plate still rubs floor
covering, repeat steps 1-5.
6. When toe plate is adjusted properly, reattach drawer to
track assembly with the two retaining screws.
Retainer
Screws
