Vingtor Stentofon A100K11471 User manual

User Manual
Exigo Public Address & General Alarm System
User Guide for Access Panels
A100K11471

2Exigo Public Address & General Alarm System
User Manual
A100K11471
About this Document
Document Scope
This document provides relevant information on how to use the Access
Panels for the Exigo Public Address & General Alarm System.
Publication Log
Rev. Date Author Status
1.0 5.2.2015 HKL Published
Related Documentation
Doc. no. Documentation
A100K11460 Exigo Technical Manual - Oil & Gas and Marine Applications
A100K11510 Exigo System Description
A100K11579 Exigo Industrial Access Panels Mounting
A100K11499 Exigo Ex Access Panels Installation & Maintenance
Marine & Offshore Regulations
Codes & Standards
The Exigo PAGA system is tested and certied in accordance with:
●IMO Resolution A.1021(26): “Code on Alerts and Indicators”
●IMO Resolution MSC.212(82): “Adoption of Amendments to the
International Life Saving Appliance (LSA) Code”
●LSA Code: “Life Saving Appliance Code”:
- Chapters: 7.2.1 and 7.2.2
●MSC/Circ.808 (1997): “Recommendation on Performance
Standards for Public Address on Passenger Ships, Including
Cabling”
●SOLAS: “International Convention for the Safety of Life at Sea”
- Chapters: II-1, II-2 and III
●MODU CODE (2010): “Code for the Construction and Equipment of
Mobile Offshore Drilling Units”
●IACS: UI SC145(1998): “International Association of Classications
Societies, Unied Interpretation of SOLAS”
Type Approvals
The Exigo system has the following type approval certicates:
●DNV GL
- Certicate number: A-13830

3Exigo Public Address & General Alarm System
User Manual
A100K11471
Contents
1 Exigo Access Panels ................................................................4
1.1 Access Panel .....................................................................4
1.2 Indoor Panel Models .........................................................6
1.3 Outdoor Panel Models .......................................................7
1.4 Microphones ......................................................................7
2 Emergency PA Broadcast .........................................................8
3 General Alarm Broadcast ..........................................................9
4 Manual Alarm Broadcast .........................................................10
5 Abandon Alarm Broadcast ......................................................11
6 PA Broadcast with Zone Selection .........................................12
7 PA Broadcast with Recall ........................................................13
8 Prerecorded Message Broadcast ...........................................14

4Exigo Public Address & General Alarm System
User Manual
A100K11471
1 Exigo Access Panels
This document contains descriptions on how to use the access
panels for the Exigo Public Address & General Alarm System.
1.1 Access Panel
Speaker
PTT
(Push-To-Talk)
Key
Volume Control
Dimmer
+
EMERGENCY PA
GENERAL ALARM
ABANDON ALARM
Fault
LED
Call
LED
Power
LED
Indoor Access Panel
Fault
LED
+
GENERAL ALARM
ABANDON ALARM
EMERGENCY PA
Call
LED
Power
LED
Outdoor Access Panel

5Exigo Public Address & General Alarm System
User Manual
A100K11471
1 Exigo Access Panels
This document contains descriptions on how to use the access
panels for the Exigo Public Address & General Alarm System.
1.1 Access Panel
Speaker
PTT
(Push-To-Talk)
Key
Volume Control
Dimmer
+
EMERGENCY PA
GENERAL ALARM
ABANDON ALARM
Fault
LED
Call
LED
Power
LED
Indoor Access Panel
Microphone Connector Socket
Both the handheld or gooseneck microphone can be plugged
into this socket.
Function Keys
Functions such as PA, alarms, zone selection, etc. can be
dynamically programed into these keys
Key Protection Covers
The protection covers are for preventing accidental use of the
function keys. When keys are used for alarms, protection covers
are required so as to force a 2-step action for activating the
alarms.

6Exigo Public Address & General Alarm System
User Manual
A100K11471

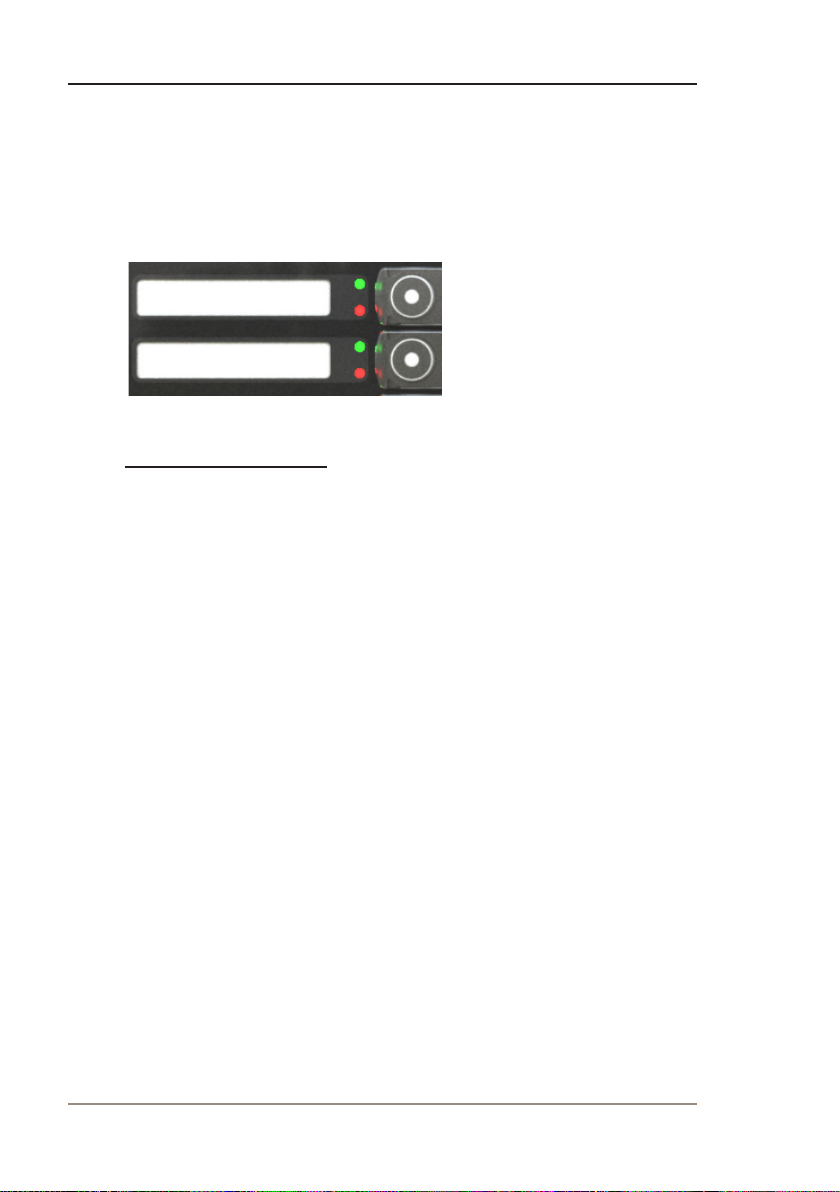

Function Key LEDs
Each function key has one green and one red LED to indicate
different status information related to the function.
PTT (Push-To-Talk) Key
The PTT key is used in conjunction with the gooseneck
microphone when making PA broadcasts.
Power LED
The green Power LED is lit to indicate that the access panel is
powered up.
Fault LED
The yellow Fault LED blinks to indicate that there are faults in
the system.
Call LED
The red Call LED is lit when the microphone is in use or active.
Dimmer
The intensity of the backlight in the keys can be adjusted by
pressing the dimmer button . The light intensity is increased
or decreased by pressing the plus (+) or minus (-) side of the
dimmer button respectively.
Volume Control
The volume can be adjusted by pressing the volume button .
The volume is increased or decreased by pressing the plus (+)
or minus (-) side of the button respectively.
1.2 Indoor Panel Models
Item No. Item Name
1023200033 ECPIR-P Access Panel, PTT + 3 Buttons, Pluggable Mic
1023200030 ECPIR-3P Access Panel, PTT Button, Pluggable Mic
1023201008 EAPIR-8 Access Panel, 8 Buttons
1023253008 EBMDR-8 8-Button Expansion Module

7Exigo Public Address & General Alarm System
User Manual
A100K11471
1.3 Outdoor Panel Models
Item No. Item Name
1023201201 EAPII-1 Industrial Access Panel, 1 Button
1023201206 EAPII-6 Industrial Access Panel, 6 Buttons
1023221511 EAPFX-1 Ex Access Panel, 1 Button
1023221516 EAPFX-6 Ex Access Panel, 6 Buttons
1.4 Microphones
Item No. Item Name Panel Usage
1023533011 EMMAR-1H Handheld Mic Indoor Access Panels
1023533020 EMMAR-G Gooseneck Mic Indoor Access Panels
1023533311 EMMAI-1H Handheld Mic Outdoor Industrial Access Panels
1023533312 EMMAI-2H Handheld Compact Mic Outdoor Industrial Access Panels
1023533511 EMMAX-1H Handheld Compact Mic Outdoor Ex Access Panels
PTT (Push-To-Talk)
Key
PTT (Push-To-Talk)
Key
PTT (Push-To-Talk)
Key
EMMAR-1H EMMAR-G
EMMAX-1H / EMMAI-2HEMMAI-1H

8Exigo Public Address & General Alarm System
User Manual
A100K11471
2 Emergency PA Broadcast
The function keys have protection covers to prevent accidental
use.
An Emergency PA will be broadcasted to all zones.
Emergency PA Procedure
1. Flip open the key protection cover for the key designated for
Emergency PA
2. Press the Emergency PA key and the Public Address
broadcast is set up.
- Indicated by a steady green LED beside the function key.
- Ongoing alarm, PA message with lower priority,
entertainment broadcast will be muted.
- Volume control for entertainment broadcast will be
overridden.
3. Press and hold the PTT key on the panel or microphone.
- The red Call LED will be lit
4. Speak close to and clearly into the microphone to broadcast
the message.
5. Release the PTT key to terminate the PA broadcast.
- If an alarm, PA message with lower priority, entertainment
broadcast have been muted, they will automatically
resume.
+
EMERGENCY PA
GENERAL ALARM
ABANDON ALARM
+
EMERGENCY PA
GENERAL ALARM
ABANDON ALARM

9Exigo Public Address & General Alarm System
User Manual
A100K11471
3 General Alarm Broadcast
General Alarm can be programed into the function keys of the
access panel.
The General Alarm is recognized through the sounding of 7
short tones followed by 1 long tone.
Alarm Broadcast Procedure
1. Flip open the protection cover for the key designated for the
alarm you wish to start.
2. Press the GENERAL ALARM key to activate the alarm.
- Indicated by a steady green LED beside the ALARM key.
- Corresponding LEDs on all other panels in the system will
also be lit
- Ongoing entertainment broadcast and other activities with
lower priority will be muted.
3. Press the GENERAL ALARM key again to terminate the
alarm.
- Entertainment broadcast and other activities with lower
priority will resume.
LA General Alarm started from the bridge cannot be ter-
minated from panels in other locations on the vessel.
However, it is possible to terminate any General Alarm
in the system from the bridge alarm panel.
+
GENERAL ALARM
ABANDON ALARM
FIRE ALARM
GAS ALARM
MUSTER ALARM
MANUAL ALARM

10 Exigo Public Address & General Alarm System
User Manual
A100K11471
4 Manual Alarm Broadcast
Manual Alarm can be programed into the function keys of the
access panel.
By pressing and releasing the MANUAL ALARM key, an alarm
tone sequence can be broadcasted.
Alarm Broadcast Procedure
1. Flip open the protection cover for the key designated for the
alarm you wish to start.
2. Press and release the MANUAL ALARM key to broadcast an
alarm tone sequence
- As long as the key is pressed, the tone will be broadcasted
- Indicated by a steady green LED beside the MANUAL
ALARM key.
- Corresponding LEDs on all other panels in the system will
also be lit
- Ongoing entertainment broadcast will be muted.
- When the key is not pressed within a period of 10 seconds
(or less depending on the programming), the alarm is
terminated and entertainment broadcast will resume.
+
GENERAL ALARM
ABANDON ALARM
FIRE ALARM
GAS ALARM
MUSTER ALARM
MANUAL ALARM

11Exigo Public Address & General Alarm System
User Manual
A100K11471
5 Abandon Alarm Broadcast
Abandon Alarm can be programed into the function keys of the
alarm panel.
Alarm Broadcast Procedure
1. Flip open the protection cover for the key designated for the
alarm you wish to start.
2. Press the ABANDON ALARM key to activate the alarm.
- Indicated by a steady green LED beside the ALARM key.
- Corresponding LEDs on all other panels in the system will
also be lit
- Ongoing entertainment broadcast and other activities with
lower priority will be muted.
3. Press the ABANDON ALARM key again to terminate the
alarm.
- Entertainment broadcast and other activities with lower
priority will resume.
+
GENERAL ALARM
ABANDON ALARM
FIRE ALARM
GAS ALARM
MUSTER ALARM
MANUAL ALARM

12 Exigo Public Address & General Alarm System
User Manual
A100K11471
6 PA Broadcast with Zone Selection
The function keys on the panel can be designated as various
zones.
PA Broadcast Procedure
1. Flip open the protection cover for the key(s) designated for
the zone(s) to which the PA will be broadcasted
2. Select zones by pressing the function keys for the desired PA
zones.
- When the zone is selected, the green LED by the ZONE
key will be lit.
- To deselect the zone, press the ZONE key again.
3. Press and hold the PTT key on the panel or microphone.
- The red Call LED will be lit
4. Speak close to and clearly into the microphone to broadcast
the message.
- Ongoing entertainment broadcast will be muted.
5. Release the PTT key to terminate the PA broadcast.
- Entertainment broadcast will resume.
+
ZONE 2
ZONE 3
ZONE 1
ZONE 5
ZONE 6
ZONE 4
+
EMERGENCY PA
GENERAL ALARM
ABANDON ALARM

13Exigo Public Address & General Alarm System
User Manual
A100K11471
7 PA Broadcast with Recall
PA with Recall can be programed into the function keys of the
access panel.
One key is programed to RECORD while another key is
programed to DISPATCH the PA.
Broadcast Procedure
1. Flip open the protection covers for the function keys.
2. Select zones by pressing the function keys for the desired PA
zones.
- When the zone is selected, the green LED by the ZONE
key is lit.
- To deselect the zone, press the function key again.
3. Press and hold the RECORD key.
4. Speak close to and clearly into the microphone to record the
message.
5. Release the RECORD key to play back the recorded
message.
- If the message is not satisfactory, press the RECORD key
to record the message again
6. Press the DISPATCH key to broadcast the message.
+
ZONE 1
RECORD
DISPATCH

14 Exigo Public Address & General Alarm System
User Manual
A100K11471
8 Prerecorded Message Broadcast
A Prerecorded Message Broadcast can be programed into the
function keys of the access panel.
The prerecorded message can be programed into e.g. a key
labeled MESSAGE 1.
Broadcast Procedure
1. Flip open the protection covers for the function keys.
2. Select zones by pressing the function keys for the desired PA
zones.
- When the zone is selected, the green LED by the ZONE
key is lit.
- To deselect the zone, press the function key again.
3. Press the MESSAGE 1 key to broadcast the prerecorded
message.
+
ZONE 1
MESSAGE 1
DISPATCH

15Exigo Public Address & General Alarm System
User Manual
A100K11471

www.vingtor.com
Zenitel Norway AS
DOC NO. [e-mail]
Zenitel and its subsidiaries assume no responsibility for any errors that may appear in this publication, or for damages arising from
the information therein. Vingtor-Stentofon products are developed and marketed by Zenitel. The company’s Quality Assurance
System is certified to meet the requirements in NS-EN ISO 9001. Zenitel reserves the right to modify designs and alter specifications
without notice. ZENITEL PROPRIETARY. This document and its supplementing elements, contain Zenitel or third party information
which is proprietary and confidential. Any disclosure, copying, distribution or use is prohibited, if not otherwise explicitly agreed in
writing with Zenitel. Any authorized reproduction, in part or in whole, must include this legend. Zenitel – All rights reserved.
A100K11471
