Vintec V30SG User manual

code:VIM201105/011
Armoire vin.
WinePreservationTechnology
USER MANUAL
V30SG
V40SG
V50SG
V30SGMe
V30SG"e"/AL-V30SG"e"
V40SG"e"/AL-V40SG"e"
V50SG"e"
V26SG"e"
V30SG"2e"/AL-V30SG"2e"
V40SG"2e"/AL-V40SG"2e"
V40SD"2e"
V50SG"2e"
V40DG"2e"/AL-V40DG"2e"
V50DG"2e"

code:VIM201105/012
WARNING
Theinformationinthis documentis subjecttomodification withoutanyprior notice.
VINTEC offersnoguarantee forourwinecellarifitisbeing usedforany purposeother
thanthatforwhichit wasspecificallydesigned. VINTEC cannotbeheldresponsiblefor
anyerrorinthismanual. VINTEC isnotresponsibleorliableforanyspoilageordamage
towinesoranyothercontentsincidentalorconsequentialtopossibledefectsofthewine
cellar. Warrantyapplies tothewinecellaronlyandnottothecontentofthewinecellar.
Thisappliance isnotintendedforusebypersons(includingchildren)withreduced
physical,sensoryormentalcapabilities, orlackofexperience and knowledge,unless they
havebeengivensupervisionorinstructionconcerninguseoftheappliance byaperson
responsiblefortheirsafety.
Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
R600AWARNINGS
ThefollowingmodelsusesmallquantityofR600A(iso-butane)flammablerefrigerantin
theirsealedsystemasfollow:
AL-V30SG”e”–30gAL-V30SG”2e”–30g
AL-V40SG”e”–35g AL-V40SG”2e”–35g
AL-V40DG”2e”–45g V26SG e”–30g
V40SD”2e”–35g
Foryoursafetyobservethefollowingrecommendations.
•Thisappliance containsasmallquantityofR600Arefrigerantwhichis
environmentallyfriendly,butflammable. Itdoesnotdamagetheozonelayer,nor
does itincreasethegreenhouseeffect.
•Duringtransportationand installation,ensurethatthetubingoftherefrigerant
circuitis notdamaged.
•Avoidusingormanipulatingsharpobjectsnearbytheappliances.
•Leakingrefrigerantcanigniteandmaydamagetheeyes.
•Intheeventanydamagedoesoccur,avoidexposuretoopenfiresandanydevice
whichcreates aspark. Disconnecttheappliance fromthemains power.
•Thoroughlyventilatetheroominwhichtheappliance islocatedforseveral
minutes.
•NotifyCustomerService fornecessaryactionandadvice.

code:VIM201105/013
•Theroomforinstalling theappliance mustbeatleast1cubicmetreper8gramsof
refrigerant. Therefrigerantquantitycontainedinthisappliance islistedabovein
grams;itis alsonotedontheRatingPlateoftheappliance.
Itishazardousforanyoneother thananAuthorisedService Persontocarryout
servicingorrepairstothisappliance.InQueensland theauthorizedpersonmust
holdaGasWorkAuthorisationforhydrocarbonrefrigerants, before carryingout
servicingorrepairswhichinvolvetheremovalofcovers.
WARNING:Keepventilationopenings,intheappliance enclosureorinthebuilt-in
structure, clearofobstruction.
WARNING:Donotusemechanicaldevicesorothermeanstoacceleratethedefrosting
process, otherthanthoserecommendedbythemanufacturer.
WARNING:Donotdamagetherefrigerantcircuit.
WARNING:Donotuseelectricalappliancesinsidethefood storagecompartmentsof
theappliance,unless theyareofthetyperecommendedbythemanufacturer.
Theenvironmentandpersonalsafetymustbeconsideredwhendisposingofthis appliance.
Pleaseensuretheappliance istakentoarecyclecenterforsaferecycling.DO NOT
disposeoftheappliance inland fillastheinsulationandrefrigerantgascontainedinthese
appliances areflammable.
Allow24 hoursbefore switchingonthewinecellar.Duringthistimewerecommend
thatyouleavethedooropentoclearanyresidualodors.
BEFORELOADING&PLUGGINGINTHEWINECELLAR
Important:All modelswithoutfrontventing(airopening)arestrictlyforfree standing
only. (see technicalchart)
Recommendations:
Thelocationyouhaveselectedforyourwinecellarshould:
-beunencumberedandwellventilated;
-bewellawayfromanyheatsource anddirectsunlight;
-notbetoo damp(laundry, pantry, bathroometc.);
-haveaflatfloor,
-haveastandardandreliableelectricitysupply(standardsockettocountrystandards,
linkedtotheground), itis NOTrecommendedtouseamulti-socketorextensionlead.
-haveasurgeprotectorfittedtotheelectricaloutlet
-awayfromthemicrowave.
Certainmicrowaveovensdo nothavewaveinterference shield.Whenplacedwithina1
metervicinityofthewinecabinet, theymayaffecttheoperationofthewinecabinet.

code:VIM201105/014
Notes:
-V30 models areforfree standingONLY:
-V40 &V26 models arebuilt-intypeas perthedrawings thereafter;
-V50 models arepartiallybuilt-in, MUST allow1cmto, side&backclearance.
Thewinecellarshouldbeplacedwheretheambienttemperatureisbetween5ºCto35ºC.
Iftheambienttemperatureisaboveorbelowthisrange,theperformance oftheunitmay
beaffected.Placingyourunit inextremecoldorhotconditionsmaycauseinterior
temperaturestofluctuate.Theidealrangeoftemperaturemaynotbereached.(See
ClimateClass attheendofthismanual)
Groundinginstructions
Thewinecellarmustbegroundedincaseofanelectricalshortcircuit.Groundingreduces
theriskofelectricalshock.Thewinecellarisequippedwithapowercordhavinga
groundingwireandplug. Thewinecellarplugmustbepluggedintoaproperlyaffixedand
groundedelectricaloutlet.
Note:Inlocationswherethereisfrequentlightning,it isadvisabletousesurge
protectors.
Improperuseofthegrounding plugcanresult intheriskofelectricshock.Consult a
qualifiedelectricianorservice personifthegroundinginstructionsarenotcompletely
understood.
Ifthesupplycordisdamaged,itmustbereplace byaqualifiedpersoninordertoavoidelectricalhazard.
INSTALLINGYOUR WINECELLAR
Unpackandremovealloftheprotectionandadhesivestripsfromthepackagingaround
andinsidethewinecellar.
Thewinecellarmustbepositionedsuchthattheplugisaccessible.Releasethepower
cord.Moveyourwinecellartoitsfinallocation.Thewinecellarshouldbeinstalledina
suitableplace wherethecompressorwillnotbesubjecttophysicalcontact.
Levelingyourwinecellar: WinecellarmustbeleveledBEFORE loadingyourwines.
YourVintec winecellarisequippedwith4adjustablefeettofacilitateeasyleveling.
VINTEC recommendsthatyoutightenthebackfeettothemaximumandadjustthefront
feettocreatealevel.

code:VIM201105/015

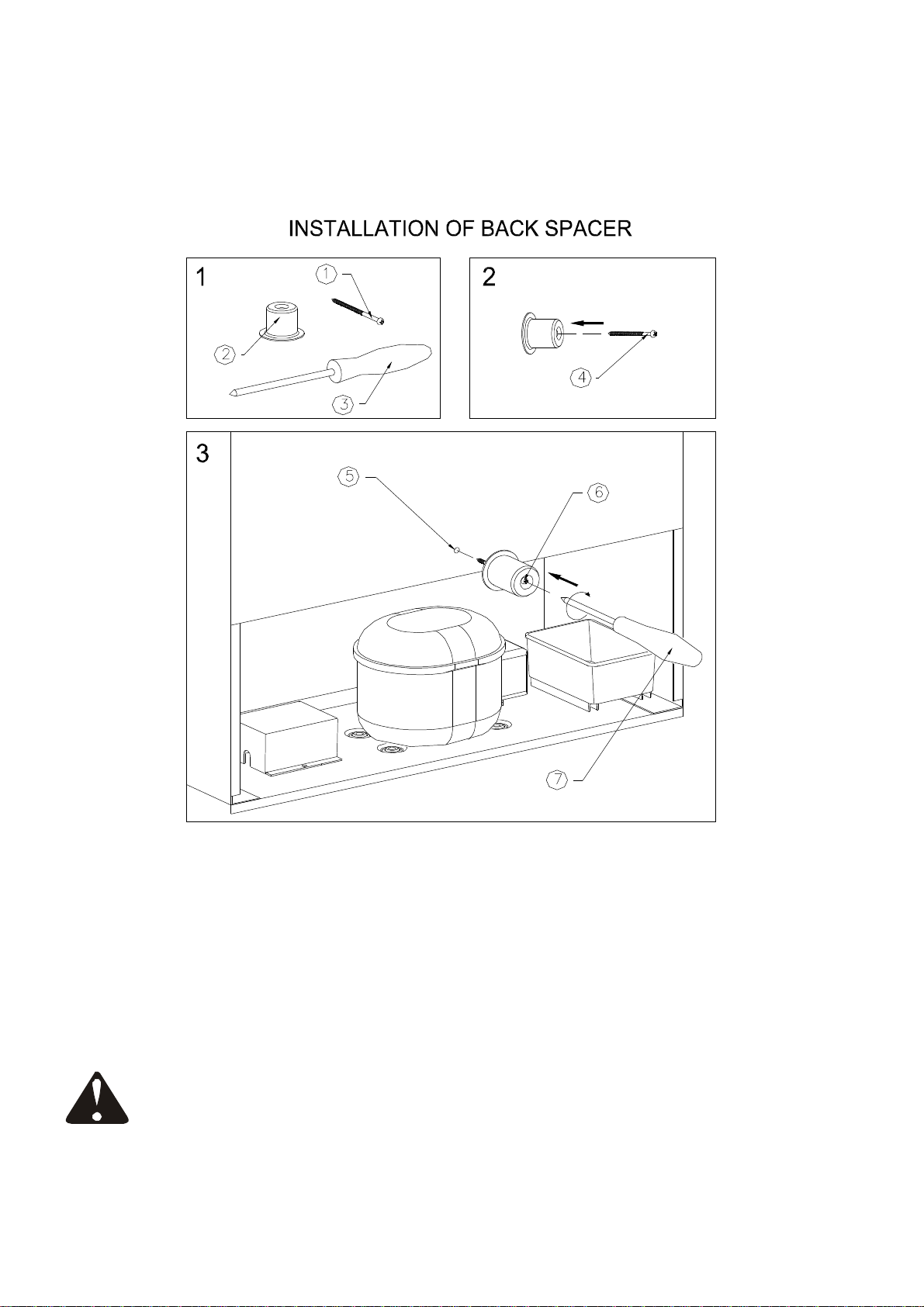

FixingtheBackspacer:
Compressorrun appliancesrequireproperventilationforproperand longerusage.Your
Vintec winecellarissuppliedwithabackspacer.Affixedthebackspaceratthebackof
thecellarforaircirculationandheatevacuation.
IMPORTANT-THISSPACERMUSTBEATTACHEDTOTHEUNITBEFORE
THEINSTALLATION, FORVENTILATIONPURPOSE. FAILURETODOSOVOIDSTHE
WARRANTY
INSTALLATIONINSTRUCTIONSFORBUILT INWINECELLARS:
(UNDERBENCHORINCOLUM) FRONT VENTING WINECELLARSONLY.
V30 models are freestandingonly. Anybuiltinvoids thewarranty

code:VIM201105/016
1.Vintec “Builtin”winecellarsarefrontventingbutarenotdesignedtobefully
integratedbehind ajoinerydoor.
2.TheVintec “Built in”winecellarrequire10mmclearance onbothsidesandtop,30mm
clearance attherear(Backspacerisprovided),tofacilitateinstallation,removal,servicing
andventilation.
3.Vintec “Built in”winecellarsdrawairfromtherearandexpelsthroughthemetalgrid
underthedooratthefront.Ifakickboardistobeplacedinfrontofthewinecellar’sgrid
anotheronemustbefittedintothekickboardwithaminimumairflowallowanceof
150cm2.
4.Vintec “Built in”winecellarshaveapowerswitchlocatedonthecontrolpanelso
powerpointlocationisnotcritical.
5.Thiswinecellarrequiresastandard240volt/10 amppowerpoint.(Orotheraccording
tovarious countries specifications)
6.Thepowercordis1.9minlengthandisfixedontherightsideatthebackwhenlooking
fromfrontofcabinet.
7.Aswithmostappliancesoftoday,thiswinecellarhassensitiveelectroniccomponents
whicharesusceptibletodamagethroughlightningand electricitysupplyfaults. Itis
thereforeadvisedtouseapowersurgeprotectortoavoidproblems ofthisnature.
8AirventwithinthejoinerymustbeprovidedforVintec builtinwinecellars(front
venting)
InHotclimatezone,airvents, withaminimumventilationsize of200mmx40mmMUST
becutoutattherearatthetop ofthebackpartitioningoratthetop ofeithersideofthe
partitioning,givingcoolfreshairfullaccess toflowintothe30mmgaplocatedattherear
ofthecabinet.
Theairventmustnotbeinstalledonthesamesideofotherappliancesproducingheat
suchasovensortoanarea thatissealedorwithoutaccess tofreshcoolair. Failingto
complywiththeabovespecifications couldresultinWARRANTYvoid.

code:VIM201105/017

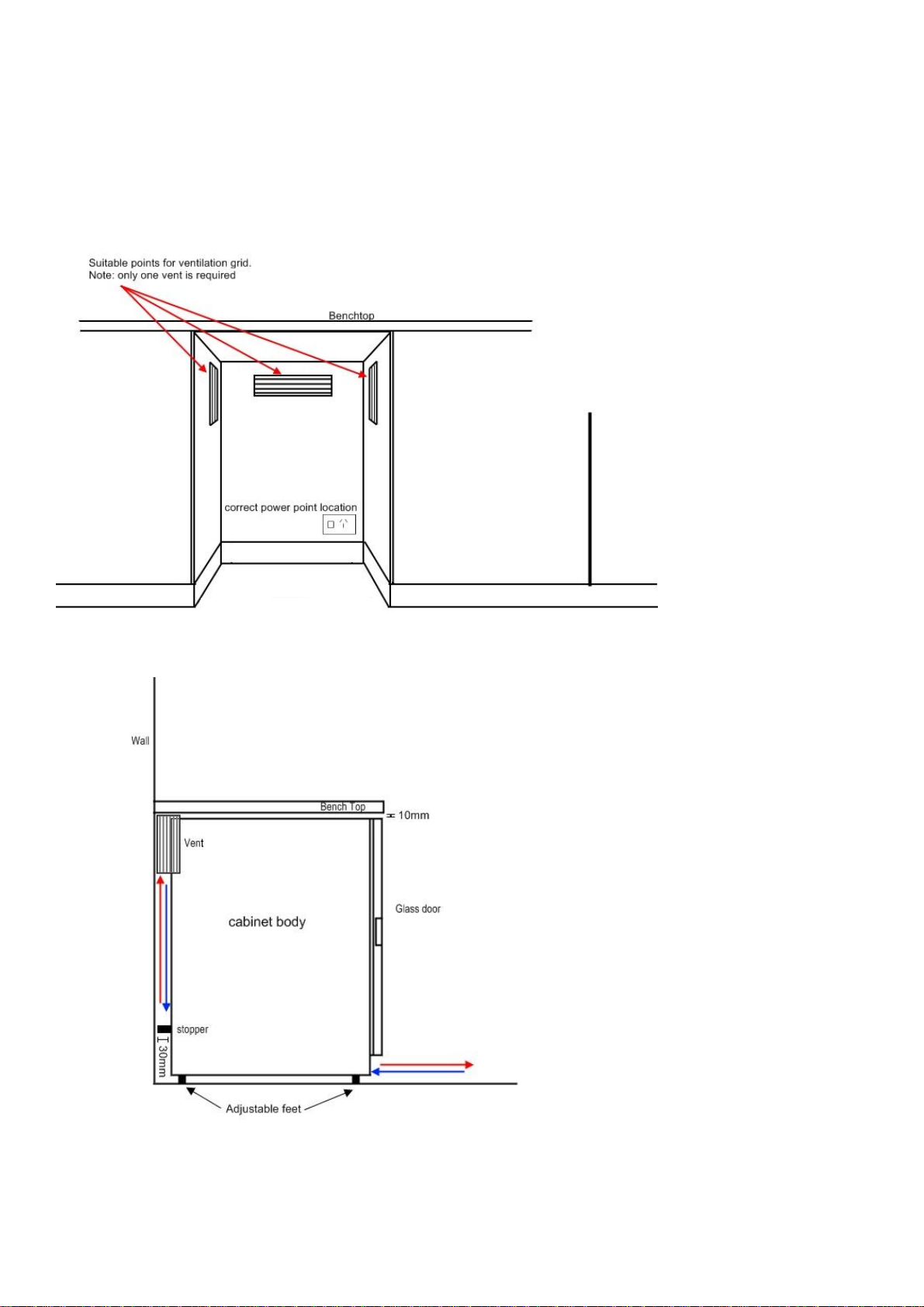

INSTALLATIONDRAWINGSFORBUILT INWINECELLARS: (UNDERBENCH
ORINCOLUM) FRONT VENTING WINECELLARSONLY.

code:VIM201105/018

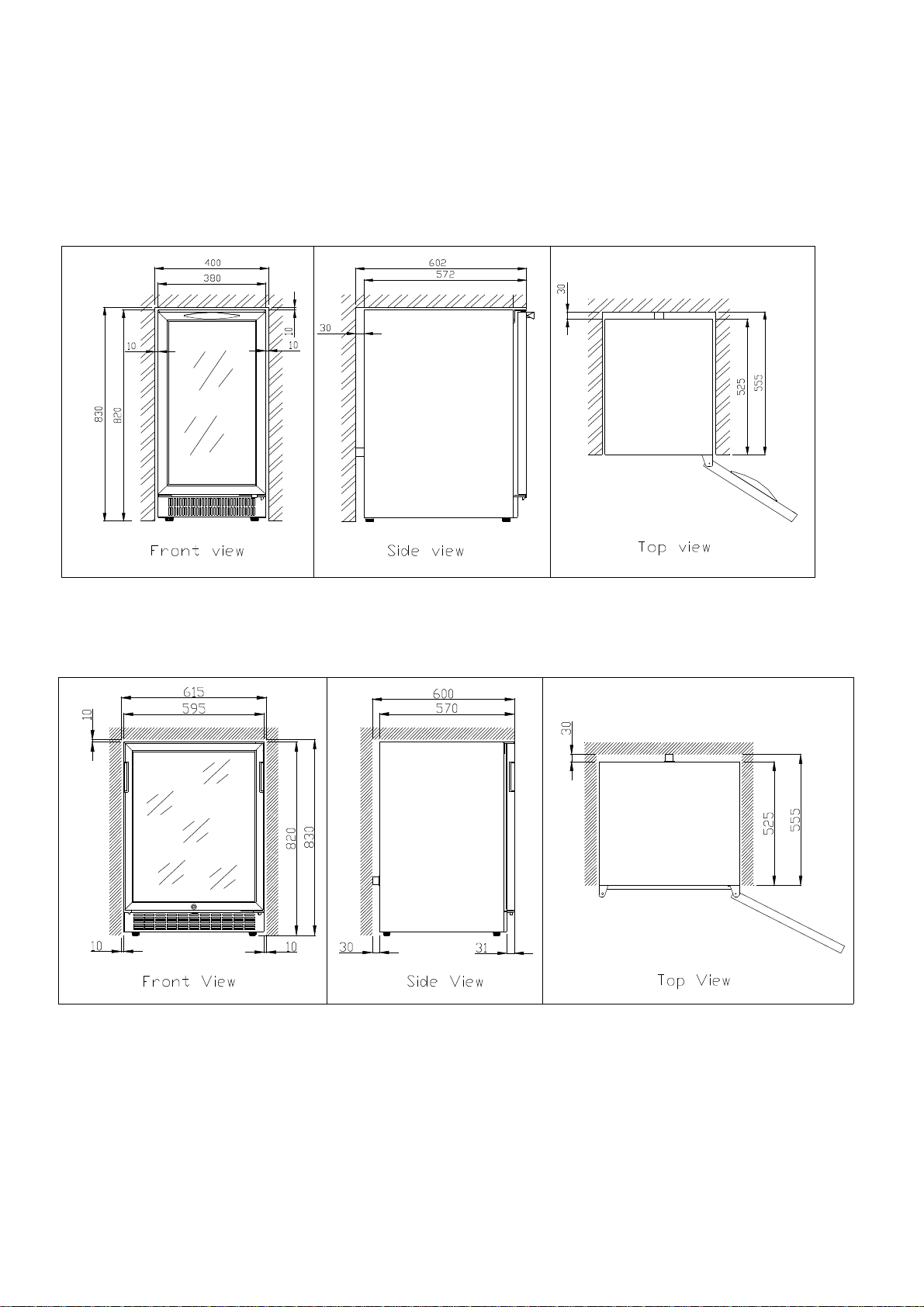

Dimensionaldrawings:
V26’s
V40’s (30mmrecess plinth)

code:VIM201105/019
V40’s (85mmrecess plinth)
V50’s Dimensionaldrawings:

code:VIM201105/0110
TURNINGONYOUR WINECELLAR
Pluginandswitchonthecellarbypressing onthepowerbutton forafewseconds.
Whenyouusethewinecellarforthefirsttime(orrestartthewinecellarafterhavingit
shutoff foralongtime),therewill beafewdegrees, variance betweenthetemperature
youhaveselectedandtheoneindicatedontheLEDreadout.Thisisnormaland itisdue
tothelengthoftheactivationtime.Once thewinecellarisrunning forafewhours
everythingwillstabilize.
Important:Iftheunit isunplugged,powerislost,orturnedoff,wait 3to5minutes
beforerestartingtheunit.Thewinecellarwill notstartifyouattempttorestartbefore
this timedelay.
OperatingNoises
Toreachthedesiredtemperaturesettings, VINTEC winecellars, likeallwinecellars
operatingwithcompressorsandfans, mayproduce thefollowingtypesofnoises. These
noises arenormalandoccuras follows:
-Gurglingsound, causedbytherefrigerantflowingthroughtheappliance’s coils,
-Cracking/poppingsounds, resultingfromthecontractionandexpansionofthe
refrigerantgas toproduce cold,
-Fanoperatingsound, tocirculatetheairwithinthewinecellar.
Anindividual sperception ofnoiseisdirectlylinkedtotheenvironmentinwhichthewine
cellarislocated,aswell thespecifictypeofmodels. VINTEC winecellars areinlinewith
internationalstandardsforsuchappliance. VINTEC will alwaysdo itsutmosttosatisfy
itscustomers butwill notretake possession ofthegoodsduetocomplaintsbasedon
normaloperating noiseoccurrences.
LOADINGYOUR WINECELLAR
Youmayloadyourwinebottlesinsingleordoublerowswhiletaking noteofthe
following:ifyoudo nothaveenoughbottlestofillyourwinecellar,itisbetterto
distributetheloadthroughoutthewinecellarsoastoavoid “all ontop”or “all below”
typeloads.
-Doremoveorrelocateadjustablewoodenshelvestoaccommodatelargertypeofbottles
orincreasethecapacityofthecellarbystackingthebottlesupwhennecessary.(See
removingshelves)
-Keepsmallsgapbetweenthewallsand thebottlestoallowaircirculation.Likean
undergroundcellaraircirculationisimportanttopreventmouldandforabetter
homogeneous temperaturewithinthecellar.

code:VIM201105/0111
-Donotoverloadyourwinecellartofacilitateaircirculation
-Donotstackmorethan1.5rowsofstandard0.75Lbottlespershelvestofacilitateair
circulation
-Avoidobstructingtheinternalfans (locatedinsideonthebackpanelofthewinecellar).
-Donottrytoslidetheshelvesoutwardsbeyond thefixedpositiontopreventthebottles
fromfalling.
-Donotpull outmorethanoneloadedshelfatatimeas thismaycausethewinecellarto
tilt forward.
-Donotcoverthewoodenshelveswithalloyfoilorothermaterials, asitwillobstructair
circulation.
-Donotmoveyourwinecellarwhileitisloadedwithwines. Thismightdistortthebody
ofthewinecellarandcausebackinjury.
TYPESOF REGULATION
Pleasenotethatdependingontheloadingandsettings chosenittakes 24hoursforthewine
cellartosee thetemperaturestabilizing.
DuringthistimeLEDseemstomoveerraticallyinparticularfor2emodels. Itisanormal
process. Thisprocess occurswheneverthesettingismodifiedand/orwheneveralarge
amountofbottles areaddedtothecellar.

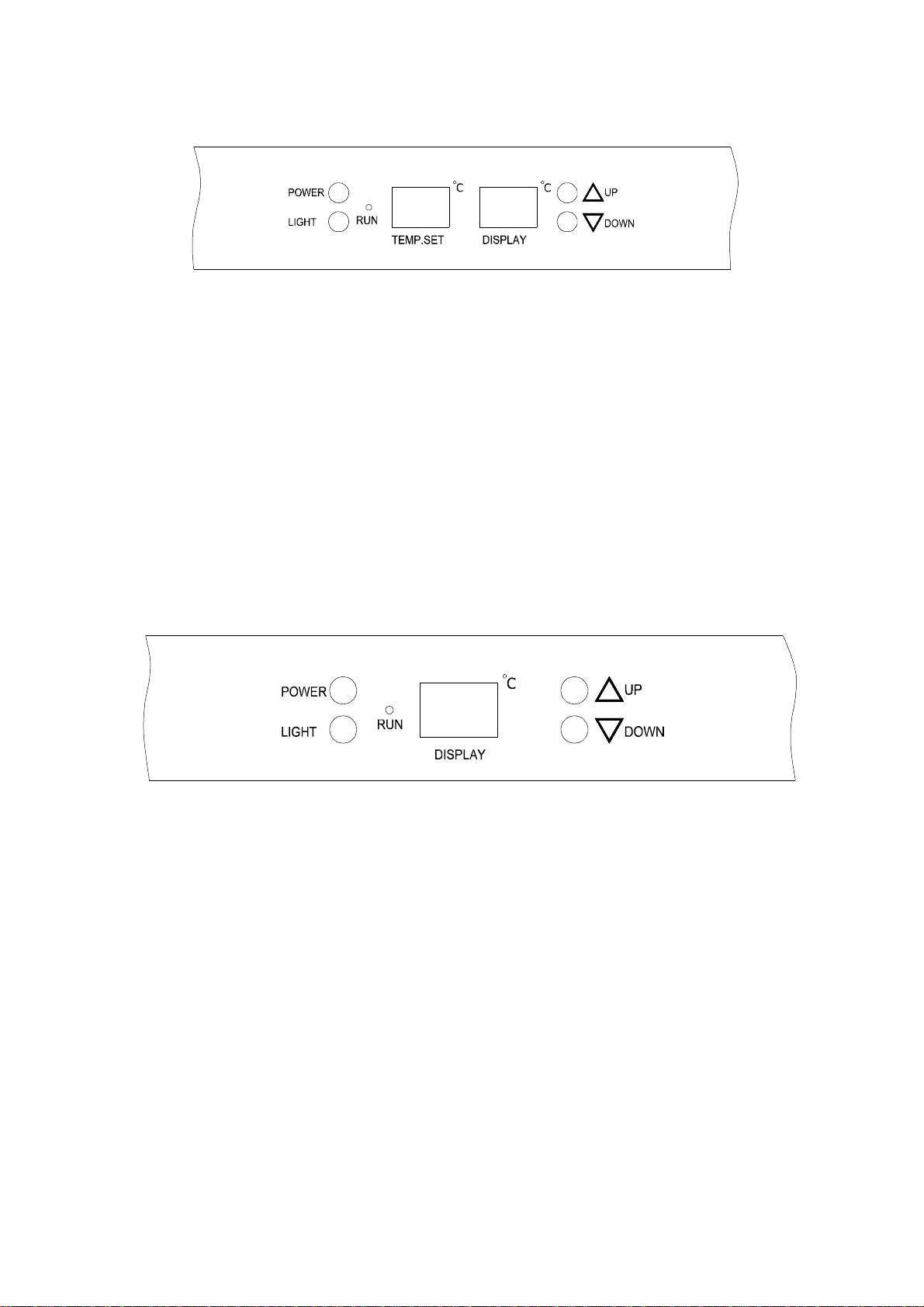

Singletemperature Maturing/Storagewinecellars:
V30SG,V40SG,V50SG:standardregulation
V30SGMe:easyelectronicregulation, digitaldisplay
V30SG"e",V40SG"e",V50SG"e",V26SG"e":electronicregulation, digitaldisplay.
Designedtostoreandmatureallwines:red,whiteandsparkling.Thesewinecellars
reproduce theidealconditionsfor winestorage,ataconstantrecommendedtemperature
of12ºC.Theycanalsobesettoprovideidealservingtemperatureforfullenjoymentof
thewine’squalities. Unless statedbythewinemakeronthebottle, VINTEC recommends
7ºCforyourchampagne,12ºCforwhitesand18ºCforreds. (Referto “WineService
Temperature”recommendationchart)
TwoCompartment singletemperature winecellars (2-in-1WineCellars):
V40DG"2e", V50DG"2e":electronicregulationdigitaldisplay
DG modelsaremadeoftwoindependentcompartmentsregulatedindependentlyas2
singlezonewinecellars. Liketheemodels,eachcompartmentareadjustablefrom5ºCto
18ºC.Idealforstorageor “miseentemperature”(Therighttemperatureforoptimum
enjoyment)

code:VIM201105/0112
TwoTemperature ServingWineCellars:
V30SG"2e", V40SG"2e", V50SG"2e", V40SD"2e":electronicregulationdigitaldisplay
Designedtostorewinesatthecorrecttemperatureforbestenjoyment.Theupperchamber
canhold12,14 or16 bottles, dependingonthemodels, atatemperatureof5ºCto10ºC
dedicatedmainlyto white,sparklingwinesand champagnes. Thelowerchamber
accommodates20,30 or34 bottles, dependingonthemodels, mainlyfor redwines,
whichcouldbestoredeitheratroomtemperature(18ºC-20ºC)forconsumptionorat12ºC
foralongertimeofstorage.
TEMPERATURESETTINGS
Important:TheLCDdisplays bydefault theactualinternalair temperature.
Thetemperaturesettingsarepre-setatthefactoryasfollows. Intheeventofapower
interruption,allprevioustemperaturesettingsareautomaticallyerasedandit will revertto
thepresettemperaturesettings.
Factorypresetchart
Model Setting Temperature
V30 /V50 SG Normal 10ºC -14ºC
V30SGMe 12 12ºC(+/-2.5ºC)
V30 /V40/V50 /V26
SG"e" 12 12ºC(+/-2.5ºC)
Uppercompartment:6 6ºC(+/-2.5ºC)V30/V40 /V50 SG
"2e"/V40SD"2e" Lowercompartment:12 12ºC(+/-2.5ºC)
Leftcompartment:12 12ºC(+/-2.5ºC)
V40/50 DG "2e" Rightcompartment:7 7ºC(+/-2.5ºC)
Itisimportanttounderstand thatthereisadifference betweentheairtemperatureinside
thewinecellarand theactualtemperatureofthewine: Youwillneedtowait
approximately12 hoursbeforenoticingtheeffectsoftemperatureadjustmentduetothe
criticalmass withinafullwinecellar.
Once thethermostatisset,itisstronglyadvisednottotoywithitoradjustfrequently. The
thermostatwillmaintainthetemperatureinsidethewinecellarwithina+/-2.5ºCrange.
Butthethermalinertiaofthewineandtheglass issuchthatwithinthistemperaturerange,
theactualtemperatureofthewinewillonlyfluctuate0.5ºCto1ºC.

code:VIM201105/0113
Standardmodels:
“MAX”adjustablefrom5to9 ºC
“NORMAL”adjustablefrom10 to14 ºC
“MIN”adjustablefrom15 to18 ºC
Tomodifythepre-settemperature ofstandardmodels:
Circumrotatetheknob,Theknob markisthetemperaturepre-setarea.Aclockwiseturn
sets alowertemperature, Ananticlockwiseturnsets ahighertemperature.
Electronicmodels:
V30SGMemodel
Whenpoweris connectedandwinecooleris workingnormallytheLEDonthecircuit
boardwillflash, andthedisplaywillbeshowtheactualtemperatureincabinet, setting
temperaturerangeis 5-18°C.
Thetemperatureadjustor. Youpress thetemperaturebutton, thetemperaturewillbe
increaseorreduce 1°C.
LEDwillflashwhenyousettingtemperature, whenyoustop thesetting,LEDwillflash5
seconds andthenshowtheactualtemperature.
V30 “e”model
The “TEMP. SETLED, displays thesettemperature
The“DISPLAYLED, displays theinternalairtemperature

code:VIM201105/0114
ControlpanelofV30SGewinecellars
Tomodifythepre-settemperature ofV30SGemodels
Adjustthedesiredcooling temperaturebypressingtheUPorDOWNbuttons. Each
depressionofthebuttonswillscrollthroughtheavailabletemperaturesettingsin
incrementsof1degree Celsius. Thetemperaturesettingcanbeadjustedfrom3 to18
or5 to18 .
V40SG “e”,V50SG “e”,V26SG“e”models
V40DG2e. V50DG2emodels foreachcompartment
The“DISPLAYLED”displays theinternalairtemperature. Thesettemperature
automaticallyappears bypressingeithertheUPorDOWNbutton
ControlpanelofSGeandDG “2e “modelwinecellars
Tomodifythepre-settemperature of40/50/26SGeand 40/50DG2emodels
Adjustthedesiredcooling temperaturebypressingtheUPorDOWNbuttons. Each
depressionofthebuttonswillscrollthroughtheavailabletemperaturesettingsin
increments of1degree Celsius. Thetemperaturesettingcanbeadjustedfrom5 to18
Tovisualize the “set”temperature,press andholdtheUPorDOWNbuttons, the “set”
temperaturewilltemporarily “flash”intheLEDdisplayfor5seconds.
SG“2e”models:
V30SG"2e", V40SG"2e", V50SG"2e" V40SD"2e"
The “UPPERCHAMBERLCD”displays theupperchamberinternalairtemperature
The “LOWERCHAMBERLCD”displays thelowerchamberinternalairtemperature
Tovisualize the “set”temperature,press thecorrespondingbuttononce,the “set”
temperaturewilltemporarily “flash”intheLEDdisplayfor5seconds.

code:VIM201105/0115

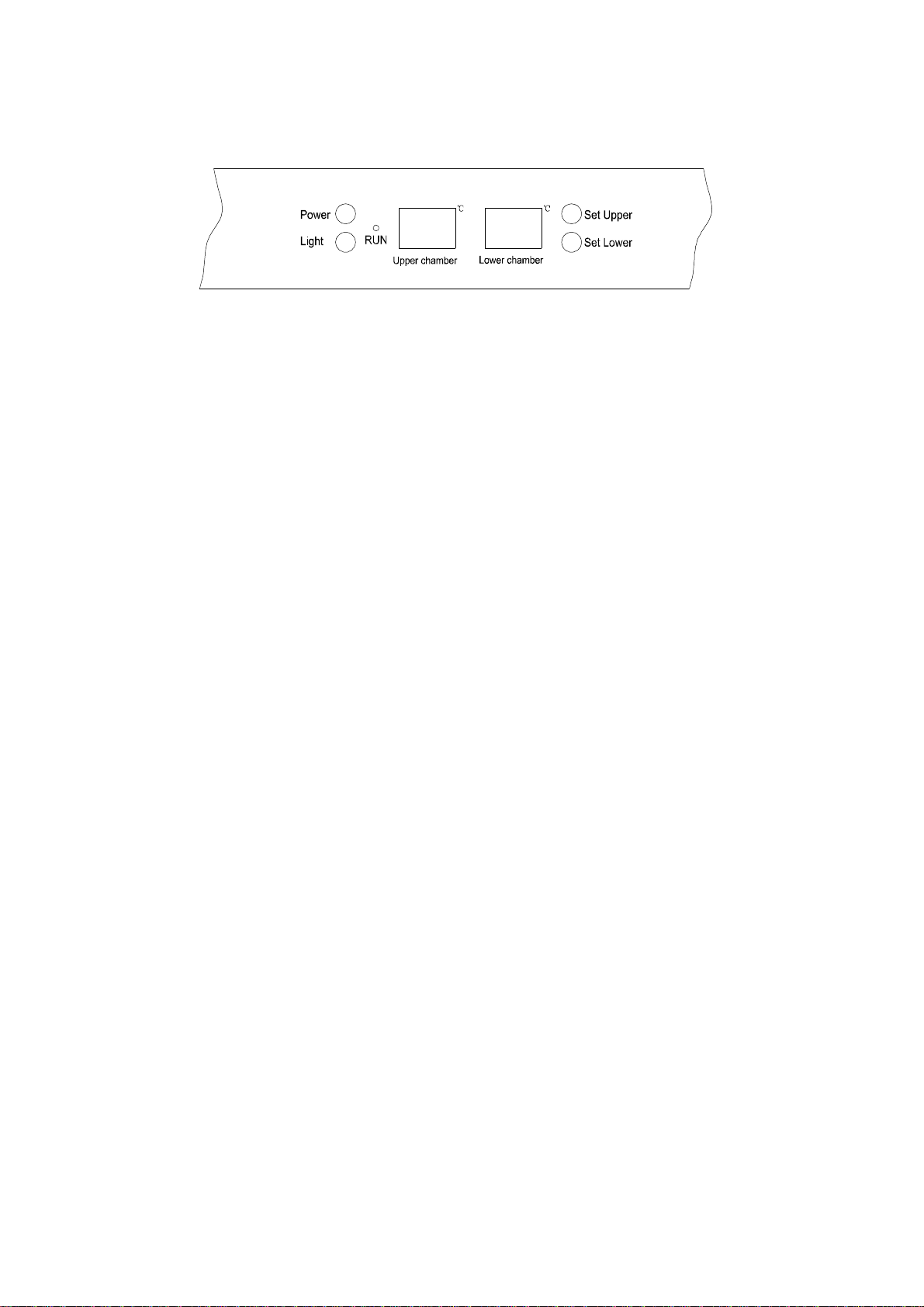

ControlpanelofSGandSD “2e “modelwinecellars
Tomodifythepre-settemperature ofSGand SD“2e”models
Adjustthedesiredcoolingtemperatureby pressingtheSetUpperorSetLowerbuttons.
Eachdepressionofthebuttonswillscroll throughtheavailabletemperaturesettingsin
incrementsof1degree Celsius. ThetemperatureselectedwillflashintheLEDdisplayfor
approximately5secondsandthenreverttodisplayingthetemperatureoftheinternal
cabinet.Thetemperaturesettingcanbeadjustedfrom5 to10 inuppercompartment
and10 to18 inlowercompartment.
WINESERVINGTEMPERATURECHART
Allwinesmatureatthesametemperature,whichisaconstanttemperaturesetbetween
12ºCto14ºC.Thebelowchartisanindicativetemperaturecharttoindicatethebest
temperaturefordrinkingpurposes.
ChampagneNV, Sparkling, Spumante 6ºC
DryWhiteSemillon, SauvignonBlanc 8ºC
ChampagneVintage, 10ºC
DryWhiteChardonnay 10ºC
DryWhiteGewürztraminer, Riesling, Pinotgrigio 10ºC
SweetWhiteSauternes, Barsac, Montbazillac, Ice Wine,LateHarvest 10ºC
Beaujolais 13ºC
SweetWhiteVintage:Sauternes…14ºC
WhiteVintageChardonnay 14ºC
RedPinotNoir, 16ºC
RedGrenache, Syrah 16ºC
RedVintagePinotNoir 18ºC
Cabernet&Merlot:French,Australian, NewZealand, 20ºC
Chilean, Italian, Spanish, Californian, Argentinean…
VintageBordeaux …Roomtemperaturenotexceeding20ºC

code:VIM201105/0116
IMPORTANTINFORMATIONABOUTTEMPERATURE
Your VINTEC winecellarhasbeendesignedtoguarantee optimumconditionsforstoring
and/orservingyourwines.
Finewinesrequirelongandgentledevelopmentsandneedspecificconditionsinwhichto
reachtheirfullpotential.
Allwinesmatureatthesametemperature,whichisaconstanttemperaturesetbetween
12ºCto14ºC.Onlythetemperatureof “dégustation”(wineappreciation)variesaccording
tothetypeofwines(see “WineServingTemperatureChart”above).Thisbeingsaidand
asitisfornaturalcellarsusedbywineproducersforlongperiod ofstorage,itisnotthe
exacttemperaturethatisimportant,butitsconsistency.Inotherwords, aslongasthe
temperatureofyourwinecellarisconstant(between12ºCto14ºC)yourwineswillbe
storedinperfectconditions.
Notallwineswillimproveovertheyears. Someshouldbeconsumedatanearlystage(2
to3years)whileothershavetremendous ageingcapability(50 and over).Allwineshavea
peakinmaturity. Docheckwithyourwinemerchanttogettherelevantinformation.
DEFROSTING/CONDENSATION/HYGROMETRY/VENTILATION
Yourwinecellarisdesignedwith “Auto-cycle”defrostsystem.During “Off-cycle”the
refrigeratedsurfacesofthewinecellardefrostautomatically.Defrostwaterfromthewine
cellarstoragecompartmentdrainsautomaticallyandpartofitgoesintoadrainage
container,whichislocatedatthebackofthewinecellarnexttothecompressor.Theheat
istransferredfromthecompressorandevaporatesanycondensationthathascollectedin
thepan.Partoftheremainingwateriscollectedwithinthewinecellarforhumidity
purposes.
Thissystemenablesthecreationofthecorrecthumiditylevelinsideyourwinecellar
requiredbythenaturalcorktomaintainalonglastingseal.
Notes: Thewatercollectedbycondensation,isthereforerecycled.Underextremelydry
environmentalconditions, you mayhave toadd somewaterintothewatercontainer
providedwithyourwinecellar.
Allunitsareequippedwithadoubleglazedglass doorthathasathirdinternalacrylic
layertominimize condensationontheglass door.
Thewinecellarisnottotallysealed;freshairadmissionispermittedthroughthedrainpipe.
Airis circulatedthroughthecellarbymeans ofafan/fans and thehollowshelves.

code:VIM201105/0117
Notes: During therefrigeratingcycle,heatisgivenoff and dispersethrough theexternal
surfaces ofthewinecellar. Avoidtouching thesurfaces during thosecycles.
ADJUSTABLE WOODENSHELVES
Adjusting/removingtheshelves
Foreasyaccess tothestoragecontent,youmustpull theshelvesapproximately1/3ofits
depthoutoftherailcompartment.Thesewinecabinets, however,aredesignedwitha
notchoneachsideoftheshelftracks topreventbottlesfromfalling.

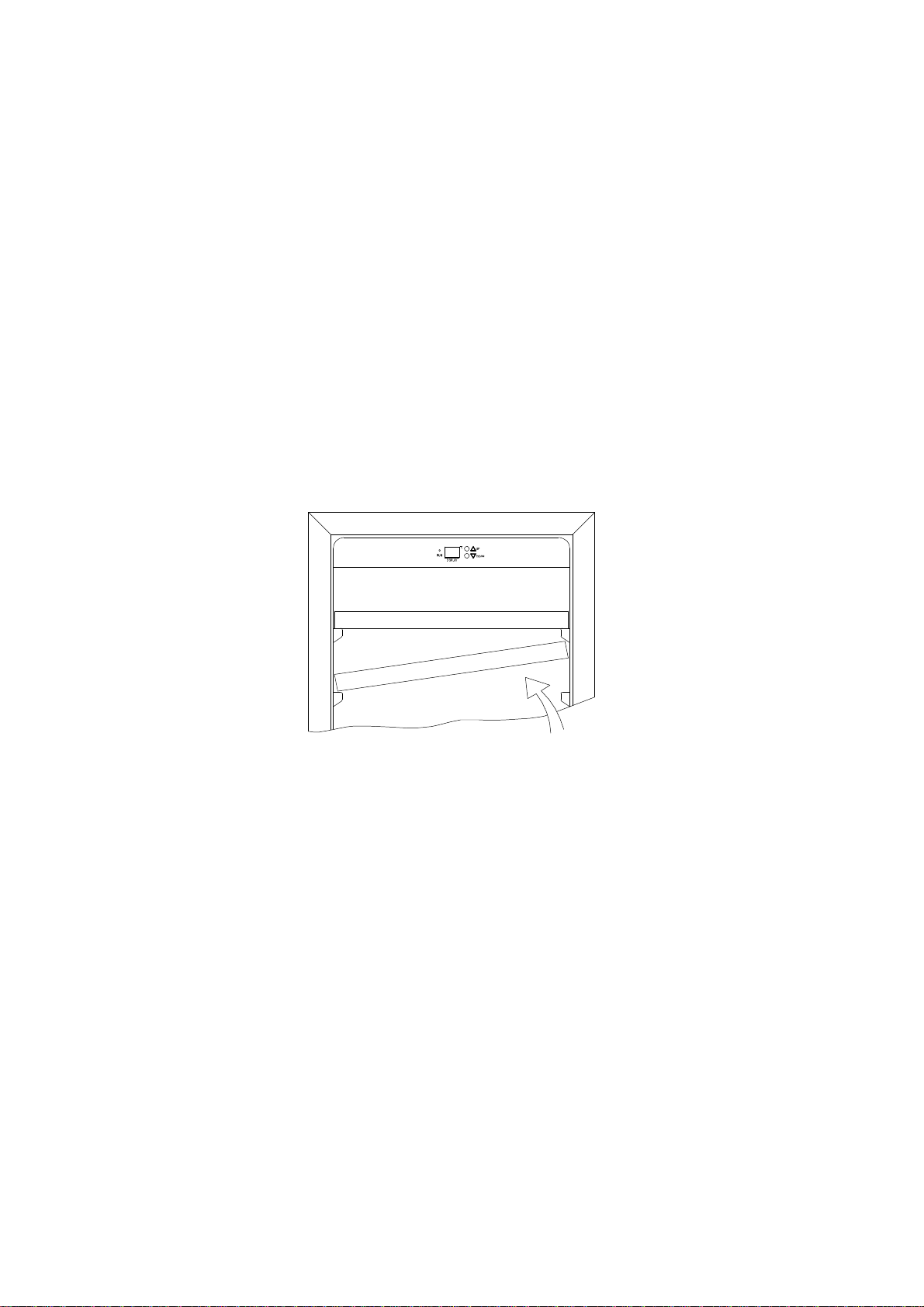

V30. V40 &V50 &V26 models
Whenremovinganyoftheseshelvesoutoftherailcompartment,tilttheshelfasperthe
diagramand simplypullout,orpushintheshelfuntilitsitsonthesupportbrackets
securely.
REVERSIBILITYOF THEDOOR
Warning:Toavoidaccidentduring theprocess ofchanging thedoor,werecommend that
yougetassistance. Dooris heavyandmaycauseinjuryifdropped.
Accordingthemodelandthetypeofhandleyourwinecabinetisequippedwith,suchas
longstraitbarhandle, thedoormightneeds toberotatedfor180 degrees orchangedfora
rightopeningone.

code:VIM201105/0118
V30 models
1Rubbercover2Screw 3Decorativecover
4&7Screw 5Top hingemodule 6Door
8Lowerhingemodule-Left 9Cabinet’s leg-short
-Pulloutthescrewcovers andunscrewthedecorativecover. (Fig.1)
- Whileholdingthedoorfirmly,loosenandremovethetop hinge,liftupandremovethe
door(See Fig.2)
-Unscrewthelowerhinge(8).
-Removethelongcabinetleg(9)ontheleftside, andshiftittotherightendside. (Fig.3)
-Installthelowerhingeandtieitwiththebolts.
-Installthedoorontheaxeoflowerhinge(8)thesamewayitwasremoved,screwback
thetop hingeontheright
-Fixbackthedecorativecoverand rubbercover.

code:VIM201105/0119

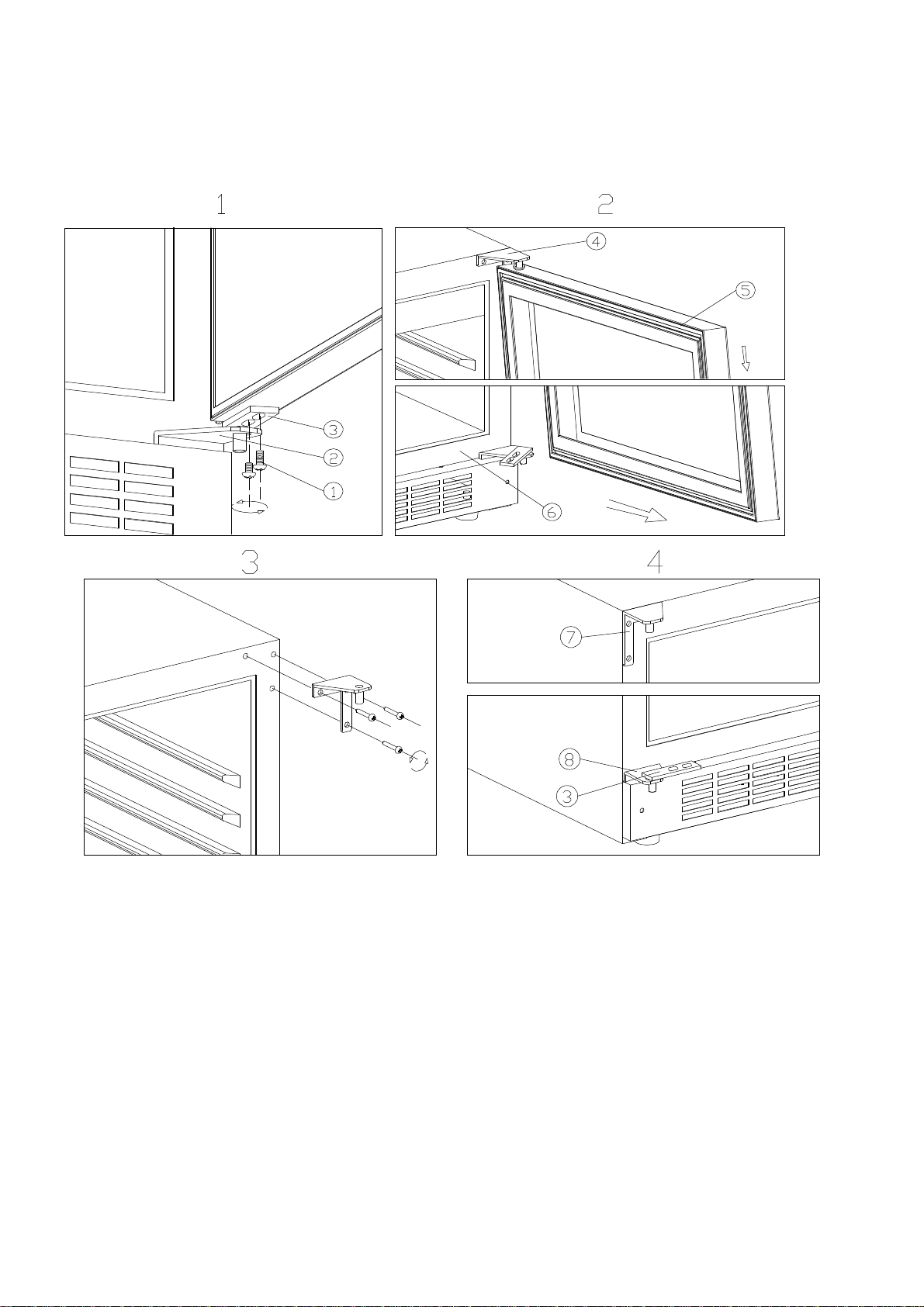

V40 models (30mmrecess plinth)
1Lockscrews 2Lowerhinge(Right)3Dooraxis
4Top hinge(Right) 5Door 6Cabinetbody
7Top hinge(Left)8Lowerhinge(Left)
-Unscrewthelockscrews (1);(Fig. 1)toremovethedooraxislocatedatthebottom.
- Whileholdingthedoorfirmly, pullthedoor(5)outwardandtakeitout;(Fig. 2)
-Removethe3bolts andtakeouttherighttop hinge(2);(Fig. 3)
-Fixthelefttop hingeandthebottomlefthingewiththebolts as perFig. 4,
-Re-installthedoorthesamewayitwas removedand fixbackthedooraxis.

code:VIM201105/0120

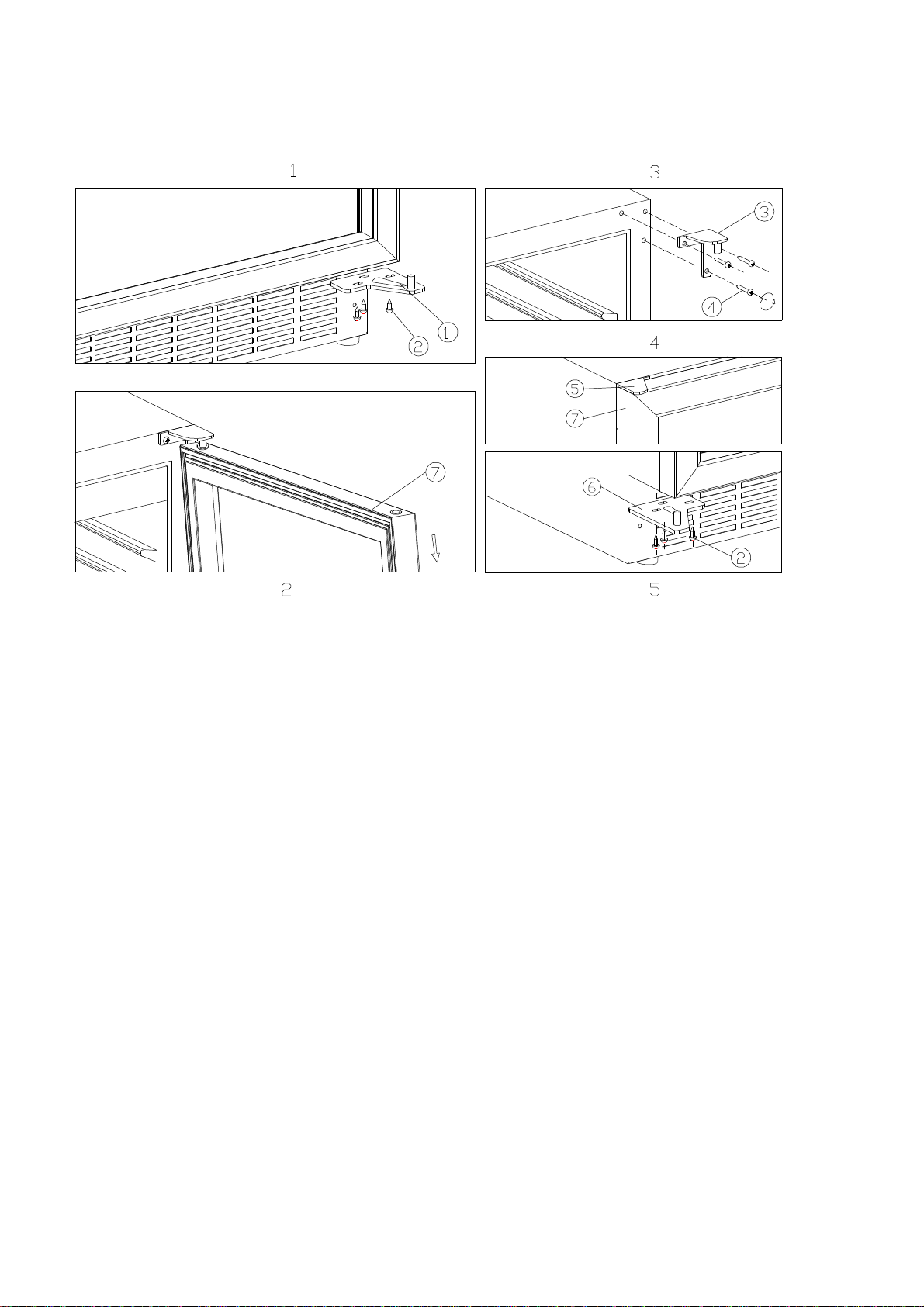

V40 models (85mmrecess plinth)
1Lowerhinge(Right) 2Lockscrews 3Top hinge(Right)
4LockScrews 5Top hinge(Left)6Lowerhinge(Left)
7Door
- Whileholdingthedoorfirmly, removethethree lockscrews(2)fromthelower
righthingemodule, andremoveit.（Fig.1)
-Removethethree lockscrews(4)fromthetop righthingeand removethehinge
(3). (Fig.3)
-Fixthetop lefthinge(5)atthetop leftcornerwiththethree lockscrews(4).(Fig.4)
-Whileholdingthedoor, inserttheaxiscoreintothedoor’s(7)upperlefthinge’s
hole.Fixtheleftbottomhingesbyinsertingtheaxiscorefirstintothedoor’slower
lefthinge’shole(6).Thentiethelowerlefthingetofinishthedoorreplacement.(Fig.
5)
