Vintec VWM198PBA User manual

User Manual
VWM198PBA
VWM198SBA
vintec.com

As the appliance contains
a ammable refrigerant, it
is essential to ensure that
the refrigerant pipes are not
damaged.
The quantity and type of
the refrigerant used in your
appliance is indicated on the
rating plate.
Standard EN378 species that
the room in which you install
your appliance must have
a volume of 1m³ per 8g of
hydrocarbon refrigerant used in
the appliances. This is to avoid
the formation of ammable gas/
air mixtures in the room where
the appliance is located in the
event of a leak in the refrigerant
circuit.
WARNING:
Keep ventilation openings in
the appliance’s cabinet or in
the built-in structure clear of
obstruction.
WARNING:
Do not use mechanical devices
or other means to accelerate
the defrosting process than
those recommended by the
manufacturer.
WARNING:
Do not damage the refrigerant
system.
WARNING:
Do not use electrical
appliances inside the
refrigerated storage
compartment, unless they are
of a type recommended by the
manufacturer.
WARNING:
This appliance is suitable for
indoor use only.
WARNING:
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
Children should be supervised to
ensure that they do not play with
the appliance.
Warning
2
User Manual

WARNING:
Children must not clean the
appliance or carry out general
maintenance unless they are at
least 8 years old and are being
supervised.
WARNING:
Children must not play with, on,
or around the appliance.
WARNING:
This appliance contains
insulation formed with ammable
blowing gases. Avoid safety
hazards by carefully disposing of
this appliance.
WARNING:
Do not store explosives, such
as aerosol cans with ammable
propellants in the appliance.
WARNING:
When this symbol is used, it
indicates ammable materials
are used. To avoid relevant
hazards, it is required to carefully
dispose of this appliance.
!R600A REFRIGERANT
WARNING:
This appliance contains R600a
refrigerant. Avoid safety hazards
by carefully installing, handling,
servicing and disposing of this
appliance.
●It is hazardous for anyone
other than an Authorised
Service Person to service this
appliance. In Queensland –
the authorised Service Person
MUST hold a Gas Work
Authorisation for hydrocarbon
refrigerants, to carry out
Servicing or repairs which
involve the removal of covers.
●Ensure that the tubing of
the refrigerant circuit is not
damaged during transportation
and installation.
WARNING:
When positioning the appliance,
ensure the power cord is not
trapped or damaged.
WARNING:
Do not locate multiple portable
socket-outlets or portable power
supplies at the rear of the
appliance.
3
User Manual

WARNING:
If the power cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualied persons
in order to avoid a hazard (For
Australia and New Zealand).
●Always keep the keys in a
separate place and out of
reach of children.
●Before servicing or cleaning
the appliance, unplug the
appliance from the mains
or disconnect the electrical
power supply.
●Frost formation on the
interior evaporator wall and
upper parts is a natural
phenomenon. Therefore, the
appliance should be defrosted
during normal cleaning or
maintenance.
●Please note that changes to
the appliance construction
may cancel all warranty and
product liability.
●If the supply cord is damaged,
it must be replaced by the
manufacturer, its service
agent, or similarly qualied
persons inorder to avoid a
hazard.
●Do not use extension cords.
●This appliance is intended to
be used exclusively for the
storage of wine.
CLASS 1 LED PRODUCT
WARNING:
LED lighting
Your appliance is tted with long
life LED lighting. In the unlikely
event the LED lights should fail,
then the LED lights should be
serviced by the service agent,
to avoid a safety hazard. Refer
to the warranty page for contact
details.
4
User Manual

Contents
Warning ......................................................2
Before use ..................................................6
Savings in energy consumption in the use . 6
Get to know your wine cooler .....................7
Electrical connection ...................................9
Installation and start-up ..............................9
Installation ................................................10
Operation and function .............................13
Defrosting, cleaning and maintenance .....17
Fault nding ..............................................18
Warranty for Australia and New Zealand . . 19
Disposal ....................................................22
5
User Manual

On receipt, check to ensure that the
appliance has not been damaged during
transport. Transport damage should be
reported to the local distributor before the
wine cooler is put to use.
Remove the packaging. Clean the inside of
the cabinet using warm water with a mild
detergent. Rinse with clean water and dry
thoroughly (see cleaning instructions). Use
a soft cloth.
If during transport the appliance has been
laid down, or if it has been stored in cold
surroundings (colder than + 5°C), it must be
allowed to stabilise in an upright position for
at least an hour before being switched on.
Before use
The energy consumption reduces ..
● the lower the ambient temperature is.
● the warmer thermostat set point is.
● the lower the number and the shorter the
length of the door openings is.
Savings in energy consumption in the use
Note: for household use only
This appliance is intended to be used in
household and similar applications such as
● sta󰀨 kitchen areas in shops, o󰀩ces and
other working environments;
● farm houses and by clients in hotels,
motels and other residential type
environments;
● bed and breakfast type environments;
● catering and similar non-retail
applications.
Important Information that may
impact your Manufacturer’s
Warranty
Adherence to the directions for use in this
manual is extremely important for health
and safety. Failure to strictly adhere to the
requirements in this manual may result in
personal injury, property damage and af-
fect your ability to make a claim under the
Vintec manufacturer’s warranty provided
with your product. Products must be used,
installed and operated in accordance with
this manual. You may not be able to claim
on the Vintec manufacturer’s warranty in the
event that your product fault is due to failure
to adhere to this manual.
6
User Manual

Get to know your wine cooler

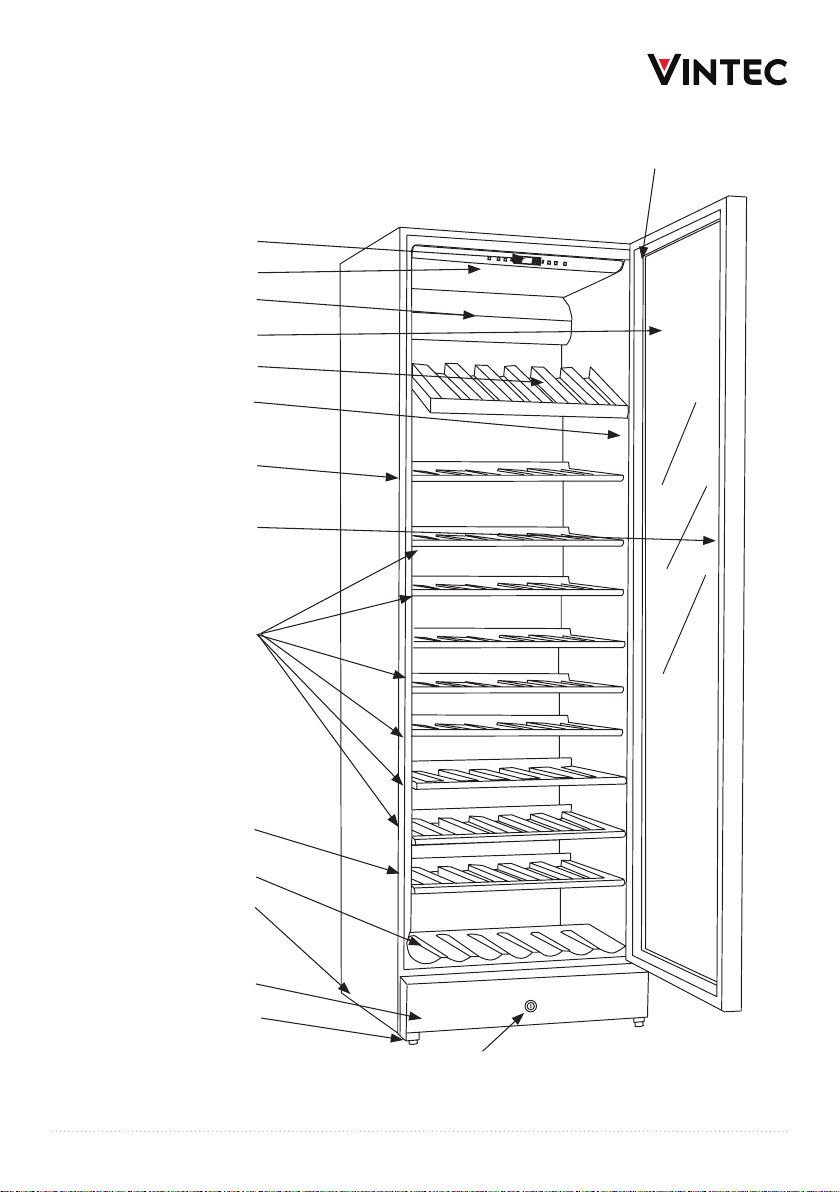

g.1
Control panel
Lighting
Fan
Door
Position 1 Display shelf
Name plate
Position 2 Fixed shelf sits on
liner rib with screw xation
bracket at the rear.
Sealing strip
Position 3-9
Telescopic shelf
Position 10 Fixed 3/4 shelf-
site on liner rib
Position 11 Bottom liner
Wheel
Kick plate
Adjustable feet
Light
Lock
VWM198PBA-L - VWM198PBA-R
7
User Manual

Control panel
Lighting
Fan
Door
Position 1 Display shelf
Name plate
Position 3-5 Fixed shelf
Sealing strip
Fixed shelf
Position 3-5
Position 6 Fixed 3/4 shelf-
site on liner rib
Position7 Bottom liner
Wheel
Kick plate
Adjustable feet
Lock
Light
Get to know you wine cooler
VWM198SBA-L - VWM198SBA-R
8
User Manual

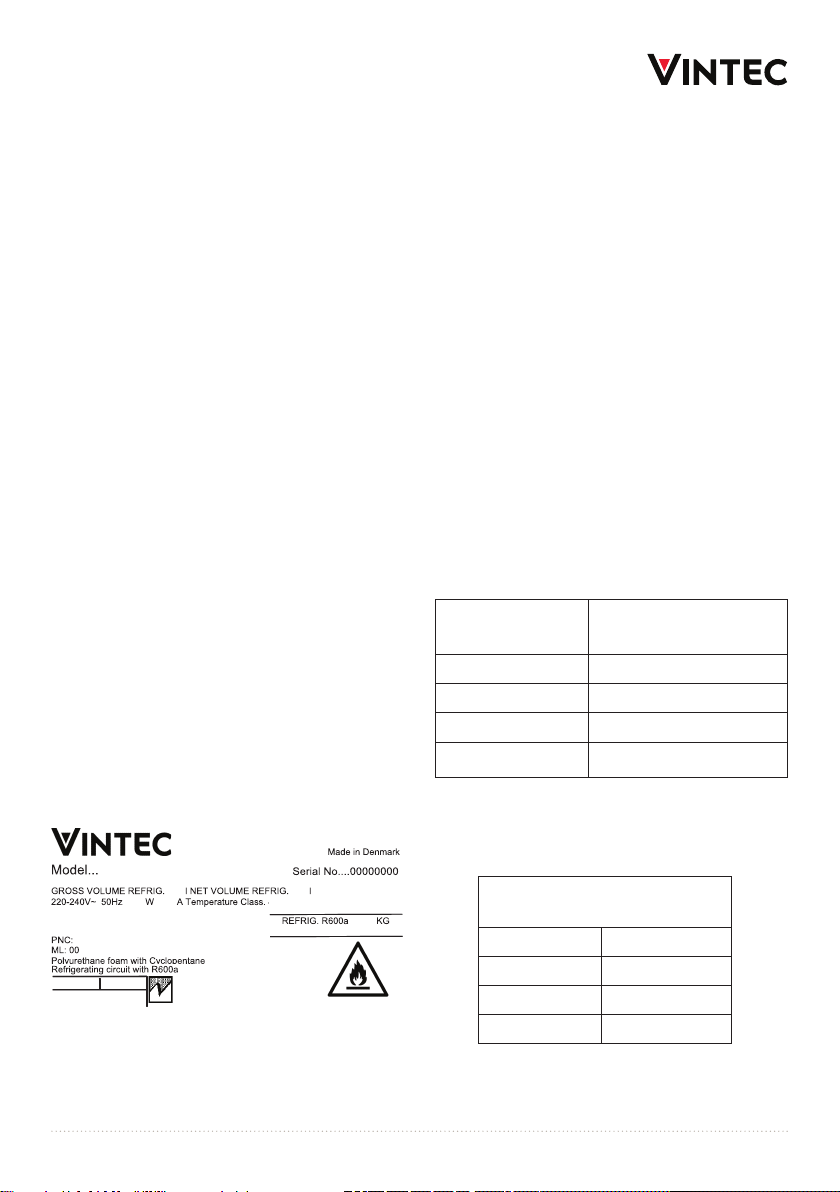

Placement
For safety and operational reasons, the
appliance must not be installed outdoors.
The appliance should be placed on a level
surface in a dry, well ventilated room (max.
75% relative air humidity). Never place the
appliance close to sources of heat such as
cookers or radiators, and avoid placing it in
direct sunlight.
Ambient temperature
The climate class is stated on the name
plate. This species the optimum ambient
temperature. Wine coolers with winter
position, however, function at ambient
temperatures as low as 5ºC.
Installation and start-up
Electrical connection
Climate class Optimum room
temperature
SN +10 ºC to +32 ºC
N +16 ºC to +32 ºC
ST +16 ºC to +38 ºC
T +16 ºC to +43 ºC
g.3
xxxxxxxxxxx
xxxxxxxxxxx
xxxxx
x.xxx
xxxxxxxxxxxxxxx
Wiring and connections in power supply
systems must been all applicable (local and
national) electrical codes. Consult these
codes lengths and sizes prior to cabinet
installation.
The socket should be freely accessible.
Connect the appliance only to 220/240 V
/ 50Hz alternating current via a correctly
installed earthed socket.
The socket must be fused with a 10-13 A
fuse.
Information regarding voltage, current or
power are given on the rating plate
The power cord may be replaced by a
technician only.
CAUTION: Never put the appliance in a
location that is too cold or unprotected, for
example in a garage or on a verandah.
The rating plate provides various technical
information as well as type and serial
number.
Max ambient temperature
class.
Class 3 25 °C
Class 4 30 °C
Class 5 40 °C
Class 7 35°C
9
User Manual

The surface on which the appliance is to be
placed must be level. Do not use a frame or
similar.
The appliance can be installed as a free-
standing unit against a wall, built into a
closet or lined up with other appliances.
It is important that the appliance be
well ventilated and that air can circulate
unhindered above, below and around it.
The gures below illustrate how the
necessary air circulation around the
appliance can be ensured (g 4).
Ensure the plug is accessible when the ap-
pliance is in position, or a switch is incor-
porated in the xed wiring according to the
wiring rules. (See a licensed electrician for
further advice).
g. 4
g. 5
Installation
min.10mm
50mm
50mm
50mm
min.30mm min.30mm
min.10mm
min.10mm
1075mm
609mm
10mm
30mm
35mm
1072mm
595mm
145
The spacers on the rear of the appliance
ensure su󰀩cient air circulation. Fit the two
spacers with the appliance as shown in g. 6
g. 6
10
User Manual

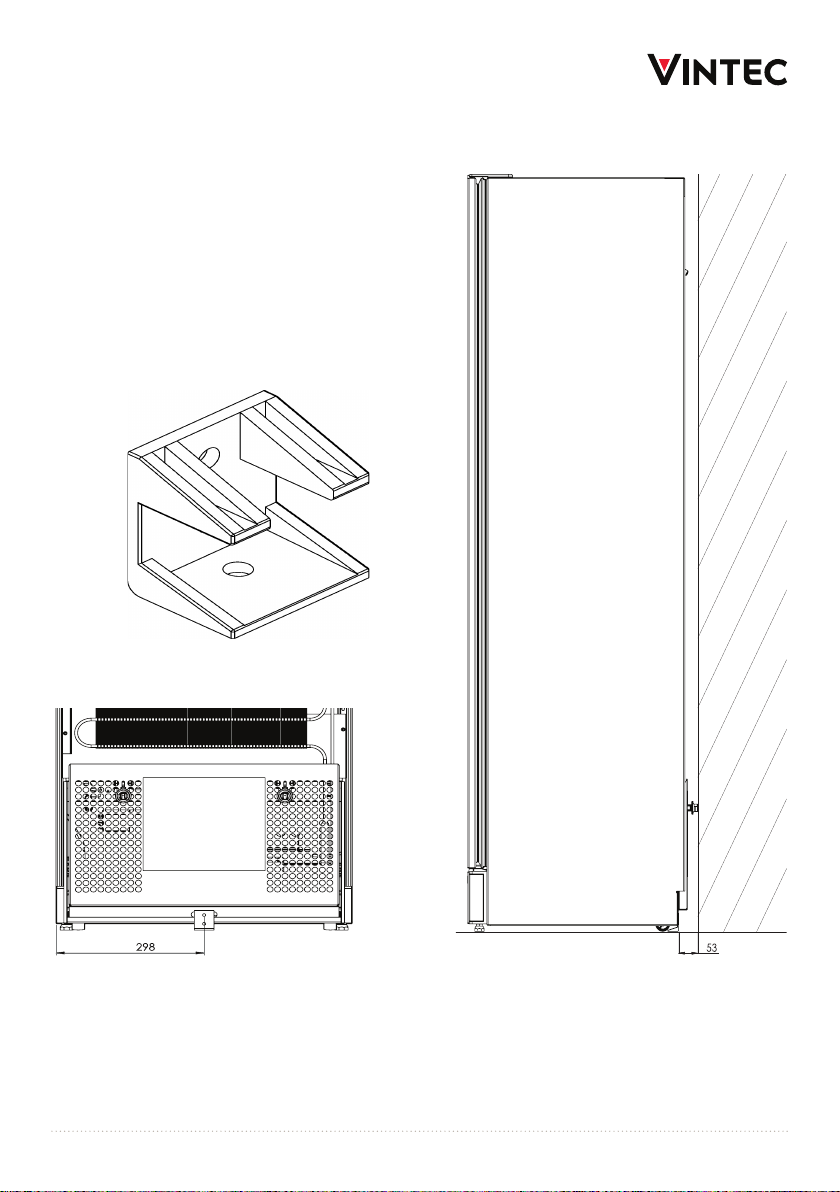

It is recommended to install the anti-tip
device to avoid the unit from tipping over.
The anti-tip device must either be secured
to the oor or wall, whatever is most
appropriate.
Please note a distance part must be applied
if anti-tip is secured to wall.
Anti-tip
g. 7
g. 8 g. 9
11
User Manual

It is important that the appliance be
absolutely level. It can be levelled by
screwing the adjustable feet at the front of
the appliance up or down (g. 10).
Use a spirit level to check that the appliance
is absolutely level sideways.
Setting up

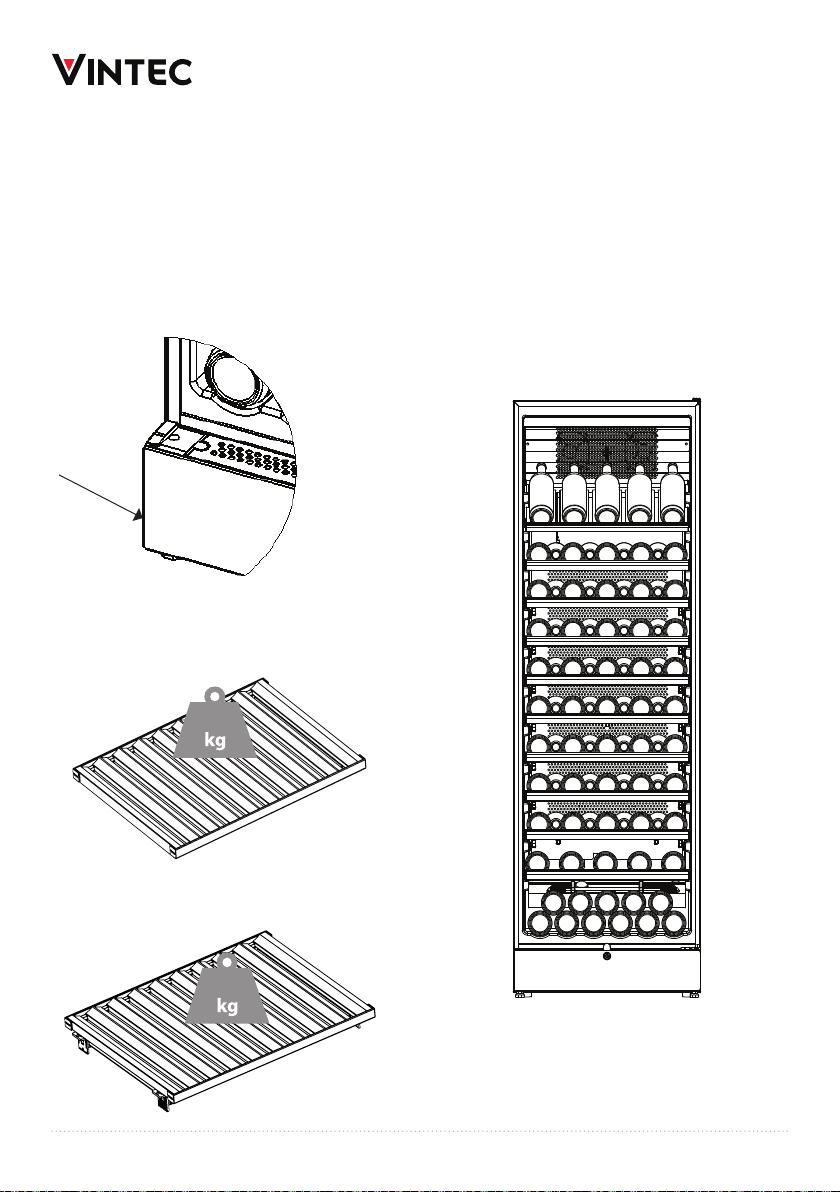

Fixed shelf
Max. 65 kg.
65
g. 11
g. 13
g. 12
13
Telescopic shelf
Max. 13 kg.
g. 10
To optimise the storage capacity of you
wine cabinet it has been designed so that
only Bordeaux can be stored on the outer
position of the shelf.
12
User Manual

Operation and function
g. 14
Electronic control
The electronic control ensures that the
temperatures set at the top and at the bot-
tom of the appliance are maintained. This is
achieved by means of an advanced control
of the refrigeration system, the heating ele-
ment, and the fan. The set temperature will
be stored in the event of power failure.
The electronic control has the following
functions:
● Light switch
● Temperature setting
● Temperature indication
● Alarm for too high and too low tempera-
tures
● Door alarm / Filter alarm
● Muliti / Single / Cellar mode
● Child lock
● Sabbath mode
* The light may either be turned on
constantly or only when the door is open.
7 di󰀨erent modes.
Temperature indication
The display shows the actual temperature.
The left digits of the display indicate the
temperature at the top of the appliance, and
the right digits of the display indicate the
temperature at the bottom of the appliance.
Upper temperature set
Single press to decrease/increase the Set
temperature. First press shows the current
Set temperature and don’t increase/decre-
ase it. The numbers blink to indicate that is
being change. After 5 seconds without any
interaction with the “-/+”, the numbers stop
blink and show the Current temperature.
Bottom temperature set
Single press to decrease/increase the Set
temperature. First press shows the current
Set temperature and don’t increase/decre-
ase it. The numbers blink to indicate that is
being change. After 5 seconds without any
interaction with the “-/+”, the numbers stop
blink and show the Current temperature.
Lights On/O󰀨
Press to turn the lights ON/OFF.
The light sould take less than 1 second to
transition from on to o󰀨 and vice versa.
SYMBOLS
GLOBAL THICK SYMBOLS: 100%
COLOURS
VINTECBR AN D
Kangmi LeeBY
Last update 2019.08.14
100%SC AL E
NO. RE V.
Vintec
Wine cellar
V190
This drawing contains confidential information and is the pr operty of Aktiebolaget Electrolux, Stockholm, Swedenwithout whose p ermission it may not be copied,
shown or handed toathird party or otherwise used, and it is to be retur ned promptly on request toAktiebolaget Electrolux.
PLEASE NOTE:
1 Black 7804 (Back print)
2 NCS S 4500-N (Back print)
3 Elux 7803 white (Back print)
5 White light
4 Red light
xREV. B
VINTEC
WINE CELLAR V190
Text
Font: Electrolux Sans
SemiBold 8pt
Colour: 2
Text
Font: Electrolux Sans
SemiBold 20pt
Colour: 5
Symbols
Size: 20%
Colour: 2
Size: 35%
Colour: 3
Symbols
Size: 25%
Colour: 4
Symbols
Symbols
Size: 20%
Colour: 3
Size: 20%
Colour: 4
Symbols
Size: 20%
Colour: 5
Symbols
Colour: 1
Panel
Lines
Thickess: 0.3mm
Size: 2×2mm
Colour: 2
Text
Font: Electrolux Sans
SemiBold 8pt
Colour: 3
Mode Set temp.
Upper
temp.
Bottom
temp. Set temp. Light
Alerts
Bottom zone.Upper zone
13
User Manual

Lights settings menu
Press & hold Light button for 3 seconds to
enter the Lights settings menu.
Both temperature displays blink and show a
specic code.
Any alert turns o󰀨 temporarily.
Press “-/+” to increase/decrease the light
“level”.
Light behaviour
Upper temperature display enables the
following settings.
1A: Lights always ON bright when door is
open. Lights dim to selected level when the
door is closed. This is the factory default
setting.
2A: Lights always ON bright when door
is open. Light turn OFF when the door is
closed.
3A: Lights always ON.
4A: Lights always ON at selected dim level
when door is open. LIghts change to the
highest dim level when the door is closed.
Light dim level
Lower temperature display controls light
dim level. There are 9 light levels
1L: Lowest level / least bright
9L: Highest level / brightest. This is the
factory default dim level.
Child Lock
Press and hold Mode button for 3 seconds
to activate/deactivate child lock.
Child lock indicator. Enabling Child lock
prevents changes to the UI until disabled.

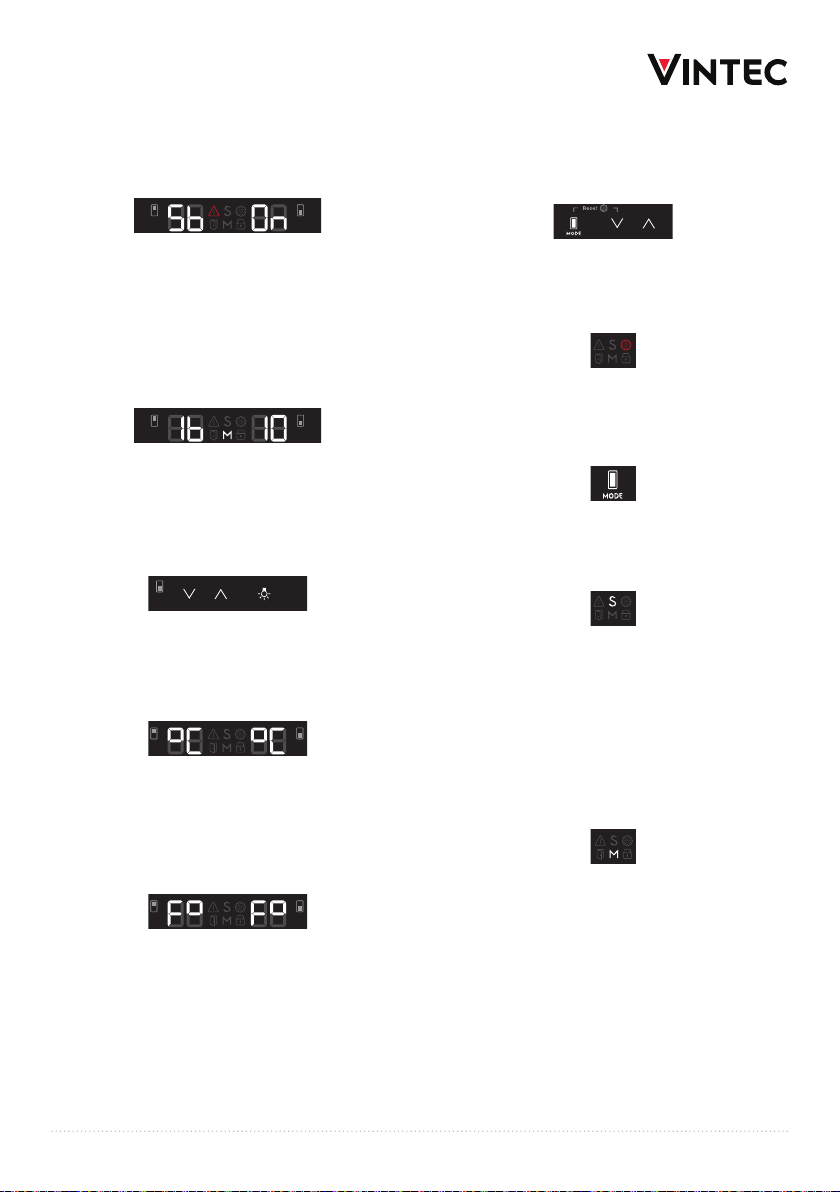

Sabbath mode Activation
Simultaneously press and hold
Upper Zone “-/+” button and Lower Zone "-"
button for 5 seconds to activate/deactivate
Sabbath mode. When activated, both Upper
and Lower temperature displays show "Sb"
and "On" until it is deactivated.
While inSabbath mode:
● All button functionality is disabled except
for deactivating Sabbath Mode
● All lights except for Upper and Lower
temperature displays are disabled, and
all sounds are munted.
● Opening or closing the door will not
enable any notications or alarms. The
compressor will only engage or change
speeds after the door has been left open
for at least 30 seconds.
● No alerts will be displayed until the
Sabbath Mode is deactivated, except the
High/Low temperature alerts.
● All sounds are muted except the audio
alarm for High/Low temperature alerts.
14
User Manual

Sabbath Mode exception:
The High/Low Temperature alert will
displayed in case of a high or low
temperature inside the appliance. The
alert icon will turn On, but will not blink and
it will remain until the Sabbath mode is
deactivated. An audio alarm will sound and
automatically turn O󰀨 after 10 minutes.
When Sabbath mode is deactivation,
temperature displays will show the current
temperatures.
Changing between°C/°F
Single combined press & release on
increase bottom temperature set & Light
button to change the temperature type
(°C/°F).
When °C is set, Bottom & Upper
temperature display shows and blinks
“°C”for 5 seconds before returning to set
temperature & “°C” for 5 seconds.
Any alert turns o󰀨 temporarily.
When F° is set, Bottom & Upper
temperature display shows and blinks “F°”
& “F°” for 5 seconds.
Any alert turns o󰀨 temporarily.
Reset Filter alert
Press & Hold combined on Mode &
decrease bottons for 5 seconds to reset the
lter change counter.
If the alert is on, it turns o󰀨.
Single/Muliti/Cellaring zone set
Single press Mode to change the Single
zone, Multi zone, and Cellaring mode.
If the mode set is Single, the Single zone
feedback will light-up, and blink and both
temperatures change to 18°C. After 5
seconds without any interaction wih the
Mode button, the Single zone feedback
stops blinking and keeps steady, and both
temperatures show the current temperature.
In Single zone mode, both temperature
controls will work in sync.
If the mode set is Multi, the Multi zone
feedback will light-up, and blink and the
upper temperature changes to 18°C and
8°C on the bottom. After 5 seconds without
any interaction with the Mode button, the
Multi zone feedback stops blinking and
keeps steady and both temperatures show
the current temperature.
In Multi zone mode, each temperature
control will work separately.
15
User Manual

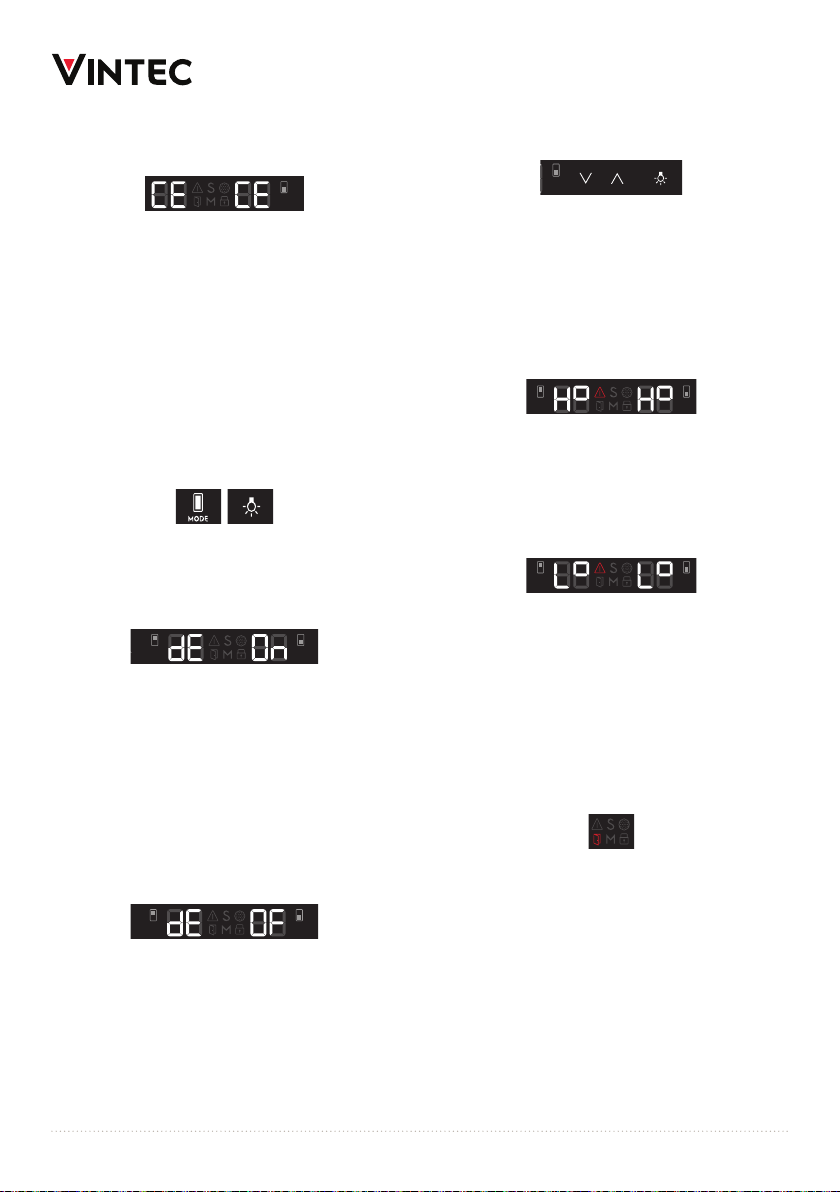

If the mode set is Cellaring, the Single and
Multi zone feedback will be O󰀨, and Bottom
& Upper temperature display shows “CE” &
“CE” blinking. After 5 seconds without any
interaction with the Mode button, the ”CE”
stops blinking and keeps showing ”CE” until
the Cellaring mode is deactivated.
In Cellaring mode, the temperature is xed
and can not be changed - 12°C.
Demo mode
Press & Hold combined on Mode & Lights
buttons for 5 seconds to activate/deactivate
Demo mode.
When activated, the bottom & Upper
temperature display shows and blinks ”dE &
”ON” for 5 seconds.
Any alert turns o󰀨 temporarily.
To keep communication that the machine
is in Demo mode, - every 5 minutes the
Bottom & Upper temperature display shows
and blinks ”dE & ”OF” for 5 seconds.
When deactivated, Bottom & Upper
temperature display shows and blinks ”dE”
& ”OF for 5 seconds.
Any alert turns o󰀨 temporarily.
Mute sounds
Press & Hold combined on decrease
bottom temperature set & Light buttons for 5
seconds to activate/deactivate Mute sounds.
High / Low temperature alert
If the Current temperature is 5°C above the
Set temperature for more than 60 minutes,
High Temperature alert shows “Hº” and
blinks the alert icon.
If the Current temperature is 2°C below the
Set temperature for more than 60 minutes,
Low Temperature alert shows “Lº” and
blinks the alert icon.
The alerts will not sound in the rst
90 minutes after power on.
Door open alert
When the door stays open for some amount
of time (5 minutes) the icon turns On and
the lights start to dim up and down. If
the door is kept open, after more than 2
minutes a sound is played.
Any interaction on the Control panel
disables the blinking and audio signal. The
icon stays on as long the door is open and
the lights go back to normal.
16
User Manual

Change lter alert
After 6 months the icon turns On.
See "Reset" lter alert, to know how to reset
the alert. After reset, the icon turns O󰀨 and
the count is reset.
17
User Manual

Automatic defrosting
The wine cooler is defrosted automatically.
Defrost water runs through a pipe and is
collected in a tray above the compressor
where the heat generated by the compres-
sor causes it to evaporate. The defrost
water tray should be cleaned at intervals.
Cleaning
Before cleaning the appliance, unplug it
from the main supply. The cabinet is best
cleaned using warm water (max.65°C) with
a little mild detergent. Never use cleaning
agents that scour. Use a soft cloth. Rinse
with clean water and dry thoroughly. The
defrost water channel, in which condensa-
tion from the evaporator runs, is located
at the bottom of the rear inside wall of the
cabinet and must be kept clean. Add a few
drops of disinfectant, e.g. Rodalon, to the
defrost water drain a couple of times a year,
and clean the drain using a pipe cleaner or
similar. Never use sharp or pointed imple-
ments.
The sealing strip around the door must be
cleaned regularly to prevent discolouration
and prolong service life. Use clean water.
After cleaning the sealing strip, check that it
continues to provide a tight seal.
Dust collecting on the condenser on the
rear of the cabinet, the compressor and
in the compressor compartment is best
removed using a vacuum cleaner.
Defrosting, cleaning and maintenance
Spare parts
When ordering spare parts, please state
the type, serial and product numbers of
your appliance. This information is given on

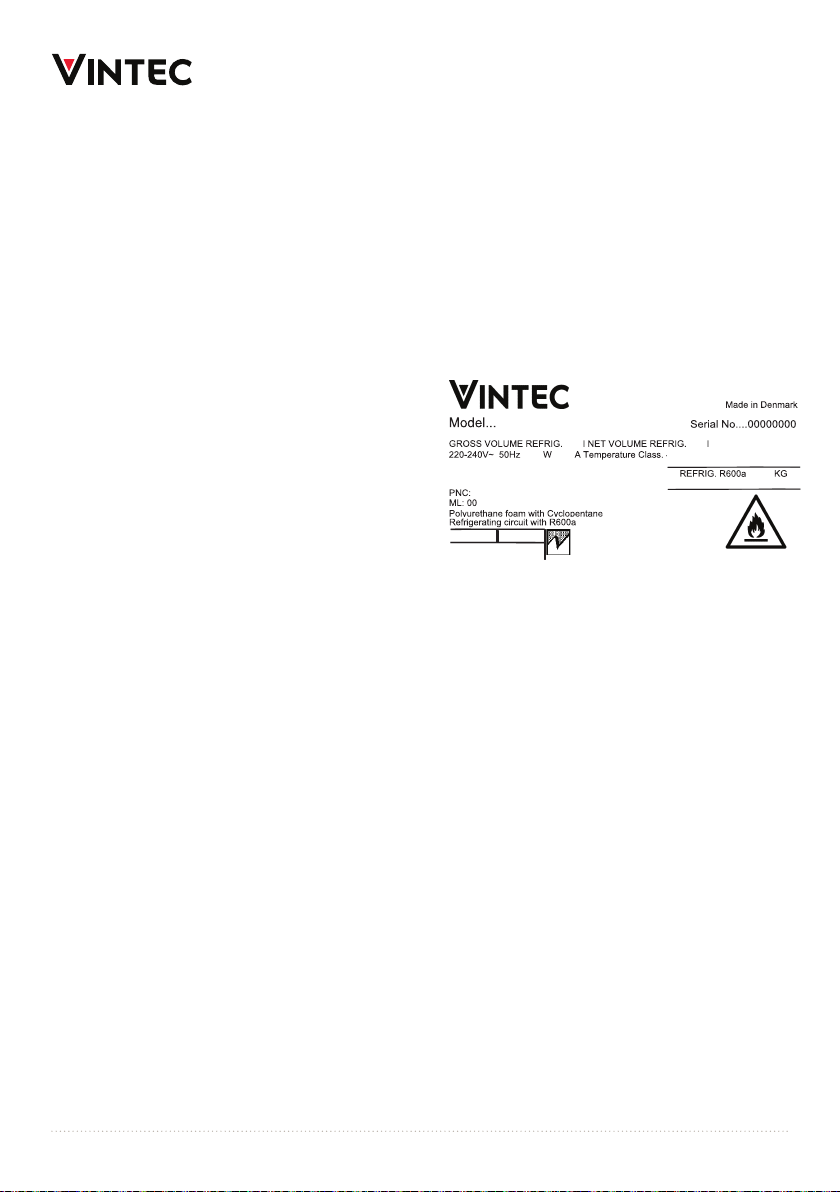

the rating plate. The rating plate contains
various technical information, including type
and serial numbers.
g. 15
xxxxxxxxxxx
xxxxxxxxxxx
xxxxx
x.xxx
xxxxxxxxxxxxxxx
18
User Manual

Fault nding
Fault Possible cause Remedy
The appliance is not
working.
Power failure; the fuse is blown;
the appliance is not plugged in
correctly.
Check that power is connected.
Reset the fuse.
Water collects in
the bottom of the
cabinet.
The defrost water pipe is
blocked.
Clean the defrost water channel
and the drain hole on the rear
wall of the cabinet.
Vibration or
bothersome noise.
The appliance is not level.
The appliance is resting against
other kitchen elements.
Containers or bottles inside the
cabinet are rattling against one
another.
Level the appliance using a spirit
level.
Move the appliance away
from the kitchen elements or
appliances it is in contact with.
Move containers and/or bottles
apart.
Compressor runs
continuously.
High room temperature. Ensure adequate ventilation.
Error code (E1) Top sensor not working.
The appliance continues to run
as a single zone.
Call service agent to repair
sensor.
Error code (E2) Defrost sensor not working. Call service agent to repair
sensor.
Error code (E3) Bottom sensor not working. The
appliance continues to run as a
single zone.
Call service agent to repair
sensor.
19
User Manual

Warranty for Australia and New Zealand
This document sets out the terms and
conditions of the product warranties for
Vintec/Transtherm Appliances. It is an
important document. Please keep it with
your proof of purchase documents in a
safe place for future reference should
there be a manufacturing defect in your
Appliance. This warranty is in addition
to other rights you may have under the
Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’
means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux
product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised
serviced centres;
(d) ‘Vintec/Transtherm’ is the brand
controlled by Electrolux Home
Products Pty Ltd of 163 O’Riordan
Street, Mascot NSW 2020,
ABN 51 004 762 341 in respect
of Appliances purchased in
Australia and Electrolux (NZ) Limited
(collectively “Electrolux”) of 3-5 Niall
Burgess Road, Mount Wellington, in
respect of Appliances purchased in
New Zealand;
(e) ‘Warranty Period’ means the period
specied in clause 3 of this warranty;
(f) ‘you’ means the purchaser of the
Appliance not having purchased the
Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. Application:
This warranty only applies to new
Appliances, purchased and used in Australia
or New Zealand and is in addition to (and
does not exclude, restrict, or modify in any
way) other rights and remedies under a law
to which the Appliances or services relate,
including any “non-excludable” statutory
guarantees in Australia and New Zealand.
3. Warranty Period:
Subject to these terms and conditions, this
warranty continues for in Australia for a
period of 24 months and in New Zealand for
a period of 24 months, following the date of
original purchase of the Appliance.
4. Repair or replace warranty:
During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your
Appliance is readily accessible for service,
without special equipment and subject
to these terms and conditions, repair or
replace any parts which it considers to be
defective. Electrolux may, in its absolute
discretion, choose whether the remedy
o󰀨ered for a valid warranty claim is repair or
replacement. Electrolux or its ASC may use
refurbished parts to repair your Appliance.
You agree that any replaced Appliances or
parts become the property of Electrolux.
5. Travel and transportation costs:
Subject to clause 7, Electrolux will bear
the reasonable cost of transportation,
travel and delivery of the Appliance to and
from Electrolux or its ASC. Travel and
transportation will be arranged by Electrolux
as part of any valid warranty claim.
6. Proof of purchase:
is required before you can make a claim
under this warranty.
7. Exclusions:
You may not make a claim under this
warranty unless the defect claimed is due
to faulty or defective parts or workmanship.
This warranty does not cover:
(a) light globes, batteries, lters or similar
perishable parts;
20
User Manual
