Vintec VWS121SCA-X User manual

User Manual
VWS121SCA-X
VWS121SSA-X
VWS165SCA-X
VWS165SSA-X
VWD154SSA-X
vintec.com

2
User Manual
Important Informaon that may impact your Manufacturer’s Warranty
Adherence to the direcons for use in this manual is extremely important for health and safety. Failure to strictly
adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to
make a claim under the Vintec manufacturer’s warranty provided with your product. Products must be used,
installed and operated in accordance with this manual. You may not be able to claim on the Vintec manufacturer’s
warranty in the event that your product fault is due to failure to adhere to this manual.
3
4
5
6
7
8
WARNING
.....................................................
Table of Contents
STORAGE
.....................................................
STORAGE & OPERATION
.....................................................
WINE SERVING & DEFROSTING
.....................................................
DOOR REVERSAL
.....................................................
TROUBLESHOOTING
.....................................................
9
.....................................................
DATA

WARNING
Theinforma on in this documentis subjectto
modi!ca"on withoutanypriorno#ce.
Somemodels areavailablein dedicated countriesonly.
VINTEC o$ersnoguaranteeforourWineCellarifitis
beingused foranypurposeotherthan thatforwhich
it wasspeci!callydesigned.
VINTECcannot beheld responsibleforanyerrorin this
manual.
This applianceis not intendedforusebypersons
(includingchildren)with reduced physical,sensoryor
mentalcapabili%es, orlack ofexperienceand knowledge,
unless theyhavebeen given supervision orinstruc&on
concerninguseoftheappliancebya personresponsible
fortheirsafety.
Children should besupervisedtoensuretheydonotplay
with theappliance.
This appliancecan beusedbychildren aged from 8years
and aboveand personswith reducedphysical, sensoryor
mentalcapabili'esorlack ofexperienceand knowledge
if theyhavebeengivensupervisionorinstruc(on
concerninguseoftheappliancein a safewayand
understand thehazardsinvolved.Children shall not play
with theappliance.Cleaningand usermaintenanceshall
not bemadebychildren withoutsupervision.
This applianceuses )ammablerefrigerant,please
securethecoolingpipeduringthedeliveryprocess.
Posi*onthewinecoolerawayfrom directsunlightand
sourcesofheat(stove,heater, radiator, etc.).Never
clean applianceparts with )ammable )uids. Thefumes
can createa !rehazard orexplosion.When disposing
yourappliance, pleasechoosean authorizeddisposalsite.
Children should besupervisedtoensurethattheydo
not playwith theappliance.
R600AWARNINGS
Thefollowingmodels usesmall quan+tyof R600A
(iso-butane) )ammablerefrigerant:
VWS121SCA-X/VWS165SCA-X/VWS121SSA-X/
VWS165SSA-X/VWD154SSA-X ,55g
Foryoursafetypleaseobservethefollowing
recommenda-ons:
-Thisappliancecontainsa small quan.tyof R600A
refrigerantwhich is )ammable.Avoid safetyhazards
bycarefullyinstalling,handling,servicingand disposing
of thisappliance.
-Duringtransporta/on and installa0on,ensurethatthe
tubingoftherefrigerantcircuit is notdamaged.
- Avoid usingormanipula1ngsharp objectsnearthe
appliances.
- Leakingrefrigerantcan igniteand maydamagetheeyes.
- In theeventanydamagedoesoccur,avoid exposureto
open !resand anydevicewhich createsa spark.
Avoid safetyhazardsbycarefullydisposingof this
appliance.
Disconnecttheappliancefrom themainspower.
-Thoroughlyven2latetheroomin which theappliance
islocated forseveralminutes.
,WARNING:Donotuseelectricalappliancesinsidethe
compartments.
,WARNING:Donotstoreexplosivesubstancessuch as
aerosol canswith a )ammablepropellantinthis
appliance.
,WARNING:Thisapplianceis intended to beused in
household and similarapplica3onssuch as:
- Sta$kitchen areasin shops, o4cesand otherworking
environments;
- Farm housesand byclientsinhotels,motels and other
residen5altypeenvironments;
- Bed and breakfasttypeenvironments;
- Cateringand similarnon-retail applica6ons
,WARNING:Donotuseelectricalappliancesinsidethe
food storagecompartments of theappliance,unless
theyare thetyperecommended bythemanufacturer.
,WARNING:Ifthepowercord is damaged, it must be
replaced bythemanufacturer,itsserviceagentor
similarlyquali!ed personsinorderto avoida hazard.
,WARNING:When posi7oningtheapplianceensurethe
supplycordisnottrapped ordamaged.
WARNING:Donotlocatemul8pleportablesocket-
outletsorportablepowersuppliesattherearofthe
appliance.
,WARNING:Yourapplianceis !9ed with longlifeLED
ligh:ng.In theunlikelyeventtheLED lightsshould fail,
then theLED lights shouldbeserviced bythe
manufacturer,itsserviceagentorsimilarlyquali!ed
personsin orderto avoid a hazard.
,WARNING:Theauthorised person must hold a Gas
WorkAuthorisa;on forhydrocarbonrefrigerants,
beforecarryingoutservicingorrepairswhich involve
theremovalof covers.
Theenvironmentand personalsafetymustbe
considered when disposingofthisappliance.
Pleaseensuretheapplianceis takentoarecyclecentre
Itis hazardous foranyone otherthan an Authorised
Service Persontocarryoutservicingorrepairs to this
appliance.
,WARNING:Keep ven<la=onopeningsin theappliance
enclosureorinthebuilt-in structureclearof
obstruc>on.
,WARNING:Donotusemechanicaldevicesorother
meansto acceleratethedefros?ngprocess, otherthan
thoserecommended bythemanufacturer.
,WARNING:Donotdamagetherefrigerantcircuit.
3
User Manual
- No@fy CustomerServicefornecessaryacAon and
advice.
-Theroomforinstallingtheappliancemust beatleast1
cubic metreper8gramsof refrigerant.Therefrigerant
quanBtycontainedin thisapplianceis listed abovein
grams;itisalso notedontheRaCngPlateofthe
appliance.
forsaferecycling.
This appliancecontainsinsulaDon formed with
)ammableblowinggasesand )ammablerefrigerant.
Avoid safetyhazardsbycarefullydisposingof this
appliance.

socket to country standards, linked to the ground)．It is
NOT recommended to use a mul-socket or extension
lead;
- have a surge protector fied to the electrical outlet;
- away from the microwave oven. Certain microwave
ovens do not have wave interference shield. When
placed within 1 meter vicinity of the wine cabinet, they
may affect the operaon of the wine cabinet.
- not be too damp (laundry, pantry, bathroom etc.);
- have a flat floor;
- have a standard and reliable electricity supply (standard
- be unencumbered and well venlated;
- be well away from any heat source and direct sunlight;
Affix the back spacer at the back of the cellar for air
circulaon and heat evacuaon.
Compressor run appliances require good venlaon
for effecve and longer usage. Your Vintec Wine Cellar
is supplied with a back spacer.
VINTEC recommends that you ghten the back feet to
the maximum and adjust the front feet to level of the
Wine Cellar.

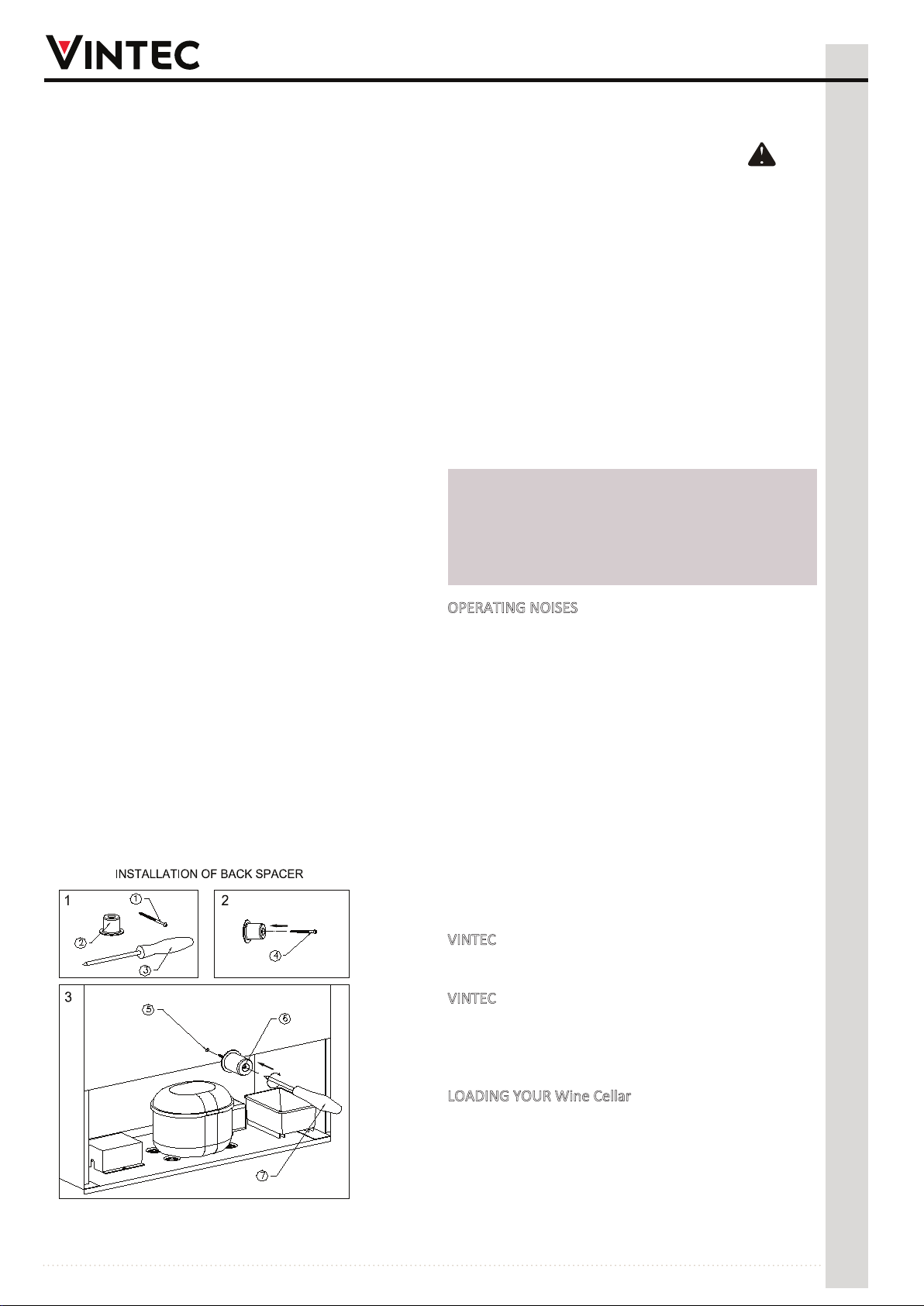

Fixing the Back spacer:
TURNING ON YOUR Wine Cellar
Plug in and switch on the cellar by pressing on the
power buon for a few seconds.
When you use the Wine Cellar for the first me (or
restart the Wine Cellar aer having it shut off for a long
me), there will be a few degrees variance between the
temperature.
OPERATING NOISES
To reach the desired temperature sengs, VINTEC
Wine Cellar , like all Wine Cellar and may produce the
following types of noises. These noises are normal and
may occur as follows:
- Gurgling sound - caused by the refrigerant flowing
through the appliance’s coils.
- Cracking / popping sounds - resulng from the
contracon and expansion of the refrigerant gas to
produce cold.
- Fan operang sound - to circulate the air within
the Wine Cellar.
An individual’s percepon of noise is directly linked to
the environment in which the Wine Cellar is located, as
well the specific type of models.
VINTEC Wine Cellar are in line with internaonal
standards for such appliances.
VINTEC will always do its utmost to sasfy its customers
but will not retake possession of the goods due to
complaints based on normal operang noise
occurrences.
LOADING YOUR Wine Cellar
You may load your wine boles in single or double
rows while taking note of the following: if you do not
4
User Manual
Allow 24 hours before switching on the Wine Cellar .
During this me we recommend that you leave the door
open to clear any residual odours.
BEFORE LOADING & PLUGGING IN THE Wine Cellar .
Important: All models without front venng (air opening)
are strictly for free standing only. (See technical chart).
Recommendaons:
The locaon you have selected for your Wine Cellar
should:
Levelling your Wine Cellar : Wine Cellar must be leveled
BEFORE loading your wines. Your Vintec Wine Cellar is
equipped with 4 adjustable feet to facilitate easy
leveling.
You have selected and the one indicated on the LED
readout. This is normal and it is due to the length of the
acvaon me. Once the Wine Cellar is running for a
few hours everything will stabilise.
IMPORTANT - THIS SPACER MUST BE ATTACHED TO
THE UNIT BEFORE THE INSTALLATION, FOR
VENTILATION PURPOSE.
FAILURE TO DO WILL VOID THE WARRANTY
Important: If the unit is unplugged, turned off, or
power is lost due to an electricity power outage
wait 3 to 5 minutes before restarng the unit.
The Wine Cellar will not start if you aempt to
restart before this me delay.
STORAGE

- Do not stack more than 1.5 rows of standard
0.75L boles per shelves to facilitate air circulaon.
- Avoid obstrucng the internal fans (Located inside
on the back panel of the Wine Cellar ).
- Do not slide the shelves outwards beyond the fixed
posion to prevent the boles from falling.
- Do not pull out more than one loaded shelf at a me
as this may cause the Wine Cellar to lt forward.
- Do not cover the wooden shelves with alloy foil or
other materials, as it will obstruct air circulaon.
- Do not move your Wine Cellar while it is loaded with
wines.This might distort the body of the Wine Cellar
- Do not cover the wooden shelves with alloy foil or
other materials, as it will obstruct air circulaon.
- Do not move your Wine Cellar while it is loaded
with wines. This might distort the body of the Wine
Cellar and cause back injury.
TYPES OF REGULATION
Please note that depending on the loading and
sengs chosen it takes about 24 hours for the Wine
Cellar to see the temperature stabilising. During this
me the LED seems to move erracally in parcular
for dual zone models. It is normal and this process
occurs whenever the seng is modified and/or
whenever a large amount of boles are added to the
cellar.Designed to store and mature all wines: red,
white and sparkling. These Wine Cellar reproduce the
ideal condions for wine storage, at a constant
recommended temperature of 12℃. They can also
be set to provide ideal serving temperature for full
enjoyment of the wine’s qualies. Unless stated by
the wine maker on the bole, VINTEC recommends
7℃ for your champagne, 12℃ for whites and 18℃
for reds. (Refer to Wine Service Temperature
recommendaon chart).
Designed to store wines at the correct temperature
for best enjoyment. The upper chamber can hold 12,
14 or 16 boles, depending on the models, at a
temperature of 6℃ to 10℃ dedicated mainly to
white, sparkling wines and champagnes. The lower
chamber accommodates 20, 30 or 34 boles
depending on the models, mainly for red wines,
which could be stored either at room emperature
5
User Manual
and and cause back injury.

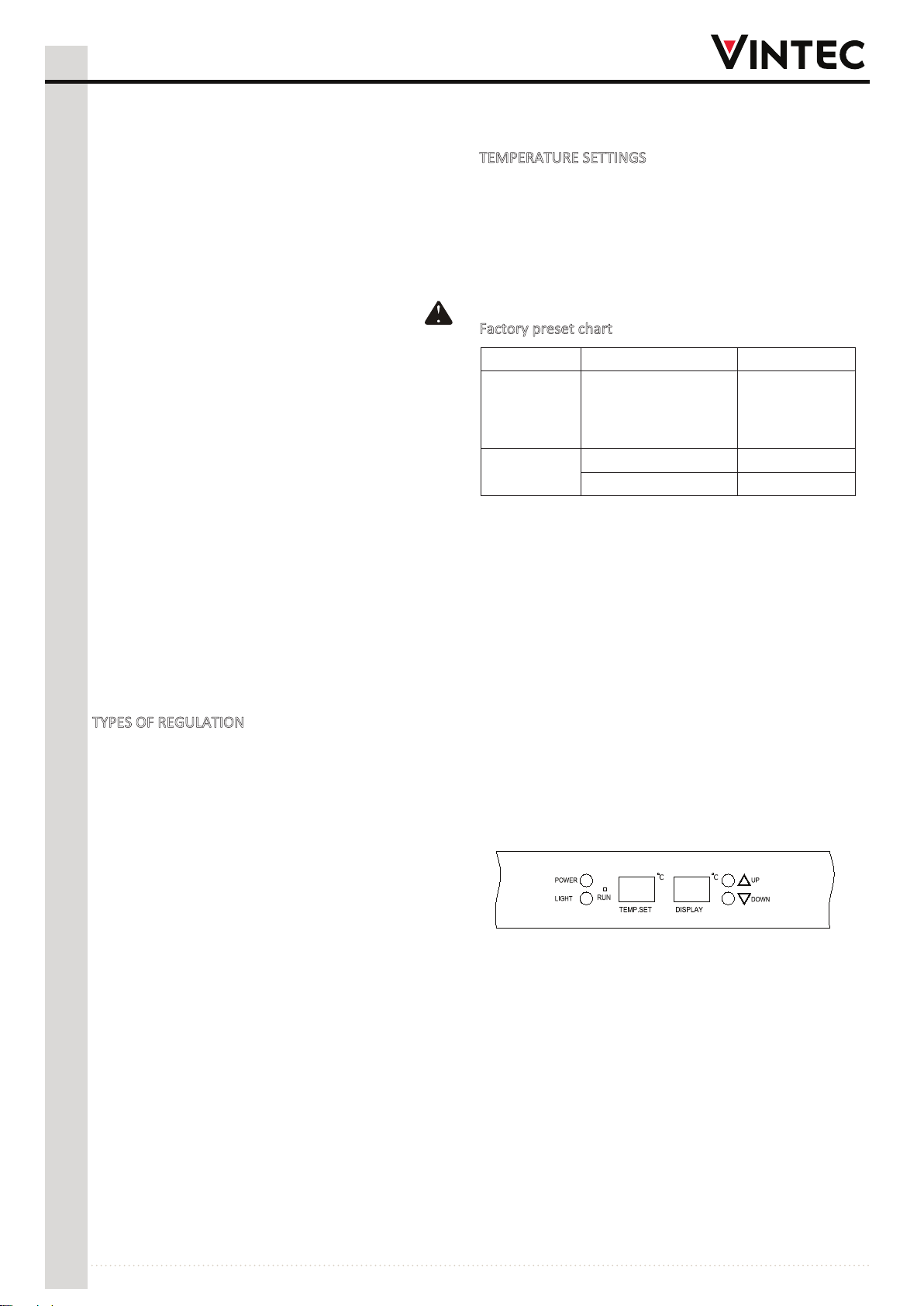

Factory preset chart
have enough boles to fill your Wine Cellar , it is beer
to distribute the load throughout the Wine Cellar so
as to avoid all on top or all below type loads.
- Do remove or relocate adjustable wooden shelves to
accommodate larger type of boles or increase the
capacity of the cellar by stacking the boles up when
necessary. (See removing shelves).
- Keep smalls gap between the walls and the boles to
allow air circulaon. Like an underground cellar air
circulaon is important to prevent mould and for a
beer homogeneous temperature within the cellar.
- Do not over load your Wine Cellar to facilitate air
circulaon.
(18℃-20℃) for consumpon or at 12℃ for a
longer me of storage.
TEMPERATURE SETTINGS
Important: The LCD displays by default the actual
internal air temperature.
The temperature sengs are pre-set at the factory as
follows. In the event of a power interrupon, all previous
temperature sengs are automacally erased and it will
revert to the preset temperature sengs.
It is important to understand that there is a difference
between the air temperature inside the Wine Cellar
and the actual temperature of the wine: You will need
to wait approximately 12 hours before nocing the
effects of temperature adjustment due to the crical
mass within a full Wine Cellar.
Once the temperature is set, it is strongly advised not to
toy with it or adjust frequently. The thermostat will
maintain the temperature inside the Wine Cellar within
a +/- 2.5℃ range.
But the thermal inera of the wine and the glass is such
that within this temperature range, the actual
temperature of the wine will only fluctuate 0.5℃ to 1℃.
Control panel of VWS121SCA-X/VWS165SCA-X/
VWS121SSA-X/VWS165SSA-X
To modify the pre-set temperature of these models
Adjust the desired cooling temperature by pressing the
UP or DOWN buons. Each depression of the buons
will scroll through the available temperature sengs
in increase or decrease of 1 degree Celsius.
DISPLAY
To shows the temperature of the internal cabinet.
TEMP.SET
To shows the seng temperature.
You can set the temperature as you desire by pushing
the UP or DOWN buon. When you push the two
buons for the first me, the LED readout will show the
original temperature set at previous me.
The temperature seng can be adjusted from 6℃to 18℃.
Model
VWS121SCA-X
VWS165SCA-X
VWS121SSA-X
VWS165SSA-X
Seng Temperature
12℃12℃(+/-2.5℃)
VWD154SSA-X
Upper compartment: 6℃
Lower compartment: 12℃
6℃(+/-2.5 ℃)
12℃(+/-2.5 ℃)

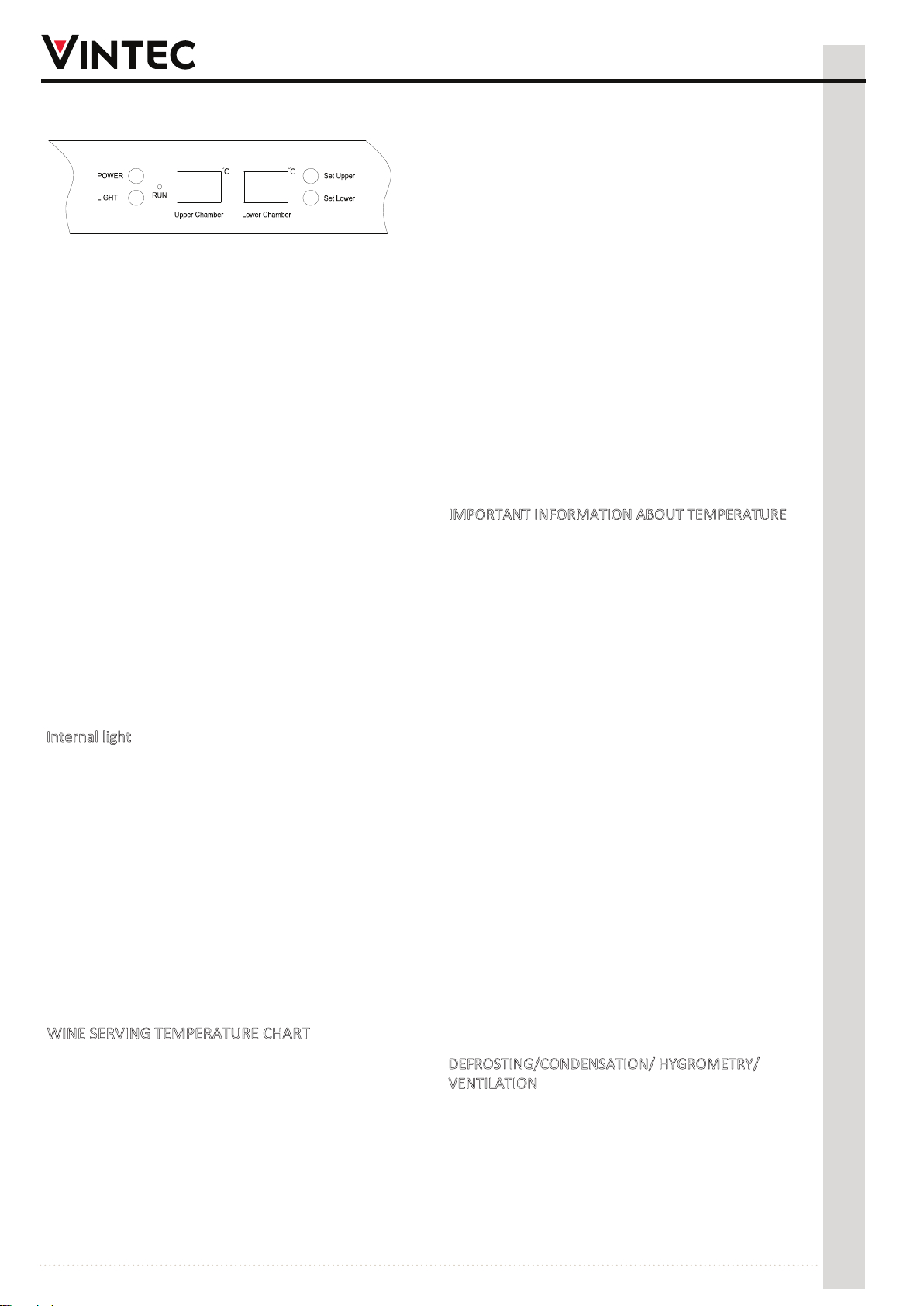

STORAGE & OPERATION
