Vintec V26SG e SS/S3 User manual

code: VIM 201301/S/01
Armoire à vin
Wine Preservation Technology
USER MANUAL
V26SG e SS/S3 models
V30SGme/AL/S3/BK models
V30SGe/AL/S3/BK models
V40SGe/AL/S3/BK models
V30SG2e/AL/S3/BK models
V40SG2e/AL/S3/BK models
V40DG 2e AL/S3/BK models

code: VIM 201301/S/01
1
WARNING
The information in this document is subject to modification without
any prior notice.
Some models are available in dedicated countries only
VINTEC offers no guarantee for our wine cellar if it is being used for any purpose other
than that for which it was specifically designed. VINTEC cannot be held responsible for
any error in this manual. VINTEC is not responsible or liable for any spoilage or damage
to wines or any other contents incidental or consequential to possible defects of the wine
cellar. Warranty applies to the wine cellar only and not to the content of the wine cellar.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
R600A WARNINGS
The following models use small quantity of R600A (Iso-butane) flammable refrigerant:
AL/S3/BK: V30SGe –30g V30SG2e –30g
AL/S3/BK: V40SGe –35g V40SG2e –35g
AL/S3/BK: V40DG 2e –45g V26SGe –30g
For your safety please observe the following recommendations:
This appliance contains a small quantity of R600A refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor
does it increase the greenhouse effect.
During transportation and installation, ensure that the tubing of the refrigerant
circuit is not damaged.
Avoid using or manipulating sharp objects near to the appliances.
Leaking refrigerant can ignite and may damage the eyes.
In the event any damage does occur, avoid exposure to open fires and any device
which creates a spark. Disconnect the appliance from the mains power.
Thoroughly ventilate the room in which the appliance is located for several
minutes.
Notify Customer Service for necessary action and advice.

code: VIM 201301/S/01
2
The room for installing the appliance must be at least 1 cubic metre per 8 grams of
refrigerant. The refrigerant quantity contained in this appliance is listed above in
grams; it is also noted on the Rating Plate of the appliance.
It is hazardous for anyone other than an Authorised Service Person to carry out
servicing or repairs to this appliance.
–WARNING: Keep ventilation openings in the appliance enclosure or in the built-in
structure clear of obstruction.
–WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
–WARNING: Do not damage the refrigerant circuit.
–WARNING: Do not use electrical appliances inside the compartments.
–WARNING: In Queensland Australia, the authorised person must hold a Gas Work
Authorisation for hydrocarbon refrigerants, before carrying out servicing or repairs which
involve the removal of covers.
The environment and personal safety must be considered when disposing of this appliance.
Please ensure the appliance is taken to a recycle centre for safe recycling. DO NOT
dispose of the appliance in land fill as the insulation and refrigerant gas contained in these
appliances are flammable.
Allow 24 hours before switching on the wine cellar. During this time we recommend
that you leave the door open to clear any residual odours.
BEFORE LOADING & PLUGGING IN THE WINE CELLAR
Important: All models without front venting (air opening) are strictly for free standing
only. (See technical chart)
Recommendations:
The location you have selected for your wine cellar should:
- be unencumbered and well ventilated;
- be well away from any heat source and direct sunlight;
- not be too damp (laundry, pantry, bathroom etc.);
- have a flat floor;
- have a standard and reliable electricity supply (standard socket to country standards,
linked to the ground), it is NOT recommended to use a multi-socket or extension lead;
-have a surge protector fitted to the electrical outlet;
- be away from the microwave oven. Certain microwave ovens do not have a wave
interference shield. When placed within 1 metre vicinity of the wine cabinet, they may
affect the operation of the wine cabinet.

code: VIM 201301/S/01
3
Notes:
- V30 models are for free standing ONLY.
- V40 & V26 models are built-in type as per the drawings thereafter.
The wine cellar should be placed where the ambient temperature is between 5ºC to 35ºC.
If the ambient temperature is above or below this range, the performance of the unit may
be affected. Placing your unit in extreme cold or hot conditions may cause interior
temperatures to fluctuate. The ideal range of temperature may not be reached. (See
Climate Class at the end of this manual)
Grounding instructions
The wine cellar must be grounded in case of an electrical short circuit. Grounding reduces
the risk of electrical shock. The wine cellar is equipped with a power cord having a
grounding wire and plug. The wine cellar plug must be plugged into a properly affixed and
grounded electrical outlet.
Note: In locations where there is frequent lightning, it is advisable to use surge
protectors.
Improper use of the grounding plug can result in the risk of electric shock. Consult a
qualified electrician or service person if the grounding instructions are not completely
understood.
If the supply cord is damaged, it must be replaced by a qualified person in order to avoid
electrical hazard.
INSTALLING YOUR WINE CELLAR
Unpack and remove all of the protection and adhesive strips from the packaging around
and inside the wine cellar.
The wine cellar must be positioned such that the plug is accessible. Release the power
cord. Move your wine cellar to its final location. The wine cellar should be installed in a
suitable place where the compressor will not be subject to physical contact.
Leveling your wine cellar: The wine cellar must be leveled BEFORE loading your wines.
Your Vintec wine cellar is equipped with 4 adjustable feet to facilitate easy leveling.
VINTEC recommends that you tighten the back feet to the maximum and adjust the front
feet to level the wine cellar.

code: VIM 201301/S/01
4
Fixing the Back spacer:
Compressor run appliances require proper ventilation for proper and longer usage. Your
Vintec wine cellar is supplied with a back spacer. Affix the back spacer at the back of the
cellar for air circulation and heat evacuation.
IMPORTANT - THIS SPACER MUST BE ATTACHED TO THE UNIT BEFORE
THE INSTALLATION FOR VENTILATION PURPOSE.
FAILURE TO DO SO VOIDS THE WARRANTY
INSTALLATION INSTRUCTIONS FOR BUILT IN WINE CELLARS:
(UNDERBENCH OR IN COLUMN) FRONT VENTING WINE CELLARS ONLY.
V30 models are free standing only. Any built in voids the warranty

code: VIM 201301/S/01
5
1. Vintec “Built in” wine cellars are front venting but are not designed to be fully
integrated behind a joinery door.
2. Vintec “Built in” wine cellars require 10mm clearance on both sides and top, 30mm
clearance at the rear (Back spacer is provided), to facilitate installation, removal, servicing
and ventilation.
3. Vintec “Built in” wine cellars draw air from the rear and expels through the metal grid
under the door at the front. If a kick board is to be placed in front of the wine cellar’s grid
another one must be fitted into the kick board with a minimum air flow allowance of
150cm2.
4. Vintec “Built in” wine cellars have a power switch located on the control panel so
power point location is not critical.
5. The wine cellar requires a standard 240 volt/10 amp power point. (Or according to
different countries specifications)
6. The power cord is 1.9m in length and is fixed on the right side at the back when looking
from front of cabinet.
7. As with most appliances of today, the wine cellar has sensitive electronic components
which are susceptible to damage through lightning and electricity supply faults. It is
therefore advised to use a power surge protector to avoid problems of this nature.
8Air vent within the joinery must be provided for Vintec built in wine cellars (front
venting)
In hot climate zones, an air vent or grid, with a minimum ventilation size of 200mm x
40mm MUST be cut out at the rear top of the back partitioning or at the top of either side
of the partitioning, allowing cool fresh air full access to flow into the 30mm gap located at
the rear of the cabinet.
This air vent or grid must not be opened on the same side as other appliances such as
ovens or an area that is sealed and without access to fresh cool air. Failing to comply with
the above specifications could result in WARRANTY void.

code: VIM 201301/S/01
6

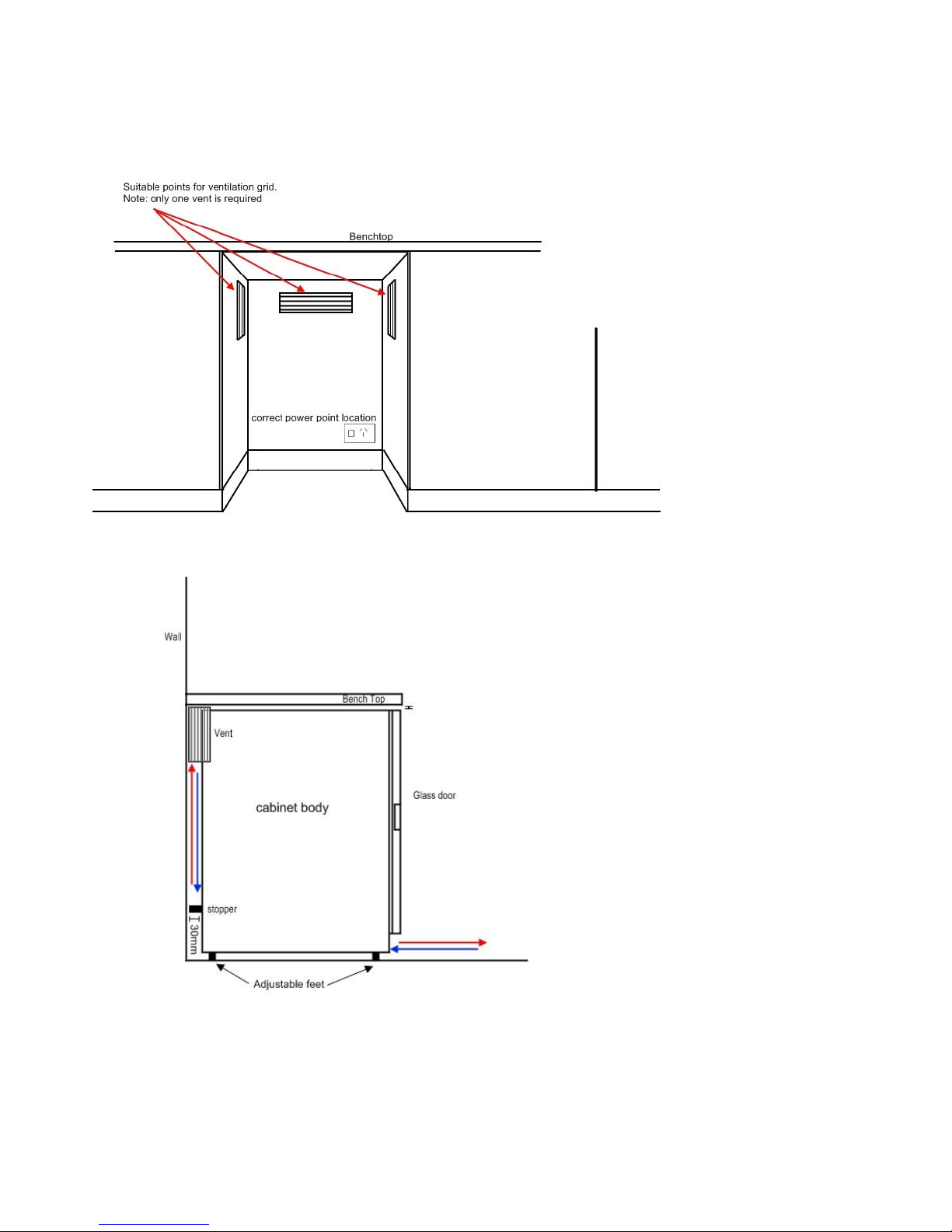

INSTALLATION DRAWINGS FOR BUILT IN WINE CELLARS:
(UNDERBENCH OR IN COLUMN) FRONT VENTING WINE CELLARS ONLY
* only 10mm requires for V26 etc.
30 mm *
This applies to all V40SG/DG
BK&S3 models.

code: VIM 201301/S/01
7
Dimensional drawings:
V26’s
V40’s (30mm recess plinth)

code: VIM 201301/S/01
8
V40’s (85mm recess plinth)
V40 S3/BK models
TURNING ON YOUR WINE CELLAR
Plug in and switch on the cellar by pressing on the power button for a few seconds.
When you use the wine cellar for the first time (or restart the wine cellar after having it
shut off for a long time), there will be a few degrees variance between the temperature you
have selected and the one indicated on the LED readout. This is normal and it is due to
the length of the activation time. Once the wine cellar is running for a few hours
everything will stabilise.
Important: If the unit is unplugged, power is lost, or turned off, wait 3 to 5 minutes
before restarting the unit. The wine cellar will not start if you attempt to restart before
this time delay.

code: VIM 201301/S/01
9
Operating Noises
To reach the desired temperature settings, VINTEC wine cellars, like all wine cellars
operating with compressors and fans, may produce the following types of noises. These
noises are normal and may occur as follows:
- Gurgling sound - caused by the refrigerant flowing through the appliance’s coils.
- Cracking/popping sounds - resulting from the contraction and expansion of the
refrigerant gas to produce cold.
- Fan operating sound - to circulate the air within the wine cellar.
An individual’s perception of noise is directly linked to the environment in which the wine
cellar is located, as well the specific type of models. VINTEC wine cellars are in line with
international standards for such appliance. VINTEC will always do its utmost to satisfy
its customers but will not retake possession of the goods due to complaints based on
normal operating noise occurrences.
LOADING YOUR WINE CELLAR
You may load your wine bottles in single or double rows while taking note of the
following: if you do not have enough bottles to fill your wine cellar, it is better to
distribute the load throughout the wine cellar so as to avoid “all on top” or “all below”
type loads.
- Do remove or relocate adjustable wooden shelves to accommodate larger type of bottles
or increase the capacity of the cellar by stacking the bottles up when necessary. (See
removing shelves)
- Keep small gaps between the walls and the bottles to allow air circulation. Like in an
underground cellar, air circulation is important to prevent mould and for a better
homogeneous temperature within the cellar.
-Do not over load your wine cellar to facilitate air circulation.
- Do not stack more than 1.5 rows of standard 0.75L bottles per shelves to facilitate air
circulation
-Avoid obstructing the internal fans (located inside on the back panel of the wine cellar).
- Do not slide the shelves outwards beyond the fixed position to prevent the bottles from
falling.
- Do not pull out more than one loaded shelf at a time as this may cause the wine cellar to
tilt forward.
- Do not cover the wooden shelves with alloy foil or other materials, as it will obstruct air
circulation.
- Do not move your wine cellar while it is loaded with wines. This might distort the body
of the wine cellar and cause back injury.

code: VIM 201301/S/01
10

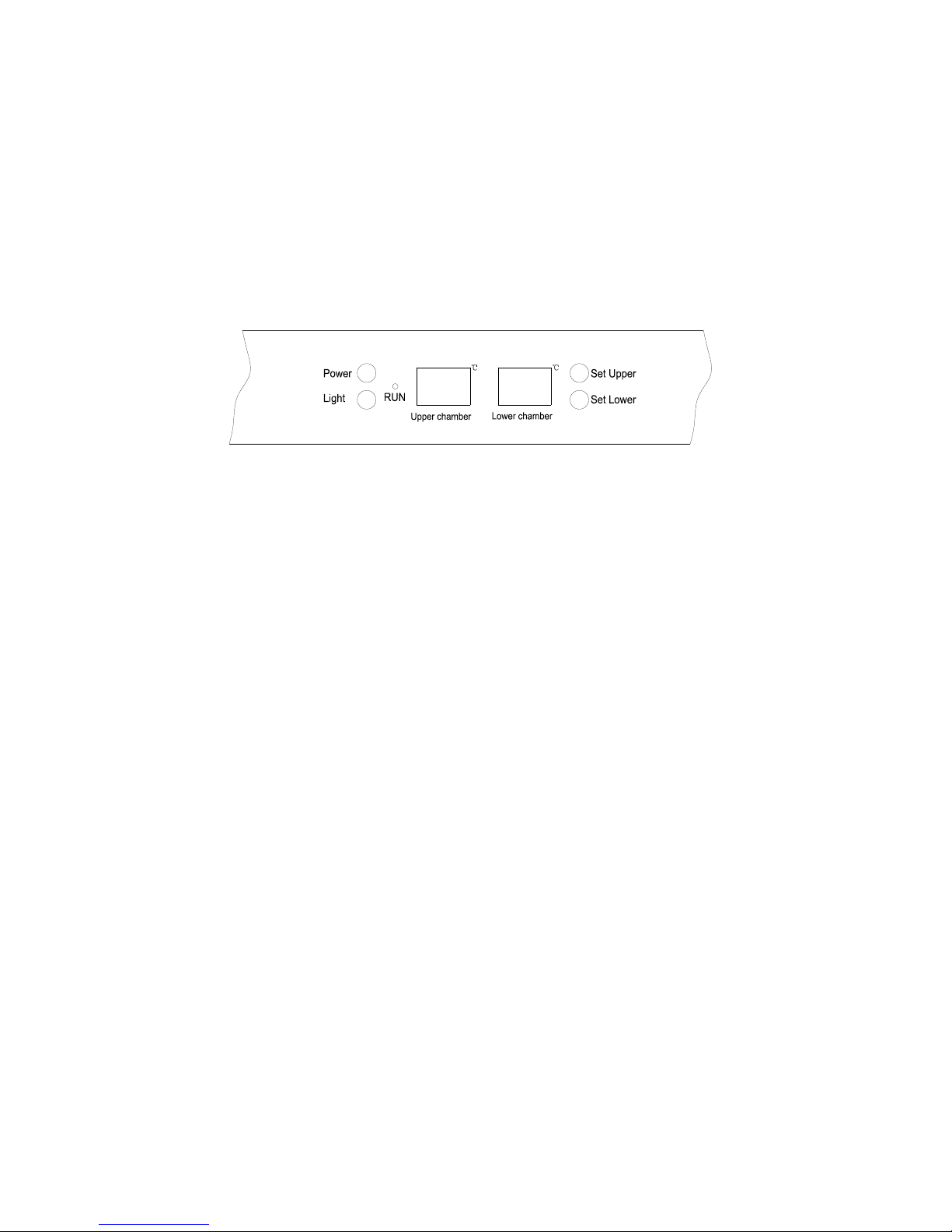

TYPES OF REGULATION
Please note that depending on the loading and settings chosen it takes about 24 hours for
the wine cellar to see the temperature stabilising.
During this time the LED seems to move erratically in particular for 2e models. It is
normal and this process occurs whenever the setting is modified and/or whenever a large
amount of bottles are added to the cellar.

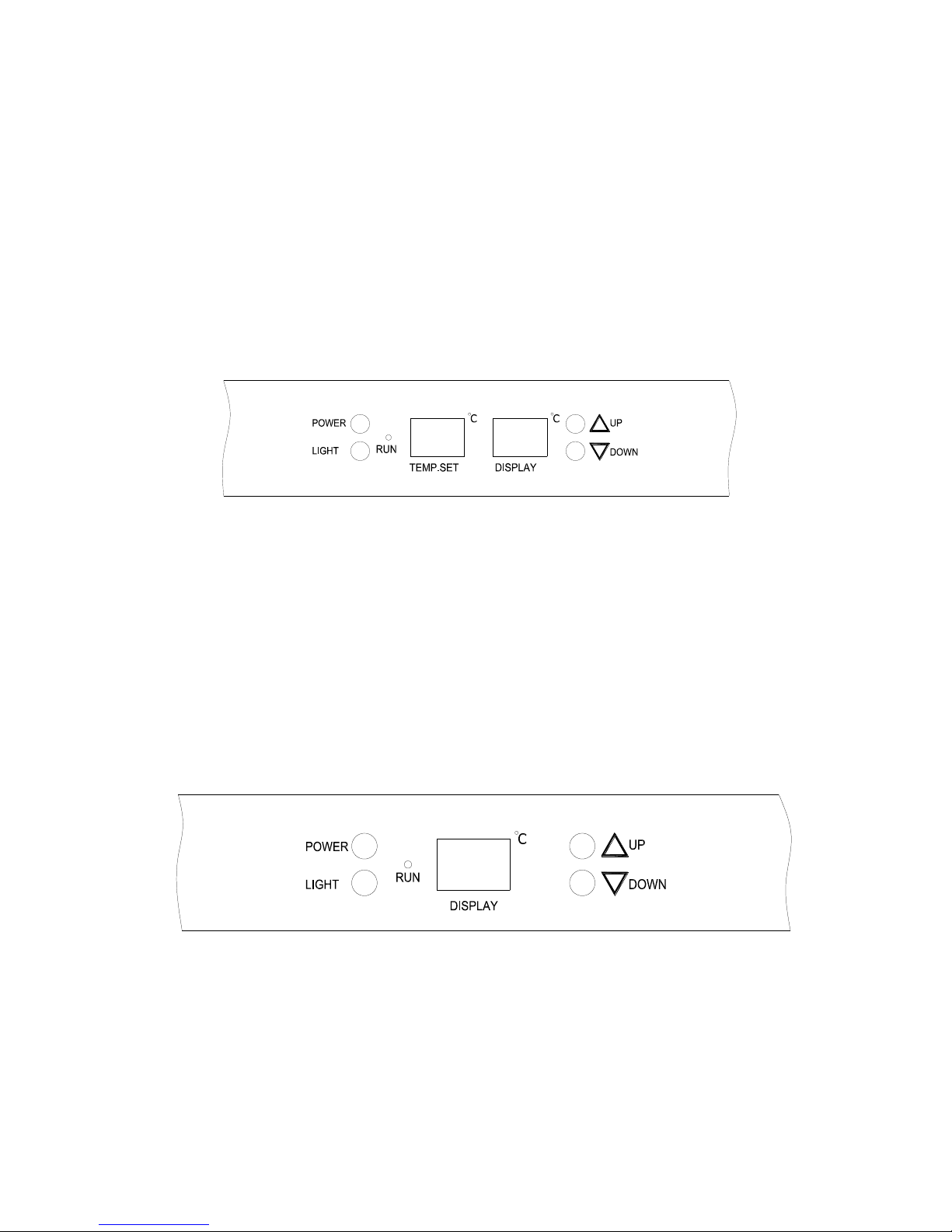

Single temperature Maturing/Storage wine cellars: “e”
AL/S3/BK:
V30SG standard regulation
V30SGe, V40SGe: electronic regulation, digital display.
SS/S3:
V26SGe: electronic regulation, digital display.
Designed to store and mature all wines: red, white and sparkling. These wine cellars
reproduce the ideal conditions for wine storage, at a constant recommended temperature
of 12ºC. They can also be set to provide ideal serving temperature for full enjoyment of
the wine’s qualities. Unless stated by the wine maker on the bottle, VINTEC recommends
7ºC for your champagne, 12ºC for whites and 18ºC for reds. (Refer to “Wine Service
Temperature” recommendation chart)
Two Compartment single temperature wine cellars (2-in-1 Wine Cellars): “DG”
AL/S3/BK:
V40DG2e: electronic regulation digital display
DG models are made of two independent compartments regulated independently as 2
single zone wine cellars. Like the e models, each compartment is adjustable, Zone 1 from
6ºC to 10ºC and Zone 2 from 10ºC to 18ºC. Ideal for storage or “mise en temperature”
(The right temperature for optimum enjoyment)
Two Temperature Serving Wine Cellars: “2e”
AL/S3/BK:
V30SG2e, V40SG2e: electronic regulation digital display
Designed to store wines at the correct temperature for best enjoyment. The upper chamber
can hold 12, 14 or 16 bottles, depending on the models, at a temperature of 6ºC to 10ºC
dedicated mainly to white, sparkling wines and champagnes. The lower chamber
accommodates 20, 30 or 34 bottles, depending on the models, mainly for red wines,
which could be stored either at room temperature (18ºC-20ºC) for consumption or at 12ºC
for a longer time of storage.

code: VIM 201301/S/01
11
TEMPERATURE SETTINGS
Important: The LCD displays by default the actual internal air temperature.
The temperature settings are pre-set at the factory as below. In the event of a power
interruption, all previous temperature settings are automatically erased and it will revert to
the preset temperature settings.
Factory preset chart
Model
Setting
Temperature
V30SGMe
12
12ºC (+/- 2.5ºC)
V26/V30/ V40 /AL /S3/BK
SG e
12
12ºC (+/- 2.5ºC)
V30/ V40 /AL /S3/BK
SG 2e
Upper compartment: 6
6ºC (+/- 2.5ºC)
Lower compartment: 12
12ºC (+/- 2.5ºC)
V40 /AL /S3/BK
DG 2e
Left compartment: 7
7ºC (+/- 2.5ºC)
Right compartment: 12
12ºC (+/- 2.5ºC)
It is important to understand that there is a difference between the air temperature inside
the wine cellar and the actual temperature of the wine: You will need to wait
approximately 12 hours before noticing the effects of temperature adjustment due to the
critical mass within a full wine cellar.
Once the temperature is set, it is strongly advised not to toy with it or adjust frequently.
The thermostat will maintain the temperature inside the wine cellar within a +/- 2.5ºC
range. But the thermal inertia of the wine and the glass is such that within this temperature
range, the actual temperature of the wine will only fluctuate 0.5ºC to 1ºC.
Electronic models:
V30SGMe /AL/S3/BK model Control panel of V30SG me
A

code: VIM 201301/S/01
12
To modify the pre-set temperature
Adjust the desired cooling temperature by pressing the button (A). Each depression of the
button will scroll through the available temperature settings in increments of 1 degree
Celsius. The temperature setting can be adjusted from 6ºC to 18ºC. The LED will flash
when setting the temperature. When stopping setting the temperature, LED will flash for
another 5 seconds and then display the actual temperature.
V30 SG e /AL/S3/BK models
The “TEMP SET LED” displays the set temperature
The “DISPLAY LED” displays the internal temperature
Control panel of V30SG e wine cellars
To modify the pre-set temperature of V30SGe models
Adjust the desired cooling temperature by pressing the UP or DOWN buttons. Each
depression of the buttons will scroll through the available temperature settings in
increments or decrease of 1 degree Celsius. The temperature setting can be adjusted from
6ºC to 18ºC.
V40SG e, V40DG 2e (for each compartment) AL/S3/BK models
V26SG e SS/S3 models
The “DISPLAY LED” displays the internal temperature. The set temperature
automatically appears by pressing either the UP or DOWN button
Control panel of SG e and DG 2e model wine cellars
To modify the pre-set temperature of 40SGe and 40DG2e AL/S3/BK models
Adjust the desired cooling temperature by pressing the UP or DOWN buttons. Each
depression of the buttons will scroll through the available temperature settings in
increments or decrease of 1 degree Celsius. The temperature setting can be adjusted from
6ºC to 18ºC. To view the “set” temperature, press and hold the UP or DOWN buttons, the
“set” temperature will temporarily “flash” in the LED display for 5 seconds.

code: VIM 201301/S/01
13
SG2e models:
V30SG2e, V40SG2e AL/S3/BK models
The “UPPER CHAMBER LED” displays the upper chamber internal temperature
The “LOWER CHAMBER LED” displays the lower chamber internal temperature
To view the “set” temperature, press the corresponding button once, the “set” temperature
will temporarily “flash” in the LED display for 5 seconds.
Control panel of SG 2e model wine cellars
To modify the pre-set temperature of SG “2e” models
Adjust the desired cooling temperature by pressing the Set Upper or Set Lower buttons.
Each depression of the buttons will scroll through the available temperature settings in
increments or decrease of 1 degree Celsius. The temperature selected will flash in the LED
display for approximately 5 seconds and then revert to displaying the temperature of the
internal cabinet. The temperature setting can be adjusted from 6℃to 10℃in upper
compartment and 10℃to 18℃in lower compartment.
LED LIGHT
When equipped with an LED light, you may turn the LED light of your VINTEC wine
cellar on and off by pressing the “LIGHT” button on the control panel.
When on the LED light will automatically switch off after 10mins.
To maintain the light on continuously, press the “LIGHT” button for 5 seconds. An “LP”
sign will be displayed for a few seconds.
To switch off the light, simply press the “LIGHT” button.
To revert to the automatic switch off mode proceed as above. An “LF” sign will be
displayed for a few seconds.

code: VIM 201301/S/01
14
WINE SERVING TEMPERATURE CHART
All wines mature at the same temperature, which is a constant temperature set between
12ºC to 14ºC. The below chart is an indicative temperature chart to indicate the best
temperature for drinking purposes.
Champagne NV, Sparkling, Spumante 6ºC
Dry White Semillon, Sauvignon Blanc 8ºC
Champagne Vintage 10ºC
Dry White Chardonnay 10ºC
Dry White Gewürztraminer, Riesling, Pinot Grigio 10ºC
Sweet White Sauternes, Barsac, Montbazillac, Ice Wine, Late Harvest 10ºC
Beaujolais 13ºC
Sweet White Vintage: Sauternes… 14ºC
White Vintage Chardonnay 14ºC
Red Pinot Noir 16ºC
Red Grenache, Syrah 16ºC
Red Vintage Pinot Noir 18ºC
Cabernet & Merlot: French, Australian, New Zealand, 20ºC
Chilean, Italian, Spanish, Californian, Argentinean…
Vintage Bordeaux … Room temperature not exceeding 20ºC
IMPORTANT INFORMATION ABOUT TEMPERATURE
Your VINTEC wine cellar has been designed to guarantee optimum conditions for storing
and/or serving your wines.
Fine wines require long and gentle developments and need specific conditions in which to
reach their full potential.
All wines mature at the same temperature, which is a constant temperature set between
12ºC to 14ºC. Only the temperature of “dégustation” (wine appreciation) varies according
to the type of wines (see “Wine Serving Temperature Chart” above). This being said and
as it is for natural cellars used by wine producers for long periods of storage, it is not the
exact temperature that is important, but its consistency. In other words, as long as the
temperature of your wine cellar is constant (between 12ºC to 14ºC) your wines will be
stored in perfect conditions.
Not all wines will improve over the years. Some should be consumed at an early stage (2
to 3 years) while others have tremendous ageing capability (50 and over). All wines have a
peak in maturity. Do check with your wine merchant to get the relevant information.

code: VIM 201301/S/01
15
DEFROSTING/CONDENSATION/ HYGROMETRY/ VENTILATION
Your wine cellar is designed with an “Auto-cycle” defrost system. During “Off-cycle” the
refrigerated surfaces of the wine cellar defrost automatically. Defrosted water from the
wine cellar storage compartment drains automatically and part of it goes into a drainage
container, which is located at the back of the wine cellar next to the compressor. The heat
is transferred from the compressor and evaporates any condensation that has collected in
the pan. Part of the remaining water is collected within the wine cellar for humidity
purposes.
This system enables the creation of the correct humidity level inside your wine cellar
required by the natural cork to maintain a long lasting seal.
Notes: The water collected by condensation is therefore recycled. Under extremely dry
environmental conditions, you may have to add some water into the water container
provided with your wine cellar.
All units are equipped with a double glazed glass door that has a third internal acrylic
layer to minimise condensation on the glass door.
The wine cellar is not totally sealed; fresh air admission is permitted through the
drainpipe. Air is circulated through the cellar by means of a fan, or fans, and the hollow
shelves.
Notes: During the refrigerating cycle, heat is given off and disperses through the external
surfaces of the wine cellar. Avoid touching the surfaces during those cycles.
ADJUSTABLE WOODEN SHELVES
Adjusting/removing the shelves
For easy access to the storage content, you must pull the shelves approximately 1/3 of its
depth out of the rail compartment. These wine cabinets, however, are designed with a
notch on each side of the shelf tracks to prevent bottles from falling.
V26/V30/V40 models
When removing any of these shelves out of the rail compartment, tilt the shelf as per the
diagram and simply pull out, or push in the shelf until it sits on the support brackets
securely.

code: VIM 201301/S/01
16
REVERSIBILITY OF THE DOOR
Warning: To avoid accidents during the process of changing the door, we recommend that
you get assistance. The glass door is heavy and may cause injury if dropped.
- Depending on the model and the type of handle your wine cabinet is equipped with, you
may have to rotate the door through 180 degrees.
- Depending on the type of handle your wine cabinet is equipped with, the door may not
be reversible or may require that a left or right opening door be ordered to change the
opening side.
V26 models

code: VIM 201301/S/01
17
1 Lock screws 2 Lower hinge (Right) 3 Door axis
4 Top hinge (Right) 5 Door 6 Cabinet body
7 Top hinge (Left) 8 Lower hinge (Left)
- Unscrew the lock screws to remove the door axis at the bottom of the door (Fig 1)
- While holding the door firmly, pull the door (5) outward; take it out (Fig. 2/4)
- Remove the Right Top hinge, (Fig 3)
- Install the left top hinge and left lower hinge with bolts as per Fig. 4
- Put the door in position between the hinges and fix the door axis (3) onto the door.

code: VIM 201301/S/01
18
V30 models
1 Rubber cover 2 Screw 3 Hole cover
4 & 7 Screw 5 Top hinge module 6 Door
8 Lower hinge module-Left 9 Cabinet’s leg-short
-Unscrew and remove the decorative cover. (Fig.1)
- While holding the door firmly, loosen and remove the top hinge, lift up and remove the
door (See Fig.2)
- Unscrew the lower hinge (8)
- Remove the long cabinet leg (9) on the left side, and shift it to the right side. (Fig. 3)
- Install the lower hinge and fix it with the bolts.
- Install the door on the axis of the lower hinge (8) the same way it was removed, screw
back the top hinge on the right
- Fix back the decorative cover and rubber cover.

code: VIM 201301/S/01
19
V30SGM e BK model
1. Screws 2. Door axis 3. Door limit device
4. Door 5. Hinge Screws 6. Lower hinge
7. Top hinge (Right) 8. Hole cover 9. Top hinge (Left)
- Open the door to a 90 degree angle, take out the 2 screws (1) from door axis (2), remove
the door (4), remove the door axis (2) (Fig. 1& Fig.2)
- Unscrew the screw located underneath the door frame and the limit device (3), and re
locate it at left side of the door frame. (Fig. 2)
- Take out the 3 hinge screws from the top hinge (right) (7) and remove it. (Fig. 3)
- Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (9)
at left top of cabinet with 3 screws. (Fig. 3)
- Overturn the lower hinge (6). Install the lower hinge at left lower of the cabinet with 3
screws (5).(Fig.4)
- The door axis (2) revolves 180 degrees, put it into the door axis hole of the door. (Fig.4)
- Install and align the door. Screw down the 2 screws (1). (Fig.4)
- Insert the plastic caps to cover the holes (8).
