Viotek GN27CB User manual

ORCURVED GAMING MONIT
USER MANUAL
GN27CB
In order to continue serving our customers and providing the best products, our product information
including our user manuals may receive updates from time to time. Please check our website for the latest
user manuals and product materials. ver.1.0 2/21/19


3
Table of Contents
Section 1: Safety Precautions............................................ 4
Section 2: Box Contents..................................................... 5
Section 3: Product Overview.............................................. 6
3.1 – Monitor Buttons....................................................... 6
3.2 – Monitor Ports .......................................................... 6
Section 4: Stand Installation .............................................. 7
Section 5: Mount Installation.............................................. 8
Section 6: Connectivity Options........................................ 9
6.1 – Removing the Port Cover........................................ 9
6.2 – Connecting the Power Cable.................................. 9
6.3 – DP Connectivity...................................................... 10
6.4 – HDMI Connectivity.................................................. 10
Section 7: Basic Operation................................................. 10
Section 8: Indicator Light.................................................... 11
Section 9: OSD Setup.......................................................... 12
9.1 – Using the Quick-Nav ............................................... 12
9.2 – OSD Menu Functions.............................................. 13
Section 10: ECO Modes and GAMEPLUS Switching........ 15
Section 11: Troubleshooting............................................... 15
Section 12: Specifications .................................................. 17
12.1 – Resolution Compatibility for DP............................. 17
Section 13: 1 Year Limited Hardware Warranty ................ 18

4
Section 1: Safety Precautions
Read and observe the following warnings and information below.
1. Before cleaning, always unplug your monitor. It is recommended that you use
dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,
the safest. If using damp cloth, wait for your monitor to completely dry before
plugging it in again.
2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your
monitor.
3. This monitor features ventilation openings on the back of the unit. Avoid
blocking these openings to prevent the monitor from overheating.
4. Avoid placing this monitor near any heat sources e.g: portable heaters or
heating vents, as this may cause damage to your monitor.
5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen
or any part of the monitor.
6. Do not insert anything into any part of the monitor especially the ventilation openings.
7. Always make sure your monitor is placed on a secure, level surface to prevent it
from falling and sustaining damage.
8. Unplug your monitor during any extended periods of non-use.
9. Do not place heavy items on the monitor or monitor cables.
10. Do not attempt to disassemble or remove parts from the monitor. Any
disassembly or modication etc. not performed by an authorized technician
can result in damage to the monitor and/or possible exposure to high voltage
electricity which may lead to serious injury or death.
VIOTEK®shall not be held responsible for injury or damage of products or persons
due to failure to adhere to the aforementioned precautions or any others noted
hereafter.

5
Section 2: Box Contents
Monitor x 1 Stand Stem x 1 Stand Base x 1
Power Cable x 1
(AC 100-240V, 50/60Hz)
NO. 2 Screws x 4
(for Mounting) DP Cable x 1
Screwdriver x 1 User Manual x 1
The screws come in different sizes: NO.1 (12mm x 4 pcs), NO.2 (31mm x 2 pcs
and 26mm x 2 pcs).
26mm
31mm
NO.1 Screws x 4
(for Stand Installation)
12mm

6
Section 3: Product Overview
3.1 – Monitor Buttons
8 HDMI Connector: Insert one end of the HDMI cable into the computer’s HDMI output
and connect the other end to the monitor’s HDMI port.
Both HDMI Connectors are HDMI 1.4.
9 DP Connector: Insert one end of the DP cable into the computer’s DP output and
connect the other end to the monitor’s DP1.2 port.
8 9
1 3 4 5 6 72
1 Power Connector: Insert the power cable to supply power to the monitor.
2 M Menu Button: Press to display the OSD menu or enter sub-menus.
3 Down Button: Press to move down in the menus.
4 Up Button: Press to move up in the menus.
5 E Exit Button:Press to exit.
6 Power Button: Press to turn the monitor on/off.
7 LED Indicator: Changes colors to indicate status. Refer to Section 8.
The E button can also be used to switch between two color gamuts when a compatible
graphics card and either HDMI or DP connections are in use.
3.2 – Monitor Ports

7
Section 4: Stand Installation
Keep the foam underneath the monitor before attaching the stand.
1. Open the package and take out the monitor with foam still attached. Gently place
it on a desktop or table.
2. Remove the extra parts and the foam covering the back of the monitor. Press the
release button to remove the stand plate.
Button
Stand Plate
3. Use the included screwdriver and two NO.1 screws to fasten the stand plate to
the stem. Next, use the remaining two NO.1 screws to fasten the base to the
stem.
NO.1 Screw
12mm x 2
Stand Stem Base
NO.1 Screws
12mm x 2
4. Insert the stand plate into the opening on the back of the monitor. It should click
into place. Make sure the stand is securely attached to the back of the monitor
then remove the monitor from the remaining foam section and stand it up on a
table or desk.
If needed, the stand can easily be detached from the monitor by pressing the
button near the stand plate. Make sure the monitor is laid on a at surface
before removing the stem.
Monitor
Stem
Stand Plate
Button

8
Section 5: Mount Installation
This monitor ONLY includes screws which may be used when attaching
the monitor to a VESA 75x75mm type mount. No VESA mount or
mounting accessory is included.
Keep the foam underneath the monitor before attaching the stand to a mount
or accessory.
1. Open the package and take out the monitor with foam still attached. Gently place
it on a desktop or table. Remove the extra parts and the foam covering the back
of the monitor. Press the release button to remove the stand plate. If the monitor
is already attached to the stand, remove the stand.
Button
Stand Plate
2. Remove the original screws x 4 ( 1) from the opening in the back of the monitor.
3. Follow the directions received with your VESA mount, stand, or accessory
and install the monitor on the wall or xture as desired. Remember to use the
included NO. 2 screws when mounting the monitor. Refer to the image ( 2) for
correct screw placement.
1
2
Use the 31mm
NO. 2 Screws x 2
Use the 26mm
NO. 2 Screws x 2
- Use only the NO. 2 Screws (31 mm x 2 pcs, 26mm x 2 pcs) provided with
this type of installation.
- Do not discard the original screws as these may be needed for future use.
Mount
(Not included)

9
Section 6: Connectivity Options
6.1 – Removing the Port Cover
Before connecting any cables, remove the port cover rst.
Port Cover
Back of Monitor
6.2 – Connecting the Power Cable
Connect the included power cable to the power connector, and then plug the other end into an
wall outlet.
Power Cable

10
6.3 – DP Connectivity
In order for the monitor to receive DP signals from the computer, use the DP cable to connect
the monitor to the computer.
DP
DP OUTPUT
DP Cable (Included)
6.4 – HDMI Connectivity
In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to
connect the monitor to the computer.
HDMI OUTPUT
PC
HDMI Cable (Not included)
Section 7: Basic Operation
When connecting or disconnecting any cables, it is recommended to remove the port
cover rst. Refer to Section 6.1.
1. Insert one end of the DP cable into your PC’s graphics card. HDMI may also be used.
HDMI cable not included.
For optimal refresh rate (or “performance”), it is recommended to use a DP (display port)
cable with the monitor’s corresponding connector.

11
2. Connect the other end of the cable to the corresponding connector on your monitor. See
the image below.
HDMI Connectors
DP Connector
3. Connect the power cable to your monitor then connect the other end to your power
source. It is recommended that you use a surge protector with adequate voltage if a wall
outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn the monitor on.
If you cannot locate the power button, please refer to Section 3.1.
FreeSync
Please note: FreeSync is turned off by default. To enjoy the benets of FreeSync, you must
have hardware with FreeSync capability, a DisplayPort (DP) cable, and the latest graphic
drivers. To use this feature, connect your computer and monitor with a DP cable. For your
convenience, a DP cable is included.
After connecting, you may receive a prompt to enable the feature on your computer. If you
do not receive the prompt, you can enable the function in your graphics card menu. See your
graphics card manufacturer’s documentation for instructions on how to turn on and/or enable
FreeSync.
Section 8: Indicator Light
This light is located on the bottom of the monitor.
Indicator Light
Bottom View
Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light
indicates no video source has been detected. Red light indicates that no horizontal or vertical
signal has been detected or voltage is low. Please ensure your computer is on and all video
cables are fully inserted and/or connected.

12
Section 9: OSD Setup
The Multifunction (MFN) buttons (M, , , E, ) on the lower-right of the monitor
serve multiple purposes, including accessing the On-Screen Display (OSD) menu.
The OSD be used to adjust your monitor’s settings to your liking.
1. Activating the Quick-Nav menu.
eco
2. Accessing the full OSD menus.
3. Quick access to specic functions (see Section 10: ECO Modes and Gameplus
Switching).
9.1 – Using the Quick-Nav
Press ANY of the multifunction (MFN) buttons ONCE to activate the Quick-Nav menu. From
here, each icon can be directly selected using the corresponding MFN Button (see below).
eco
ME
Quick-Nav Functions
Button Description
MAccess full OSD menu (see 9.2 – OSD Menu Functions)
Activate GAMEPLUS and cycle through available Crosshairs (see Section
10: ECO Modes and GAMEPLUS Switching)
Cycle through screen optimization settings (Section 10: ECO Modes and
GAMEPLUS Switching)
EExit the menu. If you are in a submenu, E will take you back one step.
Turn off/on monitor

13
9.2 – OSD Menu Functions
1. Press Mbutton TWICE to enter the OSD menu.
BRIGHTNESS
BRIGHTNESS
CONTRAST
ECO
DCR
STANDARD
OFF
2. Press or to browse functions.
• Highlight the desired function and press Mto enter the sub-menu.
• Press or to browse sub-menus and press Mto highlight the desired function.
• Press or to highlight an option. Press M to conrm the settings and exit the
current screen.
3. Press Eto exit the current screen.
Main Menu Sub-Menu Options Description
BRIGHTNESS Brightness 0~100 Adjust display brightness
Contrast 0~100 Adjust display contrast
ECO Standard, Game,
RTS, FPS, Movie,
Text
Set the ECO mode
DCR On Turn on DCR function
Off Turn off DCR function
IMAGE Aspect Wide, Auto, 4:3 Set the display aspect
COLOR TEMP. Color temp. Warm, User, Cool, Set the display color temperature
mode
Red 0~50 Customize the display screen
RGB component according to
preference
Green 0~50
Blue 0~50

14
Main Menu Sub-Menu Options Description
OSD SETTING Language English, Español,
Русский,
Français, 한국,
Português,
Deutsch, Türkçe,
日本語, 简体中文,
Polski, Italiano,
Nederlands
Set OSD language
OSD H. POS. 0-100 Adjust the OSD horizontal
position
OSD V.POS. 0-100 Adjust the OSD vertical position
OSD Timer 0~60 Set how long the OSD remains
open after non-use
Transparency 0-100 Set the OSD overall transparency
RESET Reset N/A Reset monitor congurations
MISC Signal source HDMI 1, HDMI
2, DP Display the input signal from
(HDMI or DP)
Volume 0-100 Set the audio volume
Low blue light 0-100 Set the display blue-light ltering
function
FreeSync On, Off Turn the FreeSync function on/off
Overdrive Off, Low, Middle,
High Set the Overdrive function

15
Section 10: ECO Modes and GAMEPLUS Switching
1. Press any one of the buttons (M, , , E, ) to activate the Quick-Nav menu.
eco
2. Press button to cycle through GAMEPLUS modes. According to the needs
of your game, choose the corresponding game icon. These game icons are
primarily designed to optimize your aim during shooting games, though they can
be used for other scenarios.
3 Press button to switch ECO modes. These modes include Standard, Text,
Movie, Game, FPS and RTS modes and can be used to optimize settings
according to your activity. Standard mode is suitable for most activities.
Section 11: Troubleshooting
The screen is blank
• Press the power button to turn the monitor on.
• Conrm the brightness and contrast settings are set normally.
• Check if the indicator light is ashing. If so, this indicates there is no signal from your video
source.
• If your source is a notebook or laptop, be sure that its settings are in mirror or extension
mode and the device itself is powered on.
The image is out of focus
• Ensure the video cable is inserted properly at both ends.
The screen is flashing
• Try an alternative power source. If the current one is insufcient, it may be causing this
issue.
• Ensure devices such as non-shielded speakers, uorescent lighting, AC transformers,
table fans, etc., are a safe distance away from your screen to avoid magnetic disturbances.
The color bleeds or visual effects appear unusual.
• If your screen is all red or blue, or any colors have disappeared, check to see that the cable
is properly inserted. A loose connection can cause a bad signal.

16
• Try connecting to another video source for comparison.
The screen appears to be scrolling, rolling, or moving unusually.
• Check that your source frequency is within 48-144Hz.
• Reconnect and ensure your video cable is secure.
The monitor needs cleaning
• Make sure the monitor has been powered off before cleaning.
• Always use soft, non-abrasive cloth when cleaning.
• Use dry, non-abrasive cloth to gently remove debris or dust.
• If necessary, lightly dampen a non-abrasive cloth with water and gently clean the surface.
• Never use alcohol or ammonia-based cleaning solutions.
• Never spray liquid directly onto any part of the monitor.
The indicator light does not work
• Check if the power is on.
• Check if the power line connected with power.
Cannot plug and play.
• Inspect if the monitor is compatible with PC.
• Inspect if the graphics card is compatible with the monitor.
• Inspect if the pins in the interface are curved.
Dim image
• Adjust the brightness and contrast ratio.
Image jitter/moire pattern
• Nearby electric equipment may interfere with the monitor.
Light indicator is on or flashing, but there is no image displayed on screen
• Check if the monitor power is on.
• Check if the graphics card is installed properly.
• Check if the signal line connects securely with the monitor.
• Check if the pins in the interface are curved.
Color shortage (red, green, or blue)
• Inspect if the pins in the interface are curved.
Image position is not centered/the size is not right
• Please adjust Clock or Auto setting.
Color difference (colors are not optimized)
• Adjust RGB color or reset color temperature.

17
Section 12: Specifications
Item Detail
Model Number GN27CB
Screen Size 27’’
Curvature 1800R
Viewing Angle 178° (H)/178° (V)
Aspect Ratio 16:9
Resolution 1920x1080p
Backlight E-LED
LED Indicator Power on: Blue (LED); Power saving : Blue Flicker (LED)
Typical Brightness 220 cd/m2
Default Color Temp. 6500
Color Gamut 92% sRGB; 68% NTSC
Contrast Ratio 3,000:1 (Static)
Dot Pitch 0.3114 x 0.1038mm
Response Time GTG 6Ms
Refresh Rate 144Hz
Speaker 4Ω/3W x 2
Ports DP x 1, HDMI x 2
Power AC100-240V, 50/60Hz 1.1A
Power Consumption Typical: 26W, Max: 40W; Standby <=0.5W
OSD Language English, Español, Русский, Français, 한국, Português, Deutsch,
Türkçe, 日本語, 简体中文, Polski, Italiano, Nederlands
Usage Temp. 32°F~95°F (Operating), -4°F~ 140°F (Storage), 10-90% RH
(Non-Condensing)
Tilt Angle Forward 5°; Backward 15°
VESA Compatibility 75X75 mm
Dimension (With Stand) 24.13 x 17.67 x 8.38 in (613 x 448.7 x 212.8mm)
Weight 10.36 lbs (Net) / 14.55 lbs (Gross)
12.1 – Resolution Compatibility for DP
System Requirements below are the minimum system requirements for your GN27CB monitor.
The requirements are recommended in order to properly use all of the monitor’s features and
ensure high-quality picture. All trademarks and registered trade names are the property of
their respective owners.
Minimum Requirements:
• Operating System: Windows®7 / Windows®8 / Windows® 10 64-bit (latest service pack)
or higher.
• Processor (CPU): Intel®Core™ i5 or AMD Phenom™ II X3 or higher.
• Graphics Card: NVIDIA®GeForce®GTX 950 or AMD Radeon™ R9 380 or higher.
• Memory: 6 GB RAM.

18
Section 13: 1 Year Limited Hardware Warranty
Your VIOTEK® GN27CB Curved Gaming Monitor (”Product”) includes a One-Year
Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in
materials and workmanship under normal use. This Warranty is limited to residents of
the United States and Canada only and is available only to original purchasers. This
Warranty gives you specic legal rights and you may also have other rights which vary
from state to state.
This Warranty startson the date of your purchaseandlasts forone year (the“Warranty
Period”). The Warranty Period is not extended if the Product is repaired or replaced.
We may change the availability of this limited warranty at our discretion, but any
changes will not be retroactive.
Warranty services are provided by Warranty Pro (’ WP ’). If a hardware defect arises
and a valid claim is received within the Warranty Period, at its option and to the extent
permitted by law, WP will: (1) repair the hardware defect by using new or refurbished
parts that are equivalent to new in performance and reliability; or (2) exchange the
Product with a product that is new or refurbished which is substantially equivalent to
the original product. This Warranty is for one replacement only of like-items and does
not cover items out of production if the product is no longer made or stocked. This
Warranty is not assignable or transferable. The original purchaser may call WP’s toll-
free number at 1-855-229-9472 for service request.
When a product or part is exchanged, any replacement item becomes your property
and the replaced item becomes WP’s property. This warranty only covers technical
hardware defectiveness during the warranty period and under normal use conditions.
WP does not warrant uninterrupted or error-free operation of this Product. This
Warranty does not cover any damage due to: (a) transportation; (b) storage; (c)
improper use; (d) failure to follow the product instructions or to perform any preventive
maintenance; (e) modications; (f) unauthorized repair; (g) normal wear and tear; or
(h) external causes such as accidents, abuse, or other actions or events beyond our
reasonable control.
Important: Do not disassemble the Product. Disassembling the Product will void this
Warranty. Only WP or a party expressly authorized by WP should perform service on
this Product.
DISCLAIMER OF WARRANTY: THE REMEDIES DESCRIBED ABOVE ARE
YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR
ANY BREACH OF THIS LIMITED WARRANTY. OUR LIABILITY SHALL UNDER
NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR
THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES
BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE
DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT.
SOMESTATESDONOTALLOWTHEEXCLUSIONORLIMITATIONOFINCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION
MAY NOT APPLY TO YOU.

THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING
WITHOUTLIMITATIONTHEWARRANTIES OF MERCHANTABILITYANDFITNESS
FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS
EXPRESS LIMITED WARRANTY.
DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC RELATED INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installedandusedinaccordancewiththeinstructions,maycauseharmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications to this equipment. Such modications could void the
user’s authority to operate the equipment.

COPYRIGHT ©2019 VIOTEK.ALL RIGHTS RESERVED.
Table of contents
Other Viotek Monitor manuals

Viotek
Viotek GFV22CB User manual

Viotek
Viotek H270 User manual

Viotek
Viotek SUW49DA2 User manual

Viotek
Viotek GN32C User manual

Viotek
Viotek GFV27DAB User manual

Viotek
Viotek FI24D User manual

Viotek

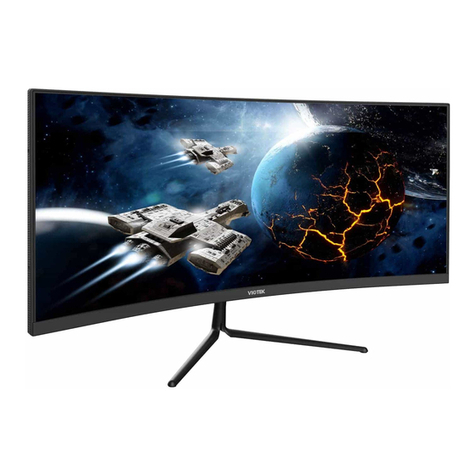

Viotek GNV32DB User manual

Viotek
Viotek GN35DR User manual

Viotek
Viotek LinQ Touch User manual

Viotek
Viotek GNV30CBXA User manual

Viotek
Viotek GN32DA User manual

Viotek
Viotek GFI34CB User manual

Viotek
Viotek GFT27CXB2 User manual

Viotek

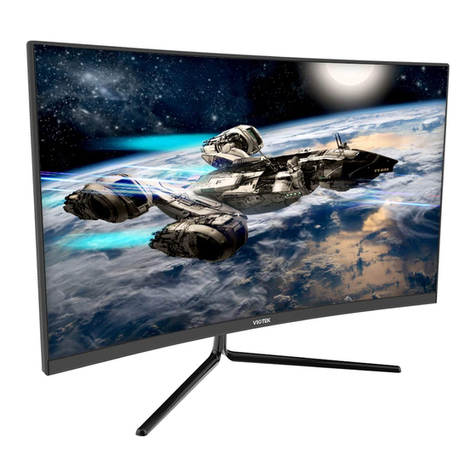

Viotek GNV27DB User manual

Viotek

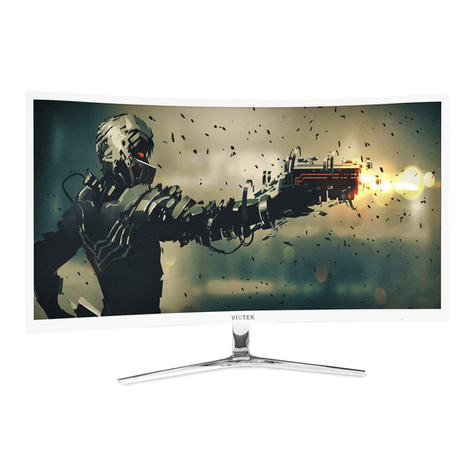

Viotek GN34C User manual

Viotek
Viotek GNV27CB User manual

Viotek

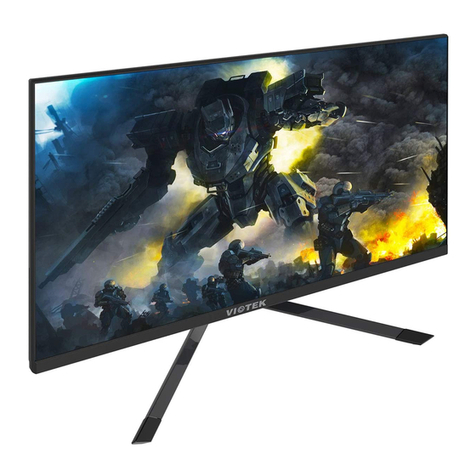

Viotek GFT27DB User manual

Viotek
Viotek NBV24CB User manual

Viotek
Viotek NBV27CB User manual

Viotek

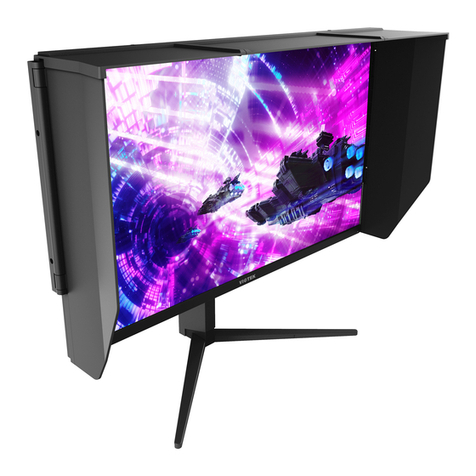

Viotek GFI27QXA User manual
