Viotek GN32DB User manual

ORCURVED GAMING MONIT
USER MANUAL
In order to continue serving our customers and providing the best products, our product information
including our user manuals may receive updates from time to time. Please check our website for the
latest user manuals and product materials. Ver 1.0 7/3/18
GN32DB

3
Table of Contents
Section 1: Safety Precautions................................................................4
Section 2: Box Contents.........................................................................5
Section 3: Product Overview .................................................................6
3.1 – Monitor Buttons .........................................................................6
3.2 – Monitor Ports.............................................................................6
Section 4: Stand Installation..................................................................7
Section 5: Wall Mounting........................................................................8
Section 6: Connectivity Options ...........................................................9
6.1 – Connecting the Power Cable.....................................................9
6.2 – DVI Connectivity .......................................................................9
6.3 – HDMI Connectivity ....................................................................10
6.4 – DP Connectivity ........................................................................10
6.5 – Connecting Your Earphones .....................................................10
Section 7: Basic Operation ....................................................................11
Section 8: Indicator Light .......................................................................11
Section 9: OSD ........................................................................................12
9.1 – OSD Menu Functions ................................................................13
Section 10: LED Effects System Console.............................................14
Section 11: GAMEPLUS Adjustment .....................................................15
Section 12: Troubleshooting..................................................................15
12.1 – General Problems....................................................................15
12.2 – PIP (Picture in Picture) Input Information ................................16
12.3 – PBP (Picture by Picture) Resolution Information.....................16
Section 13: Information .........................................................................17
13.1 – Specications ..........................................................................17
13.2 – Resolution Compatibility for DP ..............................................17
Section 14: 1 Year Limited Hardware Warranty ...................................18

4
Section 1: Safety Precautions
Read and observe the following warnings and information below.
1. Before cleaning, always unplug your monitor. It is recommended that you use dry cloth or
lightly damp cloth to clean your monitor. Dry cloth is, however, the safest. If using damp
cloth, wait for your monitor to completely dry before plugging it in again.
2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your monitor.
3. This monitor features ventilation openings on the back of the unit. Avoid blocking these
openings to prevent the monitor from overheating.
4. Avoid placing this monitor near any heat sources e.g: portable heaters or heating vents,
as this may cause damage to your monitor.
5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen or any
part of the monitor.
6. Do not insert anything into any part of the monitor especially the ventilation openings.
7. Always make sure your monitor is placed on a secure, level surface to prevent it from
falling and sustaining damage.
8. Unplug your monitor during any extended periods of non-use.
9. Do not place heavy items on the monitor or monitor cables.
10. Do not attempt to disassemble or remove parts from the monitor. Any disassembly or
modication etc. not performed by an authorized technician can result in damage to the
monitor and/or possible exposure to high voltage electricity which may lead to serious
injury or death.
VIOTEK®shall not be held responsible for injury or damage of products or persons due to
failure to adhere to the aforementioned precautions or any others noted hereafter.

5
Section 2: Box Contents
Monitor x 1 Stand Stem x 1 Stand Base x 1
Power Cable x 1
(AC 100-240V, 50/60Hz)
NO. 2 Screws x 4
(for Wall Mounting)
NO.1 Screws x 4
(for Stand Installation)
DP Cable x 1
Screwdriver x 1 Adapters x 2 User Manual x 1
12mm
10mm

6
Section 3: Product Overview
3.1 – Monitor Buttons
8 Audio Connector: Plug in your earphones to receive sound.
9 DP Connector: Insert one end of the DP cable into the computer’s DP output and
connect the other end to the monitor’s DP port.
10 HDMI Connector: Insert one end of the HDMI cable into the computer’s HDMI output
and connect the other end to the monitor’s HDMI port.
11 DVI Connector: Insert one end of the DVI cable into the computer’s DVI output and
connect the other end to the monitor’s DVI port.
98 10 11
1 3 4 5 6 72
1 Power Connector: Insert the power cable to supply power to the monitor.
2 M Menu Button: Press to display the OSD menu or enter sub-menus.
3 Down Button: Press to move down in the menus.
4 Up Button: Press to move up in the menus.
5 E Exit Button:Press to exit.
6 Power Button: Press to turn the monitor on/off.
7 LED Indicator: Changes colors to indicate status. Refer to Section 8.
The E button can also be used to switch between “Limit” and “Full” color gamuts when a
compatible graphics card and either HDMI or DP connections are in use.
3.2 – Monitor Ports

7
Section 4: Stand Installation
Keep the foam over the monitor before attaching the stand.
1. Open the package, take out the product with foam still attached, and gently place it on a
desktop or table.
2. Remove the extra parts and the foam covering the back of the monitor. Then press the
button to remove the stand plate.
Button
Stand Plate
3. Use the included screwdriver and two NO.1 screws to fasten the the base to the stem.Next,
use two NO.1 screws to fasten the stand plate to the stem.
NO.1 Screws
10mm x 2
NO.1 Screws
10mm x 2
4. Insert the stand’s plate into the opening on the back of the monitor. It should click into
place. Make sure the stand is securely attached to the back of the monitor then remove the
monitor from the remaining foam section and stand it up on a table or desk as desired.
If needed, the stand can easily be detached from the monitor by pressing the button near
the stand plate. Make sure the monitor is laid on a at surface before removing the stem.
Monitor
Stem
Stand Plate
Button

8
Section 5: Wall Mounting
Keep the foam underneath the monitor before attaching it to a mount or accessory. No
mount or mounting accessory is included.
1. Open the package, take out the product with foam still attached, and gently place it on a
desktop or table. Remove the extra parts and the foam covering the back of the monitor. If
the monitor is already attached to the stand, remove the stand.
2. If the stand was not installed, press the button to remove the stand plate.
Button
Stand Plate
3. Remove the original screws x 4 ( 1) from the opening in the back of the monitor and
put them aside. Then use the NO. 2 screws provided to attach the adapters inside the
opening.
- Do not discard the original screws or the stand plate.
- Use only the screws provided. Refer to the image ( 2) for correct screw
placement.
1Original
Screws x 4
NO. 2 Screws x 4
2
4. Follow the directions received with your mount, stand, or accessory and install the monitor
on the wall or xture as desired.
Mount
(Not included)

9
Section 6: Connectivity Options
6.1 – Connecting the Power Cable
Connect the included power cable to the power connector, and then plug the other end into a
wall outlet.
Power Cable
6.2 – DVI Connectivity
In order for the monitor to receive DVI signals from the computer, use the DVI cable to connect
the monitor to the computer.
DVI OUTPUT
DVI Cable (Not included)

10

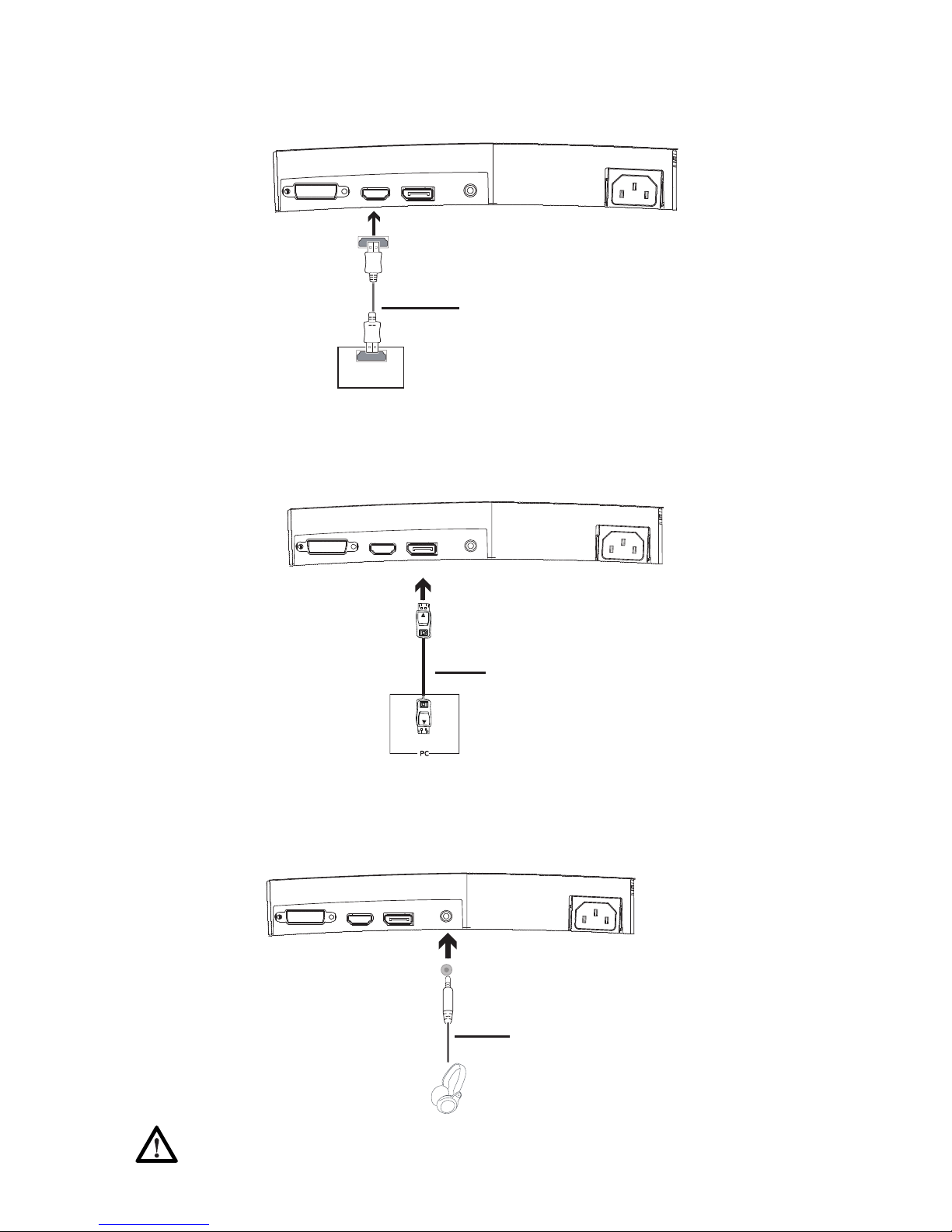

6.3 – HDMI Connectivity
In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to
connect the monitor to the computer.
HDMI OUTPUT
PC
HDMI Cable (Not included)
6.4 – DP Connectivity
In order for the monitor to receive DP signals from the computer, use the DP cable to connect
the monitor to the computer.
DP
DP OUTPUT
DP Cable (Included)
6.5 – Connecting Your Earphones
When your earphones are plugged in, any other speakers or audio devices connected will not
produce sound. Note, this monitor does not include earphones or any audio device.
Earphones (Not included)
Listening to loud audio for prolonged periods of time may permanently damage your
hearing.

11
Section 7: Basic Operation
1. Insert one end of the DP cable into your PC’s graphics card. HDMI may also be used.
HDMI cable not included.
For optimal refresh rate (or “performance”), it is recommended to use a DP (display port)
cable with the monitor’s corresponding connector.
2. Connect the other end of the cable to the corresponding connector on your monitor. See
the image below.
HDMI Connectors
DP ConnectorDVI Connector
3. Connect the power cable to your monitor then connect the other end to your power
source. It is recommended that you use a surge protector with adequate voltage if a wall
outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn the monitor on.
FreeSync
The feature itself is on by default. In order to use this feature, please note you must have
hardware with FreeSync capability, a DP cable, and the latest graphic drivers. To use this
feature, connect your computer and monitor with a DP cable. After connecting, you may
receive a prompt to enable the feature on your computer. If you do not receive the prompt,
you may need to enable the function in your graphics card menu. See your graphics card
manufacturer’s documentation for instructions on how to turn on and/or enable FreeSync.
Section 8: Indicator Light
Indicator Light
Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light
indicates no video source has been detected. Red light indicates that no horizontal or vertical
signal has been detected or voltage is low. Please ensure your computer is on and all video
cables are fully inserted and/or connected.

12
Section 9: OSD
The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and
appears on screen after turning on the monitor and pressing the Mbutton.
When using the monitor for the rst time, settings will automatically adjust to optimal
settings according to your computer’s conguration and parts etc.
1. Press any one of the buttons (M, , , E, ) to activate the navigation window.
2. Press Mbutton to enter the OSD menu.
DP
Resolution：2560x1440@144Hz
Input Source
Brightness/Contrast
Color Setting
Picture Quality Setting
Display
Audio
Multi-Window
Other
DVI
HDMI
DP
Window1：
InputSource：DP
Resolution：2560x1440@144Hz
Window2:
InputSource：
Resolution：
E
3. Press or to browse functions.
• Highlight the desired function, then press Mto enter the sub-menu.
• Press or to browse sub-menus, then press Mto highlight the desired
function.
• Press or to highlight an option, then press M to conrm the settings and exit
the current screen.
4. Press Eto exit the current screen.

13
9.1 – OSD Menu Functions
Main Menu Sub-Menu Options Description
Input Source DVI NONE Switch to DVI signal input
HDMI NONE Switch to HDMI signal input
DP NONE Switch to DP signal input
Brightness/
Contrast
Brightness 0~100 Adjust display brightness
Contrast 0~100 Adjust display contrast
DCR On Turn on DCR function
Off Turn off DCR function
Color Setting Gamma Gamma 2.0 Select Gamma add-in
Gamma 2.2
Gamma 2.4
Picture Mode Standard, Text,
Movie, Game,
FPS, RTS
Switch between presets according to
activity
Color
Temperature
Warm, Cool, User Adjust color temperature
USER Red, Green, Blue Customize RGB components
Low Blue Light 0~100 Set blue light ltering level
Hue/
Saturation
Hue, Saturation Set hue and saturation levels
Quality
Setting
Bypass On, Off Turn the bypass function on/off
Sharpness 0~100 Adjust image sharpness
Response
Time
Off, High, Middle,
Low
Adjust response time
Noise
Reduction
Off, High, Middle,
Low
Reduce image noise caused by signal
source interference
Super-
Resolution
Off, High, Middle,
Low
When the resolution of the display screen
is low, this function can be turned on to
enhance the image resolution.
Dynamic
Luminous
Control
On, Off Compensate for gray scale display screen
and strengthen the expression of gray
scale
FreeSync On, Off Turn the FreeSync function on/off
Display Aspect Ratio Wide Screen, 4:3,
Auto
Switch aspect ratio
DP Version DP 1.1, DP 1.2 Switch DP version
Led Mode Flicker, Normal,
Off
Switch LED modes / turn LEDs on/off

14
Main Menu Sub-Menu Options Description
Audio Mute On, Off Turn mute mode on/off
Volume 0-100 Set the audio volume
Audio Source HDMI, DP Display the input signal from (HDMI or DP)
Multi-
Window
Multi-Window Off, PIP Mode,
PBP 2Win
Select PIP/PBP modes according to the
number of input signals etc.
Sub Win2
Input
DVI, HDMI, DP Select according to input signal for PIP/
PBP mode
PIP Size Small, Medium,
Large
Adjust the PIP/PBP window size
PIP Position Top Right, Top
Left, Bottom Right,
Bottom Left
Adjust the PIP/PBP window position
Swap NONE Swap the PIP/PBP signal sources
Other Language English, 简体中文，
한국어，Español
Set OSD’s language
OSD
H-Position
0-100 Adjust the OSD’s horizontal position
OSD
V-Position
0-100 Adjust the OSD’s vertical position
OSD
Transparency
0-100 Set the OSD’s overall transparency
OSD Time Out 5-100 Set how long the OSD remains open after
non-use
OSD Rotation Normal, 90, 180,
270
When the user ips the display, this
function can also ip the OSD to achieve
the best display angle
Reset Reset monitor congurations
Section 10: LED Effects System Console
1. Press any one of the buttons (M, , , E, ) to activate the navigation window.
2. Press the button to switch LED display modes, or turn off the LED effects.
Normal

15
Section 11: GAMEPLUS Adjustment
1. Press any one of the buttons (M, , , E, ) to activate the navigation window.
5. Press the button to switch between Gameplus modes. According to the needs of your
game, choose the corresponding game icon. These game icons are primarily designed to
optimize your aim during shooting games, though they can be used for other scenarios.
Section 12: Troubleshooting
12.1 – General Problems
The screen is blank
• Press the power button to turn the monitor on.
• Conrm the brightness and contrast settings are set normally.
• Check if the indicator light is ashing. If so, there is no signal from your video source.
• If your source is a notebook or laptop, make sure it’s powered on and set to mirror or
extension mode.
The image is out of focus
• Make sure the video cable is inserted properly at both ends.
The screen is flashing
• Try an alternative power source. Insufcient power can cause this issue.
• Make sure devices such as non-shielded speakers, uorescent lighting, AC transformers,
table fans etc. are a safe distance away from your screen to avoid magnetic disturbances.
The color bleeds or visual effects appear unusual.
• If your screen is all red or blue, or any colors disappear, check to see that the cable is
properly inserted. A loose connection can cause a bad signal.
• Try connecting to another video source for comparison.
The screen appears to be scrolling, rolling, or moving unusually.
• Check that your source frequency is within 55-76Hz.
• Reconnect and ensure your video cable is secure.
The monitor needs cleaning
• Make sure the monitor has been powered off before cleaning.
• Always use soft, non-abrasive cloth when cleaning.
• Use dry, non-abrasive cloth to gently remove debris or dust.
• If necessary, lightly dampen a non-abrasive cloth with water and gently clean the surface.
• Never use alcohol or ammonia-based cleaning solutions.
• Never spray liquid directly onto any part of the monitor.
The indicator light does not work
• Check if the power is on.
• Make sure the power cable is properly connected to the monitor and power source.

16
Cannot plug and play.
• Check PC requirements to make sure it is compatible with the monitor.
• Check graphics card requirements to make sure it is compatible with the monitor.
Dim image
• Adjust the brightness and contrast ratio.
Image jitter/moire pattern
• Nearby electric equipment may be interfering with the monitor.
Light indicator is on or flashing, but there is no image displayed on screen
• Check if the monitor power is on.
• Check if the graphics card is installed properly.
• Make sure the power cable is properly connected to the monitor and power source.
Image position is not centered/the size is not right
• Please adjust Clock or Auto settings.
Color difference (colors are not optimized)
• Adjust RGB color settings or reset color temperature.
12.2 – PIP (Picture in Picture) Input Information
Mode Home Screen
Input Source
Picture in Picture Additional
Input Source
Interchange
Window
Picture Mode
DP HDMI DVI
Mode 1 DP X O O O O
Mode 2 HDMI O X O O O
Mode 3 DVI O O X O O
Note: ”O” means this feature is supported while “X” means it is not supported.
12.3 – PBP (Picture by Picture) Resolution Information
While using this feature and in order to obtain an optimal viewing experience, it is
recommended to set both panels to the same resolution.
It is recommended to set the
rst panel to 1280 x 1440 @
60Hz resolution.
1
It is recommended to set the
second panel to 1280 x 1440
@ 60Hz resolution.
2
At this resolution, tearing and visual deformation should be minimized.

17
Section 13: Information
13.1 – Specications
Item Detail
Model Number GN32DB
Screen Size 32’’
Curvature 1800R
Viewing Angle 178° (H)/178° (V)
Aspect Ratio 16:9
Resolution 2560x1440p
Backlight E-LED
LED Indicator Power on: Blue (LED); Power saving : Blue Flicker (LED)
Typical Brightness 250 cd/m2
Default Color Temperature 6500
Color Gamut 96% sRGB; 85% NTSC
Contrast Ratio 3,000:1 (Static), 1,000,000:1 (Dynamic)
Dot Pitch 0.0908 x 0.2724 mm
Response Time GTG4MS
Refresh Rate 144Hz
Ports DVI x 1, DP x 1, HDMI x 1, Audio Out x 1
Power AC100-240V, 50/60Hz 1.5A
Power Consumption Typical: 42W, Max: 58W; Standby ≤ 0.5W
OSD Language English，简 体 中 文 ，한국어，Español
Usage Temp. 32°F~95°F (Operating), -4°F~ 140°F (Storage), 10-90% RH
(Non-Condensing)
Tilt Angle Forward 5°; Backward 15°
Dimension (With Stand) 28.3 x 9.8 x 19.6 in (718.26 x 248.08 x 496.83mm)
Weight (Net/Gross Weight) 17.2 Ibs/22.3 Ibs
13.2 – Resolution Compatibility for DP
System Requirements below are the minimum system requirements for your GN32DB monitor.
The requirements are recommended in order to properly use all of the monitor’s features
and ensure high-quality picture. Minimum Requirements Operating System: Windows® 7 /
Windows® 8 / Windows® 10 64-bit (latest service pack) or higher, Processor (CPU): Intel®
Core™ i5 or AMD Phenom™ II X3 or higher, Graphics Card: NVIDIA® GeForce® GTX 950 or
AMD Radeon™ R9 380 or higher, Memory: 6 GB RAM. All trademarks and registered trade
names are the property of their respective owners.

18
Section 14: 1 Year Limited Hardware Warranty
Your VIOTEK®GN32DB Curved Gaming Monitor (”Product”) includes a One Year Limited Hardware
Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal
use. This Warranty is limited to residents of the United States and Canada only and is available only to
original purchasers. This Warranty gives you specic legal rights and you may also have other rights which
vary from state to state.
This Warranty starts on the date of your purchase and lasts for one year (the “Warranty Period”). The
Warranty Period is not extended if the Product is repaired or replaced. We may change the availability of this
limited warranty at our discretion, but any changes will not be retroactive.
Warranty services are provided by Warranty Pro (“WP”).). If a hardware defect arises and a valid claim is
received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the
hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;
or (2) exchange the Product with a product that is new or refurbished which is substantially equivalent to
the original product. This Warranty is for one replacement only of like-items and does not cover items out of
production if the product is no longer made or stocked. This Warranty is not assignable or transferable. The
original purchaser may call WP’s toll-free number at 1-855-229-9472 for service request.
When a product or part is exchanged, any replacement item becomes your property and the replaced item
becomes WP’s property. This warranty only covers technical hardware defectiveness during the warranty
period and under normal use conditions. WP does not warrant uninterrupted or error-free operation of this
Product. This Warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper use;
(d) failure to follow the product instructions or to perform any preventive maintenance; (e) modications; (f)
unauthorized repair; (g) normal wear and tear; or (h) external causes such as accidents, abuse, or other
actions or events beyond our reasonable control.
Important: Do not disassemble the Product. Disassembling the Product will void this Warranty. Only WP or
a party expressly authorized by WP should perform service on this Product.
DISCLAIMER OF WARRANTY: THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE
REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY. OUR
LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR
THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY
CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT
OR INDIRECT.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.
DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC RELATED INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications
to this equipment. Such modications could void the user’s authority to operate the equipment.

COPYRIGHT ©2018 VIOTEK. ALL RIGHTS RESERVED.
