VIPA TP 107-CL User manual

TP-cloud | H71-L1A41-0 | Manual
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02
VIPA HMI
cloudPanel - TP107-CL
www.vipa.com/en/service-support/manuals

H71-L1A41-0_000_TP107-CL,1,EN - © 2018
VIPA GmbH
Ohmstr. 4
91074 Herzogenaurach
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Internet: www.vipa.com

Table of contents
1 General.................................................................................................................... 4
1.1 Copyright © VIPA GmbH ................................................................................. 4
1.2 About this manual............................................................................................. 5
1.3 Safety information............................................................................................. 6
2 Hardware description............................................................................................. 7
2.1 Safety information for users.............................................................................. 7
2.2 Properties......................................................................................................... 8
2.3 Structure........................................................................................................... 9
2.3.1 Overview........................................................................................................ 9
2.3.2 Interfaces..................................................................................................... 10
2.3.3 Memory management.................................................................................. 11
2.4 Dimensions..................................................................................................... 12
2.5 General data................................................................................................... 13
2.6 Technical data................................................................................................. 14
3 Deployment........................................................................................................... 17
3.1 Installation...................................................................................................... 17
3.2 Commissioning............................................................................................... 18
3.2.1 Web browser............................................................................................... 18
3.2.2 System Settings........................................................................................... 21
3.2.3 Firmware update.......................................................................................... 29
3.3 Connection to a PLC system.......................................................................... 30
4 Installation Guidelines......................................................................................... 31
4.1 Basic rules for the EMC-equitable assembly of installations.......................... 31
4.2 EMC-equitable assembly................................................................................ 34
4.3 EMC-equitable cabling................................................................................... 35
4.4 Special precautions providing high noise immunity........................................ 38
4.5 Checklist for the EMC-compliant installation of controllers............................. 39
VIPA HMI Table of contents
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 3

1 General
1.1 Copyright © VIPA GmbH
This document contains proprietary information of VIPA and is not to be disclosed or used
except in accordance with applicable agreements.
This material is protected by the copyright laws. It may not be reproduced, distributed, or
altered in any fashion by any entity (either internal or external to VIPA), except in accord-
ance with applicable agreements, contracts or licensing, without the express written con-
sent of VIPA and the business management owner of the material.
For permission to reproduce or distribute, please contact: VIPA, Gesellschaft für Visuali-
sierung und Prozessautomatisierung mbH Ohmstraße 4, D-91074 Herzogenaurach, Ger-
many
Tel.: [phone]
Fax.: [phone]
EMail: [email protected]
http://www.vipa.com
Every effort has been made to ensure that the information contained in
this document was complete and accurate at the time of publishing. Nev-
ertheless, the authors retain the right to modify the information.
This customer document describes all the hardware units and functions
known at the present time. Descriptions may be included for units which
are not present at the customer site. The exact scope of delivery is
described in the respective purchase contract.
Hereby, VIPA GmbH declares that the products and systems are in compliance with the
essential requirements and other relevant provisions. Conformity is indicated by the CE
marking affixed to the product.
For more information regarding CE marking and Declaration of Conformity (DoC), please
contact your local VIPA customer service organization.
VIPA, SLIO, System 100V, System 200V, System 300V, System 300S, System 400V,
System 500S and Commander Compact are registered trademarks of VIPA Gesellschaft
für Visualisierung und Prozessautomatisierung mbH.
SPEED7 is a registered trademark of profichip GmbH.
SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are registered trademarks of
Siemens AG.
Microsoft and Windows are registered trademarks of Microsoft Inc., USA.
Portable Document Format (PDF) and Postscript are registered trademarks of Adobe
Systems, Inc.
All other trademarks, logos and service or product marks specified herein are owned by
their respective companies.
Contact your local VIPA Customer Service Organization representative if you wish to
report errors or questions regarding the contents of this document. If you are unable to
locate a customer service centre, contact VIPA as follows:
All Rights Reserved
CE Conformity Declaration
Conformity Information
Trademarks
Information product sup-
port
VIPA HMI
General
Copyright © VIPA GmbH
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 4

VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telefax: [phone]
EMail: [email protected]
Contact your local VIPA Customer Service Organization representative if you encounter
problems with the product or have questions regarding the product. If you are unable to
locate a customer service centre, contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Tel.: [phone] (Hotline)
EMail: [email protected]
1.2 About this manual
This manual describes the cloudPanel H71-L1A41-0 from VIPA. It contains a description
of the structure, project engineering and deployment.
Product Order number as of state:
HW FW OS
TP 107-CL H71-L1A41-0 01 V1.0.0 LinuxÒ 3.12
The manual is targeted at users who have a background in automation technology.
The manual consists of chapters. Every chapter provides a self-contained description of a
specific topic.
The following guides are available in the manual:
nAn overall table of contents at the beginning of the manual
nReferences with page numbers
The manual is available in:
nprinted form, on paper
nin electronic form as PDF-file (Adobe Acrobat Reader)
Important passages in the text are highlighted by following icons and headings:
DANGER!
Immediate or likely danger. Personal injury is possible.
CAUTION!
Damages to property is likely if these warnings are not heeded.
Technical support
Objective and contents
Target audience
Structure of the manual
Guide to the document
Availability
Icons Headings
VIPA HMI General
About this manual
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 5

Supplementary information and useful tips.
1.3 Safety information
The system is constructed and produced for:
ncommunication and process control
ngeneral control and automation tasks
nindustrial applications
noperation within the environmental conditions specified in the technical data
ninstallation into a cubicle
DANGER!
This device is not certified for applications in
– in explosive environments (EX-zone)
The manual must be available to all personnel in the
nproject design department
ninstallation department
ncommissioning
noperation
CAUTION!
The following conditions must be met before using or commis-
sioning the components described in this manual:
– Hardware modifications to the process control system should only be
carried out when the system has been disconnected from power!
– Installation and hardware modifications only by properly trained per-
sonnel.
– The national rules and regulations of the respective country must be
satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!
Applications conforming
with specifications
Documentation
Disposal
VIPA HMI
General
Safety information
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 6

2 Hardware description
2.1 Safety information for users
VIPA modules make use of highly integrated components in MOS-Technology. These
components are extremely sensitive to over-voltages that can occur during electrostatic
discharges. The following symbol is attached to modules that can be destroyed by elec-
trostatic discharges.
The Symbol is located on the module, the module rack or on packing material and it indi-
cates the presence of electrostatic sensitive equipment. It is possible that electrostatic
sensitive equipment is destroyed by energies and voltages that are far less than the
human threshold of perception. These voltages can occur where persons do not dis-
charge themselves before handling electrostatic sensitive modules and they can damage
components thereby, causing the module to become inoperable or unusable. Modules
that have been damaged by electrostatic discharges can fail after a temperature change,
mechanical shock or changes in the electrical load. Only the consequent implementation
of protection devices and meticulous attention to the applicable rules and regulations for
handling the respective equipment can prevent failures of electrostatic sensitive modules.
Modules must be shipped in the original packing material.
When you are conducting measurements on electrostatic sensitive modules you should
take the following precautions:
nFloating instruments must be discharged before use.
nInstruments must be grounded.
Modifying electrostatic sensitive modules you should only use soldering irons with
grounded tips.
CAUTION!
Personnel and instruments should be grounded when working on electro-
static sensitive modules.
Handling of electrostatic
sensitive modules
Shipping of modules
Measurements and altera-
tions on electrostatic sen-
sitive modules
VIPA HMI Hardware description
Safety information for users
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 7

2.2 Properties
The VIPA cloudPanel allows you to visualize and alter operating states and recent
process values of a connected PLC. The cloudPanel is a compact and modular
embedded PC based on LinuxÒ. WEB-based projects are displayed via a WEB browser.
Here the cloudPanel can simply be configured, controlled and remoted.
nOperating system LinuxÒ 3.12
nProcessor ARM Cortex A8 1GHz
nFlash memory 4GB, RAM 512MB DDR
nRS232/RS422/RS485 interface (not available for WebVisu projects),
USB-A and Ethernet interface
nRobust plastic case
nDisplay resolution 480 x 800 / 800 x 480, 64K colors
nBattery backed clock
nResistive analog touch screen
nEasy mounting via mounting clips
nProtection class IP66, Type 2 and 4X (Front) / IP20 (Back)
Order data
Type Order number Description
TP 107-CL H71-L1A41-0 7'' TFT color, RS232/RS422/RS485, USB-A, Ethernet RJ45
General
VIPA HMI
Hardware description
Properties
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 8

2.3 Structure
2.3.1 Overview
1 Interfaces
2 Display with touch sensitive area (Touch-Screen)
1 USB-A interface USB 2.0
2 RJ45 jack for Ethernet communication LAN
3 RS232/RS422/RS485 interface COM
4 Slot for DC 24V voltage supply
Front view
Bottom view
VIPA HMI Hardware description
Structure > Overview
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 9

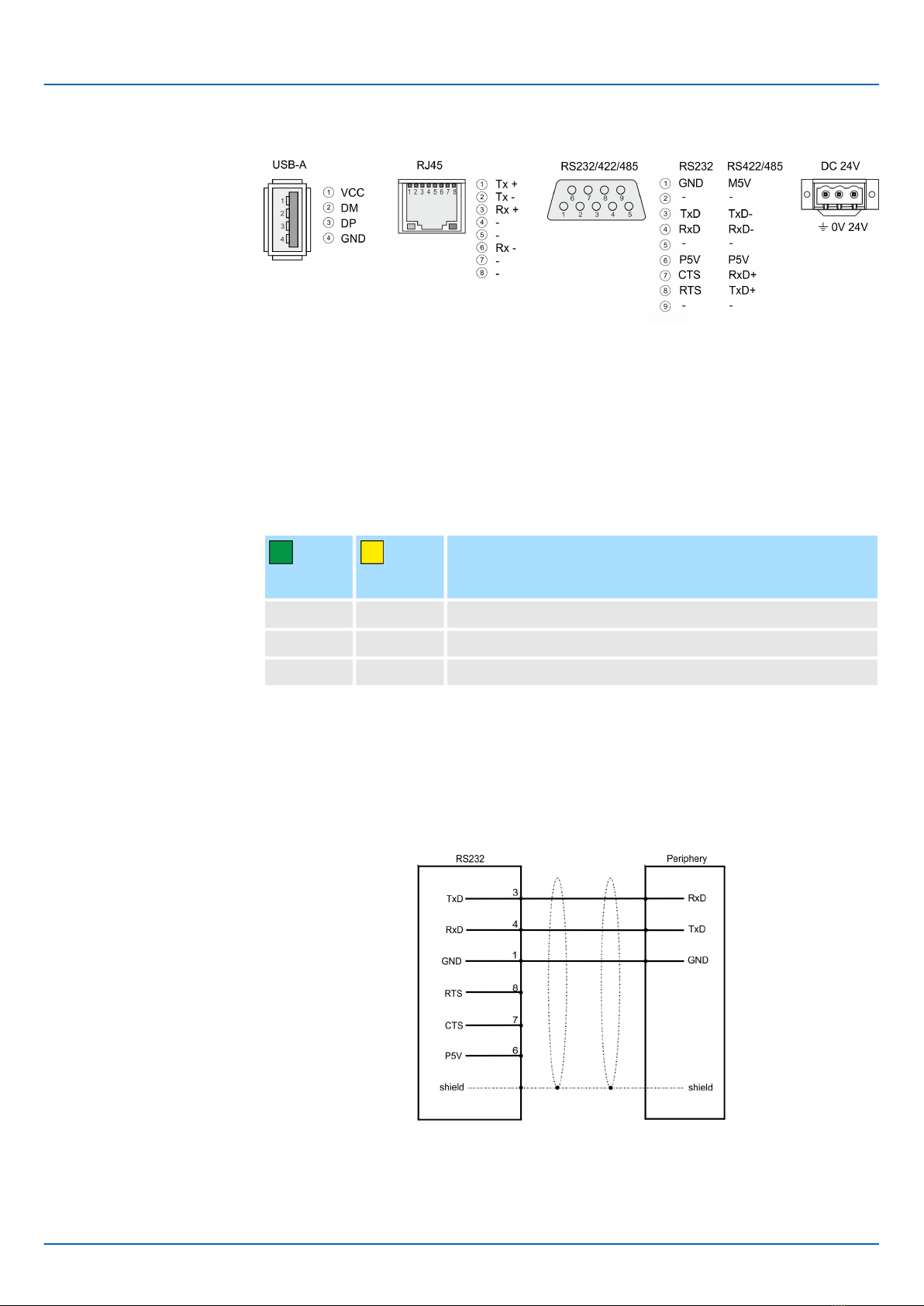

2.3.2 Interfaces
Using the "Host"-USB-A interface USB mouse, keyboard, stick or USB hard discs can be
connected.
The RJ45 jack provides the interface to the twisted pair cable, required for Ethernet. The
Ethernet interface has got two LEDs for status display.
LEDs
green yellow
Description
on off no link
blinks on 100Mbit/s link
blinks off 10Mbit/s link
9 pin SubD plug
nInterface is compatible to the COM interface of a PC
nLogical signals as voltage levels
nPoint-to-point links with serial full-duplex transfer in two-wire technology up to 15m
distance
nData transfer rate up to 115.2kbit/s
"Host"-USB-A
Ethernet connection
RS232 interface
VIPA HMI
Hardware description
Structure > Interfaces
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 10

9 pin SubD jack
nLogical states represented by voltage differences between the 4 cores
nSerial bus connection in 4-wire technology using full duplex mode
nData communications up to a max. distance of 500m
nData communication rate up to 115.2kBaud
nSerial bus connection in 2-wire technology using half duplex mode
The cloudPanel has got an integrated power supply. The power supply has to be provided
with DC 24V (18 ... 32 VDC). For this you find an according DC 24V slot at the bottom
Ä ‘Connect power supply’ on page 17.
2.3.3 Memory management
The following memory systems are available for the cloudPanel:
n512MB work memory (RAM)
n4GB user memory (Flash)
nUSB storage media using "Host"-USB-A interface
Every cloudPanel has a DDR work memory with a size of 512MB.
As internal permanent storage medium every cloudPanel has a user memory with a size
of 4GB. 700MB of this is available to the user.
RS422/485 interface
Power supply
Overview
Work memory (RAM)
User memory (Flash)
VIPA HMI Hardware description
Structure > Memory management
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 11

The connection of USB sticks and USB drives by use of the "Host"-USB-A interface is
supported by the cloudPanel.
2.4 Dimensions
Front panel (L x H) 187 x 147 mm
Depth (D+T) 29 + 5 mm
Installation cutting (A x B) 176 x 136 mm
The degrees of protection are only guaranteed when the following is
observed:
–Material thickness at the mounting cut-out: 1.5 ... 6mm
–The deviation from the plane for the panel cut-out is £ 0.5mm. This
condition must be fulfilled for the mounted HMI device.
–Permissible surface roughness in the area of the seal:
£ 120µm (fric-
tion coefficient 120)
USB storage media
(USB 2.0)
Installation dimensions
VIPA HMI
Hardware description
Dimensions
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 12

2.5 General data
Conformity and approval
Conformity
CE 2014/30/EU EMC directive
Approval
UL Refer to Technical data
others
RoHS 2011/65/EU Restriction of the use of certain hazardous substances in
electrical and electronic equipment
Protection of persons and device protection
Type of protection - Rear: IP20; Front: IP66, NEMA Type 2 and Type 4x
Electrical isolation
to the field bus - electrically isolated
to the process level - electrically isolated
Insulation resistance -
Insulation voltage to reference earth
Inputs / outputs - AC / DC 50V, test voltage AC 500V
Protective measures - against short circuit
Environmental conditions to EN 61131-2
Climatic
Storage / transport EN 60068-2-14 -20…+70°C
Operation
Horizontal installation EN 61131-2 0…+40°C
Vertical installation EN 61131-2 0…+50°C
Air humidity EN 60068-2-30 RH1 (without condensation, rel. humidity 5…85%)
Pollution EN 61131-2 Degree of pollution 2
Mechanical
Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz
Shock EN 60068-2-27 15g, 11ms
Mounting conditions
Mounting place - In the control cabinet
Mounting position - Horizontal and vertical
VIPA HMI Hardware description
General data
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 13

EMC Standard Comment
Emitted interference EN 61000-6-4 Class A (Industrial area)
Noise immunity
zone B
EN 61000-6-2 Industrial area
EN 61000-4-2 ESD
8kV at air discharge (degree of severity 3),
4kV at contact discharge (degree of severity 2)
EN 61000-4-3 HF field immunity (casing)
80MHz … 1000MHz, 10V/m, 80% AM (1kHz)
1.4GHz ... 2.0GHz, 3V/m, 80% AM (1kHz)
2GHz ... 2.7GHz, 1V/m, 80% AM (1kHz)
EN 61000-4-6 HF conducted
150kHz … 80MHz, 10V, 80% AM (1kHz)
EN 61000-4-4 Burst, degree of severity 3
EN 61000-4-5 Surge, degree of severity 3 *
*) Due to the high-energetic single pulses with Surge an appropriate external protective circuit with lightning protection elements like conductors for lightning and overvoltage is
necessary.
2.6 Technical data
Order no. H71-L1A41-0
Type cloudPanel TP107-CL
Display
Display size (diagonal) 7 "
Display size (width) 155 mm
Display size (height) 88 mm
Resolution 480 x 800 / 800 x 480
Aspect ratio 16:9
Type of display TFT color (64K colors)
MTBF Backlights (25°C) 20000 h
System properties
Processor Cortex-A8 1000 MHz
Operating system Linux 3.12
User software Webkit Browser
Work memory 512 MB
User memory 4 GB
Available memory (user data) 700 MB
SD/MMC Slot -
CF Card Slot Typ II -
VIPA HMI
Hardware description
Technical data
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 14

Order no. H71-L1A41-0
CFast Slot -
Time
Real-time clock buffered ü
Clock buffered period (min.) 2 w
Type of buffering Goldcap
Load time for 50% buffering period 5 h
Load time for 100% buffering period 10 h
Accuracy (max. deviation per day) 8 s
Operating controls
Touchscreen resistive
Touch function Single Touch
Keyboard external via USB
Mouse external via USB
Interfaces
MPI, PROFIBUS-DP -
MPI, PROFIBUS-DP connector -
Serial, COM1 RS232 / RS422 / RS485
COM1 connector Sub-D, 9-pin, male
Serial, COM2 -
COM2 connector -
Number of USB-A interfaces 1
USB-A connector USB-A (host)
Number of USB-B interfaces -
USB-B connector -
Number of ethernet interfaces 1
Ethernet Ethernet 10/100 MBit
Ethernet connector RJ45
Integrated ethernet switch -
Video connectors -
Audio connections -
Technical data power supply
Power supply (rated value) DC 24 V
Power supply (permitted range) 18 - 32 VDC
Reverse polarity protection ü
Current consumption (no-load operation) 0.1 A
Current consumption (rated value) 0.25 A
VIPA HMI Hardware description
Technical data
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 15

Order no. H71-L1A41-0
Inrush current 38 A
I²t 0.33 A²s
Power loss 6 W
Status information, alarms, diagnostics
Supply voltage display none
Mechanical data
Housing / Protection type
Material PC + ABS
Mounting mounting clips
Protect type front side IP 66
Protect type back side IP 20
Dimensions
Front panel 187 mm x 147 mm x 5 mm
Rear panel 172 mm x 133 mm x 29 mm
Installation cut-out
Width 176 mm
Height 136 mm
Minimum 1.5 mm
Maximum front panel thickness 6 mm
Net weight 500 g
Weight including accessories 631 g
Gross weight 900 g
Environmental conditions
Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 70 °C
Certifications
UL certification yes
KC certification -
VIPA HMI
Hardware description
Technical data
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 16

3 Deployment
3.1 Installation
The cloudPanel is suitable for the installation in operating tables and control cabinet
fronts. The installation happens via the backside. The cloudPanel is provided with a fixing
technique that allows an easy connection with a crosstip screwdriver. A fast and easy
device change is possible.
For the installation into a operating tableau and control cabinet fronts, the cloudPanel
requires the following front plate cutting:
cloudPanel A x B in mm
H71-L1A41-0 176 x 136 mm
To fix the cloudPanel mounting clips are included. For the installation a small crosstip
screwdriver is required.
1. Push the cloudPanel [3] from the front side into the front panel cutting [1] until it
touches the panel with the seal [2].
2. Put the mounting clips [4] on all four sides of the cloudPanel into the openings. The
screws should point in the direction of the front panel.
3. Screw the screws from the other side with the crosstip screwdriver [5].
nFor the cabling of the DC 24V power supply (18 ... 32 VDC) a black plug is included.
The connector is a plug with screw contacts. The associated label is located on the
back of the cloudPanel.
nThe cloudPanel must always be grounded to earth. Grounding helps limit the effects
of noise due to electromagnetic interference.
nUse the power supply terminal marked with for grounding.

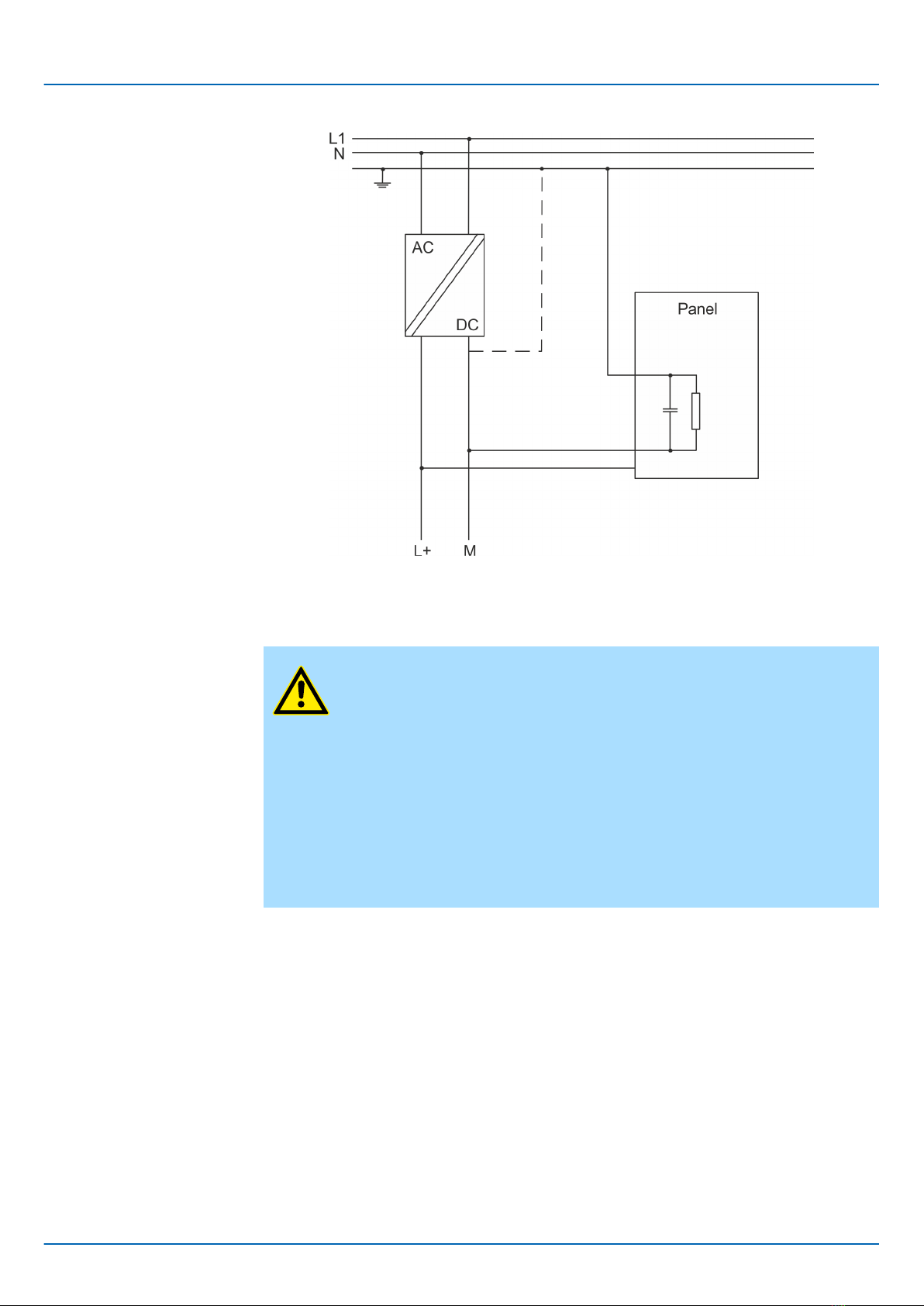

nThe power supply circuit may be floating or grounded. In the latter case, connect to
the ground the power supply as shown in figure with a dashed line.
nWhen using the floating power scheme, note that the cloudPanel internally connects
the power to the ground with a 1MΩ resistor in parallel with a 4.7nF capacitor.
Overview
Installation cutting
Installation
Connect power supply
VIPA HMI Deployment
Installation
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 17

3.2 Commissioning
CAUTION!
– Before commissioning the device must be brought to room tempera-
ture.
– At condensation the device must be absolutely dry before connected
to power.
– To avoid overheat during operation the device must not be laid open
to direct sun light.
– After opening the control cabinet or desk, there are parts with pos-
sible dangerous voltage available.
– For all signal connections only screened cables are permitted.
– Signal cables must not be let within the same cable shaft as high
voltage cables.
3.2.1 Web browser
As soon as the cloudPanel is provided by power supply, the VIPA splash screen of the
implemented Web browser will be loaded.
Splash screen
VIPA HMI
Deployment
Commissioning > Web browser
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 18

www.vipa.com - With active internet connection, this button opens the VIPA home-
page www.vipa.com.
Settings - Use the [Settings] button to open the "System Settings" interface of
the cloudPanel.
Service & Support - With active internet connection, this button takes you directly to
VIPA "Service & Support".
Use the button in the upper right corner of the browser window to open the browser
settings.
Browser settings
VIPA HMI Deployment
Commissioning > Web browser
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 19

[Visible] - Toolbar visible
[Hidden] / [Auto] - Toolbar hidden
‘Show navigation controls’ - Display of the buttons
‘Show location’ - Display of the address bar
‘Touch navigation’ - Display of the button
‘Zoom to fit contents’ - Display of the button
‘Hide scrollbars’ - Hide the scrollbars
‘Show loading controls’ - Display of the button
‘Show settings button’ - Display of the button
‘Show zoom controls’ - Display of the buttons
‘Fallback to default URL’ - Fallback to default URL
‘Default URL’ - Setting the address of the homepage (default: VIPA splash screen:
file:///mnt/data/WWW/index.html)
[Last visited Page] - Activate / deactivate the display of the last visited page when restart
the cloudPanel (default: activate)
[Lock Settings] - Set a password for the browser settings
‘Hold time
(seconds)’
- Setting the time that must be pressed and held on the touch screen
for the browser settings window to appear (default 2 seconds).
‘Toolbar visibility’
‘Toolbar controls’
‘Default URL’
Additional setting under
[Hidden] / [Auto]
VIPA HMI
Deployment
Commissioning > Web browser
HB160 | TP-cloud | H71-L1A41-0 | en | 18-02 20
