VIPA TP 606C User manual

Manual
VIPA HMI
Touch Panel
606-1BC00
Order no.: VIPA HB160E_TP
Reference: RE_606-1BC00
Rev. 08/13
This manual is part of the documentation package with order number:
VIPA HB160E_TP and relevant for:
Product Order number as of state:
HW OS
TP 606C VIPA 606-1BC00 01 Windows®CE V. 5.0

Lerrzeichen

Manual VIPA HMI
Subject to change to cater for technical progress.
The information in this manual is supplied without warranties. Information is
subject to change without notice.
© Copyright 2008 VIPA, Gesellschaft für Visualisierung und Prozess-
automatisierung mbH
Ohmstraße 4, D-91074 Herzogenaurach,
Tel.: [phone]
Fax.: [phone]
Email: inf[email protected]
http://www.vipa.de
Hotline: [phone]
All rights reserved.
The content of this manual was carefully examined to ensure that it
conforms with the described hardware and software.
However, discrepancies can not be avoided. The specifications in this
manual are examined regularly and corrections will be included in
subsequent editions.
We gratefully accept suggestions for improvement.
VIPAis a registered trademark of VIPA Gesellschaft
für Visualisierung und Prozessautomatisierung mbH.
Microsoft, Windows and Windows Logo are either registered trademarks or
trademarks of Microsoft Cooperation in the USA and/or other countries.
Any other trademarks referred to in the text are the trademarks of the
respective owner and we acknowledge their registration.
Disclaimer of
liability
Trademarks

About this manual Manual VIPA HMI
Subject to change to cater for technical progress.
About this Manual
The manual describes the Touch Panel TP 606C from VIPA. Here you find
detailed descriptions of the Touch Panel beside a product overview. Here
you get information about structure, project engineering and operation of
the Touch panels from VIPA.
Chapter 1: Hardware description
During this chapter you get hints for deployment of the Touch Panel
TP 606C from VIPA.
Besides of a description of the single components of the Touch Panel, you
will also find the dimensions that are required for the installation. The
chapter closes with the technical data.
Chapter 2: Deployment Touch Panel
This chapter deals with the employment of the Touch Panel.
At the start of the chapter you receive information about the assembly and
the connection of the Touch Panel. The main part of the chapter introduces
Windows®CE and the various communication options offered by the Touch
Panel.
Chapter 3: Installation guidelines
This chapter helps you to install an interference-free automation system.
First, possible interference sources and their interaction mechanisms are
shown, followed by basic rules for guaranteeing EMC. Afterwards you'll find
information about assembly and cabling following EMC rules.
Overview

Manual VIPA HMI Contents
HB160E - TP - RE_606-1BC00 - Rev. 08/13 i
Contents
User considerations.................................................................................1
Safety information....................................................................................2
Chapter 1 Hardware description .....................................................1-1
Safety information for Users.................................................................1-2
Properties.............................................................................................1-3
Structure ..............................................................................................1-4
Components.........................................................................................1-6
Dimensions ........................................................................................1-10
Technical Data...................................................................................1-11
Chapter 2 Deployment Touch Panel ...............................................2-1
Installation............................................................................................2-2
Commissioning.....................................................................................2-4
Connection to a PLC system................................................................2-6
Operating system Windows®CE..........................................................2-7
Communication via ActiveSync ..........................................................2-13
Integrated Server ...............................................................................2-16
Access to the network resources........................................................2-23
Integration to WLAN network .............................................................2-25
Firmware update ................................................................................2-27
Chapter 3 Installation Guidelines....................................................3-1
Basic rules for the EMC-equitable assembly of installations.................3-2
EMC-equitable assembly......................................................................3-6
EMC-equitable cabling .........................................................................3-7
Special precautions providing high noise immunity ............................3-11
Checklist for the EMC-compliant installation of controllers.................3-12
Appendix ..........................................................................................A-1
Index....................................................................................................A-1

Contents Manual VIPA HMI
ii HB160E - TP - RE_606-1BC00 - Rev. 08/13

Manual VIPA HMI User considerations
HB160E - TP - RE_606-1BC00 - Rev. 08/13 1
User considerations
This manual describes the Touch Panels from VIPA. The manual consists
of chapters. Every chapter provides the description of one specific topic.
It describes the installation, project engineering, usage and the technical
data.
This Documentation is targeted at users who have a background in
automation technology and profound knowledge about Windows®operating
systems.
This manual provides the following guides:
• An overall table of contents at the beginning of the manual
• An overview of the topics for every chapter
• An index at the end of the manual.
The manual is available in:
• printed form, on paper
• in electronic form as PDF-file (Adobe Acrobat Reader)
[Button] Buttons are put in brackets e.g. [NEXT] or [OK].
[Key] Key entry are put in brackets e.g. [STRG]+[A].
Display
output Display outputs are illustrated as Courier e.g.
\flashdisk>
Keyboard
entry Keyboard entries are illustrated as Courier bold e.g.
\flashdisk> Dir
Terms Menues, Display elements, terms are italicised.
Important passages in the text are highlighted by following icons and
headings:
Danger!
Immediate or likely danger.
Personal injury is possible.
Attention!
Damages to property is likely if these warnings are not heeded.
Note!
Supplementary information and useful tips.
Objective and
contents
Guide to the
document
Availability
Description
conventions
Icons
Headings

Safety information Manual VIPA HMI
2 HB160E - TP - RE_606-1BC00 - Rev. 08/13
Safety information
The Operation devices are constructed and manufactured for:
• VIPA CPUs 11x, 21x, 31x, 51x and S7-300/400 from Siemens
• communication and process control
• industrial applications
• operation within the environmental conditions specified in the technical
data
Danger!
This device is not certified for applications in
• explosive environments (EX-zone)
The manual must be available to all personnel in the
• project design department
• installation department
• commissioning
• operation
The following conditions must be met before using or commissioning
the components described in this manual:
• Modification to the process control system should only be carried out
when the system has been disconnected from power!
• Installation and modifications only by properly trained personnel
• The national rules and regulations of the respective country must be
satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!
Application
specifications
Documentation
Disposal

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_606-1BC00 - Rev. 08/13 1-1
Chapter 1 Hardware description
During this chapter you get hints for deployment of the Touch Panel
TP 606C from VIPA.
Besides of a description of the single components of the Touch Panel, you
will also find the dimensions that are required for the installation. The
chapter closes with the technical data.
Topic Page
Chapter 1 Hardware description .....................................................1-1
Safety information for Users.................................................................1-2
Properties.............................................................................................1-3
Structure ..............................................................................................1-4
Components.........................................................................................1-6
Dimensions ........................................................................................1-10
Technical Data...................................................................................1-11
Overview
Content

Chapter 1 Hardware description Manual VIPA HMI
1-2 HB160E - TP - RE_606-1BC00 - Rev. 08/13
Safety information for Users
VIPA modules make use of highly integrated components in MOS-
technology. These components are extremely sensitive to over-voltages
that can occur during electrostatic discharges.
The following symbol is attached to modules that can be destroyed by
electrostatic discharges:
The symbol is located on the module, the module rack or on packing
material and it indicates the presence of electrostatic sensitive equipment.
It is possible that electrostatic sensitive equipment is destroyed by energies
and voltages that are far less than the human threshold of perception.
These voltages can occur where persons do not discharge themselves
before handling electrostatic sensitive modules and they can damage
components thereby, causing the module to become inoperable or
unusable. Modules that have been damaged by electrostatic discharges
may fail after a temperature change, mechanical shock or changes in the
electrical load.
Only the consequent implementation of protection devices and meticulous
attention to the applicable rules and regulations for handling the respective
equipment can prevent failures of electrostatic sensitive modules.
Modules have to be shipped in the original packing material.
When you are conducting measurements on electrostatic sensitive
modules you should take the following precautions:
• Floating instruments must be discharged before use.
• Instruments must be grounded.
Modifying electrostatic sensitive modules you should only use soldering
irons with grounded tips.
Attention!
Personnel and instruments should be grounded when working on
electrostatic sensitive modules.
Handling of
electrostatic
sensitive modules
Shipping of
electrostatic
sensitive modules
Measurements
and alterations on
electrostatic
sensitive modules

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_606-1BC00 - Rev. 08/13 1-3
Properties
The Touch Panel allows you to visualize and alter operating states and
recent process values of a connected PLC.
The VIPA Touch Panel is a compact and modular embedded PC based on
Windows®CE. Besides of the extensive Windows®CE functions the Touch
Panel offers varied communication possibilities. Here the Touch Panel can
simply be configured, controlled and remoted. By including a selectable
HMI/SCADA runtime the Touch Panel is particularly suitable for monitoring
and controlling of process cycles.
• Microsoft Windows®CE V. 5.0 (full version as option)
• different HMI/SCADA-Runtime selectable
• about 6MByte memory for user data on Board
• CF-Card II and MMC/SD card slot
• horizontal and vertical display selectable in 90° steps
• RS232, RS485, RS422, MPI, Profibus DP slave, Ethernet,
USB-A and USB-B interfaces on board
• robust aluminium die casting case
• display resolution 480 x 640 / 640 x 480 (64k colors)
• battery backed clock
• resistive touch screen
• easy mounting via integrated pivoted lever
• protection class IP65 (frontal)
Type Order number Description
TP 606C VIPA 606-1BC00 6.5" VGA, TFT color, MPI/Profibus DP/RS485, RS232,
RS422/485, USB-A, USB-B, Ethernet RJ45
General
TP 606C
606-1BC00
Order data

Chapter 1 Hardware description Manual VIPA HMI
1-4 HB160E - TP - RE_606-1BC00 - Rev. 08/13

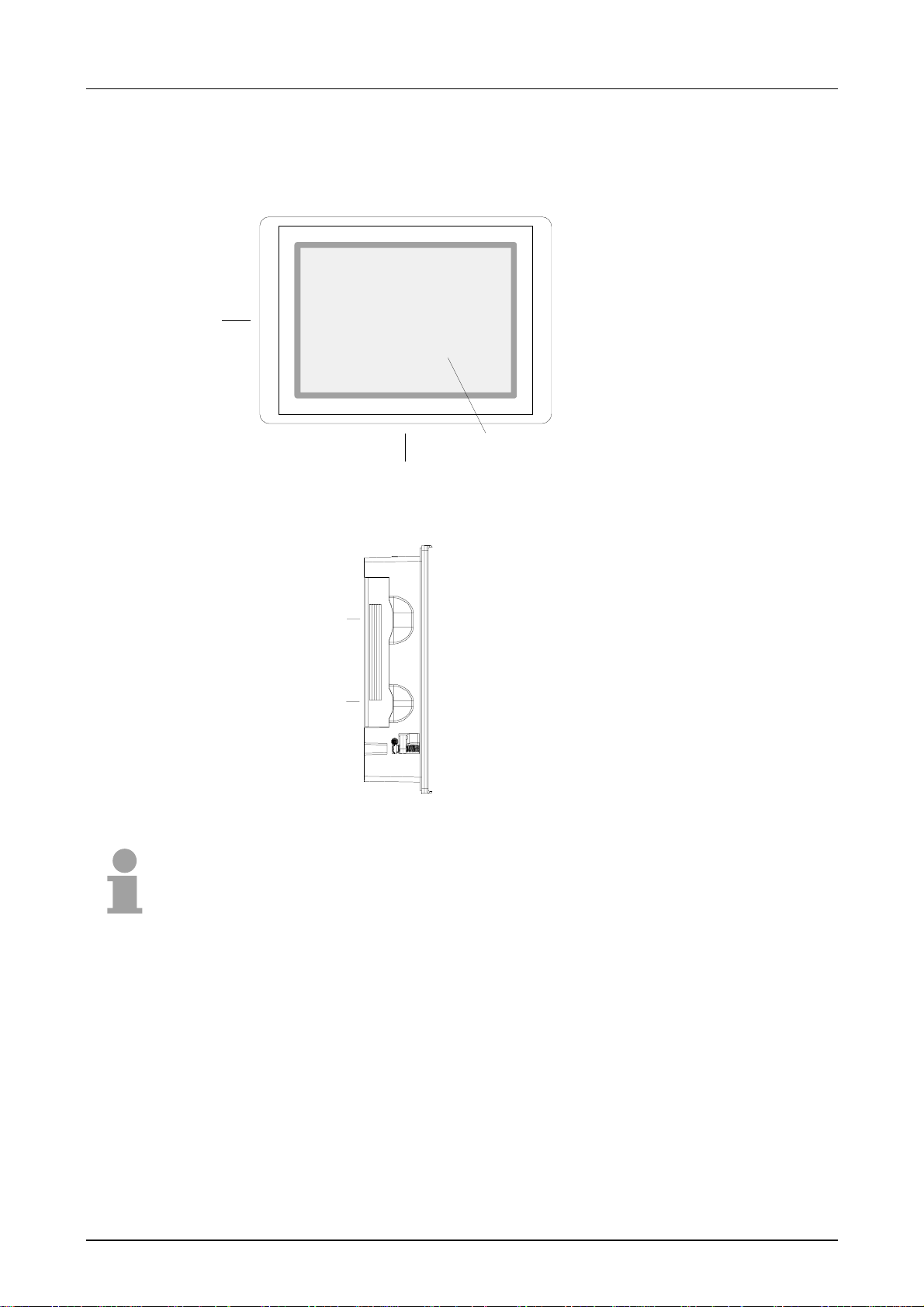

Structure
[1] Slot for storage medium
(CF, SD/MMC)
[2] Connection for interfaces and
power supply
Touch Panel
1
2
3
[3] Display with touch sensitive area
(touch screen)
[1] Compact Flash
[2] MMC / SD
1
2
Note!
Please regard that the Touch Panel always has to be supplied with external
voltage!
Front view
Side view

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_606-1BC00 - Rev. 08/13 1-5
1234567
8
[1] RS422/485 interface COM 2
[2] RS232 interface COM 1
[3] MPI/Profibus DP/RS485 interface
[4] "Host"-USB-A interface
[5] "Slave"-USB-B interface
[6] RJ45-Buchse for Ethernet communication
[7] Slot for DC 24V voltage supply
[8] Slot for CF/SD/MMC storage medium
Note!
Please regard the functionality of the interface depends to the hardware
version:
HW 01: RS422 functionality
HW 02: RS485 functionality
Starting with HW 03 both functionalities are supported.
Bottom view
(Interfaces)
TP 606C 6.5''
606-1BC00
Components

Chapter 1 Hardware description Manual VIPA HMI
1-6 HB160E - TP - RE_606-1BC00 - Rev. 08/13
Components
The following memory systems are available for every Touch Panel:
• 64MByte work memory
• 32MByte Flash-Disk (6MByte for user data)
• USB storage media using "Host"-USB-A interface
• Slot for CF (Type II)
• Slot for MMC/SD
Every Touch Panel has a work memory with a size of 64MByte. The work
memory is not buffered and is deleted after shut down. Please regard that
also registry entries are stored in the work memory that are set back to
default settings after the next re-boot. You may save them permanently by
means of the KuK Tools (within consignment).
As internal permanent storage medium every Touch Panel has a flash disc
with a size of 32MByte (6MByte user data). After the start of Windows®CE
this memory is listed as Flashdisk at My Device.
The connection of USB sticks and USB drives by use of the "Host"-USB-A
interface is supported by the Touch Panel. After connection the storage
media is listed as Hard Disk at My Device.
Slot for CF
Here you may plug a CompactFlashtype II. The card may be plugged
and removed during runtime and is immediately listed as Storage Card at
My Device.
Every CompactFlashstorage module has a pulling edge. Hold the
CompactFlash in the way that the pulling edge points to the left side. Push
the storage module without much power into the slot until the impact. To
remove the card touch it at the pulling edge and pull.
At this slot you may plug storage modules of the type SD or MMC. The
card may be plugged and removed during runtime and is immediately listed
as SDMMC Card at My Device.
Please take care to plug the according card as shown at the backside of
the Touch Panel.
Security flap for
memory cards
At the left side of the Touch Panel are the card slots for memory cards.
The cards are visibly covered by a security flap and are thus secured from
slipping out.
Please take care to pull the security flap back before plugging or pulling a
memory card like shown in the illustration and put it back again afterwards.
When plugging, the security flap additionally snaps into position above the
plugged memory card.
Memory
management
Work memory
Flash disc
USB storage media
Slot for SD/MMC

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_606-1BC00 - Rev. 08/13 1-7
• Logical states represented by voltage differences between the 4 cores
• Serial bus connection in 4-wire technology using full duplex mode
• Data communications up to a max. distance of 500m
• Data communication rate up to 115.2kBaud
9pin jack Connection RS422 (isolated)
Pin RS422/485
1 n.c.
2 n.c.
3 TxD+ (Line A)
4 RxD+ (Line A)
5 M5V
6 P5V
7 n.c.
8 TxD- (Line B)
5
4
3
2
1
9
8
7
6
9 RxD- (Line B)
TxD+ (A)
TxD- (B)
RxD+ (A)
RxD- (B)
Shield
RS422 Periphery
3
8
4
9
M5V
TxD+
TxD-
RxD+
RxD-
P5V
5
6
Connection RS485 (isolated)
Note!
Please regard the functionality
of the interface depends to the
hardware version:
HW 01: RS422 functionality
HW 02: RS485 functionality
Starting with HW 03 both func-
tionalities are supported.
TxD+ (A)
TxD- (B)
RxD+ (A)
RxD- (B)
Shield
RS485 Periphery
3
8
4
9
M5V
RxD+/TxD+
RxD-/TxD-
P5V
5
6
Periphery
RxD+/TxD+
RxD-/TxD-
9pin jack Connection RS485
Pin RS485
1 n.c.
2 M24V
3 RxD/TxD-P (Line B)
4 RTS
5 M5V
6 P5V
7 P24V
8 RxD/TxD-N (Line A)
5
4
3
2
1
9
8
7
6
9 n.c.
RxD/TxD-P(B)
Shield
RS485
3
8
P24V
RxD/TxD-P(B)
5
RxD/TxD-P(B)
RxD/TxD-N(A)
Periphery
P5V
M5V
RTS 4
6
7
Shield
RS422/485
interface
Connection
RS422/485
Profibus DP /
MPI interface
(RS485)

Chapter 1 Hardware description Manual VIPA HMI
1-8 HB160E - TP - RE_606-1BC00 - Rev. 08/13
• Interface is compatible to the COM interface of a PC
• Logical signals as voltage levels
• Point-to-point links with serial full-duplex transfer in two-wire technology
up to 15m distance
• Data transfer rate up to 115.2kBaud
9pin plug
Connection RS232
Pin RS232
1 CD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
1
2
3
4
5
6
7
8
9
9 RI
RxD
TxD
GND
TxD
RxD
3
2
GND 5
RTS
CTS
7
8
Shield
RS232 Periphery
Shield
An RJ45 jack provides the interface to the twisted pair cable, required for
Ethernet. The pin assignment of this jack is as follows:
8pin RJ45 jack:
Pin Signal
1 Transmit +
2 Transmit -
3 Receive +
4 -
5 -
6 Receive -
7 -
8 -
RS232 interface
Connection RS232
Ethernet
connection
1
2
3
4
5
6
7
8

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_606-1BC00 - Rev. 08/13 1-9

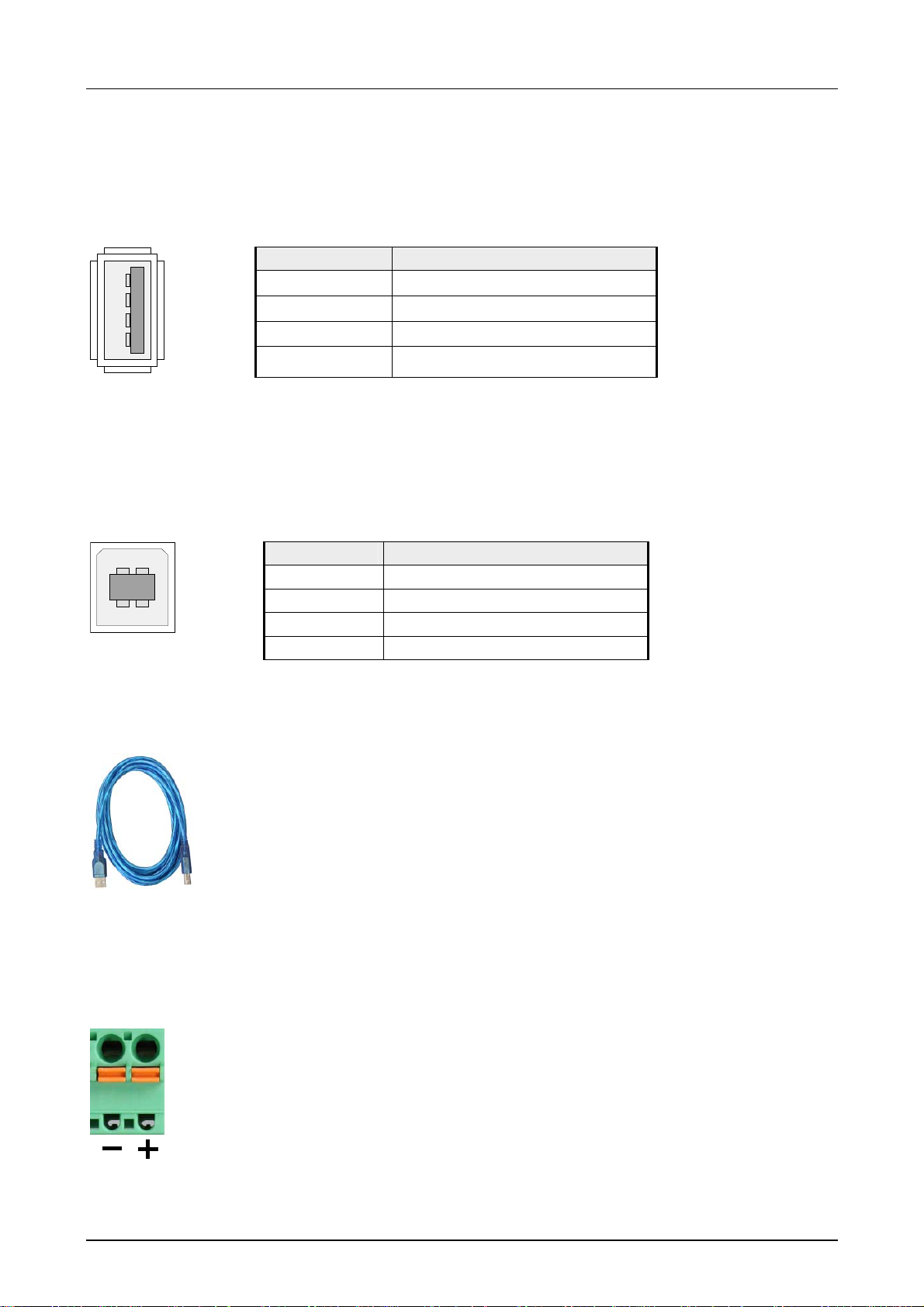

Using the "Host"-USB-A interface mouse, keyboard, USB stick ore USB
hard discs can be connected.
The pin assignment is as follows:
"Host"-USB-A:
Pin Assignment
1 VCC
2 DM
3 DP
1
2
3
4
4 GND
For project transfer with Microsoft ActiveSync a programming cable can be
connected using the "Slave"-USB-B interface.
The pin assignment is as follows:
"Slave"-USB-B:
Pin Assignment
1 VCC
2 DM
3 DP
21
34 4 GND
The USB-A interface of your PC can be connected to the "Slave"-USB-B
interface of your Touch Panel deploying the USB programming cable.
The USB programming cable is delivered by VIPA with order No.
VIPA 670-0KB10.
The Touch Panel has got an integrated power supply. The power supply
has to be provided with DC 24V (20.4 ... 28.8V). For this you find an
according DC 24V slot at the bottom side.
DC 24V
The power supply is protected against inverse polarity and overcurrent.
"Host"-USB-A
"Slave"-USB-B
VIPA USB-B
Programming cable
Power supply

Chapter 1 Hardware description Manual VIPA HMI
1-10 HB160E - TP - RE_606-1BC00 - Rev. 08/13

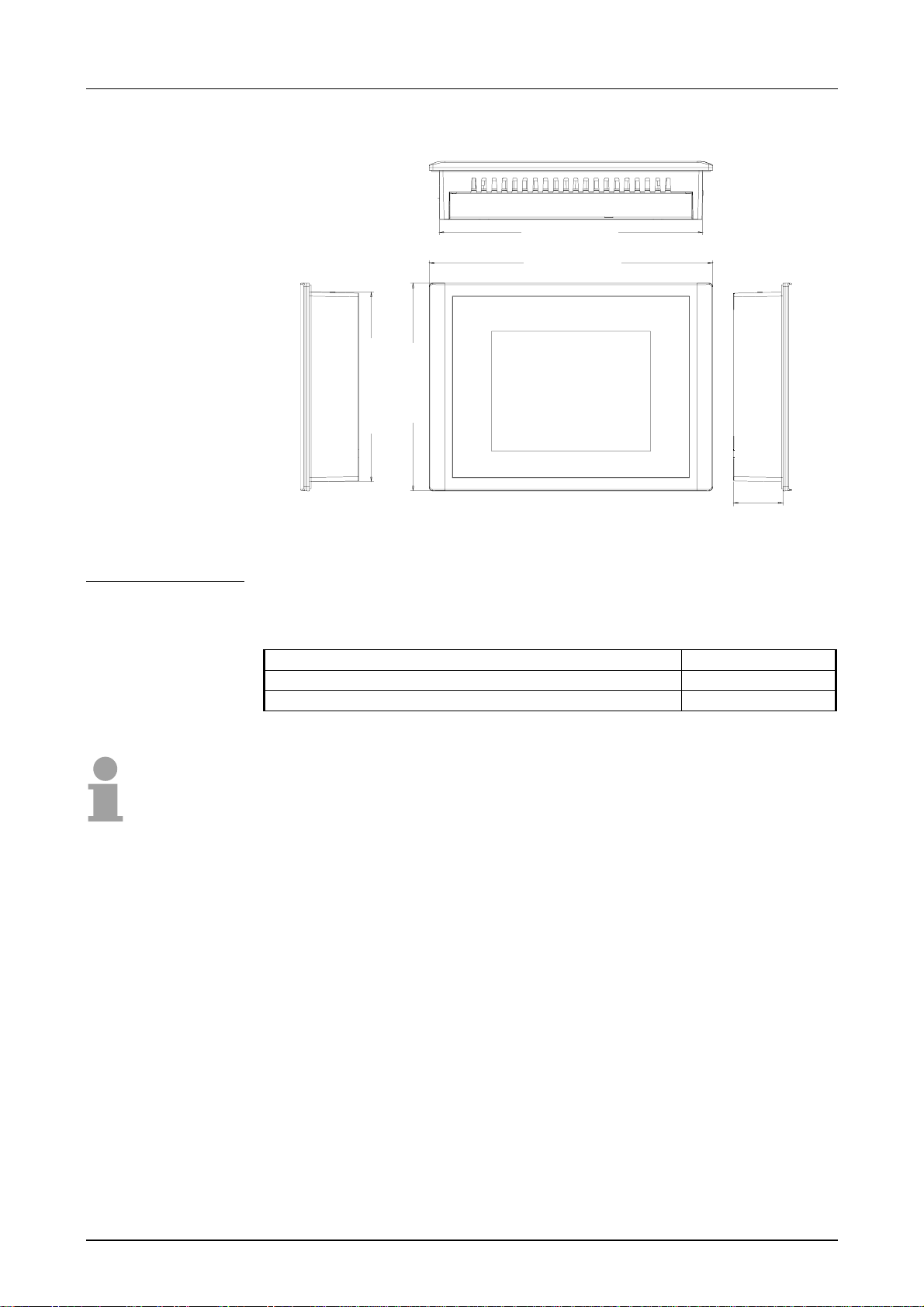

Dimensions
installation width
installation hight
installation
depth
width
height
For the installation of the Touch Panel in control cabinets and desks the
following dimensions are necessary:
Installation cutting (W x H) 200 x 144mm
Front panel (W x H) 212 x 156mm
Installation depth 37mm
Note!
The degrees of protection are only guaranteed when the following is
observed:
• Material thickness at the mounting cut-out: 2 ... 5mm
• the deviation from the plane for the panel cut-out is ≤0.5mm. This
condition must be fulfilled for the mounted HMI device
• Permissible surface roughness in the area of the seal: ≤120µm (friction
coefficient 120)
Installation
dimensions
6.5''
606-1BC00

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_606-1BC00 - Rev. 08/13 1-11
Technical Data
TP 606C
Electrical data VIPA 606-1BC00
Nominal supply voltage DC 24V (20.4 ... 28.8V)
ESD/Burst Acc. IEC 61000-4-2 / IEC 61000-4-4 (up to level 3)
Shock resistance Acc. IEC 60068-2-6 / IEC 60068-2-27 (1G/12G)
Level of noise suppression Acc. IEC 61000-6-4
mark of conformity and certification CE
Clock and housing
Processor Xscale 520MHz
Clock Hardware clock, buffered
Housing - protection class Solid aluminium case
- Front IP 65
- Back IP 20
Environment conditions
Mounting position horizontally/vertically
Operating temperature 0 ... +50°C
Relative humidity max. 85%
Storing / Transport temperature -20 to +60°C
Display
Size 6.5"
Resolution 480 x 640 / 640 x 480
Colors TFT color (64K colors)
MTBF Backlights (25°C) ca. 50000h
Peripherals
Touch screen resistive
external Mouse, Keyboard USB
Memory
Type 32MB Flash / 64MB RAM
Available memory for user data ca. 6MByte
CF Card Slot Type II yes
SD/MMC Push-Push-Slot yes
Interfaces
MPI (12MBits), Profibus DP RS485 isolated
serial RS232 COM 1
serial RS422/485 isolated COM 2
USB USB-A, USB-B
Ethernet 10/100 RJ45
Electrical Data
Nominal supply voltage DC 24V (20.4 ... 28.8V)
Nominal current 0.5A
Housing
Mounting via 4 integrated pivoted lever
Dimensions and weight
Front side (WxH) 212 x 156mm
Back side (WxHxD) 198 x 142 x 37mm
Installation cutting (WxH) 200 x 144mm
Weight 1.3kg

Chapter 1 Hardware description Manual VIPA HMI
1-12 HB160E - TP - RE_606-1BC00 - Rev. 08/13
