VIPA TP 605LQE User manual

VIPA HMI
Touch Panel | 62F-DCB0 | Manual
HB160E_TP | RE_62F-DCB0 | Rev. 11/14
April 2011

Copyright © VIPA GmbH. All Rights Reserved.
This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable
agreements.
This material is protected by the copyright laws. It may not be reproduced, distributed, or altered in any fashion by any entity (either
internal or external to VIPA), except in accordance with applicable agreements, contracts or licensing, without the express written
consent of VIPA and the business management owner of the material.
For permission to reproduce or distribute, please contact:
VIPA, Gesellschaft für Visualisierung und Prozessautomatisierung mbH
Ohmstraße 4, D-91074 Herzogenaurach, Germany
Tel.: [phone]
Fax.: [phone]
EMail: inf[email protected]
http://www.vipa.de
Note
Every effort has been made to ensure that the information contained in this document was complete and accurate at the time of
publishing. Nevertheless, the authors retain the right to modify the information. This customer document describes all the hardware
units and functions known at the present time. Descriptions may be included for units which are not present at the customer site. The
exact scope of delivery is described in the respective purchase contract.
CE Conformity
Hereby, VIPA GmbH declares that the products and systems are in compliance with the essential requirements and other relevant
provisions of the following directives:
• 2004/108/EC Electromagnetic Compatibility Directive
• 2006/95/EC Low Voltage Directive
Conformity is indicated by the CE marking affixed to the product.
Conformity Information
For more information regarding CE marking and Declaration of Conformity (DoC), please contact your local VIPA customer service
organization.
Trademarks
VIPA, SLIO, System 100V, System 200V, System 300V, System 300S, System 400V, System 500S and Commander Compact are
registered trademarks of VIPA Gesellschaft für Visualisierung und Prozessautomatisierung mbH.
SPEED7 is a registered trademark of profichip GmbH.
SIMATIC, STEP, SINEC, S7-300 and S7-400 are registered trademarks of Siemens AG.
Microsoft und Windows are registered trademarks of Microsoft Inc., USA.
Portable Document Format (PDF) and Postscript are registered trademarks of Adobe Systems, Inc.
All other trademarks, logos and service or product marks specified herein are owned by their respective companies.
Information product support
Contact your local VIPA Customer Service Organization representative if you wish to report errors or questions regarding the contents
of this document. If you are unable to locate a customer service center, contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telefax:[phone]
EMail: [e-mail]
Technical support
Contact your local VIPA Customer Service Organization representative if you encounter problems with the product or have questions
regarding the product. If you are unable to locate a customer service center, contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telephone: [phone]/1180 (Hotline)
EMail: s[email protected]

Manual VIPA HMI Contents
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 i
Contents
About this manual .................................................................................... 1
Safety information.................................................................................... 2
Chapter 1 Hardware description ..................................................... 1-1
Safety information for Users................................................................. 1-2
Properties............................................................................................. 1-3
Structure .............................................................................................. 1-4
Components......................................................................................... 1-6
Dimensions .......................................................................................... 1-8
Technical Data ..................................................................................... 1-9
Chapter 2 Deployment Touch Panel ............................................... 2-1
Installation............................................................................................ 2-2
Commissioning..................................................................................... 2-4
Connection to a PLC system .............................................................. 2-11
Operating system Windows®CE 5.0 .................................................. 2-12
Communication via ActiveSync .......................................................... 2-17
Integrated Server ............................................................................... 2-19
Access to the network resources........................................................ 2-26
Firmware update ................................................................................ 2-28
Chapter 3 Installation Guidelines.................................................... 3-1
Basic rules for the EMC-equitable assembly of installations................. 3-2
EMC-equitable assembly...................................................................... 3-6
EMC-equitable cabling ......................................................................... 3-7
Special precautions providing high noise immunity ............................ 3-11
Checklist for the EMC-compliant installation of controllers ................. 3-12

Contents Manual VIPA HMI
ii HB160E - TP - RE_62F-DCB0 - Rev. 11/14

Manual VIPA HMI About this manual
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 1
About this Manual
The manual describes the Touch Panel TP 605LQE from VIPA. Here you
find detailed descriptions of the Touch Panel beside a product overview.
You get information about structure, project engineering and operation of
the Touch panels from VIPA.
Chapter 1: Hardware description
During this chapter you get hints for deployment of the Touch Panel
TP 605LQE from VIPA.
Besides of a description of the single components of the Touch Panel, you
will also find the dimensions that are required for the installation. The
chapter closes with the technical data.
Chapter 2: Deployment Touch Panel
This chapter deals with the application of the Touch Panel.
At the beginning of the chapter you get information about the assembly and
the connection of the Touch Panel. The main part of the chapter introduces
Windows®CE and the various communication options offered by the Touch
Panel.
Chapter 3: Installation guidelines
The chapter "Installation Guidelines" gives you information about the
interference-free installation of Programmable Logic Controls (PLC)
together with a Touch Panel.
Here we describe possible paths how interference can enter the controller,
how you ensure the electromagnetic compatibility (EMC) and how to
approach shielding and screening issues.
Overview

About this manual Manual VIPA HMI
2 HB160E - TP - RE_62F-DCB0 - Rev. 11/14
This manual describes the Touch Panels from VIPA. The manual consists
of chapters. Every chapter provides the description of one specific topic.
It describes the installation, project engineering, usage and the technical
data.
This manual is part of the documentation package
with order number VIPA HB160E_TP and relevant for:
Product Order number as of state:
HW OS
TP 605LQE VIPA 62F-DCB0 01 Windows®CE 5.0
This manual provides the following guides:
• An overall table of contents at the beginning of the manual
• An overview of the topics for every chapter
The manual is available in:
• printed form, on paper
• in electronic form as PDF-file (Adobe Acrobat Reader)
[Button] Buttons are put in brackets e.g. [NEXT] or [OK].
[Key] Key entry are put in brackets e.g. [STRG]+[A].
Display
output
Display outputs are illustrated as Courier e.g.
\flashdisk>
Keyboard
entry Keyboard entries are illustrated as Courier bold e.g.
\flashdisk> Dir
Terms Menus, Display elements, terms are italics.
Important passages in the text are highlighted by following icons and
headings:
Danger!
Immediate or likely danger.
Personal injury is possible.
Attention!
Damages to property is likely if these warnings are not heeded.
Note!
Supplementary information and useful tips.
Objective and
contents
Guide to the
document
Availability
Description
conventions
Icons
Headings

Manual VIPA HMI Safety information
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 3
Safety information
The Touch Panels are constructed and manufactured for:
• VIPA CPUs 11x, 21x, 31x, 51x and S7-300/400 from Siemens
• communication and process control
• general control and automation applications
• industrial applications
• operation within the environmental conditions specified in the technical
data
• installation into a cubicle
Danger!
This device is not certified for applications in
• in explosive environments (EX-zone)
The manual must be available to all personnel in the
• project design department
• installation department
• commissioning
• operation
The following conditions must be met before using or commissioning
the components described in this manual:
• Modification to the process control system should only be carried out
when the system has been disconnected from power!
• Installation and modifications only by properly trained personnel
• The national rules and regulations of the respective country must be
satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!
Applications
conforming with
specifications
Documentation
Disposal

Safety information Manual VIPA HMI
4 HB160E - TP - RE_62F-DCB0 - Rev. 11/14

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 1-1
Chapter 1 Hardware description
During this chapter you get hints for deployment of the Touch Panel
TP 605LQE from VIPA.
Besides of a description of the single components of the Touch Panel, you
will also find the dimensions that are required for the installation. The
chapter closes with the technical data.
Topic Page
Chapter 1 Hardware description ..................................................... 1-1
Safety information for Users................................................................. 1-2
Properties............................................................................................. 1-3
Structure .............................................................................................. 1-4
Components......................................................................................... 1-6
Dimensions .......................................................................................... 1-8
Technical Data ..................................................................................... 1-9
Overview
Content

Chapter 1 Hardware description Manual VIPA HMI
1-2 HB160E - TP - RE_62F-DCB0 - Rev. 11/14
Safety information for Users
VIPA modules make use of highly integrated components in MOS-
technology. These components are extremely sensitive to over-voltages
that can occur during electrostatic discharges.
The following symbol is attached to modules that can be destroyed by
electrostatic discharges:
The symbol is located on the module, the module rack or on packing
material and it indicates the presence of electrostatic sensitive equipment.
It is possible that electrostatic sensitive equipment is destroyed by energies
and voltages that are far less than the human threshold of perception.
These voltages can occur where persons do not discharge themselves
before handling electrostatic sensitive modules and they can damage
components thereby, causing the module to become inoperable or
unusable. Modules that have been damaged by electrostatic discharges
may fail after a temperature change, mechanical shock or changes in the
electrical load.
Only the consequent implementation of protection devices and meticulous
attention to the applicable rules and regulations for handling the respective
equipment can prevent failures of electrostatic sensitive modules.
Modules have to be shipped in the original packing material.
When you are conducting measurements on electrostatic sensitive
modules you should take the following precautions:
• Floating instruments must be discharged before use.
• Instruments must be grounded.
Modifying electrostatic sensitive modules you should only use soldering
irons with grounded tips.
Attention!
Personnel and instruments should be grounded when working on
electrostatic sensitive modules.
Handling of
electrostatic
sensitive modules
Shipping of
electrostatic
sensitive modules
Measurements
and alterations on
electrostatic
sensitive modules

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 1-3
Properties
The Touch Panel allows you to visualize and alter operating states and
recent process values of a connected PLC.
The VIPA Touch Panel is a compact and modular embedded PC based on
Windows®CE. Besides of the extensive Windows®CE functions the Touch
Panel offers varied communication possibilities. Here the Touch Panel can
simply be configured, controlled and remoted. By including a selectable
HMI/SCADA runtime the Touch Panel is particularly suitable for monitoring
and controlling of process cycles.
• Windows®CE 5.0 Core
• different HMI/SCADA-Runtime selectable
• 520MHz pulse frequency
• work memory 64Mbyte
about 6Mbyte memory for user data on board
• MMC/SD card slot
• horizontal and vertical display selectable in 90° steps
• USB-B and Ethernet interfaces on board
• robust aluminium die casting case
• display resolution 240 x 320 / 320 x 240 (16 levels)
• battery backed clock
• resistive touch screen
• easy mounting via integrated pivoted lever
• protection class IP65 (frontal)
Type Order number Description
TP 605LQE VIPA 62F-DCB0 5.7" QVGA, LCD monochrome, Ethernet RJ45, USB-B
General
TP 605LQE
62F-DCB0
Order data

Chapter 1 Hardware description Manual VIPA HMI
1-4 HB160E - TP - RE_62F-DCB0 - Rev. 11/14
Structure
[1] Slot for storage medium
(SD/MMC)
[2] Connection for interfaces and
power supply
Touch Panel
1
2
3
[3] Display with touch sensitive area
(touch screen)
[1] MMC / SD
1
Note!
Please only use storage media, which are tested and approved by VIPA
GmbH.
Front view
Side view

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 1-5
12
4
3

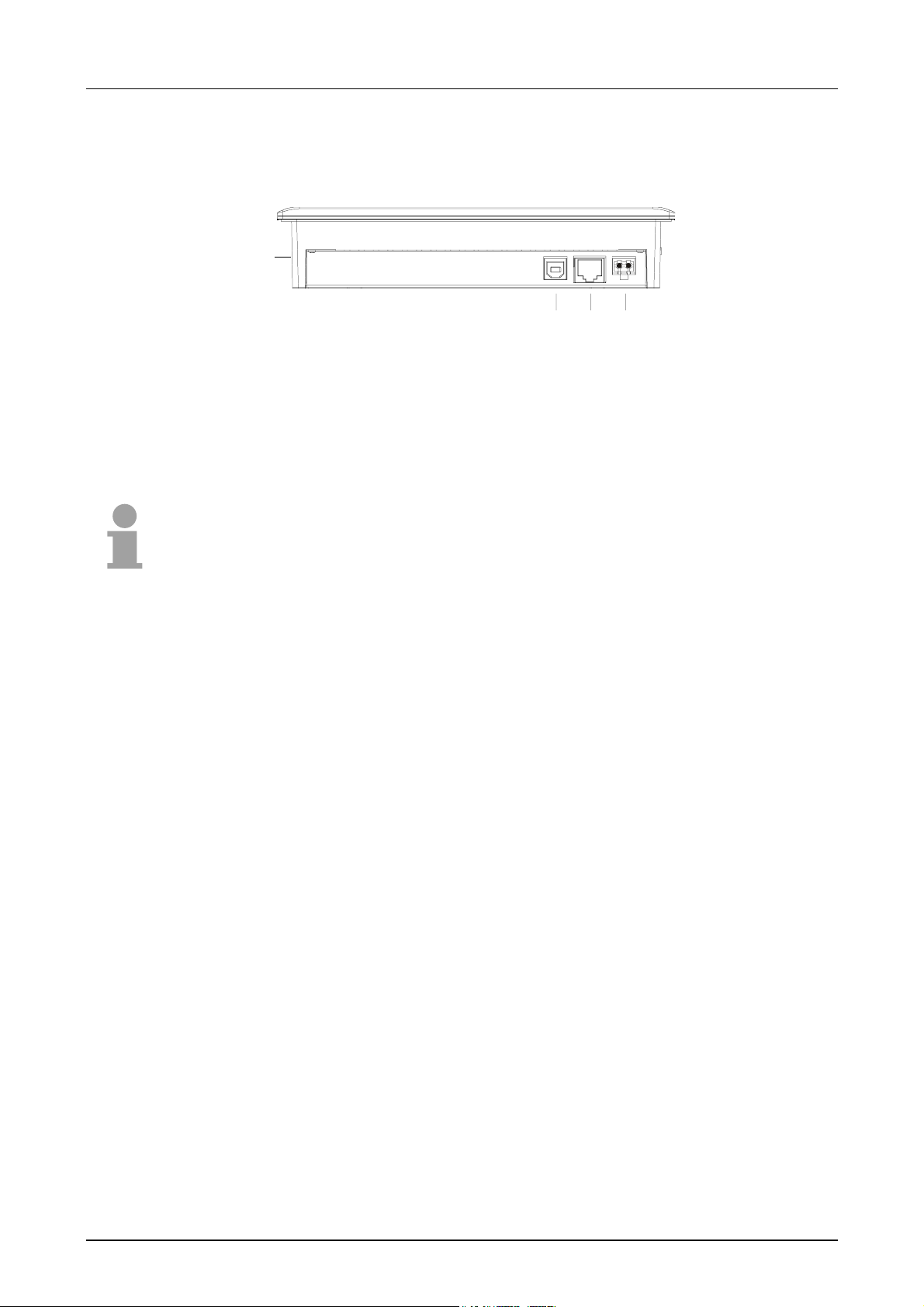

[1] "Slave"-USB-B interface
[2] RJ45 jack for Ethernet communication
[3] Slot for DC 24V voltage supply
[4] Slot for SD/MMC storage medium
Note!
Please regard that the Touch Panel always has to be supplied with external
voltage!
Bottom view
(Interfaces)
TP 605LQE 5.7''
62F-DCB0
Components

Chapter 1 Hardware description Manual VIPA HMI
1-6 HB160E - TP - RE_62F-DCB0 - Rev. 11/14
Components
The following memory systems are available for every Touch Panel:
• 64Mbyte work memory
• 32Mbyte Flash disk (6Mbyte for user data)
• Slot for MMC/SD
Every Touch Panel has a work memory with a size of 64Mbyte. The work
memory is not buffered and is deleted after shut down. Please regard that
also registry entries are stored in the work memory that are set back to
default settings after the next re-boot. You may save them permanently by
means of the KuK Tools (within consignment).
As internal permanent storage medium every Touch Panel has a flash disk
with a size of 32Mbyte (6Mbyte user data). After the start of Windows®CE
this memory is listed as Flashdisk at My Device.
At this slot you may plug storage modules of the type SD or MMC. The
card may be plugged and removed during runtime and is immediately listed
as SDMMC Card at My Device.
Please take care to plug the according card as shown at the backside of
the Touch Panel.

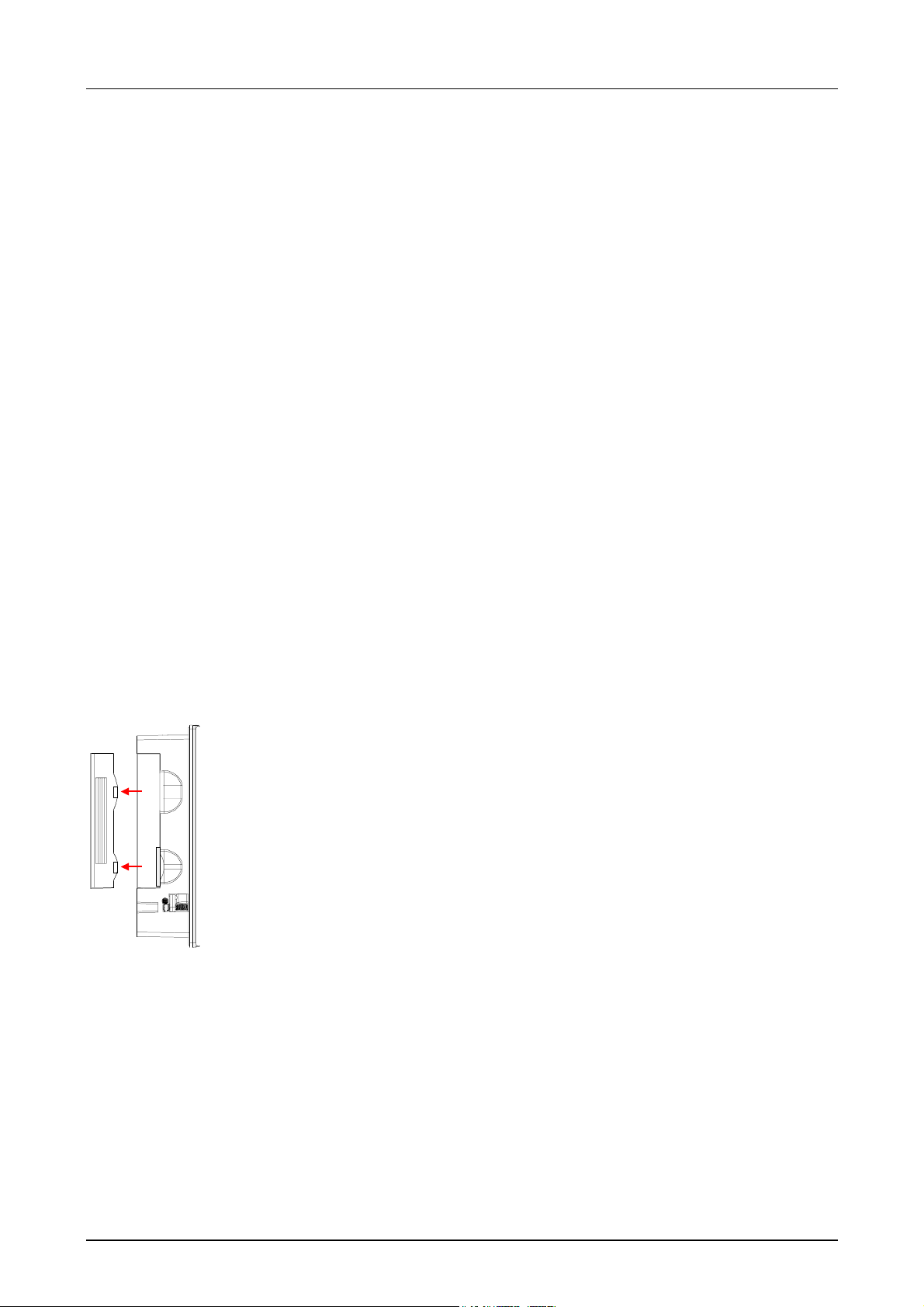

Security flap for
memory cards
At the left side of the Touch Panel are the card slots for memory cards. The
cards are visibly covered by a security flap and are thus secured from
slipping out.
Please take care to pull the security flap back before plugging or pulling a
memory card like shown in the illustration and put it back again afterwards.
When plugging, the security flap additionally snaps into position above the
plugged memory card.
Memory
management
Work memory
Flash disk
Slot for SD/MMC

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 1-7

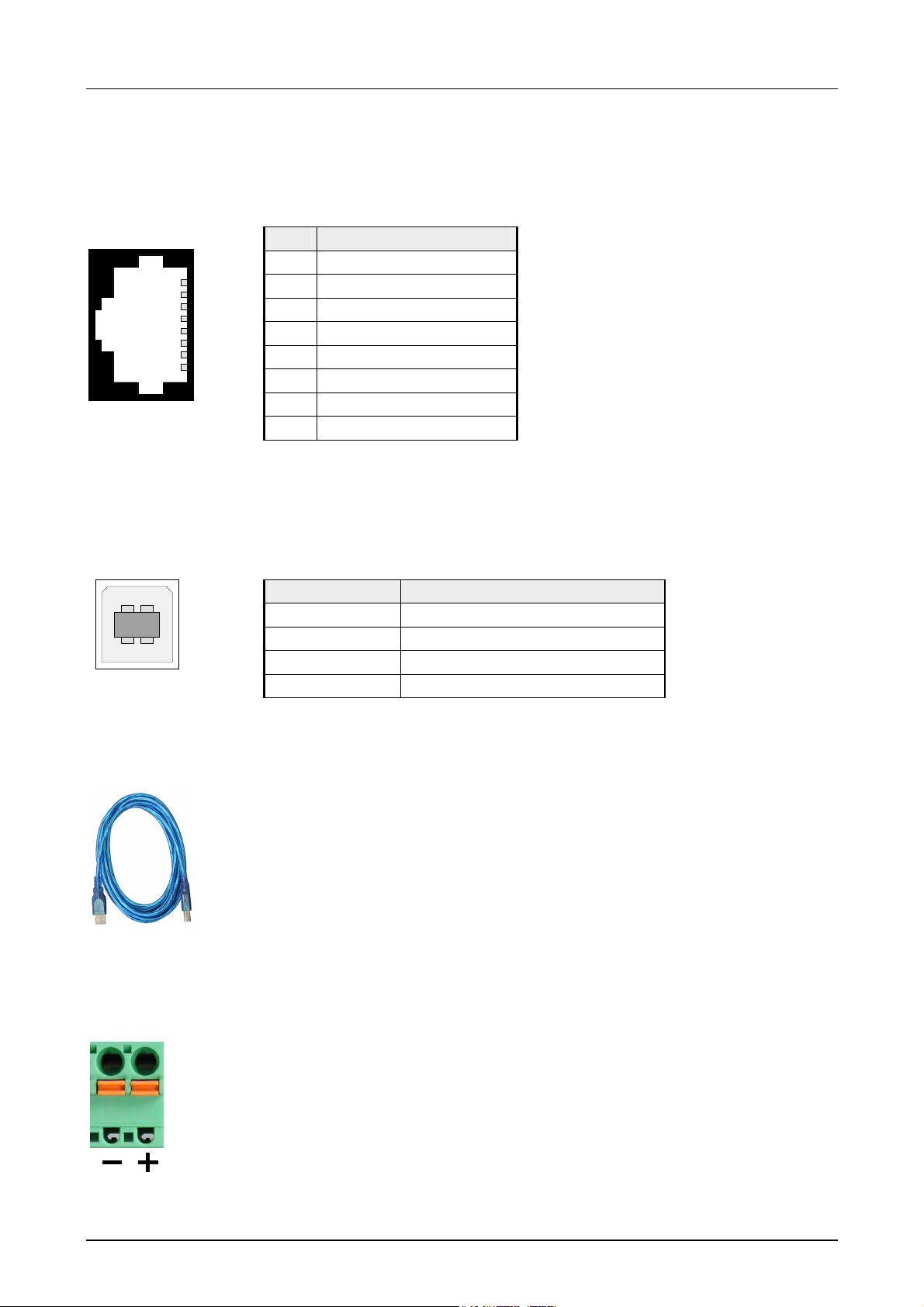

An RJ45 jack provides the interface to the twisted pair cable, required for
Ethernet. The pin assignment of this jack is as follows:
8pin RJ45 jack
Pin Signal
1 Transmit +
2 Transmit -
3 Receive +
4 -
5 -
6 Receive -
7 -
8 -
For project transfer with Microsoft ActiveSync a programming cable can be
connected using the "Slave"-USB-B interface.
The pin assignment is as follows:
"Slave"-USB-B:
Pin Assignment
1 VCC
2 DM
3 DP
21
34
4 GND
The USB-A interface of your PC can be connected to the "Slave"-USB-B
interface of your Touch Panel deploying the USB programming cable.
The USB programming cable is delivered by VIPA with order No.
VIPA 670-0KB10.
The Touch Panel has got an integrated power supply. The power supply
has to be provided with DC 24V (20.4 ... 28.8V). For this you find an
according DC 24V slot at the bottom side.
DC 24V
The power supply is protected against inverse polarity and overcurrent.
Ethernet
connection
1
2
3
4
5
6
7
8
"Slave"-USB-B
VIPA USB-B
Programming cable
Power supply

Chapter 1 Hardware description Manual VIPA HMI
1-8 HB160E - TP - RE_62F-DCB0 - Rev. 11/14
Dimensions
installation width
installation hight
installation
depth
width
hight
For the installation of the Touch Panel in control cabinets and desks the
following dimensions are necessary:
Front panel width 2.5 ... 6mm
Installation cutting (W x H) 200 x 144mm
Front panel (W x H) 212 x 156mm
Back side (W x H x D) 198 x 142 x 37mm
Installation depth 37mm
Note!
The degrees of protection are only guaranteed when the following is
observed:
• Material thickness at the mounting cut-out: 2.5 ... 6mm
• The deviation from the plane for the panel cut-out is ≤0.5mm. This
condition must be fulfilled for the mounted HMI device
• Permissible surface roughness in the area of the seal: ≤120µm
(friction coefficient 120)
Installation
dimensions
5.7''
62F-DCB0

Manual VIPA HMI Chapter 1 Hardware description
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 1-9
Technical Data
Order number 62F-DCB0
Type Touch Panel TP 605LQE
Display
Display size (diagonal) 5.7 "
Display size (width) 115.2 mm
Display size (height) 86.4 mm
Resolution 240 x 320 / 320 x 240
Type of display STN LCD monochrome
(in 16 steps)
MTBF Backlights (25°C) 75000 h
System properties
Processor Xscale 520 MHz
Operating system Windows CE 5.0
Flash memory 32 MB
RAM 64 MB
Avilable memory (user data) -
SD/MMC Slot !
CF Card Slot Typ II -
Time
Real-time clock buffered !
Clock buffered period (min.) 6 W
Accuracy (max. deviation per day) 10 s
Operating controls
Touchscreen resistive
Keyboard -
Mouse -
Interfaces
MPI, PROFIBUS DP -
MPI, PROFIBUS DP connector -
CAN -
CAN connector -
Serial, COM1 -
COM1 connector -
Serial, COM2 -
COM2 connector -
Number of USB-A interfaces -
USB-A connector -
Number of USB-B interfaces 1
USB-B connector USB-B (device)
Number of ethernet interfaces 1
Ethernet Ethernet 10/100 MBit
Ethernet connector RJ45
Integrated ethernet switch -
Technical data power supply
Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection !
Current consumption (rated value) 0.4 A
Inrush current -
Power loss -
Status information, alarms, diagnostics
Supply voltage display yes

Chapter 1 Hardware description Manual VIPA HMI
1-10 HB160E - TP - RE_62F-DCB0 - Rev. 11/14
Order number 62F-DCB0
Mechanical data
Housing / Protection type
Material die-cast aluminum
Mounting via integrated pivoted lever
Protect type front side IP 65
Protect type back side IP 20
Dimensions
Front panel 212 x 156 x 7.5 mm
Rear panel 198 x 142 x 37 mm
Installation cut-out
Width 200 mm
Height 144 mm
Minimum 2.5 mm
Maximum front panel thickness 6 mm
Weight 1550 g
Environmental conditions
Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Certifications
UL508 certification in preparation

Manual VIPA HMI Chapter 2 Deployment Touch Panel
HB160E - TP - RE_62F-DCB0 - Rev. 11/14 2-1
Chapter 2 Deployment Touch Panel
This chapter deals with the application of the Touch Panel.
At the beginning of the chapter you get information about the assembly and
the connection of the Touch Panel. The main part of the chapter introduces
Windows®CE and the various communication options offered by the Touch
Panel.
Topic Page
Chapter 2 Deployment Touch Panel ............................................... 2-1
Installation............................................................................................ 2-2
Commissioning..................................................................................... 2-4
Connection to a PLC system .............................................................. 2-11
Operating system Windows®CE 5.0 .................................................. 2-12
Communication via ActiveSync .......................................................... 2-17
Integrated Server ............................................................................... 2-19
Access to the network resources........................................................ 2-26
Firmware update ................................................................................ 2-28
Overview
Content

Chapter 2 Deployment Touch Panel Manual VIPA HMI
2-2 HB160E - TP - RE_62F-DCB0 - Rev. 11/14
Installation
The Touch Panel is suitable for the installation in operating tables and
control cabinet fronts. The installation happens via the backside. The
Touch Panel is provided with a patented integrated fixing technique that
allows an easy connection with a simple screwdriver.
Due to the fact that the Touch Panel has a plug connector for bus
connection and voltage supply, a fast and easy device change is possible.
For the installation into a operating tableau and control cabinet fronts, the

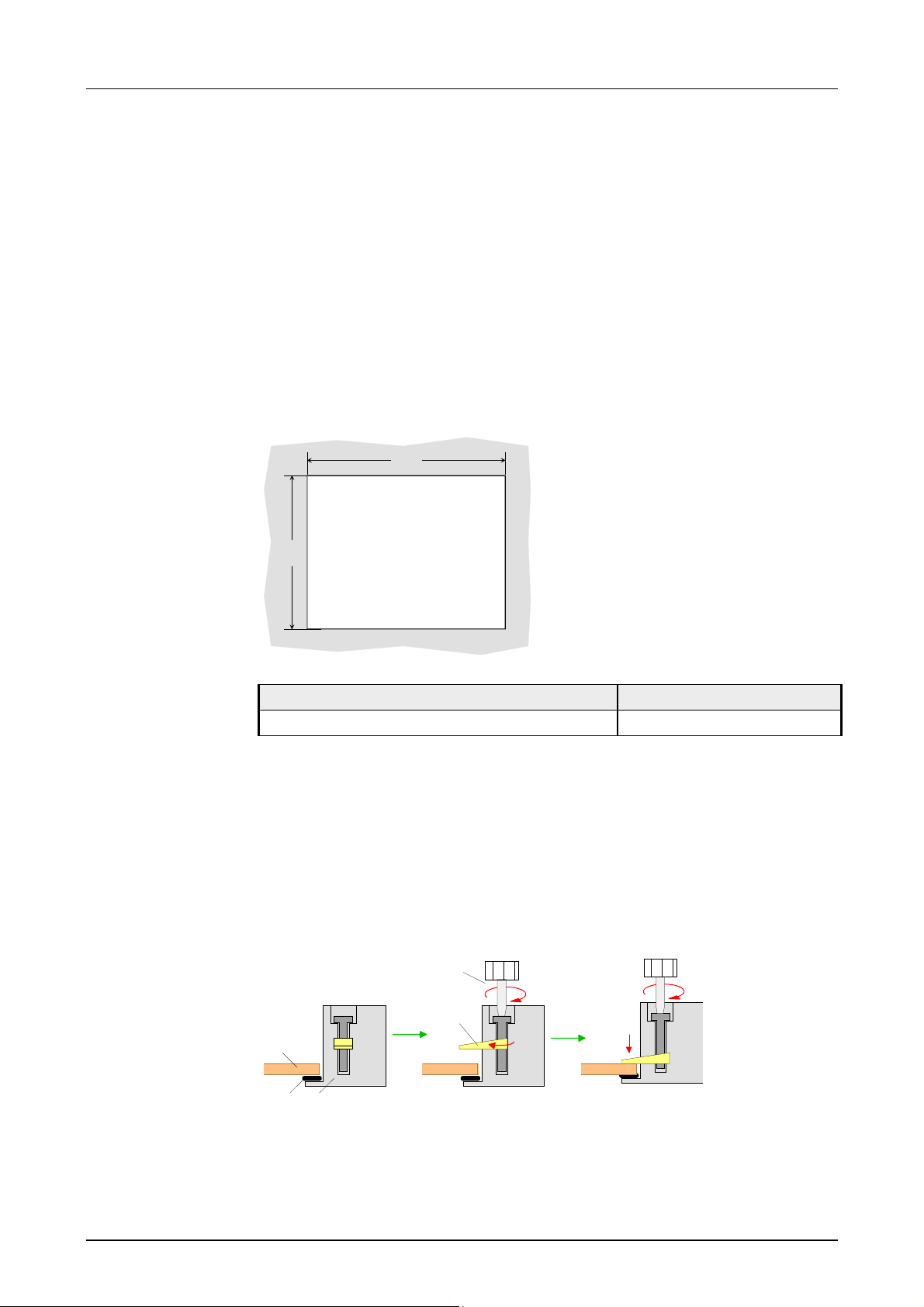

Touch Panel requires the following front plate cutting:
W
H
Touch Panel W x H in mm
62F-DCB0 200 x 144
The fixing technique is integrated in the casing of the Touch Panel and
accessible via the backside.
For the installation, a small slit screwdriver is required. Push the operator
panel [3] from the front side into the front panel cutting [1] until it touches
the panel with the seal [2]. Now bolt the lever [5] clockwise with the
screwdriver [4] until it rotates to the outside. Further screwing bolts the
lever to the front panel until it holds this to the control cabinet front.
1
23
4
5
Overview
Installation cutting
Installation
