Viper SCRUBBER FANG 18C User manual

1
SAFETY PRECAUTIONS
This machine is intended for commercial use. It is
constructed for use in an indoor environment and
is not intended for any other use. Use only with
recommended accessories.
All operators shall read, understand and exercise
the following safety precautions:
1) DO NOT OPERATE MACHINE:
•Unless trained and authorized.
•Unless you have read and understand
the operators manual.
•In flammable or explosive areas.
•If not in proper operating condition.
•In outdoor areas.
2) BEFORE OPERATING MACHINE:
•Make sure all safety devices are in
place and operate properly.
3) WHEN USING MACHINE:
•Follow all safety guidelines.
•Report and fix any damage to machine
prior to operating it.
4) BEFORE LEAVING OR SERVICING
MACHINE:
•Stop machine on level ground.
•Turn machine off. Unplug cord from
outlet.
5) WHEN SERVICING MACHINE:
•Read operators manual thoroughly
prior to operating or servicing this
machine.
•Turn machine off. Unplug cord from
outlet.
•Use manufacturer supplied or
approved replacement parts.
: Flammable materials can cause an
explosion or fire. Do not use flammable materials
in tanks.
: Flammable materials or reactive
metals can cause explosion or fire. Do not pick up.

2
MACHINE SET UP & INSTALLATION
UNPACK MACHINE
Be sure and check packing carton for any damage.
Immediately report any damage to carrier. Be
careful not to let machine vibrate while carrying,
Check contents of package to ensure that the
following items are included: Machine, squeegee
assembly, pad driver.
MACHINE SET UP
PRE-OPERATION CHECKS
1. Sweep the outside of the machine.
2. Make sure the voltage of machine conform to
local voltage.
3. Check that squeegee is properly installed.
4. Check that brush / pad is properly installed.
5. Bumper doesn’t touch the floor directly. The
gap between the bumper and the floor surface
can be adjusted by adjusting sliding plate.
6. The forward speed of machine can be
controlled by turning the butterfly nut. Turn
the nut clockwise to speed up machine. or turn
the nut anticlockwise to slow down machine.
7. Make sure the working surface can support the
machine weight, the gradient of the floor can’t
exceed the limit that machine allow.
INSTALLING PAD DRIVER OR BRUSH
1. Unplug machine.
2. Tilt the machine backwards, line up the drive
pulley hub with the hole of brush or pad driver,
make sure the three blocks are fitted into the
three slots of drive pulley.
3. If a pad driver is being used, the appropriate
pad should be attached to the pad driver first.
4. Plug power cord into a grounded outlet, switch
on the brush motor and then pull the operating
triggers gently to mount the pad driver or
brush automatically.
INSTALLING THE SQUEEGEE
1. Loosen the two knobs on the squeegee and
slide the squeegee into the slots at the rear of
the squeegee bracket. (the wheels on the
squeegee point to the back)
2. Tighten the knobs securely.
FILLING THE SOLUTION TANK
1. The fill port is located at the rear of machine.
2. Fill solution tank with water. (water
temperature should not exceed 104° F) The
clear tube in the back right of the machine has
gallon markers to help determine the water
level in the solution tank
: Do not put any flammable materials
into solution tank. This can cause an explosion or
a fire. Only use recommended cleaning chemicals.
Contact your janitorial supply distributor for
recommendations on proper chemicals.
MACHINE OPERATION
: Do not operate machine unless you
have read and understand this manual.
1. Adjust control housing to a comfortable
operating height by squeezing together the two
thumb levers directly underneath the housing.
2. Lower squeegee assembly to the floor.
3. Turn brush motor switch to “on” position.
4. Turn vacuum motor switch to “on” position.
5. Rotate the ball valve of solution tank to
horizontal position. Solution will not begin to
flow until the operating triggers are pulled.
6. To begin scrubbing, pull on one or both of the
red operating triggers, when these triggers are
pulled, the pad driver will begin to spin and
the solution will begin to flow.
7. Begin scrubbing by moving the machine
forward.
: Do not keep the machine in the same
position with the pad / brush spinning, or you
could cause damage to the floor.

3
8.Adjust solution flow by adjusting the position
of ball valve knob.
WHILE OPERATING MACHINE
1. Occasionally look through the clear recovery
tank lid to see if there is any foam build-up. If
excessive foam is found, add defoamer to the
recovery tank.
: Foam must not enter the float shut-off
screen, or damage can occur to the vacuum motor.
Foam will not activate the machines float shut-off
device.
2. Occasionally view the clear tube at the back
right of themachine tocheck the amount of
cleaning solution that is right of the machine.
If the squeegee assembly leaves streaks on the
floor, raise the squeegee off the floor and wipe the
blades down with a damp cloth.
: Do not use your fingers to wipe or
remove debris from the blades, as injury may
occur.
When the solution tank runs empty, turn off the
brush switch and ball valve of solution tank.
Keep the squeegee down and continue to vacuum
until all the dirty water is picked up.
TANK DRAINING
1. Turn the switches on the control panel to
“off ” position.
2. Raise the squeegee, transport machine to
approved area for draining tank(s).
DRAINING THE RECOVERY (DIRTY) TANK
: Any time scrubbing is completed, or when
refilling solution tank, the recovery tank should be
drained and cleaned.
: If the recovery tank is not drained
when the solution tank has been refilled, foam or
water may enter the float shut-off mechanism and
cause damage to the vacuum motor.
1. Remove the drain hose from the holder, and
place the drain hose over the floor drain.
Twist off the drain hose plug to begin the
draining process.
2. Clean the recovery tank after every use. Use a
fresh water hose to rinse out the recovery tank.
Be careful not to spray water into the float
shut-off mechanism.
: If you are storing the machine for any
period of time, always leave the clear recovery
tank lid off the tank so the tank can dry
completely and smell fresh.
DRAINING THE SOLUTION (CLEAN) TANK
: Any time scrubbing operation is completed,
the solution tank should be drained and cleaned.
1. Pull down on the clear tube (back right of the
machine) to remove it from the hose barb.
This will allow the solution to flow freely into
a bucket or floor drain.
2. Rinse the solution tank with clean water after
every use. This will help prevent chemical
buildup and clogging of the solution lines.
3. Once tank is rinsed, flushed and drained,
reconnect the clear tube to the hose barb. Be
sure the tube is pushed all the way up on the
hose barb.
PREVENTATIVE MAINTENANCE
: Before performing any maintenance on
the machine, be sure that the power is turned off.
: Repairs are to be completed by
Authorized Service Centers only. Any repairs
completed by unauthorized persons will void the
warranty.
1. Remove pad driver / brush and clean with
approved cleaner.
2. Drain recovery and solution tanks completely
and rinse out with clean water. Visually check
the recovery tank for debris and clean out as
necessary.
3. Raise squeegee assembly off floor and wipe

4
it down with a damp towel. Be sure to store
the squeegee in the up position.
4. Remove the float shut-off assembly and rinse
it out with clean water.
5. Clean machine with an approved cleaner and a
damp towel. Don’t spray water to clean the
outside of machine to avoid damage to motor
and wiring.
6.Unplug vacuum motor from power source and
hose cuff & remove the drain hose from the
holder prior to removing the recovery tank
when performing maintenance.
VACUUM MOTOR MAINTENANCE
1. Contact your local Viper Distributor for any
motor maintenance.
2. Check the vacuum motor brushes every 250
hours, Replace the brushes when they are
worn to a length of 10mm or less.
MACHINE STORAGE
1. Always store the machine indoors.
2. Always store the machine in a dry area.
3. Always take off the pad driver / brush
4. Always store the machine with the squeegee
assembly raised off the floor.
5. If storing in an area which may reach freezing
temperatures, be sure to drain all fluids from
the machine prior to storage. Any damage
caused by freezing temperatures will not be
covered by the warranty.
6. Drain the recovery tank and remove the clear
on the top of the recovery tank so that it can
“breathe” during storage.
7. Drain the solution tank of all fluid.

BASIC TROUBLESHOUTING
PROBLEM CAUSE SOLUTION
The wiring not connected correctly or
bad wiring Check the wiring or contact Viper Distributor
Bad brush motor Contact Viper Distributor
Carbon brushes worn out Contact Viper Distributor
The wiring not connected correctly or
bad wiring Check the wiring or contact Viper Distributor
Bad vacuum motor Contact Viper Distributor
Carbon brushes worn out Contact Viper Distributor
Bad ball valve Contact Viper Distributor
Bad solution valve Contact Viper Distributor
Ball valve position in need of
adjustment
When ball valve is in horizontal position. The
amount of solution flow is maximum.
Squeegee clogged Clean debris off squeegee with damp towel
Squeegee blades worn Install new squeegee blades
Squeegee not mounted correctly Confirm that the squeegee assembly is securely
fastened to the machine and not loose fitting
Vacuum hoses have a hole or are loose Check hose connections and make sure they are
firm. Replace hose if damaged.
Vacuum hose may be clogged Check hose for debris and remove any clog.
Drain hose stopper is loose Tighten drain plug.
Vacuum motor is loose Tighten vac motor mounting screws. Do not
over tighten or damage will occur.
Recovery tank lid is loose Confirm the clear recovery tank lid is securely in
place.
Recovery tank is full Drain recovery tank
Float shut off is clogged Remove float shut off from inside recovery tank
and remove any debris
No Power
Vacuum motor
does not run
Little or no
solution flow
Poor water pick
up
5

mm054htdiWgnikroW
mm057htdiWeegeeuqS
Efficiency 1100m2/h
mm054.aiDhsurB
mpr552deepShsurB
gK03erusserPdaPxaM
W057,V511-011rotoMhsurB
W056,V511-011rotoMmuucaV
L03yticapaCknaTnoituloS
L14yticapaCknaTyrevoceR
gK86thgieWenihcaM
mm0011htgneLenihcaM
mm079thgieHenihcaM
mm545htdiWenihcaM
M52htgneLelbaC
%2tneidarGxaM
noitazitamotuA-imeSevirDfoepyT
Bd07leveLesioN
rabm551muucaVgnikroW
6
Technical Specifications:

DIA

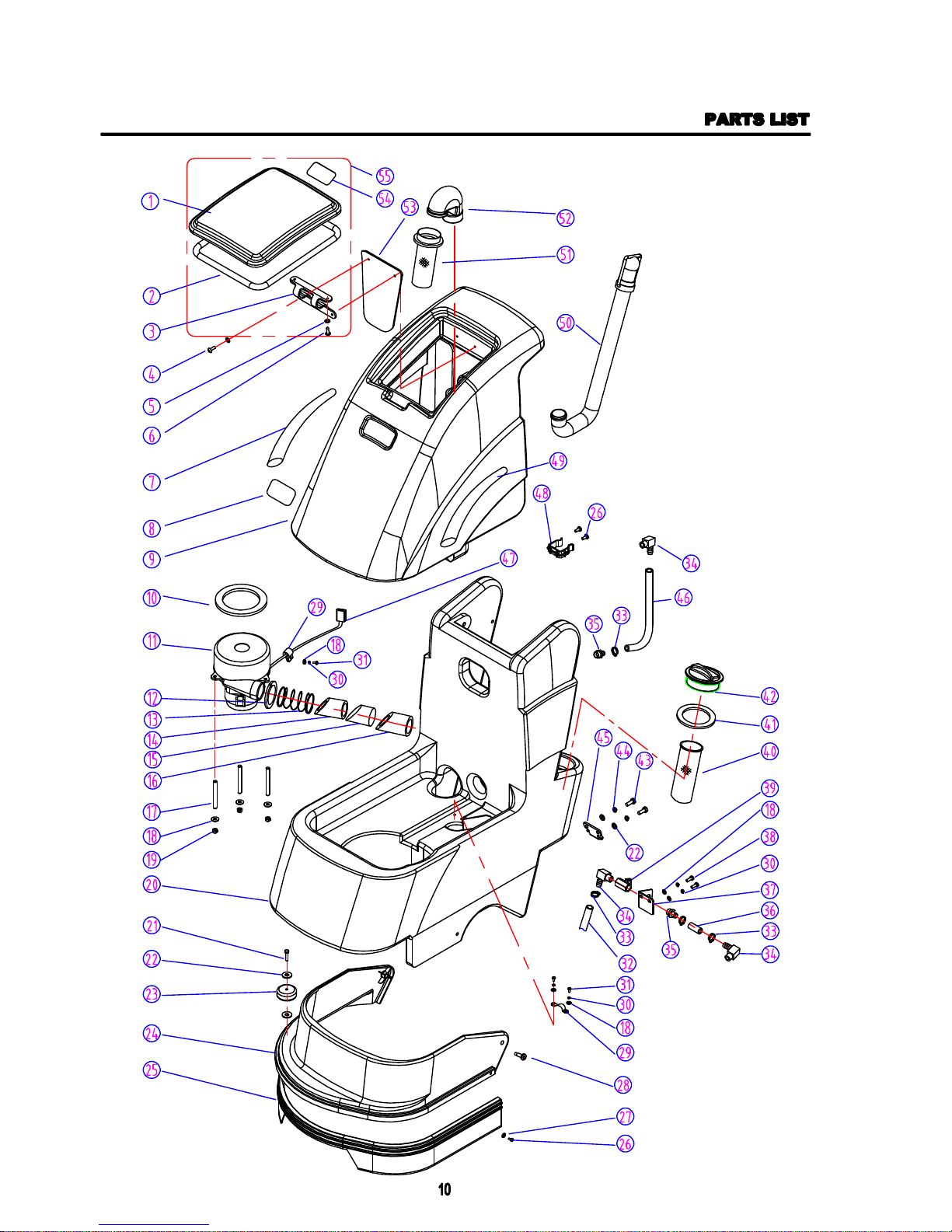

NO. PART NUMBER DESCRIPTION NO. REQ'D
1VF80111 FILTER, CLEAR DOME 1
2VF82139 “O” RING 1
3VF80113 FILTER 1
4VV20501 SCREW, PH, SST, M5 X 14 2
5VV13654 WASHER, SST, M5 2
6VF80112 MOUNTING BASE, FILTER 1
7VF82090 CLAMP, HOSE 5
8VF80349 HOSE, INLET, FILTER 1
9VF13521 NUT, M6 12
10 VF13533 WASHER, M6 12
11 VV13607 WASHER, LOCK, M6 12
12 VF13495 SCREW, M6 X 16 12
13 VF80123B AXLE, WHEEL 2
14 VF82113 BUSHING 2
15 VF80115B WHEEL, 6" 2
16 VF14257 NUT, NYLON INSERT, M16 2
17 VF80110 CHASSIS 1
18 VF80109 CONNECTOR 1
19 VV13604 SCREW, HEX, M8 X 20 4
20 VF14313 WASHER, INTERNAL TOOTH, M8 2
21
VF13514A
WASHER PLAIN M8
5
21
VF13514A
WASHER
,
PLAIN
,
M8
5
22 VF80130 WASHER, M8 4
23 VF80132 BUSHING 4
24 VF80216U SOLUTION VALVE, 110V 1
25 VF80238 HOSE, OUTLET, VALVE 1
26 VF80119A MOUNTING FRAME, VALVE 1
27 VA13483 WASHER, PLAIN, M4 2
28 VV20291 WASHER, LOCK, M4 2
29 VA13473 SCREW, PH, M4 X 16 2
30 VF80114 OUTLET FILTER 1
31 GT13022 NUT, NYLON INSERT, M5 2
32 VF80120 MOUNTING PLATE, FILTER 1
33 VV60220S1 SCREW, HEX SOCKET, M6 X 15 1
34 VF80207 WASHER, PLAIN BRASS 1
35 VF80240 KEY 1
36 VF80220 DRIVING PULLEY 1
37 VF13503 NUT, NYLON INSERT, M8 5
38 YCQ35000A MOTOR, 110V 1
39 VF80241 GASKET 1
40 VF14314 WASHER, EXTERNAL TOOTH, M8 2
41 GT13018 BOLT, M8 X 30 2
42 VF13513 NUT, M8 3
43 VF80206 SUPPORTING SHELF 1
44 VF80237 SPRING 1
45 VF14114 BOLT, M8 X 55 1
8

DIA
NO. PART NUMBER DESCRIPTION NO. REQ'D
46 TUNNIHT22208FV 1
47 42M,NIALP,REHSAW51341FV 1
48 VF81403BARB, HOSE, 90° DEG 1
49 VF14255 SET SCREW, M12 X 65 1
50 21M,TUNA75041FV 1
51 EMARF10208FV 1
52 TLOB52208FV 1
53 6M,YLFRETTUB,TUN10141FV 1
54 ETALPGNIDILS30208FV 1
55 SSARB,TUN31208FV 1
56 8M,KCOL,REHSAW91531FV 2
57 RECAPS53208FV 1
58 GNIRPS23208FV 1
59 RECAPS32208FV 1
60 5026,GNIRAEB728999FV 1
61 EGRAL,RECAPS12208FV 1
62 01X5M,HP,WERCS90502VV 2
63 5M,KCOL,REHS
AW10631VV 2
64 PMALC13138FV 1
65
VF80262
SPRING WIRE
1
65
VF80262
SPRING WIRE
1
66 YELLUPNEVIRD50208FV 1
67 VF80219 SHAFT, DRIVEN PULLEY 1
68 TEKSAG33208FV 1
69 GT13015 SCREW, HEX SOCKET, M6 X 30 1
70 TLEB24208FV 1
71 HTUOMGIBA30099FV 1
72 VF14400 SCREW, ST, M4.2 X 13 3
73 VF13502NUT, NYLON INSERT, M6 3
74 REDLOHDAP21208FV 1
75 YSSAREDLOHDAPA21208FV 1
76 KCOLB81208FV 3
77 VF14225A SCREW, FH, M6 X 40 3
78 VF13535 WASHER, PLAIN, M8 X M20 X 2 4
79 UL2006,GNIRAEB128999FV 2
80 LLAMS,RECAPS90208FV 1
81 LEEHWNOISNET51208FV 1
82 GNIRAEBGNIHSUB41208FV 1
83 8M,EVAW,REHSAW2134
1FV 2
84 LEEHWNOISNET,DOR80208FV 1
85 GT13066 SCREW, HEX SOCKET, M8 X 55 1
86 52X8M,TLOB75631VV 1
87 GT13067 SCREW, HEX SOCKET, M8 X 25 2
88 RETLIF,TIKA11108FV 1
9

DIA
NO. PART NUMBER DESCRIPTION NO. REQ'D
1VF82010 CLEAR COVER,RECOVERY TANK 1
2VF82010B GASKET,CLEAR DOME 1
3EGNIHREBBURA01028FV 1
421X4M,HP,WERCS19431FV 2
5VA13483
W
ASHER, PLAIN, M4 4
6VA13477 SCREW, ST, M4.2 X 16 2
7VF80343A MODEL DECAL, RIGHT 1
8OGOL"REPIV"A62308FV 1
9KNATYREVOCER20308FV 1
10 ROTOM,TEKSAG30518FV 1
11 ZD55000A VACUUM MOTOR, 110
V
1
12 EIT61101VV 3
13 GNIRPS64308FV 1
14 TSUAHXE,EGNOPS65308FV 1
15 REVOCCITSALP85308FV 1
16 VF80357 HEAT RESISTANCE COVER 1
17 TLOB01328FV 3
18 VF13533
W
ASHER, PLAIN, M6 7
19 VF13502 NUT, NYLON INSERT, M6 3
20 KNATNOITULOS10308FV 1
21 04X8M,TLOB63241FV 1
22 VF13514A
W
ASHER, PLAIN, M8 4
23 VF82013
W
HEEL, 3" 1
24
VF80308
SKIRT
1
24
VF80308
SKIRT
1
25 REPMUBA91308FV 1
26 41X5M,HP,WERCS10502VV 8
27 VV13654
W
ASHER, PLAIN, M5 X M9.5 X 0.86
28 VF80355 SCREW, SHOULDER, M10 X 16 X M8 2
29 PMALC21705VV 1
30 VV13607
W
ASHER, LOCK, M6 4
31 61X6M,HP,WERCS00241FV 4
32 VF80349 HOSE, OUTLET, BALL VALVE1
33 ESOH,PMALC09028FV 4
34 SSARBESOH,BRAB30418FV 3
35 ESOH,BRAB31308FV 3
36 ESOH84308FV 1
37 VF80321 MOUNTING PLATE, BALL VALVE 1
38 61X6M,TLOB59431FV 2
39 EVLAVLLAB16308FV 1
40 RETLIF45464FV 1
41 LAES60308FV 1
42 LLIF40308FV 1
43 02X8M,TLOB40631VV 2
44 VF13519
W
ASHER, LOCK, M8 2
45 EEGEEUQS,PMALC95308FV 1
46 ESOHNOITULOS74308FV 1
47 DROCC71154FV 1
48 ESOHNIARDPMALC43007VG 1
49 TFEL,LEBALLEDOMA24308FV 1
50 ESOHNIARDA80239AV 1
51 FFOTUHSTAOLF40518FV 1
52 DNEB50376VV 1
53 NEERCS54308FV 1
54 VF80331
W
ARNING LABEL 1
55 DIL,TIK17308FV 1
11

DIA
NO. PART NUMBER DESCRIPTION NO.
REQ'D
1VF81408
A
DJUSTING PLATE 2
2VF13535
W
ASHER, PLAIN, M8 4
3VF13519
W
ASHER, LOCK, M8 4
4VV13604 BOLT, M8 X 20 4
5VF81710
A
DJUSTING SCREW 2
6VF80322 PIN, HANDLE LOC
K
2
7VF80323 TUBE, HANDLE ADJUSTMENT 1
8VF81716 SPRING 1
9VF80317BD LEVER, SWITCH, LEFT 1
10 VV13650 SCREW, PH, M4 X 10 9
11 VF81712 SPRING 1
12 VV13652 NUT, NYLON INSERT, M3 2
13 VF13502 NUT, NYLON INSERT, M6 6
14 VF13511
W
ASHER, PLAIN, M3 2
15 VF14212 SCREW, PH, M3 X 25 3
16 VF80335 GASKET, REAR COVER 1
17 VF80310 REAR COVER 1
18 VF14200 SCREW, PH, M6 X 16 12
19 VF80329 DECAL, SERIAL 1
20 VF99023 SWITCH 1
21 VF81711 SCREW, SHOULDER, M8 X 20 X M6 2
22 VF80307 MOUNTING FRAME, SWITCH 1
23 VA91346 SWITCH 1
24 VF80324
A
DECAL, SWITCH 1
25 VF80305 SWITCH PANEL 1
26 VF80333 GASKET, PANEL 1
27 VF80303
A
CONTROL HOUSING 1
28 VF80318BD LEVER, SWITCH, RIGHT 1
29 VF81713 BUSHING 2
30 VF13537
W
ASHER, PLAIN, M10 2
31 VF14237 BOLT, M10 X 70 2
32 VF45120 CORD 1
33 VV30182 BUSHING, CORD 1
34
A
S41902 PLUG PROTECTOR, FEMALE 1
35 VV13617 NUT, M3 1
36 VF51141 RECEPTACLE 1
37 GT13065 SCREW, ST, 3 X 12 1
38 VF46716 BUSHING 1
39 VF46718 SPRING 1
40 VF46715 BARB 1
41 VF46717
W
ASHER 1
42 VV30142 RUN CAPACITOR, 40uF / 375
V
1
43 GT13027 SCREW, PH, M5 X 45 1
44 VF80365 CLAMP 1
45 VF999805 START CAPACITOR, 380--400uF / 150
V
1
46 VF80369 CORD 1
47 VF99010D CIRCUIT BREAKER, BRUSH 1
48 VF99008B STRAIN RELIEF 1
49 VV67507 PIG TAIL 1
50 VV67105 CONNECTOR, CORD 1
51 VF80362C POWER CORD 1
13

DIA
PART
NO
DIA
NO.
PART
NUMBERDESCRIPTION
NO
.
REQ'D
1VF81222SCREW, HEX SOCKET, SHOULDER, 5/16 X 1.25"3
2"2,LEEHW91218FV 3
3VF13535WASHER, PLAIN, M8 X M20 X 2 3
4VV20203NUT, NYLON INSERT, 5/16"3
5
VF82121
KNOB, M6
6
VF82121
KNOB, M6
6VF82118BACK UP STRIP, SQUEEGEE, FRONT1
7VF82062BLADE, SQUEEGEE, FRONT1
804X8M,TLOB63241FV 4
9EEGEEUQS,GNISUOH61128FV 1
10 "3,LEEHW31028FV 2
11 GNIHSUB55028FV 2
12 VF13514AWASHER, PLAIN, M8 X M16.5 X 1 2
13 VF82063BLADE, SQUEEGEE, REAR 1
14 VF82120BACK UP STRIP, SQUEEGEE, REAR1
15 YSSAEEGEEUQSA80928FV 1
16 GT13022NUT, NYLON INSERT, M5 1
17 KOOH,HCTAL81218FV 1
18
VF81208
RIVET M4 X 5
2
18
VF81208
RIVET
,
M4 X 5
2
19 KOOH90218FV 1
20 06X5M,WERCS50341FV 1
21 VF80422BRACKET, SQUEEGEE, MOUNT1
22 8M,BONK01218FV 2
23 ESOH52408FV 1
24 ESOH,PMALC05138FV 1
25 21M,TUNA75041FV 1
26 21M,KCOL,REHSAW14531FV 1
27 VV20434WASHER, PLAIN, M13 X M30 X 3 2
28 ROTCENNOC90108FV 1
29 GNIHSUB72408FV 1
30 07X21M,NIP49041FV 4
31
VF80426
“U” SHAPE FRAME
1
31
VF80426
“U”SHAPEFRAME
1
32 4M,NIP59041FV 1
33 04X21M,TLOB58031TG 1
34 VF82120AKIT,SQUEEGEE REAR BACKUP STRIP1
15
