MVR-300 4ch Mobile DVR
User’s Manual
7KLVPDQXDOZDVFRPSOHWHDQGFRUUHFWDWWKHWLPHRISULQWLQJ7KHRQJRLQJGHYHORSPHQWRI
WKHSURGXFWVPD\
PHDQWKDWWKHFRQWHQWRIWKHXVHUJXLGHFDQFKDQJHZLWKRXWQRWLFH
7KHPDQXDOZLOOEHNHSWXSGDWLQJSHULRGLFDOO\DQGVRIWZDUHUHIHUUHGDVZHOO
© 2015 ViPRO Corporation

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
Mobile DVR MVR-300
NOTICE
2
NOTICE
The information in this manual was current when published. The contents of this manual are subject to change without prior
notice and will be updated accompanying with the release of new version.
The purpose of this manual is to kindly aid the user for the operation for our MDVR (especially for GUI setting). The user
should have a basic understanding of computer operation and basic knowledge of how to connect peripherals and make
some settings.
Guarantee & Warnings
1) Electrical Apparatus Safety
All installation and operation should comply with local electrical safety norms.
2) Transportation
In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and
water splashing.
3) Installation
Install the equipment in accordance with the requirements, handle carefully. Do not heavily press the equipment
before the MDVR installation is finished.
4) Requirements on Engineers & Technicians
All the work of checking and maintenance should be done by qualified engineers. We do not undertake any problems
caused by unauthorized modifications.
5) Requirements on Environment
The equipment should be installed and stored in a cool and dry place, away from direct sunlight, flammable or
explosive substances, etc. Keep gaps not less than 3cm around the device to facilitate ventilation for cooling.
6) Accessories
Make sure to use accessories from the manufacturer suggested in the attachment.
Insulate circuit ground and metal shell for all the peripherals.
Before installation, please open the package and ensure that all parts are included.
If there are any problems, please contact us as soon as possible.

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
Mobile DVR MVR-300
TABLE OF CONTENT
3
Table of Content
1PRODUCTION CHRACTERISTICS AND OVERVIEW 5
1.1 PRODUCT OVERVIEW 5
1.2 REMOTE CONTROL 6
1.3 GUI (GRAPHIC USER INTERFACE) TREE 9
2SYSTEM START UP 10
3GUI CONFIGURATION 11
3.1 SEARCH 12
3.1.1 REC. SEARCH 12
3.1.2 EVENTFILES 16
3.2 SETUP 17
3.2.1 SYSTEM 18
3.2.1.1 DATE/TIME 18
3.2.1.2 OPTIONS 20
3.2.1.3 REGISTER INFO 22
3.2.1.4 FORMAT 23
3.2.1.5 UPGRADE 23
3.2.1.6 USER SECURITY 25
3.2.1.7 CONFIG 26
3.2.1.8 USER LOG 27
3.2.1.9 BLACKBOX FILE 27
3.2.1.10 GEO-FENCING 28
3.2.2 RECORD 29
3.2.2.1 OPTION 29
3.2.2.2 OSD OVERLAY 31
3.2.2.3 CAMERA SETTINGS 33
3.2.2.4 RECORD SETTING 34
3.2.2.5 SUB-STREAM 34
3.2.2.6 SCHEDULE 35
3.2.2.7 OTHER SETTINGS 35
3.2.3 NETWORK 37
3.2.3.1 LOCAL 37
3.2.3.2 SERVER NETWORK 38
3.2.3.3 WIFI 39
3.2.3.4 MOBILE NETWORK 40

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
3.2.3.5 FTP SETTINGS 41
3.2.3.6 FTP FOR SNAP 43
3.2.4 EVENT 44
3.2.4.1 SENSOR 44
3.2.4.2 SENSOR OUTPUT 45
3.2.4.3 SPEED 47
3.2.4.4 ACCELERATION 47
3.2.4.5 TEMPERATURE 48
3.2.4.6 CAMERA 48
3.2.4.7 VOLTAGE 49
3.2.4.8 EMERGENCY EVENT 50
3.2.5 PERIPHERAL 50
3.2.5.1 PTZ 51
3.2.5.2 EXT.COM SETUP 51
3.2.5.3 SMART BATTERY 52
3.2.5.4 LANGUAGE SETTING 52
3.3 INFORMATION 53
3.3.1 SYSTEM 53
3.3.2 DIAL STATUS 54
3.3.3 HISTORY 54
3.3.4 MODULES 55
3.3.5 BATTERY INFO 56

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
Mobile DVR MVR-300
PRODUCT OVERVIEW
5
1 PRODUCTION CHRACTERISTICS AND OVERVIEW
1.1 PRODUCT OVERVIEW
MVR-300 is the middle range MDVR model specially designed for vehicle surveillance and remote monitoring, combined
with high-speed processor and embedded operating system. The advanced H.264 video compression and decompression,
wireless transmission, GPS location make MVR-300 a very powerful and perfect solution for vehicles.
MDVR Features and Capabilities
zSupport hard disk recording
zUPS (Uninterrupted Power Supply) supported to protect the MDVR from the damage of high voltage and provide the
power to the MDVR when the MDVR external power is cut off (for example accidents happen)
zPatented special file system is professional to improve the security level of data, provide self-recovery function,
self-check, self-backup for certain critical data and avoid data fragment that affects system efficiency.
zDual streams: one for local recording and one for wireless transmission.
z4 channel real-time D1 at 25 fps/30fps continuous or priority video recording and live view display.
zSemi-transparent GUI makes setting for GUI and live display synchronously.
zMaximum 1 hour pre-recording and 30 minutes post-recording
zWatermark prevents any modification in recorded file which is part of the law enforcement.
z4 channels for high-fidelity, digitally recorded, synchronized audio matched to 4 video channels
zUser friendly criteria to playback the events associated video only.
zAutomatic timer to resume the live display if the unit is idle for user defined time.
zUser-selectable settings for quality and audio record enable/disable for each video channel.
z12v power supply for multiple devices such as cameras, sensors, relays and any other accessories.
Remote Connection Capabilities
zPC-Based Client software for live view, playback video, playback events associated video, and download capabilities.
Support CMS (Central Management System) for remote monitoring via built-in 3G module (HSPA or EVDO), Ceiba
(Playback Analysis Software) for video playback, meta-data analysis.ADS by WIFI to download the video files and
event files.

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
Mobile DVR MVR-300
REMOTE CONTROL
6
1.2 REMOTE CONTROL
Each MDVR includes remote control that allows the user to transmit commands to recording module and
display on screen control menu
Numeric
Input Keys
Use the numeric button to input
digital in setup
menu or switch the full screen for each
channel or the channels QUAD view
Navigation
Arrows
Use the ARROW keys to move between
selections, input fields and icons.
Press ENTER to select
And EXIT to return and entering into the OSD
screen to check the MDVR working status.
Next and previous is also used to increase or
decrease volume when at live or search
screens.

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
Mobile DVR MVR-300
REMOTE CONTROL
7
Remote Control Key Functions:
1) Numeric Keypad
[0-9] keys: During setup, number keys are used to input number values. In QUAD view, the user can press
1, 2, 3 and 4 to switch the full screen for each channel, and press 0 to switch to quad view.
During full screen view of each camera, the user can press key to adjust contrast, luminance, color
and saturation, and then press + and - to make the adjustments. Pressing will navigate through the
color adjustment options.
2) Setup Menu Navigation
▲, ▼: Up, down directional keys: Move selection up and down in setup menu.
►, ◄: Left, Right directional keys: Move cursor left or right in setup menu.
[ENTER] key: During setup, select and save the settings
3) Other Keys Function
LOGIN/ LOCK
The user can press LOGIN / LOCK or SETUP key to enter the GUI to setup. If
password is enabled, the user have to input default admin password: 88888888.
POWER
To reset the MDVR to sleep mode (The user can press power button again to let
MDVR start up when it is in sleep mode).
Switch full screen of one channel to quad view.
Brightness, contrast, color adjustment for each channel. Use [+] [-] button to
change the values. The user have to adjust the values for each channel
individual
ly.
SETUP
Login GUI to setup t
he parameters.
EXIT
Return to the previous menu.
STOP
Used to stop the recording manually. Only valid when the user setup the record
mode by the setting in MDVR menu
RECORD
Used to start the recording manually. Only valid when the user setup the record
mode by the setting in MDVR menu.
PAUSE/STEP
▐►
Freezes playback to a single frame and can advance one frame at a time. To
advance the frame press. Pause / Step to move frame by frame. Press EXIT to
return to normal playback speed.
PLAY
►
Starts/Resumes playback from any other mode (FF, RR, Frame by Frame etc).
SLOW


Reduces playback speed to 1/2, 1/4, 1/8 modes. Press PLAY to return to normal
playback speed.
GOTO
Î
Quick search mode when the user playback the record file in MDVR. Press GOTO
button and input the desired time, and the select SURE to jump to the specific time
the user want to playback.
NEXT

Increase volume while playback (if audio is recorded)
.

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
Please put the battery into the remote control before the user use it as there is no
battery in the standard package
PREV


Decrease volume while playback (if audio is recorded)
.
REW 
Rewinds the video while playback. X2 and X 4 modes available.
FWD 
Fast forward the video while playback. X2 and X4 mode available.
CF
No use at present.
[F1]
Export all the event record files of the day to USB by press F1 key.
[F2],[F3],[F4]
Reserved for future use.
4) PTZ Function Key
MVR-300 MDVR can support PTZ camera by the protocol PALCO-D or PALCO-P. While the MDVR is
connected to the PTZ camera by RS485 signal (on the RS232/485 expand box), following commands can
control PTZ:
[ZOOM IN +], [ZOOM OUT -]
ZOOM IN/OUT
[IRIS +], [IRIS-]
Brightness control
[FOCUS +], [FOCUS -]
Focus control
PTZ
Enable the PTZ function
AUTO
Auto run with the PTZ pattern
PRESET
Preset default position
RECALL
Recall the position that the user have setup.
BRUSH
Brush the glass screen

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
Mobile DVR MVR-300
GUI TREE
9

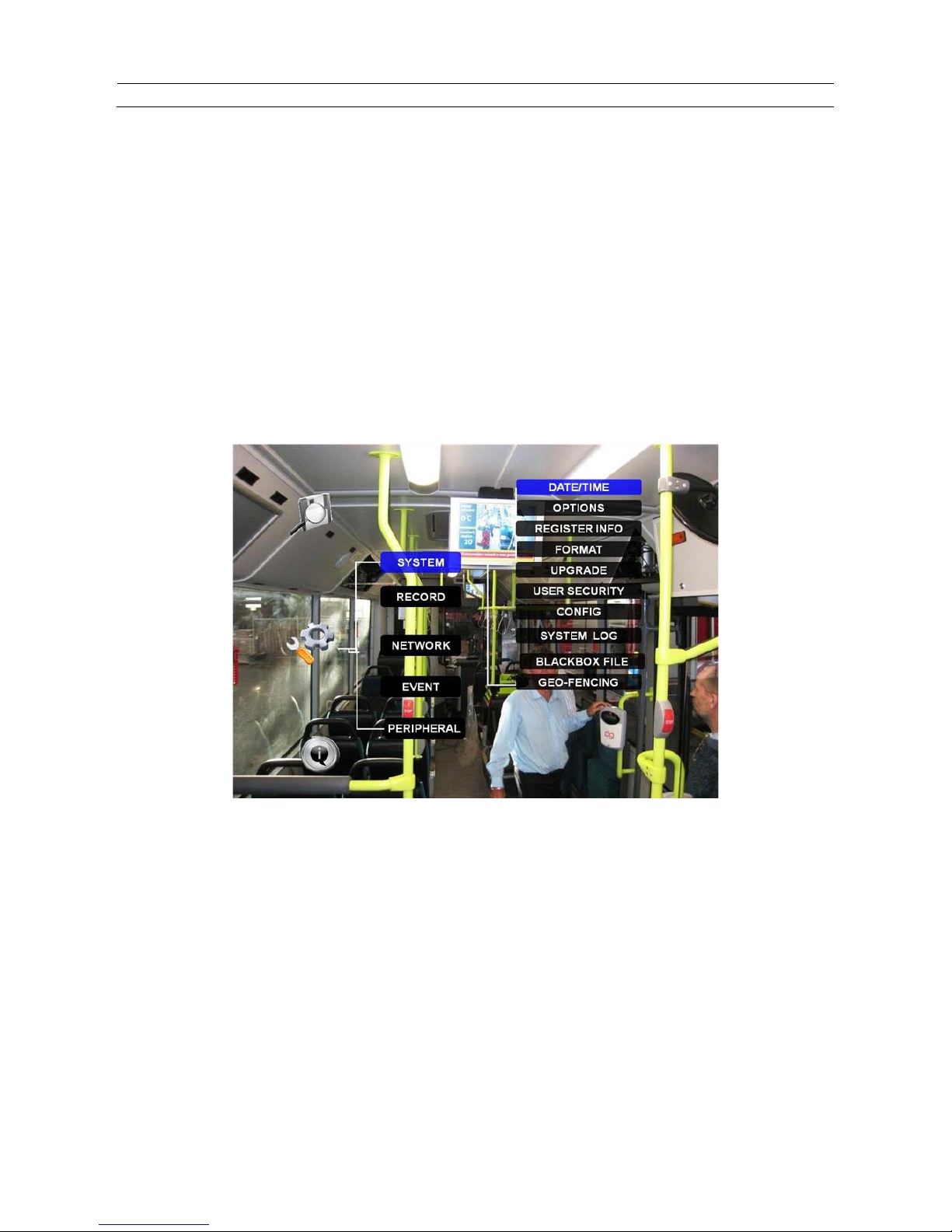

1.3 GUI (GRAPHIC USER INTERFACE) TREE

ViPRO Corporation
User’s Manual
MVR-300-GUI l v1.1 l 2014.07
The MDVR GUI is semi-transparent. The user can setup the transparency percentage from the MDVR
GUI.
During the setting, the user can check the video from each camera as well.
Please make sure the user lock the removable hard disk case before connect the power for MDVR,
Mobile DVR MVR-300
SYSTEM START UP
10
2 SYSTEM START UP
After connecting the MDVR to a vehicle power supply, turn on the vehicle ignition and the unit will automatically
start up. Power is normally supplied to the MDVR as long as the vehicle ignition is ON. “Display only view” of the
cameras is immediately available to be viewed in quad mode. Normally, the power supply for MDVR is about
12V/3A, without any accessories.

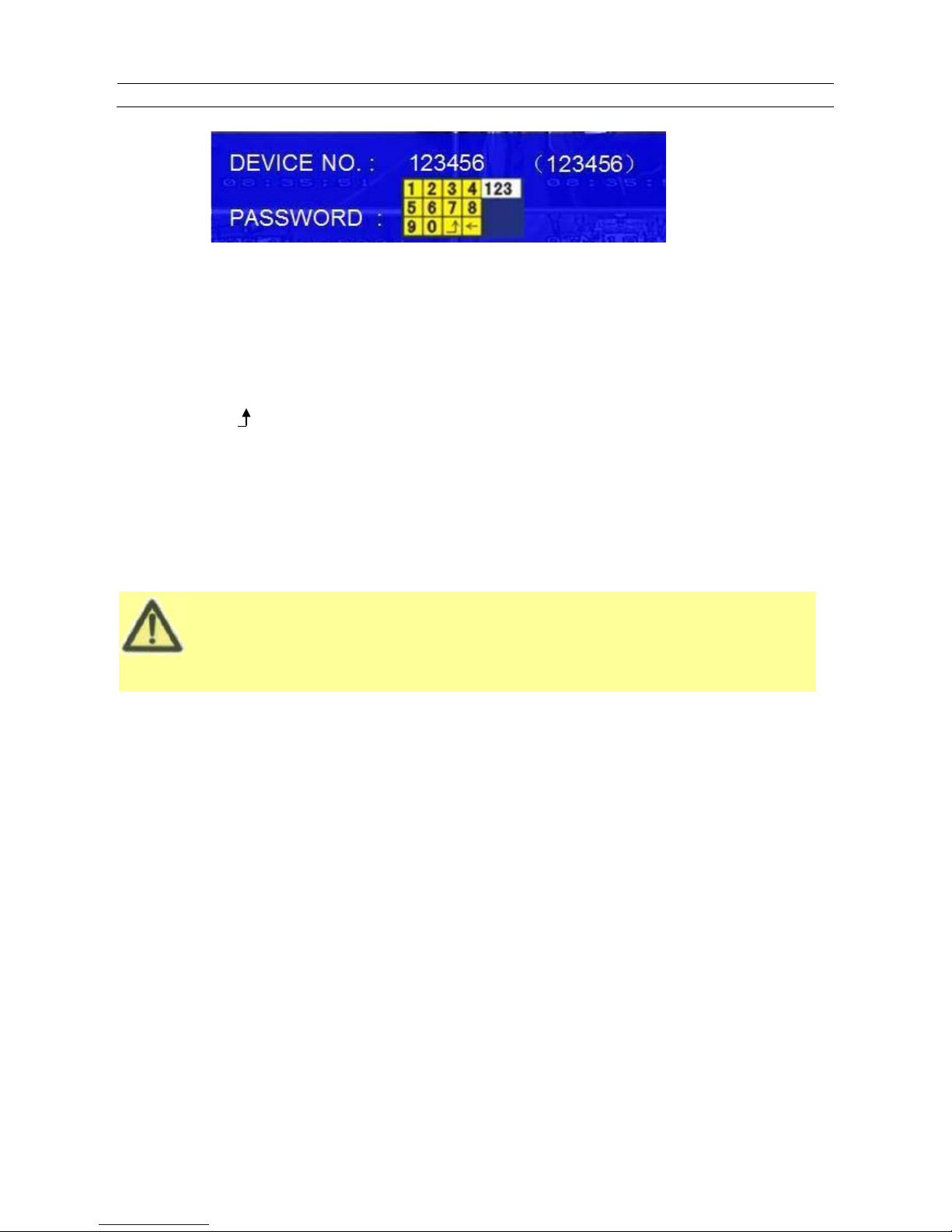

System Login for Setup
xIf password is disenable, press SETUP key on the handheld controller into the setup menu directly.
xIf password is enable, press LOGIN/LOCK OR ENTER key on the handheld controller, the setup menu will
appear.
