MVR-504 4CH Mobile DVR
User’s Manual
7KLVPDQXDOZDVFRPSOHWHDQGFRUUHFWDWWKHWLPHRISULQWLQJ7KHRQJRLQJGHYHORSPHQWRIWKHSURGXFWV
PD\PHDQWKDWWKHFRQWHQWRIWKHXVHUJXLGHFDQFKDQJHZLWKRXWQRWLFH
7KHPDQXDOZLOOEHNHSWXSGDWLQJSHULRGLFDOO\DQGVRIWZDUHUHIHUUHGDVZHOO
© 2014 ViPRO Corporation

NOTICE
The information in this manual was current when published. The contents of this manual are subject to change
without prior notice and will be updated accompanying with the release of new version.
The purpose of this manual is to kindly aid the user for the operation for our MDVR (especially for GUI setting). The
user should have a basic understanding of computer operation and basic knowledge of how to connect peripherals
and make some settings.
Mobile DVR MVR-500 Series NOTICE 2
User's Manual MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation

Table of Content
1PRODUCTION CHRACTERISTICS AND OVERVIEW 5
1.1 PRODUCT OVERVIEW 5
1.2 REMOTE CONTROL 6
1.3 GUI (GRAPHIC USER INTERFACE) TREE 9
2SYSTEM START UP 10
3GUI CONFIGURATION 11
3.1 SEARCH 12
3.1.1 REC. SEARCH 12

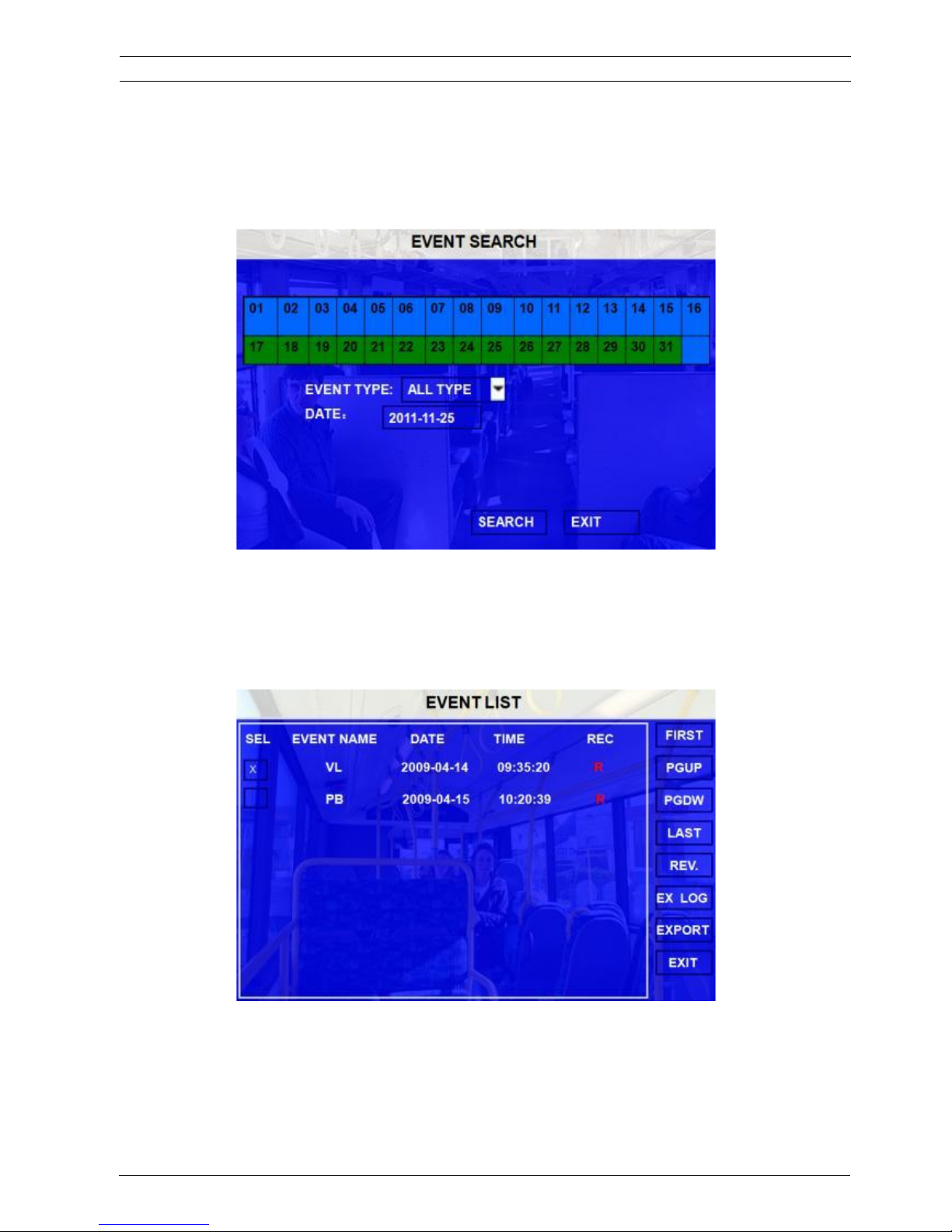

3.1.2 EVENT SEARCH 16
3.2 SETUP 17
3.2.1 SYSTEM 18
3.2.1.1 DATE/TIME 18

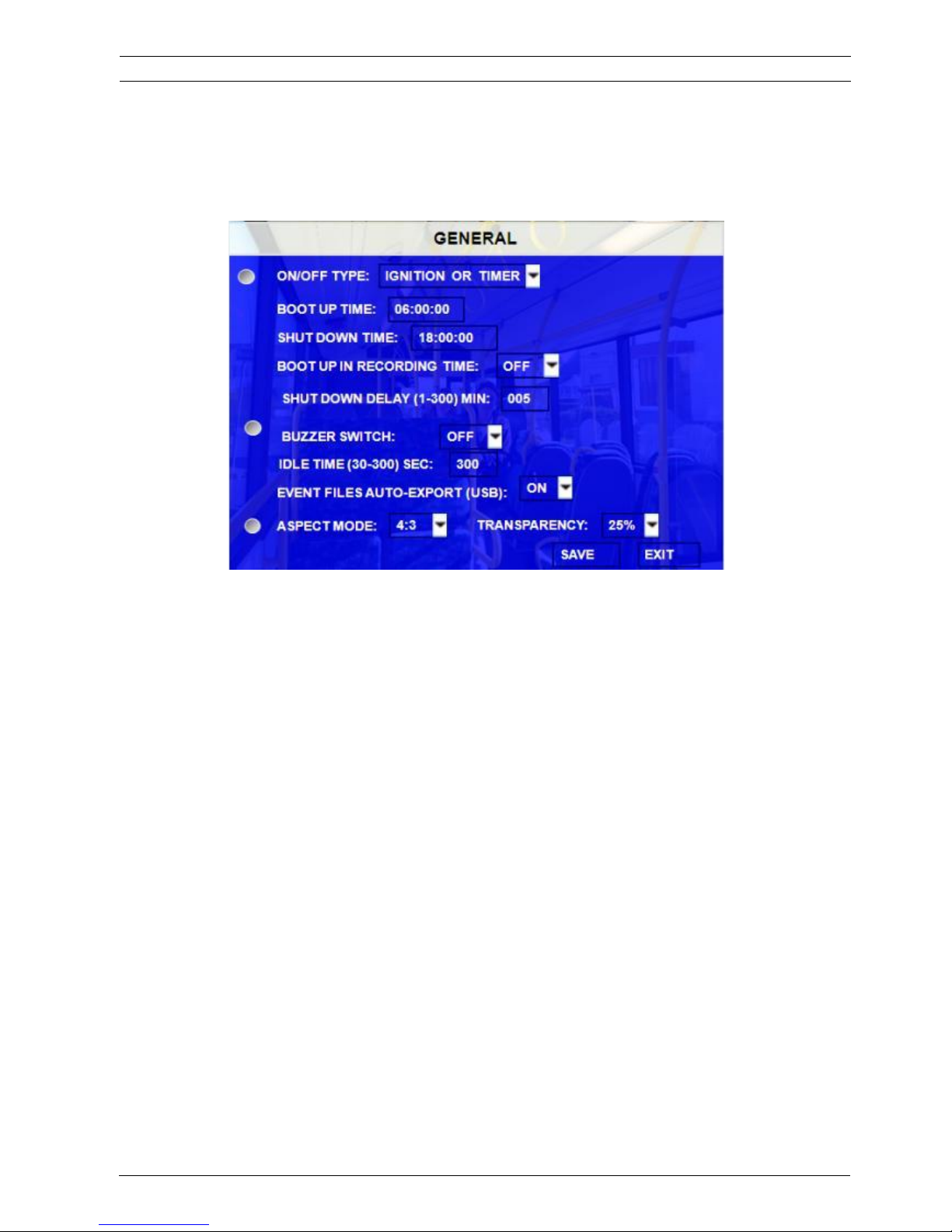

3.2.1.2 GENERAL 19
3.2.1.3 REGISTER INFO 20
3.2.1.4 FORMAT 21
3.2.1.5 UPGRADE 22
3.2.1.6 USER SECURITY 23
3.2.1.7 CONFIG 24
3.2.1.8 USER LOG 24
3.2.1.9 GEO-FENCING 25
3.2.2 RECORD 26
3.2.2.1 OPTION 26
3.2.2.2 OSD OVERLAY 28
3.2.2.3 CAMERA SETTINGS 30
3.2.2.4 RECORD SETTING 31
3.2.2.5 SUB-STREAM 31
3.2.2.6 SCHEDULE 32
3.2.2.7 OTHER SETTINGS 33
3.2.3 NETWORK 34
3.2.3.1 LOCAL 35
3.2.3.2 SERVER NETWORK 35
3.2.3.3 MOBILE NETWORK 36
3.2.3.4 FTP SETTINGS 38
User's Manual
Mobile DVR MVR-500 Series Table of Content 3
MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation

3.2.4 EVENT 39
3.2.4.1 SENSOR 39
3.2.4.2 SENSOR OUTPUT 40
3.2.4.3 SPEED 41
3.2.4.4 ACCELERATION 42
3.2.4.5 TEMPERATURE 43
3.2.4.6 CAMERA 43
3.2.4.7 VOLTAGE 44
3.2.5 PERIPHERAL 45
3.2.5.1 PTZ 45
3.2.5.2 EXT.COM SETUP 46
3.3 INFORMATION 46
3.3.1 SYSTEM 46
3.3.2 DIAL STATUS 47
3.3.3 HISTORY 47
3.3.4 MODULES 48
User's Manual
Mobile DVR MVR-500 Series Table of Content 4
MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation

1 PRODUCTION CHRACTERISTICS AND OVERVIEW
1.1 PRODUCT OVERVIEW
ViPRO MVR-500 is superior MDVR model specially designed for vehicle surveillance and remote monitoring,
combined with high-speed processor and embedded operating system. The advanced H.264 video compression
and decompression, wireless transmission, GPS location make MVR-500 a very powerful and perfect solution for
vehicles.
MDVR Features and Capabilities
zRevolutionary anti-vibration for 360 degree installation
zModular design for easy maintenance.
zUPS (Uninterrupted Power Supply) supported to protect the MDVR from the damage of high voltage and
provide the power to the MDVR when the MDVR external power is cut off (for example accidents happen)
zSpecial file system NVRFSTM is professional for improving the security level of data, providing self-recovery
function, self-check, self-backup for certain critical data and avoiding data fragment that affect system
efficiency.
zDual streams: one for local recording and one for wireless transmission.
z4 channel real-time D1 at 25 fps/30fps continuous or priority video recording and live view display.
zSemi-transparent GUI makes setting for GUI and live display synchronously.
zMirror recoding makes the hard disk and SD card recording at the same time with same frame, same
resolution and same image quality.
zMaximum 1 hour pre-recording and 30 minutes post-recording
zWatermark prevents any modification in recorded file which is part of the law enforcement.
zBetter Compression rate at H.264 (50% less than MPEG4).Enhance recording storage rate in most efficiency
way.
z4 channels for high-fidelity, digitally recorded, synchronized audio matched to 4 video channels
zUser friendly criteria to playback the events associated video only.
zAutomatic timer to resume the live display if the unit is idle for user defined timings.
zUser-selectable settings for quality and audio record enable/disable for each video channel.
z12v power supply for multiple devices such as cameras, sensors, relays and any other accessories.
Remote Connection Capabilities

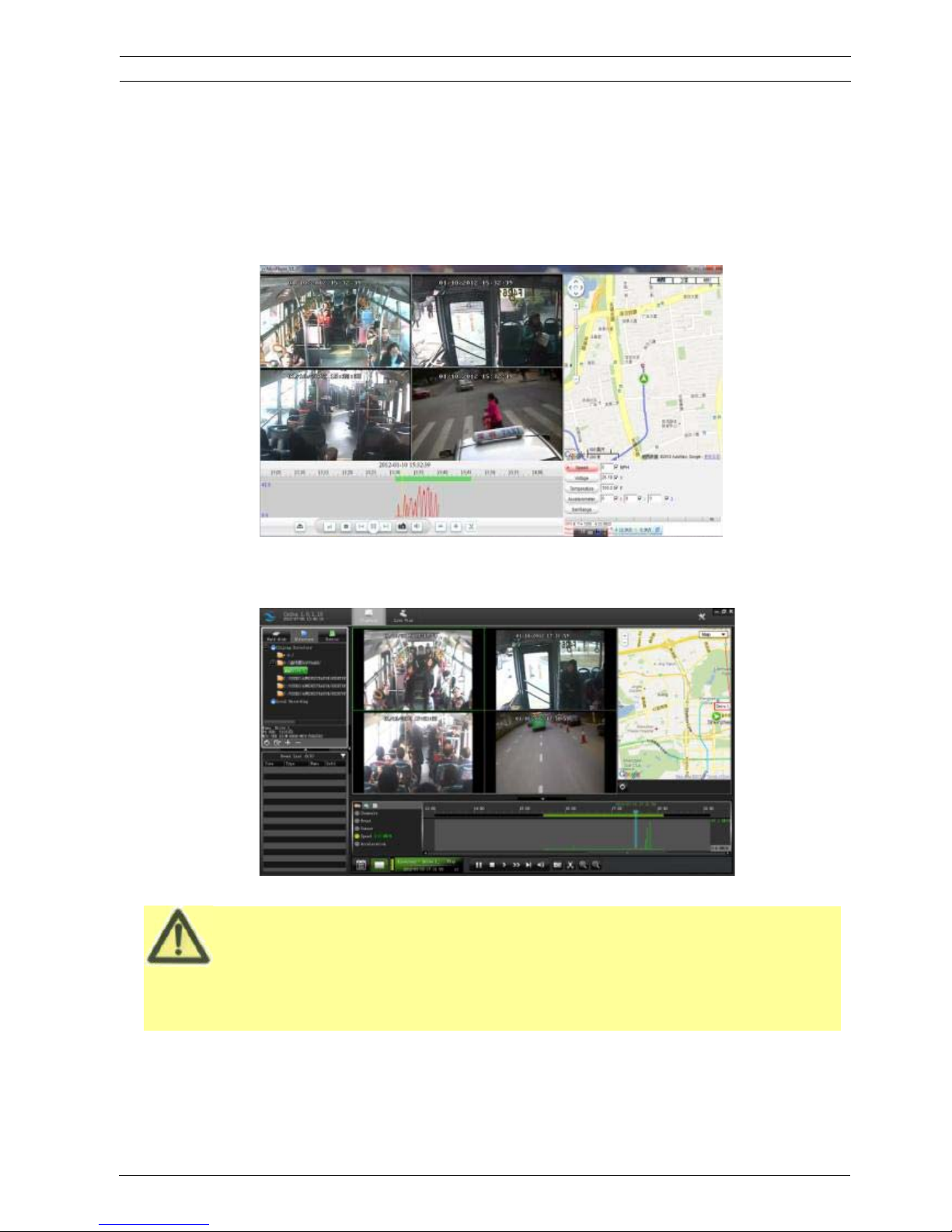

zPC-Based Client software for live viewing, playback video, playback events associated video, and download
capabilities. Support CMS (Central Management System) for remote monitoring via built-in 3G module
(HSPA or EVDO), Ceiba (Playback Analysis Software) for video playback, meta-data analysis.
User's Manual
Mobile DVR MVR-500 Series PRODUCT OVERVIEW 5
MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation

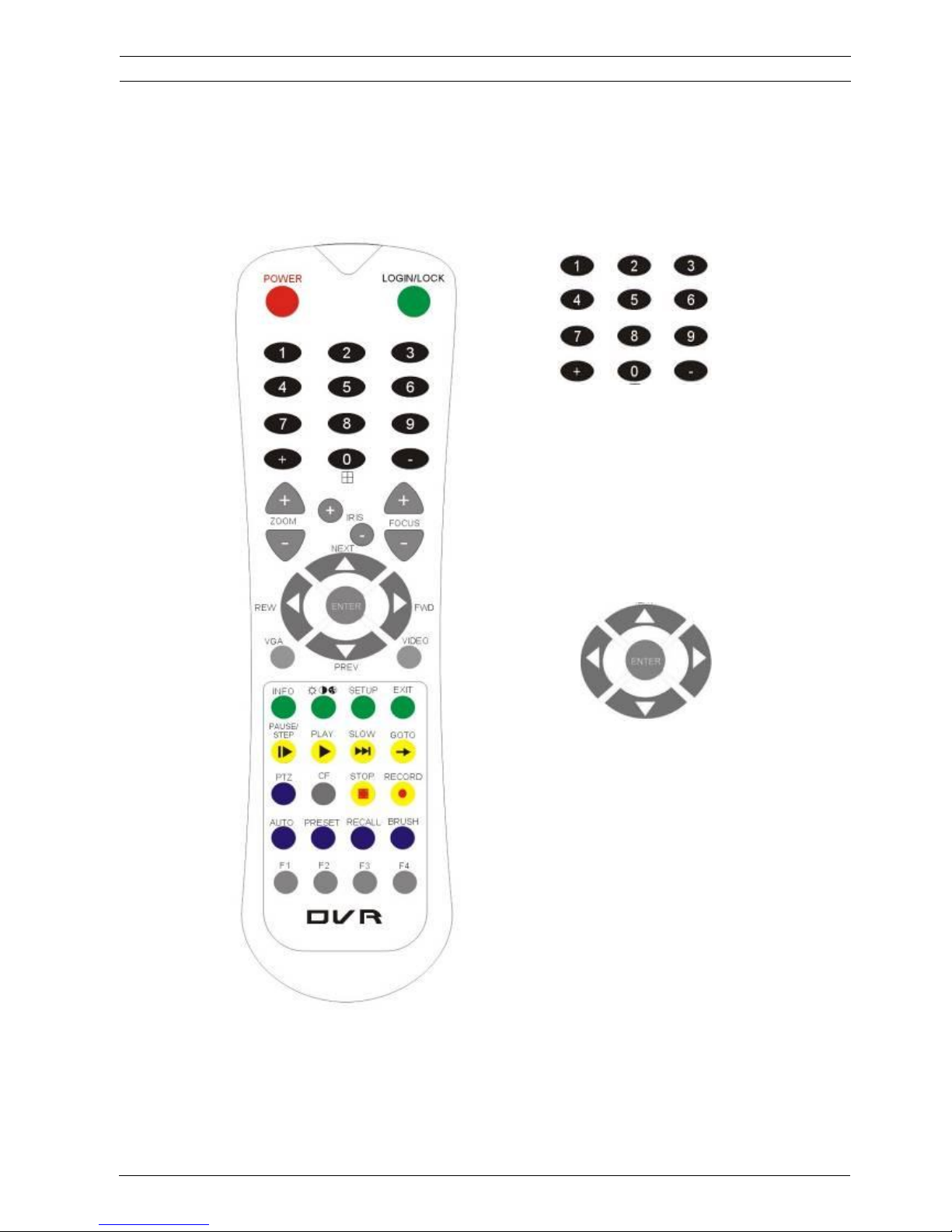

1.2 REMOTE CONTROL
Each MDVR includes a handheld Infra-Red (IR) controller that allows the user to transmit commands to
Numeric
Input Keys
Use the numbers to input
Values in the system setup
Screen or switch through the
channels in QUAD view
Navigation
Arrows
Use the ARROW keys to move between
selections, input fields and icons.
Press ENTER to select
And EXIT to return and and entering into the
OSD screen to check the MDVR working
status. Next and previous is also used to
increase or decrease volume when at live or
search screens.
User's Manual
Mobile DVR MVR-500 Series REMOTE CONTROL 6
recording module and display on screen control menu
MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation

Remote Control Key Functions:
1) Numeric Keypad
[0-9] keys: During setup, number keys are used to input number values. In QUAD view, you can
press 1, 2, 3 and 4 to switch the full screen for each channel, and press 0 to switch to quad view.
During full screen view of each camera, you can press key to adjust contrast, luminance,
color and saturation, and then press + and - to make the adjustments. Pressing will
navigate through the color adjustment options.
2) Setup Menu Navigation
▲, ▼: Up, down directional keys: Move selection up and down in setup menu.
►, ◄: Left, Right directional keys: Move cursor left or right in setup menu.
[ENTER] key: During setup, select and save the settings
3) Other Keys Function
LOGIN/ LOCK You can press LOGIN / LOCK or SETUP key to enter the GUI to setup. If
password enabled, you have to input default Admin password: 88888888.
POWER To reset the MDVR to sleep mode (You can press power button again to let MDVR
start up when it in sleep mode).
Switch full screen of one channel to quad view.
Brightness, contrast, color adjustment for per channel. Use [+] [-] button to change
the values. You have to adjust the values for each channel individually.
SETUP Login GUI to setup the parameters.
EXIT Return to the previous menu.
STOP Used to stop the recording manually. Only valid when you setup the record mode
as manual.
RECORD Used to start the recording manually. Only valid when you setup the record mode
as manual.
PAUSE/STEP
▐►
Freezes playback to a single frame and can advance one frame at a time. To
advance the frame press Pause / Step to move frame by frame. Press EXIT to
return to normal playback speed.
PLAY
►Starts/Resumes playback from any other mode (FF, RR, Frame by Frame etc).
SLOW


Reduces playback speed to 1/2, 1/4, 1/8 modes. Press PLAY to return to normal
playback speed.
GOTO
Î
Quick search mode when you playback the record file in MDVR. Press GOTO
button and input the desired time, and the select SURE to jump to the specific time
User's Manual
Mobile DVR MVR-500 Series REMOTE CONTROL 7
MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation

Please put the battery into the remote control as no battery in the standard package
you want to playback.
NEXT


Increase volume while playback (if audio is recorded).
PREV

Decrease volume while playback (if audio is recorded).
REW

Rewinds the video while playback. X2 and X 4 modes available.
FWD

Fast forward the video while playback. X2 and X4 modes available.
CF No use at present.
[F1] Export all the event record files of the day to USB by press F1 key.
[F2],[F3],[F4] Reserved for future use.
4) PTZ Function Key
MXR-500 MDVR can support PTZ camera by the protocol PELCO-D or PELCO-P. While the MDVR is
connected the PTZ camera by RS485 signal (on the RS232/485 expand box), following commands can
control PTZ:
[ZOOM IN +], [ZOOM OUT -] ZOOM IN/OUT
[IRIS +], [IRIS-] Brightness control
[FOCUS +], [FOCUS -] Focus control
PTZ Enable the PTZ function
AUTO Auto run with the PTZ pattern
PRESET Preset default position
RECALL Recall the position that you have setup.
BRUSH Brush the glass screen
User's Manual
Mobile DVR MVR-500 Series REMOTE CONTROL 8
MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation

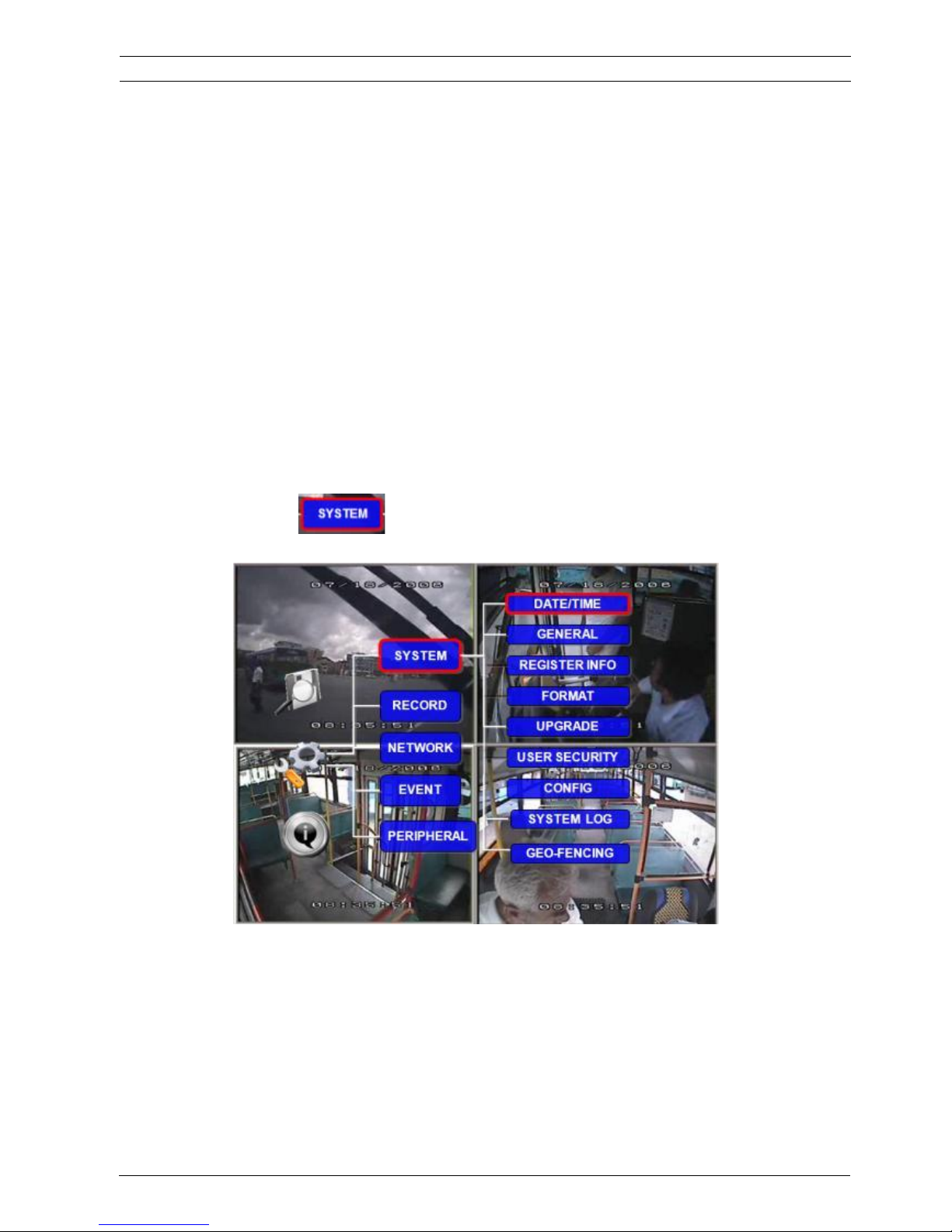

1.3 GUI (GRAPHIC USER INTERFACE) TREE
User's Manual
Mobile DVR MVR-500 Series GUI TREE 9
MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation

MXR-500 MDVR GUI is semi - transparent; you can see the video from each camera when you make
GUI configuration.
Please make sure you lock the removable hard disk case before connect the power for MDVR,
otherwise the MDVR cannot boot up.
2 SYSTEM START UP
After connecting the MDVR to a vehicle power supply, turn on the vehicle ignition and the unit will
automatically start up. Power is normally supplied to the MDVR as long as the vehicle ignition is ON.

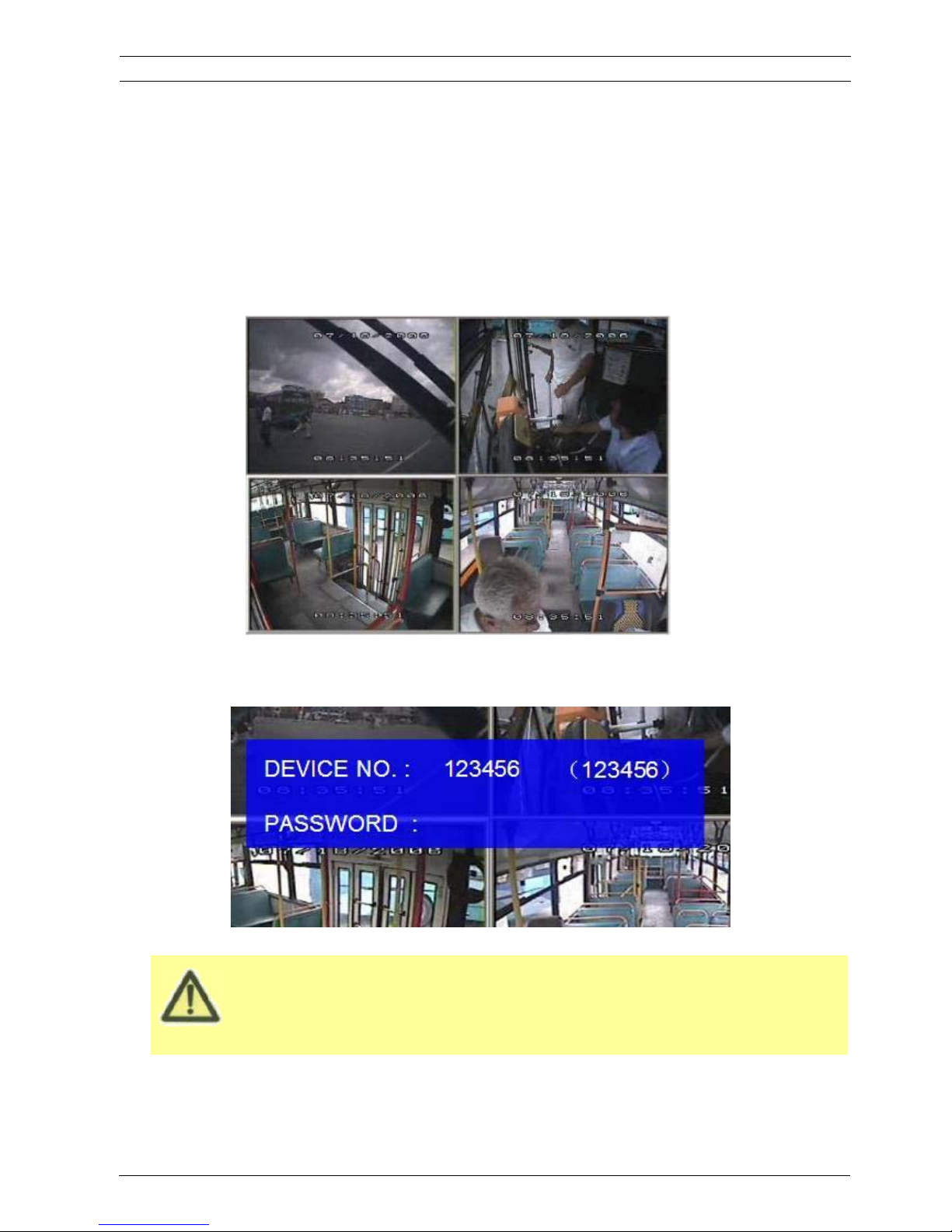

“Display only view” of the cameras is immediately available to be viewed in quad mode. Normally, the
power supply for MDVR is about 12V/3A, without any accessories.
System Login for Setup
User's Manual
Mobile DVR MVR-500 Series SYSTEM START UP 10
MVR-500-GUI | v1.1 | 2014.01ViPRO Corporation
