Single-Door Proximity Access Control System Installation Instructions
1
11
1. INTRODUCTION
. INTRODUCTION. INTRODUCTION
. INTRODUCTION
The VisAccess VXS-10 is an electronic access control system
designed for a single access point, such as a main door in an
apartment building or individual office doors. The system control
unit relay activates a lock or electromagnetic strike (EMS), when
a valid proximity key (tag or card) is presented to the reader
located outside the protected area.
The use of a proximity (non-contact) key makes the installation of
the VXS-10 system an attractive possibility in harsh environments
and in places with poor lighting conditions. The proximity keys are
totally sealed and are wear resistant. The reader reads the key’s
ID, whenever the key is presented.
A second proximity reader may be connected to the VXS-10 to
control both sides of a door. An optional magnetic stripe card
reader may be connected instead of a proximity reader.
The separate weatherproof readers give added security and
flexibility allowing outdoor or indoor installation.
The VXS-10 control unit (see figure 1) includes a 3-digit display, 3
visual indicators (LEDs) and 4 buttons. An internal proximity
reader located in the upper right corner of the control panel
allows fast and easy programming of access keys. The buttons
are used for entering the password and for programming the unit.

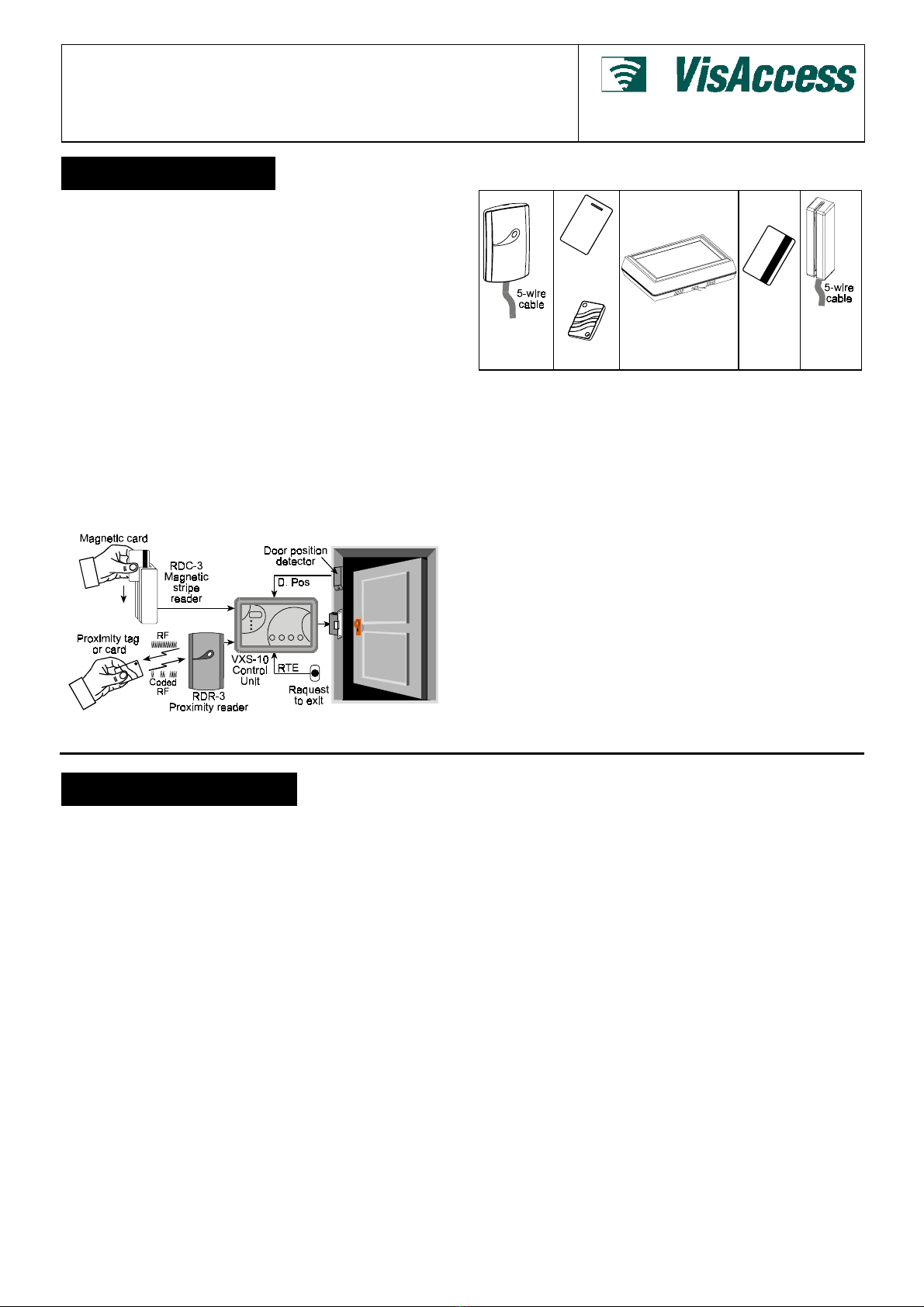

Figure 1 - System Functional Presentation
RDR-3
Proximity
Reader
CRD-1
Prox. Card
TAG-1
Prox. Tag
VXS-10
Control Unit
CRD-1M
Magnetic
Stripe
Card
RDC-3
Magnetic
Stripe
Reader
Figure 2 - System Components
The VXS-10 has a memory capacity of 300 keys. Adding keys
simply involves presenting new keys to the controller while the
system is in ADD mode.
The user can delete keys in the DELETE mode by presenting
them to the reader or, if a tag/card is not available, by typing in its
number (the same one that appears when adding the key).
The VXS-10 kit includes:
• VXS-10 controller
• RDR-3 proximity reader with 1m (3 ft) 5-wire cable
• Installation instructions
• User Guide
• Control unit base template, for wall installation
Additional tools and equipment that may be needed:
• Proximity tags or cards (ordered separately)
• Power supply for the controller - 12V AC/DC
• Electromagnetic strike (EMS) unit
• Request-to-exit push button or PIR, if “request to exit” option is
required.
2
22
2. SPECIFICATIONS
. SPECIFICATIONS. SPECIFICATIONS
. SPECIFICATIONS
VXS-10 CONTROLLER
Power Input: 9-12V AC/DC
Max Current Consumption: 150 mA (excluding EMS current)
Memory Capacity: 300 tags/cards
Output Relay Contact Rating: 1A Max. continuous current
Display: 3 x 7 segments and 3 LEDs
Operating Temperatures: 0°C to 50°C (32°F to 122°F)
Dimensions (L x W x D): 150 x 105 x 35 mm (5-7/8 x 4-1/8 x 1-3/8 in.)
Color: Dark brown
RDR-3 EXTERNAL READER
Indicators: Tricolor LED (Green, Red, Amber)
Tag Reading Range: 50-100 mm (2-4 in.)
Frequency: 125 KHz
Tag Code Possibilities: 1012 possible combinations
Dimensions (L x W x D): 116 x 70 x 16.8 mm (4-1/2 x 2-3/4 x 5/8 in.)
Weight: 121.5 g (4.3 oz)
Operating Temperatures: -20°C to 50°C (-4°F to 122°F)
Cable (to VXS-10 control unit) maximum length: <10 meters
Color: Dark brown
RDC-3 MAGNETIC STRIPE READER (optional)
Output Type: Open collector, 12V
Communication Signals: Clock and data

2DE6270
3
33
3. INSTALLATION
. INSTALLATION. INSTALLATION
. INSTALLATION
NOTE: The installation must comply with local fire, health and
safety regulations.
3.1 Controller Unit Installation
Figure 3 - Control Unit Installation
3.2 Proximity Reader Installation
Caution: Do not install the RDR-3 on a metal surface or on a
metal door frame, since this decreases the key reading range
significantly. If you have to install the reader on a metal surface,
use a spacer plate so that the reader will be at least 1 cm (3/8 in.)
away from the metal. You may use RDR-BACK which is an
optional spacer plate made specifically for this purpose.
When installing two readers, you may install them in close
proximity to each other.
Figure 4 - Proximity Reader Installation
4
44
4. WIRING
. WIRING. WIRING
. WIRING
4.1 Electromagnetic Strike Wiring
Electro-Magnetic Locks Powered by VXS-10
A.Connecting Electro-magnetic
lock that opens the door when
power is supplied
B.Connecting Electro-magnetic
lock that opens the door when
power is disconnected
Electro-Magnetic Locks Powered by an External Power Supply
C. Connecting Electro-magnetic
lock that opens the door when
power is supplied
D. Connecting Electro-magnetic
lock that opens the door when
power is disconnected
4.2 RTE and Door Position Wiring
Figure 5 - Connecting RTE and Door Position Inputs
4.3 Proximity Readers Wiring
Figure 6 - Connecting One Proximity Reader

DE6270 3
Figure 7 - Connecting Two Proximity Readers
4.4 Magnetic Stripe Reader Wiring
Figure 8 - Magnetic Stripe Card Reader
5
55
5. PROGRAMMING
. PROGRAMMING. PROGRAMMING
. PROGRAMMING
IMPORTANT! When using the magnetic reader RDC-3, the
internal proximity reader is disabled. All procedures in which the
internal reader is involved should be performed with the external
magnetic card reader.
Note: While the system is in one of the programming modes, the
VXS-10 does not operate the external reader or the relay output.
5.1 Entering Programming Menu
The VXS-10 recognizes a 6-step installer password. Each step
requires pressing a single button or a combination of two buttons.
Note: The “MODE” button by itself cannot be used as the first
button of the password.
To enter the programming menu, press the “MODE” button and
then enter the factory defined installer password “F1”, “F2”, “F3”,
“F1”, “F2”, “F3”.
Notes
1. It is recommended to change the password during installation
(see par. 5.5).
2. Inactivity for more than 10 seconds causes VXS-10 to exit the
programming menu and revert to normal operation.
5.2 Setting The Master Key
The VXS-10 has one master key. The installer needs to assign
one of the proximity keys (tag or card) as a master key and
program it into the controller memory. To assign a master key:
• Press the “Mode” button.
• Enter installer password. The green “ADD” LED starts flashing.
• Press “MODE” few times until the special display shows: ”S0”.
The system is ready to read the key. Present a tag or card to
the top right corner or the controller (internal proximity reader).
• Once a key is presented, it will replace the current master key.
Hold the new key until the “SPECIAL” LED stops flashing.
• To revert to normal operation, wait 10 seconds until the
VXS-10 automatically exits the programming menu.
5.3 Erasing ALL User Keys
IMPORTANT: A user master key should be assigned before
erasing user keys.
• To select the ERASE ALL mode press the “MODE” button.
• Enter installer password. The green “ADD” LED starts flashing.
• Press the “MODE” button a few times until the “SPECIAL” LED
lights and the display shows “Er”.
• Present the master key to the top right corner or the controller.
• Remove the key and wait until the display blanks out.
Note: The ERASE ALL function does NOT erase the master key.
• Wait 10 seconds until the VXS-10 automatically exits the
programming menu.
5.4 Setting The Door Unlock Duration
The VXS-10 has a programmable unlock period, from 1 to 99
seconds. Setting process of the door unlock period is as follows:
• Press the “MODE” button.
• Enter the installer password. The green “ADD” LED will start
flashing.
• Press the “MODE” button a few times until the “SPECIAL” LED
lights and the display shows “UL”.
• Press F2 (10) and F3 (1) to set the unlock time in seconds.
For example, for 35 seconds press “10” three times and “1” five
times.
• The display will show the number of seconds.
• To save the unlock time and return to normal operation,
present the master key to the internal reader.
• You may press “MODE” at any time to continue without saving
the new unlock duration.
5.5 Resetting Installer Password
• Remove the controller’s cover, remove the PCB
and expose the buttons side (see figure 3,
steps 1-4).
• Move the right-most switch up (on).
A password consists of six button presses. Each press involves
either pressing a single button or a combination of two buttons.
Press
MODE
display will show ---.
Press the following sequence:
MODE F1
100
MODE
+
F1
100
F2
10
F3
1
F2
10
+
F3
1
• The display should show IP (Installer Password).
• Enter the new installer password (6 button presses).
The following table shows the possible combinations:
MODE F1
100
MODE
+
F1
100
MODE
+
F2
10
MODE
+
F3
1
F2
10
F3
1F1
100
+
F2
10
F1
100
+
F3
1
F2
10
+
F3
1
• Move the right-most switch down (off).
• Replace the PCB and remount top cover.
5.6 Setting User Password
To set the user password, see section 2.8 in VXS-10 User Guide.

4DE6270
VXS
VXSVXS
VXS-10
-10-10
-10 CONTROLLER MOUNTING TEMPLATE
CONTROLLER MOUNTING TEMPLATECONTROLLER MOUNTING TEMPLATE
CONTROLLER MOUNTING TEMPLATE
VXS-10 Control Panel
Scale 1:1
Screw holes
Screw hole
Cable hole
10mm
Cable hole
10mm
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in residential installations. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause such interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of
the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
WARRANTY
WARRANTYWARRANTY
WARRANTY
VisAccess Ltd. and/or its subsidiaries and its affiliates ("the Manufacturer") warrants its
products hereinafter referred to as "the Product" or "Products" to be in conformance with
its own plans and specifications and to be free of defects in materials and workmanship
under normal use and service for a period of twelve months from the date of shipment by
the Manufacturer. The Manufacturer's obligations shall be limited within the warranty
period, at its option, to repair or replace the product or any part thereof. The Manufacturer
shall not be responsible for dismantling and/or reinstallation charges. To exercise the
warranty the product must be returned to the Manufacturer freight prepaid and insured.
This warranty does not apply in the following cases: improper installation, misuse,
failure to follow installation and operating instructions, alteration, abuse, accident or
tampering, and repair by anyone other than the Manufacturer.
This warranty is exclusive and expressly in lieu of all other warranties, obligations or
liabilities, whether written, oral, express or implied, including any warranty of
merchantability or fitness for a particular purpose, or otherwise. In no case shall the
Manufacturer be liable to anyone for any consequential or incidental damages for breach
of this warranty or any other warranties whatsoever, as aforesaid.
This warranty shall not be modified, varied or extended, and the Manufacturer does not
authorize any person to act on its behalf in the modification, variation or extension of this
warranty. This warranty shall apply to the Product only. All products, accessories or
attachments of others used in conjunction with the Product, including batteries, shall be
covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or
otherwise, caused by the malfunction of the Product due to products, accessories, or
attachments of others, including batteries, used in conjunction with the Products.
The Manufacturer does not represent that its Product may not be compromised and/or
circumvented, or that the Product will prevent any death, personal and/or bodily injury
and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the
Product will in all cases provide adequate warning or protection. User understands that a
properly installed and maintained alarm may only reduce the risk of events such as
burglary, robbery, and fire without warning, but it is not insurance or a guarantee that such
will not occur or that there will be no death, personal damage and/or damage to property
as a result.
The Manufacturer shall have no liability for any death, personal and/or bodily injury
and/or damage to property or other loss whether direct, indirect, incidental,
consequential or otherwise, based on a claim that the Product failed to function.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or
damage arising under this limited warranty or otherwise, regardless of cause or origin, the
Manufacturer's maximum liability shall not in any case exceed the purchase price of the
Product, which shall be fixed as liquidated damages and not as a penalty, and shall be the
complete and exclusive remedy against the Manufacturer.
Warning: The user should follow the installation and operation instructions and among
other things test the Product and the whole system at least once a week. For various
reasons, including, but not limited to, changes in environmental conditions, electric or
electronic disruptions and tampering, the Product may not perform as expected. The user
is advised to take all necessary precautions for his /her safety and the protection of
his/her property.
6/91
TECHNICAL DEPT.: 35 HAMELACHA ST. CARMIEL 20100 ISRAEL TEL: [phone] FAX: [phone]
SALES DEPT.: 30 HABARZEL ST. TEL AVIV 69710 ISRAEL TEL: [phone] FAX: [phone]
VISONIC INC. (US): 10 NORTHWOOD DRIVE, BLOOMFIELD CT. 06002-1911. TEL: [phone] FAX: [phone]
VISACCESS LTD. (UK): UNIT 1, STRATTON PARK, DUNTON LANE, BIGGLESWADE, BEDS. SG18 8QS. TEL: [phone] Fax: [phone]
INTERNET: www.visaccess.com
VISACCESS Ltd. 2000 VXS-10 DE6270- (REV.1, 6/00)
