Vision Tech Shop TVC Series User manual

- 1
-
TVC
Counting Scale
V1.09b-V1.11
REV:Y8, Nov 2019

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 2
-
CONTENTS
1. PRECAUTIONS ....................................................................................................... - 3 -
2. SPECIFICATIONS ................................................................................................... - 4 -
3. INSTALLATION ........................................................................................................ - 5 -
4. DESCRIPTION ......................................................................................................... - 8 -
5. OPERATION........................................................................................................... - 10 -
1. Power ON/OFF............................................................................................... - 10 -
2. Zero .................................................................................................................. - 10 -
3. Tare .................................................................................................................. - 10 -
4. Weighing Units ............................................................................................... - 10 -
5. PARTS COUNTING ...................................................................................... - 10 -
5.1. Setting Unit Weight ............................................................................ - 10 -
5.2. Entering a Known Unit Weight. ........................................................ - 11 -
5.3. Parts Counting. ................................................................................... - 11 -
5.4. Automatic Part Weight Updates ....................................................... - 12 -
5.5. Check Weighing and Setting High / Low limits. ............................. - 12 -
5.5.1. Checking Alarm ....................................................................... - 12 -
5.5.2. Check Counting / Weighing Limits ....................................... - 12 -
6. Accumulation ................................................................................................ - 14 -
6.1 Prepare for accumulation. .................................................................. - 14 -
6.2 Accumulate operation ......................................................................... - 14 -
6.3 Recall Memory ..................................................................................... - 14 -
6.4 Memory Clear ....................................................................................... - 14 -
7. Back light ......................................................................................................... - 15 -
6. PARAMETERS....................................................................................................... - 16 -
6.1 PARAMETERSETTING .............................................................................. - 16 -
6.2 PARAMETER MENU BLOCK ................................................................... - 16 -
7. CALIBRATION ....................................................................................................... - 18 -
7.1 Linear Calibration ........................................................................................ - 18 -
7.2 Normal Calibration ....................................................................................... - 20 -
8. RS-232 PROTOCOL ............................................................................................. - 22 -
9. ERROR CODES .................................................................................................... - 24 -
10. DRAWING............................................................................................................. - 26 -

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 3
-
1. PRECAUTIONS
 Read this manual before operating or servicing this
equipment.
 Follow these instructions carefully.
 Disconnect this equipment from the power source before
cleaning of performing maintenance.
 Keep the manual for your future reference.
 Avoid extremes of temperature. Do not place in direct
sunlight or near air conditioning vents.
 Avoid unsuitable tables. The tables or floor must be rigid
and not vibrate. Do not place near vibrating machinery.
 Avoid unstable power sources. Do not use near large
users of electricity such as welding equipment or large
motors.
 Avoid high humidity that might cause condensation.
Avoid direct contact with water. Do not spray or immerse
the scales in water.
 Avoid air movement such as from fans or opening doors.
Do not place near open windows.
 Do not stack material on the scales when they are not in
use.
 Keep the scales clean.

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 4
-
2. SPECIFICATIONS
DIMENSION(inch/mm)
SPECIFICATIONS
MODEL TVC -6 TVC -12 TVC -30 TVC -60
Capacity 3kg/6lb 6kg/12lb 15kg/30lb 30kg/60lb
Readability 0.1g/0.0002lb 0.2g/0.0005lb 0.5g/0.001lb 1g/0.002lb
Resolution 30000
Weighing Units kg /lb
Housing ABC Plastic and Stainless Steel platform
Interface RS232 Output as standard
Operation
Temperature
-10°C - 40°C / 14°F - 104°F
Power Ac adaptor 12V/500mA , Battery 6V/3.2AH
Display 3x6 digits 15 mm LCD display with white LED back light
Dimensions
(WxDxH)
10.5 (W) x 12 (D) x 4 (H) / 265 (W) x 313 (D) x 108.8 (H)
Weight 4.1kg(9lb)

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 5
-
3. INSTALLATION
Unpacking
Carefully take the balance out of its package, make sure it’s not damaged and all
accessories are included.
Accessories:
1. Balance
2. Adaptor
3. Stainless steel pan
4. Product manual
Keep the packaging material for your future use.

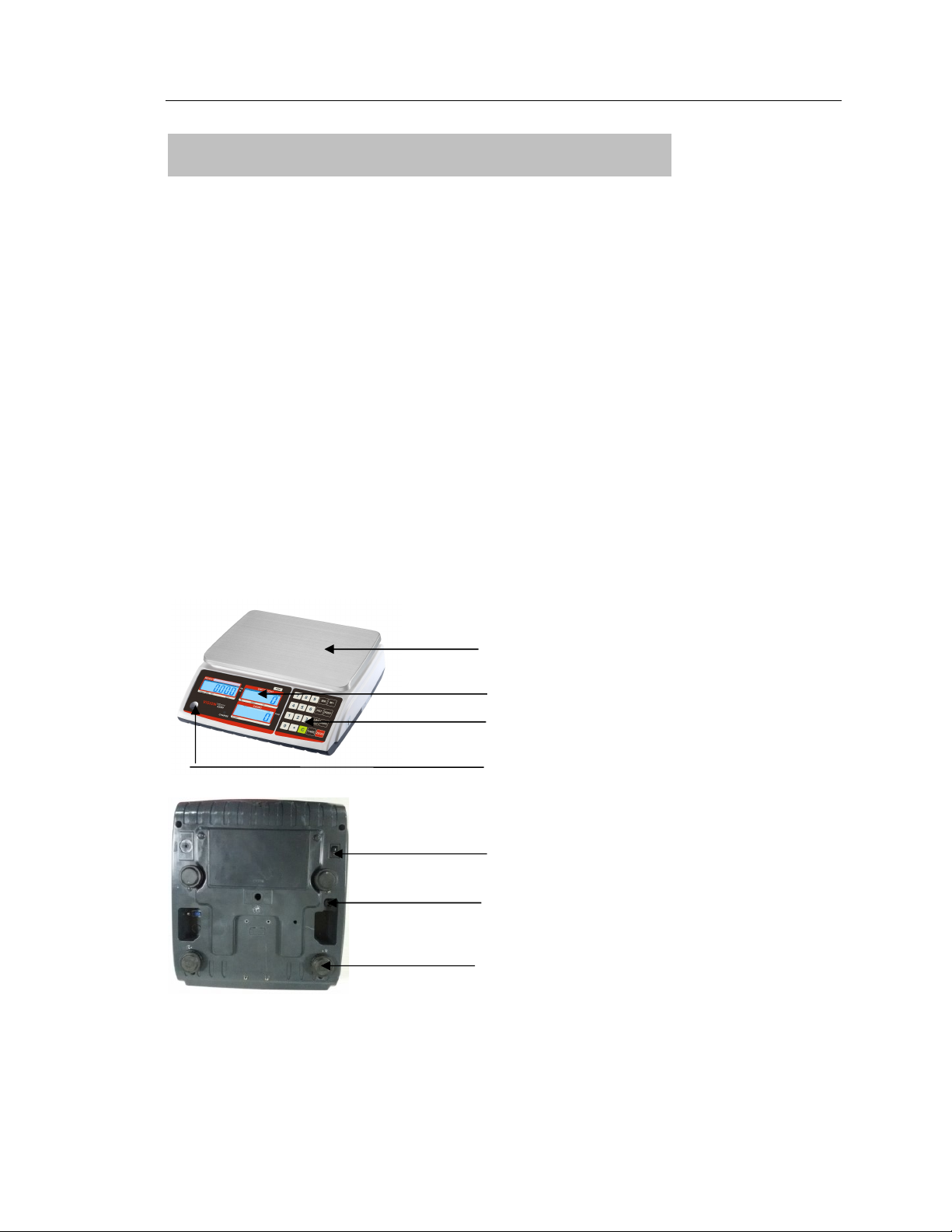

Parts Description
Pan
Display
Key board
Water mark bubble
On / Off Switch
Adaptor Jack
Adjusting feet

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 6
-
Installation
 Place the scale on a table.
 Carefully place the pan to the four holes on the top cover.
 Adjust the water mark bubble level.
 Connect the adaptor pin to the adaptor jack.
Adaptor jack is located below the right side of the scale.
 Adaptor connects into your AC power socket.
Pluggable equipment must be installed near an easily accessible socket
outlet with a protective ground/earth contact.
 Turn on the power switch.
On / Off switch is located below the right side of the scale. Press switch
forward to turn on the scale. If you want to turn off, press the switch
backward.
 Display will show the scale capacity and will start self-checking.
 After self-checking, display will return to normal weighing mode.
 Then you can start your operation.
Note: Initial Start Up.
Warm-up time of 15 minutes stabilizes the measured values after switching on.
Level Adjusting
Place the scale on a table.
Check the water mark. If bubble is not centered, adjust the leveling feet until it
becomes centered. Check the level when you change the location.

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 7
-
Connect Adaptor and Charging
 To charge the battery, insert the adaptor pin to jack. Adaptor simply plugs
into the main power. The scale does not need to be turned on.
 The battery should be charged for 12 hours for full capacity.
 Left to the count display is an LED to indicate the status of battery charging.
When the scale is plugged into the mains power, the internal battery will
be recharged. If the LED is green, the battery is fully charged. If it is red,
the battery is running low on battery and if yellow, the battery is being
charged.
 Do not use any other type of power adaptor than the one supplied with the
scale.
 Verify that the AC power socket outlet is properly protected.
Note: Please charge the battery before using the scale for the first time.

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 8
-
4. DESCRIPTION

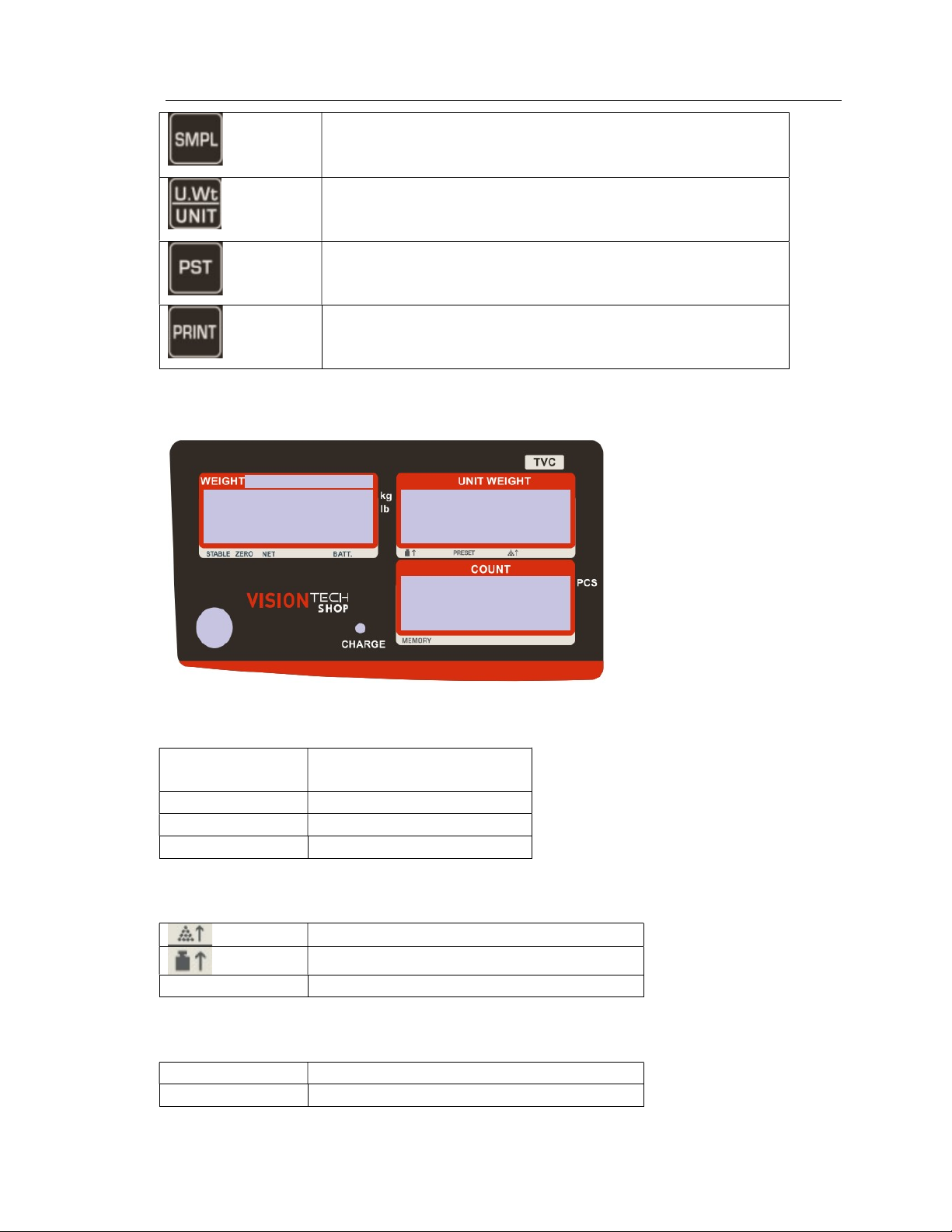

Keyboard
Keys Press this key to
to
Enter individual unit weights and the present tare
Clear incorrect entries and error conditions
Returns the display to zero.
Storing the current weight as tare value. Subtracting
the tare value from the total weight and displays the
result as net weight. and clear the tare weight.
Add the current count data aggregated. Also evokes
the memory if pressed to balance empty. Can add up
to 99 values, or until it reaches the maximum
displayable digits.
Recall the accumulator memory.

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 9
-
Manually enter the weight of sample, also changes the
unit if they are enabled.
Enter the numbers of items, used for the unit weight.
Press and hold the key to select weighing units
To set the limits of the number of items counted and
weight.
Used to print the results to printer
Display
Weight Display
BATT.
Low Battery
Net
Net Weight Display
Stable
Stable Display
Zero
Zeroing Display
Unit Weight Display
Insufficient number of samples
Insufficient number of counts
Preset
To show preset count when stored
Count Display
Memory
To show when value stored
Charge
Status of the battery charging

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 10
-
5. OPERATION
Initial Start-Up
Warm-up time of 15 minutes stabilizes the measured values after switching on
1. Power ON/OFF
Power switch is located below the right side of the scale. Press the key
forward until to turn on. The display is switched on and the self test is
started. If you want to switch off press the key forward again.
2. Zero
Environmental conditions can lead to the balance exactly zero in spite
of the pan not taking any strain. However, you can set the display of
your balance to zero any time by pressing key and therefore
ensure that the weighing starts at zero.
3. Tare
The weight of any container can be tared by pressing tare button so that
with subsequent weighing the net weight of the object being weighed is
always displayed.
 Load weight on the pan.
 Press key. Zero is displayed, and tare is subtracted.
 Remove weight from the platform. Tared weight is displayed. It can set
only one tare value. It can display with a minus value.
 Press key. Zero is displayed, tare weight is cleared.
4. Weighing Units
In the zero point and stable indicator on, press key to select the
weighing units(kg/lb)
5. PARTS COUNTING
5.1. Setting Unit Weight
 For this function you need to know the average weight of the objects to
count. This value can be obtained by weighing a known number of pieces
so that the balance calculation.
 Scales can be used to calculate the unit weight or the manual input of unit
weight can be used. It can increase the precision of the unit weight at any
time during the process of counting by the count displayed and pressing

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 11
-
. Make sure that the amount shown is the amount on the scale before
pressing the button.
 The weighing may be amended on the basis of greater numbers of
samples improves the accuracy of counting large quantities.
5.2. Entering a Known Unit Weight.
If the unit weight is known can be entered from the keyboard.
 Place the goods on the platform
 Enter the unit weight by using numeric keys
and press and hold key
For e.g.: 50.00
 Unit weight display will show the entered value
and count display will show pcs of the goods.
 Press key to clear the unit price.
5.3. Parts Counting.
Weigh a sample to calculate the unit weight to determine the average weight of
items to count, put a known number of pieces on the scale and insert their
content. The scale will perform the total weight divided by the number of samples
and will display the unit weight.
 Zero the scale by pressing the zero if necessary. If using a container, put it on
the scale and the tare weight gain by following the steps above.
 Place a known amount of pieces on the scale.
 When the viewer "Weight" is stable enter the quantity
Of pieces using the numeric keys.
 and press the . The number of units is shown
by the viewer "Count"
0.500
0
0
0.500
50
10
0.500
50
0
2
.
812
0
0
2
.
812
30
0
2
.
812
samp
-----

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 12
-
and the average weight shown
is calculated from the viewer "Unit Weight".
 Adding pieces on the scale,
increase the weight and count.
5.4. Automatic Part Weight Updates
After entering into parts counting, the display shows number of parts
corresponding to previous reference weight. So that continuity will be maintained
with previous parts counting this was interrupted due to power failure.
5.5. Check Weighing and Setting High / Low limits.
5.5.1. Checking Alarm
Press and hold key, display will be show
To turn on checking alarm into weighing operations
To turn on checking alarm into counting operations
To turn off the checking alarm in the operations
Note: At time only one function can set to turn on
5.5.2. Check Counting / Weighing Limits
Counting Limits
By pressing key can select counting or weighing limits.
Press key, display will be show
PCS HI
0
Check
net
check
pcs
check
off
2
.
812
33.7217
30
3.316
33.7917
36

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 13
-
Press the numeric keys to set the Hi Limits and confirm by pressing key. Hi
limit will be set and display will be shown.
Press the numeric keys to set the Lo Limits and confirm by pressing key,
then display will go to net Hi for to set weighing limits
Weighing Limits
Press key, display will be shown
Press the numeric keys to set the Hi net and confirm by pressing key. Hi
limit will be set and display will be shown
Press the numeric keys to set the Lo Limits and confirm by pressing key to
back to the weighing mode,
 For check limits, just one limit value can be set for operations
 The check mode will be deactivating, if both values are set to zero.
 The beep sound will be worked as per described in the beep settings.
Check parameter f9 beep
 Check mode no : No beep sound in the limits. Function turned off.
 Check mode ok : When the weight is between the limits. beeper will be
sounded.
 Check mode ng : When the weight is out of the limits, the beeper will be
sounded .
Note: Check weighing available only when weight more than 20d
PCS LO
0
Net
Hi
0.00
Net
lo
0.00

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 14
-
6. Accumulation
6.1 Prepare for accumulation.
 Before accumulation, ensure the platform is empty.
 If necessary, press to make display zero.
 Display should be stable.
6.2 Accumulate operation
 Place the goods on the platform.
display will be show
 Using numeric keys to enter the unit weight
Press key ,the count will be calculate
Automatically, Display will be shown
 When stable indicator will be displayed, press
key to enter accumulation
Weight Display will show Total weight and Unit Weight Display will be
show the total times of accumulation.
Note:
 Accumulation display will be show 2 seconds only, then return to normal
display. It can continue up to 99 entries or until to reach maximum displayed
values.
 Weight Display should show zero for the next accumulate operation
 Loaded weight should be more than 20d of the scale
6.3 Recall Memory
To check the total value stored, press the key when the scale is in zero.
The total and number of times will be displayed 2 seconds
6.4 Memory Clear
To delete the saved data, press key to recall the stored data and press the
key to clear all values.
2
.
812
0
0
2
.
812
2
0
2.812
X1x
1406
2
.
812
2
1406

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 15
-
7. Back light
The scale has the option of back light. It can help to see white background and
brighter.
Press and hold key, display will be show
By pressing key can change back light to auto/on/off
Press
Bl set auTO To set auto option. When start to use operation,
back light will be turn on and when stop the
operation back light also will turn off.
Bl set on To set always on. When turning on the power,
back light also will be on.
Bl set off To set back light turn off. No back light in the
operations
Bl set
auto
mode

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 16
-
6. PARAMETERS
6.1 PARAMETERSETTING
Enter into the Menu
 Turn on the scale. Press and hold key during the self test.
Display will show “Pn” briefly PIN is activated. Press the PIN number to
get into the parameter menu.
 The default PIN number is “9999”
 Press numeric key 9 four times, display will be shown Pn - - - -
 Press key to confirm, It will enter into the parameter settings and will
to show “ menu unit lb” .
Enter to Selected Menu
 Press , it can confirm which will be shown displayed.
Select the Menu
 Press or . It can choose menu block one by one.
Return to Weighing Mode
 Press escape from the menu and exit to weighing mode
6.2 PARAMETER MENU BLOCK
Menu Sub-Menu DESCRIPTION
F0 CAL Calibration
F1 LCAL Linear Calibration
F2 rES Dual-i Set external resolution
Dual-r
30000
60000

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 17
-
3000
6000
F3 CAP 3KG/6lb Set Scale Capacity
6KG/12lb
15KG/30lb
30KG/60lb
F4 SPEED Slow To select A/D speed
Medium
Fast
F5 ISN This display will show XXXXX for indicating the
internal counts.
F6 Gra To set your local gravity value.
F7 Reset Factory default settings
F8 rS232 ModE oFF RS232 function disable
Cont Continues data
transmission
StC Stable data sending
continues
ask Bi- direction, through PC
Commands W= Send, T=
Tare, Z= Zero
tpup press PRINT key to send
data to printer
Lp50 Lb1 press PRINT key to send
data to printer
Lb2
baud Set baud rate to
(1200/2400/4800/9600/192
00/38400/115200)
Pr 8n1 8 data bits, no verify, 1 stop
bit
7E1 7 data bits, Even verify, 1
stop bit
7o1 7 data bits, Odd verify, 1
stop bit
F9 BEEP OK When the weight is between
the limits. beeper will be
sounded.
NO No beep sound in the limits.
Function turned off.
NG When the weight is out of
the limits, the beeper will be
sounded .

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 18
-
7. CALIBRATION
7.1 Linear Calibration
1.Turn on the scale.
2. Press and hold key during the self-test.
Display will show “Pn” briefly PIN is activated. Press the PIN number to get into
the parameter menu.The default PIN number is “9999”
3.Press numeric key 9 four times, display will be shown Pn - - - -
4.Press key to confirm, It will enter into the parameter settings and show
“ menu unit lb” .
a. If calibrating in lb, continue step 6
b. If calibrating in kg, press key, kg will be show on the display
5.Make sure there are no loads on the platform
PS: Press key to choose "kg" or "lb" unit, capacity will be show
in kg or lb values.
Press calibration switch to enable settings; the calibration switch is located
below the scale.
6.Press key to confirm, display will be show “F0 CAL”
7.Press key to select “F1 lCAL”.
8.Press key to confirm, display will be show “unLoAd”
After stable indicator on and in zero point
9.Press key to confirm, display will be show “cal load 1”
Place the first weight on the platform,
10.Press key to confirm, display will be show “cal load 2”
Place the second weight on the platform,
11.Press key to confirm, display will be show “cal load 3”
Place the third weight on the platform,

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 19
-
12.Press key to confirm, display will be show “unLoAd”
Remove the goods from the platform and make sure STABLE indication has
been enabled.
13.Press key to confirm, display will be show “cal load 3”
Place three weight on the platform,
14.Press key to confirm, display will be show “cal load 2”
Take down the third weight from the platform,
15.Press key to confirm, display will be show “cal load 1”
Take down the second weight from the platform,
16.Press key to confirm, display will be show “cal pass”
When the calibration is finished, the display will enter into “F1 lCAL”.
17.Press key to go back to the normal weighing mode.
Pounds Weights for linear Calibration.
TVC
SERIES
Model #
TV
C
-
6
TV
C
-
12
TV
C
-
30
TV
C
-
60
Weight 1 2lb 4lb 10lb 20lb
Weight 2 4lb 8lb 20lb 40lb
Weight 3 6lb 12lb 30lb 60lb
Kilogram Weights for linear Calibration.
TVC
SERIES
Model #
TV
C
-
6
TV
C
-
12
TV
C
-
30
TV
C
-
60
Weight 1 1kg 2kg 5kg 10kg
Weight 2 2kg 4kg 10kg 20kg
Weight 3 3kg 6kg 15kg 30kg
Note:If it’s required to calibrate, linear calibration must be operated first, followed
by normal calibration

TVC Counting Scale Technical Manual (v1.09b-v1.11)
- 20
-
7.2 Normal Calibration
1.Turn on the scale.
2. Press and hold key during the self-test.
Display will show “Pn” briefly PIN is activated. Press the PIN number to get into
the parameter menu. The default PIN number is “9999”
3.Press numeric key 9 four times, display will be shown Pn - - - -
4.Press key to confirm, It will enter into the parameter settings and show
“menu unit lb” .
a. If calibrating in lb, continue step 6
b. If calibrating in kg, press key, kg will be show on the display
5.Make sure there are no loads on the platform
PS: Press key to choose "kg" or "lb" unit, capacity will be show
in kg or lb values.
6.Press key to confirm, display will be show “F0 CAL”
Press calibration switch to enable settings; the calibration switch is located
below the scale.
7.Press key to confirm for calibration, display will be show “unLoAd”
8.Remove the goods from the platform and make sure STABLE indication has
been enabled.
(the test weights must be above up to full capacity.)
9.Press key to confirm, display will be show “load”
10.Calibration weight defaults to scale range and place the calibration weight on
the platform.
