VisionAIR 1VAHG7500 User manual

CEILING MOUNT HEATER
7,500W / 240V
MODEL 1VAHG7500
OWNER’S MANUAL

2
CONTENTS (Continued)
IMPORTANT NOTE:
Read the manual carefully. Make sure to save this manual for future reference.
Illustrations in this manual are for explanatory purposes only, your actual
product may look slightly dierent.
TECHNICAL DATA
HARDWIRED INSTALLATION REQUIRED
This heater must be grounded and hardwired to a properly sized current protection
circuit breaker in accordance with the (US) National Electric Code and local codes.
FEATURES:
• Adjustable Heat Settings with Digital Thermostat
• Fan-Forced for Wide Heat Circulation
• Fan Only Setting for Year-Round Air Circulation
• 12-Hour Timer with Auto Shut-O
• Horizontal and Vertical Air Flow with Tilt Feature
• Sturdy Heavy-Gauge Steel Body
• Remote Control
• High Limit Thermal Cut-Out Switch
1VAHG7500 DIGITAL HEAVY DUTY 7,500W ELECTRIC UTILITY HEATER
WATTS SWITCH
POSITION VOLTS (VAC) PHASE AMPS BTU/HOUR
7,500W High (default) 208-240V, 60Hz 1 31.3 25,590
6,250W Low 208-240V, 60Hz 1 26 21,330
N/A Fan Only N/A N/A N/A N/A
Air Throw Horizontal 18 Ft. (Approx.)
Recommended Circuit
Breaker 40 Amp or larger, in accordance with
NEC and local codes.
Recommended Wire Size 8 AWG, Copper Only,
Rated at 167°F / 75°C
or larger, hardwired in accordance
with NEC and local codes.
Recommended Lug Torques 40 In.-Lbs. or greater, in accordance with
NEC and local codes
Product Weight (Approx.) 20.75 Lbs.
WARNING: The installation of main power supply is highly recommended to be carried
out by a certied electrician. The installation process involves working with electrical
components, which can be dangerous and potentially life-threatening if handled incorrectly.

3
CONTENTS
Safety Guidelines ....................................................................................4-6
Operating Instructions............................................................................ 7-8
Operation and Temperature Setting ......................................................7
Timer Function........................................................................................8
Fahrenheit or Celsius Display.................................................................8
Installing the Heater................................................................................ 8-9
Connecting the Power...............................................................................10
Care and Maintenance ..............................................................................11
CONSUMER PRODUCT INFORMATION
For your own records, please attach a copy of your sales receipt to this manual.
Also, write the store name/location and date purchased below:
Store Name: _______________________________________________________________
Location:__________________________________________________________________
Date Purchased: ___________________________________________________________

4
INTENDED USE:
Electric Utility heaters are designed to meet a variety of heating requirements. This
product is intended for indoor use only. Use only with electrical wiring that is in
good working order and that meets applicable codes and ordinances.
If you have any questions whether your wiring is adequate, consult a qualied
electrician. Risk of re, overheating, malfunction, property damage, injury or even
death may result if not adhered to.
Use your heater/fan only with a working smoke detector located in the vicinity of
your heater/fan.
While using your heater/fan, you should follow the IMPORTANT INSTRUCTIONS
listed below. As part of those instructions, we have used the word “WARNING” to
indicate the level of hazard: WARNING indicates a hazard which, if not avoided,
could result in injury or death.
READ AND SAVE THESE INSTRUCTIONS
GENERAL SAFETY INFORMATION
WARNING - Read and understand installation and operation instructions and
observe all safety instructions
1. For supply connections, use only copper wire, see SPECIFICATIONS.
2. Heater air ow must be directed parallel to, or away from adjacent wall.
3. Observe wall, oor, and ceiling clearance requirements. See Figure. 1.
4. All wiring must conform to national and local electrical codes in the United
States and the heater must be grounded as a precaution against possible
electrical shock. Heater circuit must be protected with proper fuses or circuit
breakers.
5. The mounting structure and the anchoring hardware must be capable of reliably
supporting the weight of the heater and, if used, the mounting bracket.
6. All electrical power must be disconnected, and the main service box must be
locked before inspection, cleaning or servicing the heater. This is a precaution
to prevent serious shock.
7. This heater is not suitable for use in hazardous locations as dened by the
National Fire Protection Association (NFPA) in the United States. This heater
has hot and arcing (sparking) parts inside. Do not use in areas where gasoline,
paint, or ammable liquids are used or stored.
SAFETY GUIDELINES

5
SAFETY GUIDELINES
8. This heater is not suitable for use in corrosive atmosphere such as marine,
greenhouses or chemical storage areas.
9. Do not install closer than 8 inches to a vertical surface. Do not install less than
6 feet from the oor.
10. Extreme caution is necessary when any heater is used by or near children or
invalids and whenever the heater is left operating and unattended.
11.
Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause re, electric shock, or injury to persons.
WARNING - Improper installation or failure to follow the procedures
outlined in this instruction manual can result in serious electrical shock.
WARNING: SHOCK HAZARD
Use your heater only in dry environments. This heater is not intended for use in
a bathroom, laundry area, or similar locations, or near sinks, washing machines,
swimming pools or other sources of water. Never locate heater where it may fall
into a bathtub or other water container. Do not use heater outdoors. Do not use in
damp environments such as ooded basements.
WARNING: HOT SURFACES
Do not touch body of heater when in use. This heater is hot when in use, to avoid
burns, do not let bare skin touch hot surfaces. If provided, use handles when
moving this heater.
WARNING: FIRE HAZARD
Heater has hot and arcing or sparking parts inside. Do not use near combustible
materials or ammable gases or sources of heat. DO NOT USE in areas where
gasoline, paint or ammable materials are used or stored. Keep combustible
materials such as furniture, pillows, bedding, papers, clothes and curtains at least
3 feet (0.9 meters) from the front of the heater and keep them away from the sides
and rear. Keep rear grille away from walls or drapes so as to not block air intake.
To prevent a possible re, do not block air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where openings may become blocked. Do not
insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock, re, or damage the heater.
(Continued)

6
HEADLINE (Continued)SAFETY GUIDELINES
WARNING: ELECTRICAL SHOCK HAZARD
Do not use with damaged cord or plug. Use with adequate electrical system that is
up to code. Do not operate any heater with a damaged cord or plug or after heater
malfunctions, has been dropped or damaged in any manner. Do not operate heater
with a broken heating element or ceramic cone or any visual imperfections.
PET OWNERS NOTE
The health of birds and some small pets are extremely sensitive to the fumes given
o during the initial use of many appliances. Although these fumes are not harmful
to humans, it is recommended that this heater not be used around birds and small
pets during its initial use until the manufacturing corrosion coatings burn o.
INSTALLATION WARNING
WARNING: FOR INDOOR USE ONLY, IN A DRY LOCATION FREE OF GASOLINE,
PAINT, FLAMMABLE LIQUIDS OR COMBUSTIBLE DUST OR MATERIALS. DO
NOT USE EXTENSION CORDS.
(Continued)
MAXIMUM MOUNTING HEIGHT USING BRACKET
FOR HORIZONTAL/ANGLED AIR FLOW:
The maximum recommended ceiling height for
eective vertical air ow is 8 ft.
FIGURE 1
NOTE: Diagram is not drawn to scale; for information purposes only.
Product dimensions are approximate and subject to change without notice.

7
OPERATING INSTRUCTIONS
OPERATION AND TEMPERATURE SETTING
1. This heater is designed to maintain a comfortable room temperature. Always
operate the heater in the upright position following all instructions and
recommendations listed in this manual.
When the heater is turned on by pressing the POWER button, it will operate
on HIGH setting (7,500W) continuously. The LED display panel will show the
ambient temperature. Press the MODE button on either the unit or remote to
change the heat setting to LOW (6,250W). The fan will start running about 10
seconds after initial start to push the heat out. The sequence is HIGH-LOW-
FAN-ONLY. To operate the unit on FAN ONLY setting, press the MODE button
again. In FAN ONLY mode, the LED display panel will show FA to indicate
the heater is in FAN ONLY mode. From FAN ONLY mode, pressing the MODE
button will make the heater operate in HIGH setting again, and the ambient
temperature will appear on the LED display.
2. The temperature setting can be adjusted between 45°F (7°C) to 95°F (35°C). To
change the temperature, press the TEMP+ or TEMP - buttons on either the unit
or the remote. (See Figure 2).
3. The temperature display will blink while it is being adjusted. When the desired
temperature is reached, it will take about 5 seconds to accept the setting. Once
the display stops ashing, the room temperature will reappear on the LED
screen to indicate the desired temperature is set.
4. In any temperature mode, the unit will stay in that mode, cycling on and o to
maintain the set temperature. The heater will reach the set temperature faster
in HIGH setting.
5. The heater can be turned OFF by pressing the POWER button. Once the unit is
turned o, the fan will continue to run to cool down the unit and there will be a
90 seconds countdown on the digital display.

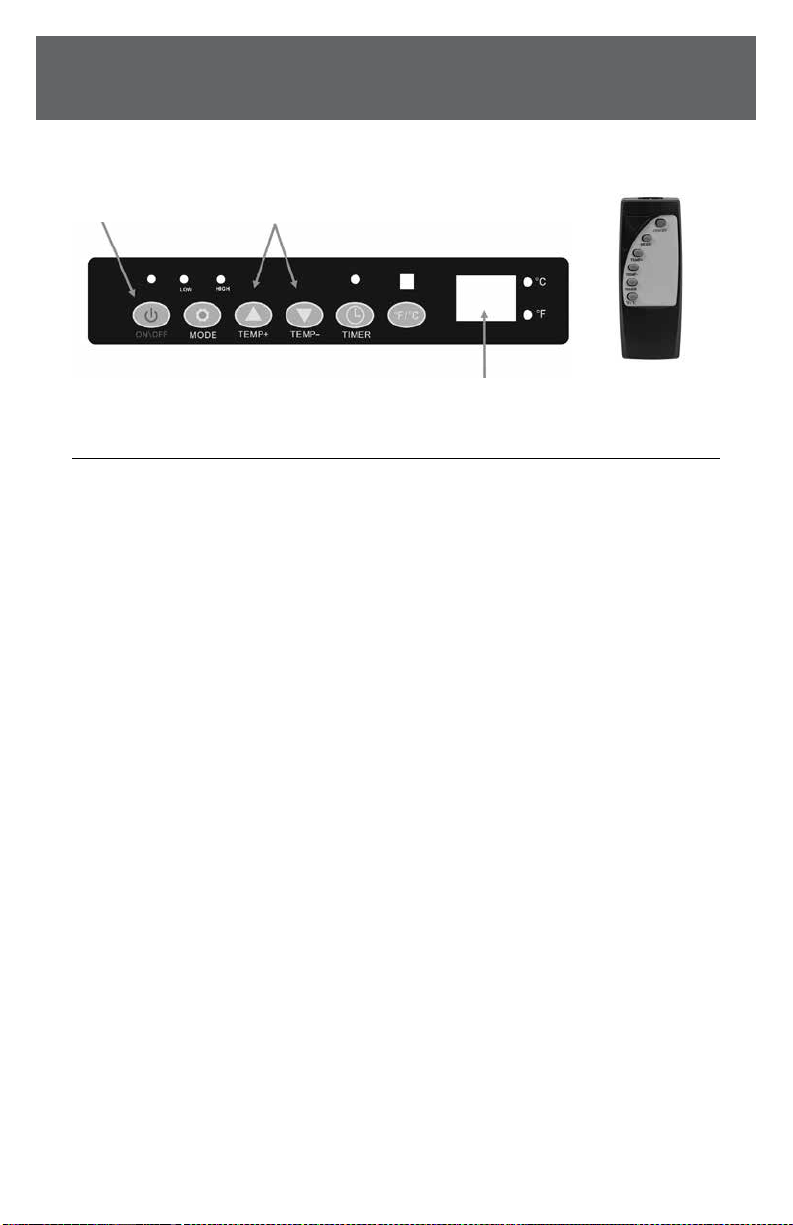

FIGURE 2
Power Control Temperature Controls +/-
Temperature Display

8
OPERATING INSTRUCTIONS
TIMER FUNCTION:
The Timer function allows you to set the length of operation from 1 to 12 hours.
Each time the TIMER button is pressed the length of operation will increase 1
hour. The duration the timer is set for will be displayed on the LED screen in hour
increments.
TO TURN THE TIMER FUNCTION OFF: Press the TIMER Button continuously until
the LED screen displays “O”.
NOTE: The timer function is not an excuse to leave the heater unattended.
NOTE: Heater will cycle on and o to maintain room temperature. The rst time you
operate the unit, it may smoke slightly. This is due to residual cleaning agents used
to clean the element when the heater is manufactured. This is normal and does not
indicate a problem with the unit. This condition will stop after the heater has been in
operation for a few minutes.
FAHRENHEIT OR CELSIUS DISPLAY:
To switch the display between Fahrenheit and Celsius, press the °F/°C on either the
unit or the remote.
INSTALLING THE HEATER
LOCATING THE HEATER
Install the heater out of trac areas, maintaining the clearances stated in Figure 1.
The air ow from the heater must not be restricted or obstructed by any items in
the room. When more than one heater is used in an area, the heaters should be
arranged so that the air discharge of each heater supports the air ow of the others
to provide best circulation of warm air, as indicated below in Figure 3.
FIGURE 3
(Continued)

9
INSTALLING THE HEATER
HANGING THE HEATER IN THE BRACKET
1. Lift the heater into the mounting
bracket and align the lower
bracket holes with the threaded
holes nearest the heater’s center.
2. Thread a large knob-screw
through the hole on each side of
the bracket.
3. Aim the heater horizontally
or tilted by aligning the upper
bracket holes with the top
threaded holes on the heater and
secure with the small knob-screws
and tighten all. See Figure 5.
MOUNTING BRACKET INSTALLATION
Refer to Figures 4a and 4b.
1. Locate a ceiling joist or other rm structural element or support to mount the
heater and point at desired direction of air ow.
2. Drill a ¼” pilot hole in the ceiling joist for the screws.
3. Place the screws and washers as shown in the Figures 4a or 4b.
Fig. 4a: For Single-Screw Mounting (center bracket hole only). (If you want
to swivel the heater, a longer Lag bolt may be required to properly secure the
heater, not included.)
Fig. 4b: For Double-Screw Mounting (both o-center holes are used).
4. Tighten the screws to secure the heater.
FIGURE 4a: Single-screw mounting,
to allow swivel
FIGURE 4b: Double-screw mounting,
for xed position
Remove screws from the panel to
access power block, See Figure 7.
FIGURE 5
Use top slots/hole
in bracket and
small knob-screws
if heater is to be
tilted down.
Adjust louvers
up or down to
control air ow.
(Continued)

10
WARNING: The installation of main power supply is highly recommended to be
carried out by a certied electrician. The installation process involves working with
electrical components, which can be dangerous and potentially life-threatening if
handled incorrectly.
1. With the power o at the breaker,
remove all screws from the bottom lid
for access to the electrical section of
the heater.
2. Attach exible cable through a knock-
out in the side of the heater following
NEC and local codes, See Figure 6 and
SPECIFICATIONS for recommended
wiring and circuit breakers.
NOTE: For certain applications, conduit
may be required. See Figure 6. Check local
electrical codes. If you run the wiring in
conduit and wish to be able to turn the
heater be sure to purchase enough exible
conduit to allow the heater to be turned.
3. Pull enough wire into the heater and
connect to wire to the Power Block
located in the electrical area of the
heater. See Figure 7.
4. Be sure to torque all terminal screws
and power block lugs tight, see
SPECIFICATIONS and NEC/local
codes, for required torque values,
failure to do so can overheat the
power blocks.
5. Turn on power at the main circuit
breaker panel. Notice the YELLOW
Power Indicator Light on the Control
Panel will glow.
WARNING: It is advised that at the start
of each heater season, the power should be
turned o at the circuit breaker, and the LI and L2 lug screws checked for tightness
and proper torque. The heater should be cleaned and checked for mechanical and
electrical integrity. See SPECIFICATIONS and NEC/local codes.
CONNECTING THE POWER
FIGURE 7
3ft.
Min.
12
34
12
Flexible
Conduit
Flexible NM Cable Connector
(Use Per Electrical Codes)
Flexible Conduit Connector
(Use Per Electircal Codes)
Flexible
Conduit Connector
Conduit Conduit
Connector
Ceiling Joist
Washer
Bracket
3/8" Diameter
Lag Bolt
L1
L2
Ground
(Or Bare Copper)
Hot
Hot
Flexible
NM Cable
FIGURE 6
If Heater is to be turned and wire is
inside conduit.
If Heater is to be connected with
NM Cable.
3ft.
Min.
12
34
12
Flexible
Conduit
Flexible NM Cable Connector
(Use Per Electrical Codes)
Flexible Conduit Connector
(Use Per Electircal Codes)
Flexible
Conduit Connector
Conduit Conduit
Connector
Ceiling Joist
Washer
Bracket
3/8" Diameter
Lag Bolt
L1
L2
Ground
(Or Bare Copper)
Hot
Hot
Flexible
NM Cable
3ft.
Min.
12
34
12
Flexible
Conduit
Flexible NM Cable Connector
(Use Per Electrical Codes)
Flexible Conduit Connector
(Use Per Electircal Codes)
Flexible
Conduit Connector
Conduit Conduit
Connector
Ceiling Joist
Washer
Bracket
3/8" Diameter
Lag Bolt
L1
L2
Ground
(Or Bare Copper)
Hot
Hot
Flexible
NM Cable
If Heater is to be connected with
Flexible Conduit.
3ft.
Min.
12
34
12
Flexible
Conduit
Flexible NM Cable Connector
(Use Per Electrical Codes)
Flexible Conduit Connector
(Use Per Electircal Codes)
Flexible
Conduit Connector
Conduit Conduit
Connector
Ceiling Joist
Washer
Bracket
3/8" Diameter
Lag Bolt
L1
L2
Ground
(Or Bare Copper)
Hot
Hot
Flexible
NM Cable

11
CARE AND MAINTENANCE
ADJUSTING AIR FLOW:
1. Swivel the unit—If mounted on a single center lag bolt Figure 4a, turn the
entire heater and bracket assembly left or right.
2. Tilt the unit—Loosen the top Small Knob-Screws and thread into provided
holes in heater until tight. See Figure 5.
3. Adjust the louvers in front of the heater as desired. See Figure 5.
NOTE: DO NO OPERATE THE HEATER WITH THE FRONT LOUVERS CLOSED,
DAMAGE TO THE HEATER COULD RESULT.
SAFETY INSTRUCTIONS:
To start the heater, turn on the circuit breaker. The Power Indicator light will
light up to indicate there is power available. Press the POWER button to turn the
heater on. The heater will be in HIGH setting by default. The heater indicator will
illuminate, and the LED display will show the default setting temperature 80°F.
1. The heater is HOT when in use. Do not let bare skin touch any hot surfaces.
2. Keep combustible materials (furniture, pillows, bedding, papers, clothes, curtains,
and similar items) at least 3 feet (0.9m) from all sides and surfaces of the heater.
3. Do not use outdoors or in wet areas like bathrooms, laundry areas or where it
could fall into a swimming pool or other container of water.
4. This heater is a 240V AC rated direct wired appliance. Never use extension
cords or relocatable power taps.
CLEANING THE HEATER
1. Do not disassemble the heater to clean it.
2. The heater should be powered OFF and disconnected from the power at the
circuit breaker before attempting to clean any portion of the heater.
3. The exterior can be cleaned with a cloth, brush and/or vacuum.
4. The louvers, fan blade and heating element are delicate and should not
encounter hard items. They can be cleaned by brush, vacuum and mild
compressed air.
MAINTENANCE:
This Industrial Heater contains no user serviceable parts.

833-950-1185 |[e-mail]
www.visionairproducts.com
4560 W. 160th Street
Cleveland, OH 44135
Printed in China | 0323_M029
