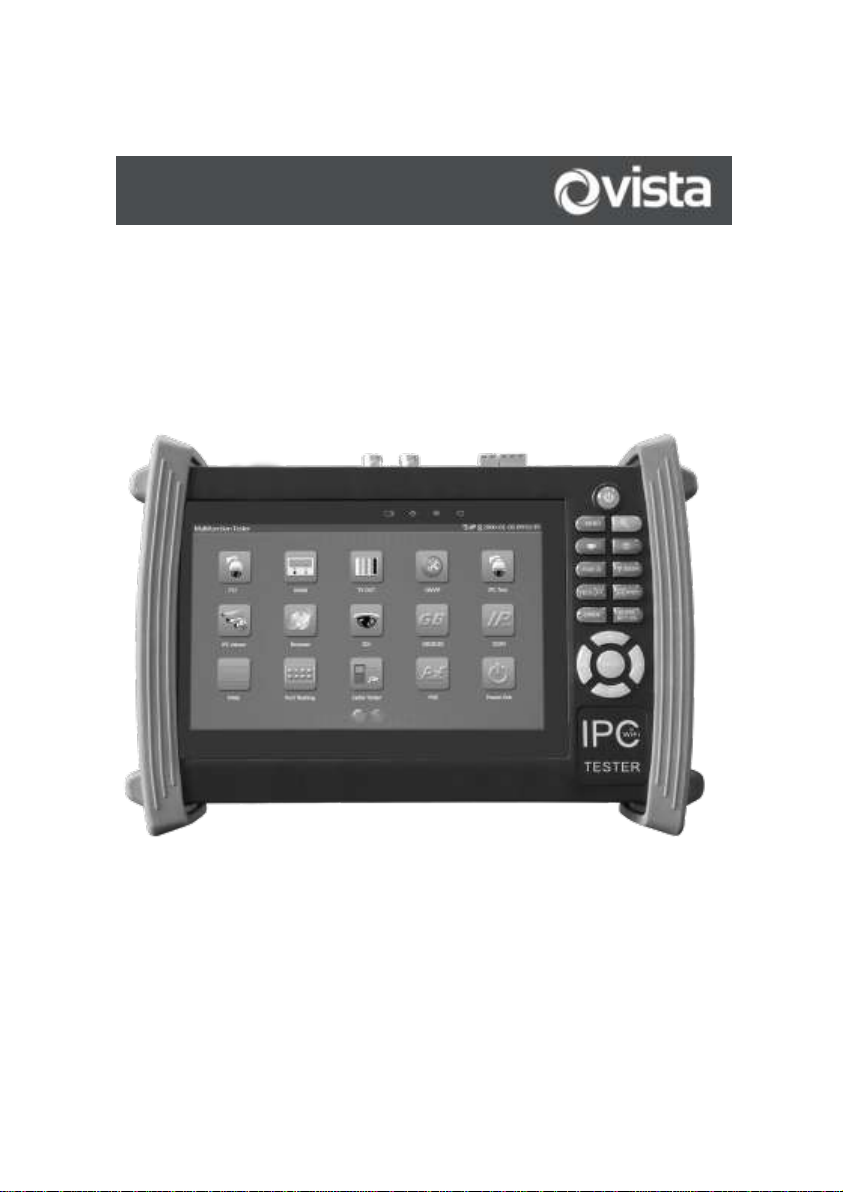

Vista DIAMOND User manual

DIAMOND –Mutli-function test monitor
User Manual

Before You Begin
Read these instructions before installing or operating this product.
Note: This installation should be made by a qualified service person and should conform to
local codes.
This manual provides installation and operation information. To use this document, you
must have the following minimum qualifications:
• A basic knowledge of CCTV systems and components
• A basic knowledge of electrical wiring and low-voltage electrical connections
Intended use
Only use this product for its designated purpose; refer to the product specification and user
documentation.
Customer Support
For assistance in installing, operating, maintaining and troubleshooting this product refer to
this document and any other documentation provided. If you still have questions, please
contact Norbain Technical Support and Sales:
Norbain SD, 210 Wharfedale Road, IQ Winnersh, Wokingham, Berkshire RG41 5TP,
England.
UK [phone]
Note: You should be at the equipment and ready with details before calling Technical
Support.
Conventions Used in this Manual
Boldface or button icons highlight command entries. The following WARNING, CAUTION
and Note statements identify potential hazards that can occur if the equipment is not handled
properly:

* WARNING:
Improper use of this equipment can cause severe bodily injury or equipment
damage.
* CAUTION:
Improper use of this equipment can cause equipment damage.
Note: Notes contain important information about a product or procedure.
This apparatus is manufactured to comply with the radio interference.
A Declaration of Conformity in accordance with the following EU standards has
been made. The manufacturer declares that the product supplied with this
document is compliant the provisions of the EMC Directive 2004/108/EC, the CE
Marking Directive 93/68 EEC and all associated amendments.
All lead-free products offered by the company comply with the requirements of
the European lawon the Restriction of Hazardous Substances (RoHS) directive:
2011/65/EU, which means our manufacture processes and products are strictly
“lead-free” and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union
the product must be collected separately at the product end-of-life. This
applies to your product and any peripherals marked with this symbol. Do not
dispose of these products as unsorted municipal waste.
* This symbol indicates electrical warnings and cautions.
** This symbol indicates general warnings and cautions.

NORBAIN SD reserves the right to make changes to the product and specification of the
product from time to time without prior notice.
WARNINGS AND CAUTIONS:
To reduce the risk of fire or electric shock, do not insert any metallic objects through the
ventilation grills or other openings on the equipment.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of
time.

12. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
13. CAUTION –THESE SERVICING INSTRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN
THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
14. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2
power source only.
15. ITE is to be connected only to PoE networks without routing to the outside plant.
CE COMPLIANCE STATEMENT
WARNING
This is a Class A product. In a domestic environment this product
may cause radio interference in which case the user may be required
to take adequate measures.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Contents
1 .Safety information----------------------------------------------------------------------------------------------1
2. DIAMOND Tester Introduction-----------------------------------------------------------------------------3
2.1 General----------------------------------------------------------------------------------------------------3
2.2 Features---------------------------------------------------------------------------------------------------3
2.3 Function---------------------------------------------------------------------------------------------5
2.3.1 Touch screen and OSD menu-------------------------------------------------------------5
2.3.2 IP discovery--------------------------------------------------------------------------------------5
2.3.3 Rapid ONVIF------------------------------------------------------------------------------------5
2.3.5 IP camera test ----------------------------------------------------------------------------------5
2.3.6 Analogue camera test------------------------------------------------------------------------6
2.3.7 Video level meter ------------------------------------------------------------------------------6
2.3.8 PTZ controller-----------------------------------------------------------------------------------7
2.3.10 12VDC 2A power output port and 5VDC 2A USB power port The unit can
power a camera with its 12V DC 2A power output. Also included is a built in 5V
DC 2A power output port used to charge USB devices. NOTE: This USB port is for
charging only and has no ability to transfer data. 2.3.11 Audio testing-------------7
2.3.12 Cable tester------------------------------------------------------------------------------------8
2.3.13 PTZ data analysis----------------------------------------------------------------------------8
2.3.14 Digital Image zoom on the monitor -----------------------------------------------------8
2.3.15 Video screenshot, record and playback-----------------------------------------------8
2.3.16 DHCP dynamic address assignment---------------------------------------------------8
2.3.19 IP address scan ------------------------------------------------------------------------------9
2.3.21 Port Finder -------------------------------------------------------------------------------------9
2.3.22 PoE Test----------------------------------------------------------------------------------------9
2.3.26 LED Flashlight --------------------------------------------------------------------------------9
2.3.28 WIFI ----------------------------------------------------------------------------------------------9

2.3.29 CVI camera test ---------------------------------------------------------------------------- 10
2.3.30 TVI camera test----------------------------------------------------------------------------- 10
2.3.31 AHD camera test--------------------------------------------------------------------------- 10
2.3.32 PoE power supply-------------------------------------------------------------------------- 10
2.3.34 Network bandwidth testing-------------------------------------------------------------- 10
2.3.35 Cable Tracer (cable search)------------------------------------------------------------ 10
2.3.37 FTP Server----------------------------------------------------------------------------------- 11
2.4 Packing list --------------------------------------------------------------------------------------------- 11
2.5 Function interface ------------------------------------------------------------------------------------ 12
3. Operation------------------------------------------------------------------------------------------------------- 15
3.1 Installing the Battery--------------------------------------------------------------------------------- 15
3.2 Instrument connection ------------------------------------------------------------------------ 16
3.2.1 IP camera connection ---------------------------------------------------------------------- 16
3.2.2 Analogue camera connection------------------------------------------------------------ 18
3.2.3 HD Coaxial camera connection --------------------------------------------------------- 18
3.3.1 IP discovery ( Single camera connection)-------------------------------------------- 21
3.3.2 Video monitor test --------------------------------------------------------------------------- 23
3.3.3 Colour-bar generator (TV OUT)--------------------------------------------------------- 31
3.3.4 ONVIF------------------------------------------------------------------------------------------- 32
3.3.5 IP camera test -------------------------------------------------------------------------------- 41
3.3.6 CVI camera test------------------------------------------------------------------------------ 44
3.3.7 TVI camera test ------------------------------------------------------------------------------ 49
3.3.8 AHD camera test----------------------------------------------------------------------------- 50
3.3.9 IP address scan------------------------------------------------------------------------------ 51
3.3.10 PING Test ------------------------------------------------------------------------------------ 52
3.3.11 Cable Test------------------------------------------------------------------------------------ 53
3.3.12 Cable Search-------------------------------------------------------------------------------- 53
3.3.13 Port Flashing -------------------------------------------------------------------------------- 55
3.3.14 Data monitor--------------------------------------------------------------------------------- 56

3.3.15 Digital Multi-meter-------------------------------------------------------------------------- 57
3.3.16 Media Player--------------------------------------------------------------------------------- 65
3.3.17 Audio player --------------------------------------------------------------------------------- 66
3.3.18 LED Flashlight ------------------------------------------------------------------------------ 66
3.3.19 PoE Voltage test---------------------------------------------------------------------------- 67
3.3.20 Calculator------------------------------------------------------------------------------------- 68
3.3.21 Browser --------------------------------------------------------------------------------------- 68
3.3.22 IP camera viewer--------------------------------------------------------------------------- 69
3.3.23 PoE power / DC12V 2A and DC 5V 2A USB power output------------------- 70
3.3.24 Application tools---------------------------------------------------------------------------- 71
3.3.25 APPS Folder--------------------------------------------------------------------------------- 80
3.3.26 System Setting------------------------------------------------------------------------------ 81
3.3.27 Update----------------------------------------------------------------------------------------- 83
3.4 Audio test ---------------------------------------------------------------------------------------------- 84
3.5 HDMI output-------------------------------------------------------------------------------------------- 84
3.6 PoE power output ------------------------------------------------------------------------------------ 84
3.7 DC12V 2A power output --------------------------------------------------------------------------- 85
4. Specifications -------------------------------------------------------------------------------------------------87
4.1 General Specifications------------------------------------------------------------------------------ 87
4.2 Multi-meter specifications-------------------------------------------------------------------------- 89

Page.1.
1 .Safety information
◆The tester is intended to use in compliance with the local rules of the electrical usage and
avoid to apply at the places which are inapplicable for the use of electrics such as hospital,
gas station etc.
◆To prevent the functional decline or failure, the product should not be sprinkled or damped.
◆The exposed part of the tester should not be touched by the dust and liquid.
◆During transportation and use, it is highly recommended to avoid the violent collision and
vibration of the tester, lest damaging components and causing failure.
◆Don’t leave the tester alone while charging and recharging. If the battery is found severely hot,
the tester should be powered off from the electric source at once. The tester should not be
charged over 8 hours.
◆Don’t use the tester where the humidity is high. Once the tester is damp, power off
immediately and move away other connected cables.
◆The tester should not be used in the environment with the flammable gas.
◆Do not disassemble the instrument since no component inside can be repaired by the user. If
the disassembly is necessary indeed, please contact with the technician of our company.
◆The instrument should not be used under the environment with strong electromagnetic
interference.
◆Don’t touch the tester with wet hands or waterish things.
◆Don’t use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy
to remove, the soft cloth with water or neutral detergent can be used. But the cloth should be
tweaked sufficiently.
About Digital Multi-meter
◆Before using, you must select the right input jack, function and range.
◆Never exceed the protection limit values indicated in specifications for each range of
measurement.
◆When the tester is linked to a measurement circuit, do not touch unused terminals.
◆Do not measure voltage if the voltage on the terminals exceeds 660V above earth ground.
◆At the manual range, when the value scale to be measured is unknown beforehand, set the

Page.2.
range selector at the highest position.
◆Always be careful when working with voltages above 60V DC or 40V AC, keep fingers behind
the probe barriers while measuring.
◆Never connect the meter with any voltage source while the function switch is in the current,
resistance, capacitance, diode, continuity, otherwise it will damage the meter.
◆Never perform capacitance measurements unless the capacitor to be measured has been
discharged fully.
◆Never measure any of resistance, capacitance, diode or continuity measurements on live
circuits.
Visual laser sources
When you turn on visual laser sources, please don’t stare at it, or will damage to eyes
When not using it, please turn it off and cover the protective cap .

Page.3.
2. DIAMOND Tester Introduction
2.1 General
The 7 inch touch screen DIAMOND tester is designed for maintenance and installation of IP
cameras and analogue cameras as well as other security equipment. The 1280x800 resolution
enables it to display network HD cameras and analogue cameras in high resolution. The unit
supports many ONVIF PTZ and analogue PTZ control. The combination of touch screen and
key buttons make the IP camera tester very user- friendly.
The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING,
and IP address searching. You can use the blue cable tracer to locate individual connected
cables from a bundle of cables. Test LAN cable for proper connection termination. Other
functions include providing 24W PoE power to your camera, LED Flashlight, DC 12V 2A power
output and much more. Its portability, user-friendly design and many other functions make the
IP tester an essential tool for all installers or technicians.
2.2 Features
7 inch 1280×800 touch screen, easy to operate
IP discovery, you do not need to know the first two digits of camera’s IP address , it can
auto-scan the whole network segment IP, and auto-modify tester’s IP address. Direct
connection to camera, not to be used on a network with multiple cameras.
Rapid ONVIF, search camera quickly, auto log in and display image from the camera,
ONVIF IP camera video testing.
Compatible with H.264/MPEG4/MJPEG IP cameras, such as Vista ,Dahua, HIKVISION
Built in Wi-Fi, can receive image from wireless camera, as well as ONVIF and
customized IP cameras.
HD CVI camera image display, zoom, video record and playback ,Coaxial PTZ control
and call camera OSD menu
HD TVI camera image display, zoom, video record and playback ,Coaxial PTZ control

Page.4.
and call camera OSD menu
AHD camera image display, zoom, video record and playback, Coaxial PTZ control and
call camera OSD menu
HDMI signal output, supports up to 1080P.
Analogueue camera image display, auto adapt and display the video format of
NTSC/PAL
Support more than 30 protocols, such as PELCO-P,PELCO-D,SAMSUNG etc
Video image digital zoom to view the image in greater detail.
Snapshot function allows you to save the current image as a JPG file in the SD card.
LED Flashlight.
4GB Micro SD card included.
LCD screen brightness/contrast/colour Saturation adjustable
Digital Multi-meter , DC and AC voltage measurement, Resistance measurement
Continuity test, Diode measurements, Capacitance measurement
Enhanced Colour bar generator, PAL/NTSC multi-system colour bar video generator
(Eight-system switchable, transmit/receive eight-system colourful images).
PEAK video signal level, SYNC signal level, Colour burst chroma level
measurement,test video signal attenuation
Cable tracer, by sending the audio signal, enables the blue cable tracer tester to find the
connected cable from messy cables.
Ping test, PING is the most conventional network debugging tools; it is used for testing if
the connected IP camera or other network equipment’s Ethernet port is working normally
and the IP address is correct.
In digital IP surveillance applications, if the IP camera’s IP address is not known; the
device cannot be used. An IP address scan can quickly search for the connected IP
camera or other network device’s IP address.
The PoE voltage test can test for PoE voltage when a POE switch is supplying POE
power to an IP camera

Page.5.
Cable test , Test LAN cable or telephone cable,UTP cable etc ,cable type and the
sequence of wires will be displayed
Support RS232/RS485,rate 600 ～115200bps adjustable
PTZ protocol analysis, control protocol command displays to check RS485 transmission
whether is normal, easy to find the fault device
PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and
sets and the preset position
DC5V 2A power output for USB charging (No USB data exchange, voltage only)
PoE power output, supply temporary power for PoE camera
DC5V 2A power output, as a power bank
Audio input and output, test and output the audio signal
7.4V 48.1Wh Battery. Remaining battery charge indicator, Lithium Ion Polymer Battery
can last 16 hours for normal use after charging for 8 hours
2.3 Function
2.3.1 Touch screen and OSD menu
The DIAMOND tester combines touch screen control and physical buttons. This combination
makes the tester very user friendly. The test meter allows you to move the function icons from
the tester’s main menu to the APPS folder or move them back to customize the main menu
2.3.2 IP discovery
IP discovery, you do not need to know the first two digits of camera’s IP address , it can
auto-scan the whole network segment IP, and auto-modify tester’s IP address.This
function is only to be used for direction connection to the camera. It should not be used on
networks with multiple cameras.
2.3.3 Rapid ONVIF
Rapid ONVIF, search camera quickly, auto log in and display image from the camera,
2.3.5 IP camera test

Page.6.
The device is designed for ONVIF IP camera testing. It can display the image from an IP
camera and change the IP address.
With the ONVIF tool, you can display the image from an IP camera and use the PTZ functions.
Currently the IP camera tester supports more than 70 brands’ IP cameras, such as Vista, ACTi,
Dahua, Hikvision, Samsung, Honeywell and many more.
2.3.6 Analogue camera test
Displays an analogue camera image on the 7 inch 1280 x800 LCD screen display. Supports
PAL & NTSC formats. The LCD screen's back light brightness, video image brightness,
contrast and colour saturation are all adjustable.
2.3.7 Video level meter
Perform NTSC and PAL video amplitude signal measurements for PEAK to PEAK , SYNC
levels, and COLOUR BURST chroma level
Video signal PEAK to PEAK level:
For NTSC format, the video signal level is 140±15IRE
For PAL format, the video signal level is 1000±200mV
If the level is too low, it will cause the image to lose quality and limit the distance it will travel
over cable. If the level is too high, it will lead to wash out of the image
SYNC level: Testing the amplitude of the video sync pulse to verify if the video level is correct.
For NTSC format, the SYNC level is 40 ± 5IRE
For PAL format, the SYNC level is 300 ± 35mV
If the level is too low, it will cause the image to not frame out properly. If the level is too high, it
will lead to a poor quality

Page.7.
COLOUR BURST level: Testing the colour burst level will determine if the burst signal is
sufficient to trigger the displays colour producing circuit. Burst will diminish in amplitude over
longer cable runs and can get fall below the threshold for the video display to show a colour
image.
For NTSC format, the Chroma standard level is 40 IRE
For PAL format, the Chroma standard level is 280mV
If the Chroma level is too low, the colour will not be as deep, and some details of the image will
get washed out. If the Chroma level is too high, there will be spots on the image. If the coaxial
cable is too long, it will reduce the chroma level
2.3.8 PTZ controller
Displays and allows for analysis of analogue video and controls Pan/tilt/zoom function of PTZ
analogue cameras. For PTZ testing, setup the controlling parameters from the meter to match
those of the camera: e.g. PTZ protocol (PELCO-D, etc.), communication port (RS-485, etc.),
baud rate, PTZ camera ID and pan/tilt speed.
2.3.9 Enhanced Colour bar generator
The tester sends out colour bars via its BNC output to the monitor. This is used to test for a
problem in the cable going from the camera back to the monitoring area
2.3.10 12VDC 2A power output port and 5VDC 2A USB power port
The unit can power a camera with its 12V DC 2A power output. Also included is a built in 5V
DC 2A power output port used to charge USB devices. NOTE: This USB port is for charging
only and has no ability to transfer data.
2.3.11 Audio testing
Test the audio from mic level input devices. Connect the tester and mic level device with the
audio cable. Supports audio recording and output. to monitor and / or record audio.

Page.8.
2.3.12 Cable tester
Test LAN cable or telephone cable.
Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the
connecting status, cable type and the sequence of wires will be displayed, as well as display
the serial number of the cable tester kit.
2.3.13 PTZ data analysis
Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232
interface, test the PTZ control command data whether received anomaly and RS485/RS232
data transmission.
Screen displays 16 hexadecimal codes such as
PELCO-P:A0 00（Add）xx xxxxxx AF xx
PELCO-D:FF 01（Add）xx xxxxxxxx
2.3.14 Digital Image zoom on the monitor
Set image zoom up to 4X to get a closer look at all the image detail. Supports analogue and
many IP cameras
2.3.15 Video screenshot, record and playback
Capture the video image displayed and save as a JPEG file. You can also record and save the
current video to the SD card. The recorded files can play directly via Media player or under the
function of “Playback”.
2.3.16 DHCP dynamic address assignment
Built in DHCP server: Dynamically assign IP address for the IP camera or network device.
2.3.17 Access the dynamic IP address
The IP tester can directly access a dynamic IP address assigned from its DHCP server and use
it as the tester’s IP address. No need to set a IP address manually.
2.3.18 Multiple network IP Cameras Test
Supports Multi- segmented Static IP address setting which can simultaneously test different
segments of IP network Cameras.

Page.9.
2.3.19 IP address scan
The IP address scan can quickly search for connected IP cameras or another network device
IP address.
2.3.20 PING Test
PING is the most conventional network debugging tool; it is used for testing if the connected IP
camera or other network equipment is working normally and the IP address is correct.
2.3.21 Port Finder
The tester will send signals to make the connected PoE port flicker at a set frequency. This will
enable the installer to easily and quickly find the connected port for an Ethernet cable.
2.3.22 PoE Test
Test the PoE voltage from a PoE switch. The unit will clearly display the voltage for each wire in
an Ethernet cable.
2.3.23 Digital Multi-meter
The tester has built in highly stable and reliable 33/4 digit (6600) digital multi-meter. It is used
for the DC and AC voltage measurement, AC and DC current measurement, Resistance
measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual
measuring range switching, relative value measurement and locking. It is easy operation and
professionally accurate.
nonlinear optical power display, it can measure the optical power value, and also be used for
Relative measurement of optical fiber link loss. It is necessary tool for fibre-optic
communication, cable television system and security system maintenance.
2.3.26 LED Flashlight
Press the LED On/Off button to use the LED flashlight.
2.3.28 WIFI
With built in WIFI, you can view the video from a wireless camera (ONVIF or customized
camera) or connect to a Wireless network.

Page.10.
2.3.29 CVI camera test
HD CVI video surveillance testing, support720p 25,30,50,60fps / 1080p 25,30fps, when
CVI signal input, HD CVI camera image display, zoom, view photos, video record and
playback, Coaxial PTZ control and call up the camera OSD menu.
2.3.30 TVI camera test
HD TVI video surveillance testing, support720p 25,30,50,60fps/ 1080p 25,30fps , when
TVI signal input , HD TVI camera image display, zoom ,view photos ,video record and
playback .Coaxial PTZ control and call up the camera OSD menu.
2.3.31 AHD camera test
AHD video surveillance testing, support 720p 25,30fps/ 1080p 25,30fps, when AHD
signal input , AHD camera image display, zoom ,view photos ,video record and
playback ,Coaxial PTZ control and call up the camera OSD menu.
2.3.32 PoE power supply
Supports PoE 802.3at power at 48V and up to 24W.
2.3.33 HDMI signal output
The HDMI output port supports up to a 1080p 60Hz resolution output.
2.3.34 Network bandwidth testing
The network bandwidth test needs two IP tester meters to test bandwidth: one as a transmitter,
the other as a receiver.
2.3.35 Cable Tracer (cable search)
Cable identification by use of anaudio signal. This function enables the blue cable tracer to find
the connected cable from a bundle of cables with an audio tone.
2.3.36 Screen image rotates 180 degrees
You can manually rotate the display 180 degrees using the settings. .

Page.11.
2.3.37 FTP Server
Start the tester’s Wi-Fi or connect the tester’s LAN port to the network. Once the tester is online,
start its FTP Server and directly access files from the tester’s SD card. This also allows for the
user to upgrade the tester firmware.
2.4 Packing list
1). Tester
2). Adaptor DC12V 2A
3) Network cable tester
4) Polymer lithium ion battery (7.4V DC 6500mAh)
5). BNC cable
6). RS485 cable
7). SC,ST connector（Only for optical power meter）
8). Multi-meter test leads one pair of red and black (only for the Multi-meter models)
9). Output Power cable
10). Audio cable
11). TDR alligator clamp (only for TDR models)
12). Safety cord
13). Tool bag
14). Manual
15) 4GB SD card
