VitalConnect VitalPatch Installation instructions

Let’s Get Started!Let’s Get Started!

2
2

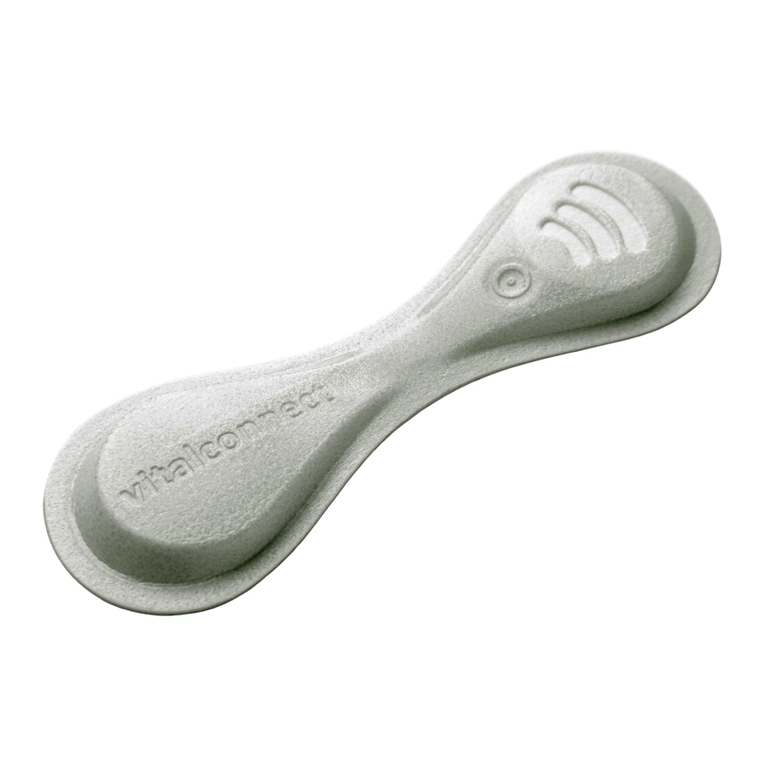

The VitalPatch®biosensor is an adhesive patch that you wear on your chest to record
your vital signs. The VistaTablet™ device collects and uploads your vital signs to your
care team. For data to upload, keep the device charged and near you as much as
possible, and take it with you when you leave the house.
Refer to VitalPatch Instructions for Use (IFU-02) and VistaPoint Instructions for Use
(IFU-05) on the VistaTablet home screen for detailed clinical usage instructions.
VitalPatch VistaTablet Care Team
vitalconnect
• The VitalPatch device is not intended for use on users who have implanted
defibrilators or pacemakers.
• The VitalPatch device is not a stand-alone diagnostic monitor, but its data
may be applicable for diagnosis.
Welcome
Contraindications
Contents
Apply VitalPatch Biosensor . . . . . . . . . . . 3
Remove VitalPatch Biosensor . . . . . . . . . 4
Using the VistaTablet . . . . . . . . . . . . . . . . 5
Unpack and Connect Power . . . . . . 5
Unlock VistaTablet . . . . . . . . . . . . . . 5
Start VistaPoint . . . . . . . . . . . . . . . . 6
Use Dashboard . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . 7
Check Data Connection . . . . . . . . . . 7
Dashboard Unresponsive . . . . . . . . 7
VitalPatch Biosensor Compatibility
VistaTablet 1.0 is compatible with VitalPatch 1.0 (firmware 1.0.4.x and earlier). It is
not compatible with VitalPatch 2.0 (firmware 3.0.0.0 and later). Refer to the firmware
version (FW#) printed on the biosensor pouch.

vitalconnect
vitalconnect
Prepare Skin
1
Remove from Pouch and Power On
2
Hold Against Chest
3
vitalconnect
vitalconnect
Press and release
power button.
Green light
flashes once.
OR
Primary Site Secondary Site
Left Side
Primary
Site
Secondary
Site
Space patch two
fingers below the
jugular notch.
Position logo near
midline and angle
patch down.
Position patch
horizontally with
logo near
midline.
Logo
Logo
Two Fingers
Left
Hand
Left
Hand
Apply VitalPatch Biosensor
Choose either the Primary Site on your
upper left chest (preferred) or the
Secondary Site on the lower left chest on
the rib cage.
Clean site with an alcohol pad and allow
to dry. If there is body hair, shave the site
before cleaning.
Jugular Notch
Tear
3
Midline
Midline

4
Hold Down and Remove Backings
4
Use VistaPoint to Search for ID and Connect
5
Remove VitalPatch Biosensor
List of Patches
VC2B008BF_0032EA
B0:08:BF:00:32:EA
Press against chest to adhere.
Do not shower or exercise for 30
minutes after application.
When monitoring session is complete:
• Select
Disconnect in VistaPoint.
• Remove biosensor.
• Dispose per local laws for routine
electronic waste.
Keep backing
with Patch ID
AVC2B008BF_0032EA
vitalconnect
Press
Peel
Connect Screen
VistaPoint
Select Patch ID
Peel Off
Sweep adhesive
removal pad
Search for VitalPatch ID
Manually Enter VitalPatch ID
or
Start VistaPoint. If you do not see the Connect screen, select Disconnect to
end the previous session. Follow the on-screen instructions to calibrate.
4

5
Carrying Case with
Folding Handle
VistaPoint
Dashboard
Home
Key
Power Key
Status Bar
Wall Charger
USB Cable
Unpack and Connect Power
Unlock VistaTablet
Home Key
Swipe finger across screen
Enter PIN
1 2
ABC 3 DEF
4
GHI 5 JKL 6 MNO
7
PQRS 8 TUV 9 WXYZ
0OK
Using the VistaTablet

6
Check biosensor life and
replace when low.
Select Recalibrate when
Posture is “Unknown.”
Tap Disconnect when
replacing a biosensor.
Use the Dashboard
Select Acknowledge
when a fall is detected.
Start VistaPoint
Home Key
VistaPoint
6

If Dashboard becomes
unresponsive, drag finger down
the display to refresh.
Check Data Connection
Dashboard Stops Responding
5:45 PM
100%
5:45 PM
100%
Good Signal
Good Wi-Fi No Wi-Fi
No Signal
VistaTablet with Cellular Data Connection:
VistaTablet with Wi-Fi Data Connection:
If no signal, move VistaTablet
to a place with a good signal.
If no Wi-Fi, open the Wi-Fi
Center to connect to a network.
OR
Troubleshooting
7
Wi-Fi Center

8
