VitalConnect VistaPoint 2.1 User manual

1
VistaPoint 2.1 QuickStart
and Instructions for Use
This guide will help you get started with monitoring
using the VistaPoint™application and the VitalPatch®
biosensor.
The VitalPatch biosensor (referred to as “VitalPatch” in
this document) is an adhesive device worn on the
chest to measure and record vital signs. Refer to the
VitalPatch Instructions for Use (IFU-02 or IFU-06) for
detailed clinical instructions.
The VistaPoint application collects and uploads vital
signs from the VitalPatch and approved third-party
devices to your care team.
VistaPoint runs on the portable VistaTablet™device.
VistaPoint is a software Graphical User Interface
intended for use by healthcare professionals to
display physiological data collected by the Vista
Solution wireless remote monitoring system in home
and healthcare settings. VistaPoint is a secondary,
adjunct patient monitor and is not intended to replace
existing standard-of-care patient monitoring practices.
Refer to the VitalPatch Instructions for Use (IFU-02 or
IFU-06) for additional indications, warnings and
precautions.
VistaPoint Precautions
• Invalid posture data (shown as “?”) indicates a
non-calibrated state where respiration rate, posture,
and fall data are considered invalid.
• Body movements and contact with the VitalPatch
may produce motion artifacts that aect the
displayed, measured values for ECG and heart rate.
• After applying VitalPatch, it may take 45 seconds
for heart rate to stabilize and respiration rate 120
seconds to stabilize. During the stabilization period
VistaPoint will display “--” for those vital signs.
• After applying VitalPatch, it may take several
minutes for skin temperature to register an accurate
value (for VitalPatch with rmware 1.4.0.x).
Contraindications (When not to use)
Do not use the VistaPoint application as a
standalone diagnostic monitor. However, the data
may be applicable for use in diagnosis.
WelcomeContents
Indications for Use
VitalPatch VistaPoint on VistaTablet Care Team
IFU-15 Rev. A (September 2019)
Getting Started
Setting Up VistaTablet ........................2
Checking VitalPatch Hours and VistaTablet Battery . 2
Removing Previous VitalPatch..................3
Applying the VitalPatch .......................3
Wearing the VitalPatch........................4
Applying the Adhesive Overlay .................5
Monitoring Using VistaPoint
Pairing VitalPatch with VistaPoint ...............6
Using the VistaPoint Dashboard ................8
When Monitoring is Complete ..................9

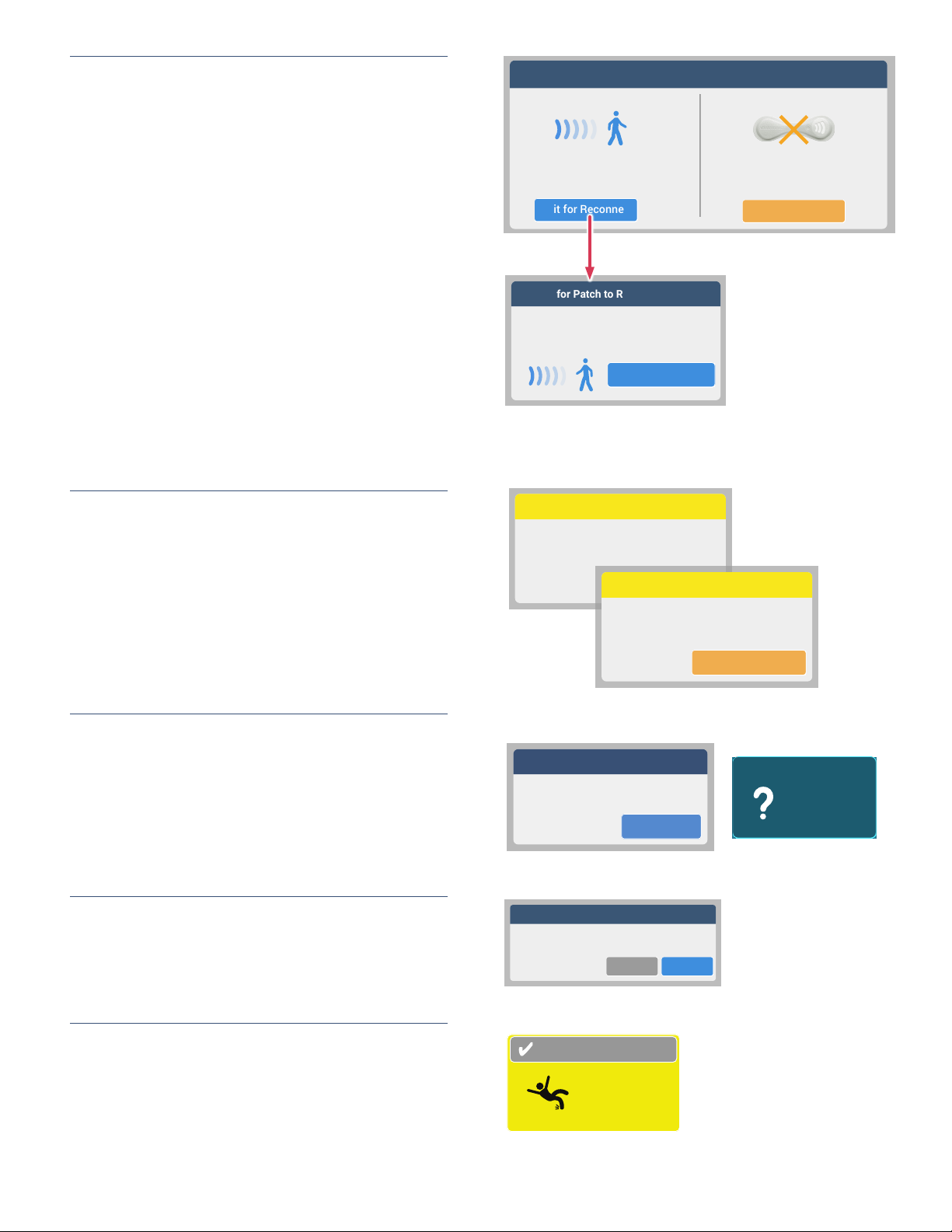

Routine Events During Monitoring..............10
Recalibrating Body Temperature ...............12
Entering Vital Signs Manually
Oxygen Saturation..........................12
Blood Pressure ............................13
Weight ...................................13
Uploading Vital Signs Using Bluetooth Devices
Oxygen Saturation (Fingertip) .................14
Oxygen Saturation (Wrist) ....................15
Blood Pressure ............................17
Weight ...................................18
Troubleshooting .............................19

2
Before you begin your monitoring session, unpack the
VistaTablet device and become familiar with its parts.
Keep the packaging that was provided with the
VistaTablet.
Identifying VistaTablet Parts
Become familiar with the parts of the VistaTablet
(see gure to the right).
Turning VistaTablet On and Off
The VistaTablet should always be ON when you are
wearing a VitalPatch. Note that the screen will go to
sleep (but VistaTablet will remain ON) after a period of
inactivity.
• Turn ON: Press and hold the Power Key until the
VistaTablet vibrates and the screen lights up.
• Check if ON:Tap the Home Key. The screen will
display.
• To Unlock: See Step 1 of Section 7 on page 6.
• Turn OFF: Press and hold the Power Key until the
Options menu displays, and then select Power Off.
Section 1: Setting Up VistaTablet
Status Bar
Home
Key
Menu
Device
Name
Charging
Port
Power Key Volume Up/Down
VistaTablet Device
Charger
and Cable
VitalPatch Hours
VistaTablet Battery Level
VitalPatch Hours Remaining
Each VitalPatch will last up to 5 days (120 hours) or 7 days
(168 hours), depending on model. To check how many
hours are remaining on your VitalPatch, start the
VistaPoint application and look for the hours
remaining displayed. See Section 8 on page 8 for
information on the VistaPoint application.
When the VitalPatch has only a few hours remaining,
you will see warnings on the VistaPoint dashboard.
Replace the VitalPatch before it expires.
Section 2: Checking VitalPatch Hours and VistaTablet Battery Level
VistaTablet Battery Level
To check the VistaTablet battery level, look at the
battery indicator in the status bar (see gure above).
Do not let the battery run out. When the battery is low,
the VistaTablet will sound a warning tone and then
turn o. If this occurs, charge the VistaTablet for an
hour before turning it on again.
Use only the provided cable and charger to charge the
VistaTablet. Keep the VistaTablet plugged into the
charger. You can use the VistaTablet device while it is
charging.

3
Before applying a new VitalPatch, use the following steps
to remove a previously applied VitalPatch (if necessary).
1. Disconnect from VistaPoint
IMPORTANT: If the VitalPatch is still connected to VistaPoint,
tap the Menu and then tap Disconnect Patch. See Section 9
on page 9 for more information.
2. If Overlay Was Used, Peel off
If there is a clear adhesive overlay applied over the
VitalPatch, it must be removed rst. If no overlay is
present, continue to Step 3 below.
a. Grasp a corner of the overlay and peel it o the skin.
b. Continue pulling the overlay o. Stretch the overlay
horizontally to help release it from the skin.
Note: The VitalPatch may begin pulling o with the overlay.
3. Peel off VitalPatch
a. Wipe an adhesive removal pad along the edge of the
VitalPatch.
b. Grasp a corner of the VitalPatch (or the middle where
there is no adhesive) and peel it o the skin while
continuing to sweep the adhesive removal pad
underneath.
c. Dispose the VitalPatch according to local laws for
routine electronic waste.
d. Clean skin with an alcohol pad and allow to dry.
Section 3: Removing Previous VitalPatch
Sweep Adhesive
Removal Pad
Grasp a corner of the overlay and
stretch horizontally to remove
Peel Off
VitalPatch
Tap “Disconnect
Patch” from the Menu
VitalConnect
Section 4: Applying the VitalPatch
VitalPatch must be placed on one of two areas on the
upper left chest, PRIMARY (recommended) or SECONDARY.
See Step 3 on page 4 for more details on the location.
1. Prepare Chest
a. If there is body hair on the site, shave the site before
cleaning. Prepare an area larger than the VitalPatch.
See gure to the right.
b. Clean site with an alcohol wipe and allow to dry.
2. Remove from Pouch and Power-On
DO NOT remove the adhesive backings until Step 4!
a. Make sure your hands are clean and dry. Tear open
the pouch at the notch and remove VitalPatch.
b. Place VitalPatch on a at surface. Press and release
the power button. See gure to the right. A green
light below the logo will ash once to let you know
the VitalPatch is ON.
Prepare one
highlighted area
on the LEFT side
of the chest
PRIMARY
SECONDARY
VitalConnect
Light ashes once Press and release
power button
Menu
Disconnect Patch

4
3. Hold VitalPatch Against Chest on Selected Site
DO NOT remove the adhesive backings until Step 4!
Hold the VitalPatch against the chest in the correct
position (PRIMARY or SECONDARY). See gures below.
4. Remove Backings and Apply
DO NOT touch the adhesive with your ngers!
a. Hold one side of the VitalPatch down against the skin.
b. Lift the opposite side, and peel the backing o from
the center. Press against skin.
c. Peel the backing o from the other side of the
VitalPatch.
d. Firmly press down both sides to attach to skin.
e. Keep the backing with the ID number. You will need
this to pair the VitalPatch with VistaPoint. See Section 7
on page 6 for the pairing process.
Peel off backing
from center
Retain backing
with ID number
Hold VitalPatch
down
AVC2B008BF_0032EA
SECONDARY Site
This site is not
recommended for
obese persons.
a. Hold the
VitalPatch below
the left chest on
the rib cage.
b. Position
horizontally with
the three lines
away from the
midline.
VitalConnect
– OR –
PRIMARY Site
(Recommended)
a. Space two ngers
below the jugular
notch (dip at the
base of the neck).
b. Position diagonally
with the three lines
angled downward
away from the
midline.
VitalConnect
Midline
Midline
LEFT Side LEFT Side
Left
Hand
Left
Hand
Section 5: Wearing the VitalPatch
Things to Avoid
• DO NOT shower or exercise for 30 minutes after
applying the VitalPatch.
• DO NOT expose the VitalPatch directly to the shower
head, and avoid excessive contact with soap or
scrubbing. Gently pat the VitalPatch dry after
showering.
• DO NOT swim with the VitalPatch or use in a sauna,
steam room or hot tub.
• DO NOT wear more than one VitalPatch at a time.
Always remove the old VitalPatch before applying a
new one.
How Long to Wear Your VitalPatch
• Each VitalPatch will last up to 5 days (120 hours) or 7 days
(168 hours). To preserve data recorded by the
VitalPatch, make sure you are connected to the
VistaPoint application before the VitalPatch expires.
• See Section 2 on page 2 for information on checking
how many hours are left on your VitalPatch.
• If discomfort or irritation occurs, the VitalPatch (and
the optional adhesive overlay) should be removed.
Contact your healthcare provider immediately.
• If the VitalPatch begins to fall o or lift from the skin,
contact your healthcare provider immediately.

5
Section 6: Applying the Adhesive Overlay (Optional)
If you are not using an Adhesive Overlay, skip to Section 7 on
page 6 to pair your new VitalPatch with VistaPoint.
Your healthcare provider may recommend that you
apply an optional adhesive overlay to help the
VitalPatch stay adhered to the skin. Use only the
provided adhesive overlays.
DO NOT use other adhesives, overlays or tape.
1. Prepare Skin
Clean the skin around the VitalPatch with an alcohol
pad.
2. Peel Up One Corner of White Liner
Before applying the overlay, peel up one corner of the
white top liner, and bend it back. This creates a tab
that will help you remove the top liner later. See gure
to the right.
3. Place the Adhesive Overlay Over VitalPatch
a. Position the adhesive overlay over the VitalPatch,
with the blue liners against the chest. The raised
portions of the VitalPatch should be aligned with
the cutouts of the overlay. See gure to the right.
b. Ensure the tab you created in the previous step is
on the top side (pointing towards your head).
4. Remove Blue Liners
a. Hold the overlay against your chest with one hand
and peel away the lower blue liner. Press the
overlay against the skin as the liner is removed
b. Repeat to remove the second blue liner. After both
blue liners are removed, press rmly on the entire
surface of the overlay.
5. Peel Off Top White Liner and Seal Edges
a. Peel o the top white liner starting with the tab you
created in Step 2 above. Gently press the overlay
against the skin with your other hand as you
remove the liner.
b. Press rmly down on the overlay to seal all edges.
c. Discard the blue and white liners.
Notched Corner
with Tab
Blue Liner
with Handle
VitalPatch
Place over
VitalPatch
Notched
Corner
Remove
blue liner
Bend Tab Up
Top White Liner
Press down on overlay
to seal all edges
Peel off top white liner
starting with tab
VitalConnect
VitalConnect
VitalConnect

6
1. Unlock VistaTablet
If the VistaTablet is asleep (black screen), unlock and
start the VistaPoint application:
a. Press the Home Key on the VistaTablet.
b. Swipe nger across the screen and enter the PIN
provided by your care team.
2. Start VistaPoint
Tap the VistaPoint icon from the home screen.
3. Begin the Pairing Process
Tap Connect VitalPatch from the VistaPoint dashboard. If
a previous VitalPatch is still connected, disconnect it
before continuing (see Section 9 on Page 9).
4. Connect to a VitalPatch ID
The Bluetooth ID is printed on the VitalPatch pouch
and on the adhesive backing. You will need this ID to
pair the VitalPatch with VistaPoint.
Use one of the following methods to connect the
VitalPatch:
• Tap Search for VitalPatch ID to search for nearby
VitalPatch biosensors. Find the Bluetooth ID of the
VitalPatch and tap it. If the Bluetooth ID does not
appear in the list, you may tap the Rescan button at
the top to repeat the search. If the VitalPatch is still
not listed, press the power button on the
VitalPatch again and press the Rescan button
again.
OR
• Tap Manually Enter VitalPatch ID and then enter the
last 6 characters of the Bluetooth ID.
5. Posture Calibration — Patch Position
After connecting, the Posture Calibration screen
appears. Select the position where you applied the
VitalPatch (Primary or Secondary) and then tap Next.
Section 7: Pairing VitalPatch with VistaPoint
Tap
Connect VitalPatch
Connect to VitalPatch
Search for VitalPatch ID Manually Enter VitalPatch ID
How do you want to connect?
Tap
VistaPoint Icon
Home Key
Enter PIN
SWIPE
Scanning for Devices
VC2B008BF_003C3C
VC2B008BF_0014D2
Manual ID Entry
Please enter the last 6 characters
of the VitalPatch ID.
VC2B008BF_ Enter ID
AVC2B008BF_0032EA
Bluetooth ID from
VitalPatch
Choose how you want to connect
Select ID from list Enter ID Manually
Select Patch Position
Posture Calibration
Step 1 Select Patch Position
Next >
SecondaryPrimary (preferred)

7
Temperature Calibration
Fahrenheit (°F)Celsius (°C)
Take Temperature
Step 2
Use a clinical-grade thermometer to take the
patient’s temperature. Enter value here and select Calibrate.
Step 1 Select Units
Cancel
0.00.0
Calibrate
6. Posture Calibration — Body Position
Select the body position:
• Standing or Sitting (preferred) — Patient must sit as
upright as physically capable.
• Supine — Patient must lie down in a supine position
as at as physically capable.
• Elevated — Patient must be laying on a bed that
can be elevated. Position the bed angle at 30°.
(Note that “Elevated” posture may not be available
depending on your VitalPatch model. If the
Elevated option is not available, ensure the patient
is in the Standing/Sitting or Supine position when
calibrating).
Instruct patient to remain still in body position and tap
Calibrate.
A pop-up will display asking you to conrm that the
VitalPatch and body position selections are correct.
Tap Yes if they are correct, and No to change your
selections.
7. Calibrate Body Temperature
If your VitalPatch supports body temperature (requires
VitalPatch rmware release 3.2.0.0 or later), a
Temperature Calibration screen will appear, and you
will be prompted to calibrate the body temperature. If
the Temperature Calibration screen does not appear,
the VistaPoint dashboard will be displayed after you
perform the posture calibration.
a. Measure temperature with a clinical-grade
thermometer.
b. Select the units (Celsius °C or Fahrenheit °F).
c. Enter the temperature and tap Calibrate. The
VistaPoint dashboard will be displayed once
calibration is complete.
If you plan to calibrate the body temperature at a later
time, tap Not Now. The Body Temperature display will
not show a value.
The VistaPoint dashboard will be displayed after
performing (or skipping) the temperature calibration.
See Section 8 on Page 8 for more information.
8. Recalibrate Body Temperature
30 minutes after calibrating the body temperature (see
previous step), you must calibrate the body temperature
again. See Section 11 on Page 12 for the complete
procedure.
The body temperature must be recalibrated once per
day between the hours of 09:00 and 21:00.
Select Body Position
Conrm Selections
Begin Temperature Calibration
Select Units
Enter Temperature
Posture Calibration
Step 2 Select Current Body Position
Calibrate< Back
Bed is Flat
Supine
Bed Angle 30°
Elevated
(preferred)
Standing or Sitting
Posture Calibration
Please confirm that your selections are correct:
YesNo
- VitalPatch in Primary Position
- Standing or Sitting Posture
Temperature Calibration Required
The VitalPatch Biosensor requires temperature
calibration. Select “Calibrate” to begin
CalibrateNot Now
Temperature Calibration
Fahrenheit (°F)Celsius (°C)
Take Temperature
Step 2
Use a clinical-grade thermometer to take the
patient’s temperature. Enter value here and select Calibrate.
Step 1 Select Units
Cancel
98.9
Calibrate

8
VistaPoint
™
Menu
device-name
1s
2s
3s
4s
5s
Live ECG
2 mv
-2 mv
VitalPatch
VitalPatch ID b008bf_012792 has 109 hours remaining.
Posture
Upright
Fall Detection
No falls
detected
Steps
Activity
463
BPM
Heart Rate
72
BrPM
Respiration Rate
14
°C
Body Temperature
37.1
%SPO2
Streaming Mode
97
Disconnect
Oxygen Saturation
00:0B:57:AC:66:DA
mmHg
Manual Entry
122
79
Last Reading:
2 Hours Ago
Take BP
Blood Pressure
No Device Paired
Pounds
Manual Entry
190.7
Take Weight
Last Reading:
2 Hours Ago
Weight
No Device Paired
Use the VistaPoint Application
When pairing is complete, you will be shown the
VistaPoint dashboard with vital signs (see gure
above). Do the following, as directed by your care
team:
• Keep the VistaTablet device powered on and
charged (see Section 1 on page 2). Keep the
VistaTablet device near you as much as possible
(less than 30 feet) to ensure constant monitoring.
• Use the dashboard to observe vital signs and
monitor VitalPatch battery life.
• If directed by your care team, take oxygen
saturation, blood pressure, or weight readings (see
Section 12-18).
Verify Correct Display of Vital Signs
After pairing and calibrating, verify that data is owing
from the connected VitalPatch and is displaying on
the dashboard. Ensure that the VitalPatch ID above
the ECG display matches the identier on the
VitalPatch adhesive backing and/or pouch. A
matching ID provides conrmation that the correct
VitalPatch is connected. Additionally, verify that the
posture reected on the dashboard matches the
patient’s current posture.
To refresh the application at any time, swipe from the
top of the screen down.
Dashboard Features
• Heart Rate (BPM, beats per minute)
• Respiration Rate (BrPM, breaths per minute)
• Body or Skin Temperature (Celsius or Fahrenheit)
– If using a VitalPatch with rmware 1.4.0.x or
earlier, the Skin Temperature will be displayed.
– If using a VitalPatch with rmware 3.2.0.x or
later, the Body Temperature will be displayed.
• Activity (Steps)
• Posture. Can be: Lying Down, Leaning, Running,
Standing, Walking, or Unknown.
• Fall Detection. Displays either “No Falls Detected” or
“Fall Detected” if a fall event is detected. To clear
(acknowledge) the event, tap the Acknowledge
button in the Fall Detection tile.
• Live ECG (mV/s, scale 10mm/mV at 25mm/s). ECG
data is a deployment option controlled by the care
provider and therefore may not be displayed here.
The following are displayed when data are collected
from supported devices or entered manually:
• Blood Oxygen Saturation (as %SpO2)
• Blood Pressure (mmHg, systolic and diastolic)
• Weight (pounds or kilograms)
VistaTablet Device Name
Find the device name in the lower-right corner of the
dashboard, or from the Menu (About VistaPoint).
Section 8: Using the VistaPoint Dashboard
VistaTablet Battery Life
VitalPatch ID
Main Menu
VitalPatch
Hours Remaining
Live ECG from
VitalPatch
VistaTablet
Device Name
Heart Rate
Respiration Rate
Body or Skin
Temperature
Current Posture
Fall Detection
Activity (Steps)
Oxygen Saturation
See Section 12, 15, or 16
Blood Pressure
See Section 13 or 17
Weight
See Section 14 or 19

9
Menu
Disconnect Patch
Menu
Calibrate Posture
Calibrate Temperature
Flash Patch LED
Start New Patient
Discharge Patient
About VistaPoint
Help
Disconnect Patch
Main Menu
The Menu is in the top-right corner of the dashboard. It
has the following options:
• Disconnect Patch: Use when monitoring is complete
or to pair a new VitalPatch. This option maintains
the pairing with third-party devices.
• Calibrate Posture: Use this to recalibrate posture if
the display does not match the actual posture.
• Calibrate Temperature: Use this to recalibrate the
body temperature. If using a VitalPatch that does
not support body temperature, selecting this menu
option will display a unit setting screen.
• Flash Patch LED: See below.
• Start New Patient: End monitoring session and
restart with new devices.
• Discharge Patient: End monitoring session and
disconnect all devices.
• About VistaPoint: Show information about the
VitalPatch, the VistaTablet (including device name),
and the VistaPoint application.
• Help: Displays an instruction that help is available
from the home screen (accessed by pressing the
Home button).
Flash Patch LED
The pairing between VistaPoint and the VitalPatch can
be checked by selecting Flash Patch LED from the Menu.
Tap Begin Flash LED and watch for the light on the
VitalPatch. It will ash for several seconds. If you do
not see the LED ash on the VitalPatch, you may need
to disconnect and reconnect by following the steps in
Section 7 on Page 6.
Recalibrate posture
Recalibrate body
temperature
Flash Patch LED
Flash LED
The Flash LED procedure can help
identify a VitalPatch by temporarily
flashing the green LED on the patch.
Cancel
Green
LED
Begin Flash LED
1. Disconnect VitalPatch in VistaPoint
When monitoring is complete, select Disconnect
VitalPatch from the VitalPatch menu. Select one of the
following options:
• Disconnect VitalPatch: Choose this option if you will
be applying a new VitalPatch.
• Discharge Patient: Choose this option if you will NOT
be applying a new VitalPatch. All devices will be
disconnected.
2. Remove VitalPatch
To remove the VitalPatch, see Section 3 on page 3.
If a new VitalPatch will not be applied, turn o the
VistaTablet by pressing and holding the Power Key on
the VistaTablet until the Options menu displays, and
then select Power Off. See Section 1 on page 2 for more
information.
Discharge or Disconnect
Choose one of the following discharge/disconnect options:
Disconnect Vital
Patch and
continue moni
toring patient.
Discharge patient f
rom the
moni
toring system.
Cancel
Section 9: When Monitoring is Complete
Tap “Disconnect
Patch”
Choose a Disconnect Option

10
Using the Optional Adhesive Overlay
to Prevent “VitalPatch Off Body”
If the VitalPatch will be exposed to conditions where
lifting and patch-o may occur, you may apply an
optional adhesive overlay to help keep the VitalPatch
adhered to the skin. See Section 6 on Page 5.
Use only the approved adhesive overlay described in
IFU-09, Adhesive Overlay Instructions for Use. The
use of other adhesives or tape is not recommended
and will prevent proper operation of the VitalPatch
and will void the warranty of the VitalPatch. DO NOT
use the adhesive overlay if the VitalPatch has already
lifted o the skin. The overlay may be used if the
VitalPatch begins to peel up at the edges but has not
lost contact with the skin.
Message: “VitalPatch Off Body”
Indicates that the VitalPatch detects that it was
removed.
• If removal was intentional, tap Disconnect Patch to
end the monitoring session.
• If removal was not intentional, inspect the
VitalPatch for adhesive peel-o or lifting on the
edges. If the adhesive looks intact, press the
VitalPatch down against the skin to re-adhere and
tap Wait for Reconnect.
Successful Reconnection After “VitalPatch Off Body”
If reconnection after “VitalPatch O Body” is
successful, a “Posture Calibration Required” message
will be displayed (see gure below). Tap Calibrate to
begin the posture recalibration process. See Step 5 and
6 beginning on Page 6.
If you do not recalibrate, VistaPoint will not provide
you with respiration rate or posture while out of
calibration. Accuracy of fall detection and body
temperature is also considered invalid. Heart rate and
live ECG will continue to update continuously.
When to Replace VitalPatch After “VitalPatch Off Body”
Replace the VitalPatch if:
• The VitalPatch does not reconnect after several
minutes.
• The “VitalPatch O” message continues.
• The VitalPatch cannot be reapplied by pressing
down to re-adhere.
• The VitalPatch partially or completely falls o the
skin.
If replacing the VitalPatch, select Disconnect Patch from
the Menu. See Section 9 on page 9.
Section 10: Routine Events During Monitoring
Calibration Required
after “VitalPatch Off
Body”
VitalPatch with Adhesive Overlay Applied
Waiting for VitalPatch
to be reattached
VitalPatch b008bf_012345 Off Body
If the VitalPatch is okay, select “Wait
for Reconnect”.
If the VitalPatch has been removed
from the body, or is no longer needed,
select “Disconnect Patch”
Wait for Reconnect Disconnect Patch
Check that the VitalPatch biosensor is properly adhered to the skin.
Waiting for VitalPatch
Waiting for VitalPatch to be reattached to
the skin.
More Information...
Posture Calibration Required
The VitalPatch Biosensor requires
calibration. Select “Calibrate” to begin the
process.
Calibrate
VitalPatch
Overlay
Skin

11
Message: “VitalPatch Not Detected”
Indicates that the VitalPatch is out of range and/or has
lost Bluetooth connection.
• If disconnection was intentional, tap Disconnect
Patch to end the monitoring session.
• If disconnection was not intentional, check that the
VitalPatch is within Bluetooth connection range,
and then tap Wait for Reconnect. Wait for up to one
minute for the VitalPatch to automatically
reconnect. When the VitalPatch returns within
range of the tablet, it will automatically reconnect.
This message may also be cleared by choosing
Disconnect Patch and then repeating the connection
process in Section 7 on page 6.
Note: When the VitalPatch disconnects from the
VistaTablet, the VitalPatch will continue to save vital
sign data for up to 10 hours. After reconnecting, this
saved data will automatically be uploaded to the
VistaTablet.
Message: “Patch Expires” or “Replace
VitalPatch”
When the remaining hours on the VitalPatch are low,
the dashboard will display “Patch Expires” warnings
that show how many hours remain. Replace the
VitalPatch before the expiration time. If the time limit is
exceeded, the VitalPatch will be disconnected and the
dashboard will display a “Replace VitalPatch”
message. See Section 9 on page 9 for more information.
Message: Posture Calibration Required
If posture becomes “Unknown”, VistaPoint will direct
you to perform the posture calibration procedure
again. Additionally, if the displayed posture does not
match the actual posture, you must recalibrate the
posture. To do this, select Posture Settings from the
VitalPatch menu and then tap Calibrate.
Message: Body Temperature Needs Calibration
If the body temperature displays “Needs Calibration”,
you must perform a recalibration. See Section 11 on
page 12.
Message: “Fall Detected”
If the VitalPatch detects a fall, VistaPoint displays a
yellow “FALL Detected” alert on the dashboard. If this
occurs, contact your care team.
To clear the fall notication, tap the Acknowledge
button on the dashboard only when directed by your
care team.
FALL
Detected
Acknowledge
Calibration Required
The VitalPatch Biosensor requires
calibration. Select “Calibrate” to begin the
process.
Calibrate
Waiting for VitalPatch
to return to connection
range
WARNING: Patch Expires in 2 Hours
The VitalPatch Biosensor has less than 2
hours of battery life remaining. Replace as
soon as possible.
OK
Replace VitalPatch
The VitalPatch Biosensor has expired and
needs to be replaced. Select “Disconnect
Patch” below and dispose of patch properly.
Disconnect Patch
VitalPatch Life
is Low
VitalPatch
Expired
VitalPatch b008bf_012345 Not Detected
If the Patch is Out of Range
If the Patch Has Been Removed
Make sure the VitalPatch is in range.
The VitalPatch biosensor will auto-
reconnect when back in range.
If the VitalPatch biosensor has been
removed from the body, or auto-
reconnect does not occur, select
“Disconnect Patch”.
Wait for Reconnect Disconnect Patch
Waiting for Patch to Reconnect
Waiting for patient to return to connection
range. The VitalPatch biosensor will auto-
reconnect when back in range.
More Information...
Posture
Unknown
Temperature Calibration Required
The VitalPatch Biosensor requires temperature
calibration. Select “Calibrate” to begin
CalibrateNot Now

12
Confirm Recalibration
Do you want to recalibrate the temperature?
This will require you to take a manual
temperature reading.
Recalibrate
Temperature Calibration
Fahrenheit (°F)Celsius (°C)
Take Temperature
Step 2
Take patient’s temperature using a clinical-grade
thermometer. Enter value and select Calibrate.
Step 1 Select Units
Cancel
Calibrate
Take Oxygen Saturation
Manual Entry
Use Bluetooth
SpO
2
Value (0-100)
%
98
Clear Values Enter
Take Oxygen Saturation
Confirm SpO2 value of 98%?
No, Re-enter value Yes
Section 12: Entering Oxygen Saturation Manually
Section 11: Recalibrating Body Temperature
This procedure is for manual entry only. If you are
performing automatic entry with a paired Bluetooth
device, refer to Section 15 on page 14 (for Nonin 3230) or
Section 16 on page 15 (for Nonin 3150).
1. Use a pulse oximeter to measure your blood
oxygen saturation (%SpO2).
2. Tap Take SpO2 in the Oxygen Saturation tile.
3. Tap Manual Entry (if not already selected).
4. Tap the entry eld. Use the on-screen keyboard to
enter the measured value then tap Enter. If you
make a mistake, tap Clear Values to start over.
5. Conrm the entered value:
– If the value displayed is correct, tap Yes.
– If the value is not correct, tap No, Re-enter value
and then re-enter the value.
Enter
Value
Tap Take SpO2
Begin Manual Entry
Conrm
Entered Value
Recalibrate
Body Temperature
Select Units
Enter Temperature
When using a VitalPatch that supports the body
temperature feature, you should recalibrate body
temperature each day between the hours of 09:00 and
21:00. The VistaPoint dashboard may also prompt you
to recalibrate the body temperature as necessary.
To recalibrate the body temperature:
1. Measure temperature with a clinical-grade
thermometer.
2. Tap the Menu button and then tap Calibrate
Temperature (or tap the Body Temperature tile on
the dashboard).
3. Tap the units (Celsius °C or Fahrenheit °F).
4. Enter the temperature and tap Calibrate. The
VistaPoint dashboard will be displayed once
calibration is complete.
Menu
Calibrate Posture
Calibrate Temperature
Flash Patch LED
Disconnect Patch
Take SPO2

13
Take Weight
Take BP
Take Blood Pressure
Manual Entry
Use Bluetooth
Systolic BP (0-299)
Diastolic BP (0-299)
mmHg
mmHg
126
84
Clear Values Enter
Take Blood Pressure
Confirm Blood Pressure value of126/84 mmHg?
No, Re-enter value Yes
Section 13: Entering Blood Pressure Manually
This procedure is for manual entry only. If you are
performing automatic entry with a paired Bluetooth
device, refer to Section 17 on page 17.
1. Use a blood pressure device to measure your
blood pressure.
2. Tap Take BP in the Blood Pressure tile.
3. Tap Manual Entry (if not already selected).
4. Tap the rst entry eld. Use the on-screen
keyboard to enter the two measured values and
then tap Enter. If you make a mistake, tap Clear
Values to start over.
5. Conrm the entered values:
– If the values displayed are correct, tap Yes.
– If the values are not correct, tap No, Re-enter
value and then re-enter the value.
Tap Take BP
Section 14: Entering Weight Manually
Take Weight
Manual Entry
Use Bluetooth
Weight value
206.6
Clear Values Enter
Pounds
Take Weight
Confirm Weight value of 206.6 lbs?
No, Re-enter value Yes
This procedure is for manual entry only. If you are
performing automatic entry with a paired Bluetooth
device, refer to Section 18 on page 18.
1. Use a weight scale to measure your weight in
pounds or kilograms.
2. Tap Take Weight in the Weight tile.
3. Tap Manual Entry (if not already selected).
4. Select the correct weight units (pounds or
kilograms).
5. Tap the entry eld. Use the on-screen keyboard to
enter the measured value then tap Enter. If you
make a mistake, tap Clear Values to start over.
6. Conrm the entered value:
– If the value displayed is correct, tap Yes.
– If the value is not correct, tap No, Re-enter value
and then re-enter the value.
Enter
Values
Enter
Value
Select
Units
Conrm
Entered Value
Conrm
Entered Value
Tap Take Weight
Begin Manual Entry
Begin Manual Entry

14
Nonin Model 3230 (Fingertip)
Take Oxygen Saturation
Pair New
Use Bluetooth
Manual Entry
Currently using Bluetooth Upload.
No device is currently paired. Select
Pair New to begin the pairing process. Tap Pair New
Tap Nonin
Model 3230
Tap Bluetooth ID
Apply to
Finger
Scanning for Devices
Devices Found:
00:0B:57:AC:0B:13
Section 15: Using a Bluetooth Device to Upload Oxygen Saturation (Fingertip)
The Nonin Model 3230 is an optional pulse oximeter
device that measures blood oxygen saturation
(%SpO2) and uploads readings automatically using
Bluetooth. It is clipped onto your ngertip. Use only as
directed by your care team.
Refer to the Nonin Medical Model 3230 Operator’s
Manual for basic instructions on setting up the device,
usage instructions, and error messages.
1. Find the Bluetooth ID (Optional)
Note: This step is optional, and is only necessary when
using the Model 3230 in an environment where
multiple similar devices are being used (such as a
hospital).
To nd the Bluetooth ID, turn the unit on its side and
nd the etched numbers on the clip. The Bluetooth ID
begins with “BDA”.
2. Pair New in VistaPoint
a. Tap Take SpO2 in the Oxygen Saturation tile.
b. Tap Use Bluetooth.
c. Tap Pair New.
d. Tap Nonin Model 3230 as the model.
e. Apply the Model 3230 to the nger. This will
automatically turn on the device and place it in
pairing mode (indicated by a white Bluetooth
symbol on the display).The unit will begin
measuring.
f. “Scanning for Devices” will display. Tap the
Bluetooth ID of the pulse oximeter when it
appears. It should match the ID in Step 1 above.
After you tap the Bluetooth ID, the current oxygen
saturation value will be measured, you will be
returned to the dashboard.
Note: If you see a message asking you to conrm
the device pairing, tap Conrm.
g. Pairing is now complete. Remove Model 3230 from
nger.
Bluetooth ID
Apply to
Finger
NOTE: If the device has already been paired, go directly
to Step 3 “Take A Reading” below.
Tap Use Bluetooth
Take SPO2
Begin Pairing

15
%SPO2
Standby Mode (Spot)
97
Take SpO2
Oxygen Saturation
Nonin 3230 00:0B:57:AC:66:DA
Last Reading:
2 Minutes Ago
Take SPO2
Section 16: Using a Bluetooth Device to Upload Oxygen Saturation (Wrist)
The Nonin Model 3150 is an optional pulse oximeter
device that measures blood oxygen saturation
(%SpO2) and uploads readings automatically using
Bluetooth. It is worn continuously on the wrist and
uses a separate ngertip sensor. Use only as directed
by your care team.
Refer to the Nonin Medical Model 3150 Operator’s
Manual to perform the following tasks:
• Unpack the device and install batteries.
• Attach the wristband.
• Attach the sensor. Note that dierent sensor types
are available. Use only the type recommended by
your care team.
1. Find the Bluetooth ID (Optional)
Note: This step is optional, and is only necessary when
using the Model 3150 in an environment where
multiple similar devices are being used (such as a
hospital).
Turn the Model 3150 wrist unit over and examine the
label. The Bluetooth ID begins with “BDA”. You will
need this for Step 4 below.
2. Put Device in Pairing Mode
Remove and reinstall the batteries on the Model 3150
wrist unit. This places the Model 3150 in pairing mode
(the wrist unit display turns on and displays a
Bluetooth Symbol). The unit will remain in pairing
mode for 2 minutes.
Model 3150 Wrist Unit
Fingertip Sensor
3. Take a Reading (After Pairing)
a. Tap Take SpO2 in the Oxygen Saturation tile.
b. Tap Use Bluetooth (if not already selected).
c. Tap Take Reading.
d. Apply the Model 3230 to the nger. The unit will
automatically turn on and being measuring.
e. VistaPoint displays “Please wait connecting...”
while it retrieves the current reading. When the
reading is complete, the oxygen saturation will be
displayed on the dashboard, with an indicator of
when the reading was taken.
If the oxygen saturation value is not displayed,
repeat the pairing process (Step 2 on previous page).
f. Remove from nger when reading is complete.
Take a Reading
Bluetooth ID
NOTE: If the device has already been paired, go directly
to Step 4 “Start Continuous Measurement” below.
Reading
Complete
Bluetooth Symbol
Take
Reading
Apply to
Finger

16
Please wait connecting...
Cancel
Reading
Connecting to Nonin 3150 with Device
Address 00:0B:57:AC:66:DA
To cancel reading, click
Cancel Reading
%SPO2
Streaming Mode
98
Disconnect
Oxygen Saturation
Nonin 3150 00:0B:57:AC:66:DA
Nonin Model 3150 (Wrist)
3. Pair New in VistaPoint
a. Put device in pairing mode (previous step).
b. Tap Take SpO2 in the Oxygen Saturation tile.
c. Tap Use Bluetooth.
d. Tap Pair New.
e. Tap Model 3150 as the model.
f. “Scanning for Devices” will display. Tap the
Bluetooth ID of the pulse oximeter when it
appears. It should match the ID in Step 1 above.
Note: If you see a message asking you to conrm the
device pairing, tap Conrm.
4. Start Continuous Measurement
(After Pairing)
a. Tap Take SpO2 in the Oxygen Saturation tile.
b. Under “Use Bluetooth” check that the correct
pulse oximeter is displayed (if not correct, tap Pair
New). Tap Take Reading.
c. Apply the Model 3150 wrist unit to the wrist. Attach
the ngertip sensor to the nger.
d. VistaPoint displays “Please wait connecting...” and
then beings to display a continuous (streaming)
oxygen saturation value on the dashboard.
If the oxygen saturation value is not displayed,
repeat the pairing process (Step 3 above).
e. Monitor battery life and replace as necessary. With
continuous use a set of batteries will last up to 24
hours.
If the Model 3150 monitoring session is complete, tap
Disconnect in the Oxygen Saturation tile. This will
remove the pairing between VistaPoint and the Model
3150.
Take Oxygen Saturation
Pair New
Use Bluetooth
Manual Entry
Currently using Bluetooth Upload.
No device is currently paired. Select
Pair New to begin the pairing process.
Tap Nonin
Model 3150
Tap Bluetooth ID
Streaming
Begins
Scanning for Devices
Devices Found:
00:0B:57:AC:0B:13
Tap Pair New
Tap Use Bluetooth
Start Continuous
Measurement
Take SPO2
Begin Pairing
Take SPO2
Take
Reading
Apply to Wrist
and Fingertip

17
mmHg
Standby Mode
136 /
83
Take BP
Blood Pressure
A&D UA-651 - 3C:A3:08:07:98:59
Last Reading:
2 Minutes Ago
Take Blood Pressure
Pair New
Use Bluetooth
Manual Entry
Currently using Bluetooth Upload.
No device is currently paired. Select
Pair New to begin the pairing process.
Model UA-651-BLE
Section 17: Using a Bluetooth Device to Upload Blood Pressure
The A&D UA-651 is an optional blood pressure monitor
that can upload blood pressure readings automatically
using Bluetooth. Use only as directed by your care
team.
Refer to the A&D Model UA-651 Instruction Manual for
basic instructions on setting up the device, including
installing batteries and using the blood pressure cu.
1. Find the Bluetooth ID (Optional)
Note: This step is optional, and is only necessary when
using the UA-651 in an environment where multiple
similar devices are being used (such as a hospital).
To nd the Bluetooth ID, turn the base unit over and
nd the label above the battery compartment. The
Bluetooth ID begins with “BT”. You will need this for
Step3 below.
2. Put Device in Pairing Mode
On the base unit, hold down the START button until “Pr”
is displayed. It is now in pairing mode.
3. Pair New in VistaPoint
a. Put base unit in pairing mode (previous step).
b. Tap Take BP in the Blood Pressure tile.
c. Tap Use Bluetooth.
d. Tap Pair New.
e. Tap Model UA-651 as the model.
f. “Scanning for Devices” will display. Tap the
Bluetooth ID of the blood pressure device when it
appears. It should match the ID in Step 1 above.
Note: If you see a message asking you to conrm the
device pairing, tap Conrm.
4. Take a Reading
a. Tap Take BP in the Blood Pressure tile.
b. Tap Use Bluetooth (if not already selected).
c. Tap Take Reading.
d. Put on the blood pressure cu and press the START
button on the base unit to take a reading.
VistaPoint displays “Please wait connecting...” while it
retrieves the current reading. When the reading is
complete, the blood pressure will be displayed on the
dashboard, with an indicator of when the reading was
taken. If the blood pressure is not displayed, repeat the
pairing (Steps 2 and 3 above).
Blood Pressure Cuff Model UA-651 Base Unit
START
Button
Bluetooth ID
Select UA-651-BLE Select Bluetooth ID
Reading
Complete
Scanning for Devices
Devices Found:
00:0B:57:AC:0B:13
NOTE: If the device has already been paired, go directly
to Step 4 “Take A Reading” below.
Tap Pair New
Tap Use Bluetooth
Begin Pairing
Take BP
Take BP
Take a Reading
Take
Reading
Apply Cuff and
Press START

18
The A&D UC-352 is an optional weight scale that can
upload weight readings automatically using Bluetooth.
Use as directed by your care team.
Refer to the A&D Model UC-352 Instruction Manual
for basic instructions on setting up the scale,
including installing batteries and selecting weight
units.
1. Put Scale in Pairing Mode
Flip the scale over and hold down the SET button until
“Pr” is displayed on the front. The SET button can be
found between the label and the battery
compartment. The scale is now in pairing mode.
2. Pair New in VistaPoint
a. Put scale in pairing mode (previous step).
b. Tap Take Weight in the Weight tile.
c. Tap Use Bluetooth.
d. Tap Pair New.
e. Tap Model UC-352 as the model.
f. “Scanning for Devices” will display. Tap the
Bluetooth ID of the scale when it appears.
Note: If you see a message asking you to conrm the
device pairing, tap Conrm.
3. Take a Reading
a. Tap Take Weight in the Weight tile.
b. Tap Use Bluetooth (if not already selected).
c. Tap Take Reading.
d. Step on the scale. Step o the scale when it beeps
and displays “Step O”.
VistaPoint displays “Please wait connecting...” while it
retrieves the current reading. When the reading is
complete, the weight will be displayed on the
dashboard, with an indicator of when the reading was
taken. If the weight is not displayed, repeat the pairing
process (Steps 1 and 2 above).
Pounds
Standby Mode
190.4
Take Weight
Weight
A&D UC-352 - 98:08:57:AC:66:DA
Last Reading:
2 Minutes Ago
Take Weight
Pair New
Use Bluetooth
Manual Entry
Currently using Bluetooth Upload.
No device is currently paired. Select
Pair New to begin the pairing process.
Model UC-352-BLE
Section 18: Using a Bluetooth Device to Upload Weight
Press
SET Button
Bluetooth ID
Battery
Compartment
Label
FLIP
Select UC-352-BLE Select Bluetooth ID
Begin Pairing
Scanning for Devices
Devices Found:
00:0B:57:AC:0B:13
NOTE: If the device has already been paired, go directly
to Step 3 “Take A Reading” below.
Tap Use Bluetooth
Tap Pair New
Take Weight
Take Weight
Reading
Complete
Take a Reading
Take
Reading
Step on
Scale

19
If you use a cellular connection:
Check the cellular signal indicator in the status
bar. If there is no signal, move the VistaTablet to a
place with good signal.
If you use a Wi-Fi connection:
Check the Wi-Fi signal indicator in the status bar.
If there is no Wi-Fi, you will need to connect to a
Wi-Fi network. See Adding a Wi-Fi Connection below.
Section 19: Troubleshooting
Message: Cloud Connection Lost
Message: No Wireless Connection
Message: Vital Sign Data Loss
If you see one of these messages, it indicates that the
VistaTablet does not have a wireless connection, and
cannot upload vital sign data to the cloud. See
instructions below for Checking Your Wireless Connection.
If these problems persist, contact your care team for
further guidance.
Message: Cloud Service Down
If you see this message, it indicates that the cloud
service is not operational at this time. Tap OK to
dismiss the message. No additional action is
necessary; the issue will be resolved as soon as
possible by the service provider.
Adding a Wi-Fi Connection
1. Press the Home Key and then tap the Wi-Fi Center
icon.
2. If Wi-Fi is OFF, tap the Turn ON Wi-Fi button to turn
Wi-Fi ON.
3. Tap the name of the network you want to connect
to. Enter the password (if asked) and tap CONNECT.
4. Tap Back to close the Wi-Fi Center.
Checking Your Wireless Connection
5:45 PM
100%
Good
Signal
No
Signal
Cellular Signal
Indicator
5:45 PM
100%
Good
Wi-Fi
No
Wi-Fi
Wi-Fi Signal
Indicator
Home Key
– OR –
Are you sure you want to turn on WiFi?
Yes No
Select network and enter password
Cloud Service Down
The cloud service is currently down. This
problem will be resolved soon. OK
No Wireless Connection
Vital sign data may be lost because the
memory on your VistaTablet device is almost
full. To resolve this issue, restore your wireless
connection (WiFi or cellular) as soon as
possible. OK
Cloud Connection Lost
The VistaTablet device is not currently
uploading data to the cloud. Check that your
device has a good wireless signal (WiFi or
cellular). If this problem persists, contact
your healthcare provider. OK
WARNING: Vital Sign Data Loss
Vital sign data is being lost because the memory on your
VistaTablet device is full. To resolve this issue, restore your
wireless connection (WiFi or cellular) as soon as possible.
If this problem persists, contact your
healthcare provider. OK

20
Dashboard Stops Responding
If vital signs do not appear to be updating or the
screen becomes unresponsive (for example, when
pairing devices), you can refresh the current view by
dragging your nger across the display and then
releasing.
Cannot Power-On VistaTablet
If the VistaTablet does not turn on by pressing the
power key (see Section 1 on Page 2), perform a restart
as follows:
1. Plug VistaTablet into the charger. If the battery is
completely discharged, the VistaTablet may need
several minutes to recharge before you can restart
the device (next step).
2. Restart the VistaTablet by holding the Power and
the Volume Down keys (next to the Power button)
down for a few seconds and then releasing.
3. A “Maintenance Boot Mode” screen will be
displayed (see gure to the right). Use the Volume
Up and Volume Down keys to highlight “1. Normal
Boot”.
4. Press the Home key to conrm your selection. The
VistaTablet will now start normally.
Bluetooth Connection Issues
If VistaPoint has issues connecting to or
disconnecting from the VitalPatch, the following steps
are recommended:
• Ensure that the VitalPatch is turned ON. Note that
you cannot connect to a VitalPatch that has
reached the end of its lifespan. Replace the
VitalPatch as necessary.
• Reattempt connection to the VitalPatch through
VistaPoint. See Section 7 on page 6.
• If you are still unable to connect to the VitalPatch,
consider moving to a location that may have less
Bluetooth interference.
Drag nger down
display to refresh
Power
Hold both Power and Volume Down keys
down for a few seconds and then release
Use Volume Up and Volume Down to change selection.
Press the Home key to conrm.
Volume Down
==================================================================
Maintenance Boot Mode
Use the volume up/down keys to move highlight
and the home key to select.
==================================================================
(*) 1. Normal Boot : Restart your device normally.
( ) 2. Factory Reset : Warning!, Erases all data and application
( ) 3. Safe Mode : Temporarily disable third party application.
( ) 4. Power down : Turn off your device.
VitalConnect, Inc.
224 Airport Parkway, Suite 300, San Jose, CA 95110 | [phone] | www.vitalconnect.com | [email protected]
© 2019 VitalConnect. A list of our trademarks can be found at www.vitalconnect.com. All other marks may be trademarks of their respective companies.
